Ventmed Sleep Monitoring Device Polygraphy to Help Sleep Study for People with Osa

1 / 5

Ventmed Sleep Monitoring Device Polygraphy to Help Sleep Study for People with Osa

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

SF-A9

Certification

MSDS, ISO13485

Group

Middle-aged and Old

LED Display

2.8-Inch TFT

Advantage

Suitable and High Accurate

Function

Sleep Apnea Diagnosis

Feature

Compact, Light and Convenient

Weight

176g (Exclude Sensor)

Dimensions

125mm(L) X 80mm(W) X 24mm(H)

HS Code

9018199000

Production Capacity

500 Set/ Month

Product Description

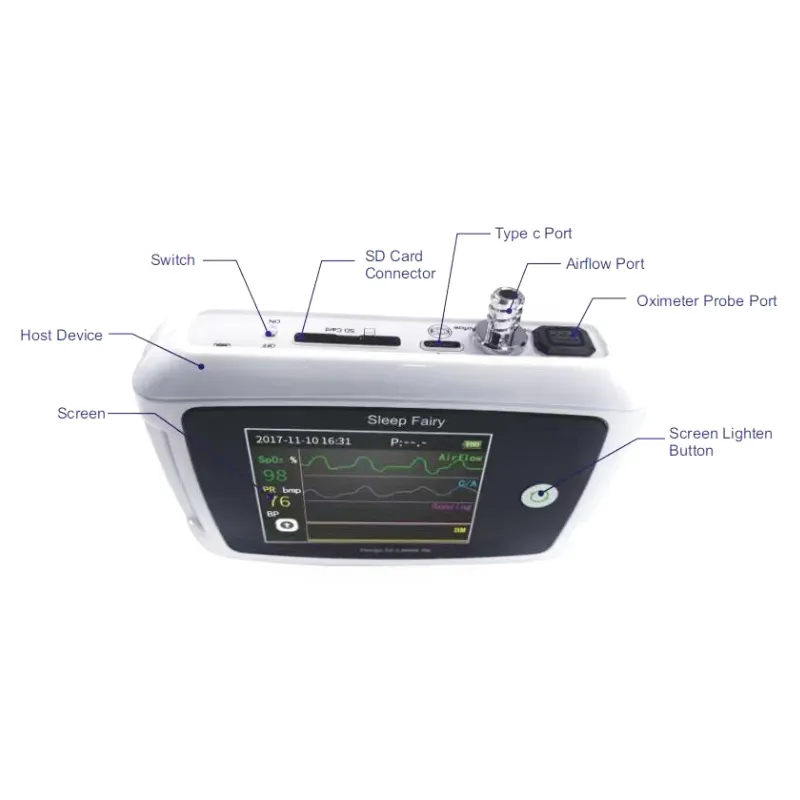

Product Structure

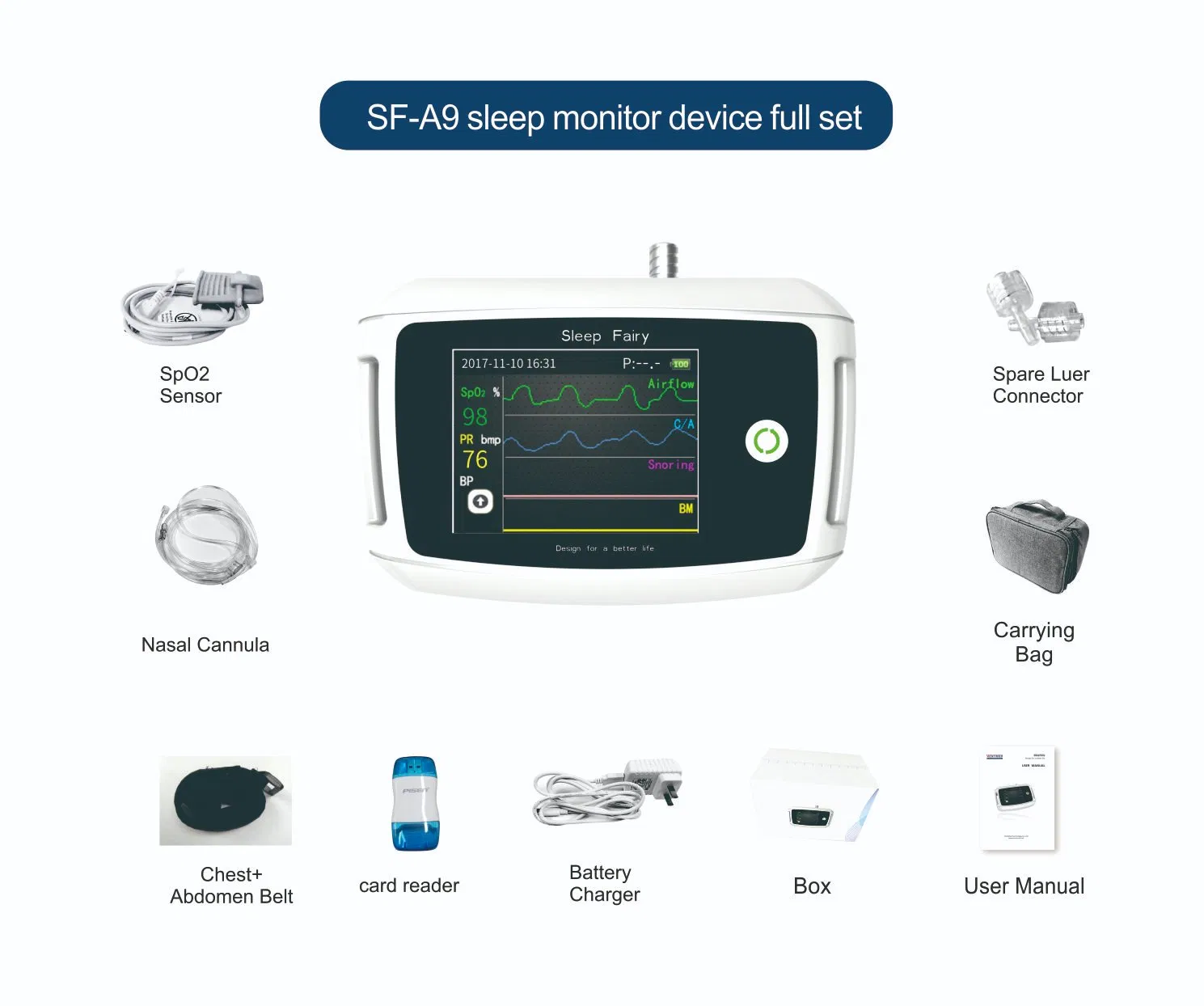

SF-A9 Package Includes:

Host device
Carrying bag
Oximeter probe
User Manual
SD card reader
Adapter
2 x Spare Luer connector
2 x Nasal cannula
2 x Fixing belt

Specifications

Recorded Channels	Airflow, snore, Thoracic/Abdominal movement, SpO2, pulse rate, PPG, body position, body movement, CPAP titration
Body Position	Supine, prone, right side, left side, upright
Data Storage	16G SD card
Battery	3.7V, 4000mAh chargeable lithium battery (built-in)
Power Input	Input: 100-240V~, 50/60Hz; Output: 5.0V 2.0A
Screen	2.8 inch TFT, 320 x 240 pixels
Sampling Rate	50-250Hz
Data Resolution	ADC: 12bit(0 - 4095)
SpO2 Range	80%-100% (±2%), 70%-79% (±3%)
Pulse Range	30-240bpm
Device Net Weight	190g with battery
Warranty	One year

Key Advantages

Recording automatically with set start/end times
Real-time monitoring waveform display
Advanced high-precision 3D gyroscope technology
Professional sleep analysis software
Multiple reporting templates with advanced capabilities
Support for CPAP titration
Large capacity rechargeable battery (over 40 hours)
Automatic sleep staging with AI deep learning
Meets AASM standards criteria

Frequently Asked Questions

1. What is the primary function of the SF-A9 device? The SF-A9 is designed for sleep apnea diagnosis and comprehensive sleep monitoring.

2. How long can the device record on a single charge? Equipped with a 4000mAh rechargeable lithium battery, it can provide over 40 hours of continuous recording.

3. Does the device support real-time data viewing? Yes, the 2.8-inch TFT screen allows users to display monitoring waveforms in real-time.

4. What parameters are captured during the sleep study? The device records multiple channels including airflow, snore, thoracic/abdominal movement, SpO2, pulse rate, PPG, and body position.

5. Is the data analysis automated? Yes, the system utilizes AI deep learning for automatic sleep staging and comes with professional sleep analysis software.

6. Is the device portable enough for home use? Absolutely. Weighing only 176g (without sensor) and featuring a compact design, it is highly convenient for mobile and home sleep studies.
