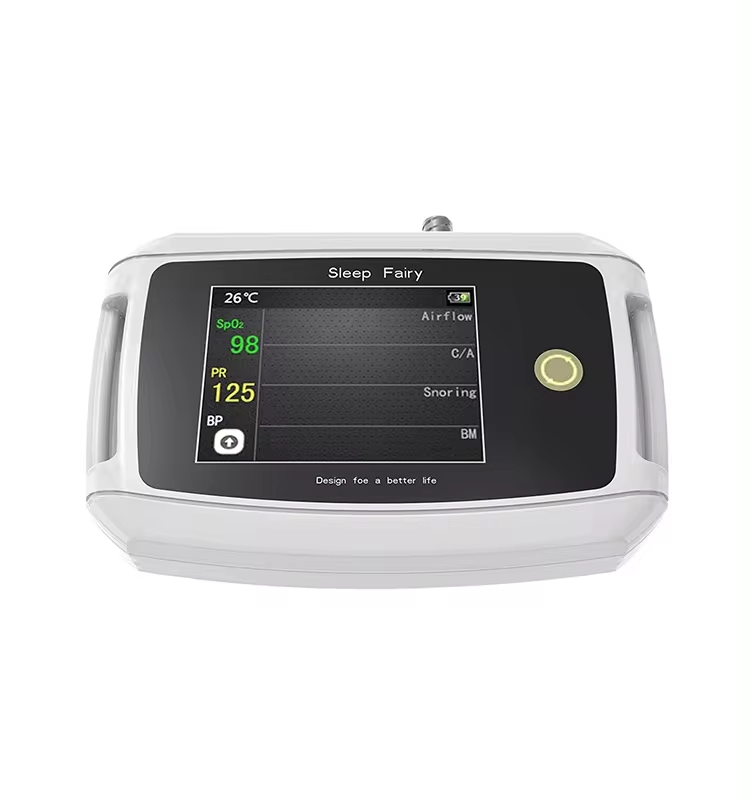

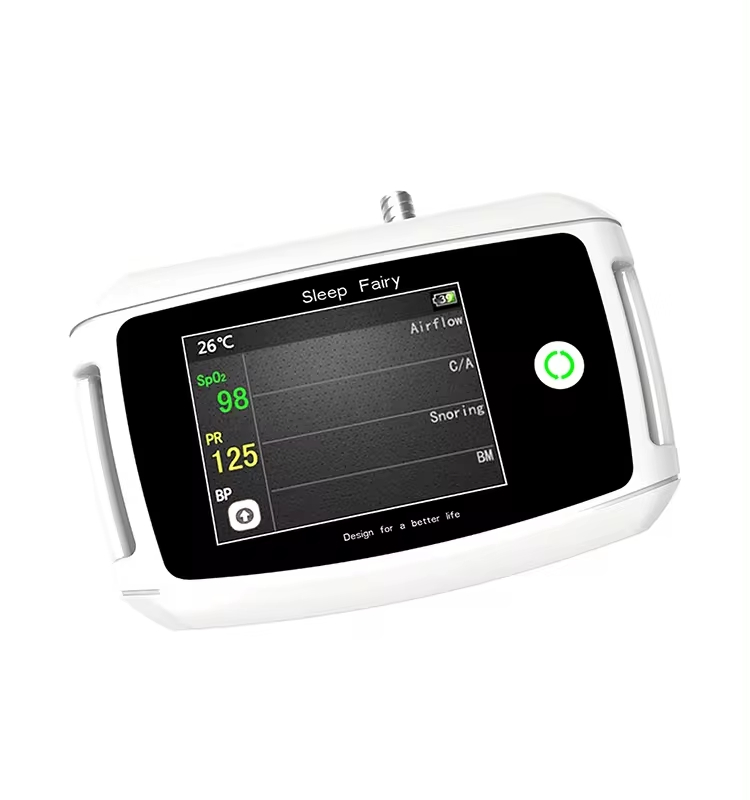

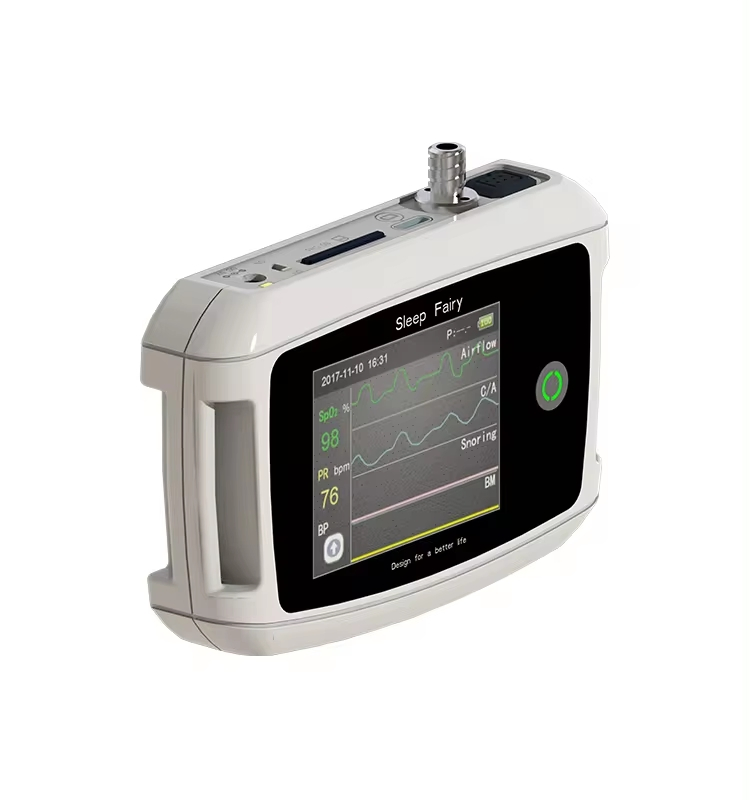

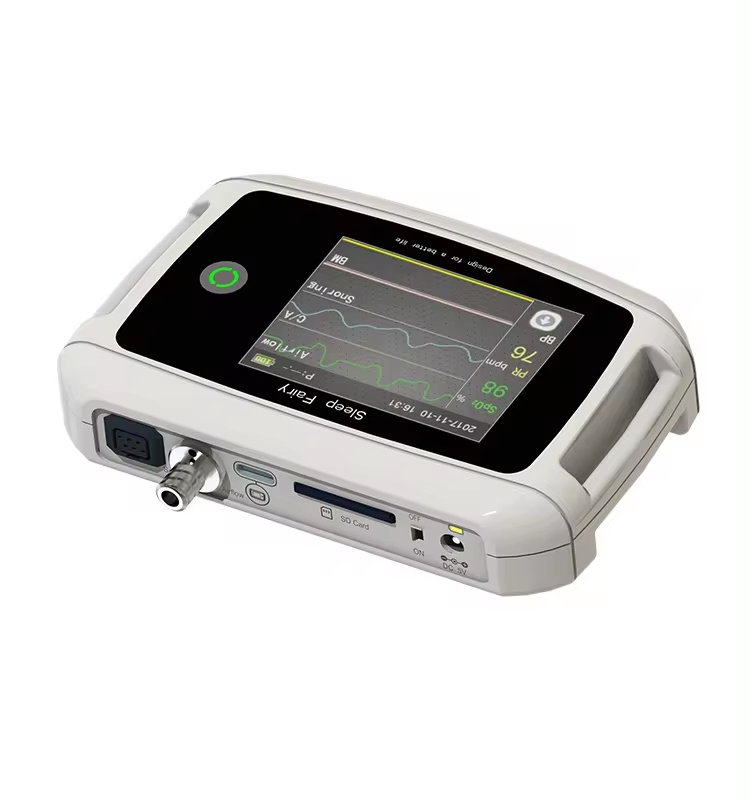

Ventmed Hot Selling Home Sleep Monitoring Equipment Sleep Study Devices

i

Basic Information

Certification

MSDS, ISO13485

Target Group

Middle-aged and Old

LED Display

2.8-Inch TFT

Advantage

Suitable and High Accurate

Function

Sleep Apnea Diagnosis

Feature

Compact, Light and Convenient

Weight

176g (Exclude Sensor)

Dimensions

125mm x 80mm x 24mm

Origin

China

HS Code

9018199000

Capacity

500 Set/ Month

P

Product Description

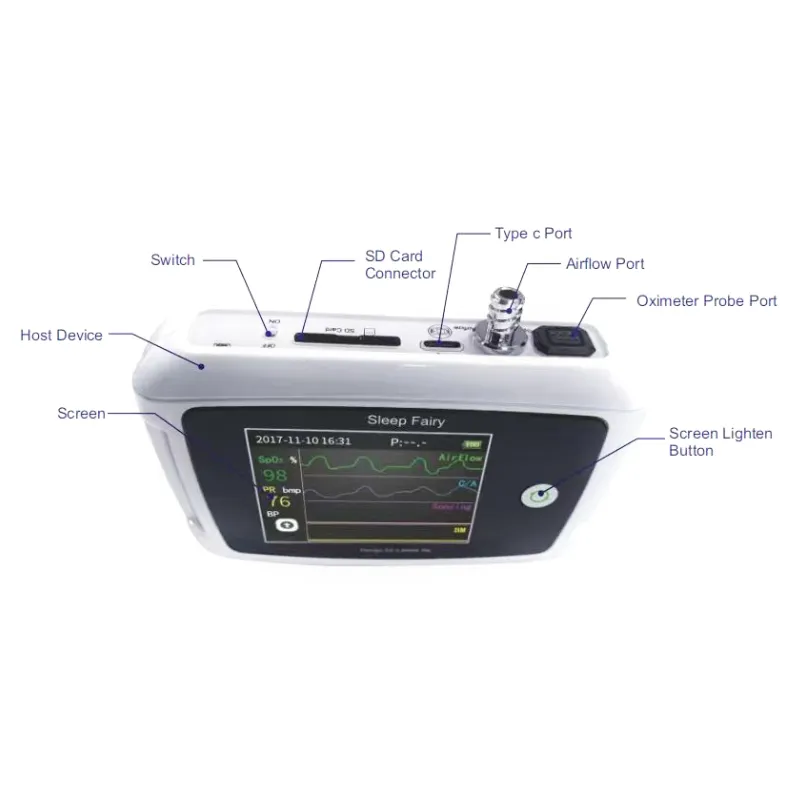

Product Structure

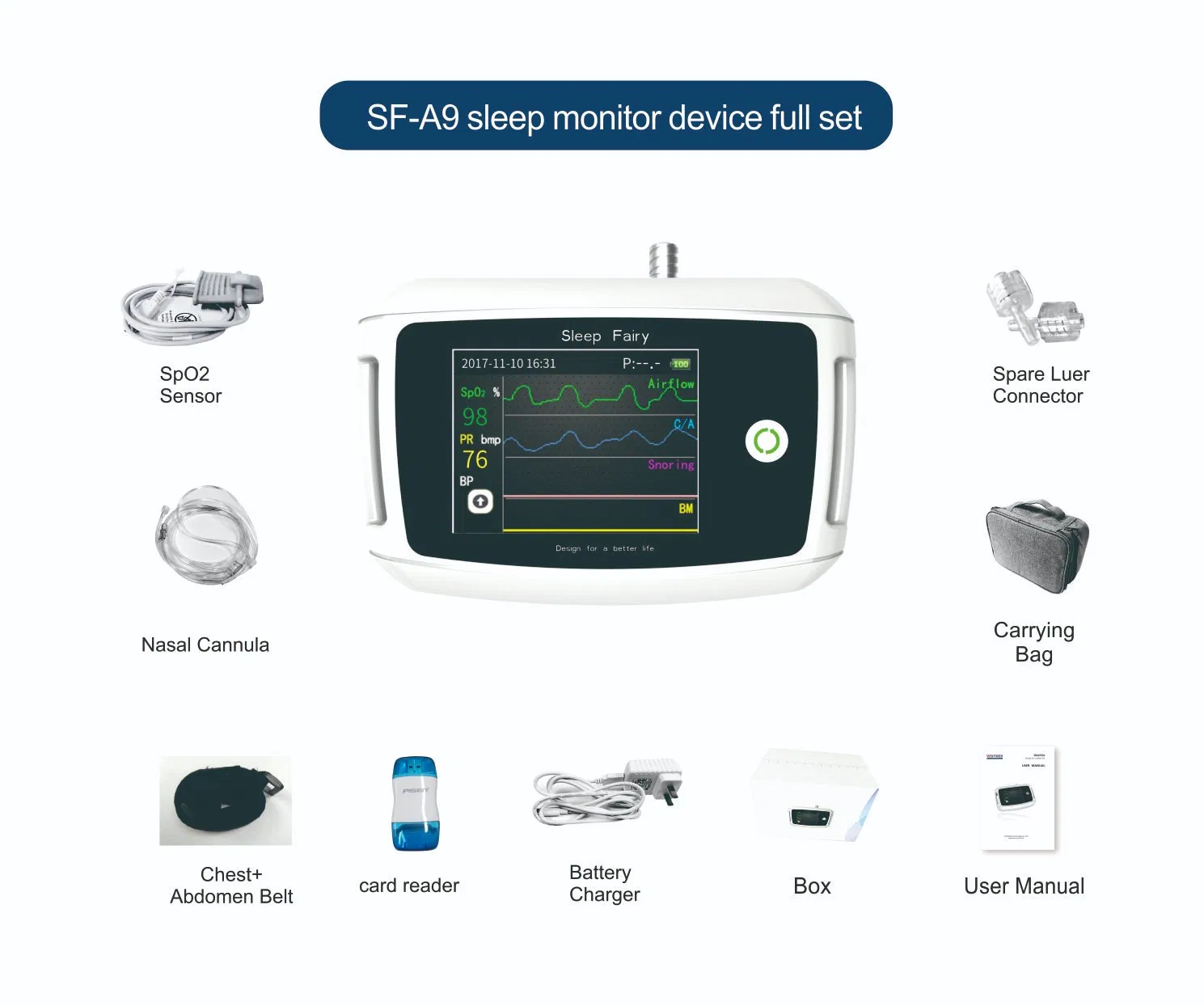

Standard Kit Includes:

Host device

Carrying bag

Oximeter probe

User Manual

SD card reader

Adapter

2 x Spare Luer connector

2 x Nasal cannula

2 x Fixing belt

S

Technical Specifications

Recorded channels	Airflow, snore, Thoracic/Abdominal movement, SpO2, pulse rate, PPG, body position, body movement, CPAP titration
Body position	Supine, prone, right side, left side, upright
Data storage	16G SD card
Battery	3.7V, 4000mAh chargeable lithium battery (built-in)
Power Input	100-240V~, 50/60Hz, 0.5A Max \| Output: 5.0V 2.0A
Screen	2.8 inch TFT, 320 x 240 pixels
Sampling rate	50-250Hz
SpO2 Range	80%-100% (±2%), 70%-79% (±3%)
Pulse Range	30-240bpm
Net Weight	190g with battery
Dimensions	12.5cm L x 8cm W x 2.4cm H
Warranty	One year

A

Key Advantages

Smart Recording: Set the start and end time for automatic recording.

Real-time Monitoring: Display monitoring waveforms instantly on the TFT screen.

3D Gyroscope: Advanced high-precision technology for accurate body position tracking.

AI Analysis: Automatic sleep staging with AI deep learning and professional software.

Long Endurance: Large capacity rechargeable battery lasts over 40 hours.

AASM Standard: Fully meets the criteria of AASM standards for clinical reliability.

?

Frequently Asked Questions

Q1: What are the primary functions of this sleep study device? A: It is designed for home sleep monitoring and diagnosis of Sleep Apnea, recording critical data like airflow, snore, SpO2, and pulse rate.

Q2: How long can the device record on a single charge? A: The device features a 4000mAh rechargeable lithium battery that provides over 40 hours of continuous operation.

Q3: Does the software support automatic report generation? A: Yes, it includes professional sleep analysis software with advanced reporting capabilities and multiple report templates.

Q4: Is the device portable enough for travel? A: Absolutely. It weighs only 176g (without sensors) and comes with a strong carrying case, making it very compact and convenient.

Q5: What parameters does the 3D gyroscope track? A: The advanced 3D gyroscope accurately tracks body positions including supine, prone, right side, left side, and upright movements.

Q6: What is the accuracy of the SpO2 monitoring? A: The device offers high accuracy with a tolerance of ≤±2% within the 80%-100% range and ≤±3% within the 70%-79% range.
