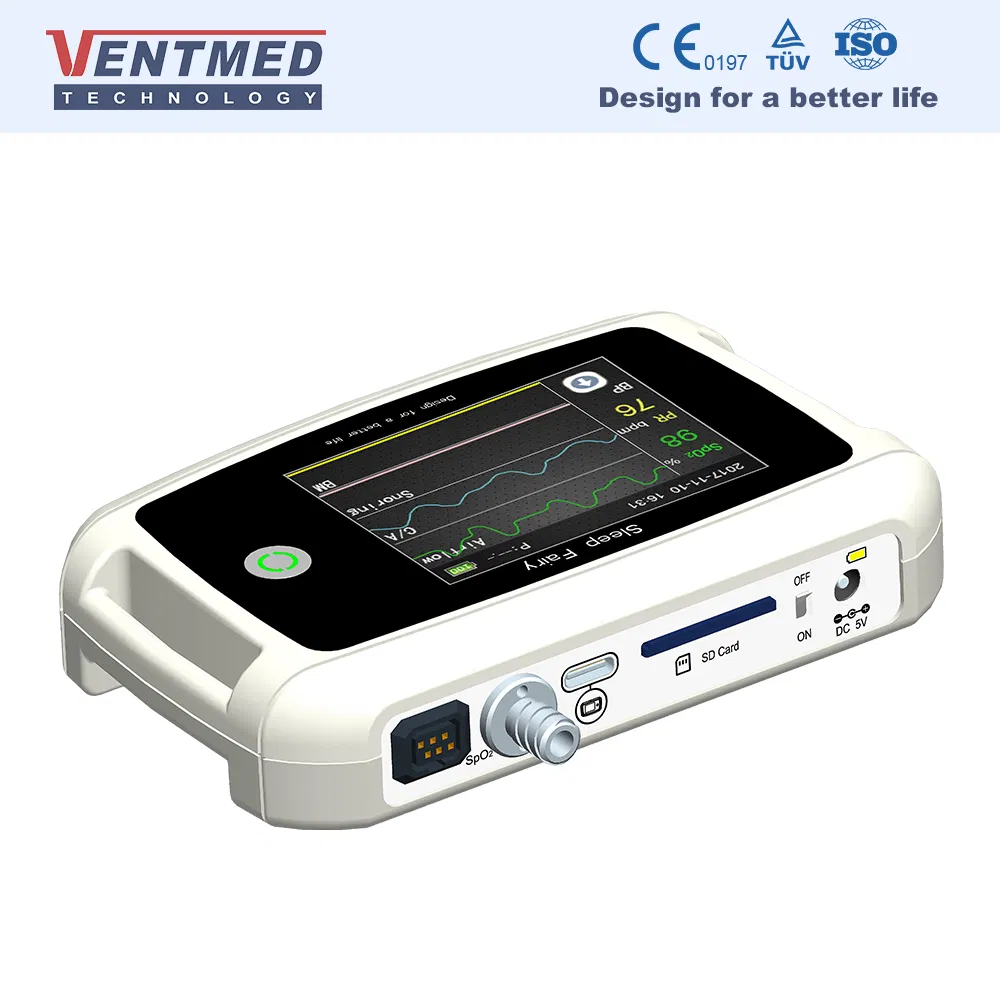

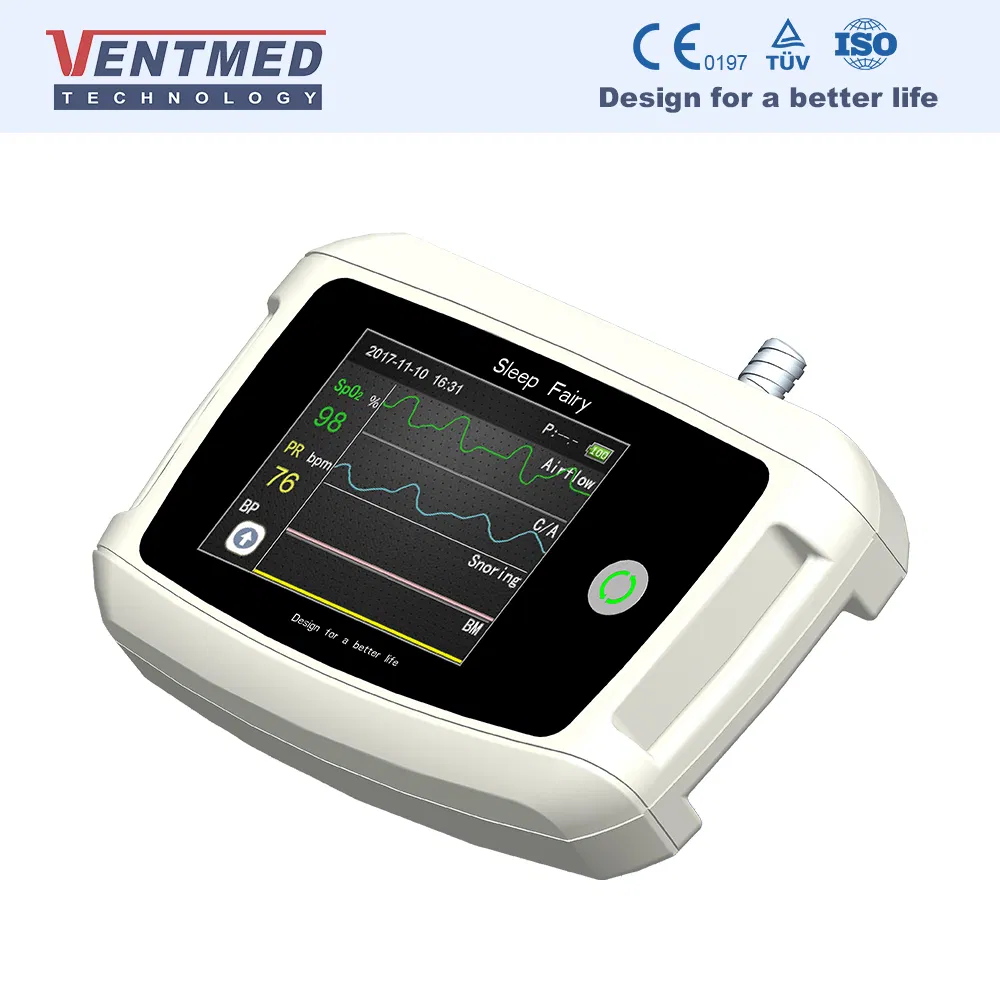

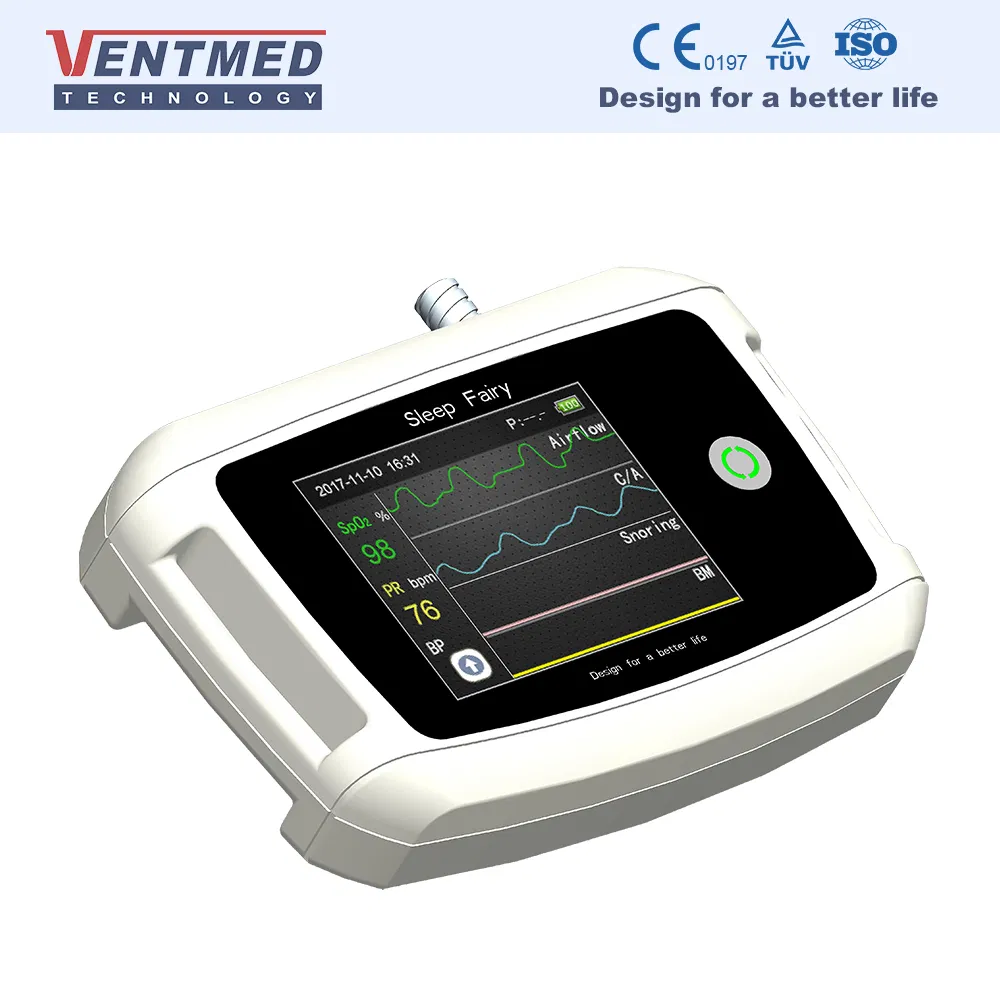

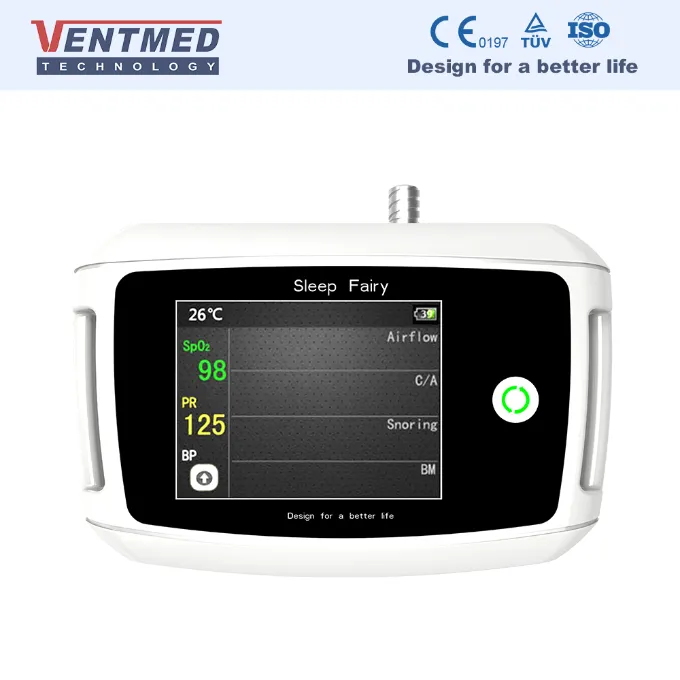

Ventmed Portable Sleep Monitoring Device

Customization:	Available
Data Resolution:	Ad : 12bit
Data Sampling Rate:	50-200Hz

Send Inquiry

Product Description

📋 Basic Information

Model NO.

Storage Date

16g, Over 16000 Hours Data

Communication

SD Card

Screen

2.8 Inch TFT, 320 X 240

Recording Time

30 Hours

Dimensions

12.5cm * 8cm * 2.4cm

Origin

Hunan, China

🔍 Product Overview

A9 Sleep Monitoring Device

Description	Sleep Fairy-A9
9 Parameters	Airflow, Snoring, SpO2, Chest/Abdomen Movement, Pulse, Pulse Waveform, Body Movement, Body Position, CPAP Pressure
Data Sampling Rate	50-200Hz
SpO2 Range	70% - 100%
Pulse	30 - 240 bpm
Battery	Integrated Rechargeable Lithium Battery, 2500 mAh
Device Net Weight	176g with battery

The 9 channels multi-parameter sleep apnea patient monitor device is a brand new intelligent diagnosis system for sleep disorders and sleep apnea. It is suitable for clinic, hospital, sleep centre, and home use study and screening of Sleep Apnea Syndrome (SAS).

Innovative integrated 3D sensor requires only an SpO2 sensor, eliminating the need for extra sensors to achieve the most comfortable sleep diagnosis.

Patients can be tested in the comfort and convenience of their own homes without an observer and with fewer sensors attached to their body. This reduces anxiety, leads to a more natural night of sleep, and improves patient acceptance of test protocol.

The sleep monitor device meets all American Academy of Sleep Medicine (AASM) requirements. It measures Air flow, Snore, SpO2, Pulse Rate, Body Position, Body Movement, Chest Movement, Abdomen Movement, and CPAP Pressure.

🛠️ Product Usage Introduction

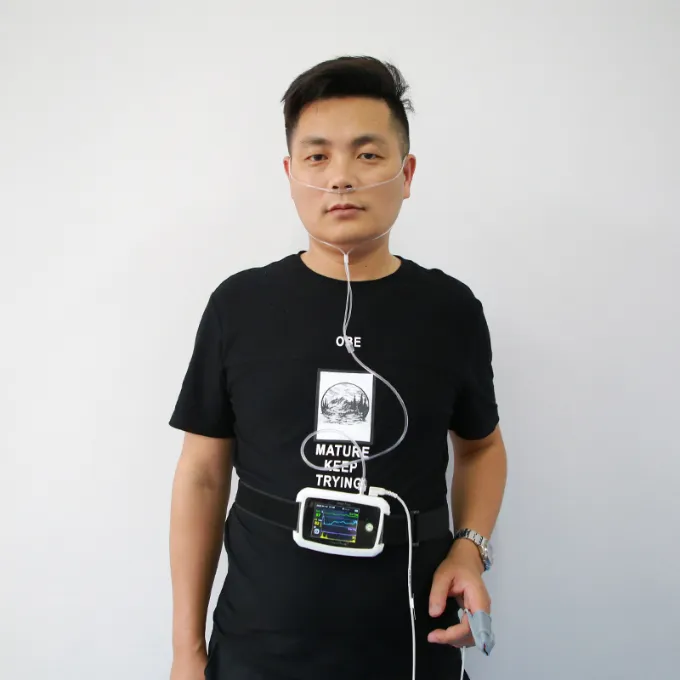

Prepare the supplies. Make sure that the cable is not damaged and the device is powered.

Wear the belt fixing belt. Connect both ends of the strap.

Connect the chest strap to both sides of the machine.

Turn on the upper power button to boot.

Connect the lead wire; the uppermost is the nasal catheter interface.

Tie the waist belt to the abdomen respectively with moderate elasticity.

Install the machine and connect lead wires. The nasal catheter is worn around the ear.

Please shut down in time after use.

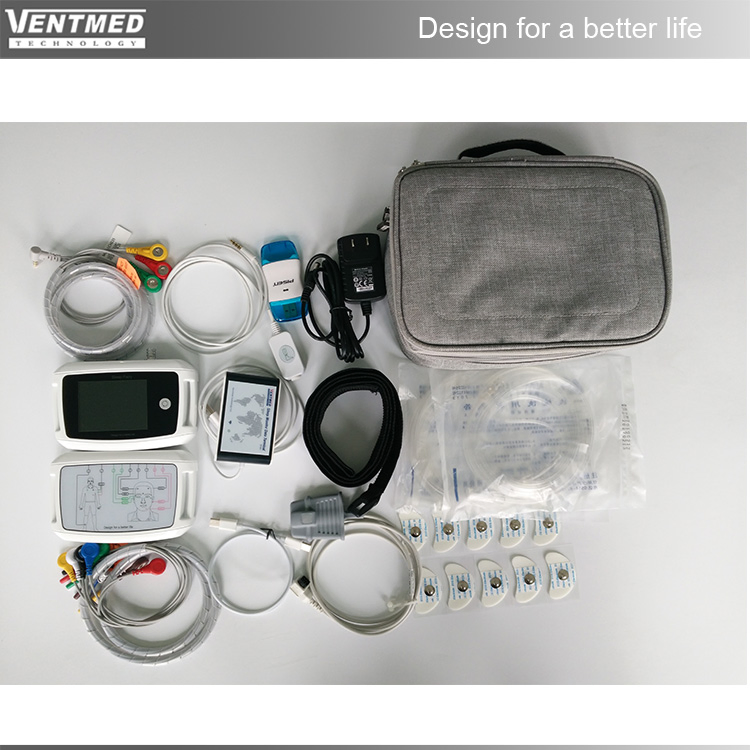

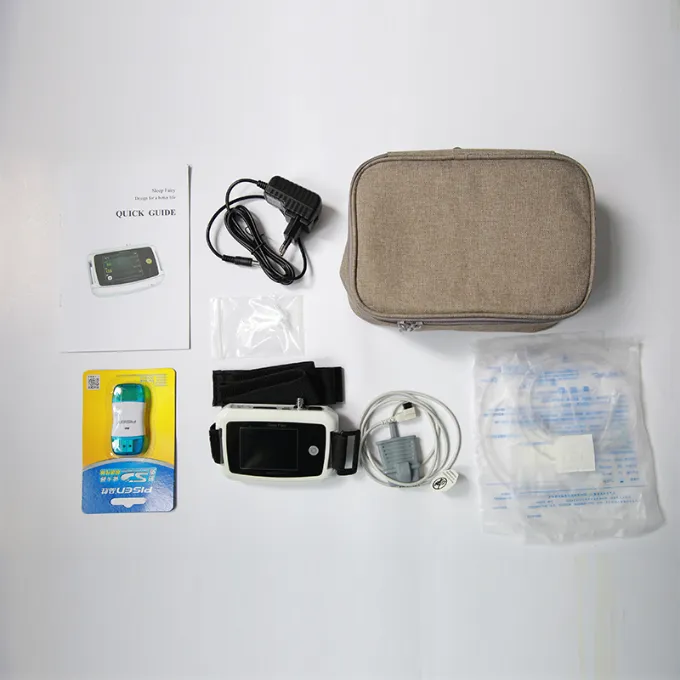

📦 Packing List

1 pcs Host
2 pcs Luer Connector

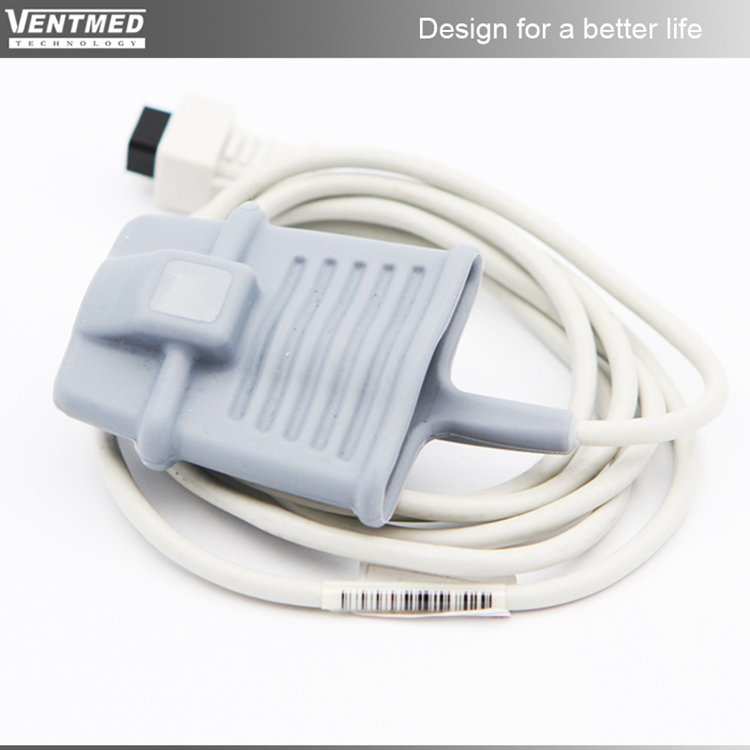

1 pcs SpO2 sensor
2 pcs Nasal Oxygen Cannula
2 pcs fixing band

1 pcs SD card
1 pcs SD card reader
1 pcs Charger
1 pcs Carrying bag

⭐ Our Strengths

2-year warranty and long-time maintenance service.
Professional design team and sales department.
Factory recognized by CE/ISO13485.
7/24 service; inquiries replied within 24 hours.
Stable quality from high-grade materials and technology.

❓ Frequently Asked Questions

1. How many parameters does the A9 device monitor?

The A9 monitors 9 key parameters: Airflow, Snoring, SpO2, Chest/Abdomen Movement, Pulse, Pulse Waveform, Body Movement, Body Position, and CPAP Pressure.

2. Is this device suitable for home use?

Yes, it is designed for intelligent diagnosis in various settings, including clinics, hospitals, sleep centers, and convenient home-use studies.

3. How long can the device record continuously?

The device is equipped with a 2500 mAh rechargeable lithium battery that supports up to 30 hours of continuous recording.

4. What is the storage capacity for sleep data?

The device includes a 16GB SD card, which can store over 16,000 hours of detailed sleep monitoring data.

5. Does it meet international medical standards?

Yes, the sleep monitor meets all American Academy of Sleep Medicine (AASM) requirements and the factory is CE/ISO13485 recognized.

6. What makes the A9 more comfortable than traditional monitors?

It features an innovative integrated 3D sensor. You only need the SpO2 sensor and no extra body sensors, leading to a more natural and anxiety-free night of sleep.
