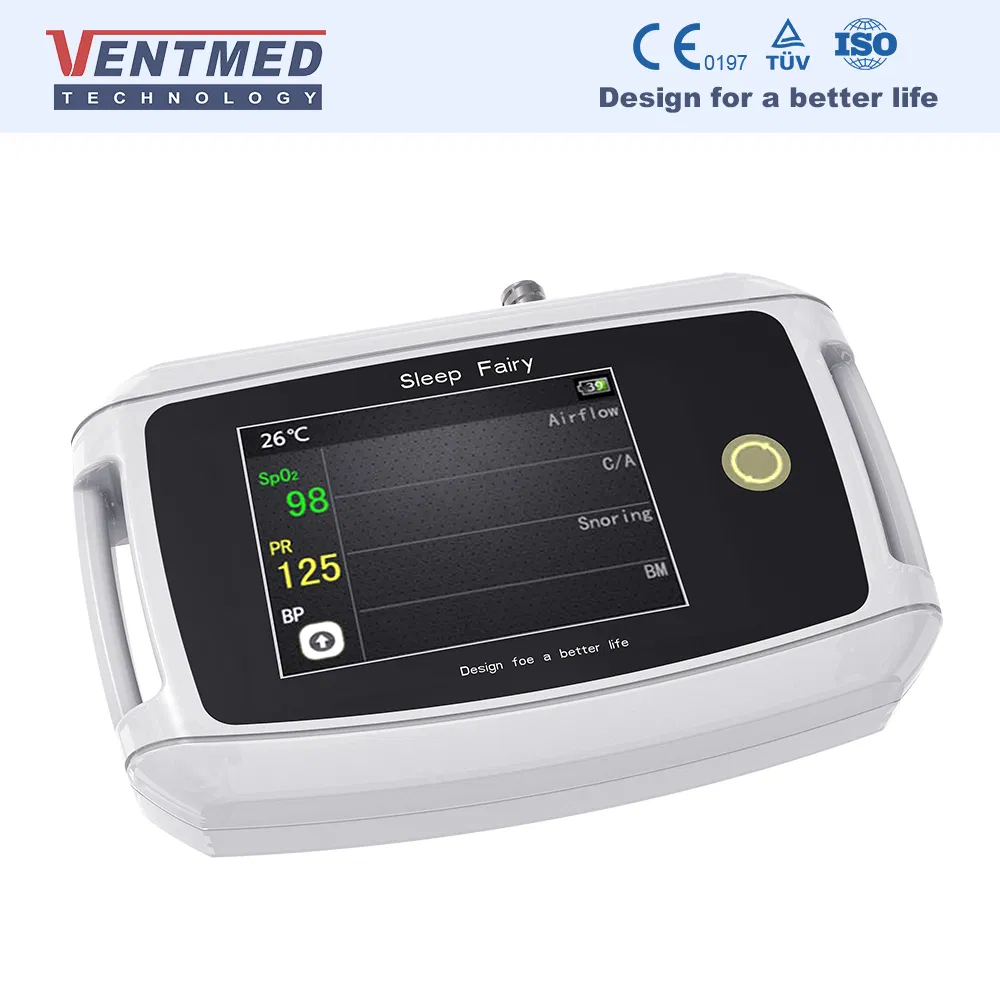

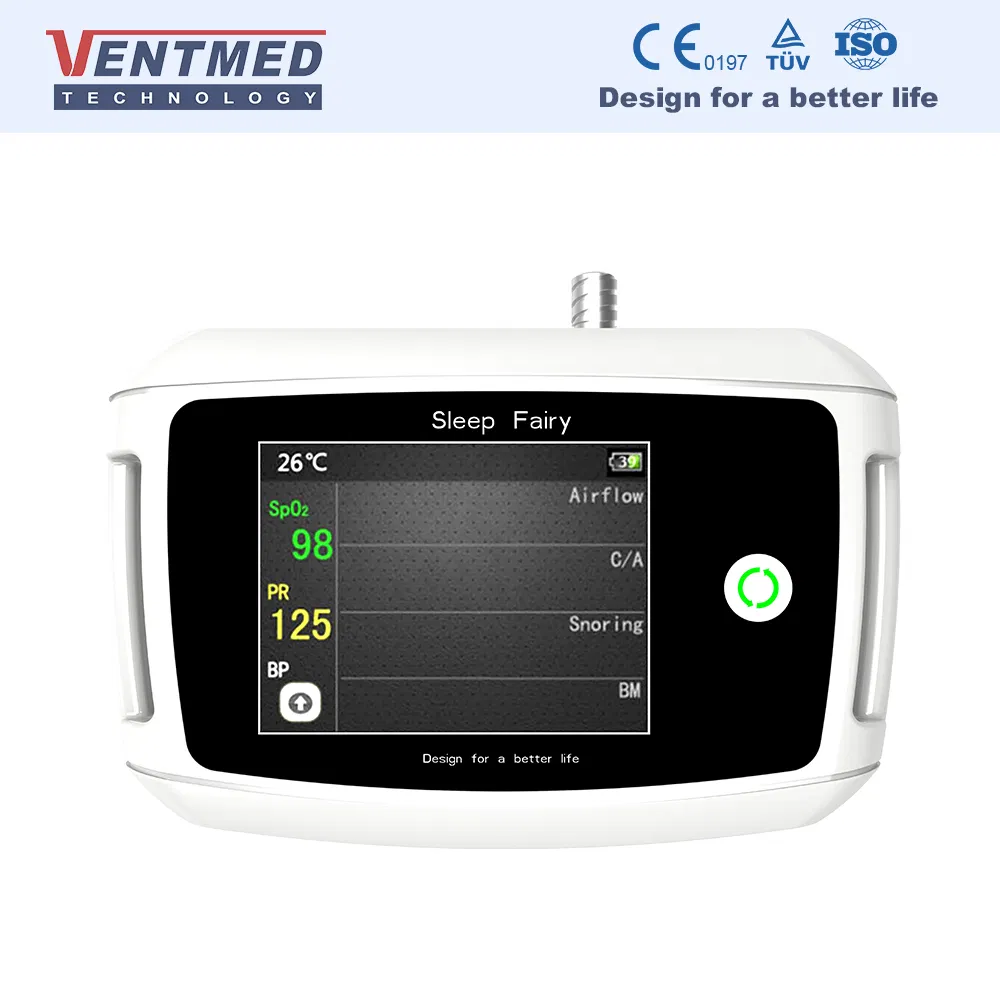

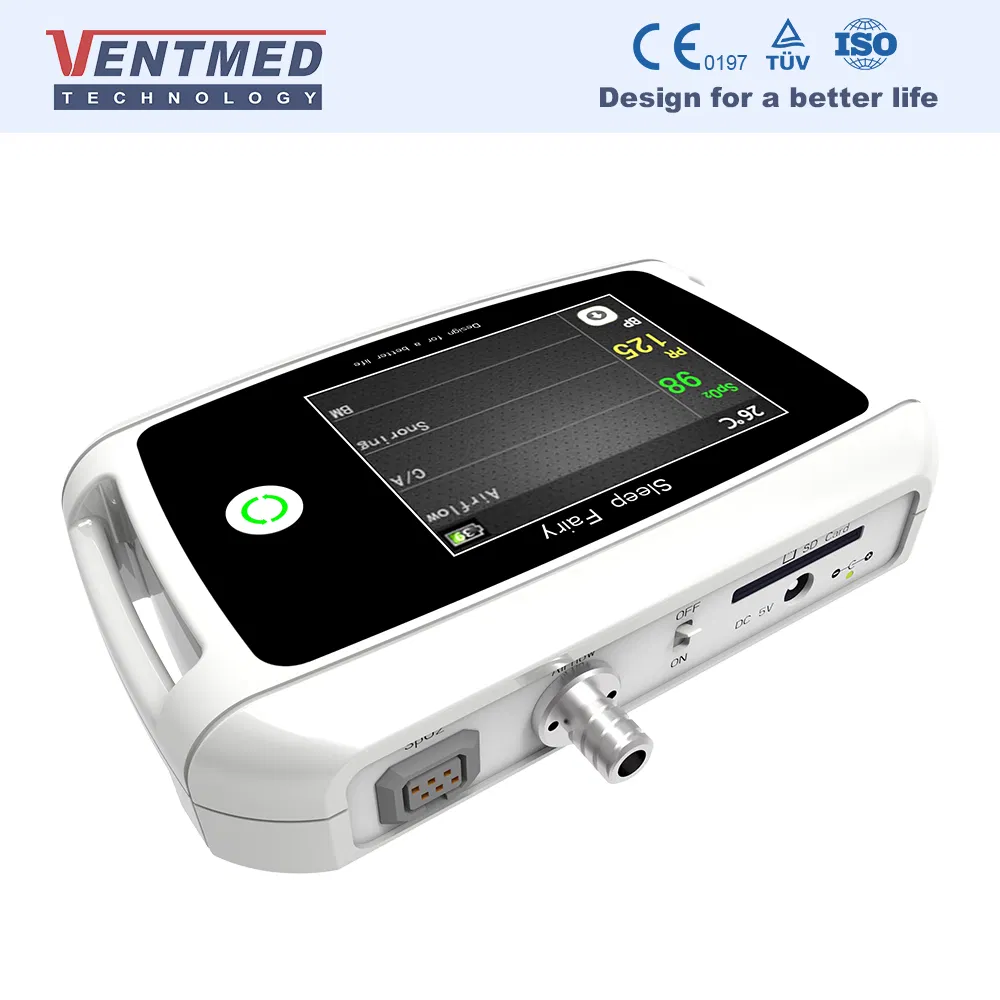

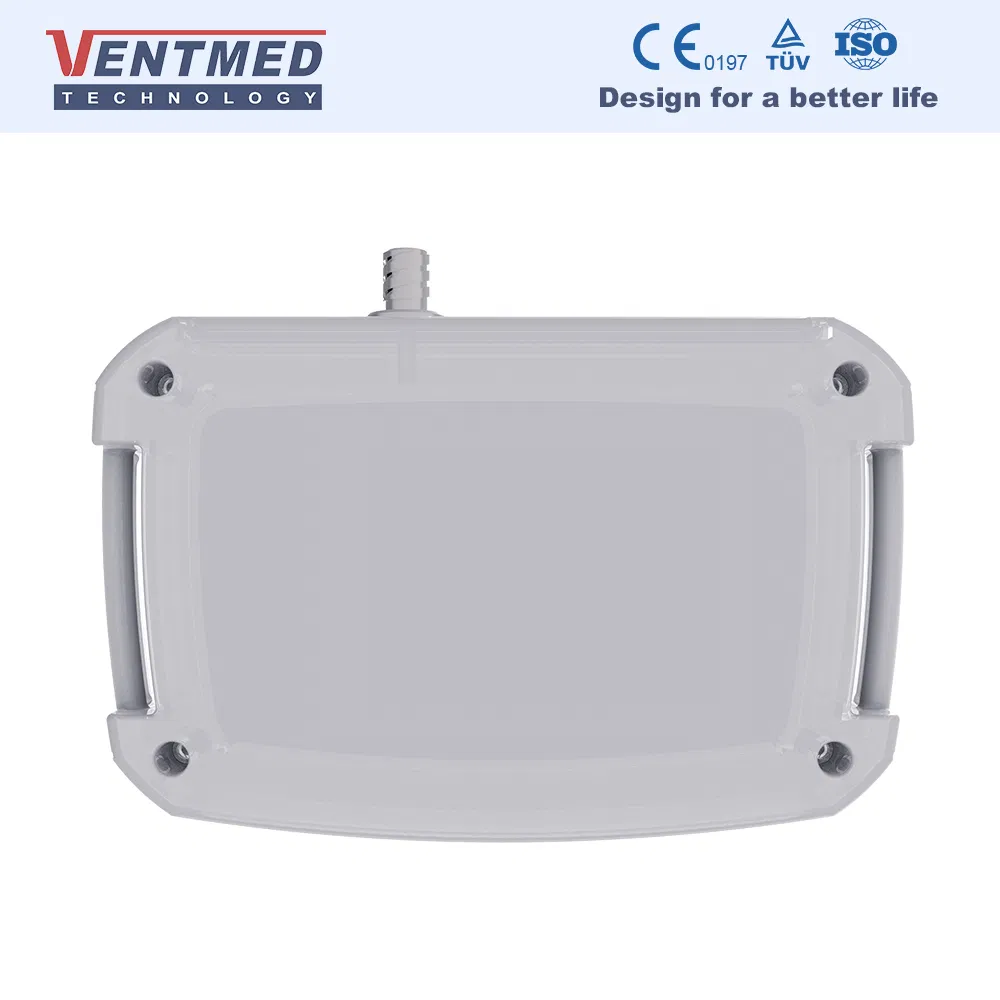

Portable Sleep Monitoring Device for Sleep Disorder Diagnostic
1. Overview of Sleep Monitor
The sleep monitor device is a brand new intelligent diagnosis system for sleep disorders and sleep apnea, which is suitable for clinic, hospital, sleep center, and home usage, especially for the screening of Sleep Apnea Syndrome (SAS). It provides multiple monitor recordings and reports of sleep, for sleep physicians to provide professional treatment proposals and therapy pressure titration.
Patients can be tested in the comfort and convenience of their own homes without an observer and with fewer sensors attached to their body. This reduces anxiety, leads to a more natural night of sleep and improves patient acceptance of test protocol.
This device meets all American Academy of Sleep Medicine (AASM) requirements.

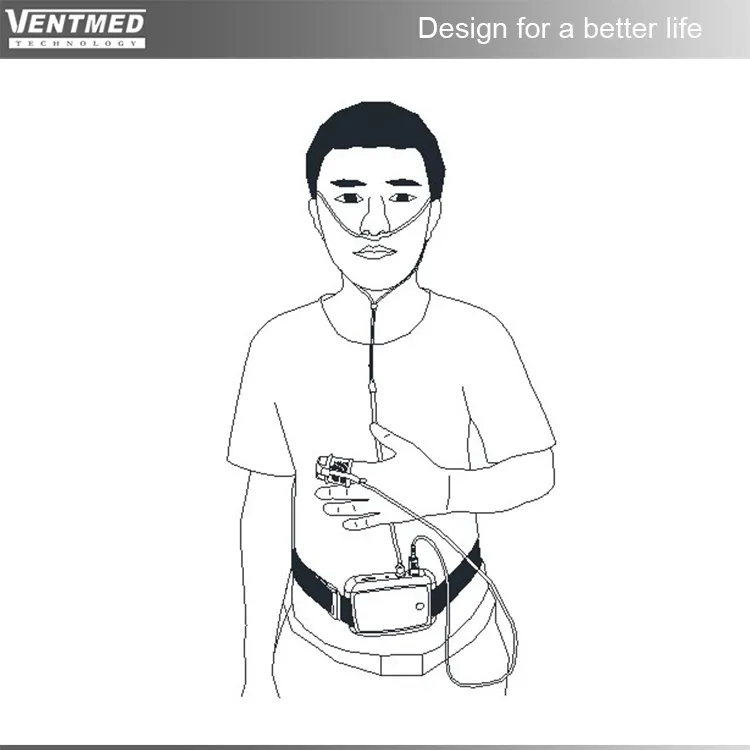

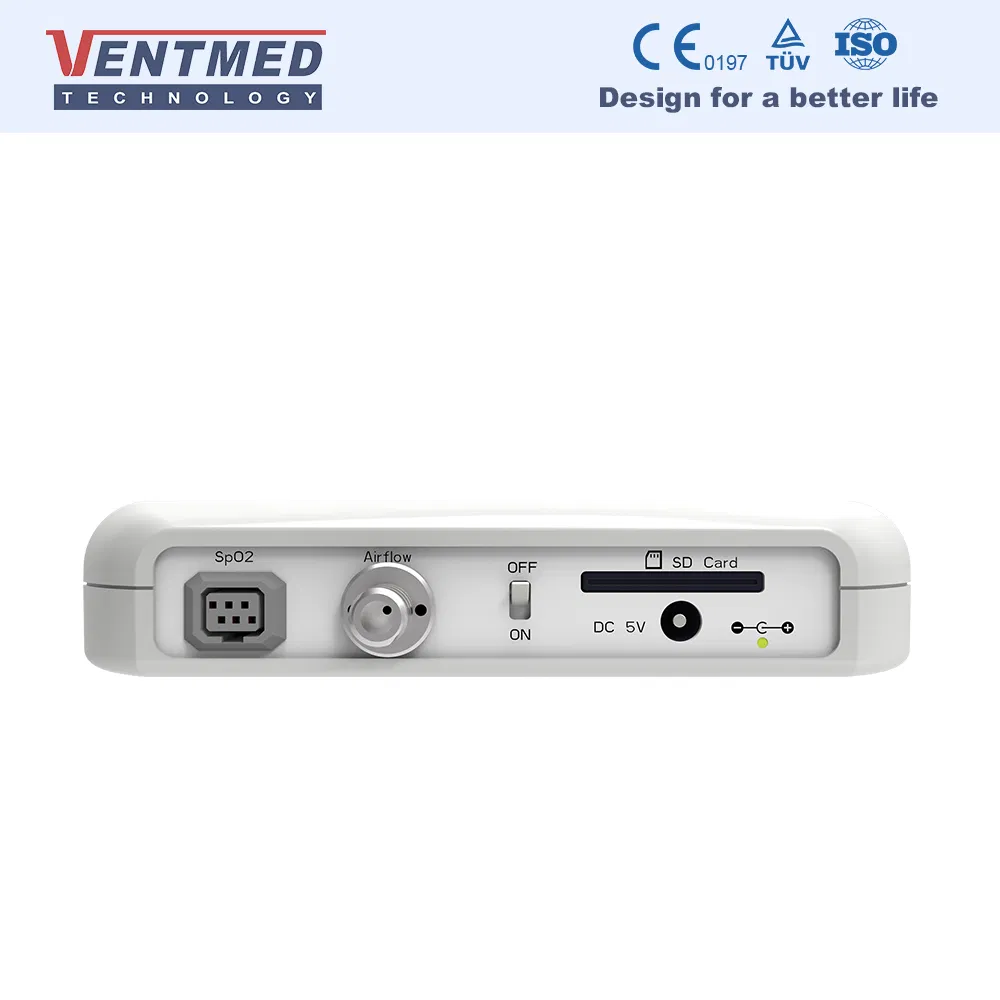

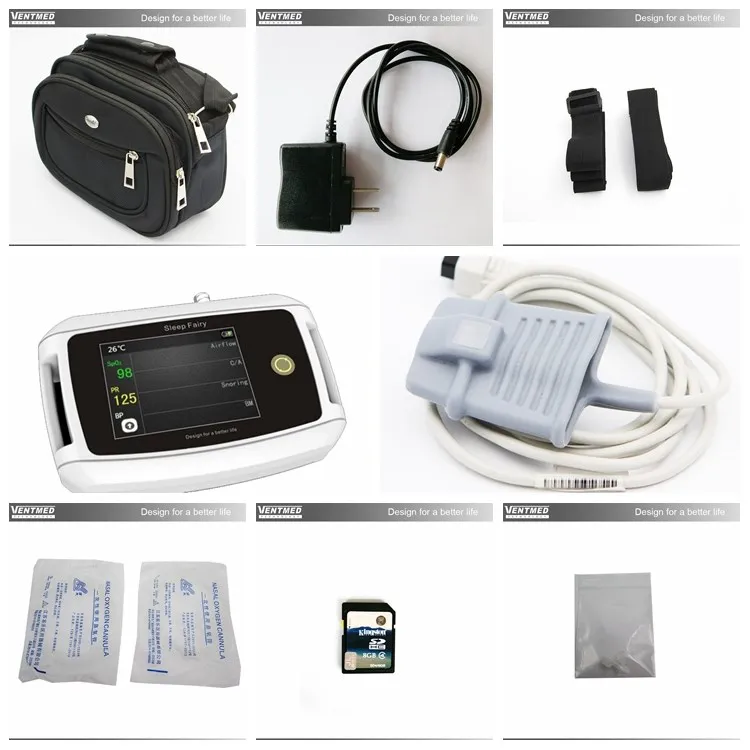

2. Product Structure & Accessories
Nasal Oxygen Cannula
2 pcs
3. Technical Specification
9 Monitoring Channels: Airflow, Snore, SpO2, Pulse Rate, Pulse Wave, Body Position, Body Movement, Respiratory Effort, CPAP Pressure
Technical Data:
- Data resolution: AD : 12Bit
- Data Sampling Rate: 50-200Hz
- Storage: 8G SD card, over 8000 hours data
- SpO2 Range: 70% - 100%
- Pulse Rate: 30 - 240 bpm
- Battery: Integrated rechargeable Lithium Battery, 2500mAh (30 hours continuous use)
- Screen: 2.8 inch TFT, 320 x 240
4. Key Features
- Compact, light and convenient design.
- Innovative built-in 3D sensor: only SpO2 sensor needed, no extra sensors for movement or position.
- Extremely easy to operate with a single switch.
- Reliable, extensive, detailed and accurate sleep clinical data.

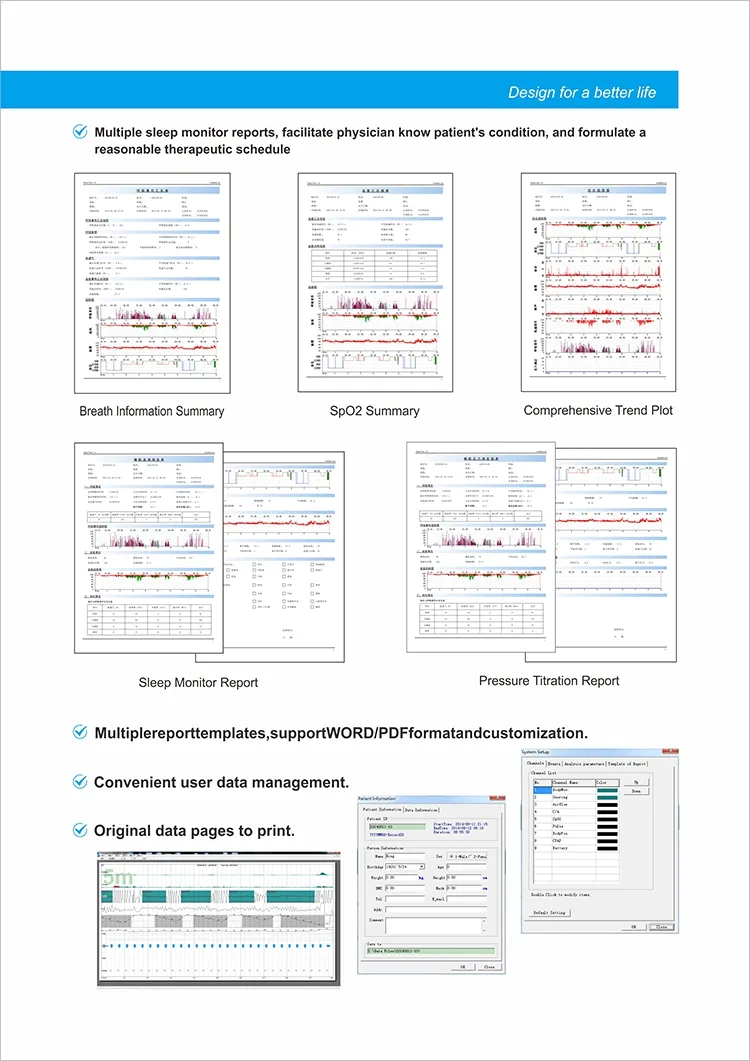

- Sophisticated scoring and diagnostic report software included.
- Universal link to CPAP devices for pressure titration.

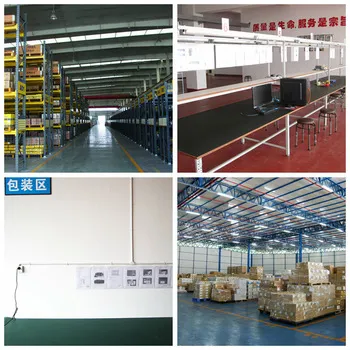

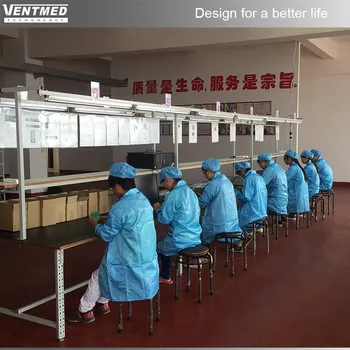

5. Professional Manufacturing & Exhibition
6. Services & Commitment
- Professional expertise in sleep & breathing field.
- OEM/ODM private brand services available.
- 1-year warranty on all devices.
- Fast delivery and long-term maintenance support.
- Competitive pricing with high-quality standards.
Frequently Asked Questions
What is the primary use of this portable sleep monitor?
It is designed for the intelligent diagnosis of sleep disorders and sleep apnea (SAS), suitable for home, hospital, or sleep center use.
How many channels of data does the A9 model record?
The device monitors 9 essential channels: Airflow, Snore, SpO2, Pulse Rate, Pulse Wave, Body Position, Body Movement, Respiratory Effort, and CPAP Pressure.
Do I need an extra sensor for body position or movement?
No, the device features an innovative built-in 3D sensor that tracks movement and position automatically, reducing the need for extra wires.
How long does the battery last during continuous monitoring?
The integrated 2500mAh rechargeable lithium battery supports up to 30 hours of continuous sleep monitoring.

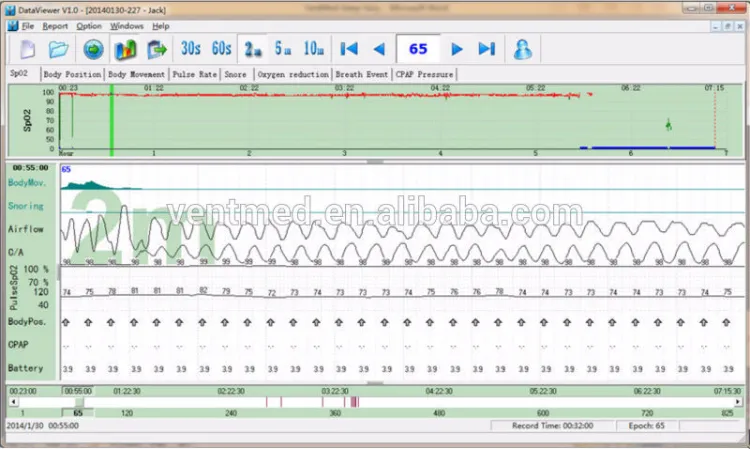

How is the data retrieved and analyzed?
Data is stored on an 8G SD card, which can be read using the included card reader and specialized software on a computer to generate diagnostic reports.
Is this device compliant with medical standards?
Yes, it meets all American Academy of Sleep Medicine (AASM) requirements and holds ISO13485 certification.
