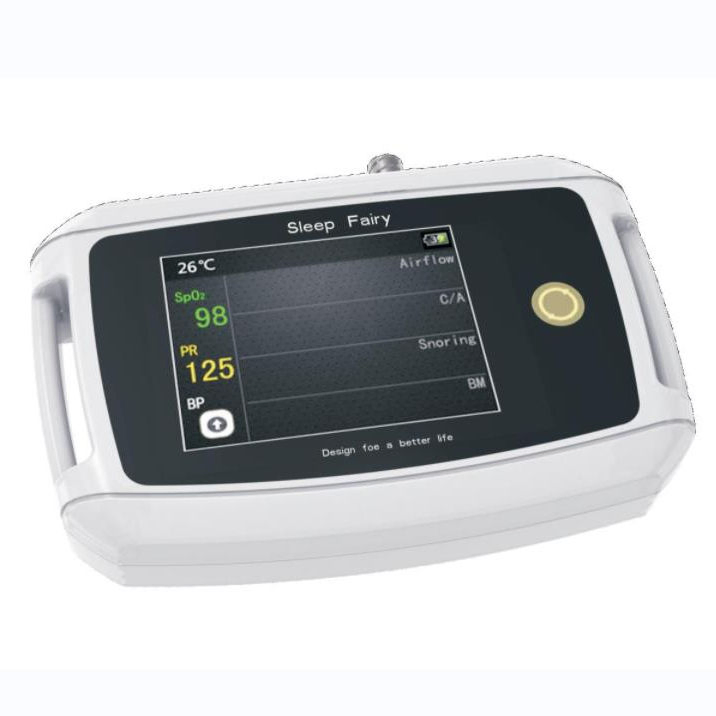

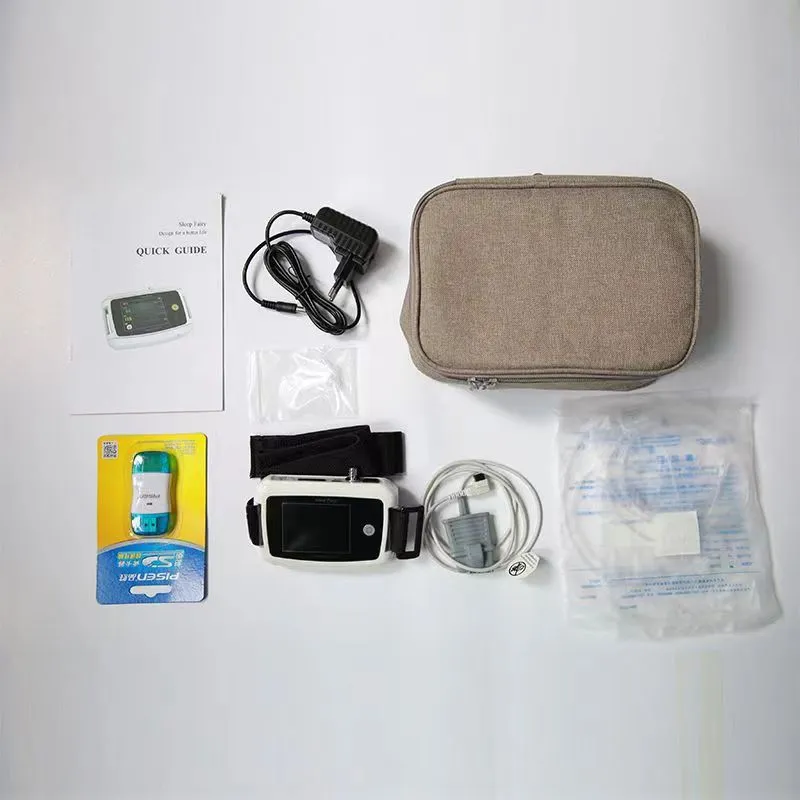

Comfortable Real Time Display Sleep Fairy Device Real Time Sleep Monitoring

1 / 1

Comfortable Real Time Display Sleep Fairy Device Real Time Sleep Monitoring

Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	Sleep Monitoring Devices
Certification:	CE, ISO13485

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.

YH-A9

Group

Middle-aged and Old

Instrument Classification

Class II

Warranty

1 Year

Power Source

Electric

Power Supply Mode

Built-in Battery

Quality Certification

Material

Acrylic, Metal, Plastic, Resin

Shelf Life

1 year

After-Sale Service

Online Technical Support

Transport Package

Carton

Production Capacity

200 Piece/Pieces Per Month

📱

Product Description

📋

Specifications

Item	Value
Model Number	YH-A9
Power Source	Electric
Warranty	1 Year
After-sale Service	Online technical support
Power Supply Mode	Built-in Battery
Material	Acrylic, Metal, Plastic, Resin
Shelf Life	1 year
Quality Certification	CB
Instrument classification	Class II

9 Parameters: Airflow, Snoring, SpO2, Chest/Abdomen Movement, Pulse, Pulse Waveform, Body Movement, Body Position, CPAP Pressure

Data Resolution AD: 12 Bit

Data Sampling Rate: 50-200Hz

Storage: 16G SD card, over 16000 hours data

SpO2 Range: 70%-100%

Pulse Range: 30 - 240 bpm

Battery: Integrated Rechargeable Lithium Battery, 2500 mAh

Continuous Recording Time: 30 hours

Screen: 2.8 inch TFT, 320 x 240

Device Dimensions: 125mmL x 80mmW x 24mmH

Net Weight: 176g with battery

🔍

Detailed Features

❓

Frequently Asked Questions

What specific parameters does the YH-A9 device monitor?

The device monitors 9 essential parameters: Airflow, Snoring, SpO2, Chest/Abdomen Movement, Pulse, Pulse Waveform, Body Movement, Body Position, and CPAP Pressure.

How long can the device record sleep data on a single charge?

The built-in 2500 mAh rechargeable lithium battery allows for a continuous recording time of up to 30 hours.

What is the data storage capacity of the YH-A9?

It comes with a 16G SD card capable of storing over 16,000 hours of monitoring data.

Is the display screen easy to read?

Yes, the device features a 2.8-inch TFT color screen with a resolution of 320 x 240 for clear real-time data display.

What is the weight and size of the device?

The device is very portable, weighing only 176g with the battery, and its dimensions are 125mm x 80mm x 24mm.

What quality certifications does this sleep monitoring device hold?

The YH-A9 is Class II instrument classified and holds a CB quality certification.
