Product Description

📋

Basic Specifications

Model NO.A9

CertificationMSDS, ISO13485

GroupMiddle-aged and Old

LED Display2.8-Inch TFT

AdvantageHigh Accurate

FunctionSleep Apnea Diagnosis

Weight176g (Exclude Sensor)

Dimensions125mm x 80mm x 24mm

HS Code9018199000

Capacity500 Set/ Month

💡

Product Description

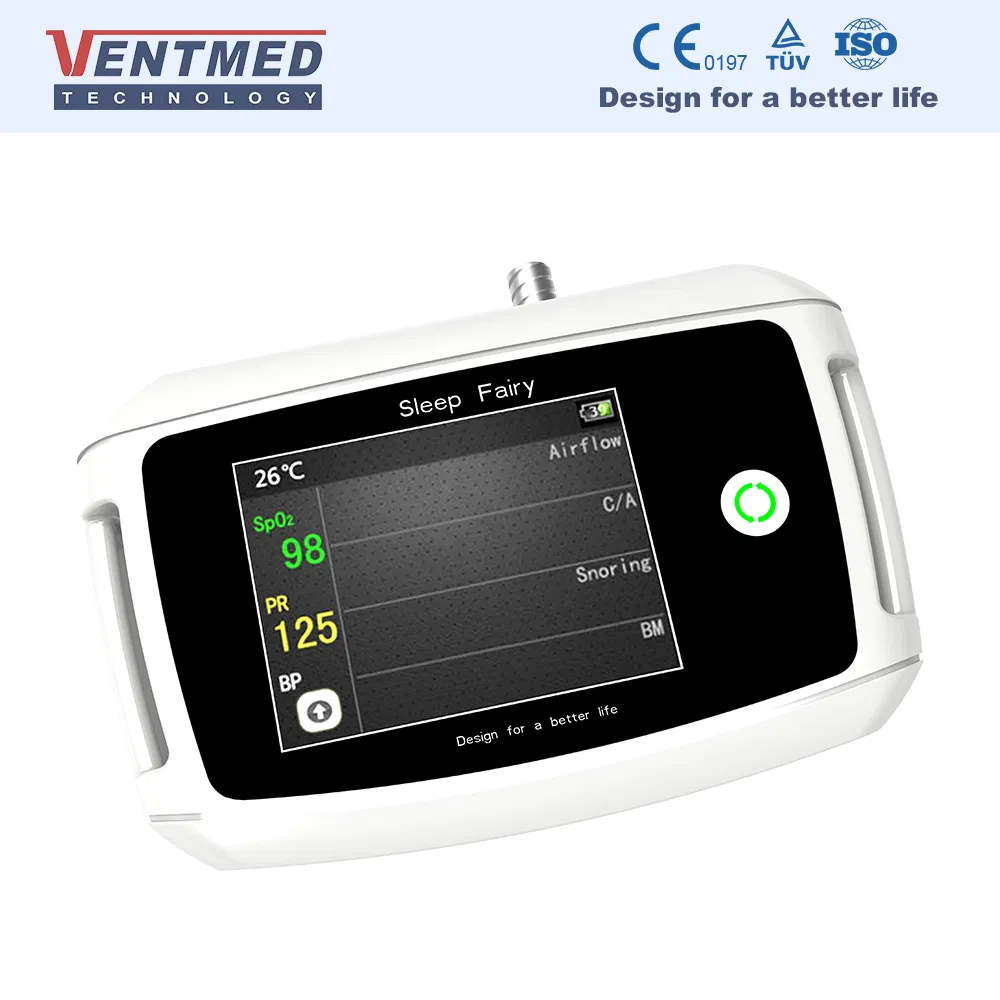

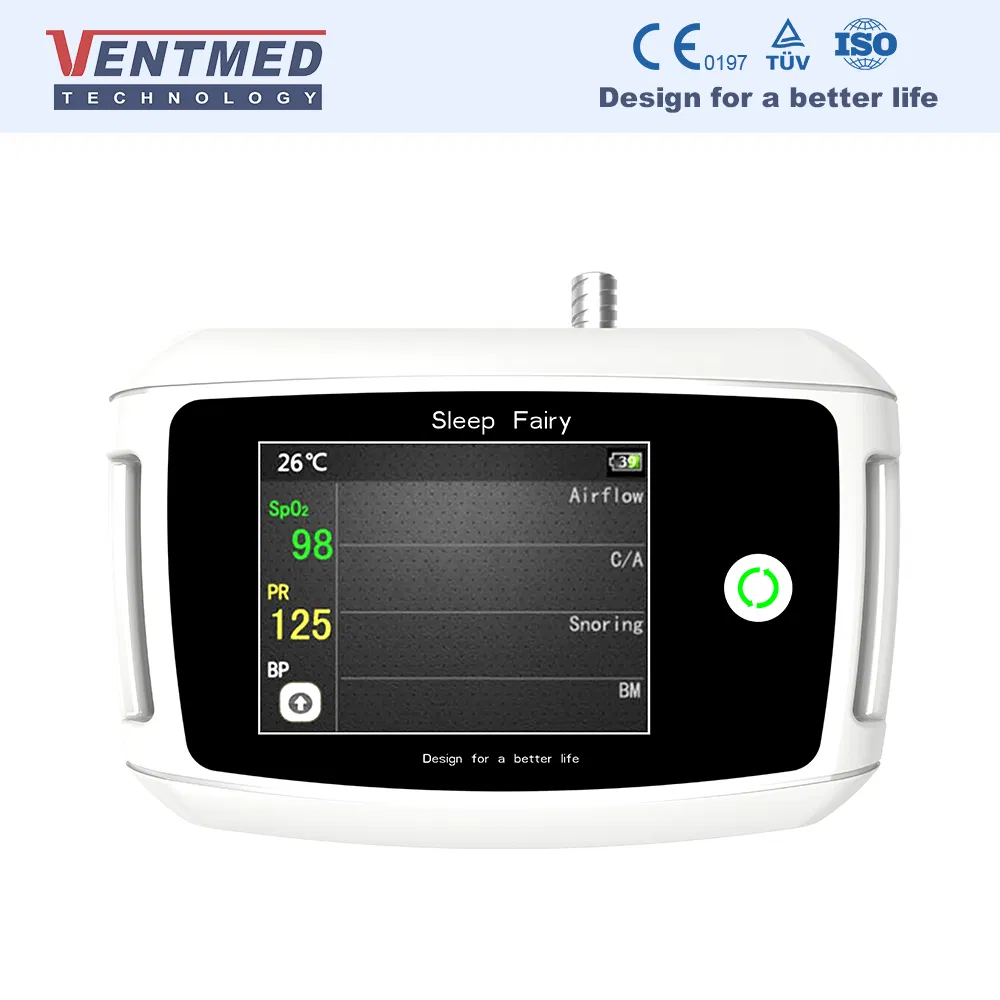

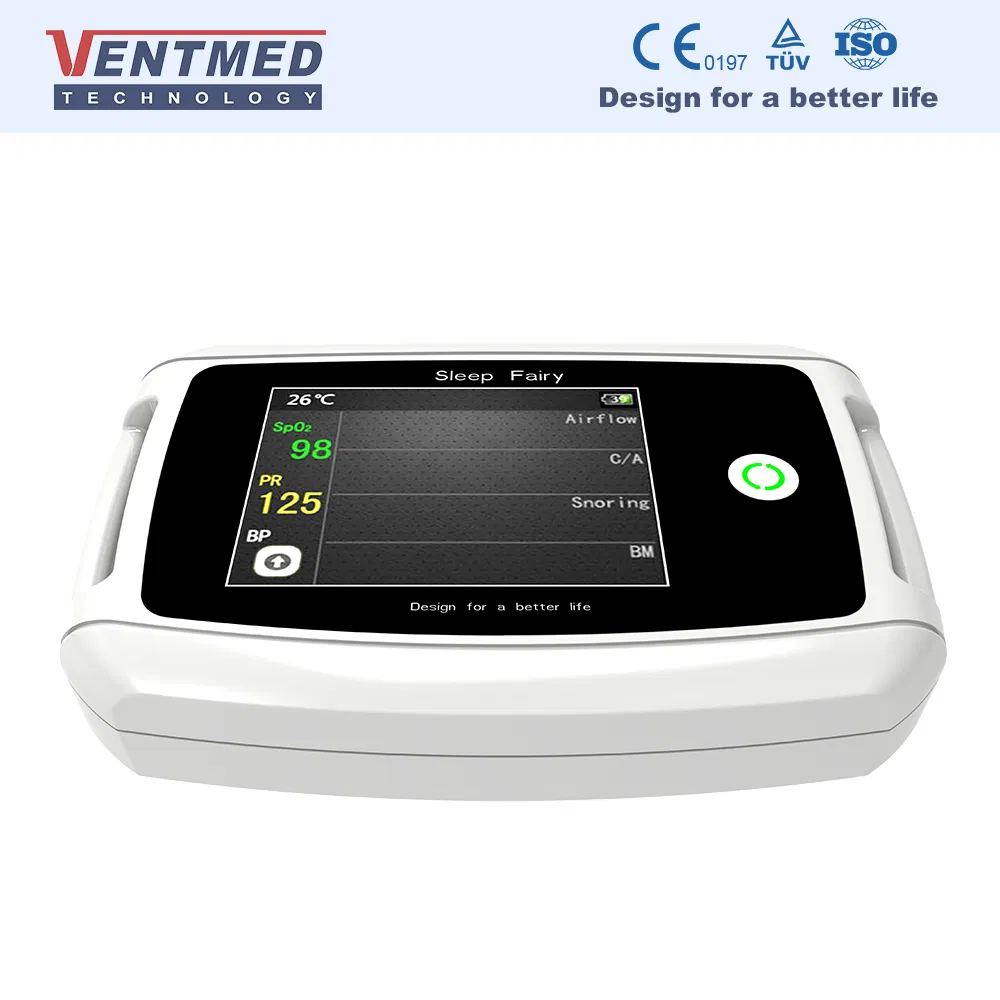

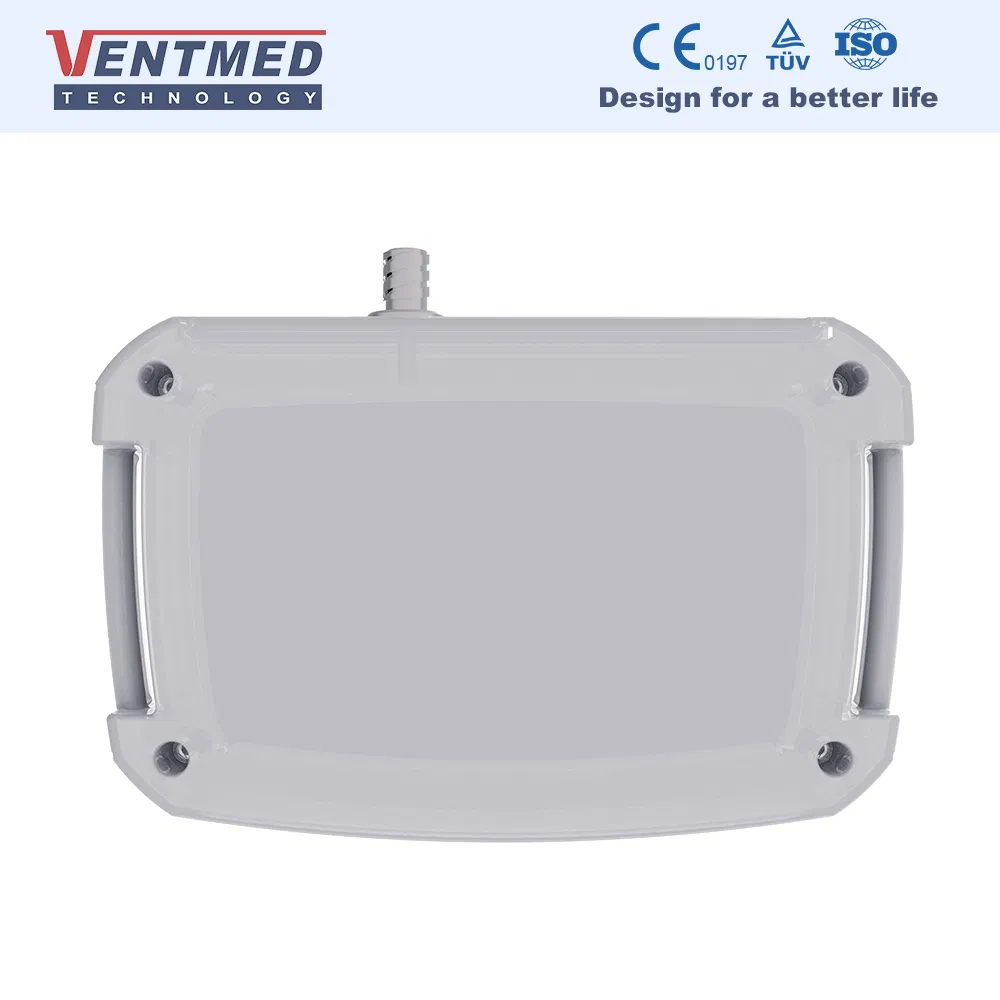

Multi Parameter Respirator Sleep Monitoring Device

The intelligent diagnosis system for sleep disorders and sleep apnea is suitable for clinic, hospital, sleep center, and home usage. It is designed specifically for the screening of Sleep Apnea Syndrome (SAS), providing multiple monitor recordings and reports for professional treatment proposals.

1. Clinical Advantages

Patients can be tested in the comfort of their own homes without an observer and with fewer sensors attached to their body. This reduces anxiety, leads to a more natural night of sleep, and improves patient acceptance. This device meets all American Academy of Sleep Medicine (AASM) requirements.

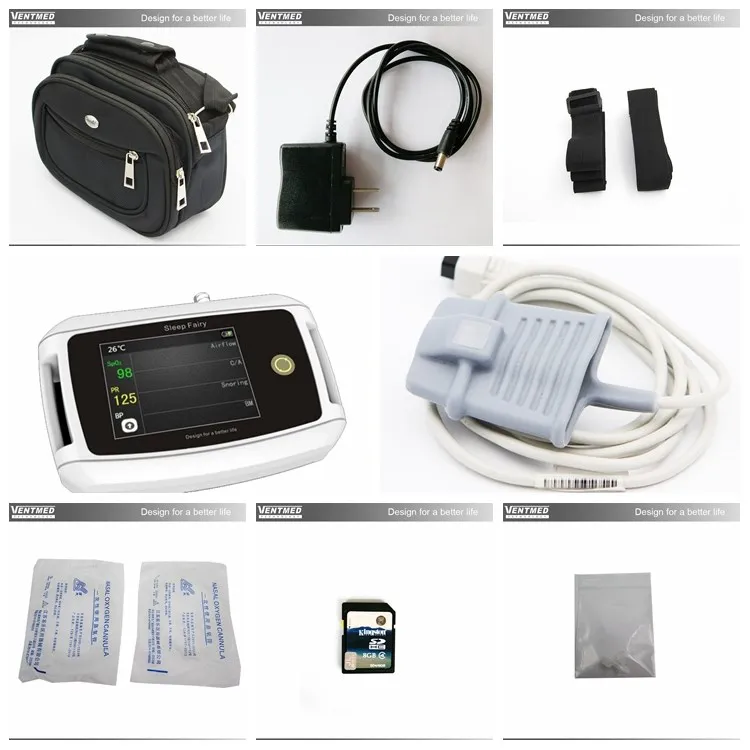

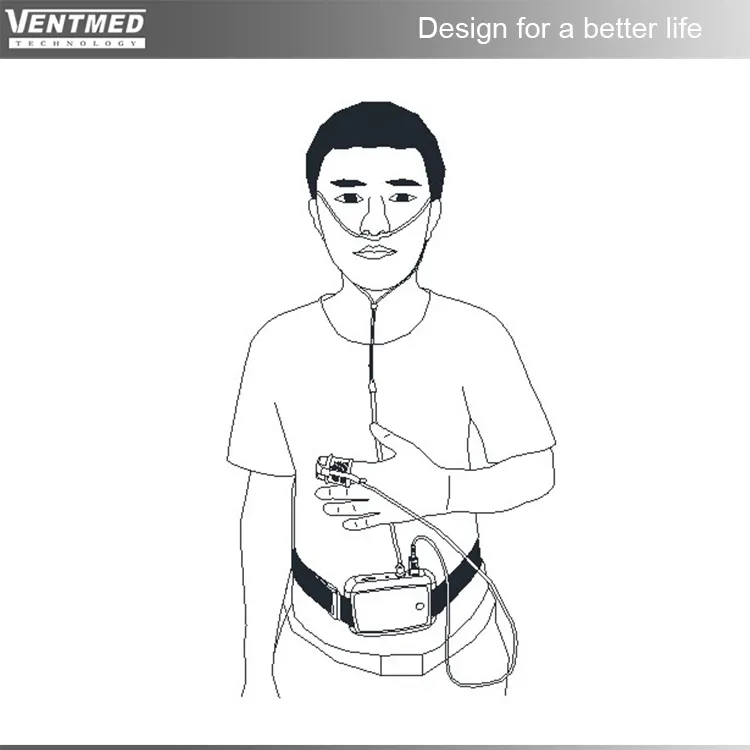

2. Product Structure

1 pcs Host
1 pcs SpO2 sensor
2 pcs Nasal Oxygen Cannula
2 pcs Fixing band
SD card & Reader
Charger & Carrying bag

3. Technical Specifications

Channels9 Channels: Airflow, Snore, SpO2, Pulse Rate, Pulse Wave, Body Position, Body Movement, Respiratory Effort, CPAP Pressure

Storage8G SD Card, over 8000 hours data

Battery2500mAh Lithium, 30 hours continuous use

Screen2.8 inch TFT, 320 x 240

SpO2 Range70% - 100%

⭐

Key Features

Integrated 3D Sensor: No need for extra sensors for movement or respiratory effort.
One-Switch Operation: Extremely easy to use for all age groups.
Pressure Titration: Can link to CPAP devices to titrate patient pressure.

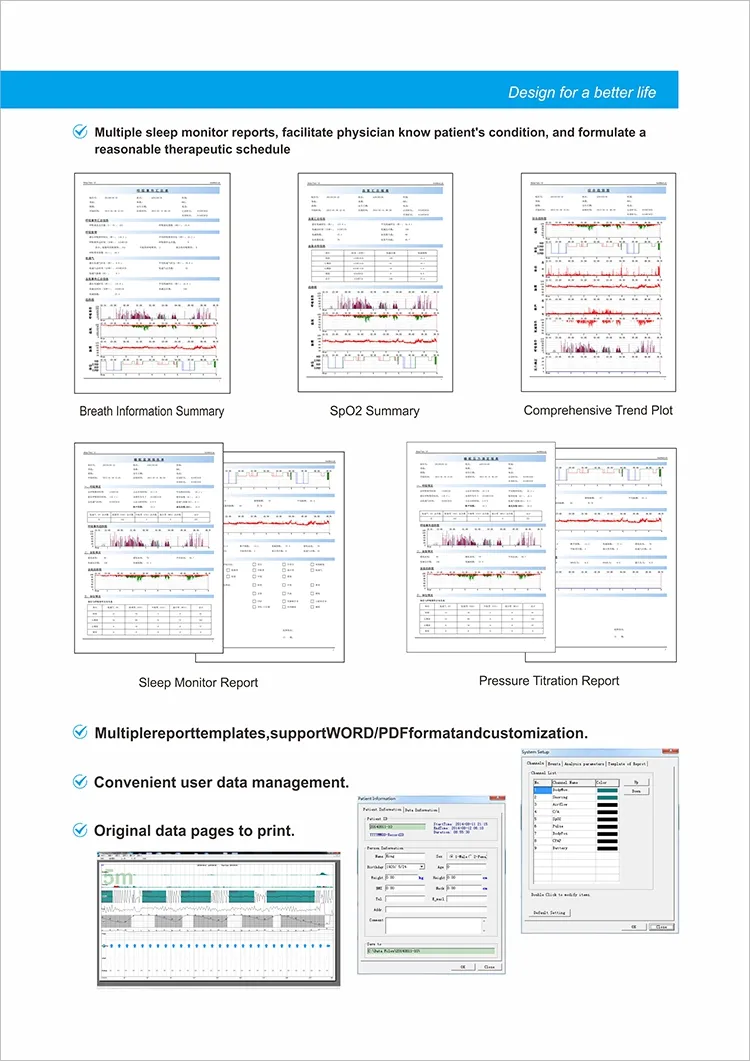

Detailed Reporting: Sophisticated software for scoring and diagnostic reports.
Portable Design: Lightweight host (176g) for convenient travel use.

🛡️

Our Services

Design, for a better life! We provide professional OEM/ODM services and private brand customization based on your requirements.

1-year warranty for all devices
Shortest delivery time and competitive pricing
Long-term maintenance support
24-hour inquiry response

🌍

Global Presence

❓

Frequently Asked Questions

Q1: Can this device be used at home without medical supervision? A: Yes, it is designed for home usage, allowing patients to be tested in a natural sleep environment without an observer.

Q2: How many parameters does the A9 monitor? A: It monitors 9 key channels including Airflow, Snore, SpO2, Pulse Rate, Body Position, and Respiratory Effort.

Q3: Do I need extra sensors for body movement? A: No, the device features an innovative built-in 3D sensor that captures body movement and position automatically.

Q4: How long can the battery last during monitoring? A: The integrated 2500mAh lithium battery supports up to 30 hours of continuous monitoring.

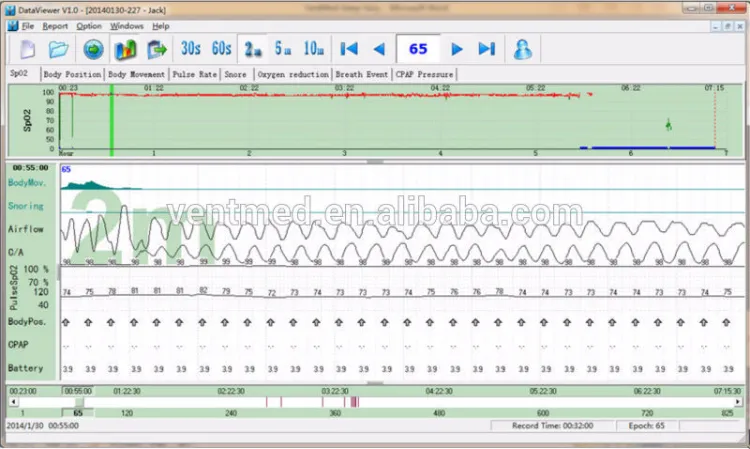

Q5: How can I view the sleep reports? A: Data is stored on an SD card which can be read by a computer using the included card reader and specialized software.

Q6: Is the device compatible with CPAP machines? A: Yes, it can link to CPAP devices to help titrate and determine the correct pressure for the patient.
