Product Description

Basic Information

Model NO.

sleep fairy-a9

Certification

CE, ISO13485, Free Sale Certification

Group

Middle-aged and Old

Channel

9 Channels

Transport Package

Device Packed in Portable Bag with Outer Carton

Specification

0.9kgs included packing

Origin

China

HS Code

90181990

Production Capacity

1000sets/Month

What is Sleep monitor?

This sleep monitor device is a brand new intelligent diagnosis system for sleep disorders and sleep apnea, which is suitable for clinic, hospital, sleep centre, and home usage. It is specifically designed for the screening of Sleep Apnea Syndrome (SAS). It provides multiple monitor recordings and reports, allowing sleep physicians to provide professional treatment proposals and therapy pressure titration.

Patients can be tested in the comfort and convenience of their own homes without an observer and with fewer sensors attached to their body. This reduces anxiety, leads to a more natural night of sleep and improves patient acceptance of test protocol. This device meets all American Academy of Sleep Medicine (AASM) requirements.

Product Structure

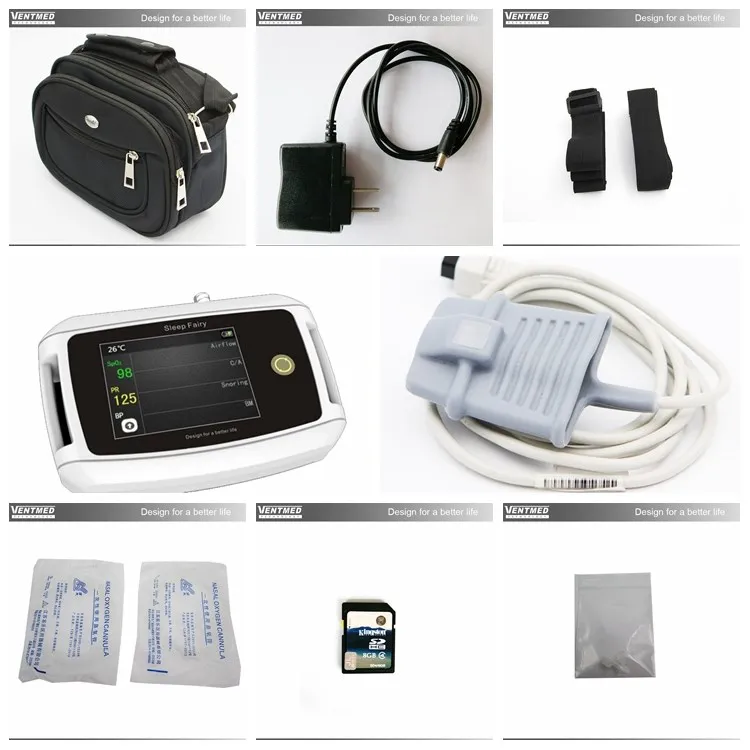

The delivery package includes the following components:

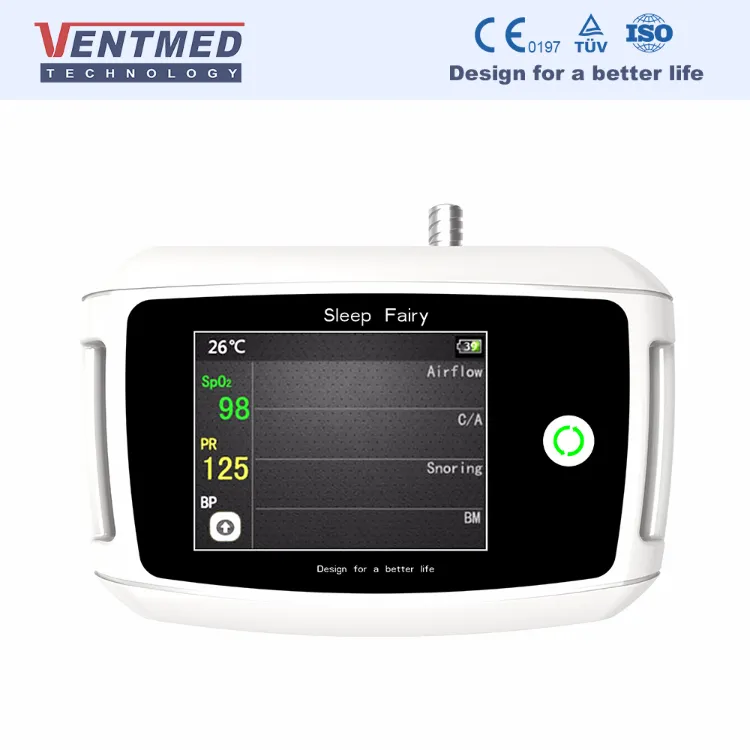

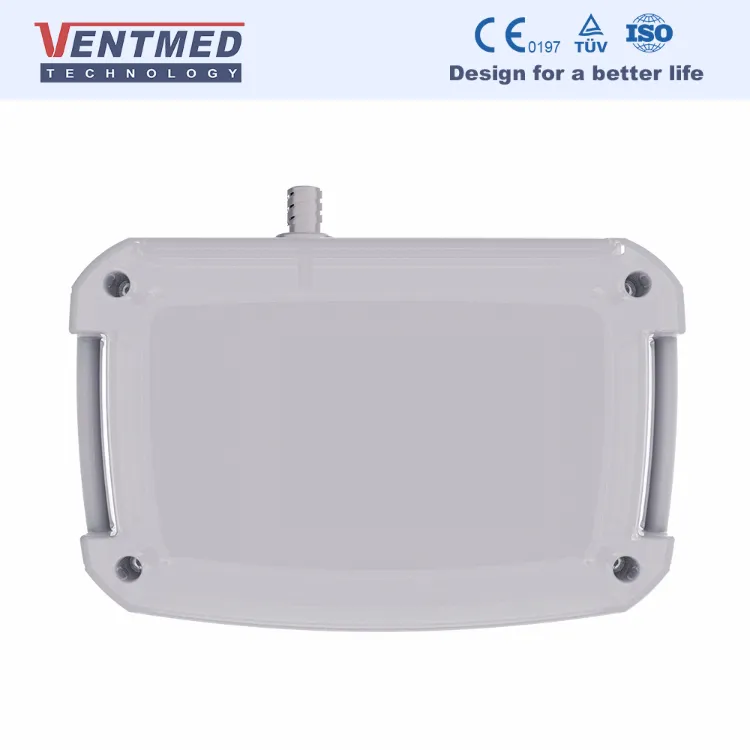

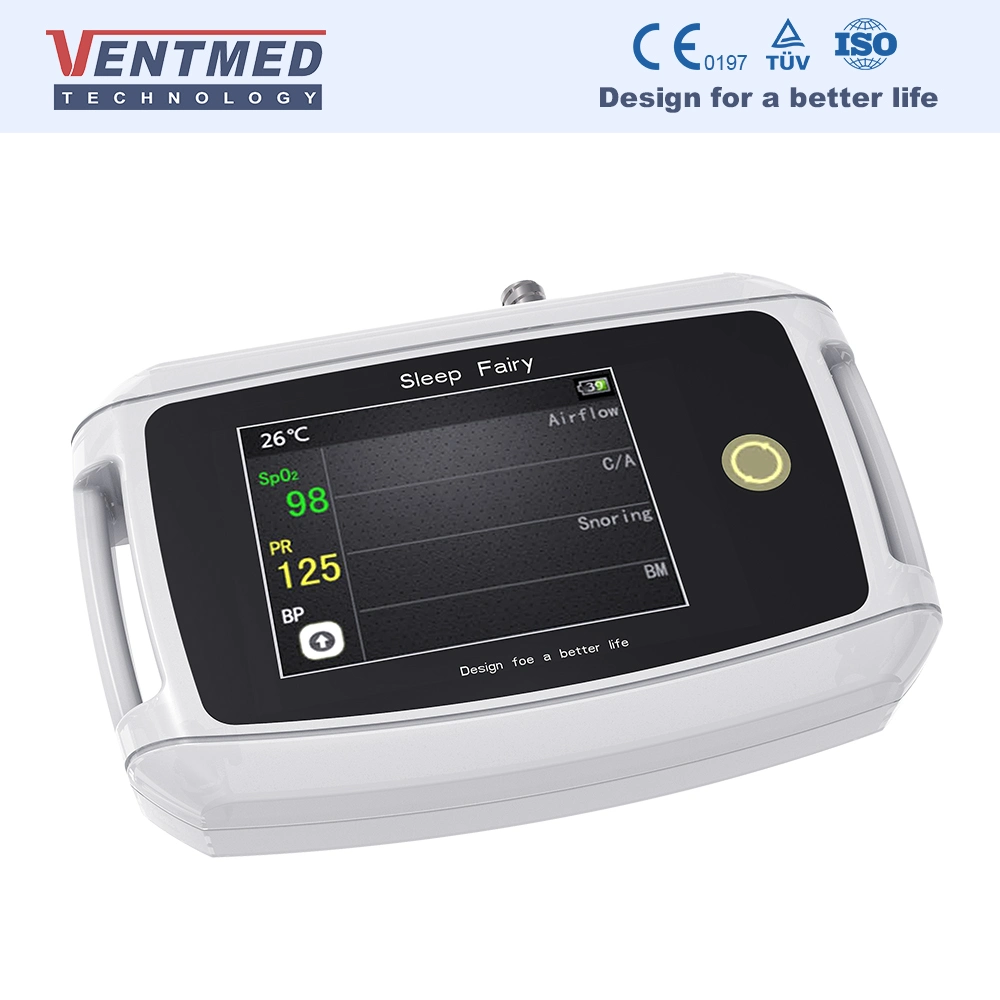

1 pc sleep monitor device host
2 pcs Luer Connector (Spare parts)

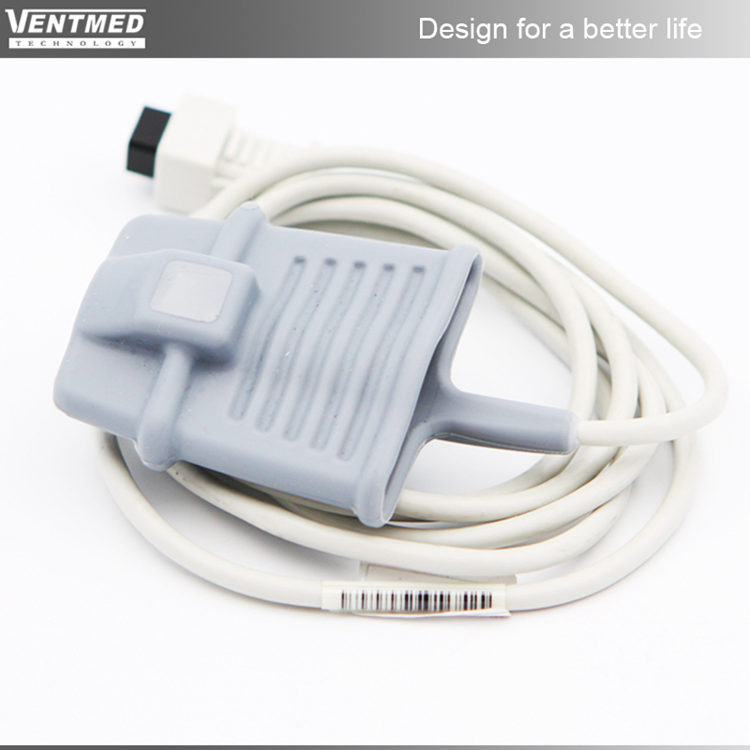

1 pcs SpO2 sensor
2 pcs Nasal Oxygen Cannula

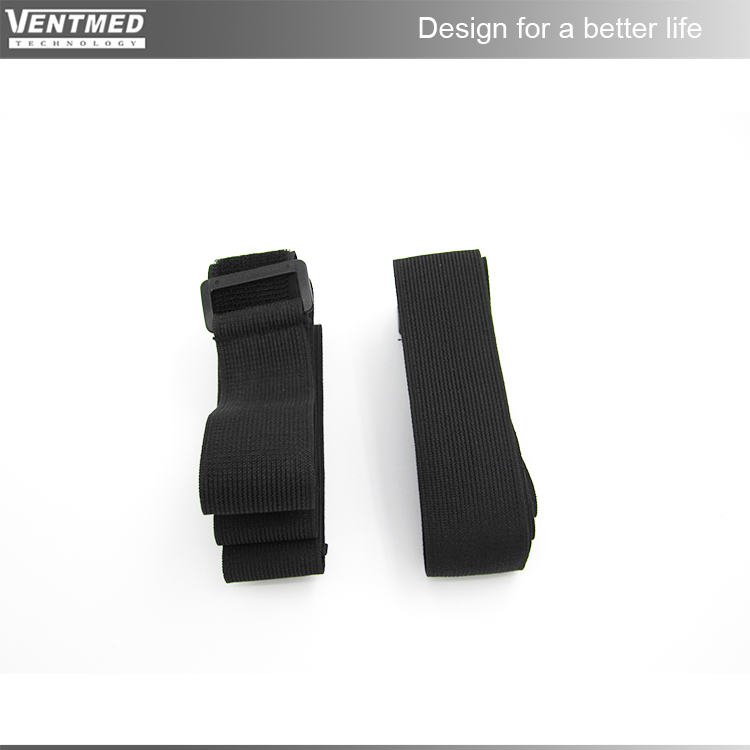

2 pcs fixing band

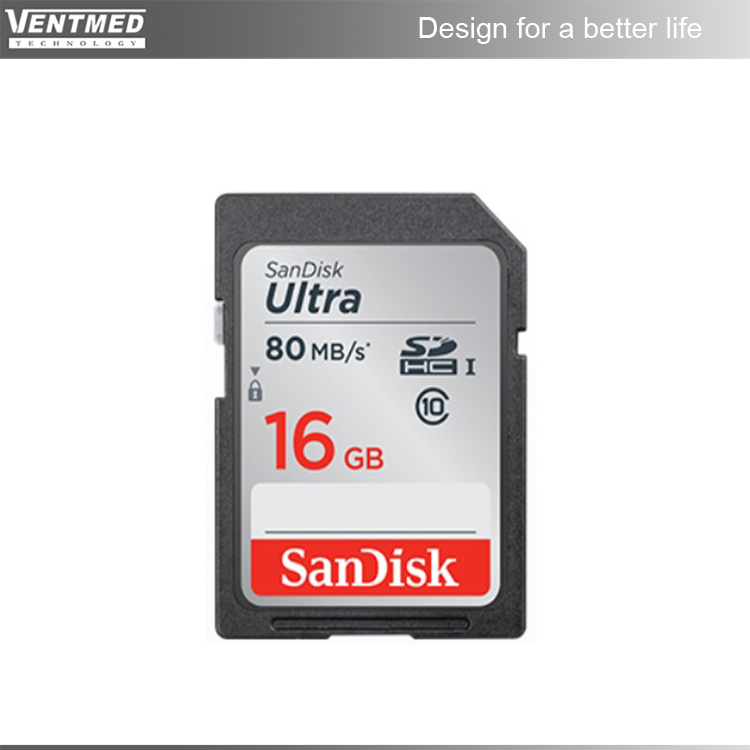

1 pcs SD card
1 pcs SD card reader

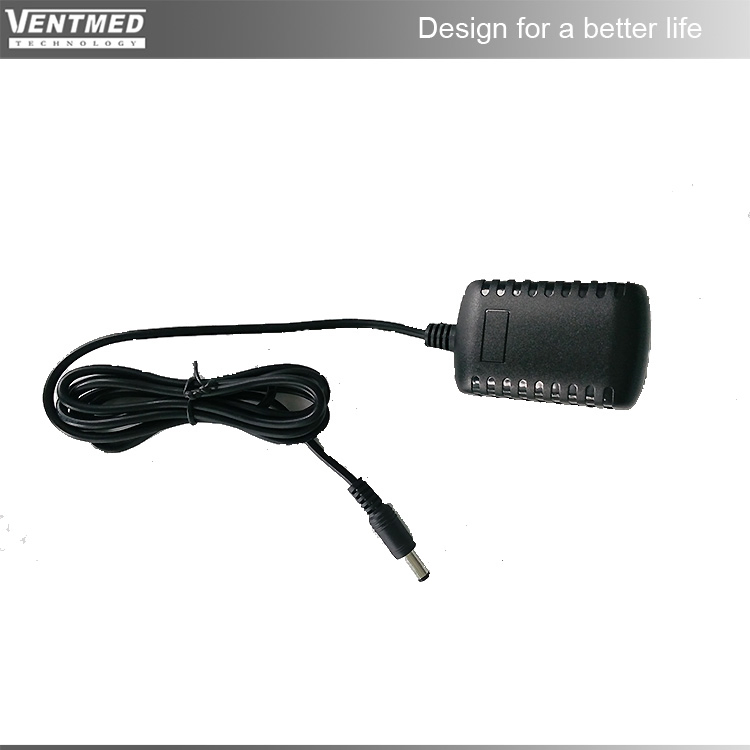

1 pcs Charger
1 pcs Carrying bag

Technical Specifications

9 Channels	Air flow, Snore, SpO2, Pulse Rate, Pulse Wave, Body Position, Body Movement, Respiratory Effort, CPAP Pressure
Data Resolution	AD : 12Bit
Sampling Rate	50-200Hz
Storage	8G SD card, over 8000 hours data
Battery	Integrated Rechargeable Lithium Battery, 2500mAh (30 hours continuous use)
Screen	2.8 inch TFT, 320 x 240
Weight	Host: 176g \| Gross Weight: 0.9KGS
Dimensions	125mm x 80mm x 24mm

Key Features

Compact & Light: Easy to carry and convenient for home or clinic use.
Innovative 3D Sensor: Built-in machine; requires SpO2 sensor only. No extra sensors needed for movement or effort.
Simple Operation: Extremely easy to operate with just one switch.
Detailed Data: Provides extensive and accurate sleep clinical reports.

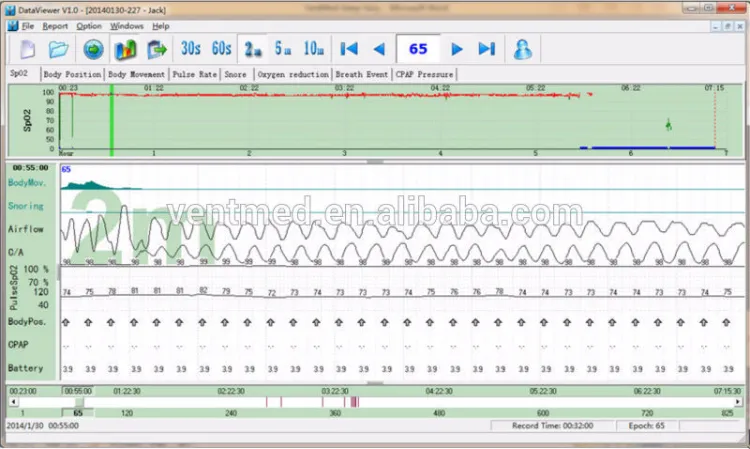

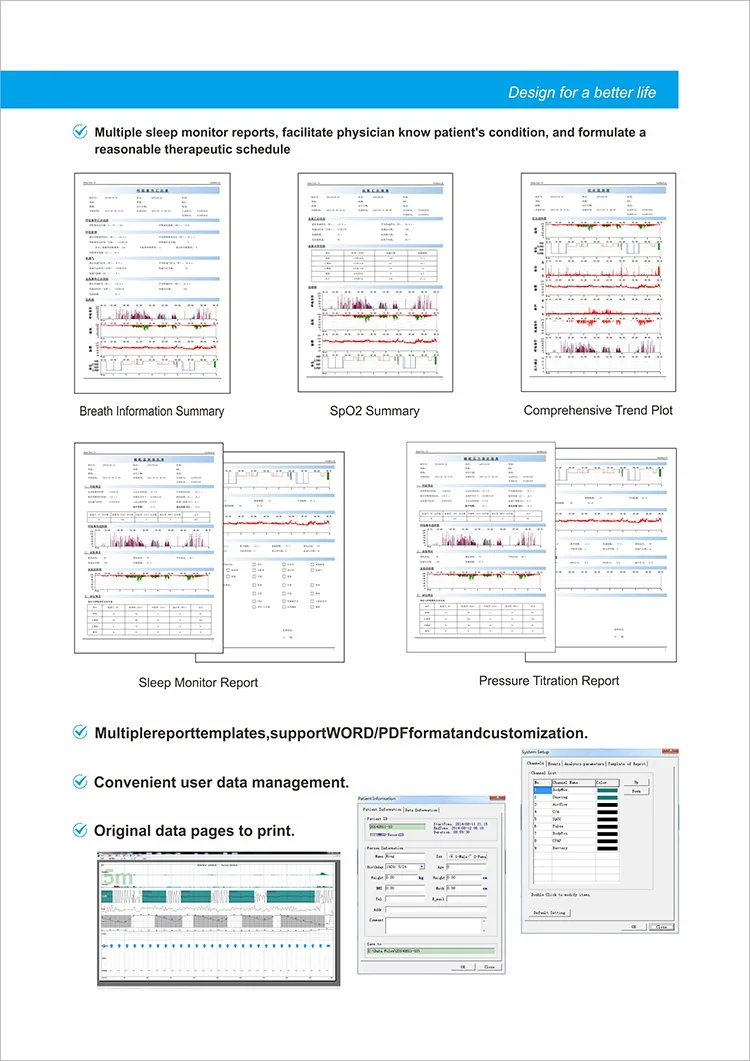

Software Support: Sophisticated scoring and diagnostic report software included.
CPAP Titration: Can link to any CPAP device to titrate the necessary patient pressure.
Digital Storage: Data is stored on an SD card and read via computer software for easy browsing and printing.

Advantages & Quality Assurance

Professional research and development team focused on sleep health.

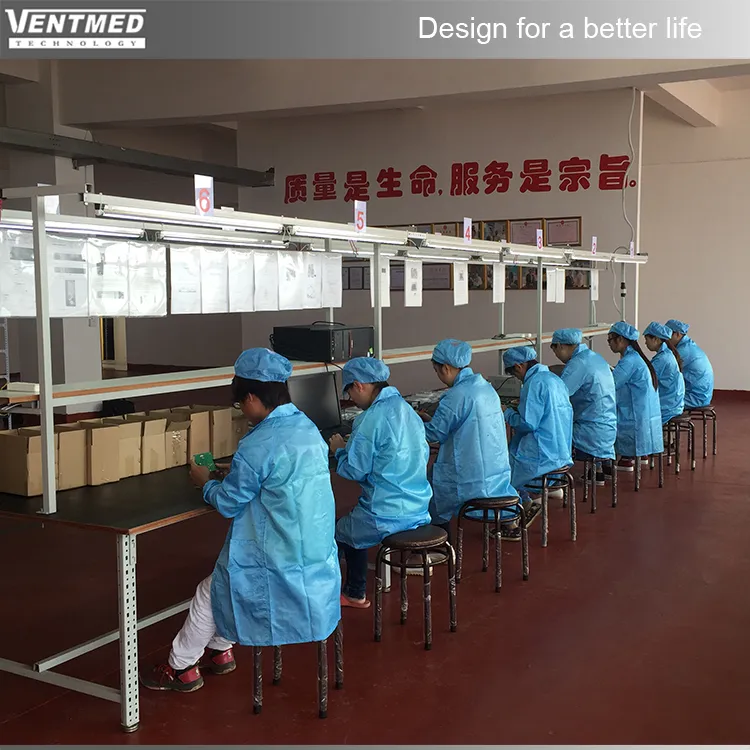

Experienced manufacturer specializing in breathing and sleep therapy monitoring.
Intimate service with 24-hour response time.
Quality warranty of 2 years on monitoring equipment.
Short delivery times and reliable global reputation.

Frequently Asked Questions

What specific conditions does this device monitor?

It is designed for the diagnosis of sleep disorders and sleep apnea, providing a 9-channel recording that includes Air flow, SpO2, Snore, Pulse Rate, and Respiratory Effort.

Can I use this device at home without a technician?

Yes, the device is designed for home use with an easy-to-operate one-switch system. It uses fewer sensors to ensure patient comfort and a more natural sleep environment.

How long does the battery last on a single charge?

The integrated 2500mAh rechargeable lithium battery supports up to 30 hours of continuous monitoring, more than enough for multiple nights of screening.

Is the software required to read the data?

Yes, the device stores data on an SD card which is then read by the specialized software on a computer for detailed image display and report printing.

Does this device meet medical industry standards?

Absolutely. The device meets all American Academy of Sleep Medicine (AASM) requirements and holds CE and ISO13485 certifications.

Does the device require separate sensors for body movement?

No, it features an innovative built-in 3D sensor that tracks body movement, position, and respiratory effort without needing extra external sensors beyond the SpO2 probe.
