Basic Information
| Model NO. |
A9 |
| Storage Date |
16g, Over 16000 Hours Data |
| Communication |
SD Card |
| Screen |
2.8 Inch TFT, 320 X 240 |
| Continuous Recording Time |
30 Hours |
| Specification |
12.5cm*8cm*2.4cm |
Product Description

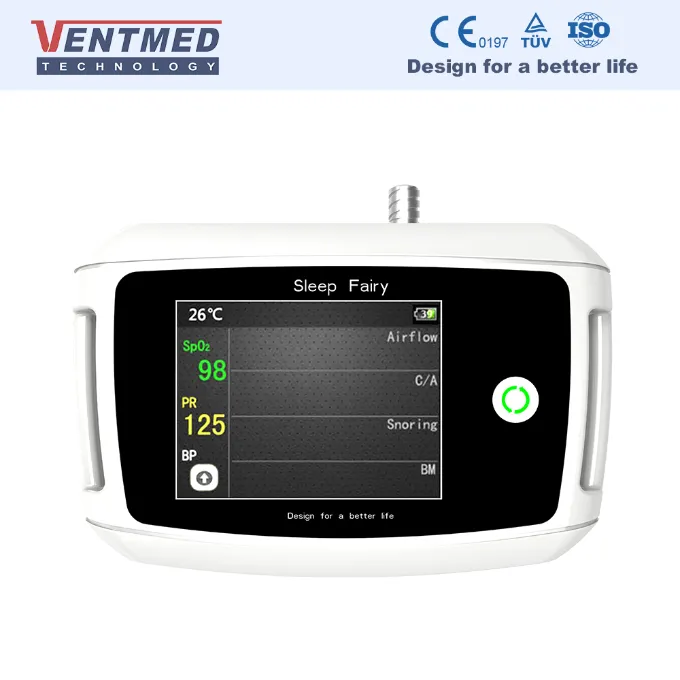

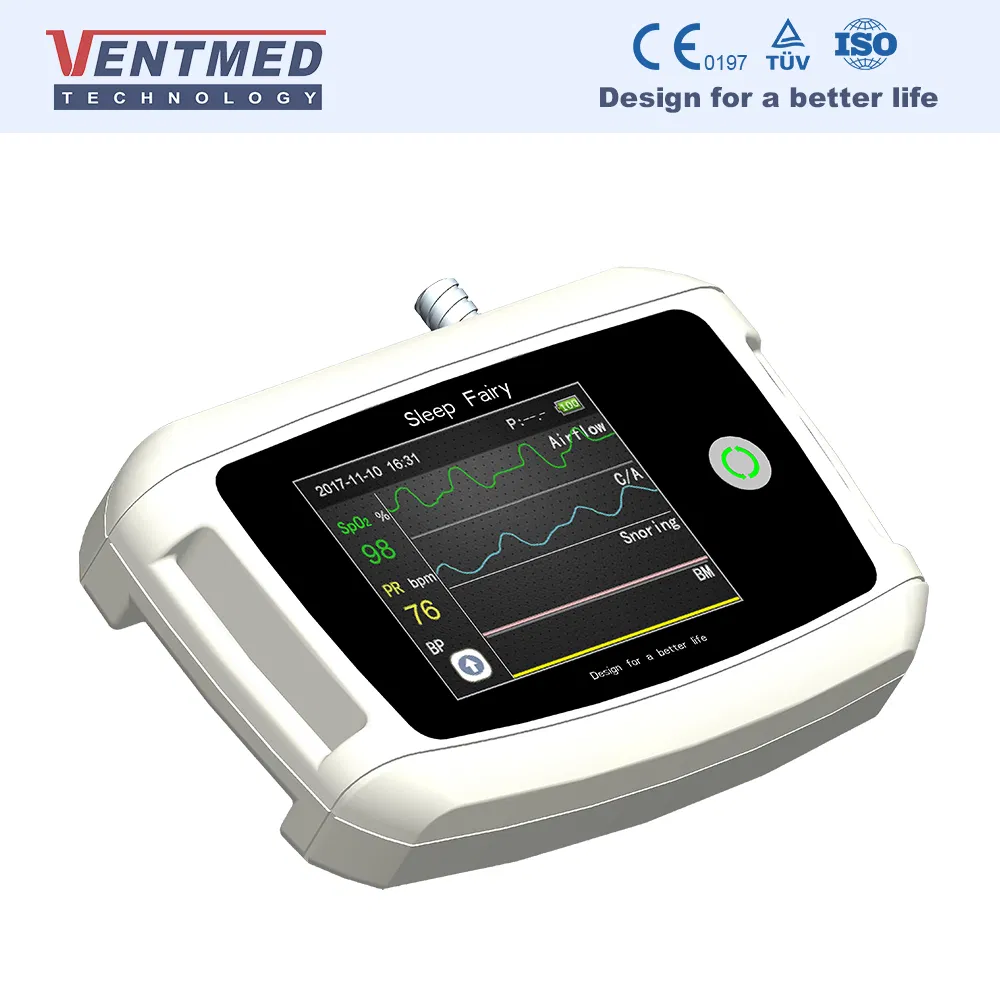

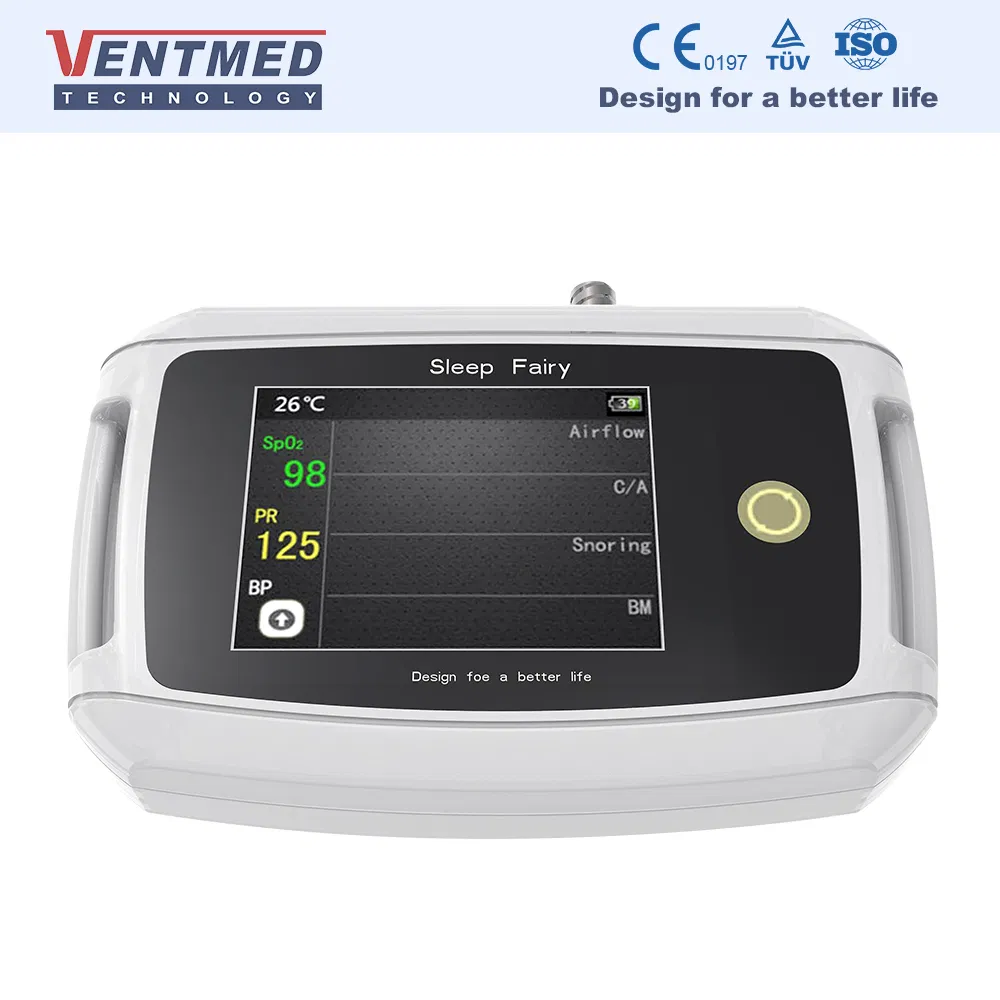

The A9 9-channel multi-parameter sleep apnea patient monitor device is a brand new intelligent diagnosis system for sleep disorders and sleep apnea. It is suitable for clinic, hospital, sleep centers, and home use study and screening of Sleep Apnea Syndrome (SAS).
Innovative Integrated 3D Sensor: Requires SpO2 sensor only, with no need for extra sensors to achieve the most comfortable sleep diagnosis experience.
Technical Specifications
| 9 Parameters |
Airflow, Snoring, SpO2, Chest/Abdomen Movement, Pulse, Pulse Waveform, Body Movement, Body Position, CPAP Pressure |
| Data Resolution |
AD : 12Bit |
| Data Sampling Rate |
50-200Hz |
| Battery |
Integrated Rechargeable Lithium Battery, 2500 mAh |
| Net Weight |
176g with battery |
| Dimensions |
125mmL x 80mmW x 24mmH |
Patients can be tested in the comfort and convenience of their own homes without an observer and with fewer sensors attached to their body. This reduces anxiety, leads to a more natural night of sleep, and improves patient acceptance of test protocol. The device meets all American Academy of Sleep Medicine (AASM) requirements.
Product Usage Guide
Prepare the supplies. Make sure that the cable is not damaged and the device is powered.
Wear the belt fixing belt. Connect both ends of the strap.
Connect the chest strap to both sides of the machine.
Turn on the upper power button to boot.
Connect the lead wire; the uppermost is the nasal catheter interface.
Tie the waist belt to the abdomen with moderate elasticity.
Install the machine and connect lead wires. Place the finger cot on the fingernail and nasal catheter around the ear.
Please shut down in time after use.

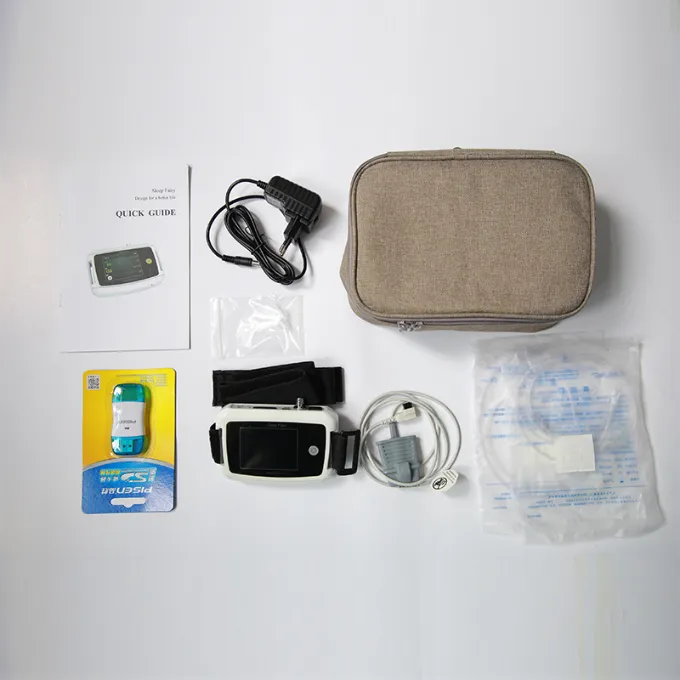

Packing List
✔ 1 pcs Host
✔ 1 pcs SpO2 sensor
✔ 2 pcs Nasal Oxygen Cannula
✔ 2 pcs Fixing band

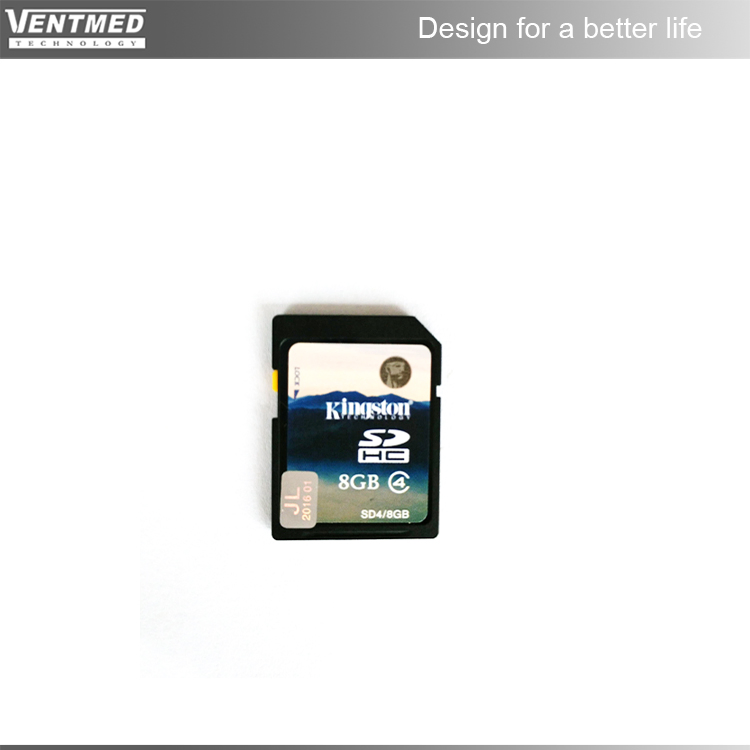

✔ 1 pcs SD card & Reader
✔ 1 pcs Charger & Carrying bag
Service & Advantages
★ 2-Year Warranty for peace of mind.
★ Professional design and manufacturing experience in respiratory health.
★ CE/ISO13485 certified quality assurance.
★ OEM/ODM services available for private branding.
★ Stable quality based on premium materials and technology.
Frequently Asked Questions
Q1: How many parameters can this device monitor?
The A9 monitors 9 key parameters: Airflow, Snoring, SpO2, Chest/Abdomen Movement, Pulse, Pulse Waveform, Body Movement, Body Position, and CPAP Pressure.
Q2: Is it difficult to use for home sleep studies?
No, it is designed for convenience. It features an integrated 3D sensor which reduces the number of required cables, making it much easier and more comfortable for home users compared to traditional systems.
Q3: How long does the battery last during recording?
The device is equipped with a 2500 mAh rechargeable lithium battery that supports up to 30 hours of continuous recording.
Q4: How much data can the device store?
The device comes with a 16GB storage capacity, which is capable of storing over 16,000 hours of sleep study data.
Q5: Does this device meet medical standards?
Yes, the sleep monitor meets all American Academy of Sleep Medicine (AASM) requirements and is manufactured under CE and ISO13485 certifications.
Q6: What is the weight and portability of the A9?
The device is highly portable, weighing only 176g (including battery) with compact dimensions of 125mm x 80mm x 24mm.
