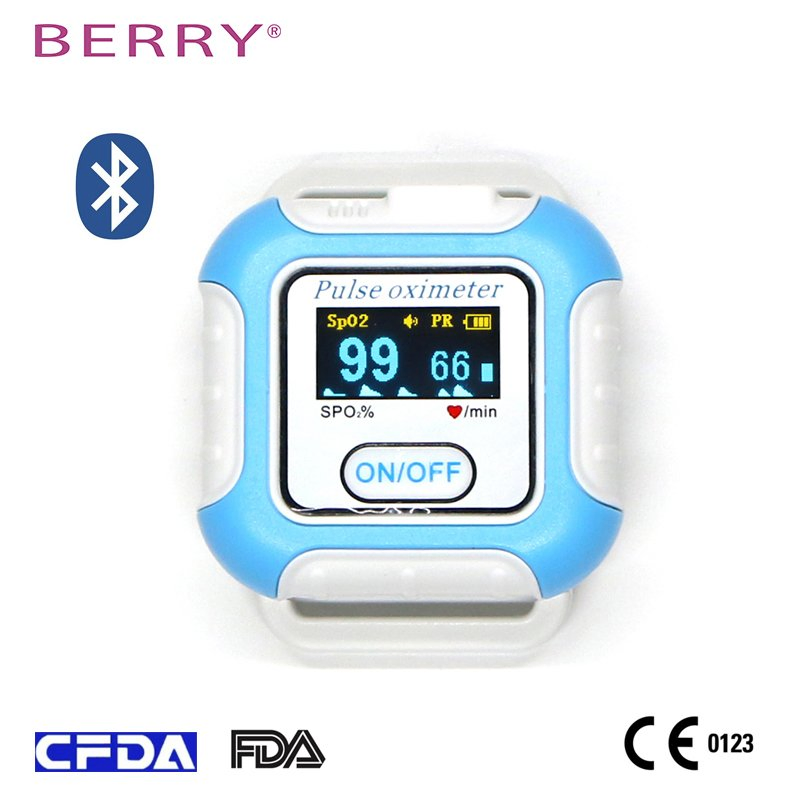

Medical Portable Sleep Apneas Screening Monitor Polysomnography Device

1 / 5

Medical Portable Sleep Apneas Screening Monitor Polysomnography Device

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

BM2000A

Certification

CE, FDA, ISO13485

Group

Adult and Child

Color

Blue

Experience

with 15 Years Manufacturer

R&D

Excellent Engineers and Technicians

Quality

ISO13485 Ce0123

Capacity

50000PCS/Year

Product Description

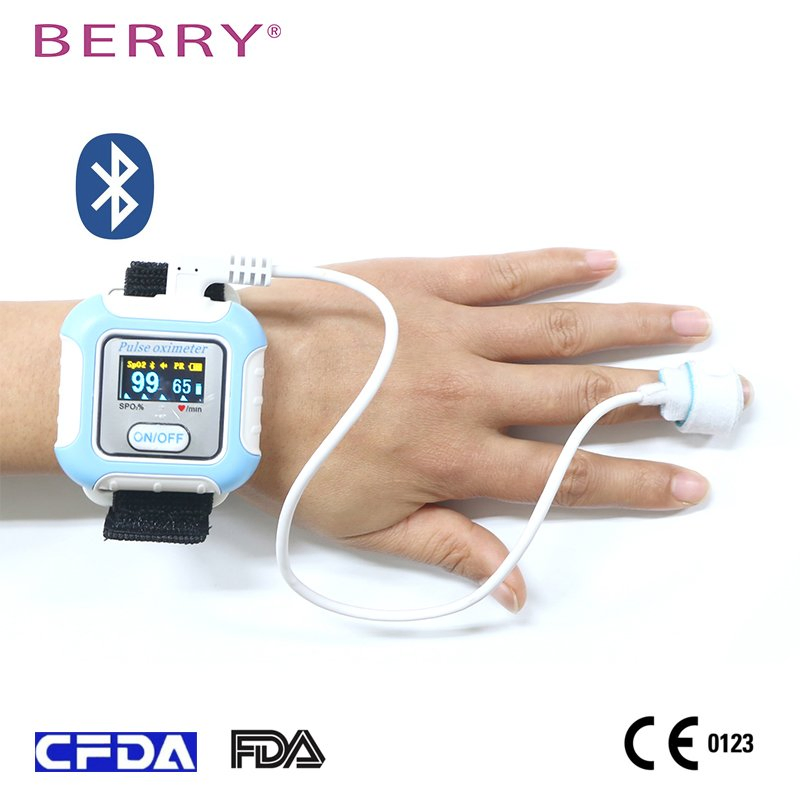

BM2000A Sleep Monitoring System

Suitable for sleep hypopnea syndrome monitoring. This Sleep Apnea Screening Monitor holds 510K, CE0123, ISO13485, FCC, and RoHS certifications. It accurately captures pulse signals and has been validated in numerous clinical trials to meet professional blood oxygen and pulse rate measurement standards.

Widely Used In Daily Life

BM2000A applies to Aviation, Snorers, Children, Asthma, and COPD patients.

Major Features

✓ Suitable for sleep or Apnea respiratory monitoring.
✓ Clinical validation against PSG for sleep apnea syndrome diagnosis.
✓ Low power consumption: 3.7V lithium battery lasts for more than 20 hours.
✓ International certifications: CE, 510K, and more.
✓ Multi-user support: Various sensors for infants, children, and adults of different skin colors.
✓ Bluetooth Connectivity: Record second-by-second data and generate comprehensive overnight sleep reports.

Operation Process

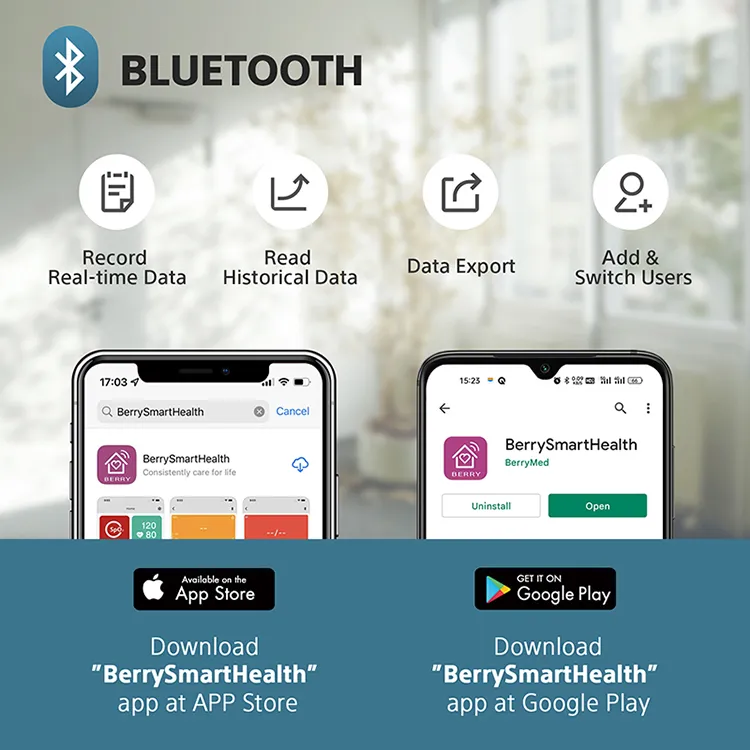

1 Download the BerrySmartHealth APP from Google Play or Apple Store.

2 Wear the equipment for at least 6 hours of sleep monitoring.

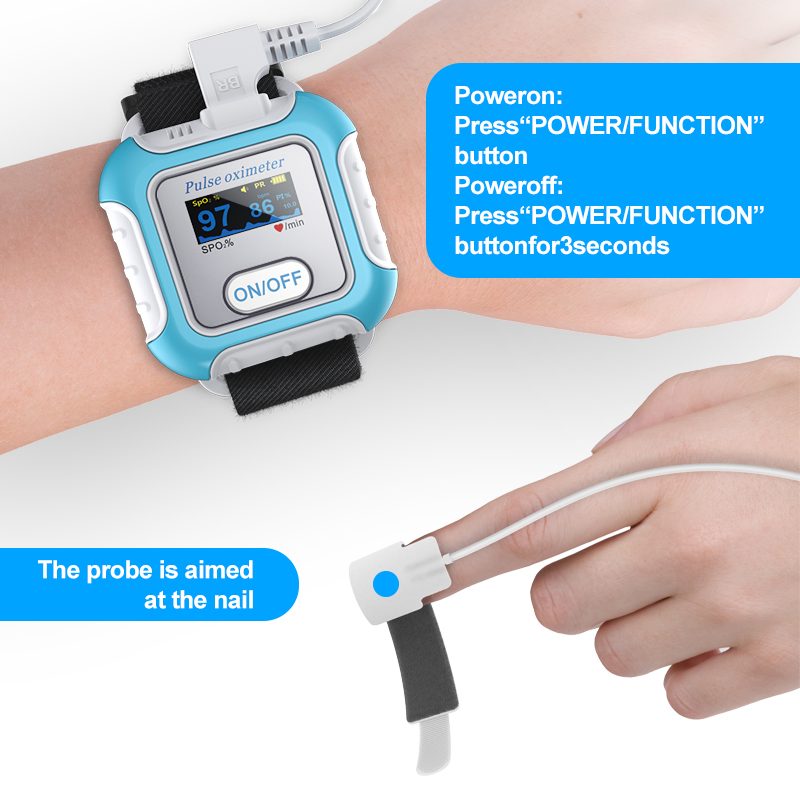

3 Put on the device and wrap foam SpO2 sensor around fingertip.

4 Data is transferred to the mobile phone via Bluetooth.

5 Display and review report on the phone.

6 Reports can be shared easily.

Technical Features

Display: SpO2, PR	Battery Type: 3.7v (1000mAh) Rechargeable Lithium
Pulse Rate: 25 - 250bpm (Accuracy: ±2bpm)	SpO2: 35% - 100% (Accuracy: ±2% for 80-100%)
Size: 68(L) x 58(W) x 20(D) mm	Weight: 50g
Working Voltage: DC 3.4v ~ DC 4.3v	Free App: "BerrySmartHealth"

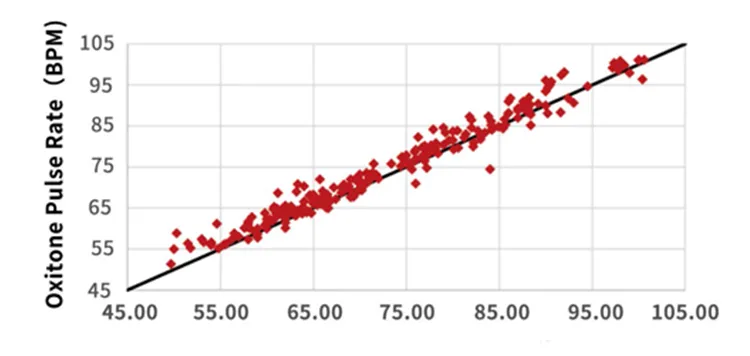

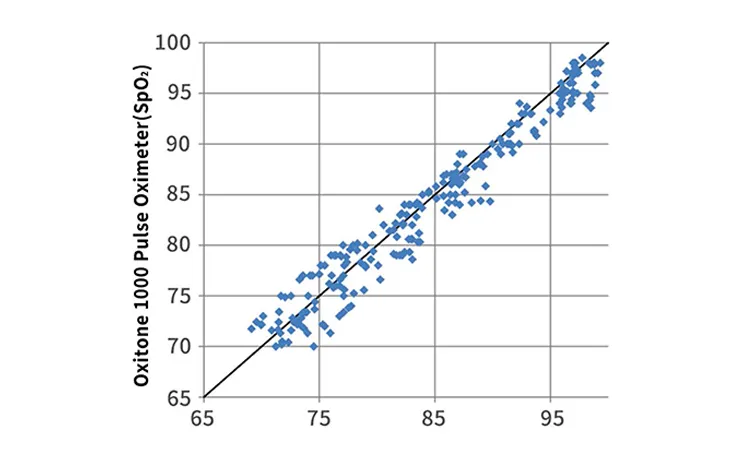

Accuracy Test & Clinical Data

Correlation=0.98, P-value < 0.0001. Blood oxygen concentration accuracy < 2%.

Comparison: Reference Pulse Oximeter
Pulse Oximeter Range	70 ~ 100	90 ~ 100	80 - < 90	67 - < 80	RESE ≤ 3% (Pass)
Error	-0.6	-1.1	-0.9	0.1	RESE ≤ 3% (Pass)

Parameter Comparison Charts

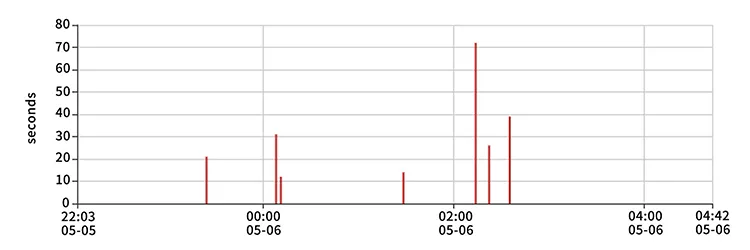

Apnea Trend

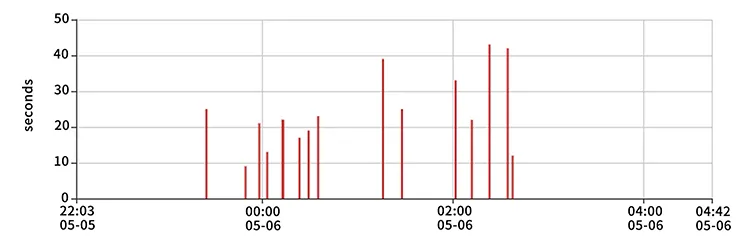

Hypopnea Trend

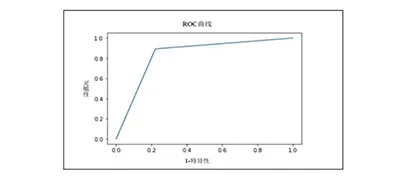

Clinical Trial Results

OSAHS Judgment Results
Sensitivity: 94.17%	Specificity: 61.21%	Accuracy: 89.62%
Diagnosis of Hypoxemia
Sensitivity: 89.29%	Specificity: 77.78%	Accuracy: 92.59%
