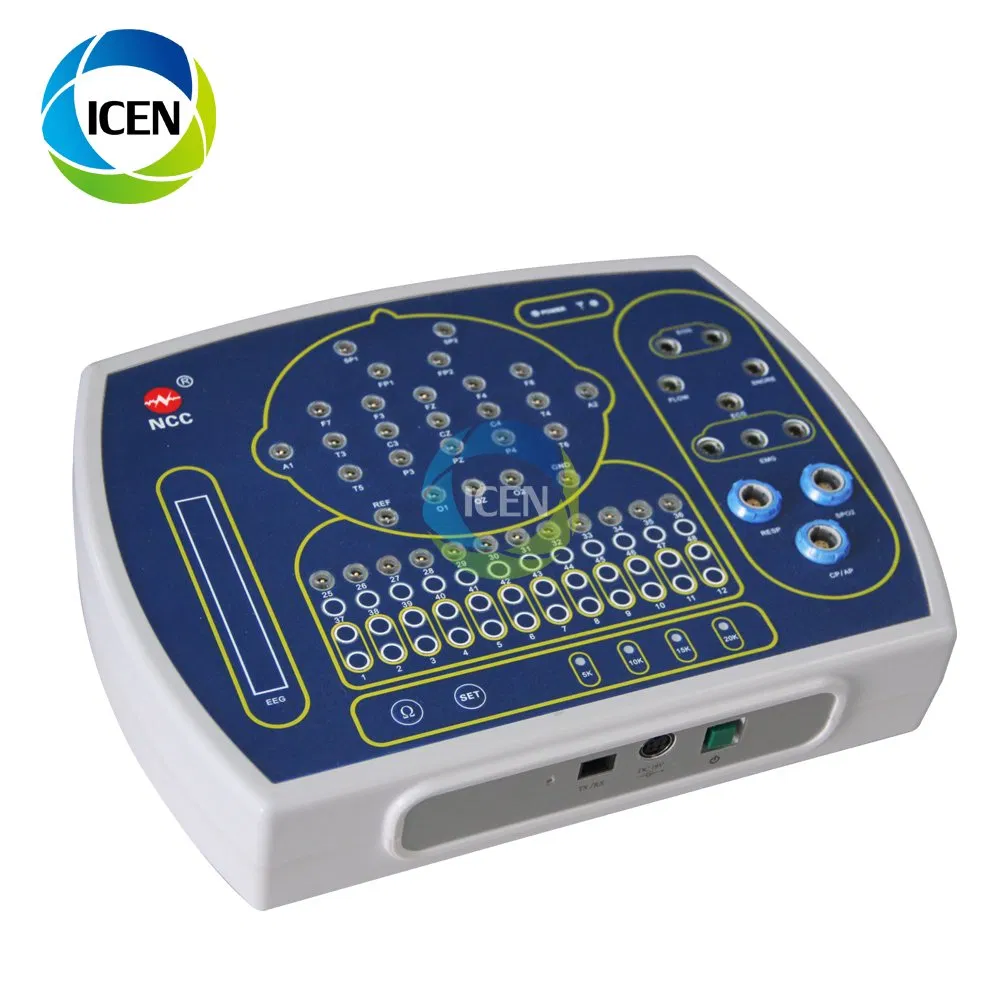

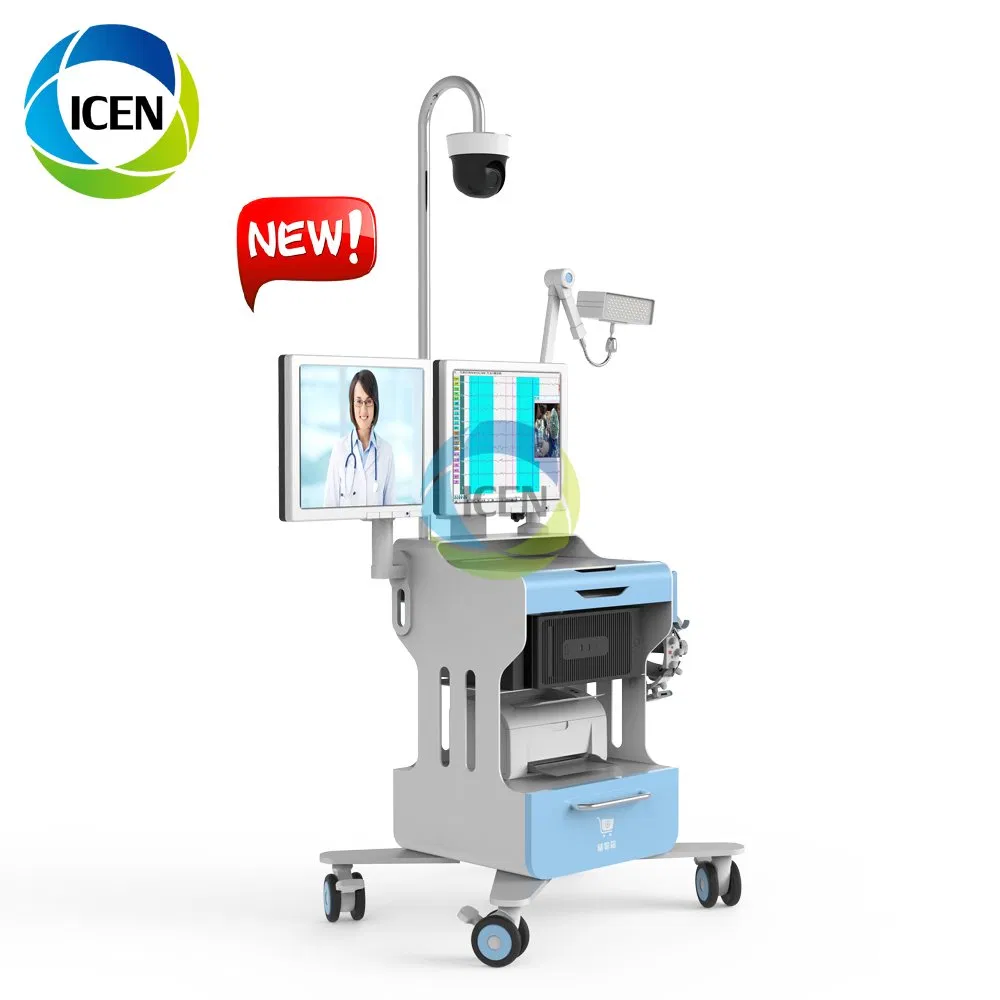

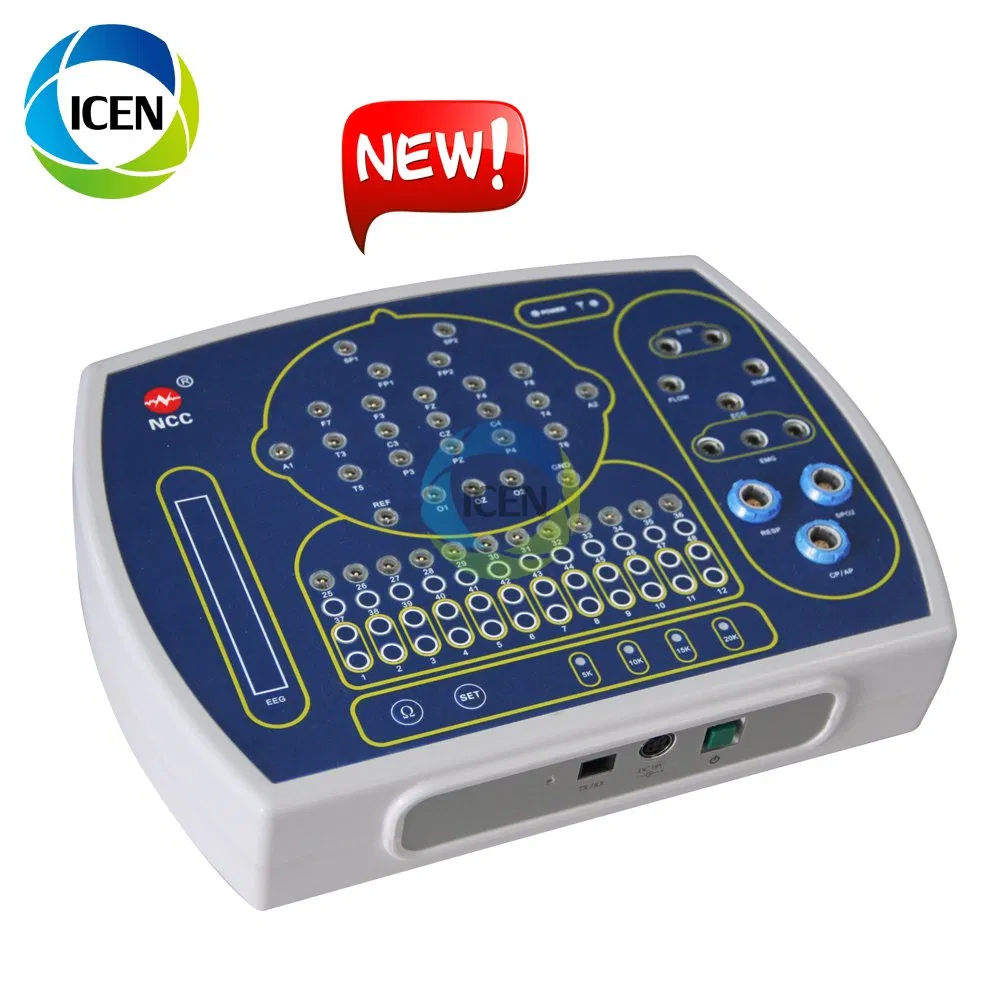

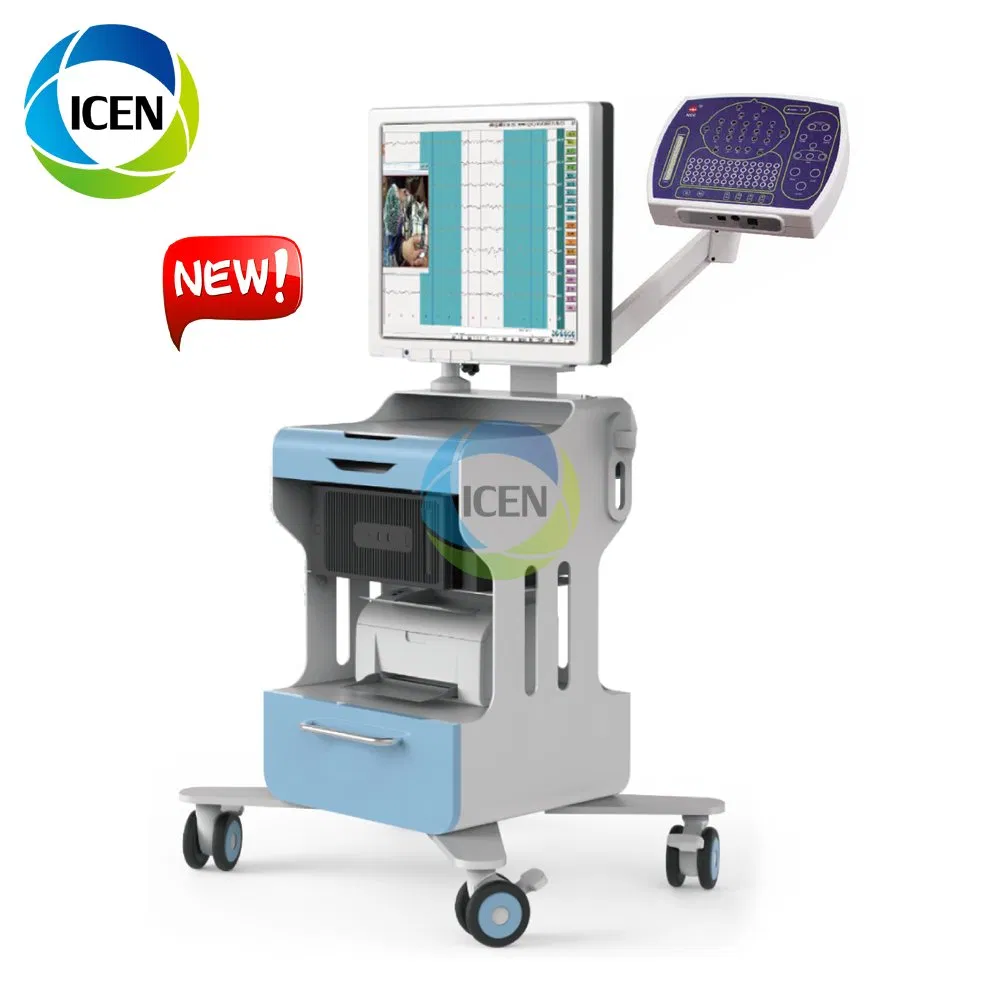

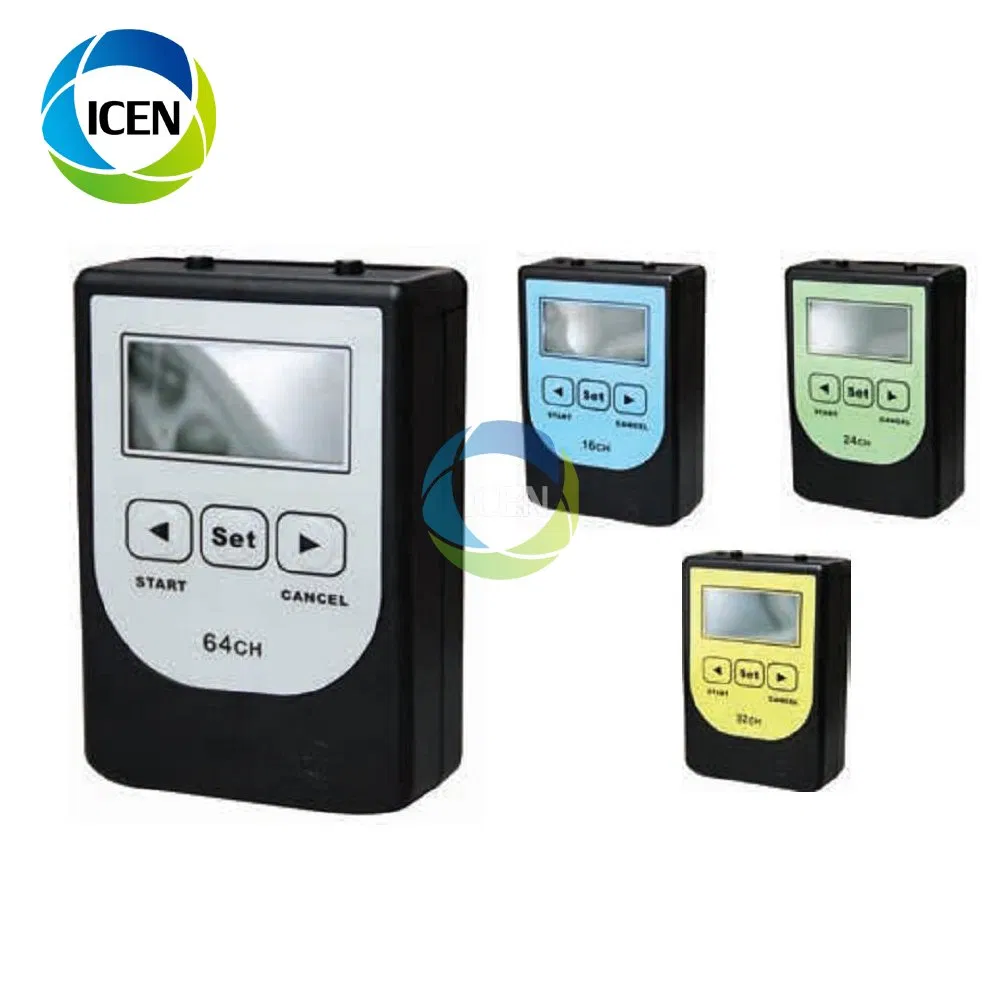

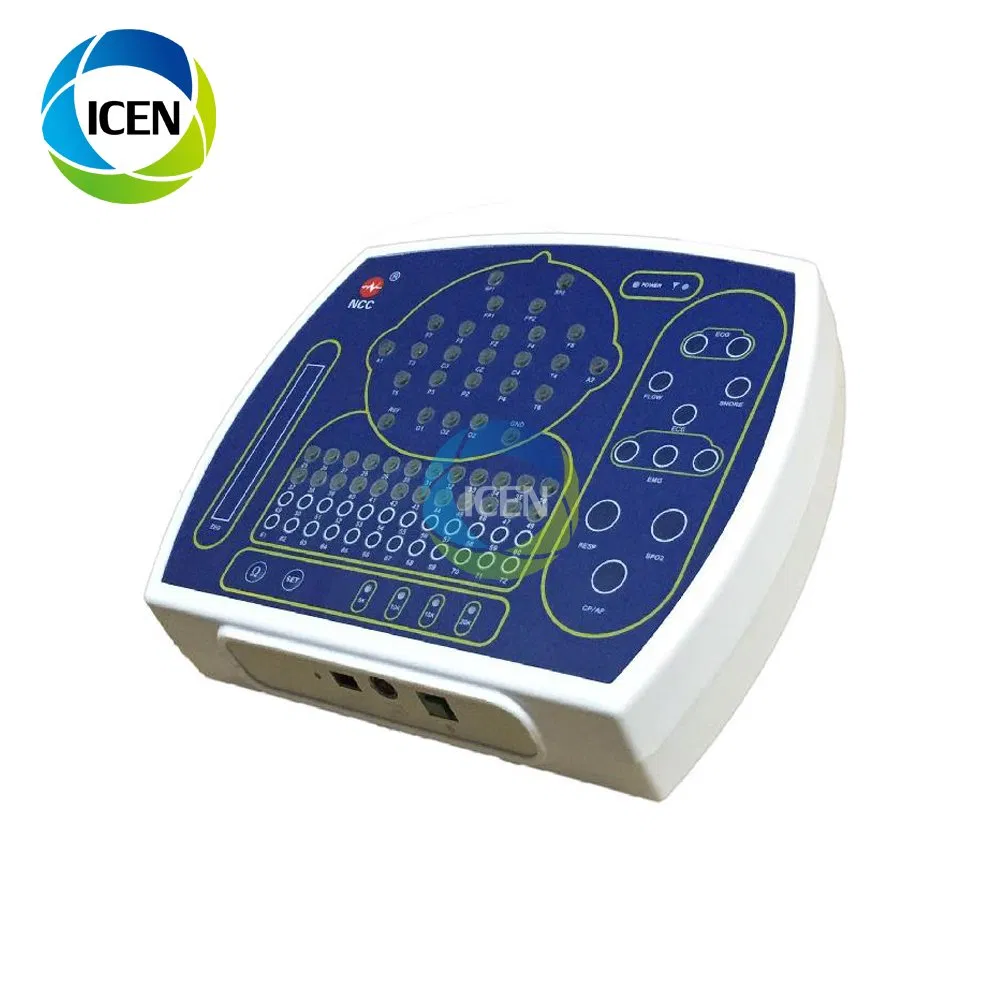

in-EEG2 Sleep Monitoring EEG System Electroencephalograph Electroencefalograma Digital EEG Device

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Certification:	CE, FDA, EEC, MSDS, ISO13485

🔍 Basic Information

Model NO.

IN-EEG2

Connection to PC

USB (HDMI Interface) Cable

Operation Modes

Real-Time

Input Impedance

≥10mohm

Sampling Rate

128/256/512/1024/2048/4096/8192Hz

Dimension

300*230*60(mm)

A/D Conversion

24 Bit

Classification

Class II

Shelf Life

1 Year

Warranty

1 Year

Color

Blue

Capacity

20000 Sets/Month

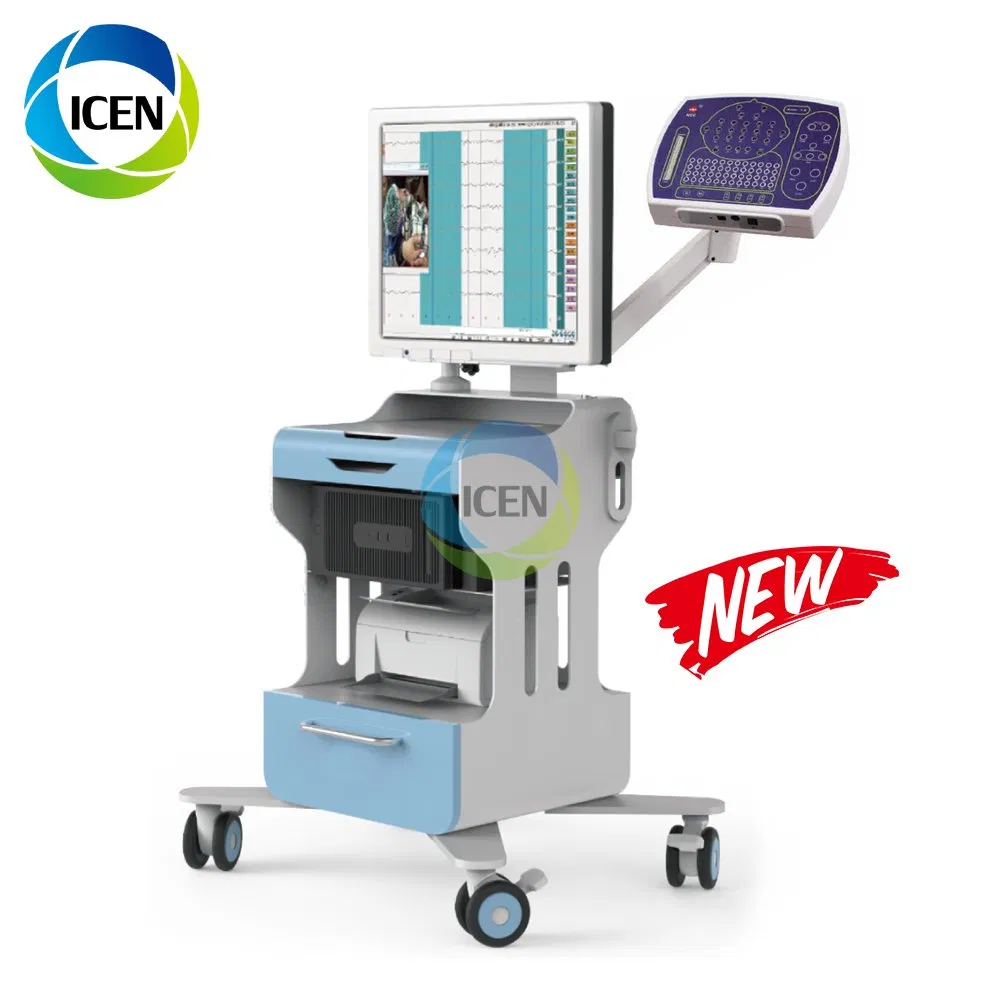

Sleep Monitoring EEG System Digital EEG Device

📋 Technical Specifications

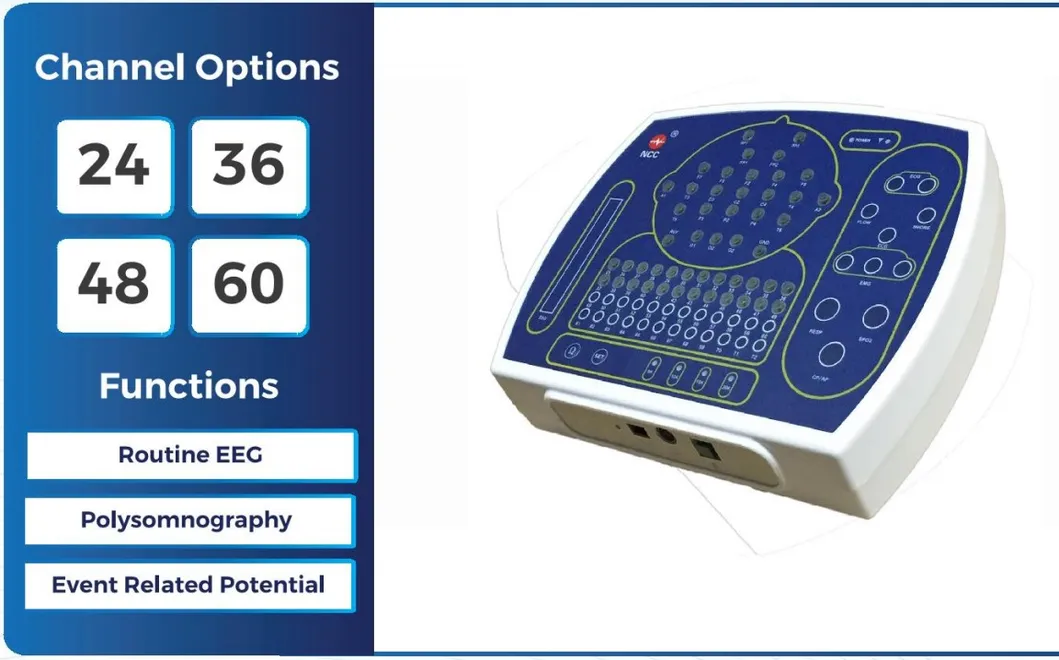

Input channels	12 Monopolar EEG + 12channels Bipolar EEG, 12 channels PSG
Power supply	Internal rechargeable lithium battery(16.8v); External charger input: AC100~240V, output DC 19V
Connection to PC	USB (HDMI interface) cable
Operation Modes	Real-time
A/D conversion	24 bit
Sampling Rate	128/256/512/1024/2048/4096/8192Hz
Input impedance	≥10MOhm
CMRR	≥100dB
Noise	≤0.5uVRMS
Low-pass filter	0-120Hz
Frequency characteristic	1~60Hz
High-pass filter	0.01-0.3s
Interface	USB2.0 (USB1.1), transfer rate: 480Mb (/12Mb) /s
Dimension & Weight	30023060(mm); 1.65Kg (amplifier only)

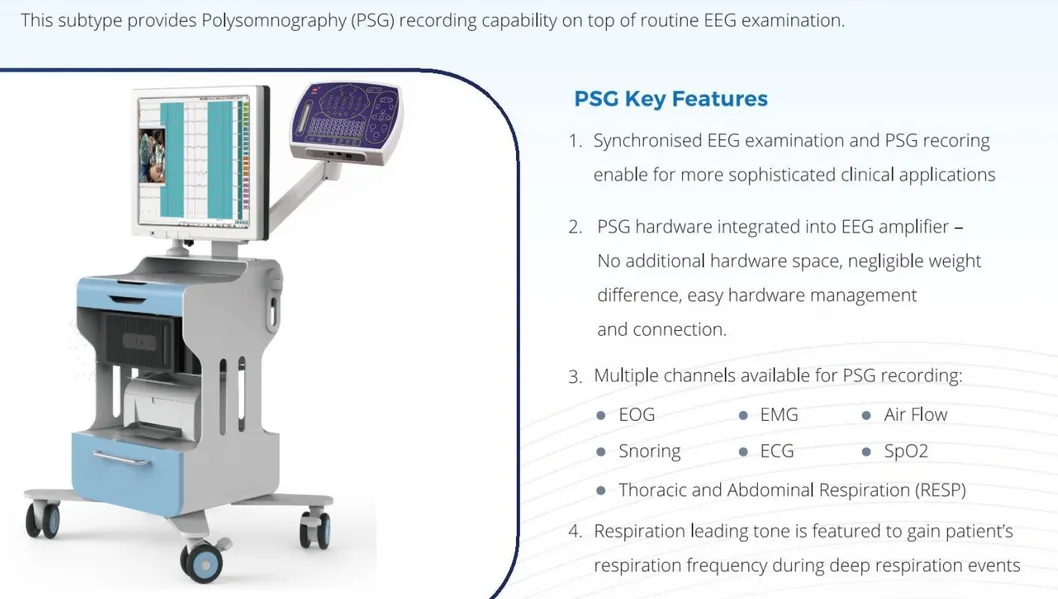

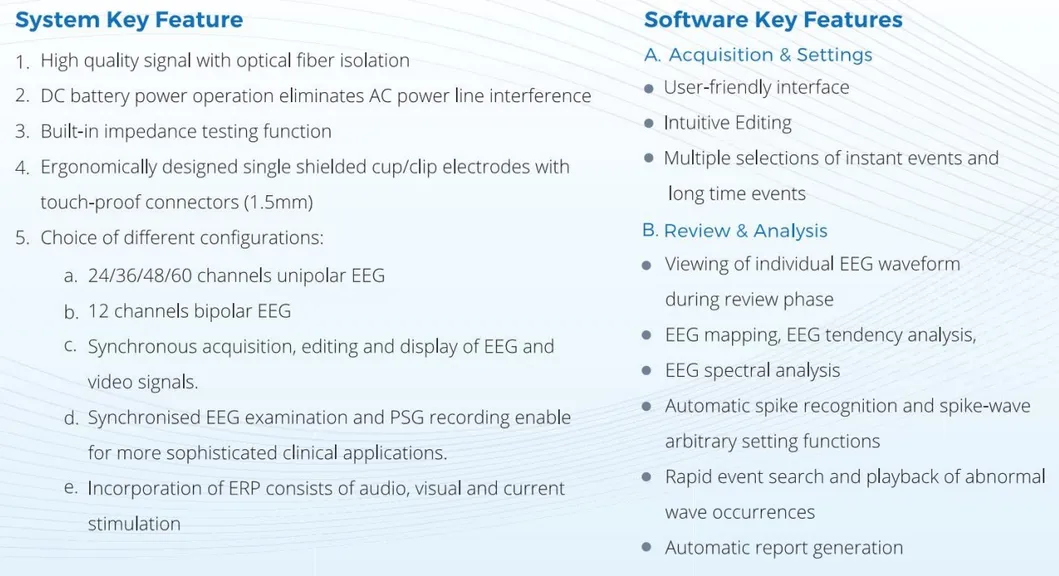

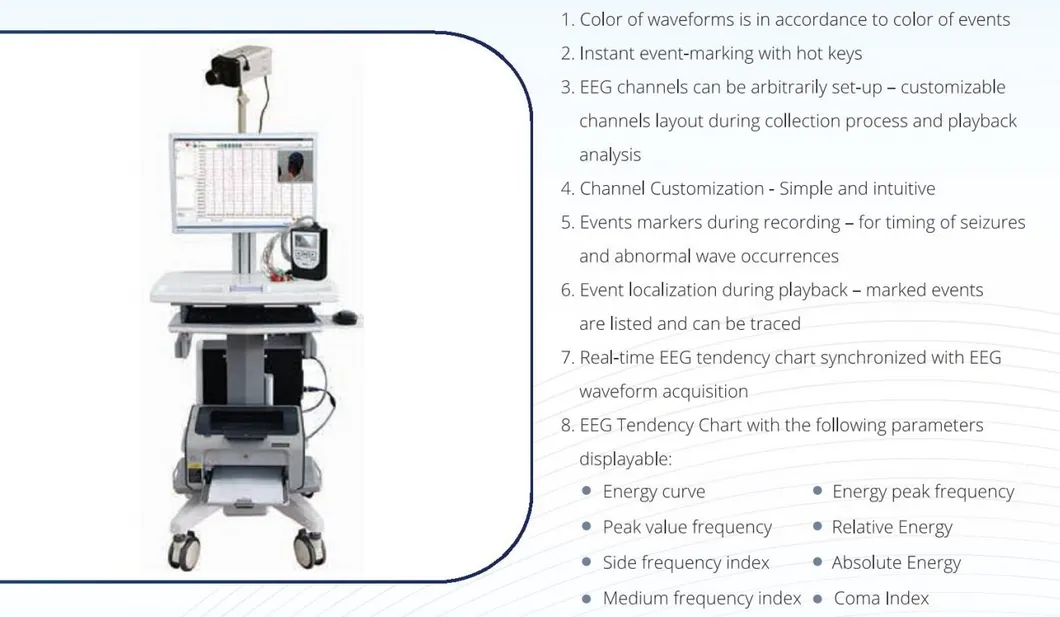

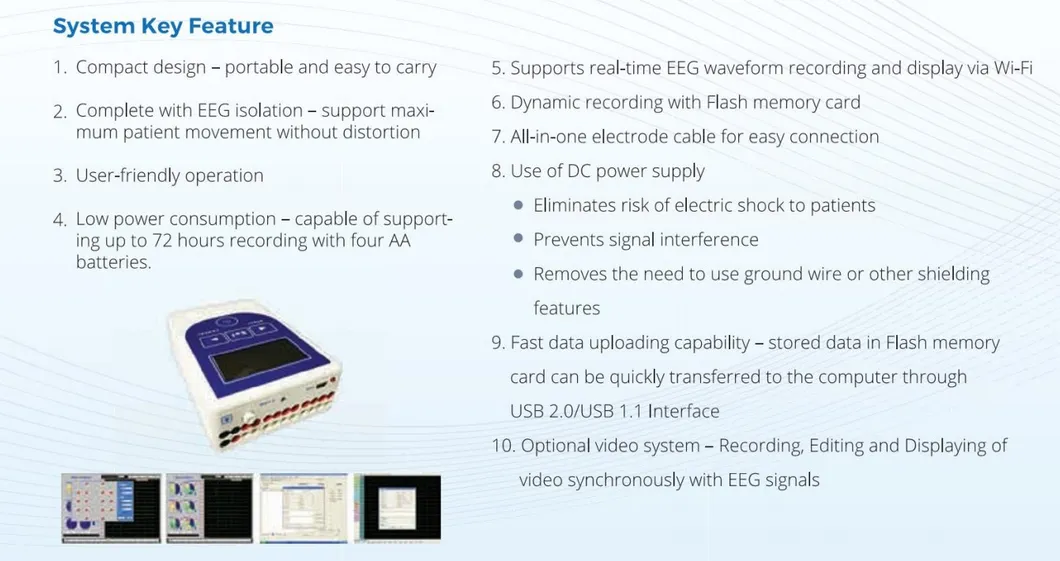

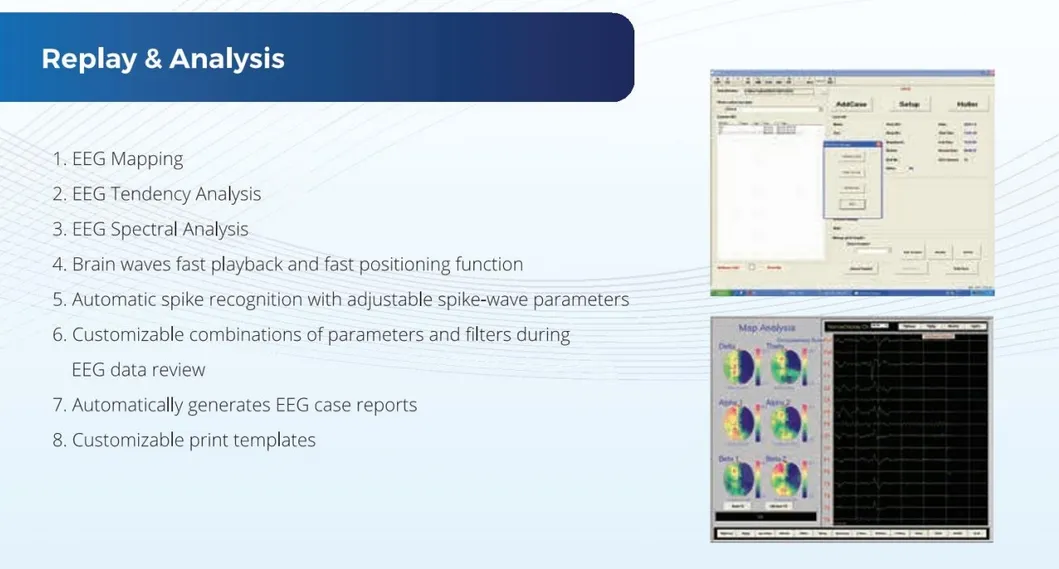

🖼️ Interface & Detail Display

🏢 Profile & Export Excellence

We are a leading exporter and supply chain service provider of medical machines with more than 8 years' experience. Our main products include X-ray machines, B ultrasound scanners, ECG, patient monitors, ICU equipment, Lab equipment, and other related medical disposables. We have exported products to more than 50 countries and built long-term partnerships with clients.

Our Professional Services

Top Quality: Strict quality control system and excellent market reputation.
Excellent Service: We treat clients as partners for long-term relationships.
OEM Accepted: Capability to customize products and logos.
Unbeatable Price: Ensuring high-performance price ratio for our customers.
Timely Delivery: Efficient processing to ensure your order is shipped once finished.
After-Sale Support: All medical products come with a one-year warranty.

❓ Frequently Asked Questions

How to buy your products?

You can buy the products from our company directly. Normally the procedure is: sign the contract, process payment via T/T, and we will arrange the shipping company to deliver the goods to your country.

What is the warranty period?

The free warranty is one year from the day of successful commissioning.

Can we visit your facilities?

Of course, we will prepare for everything in advance if necessary. Generally, it requires that customers have an established agency or business relationship with us.

How long is the quotation valid?

Generally, our price is valid within one month from the date of quotation. The price may be adjusted appropriately according to raw material price fluctuations and market changes.

Do your products have CE certification?

Yes, most of our medical products have the CE certificate, ensuring they meet international standards.

What is your production capacity?

Our current production capacity for this EEG system is approximately 20,000 sets per month.
