Convenient Hom Sleep Test Device for Sleep Apnea and Snoring Patients

1 / 5

Convenient Hom Sleep Test Device for Sleep Apnea and Snoring Patients

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

sleep fairy-a9

Certification

CE, ISO13485, Free Sale Certification

Group

Middle-aged and Old

Channel

9 Channels

Package

Portable Bag with Outer Carton

Specification

0.9kgs included packing

HS Code

90181990

Capacity

1000 sets/Month

What is Sleep Monitor?

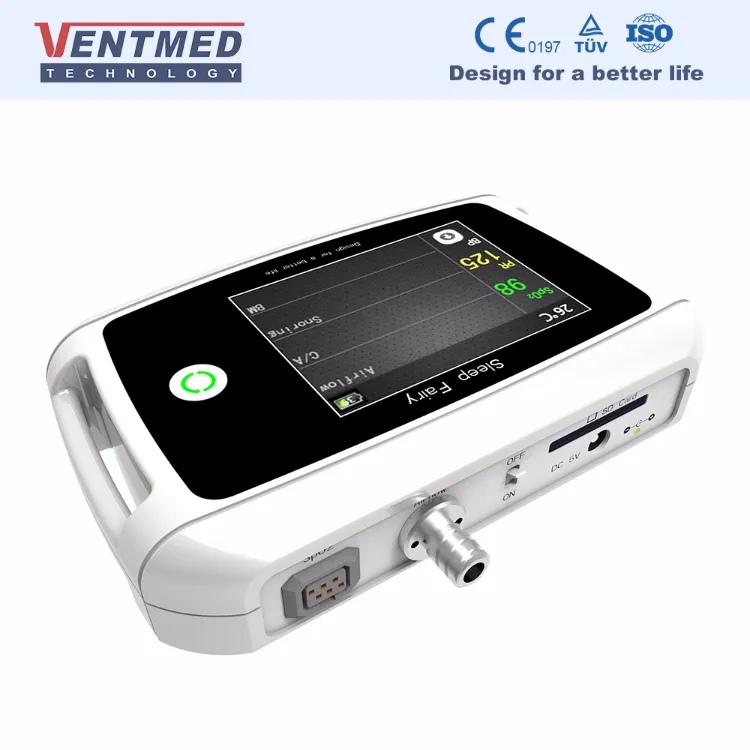

This sleep monitor device is a brand new intelligent diagnosis system for sleep disorders and sleep apnea, suitable for clinic, hospital, sleep centers, and home usage. It is specifically designed for the screening of Sleep Apnea Syndrome (SAS). It provides multiple monitor recordings and reports, allowing physicians to offer professional treatment proposals and therapy pressure titration.

Patients can be tested in the comfort and convenience of their own homes without an observer and with fewer sensors attached to their body. This reduces anxiety, leads to a more natural night of sleep, and improves patient acceptance of the test protocol. This device meets all American Academy of Sleep Medicine (AASM) requirements.

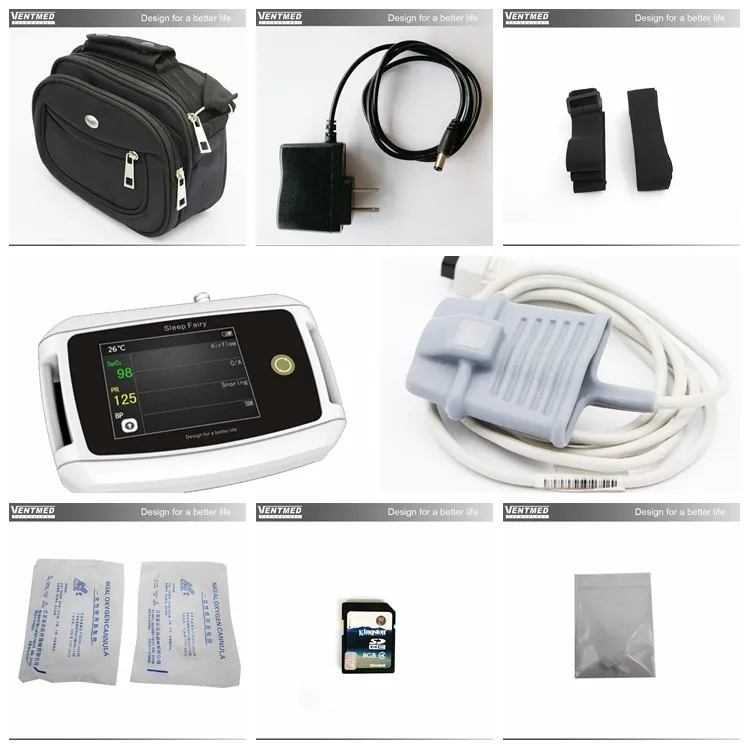

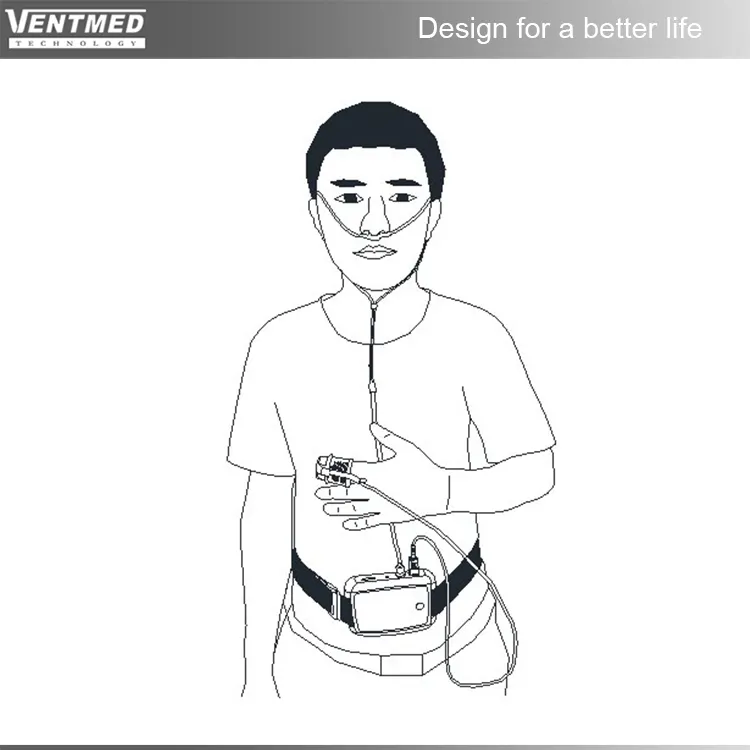

Product Structure & Components

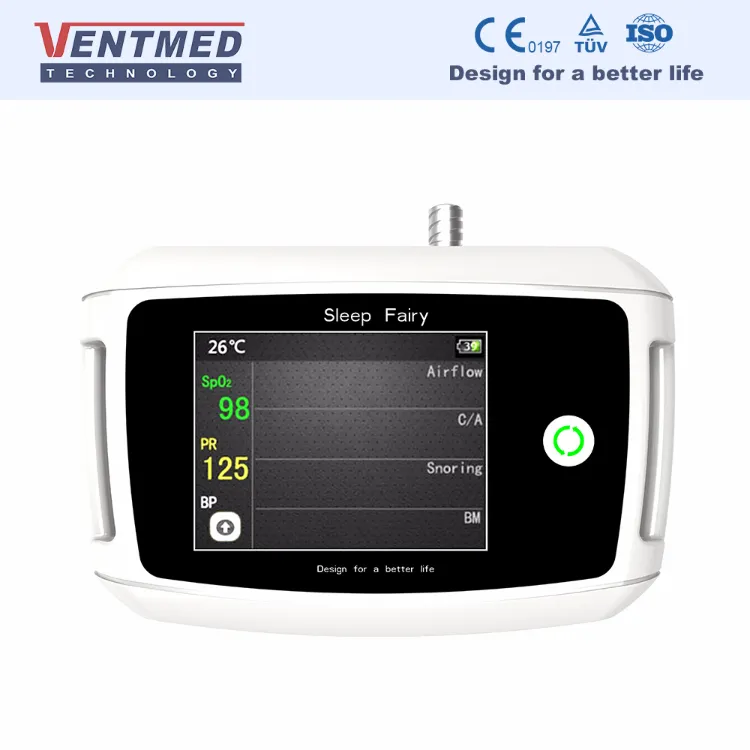

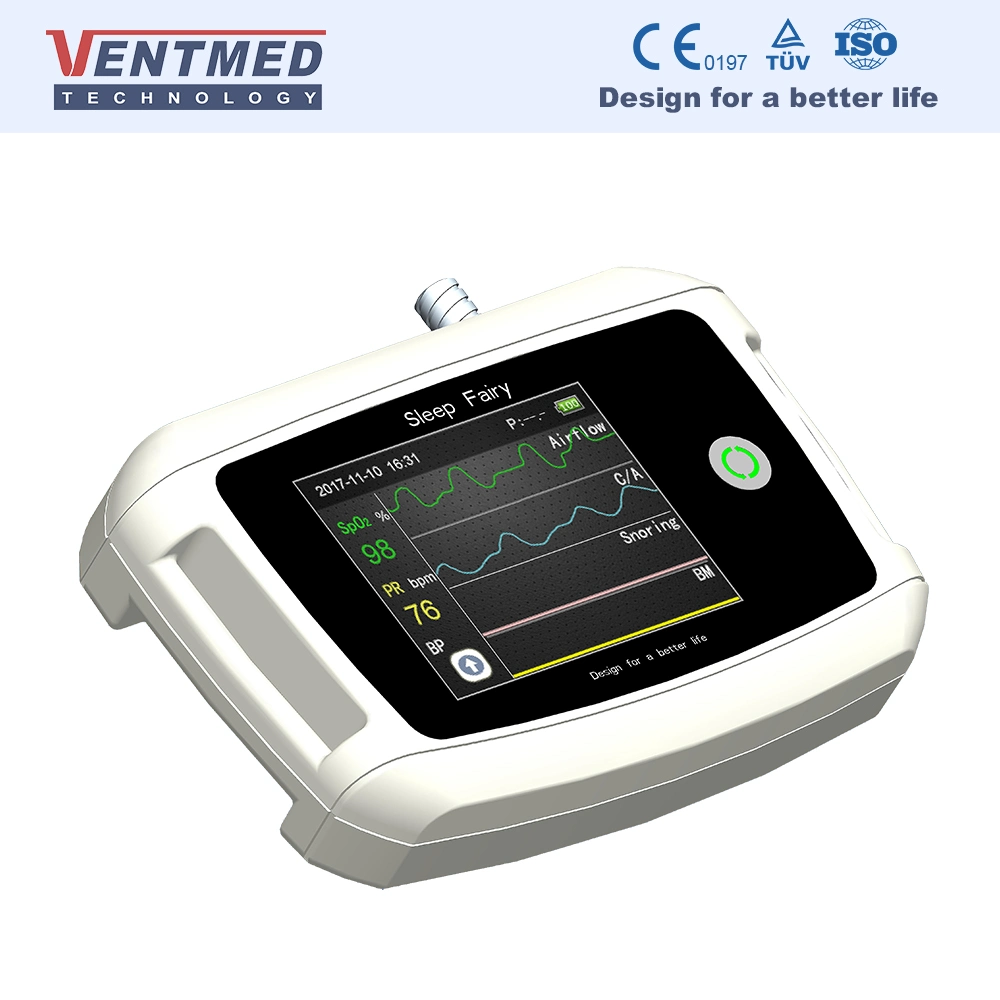

1 pc sleep monitor device host
2 pcs Luer Connector (Spare parts)
1 pcs SpO2 sensor

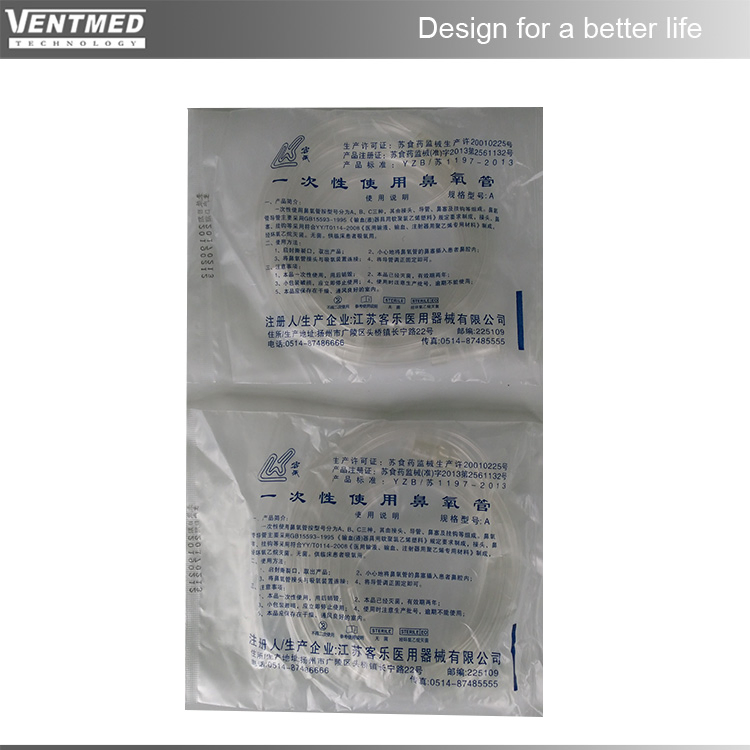

2 pcs Nasal Oxygen Cannula

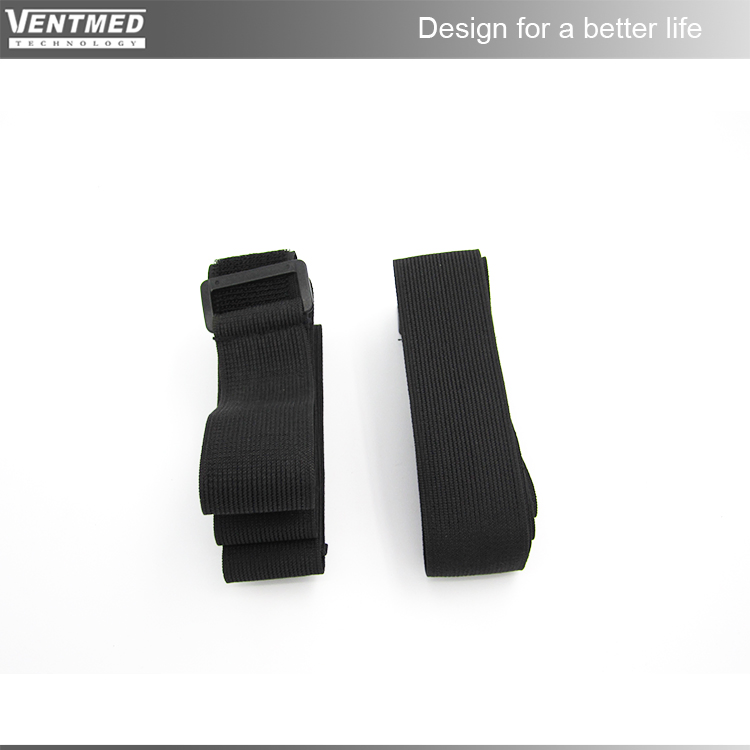

2 pcs fixing band

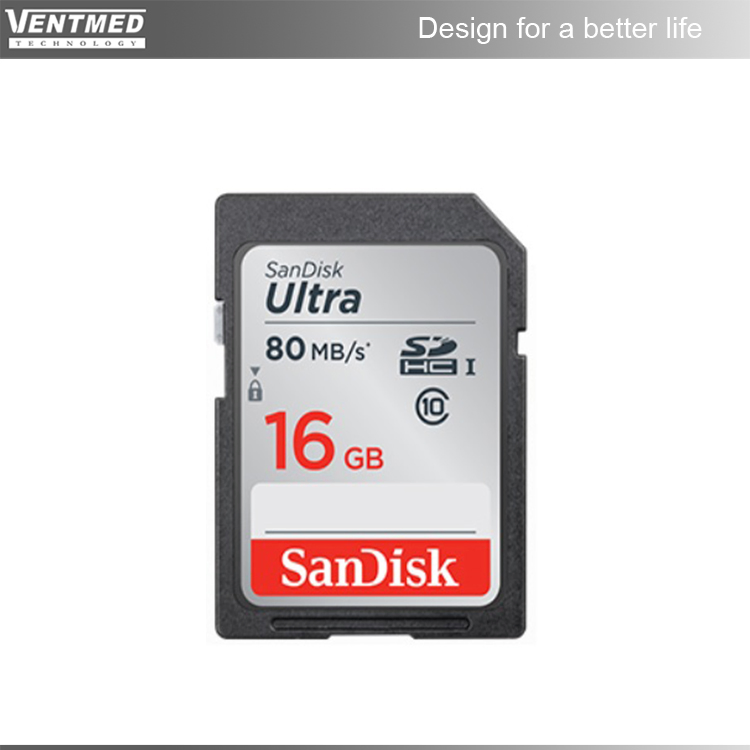

1 pcs SD card & Card reader

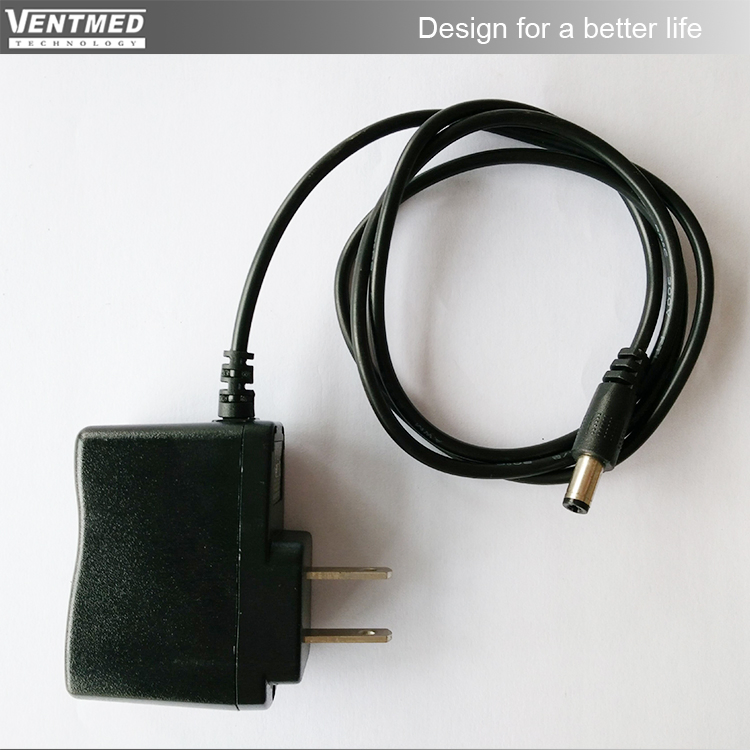

1 pcs Charger & Carrying bag

Technical Specifications

9 Channels	Air flow, Snore, SpO2, Pulse Rate, Pulse Wave, Body Position, Body Movement, Respiratory Effort, CPAP Pressure
Data Sampling	AD: 12Bit \| Rate: 50-200Hz
Storage	8G SD Card, over 8000 hours data capacity
SpO2 Range	70% - 100%
Pulse Rate	30 - 240 bpm
Battery	Integrated Rechargeable Lithium Battery, 2500mAh (30 hours continuous use)
Screen	2.8 inch TFT, 320 x 240

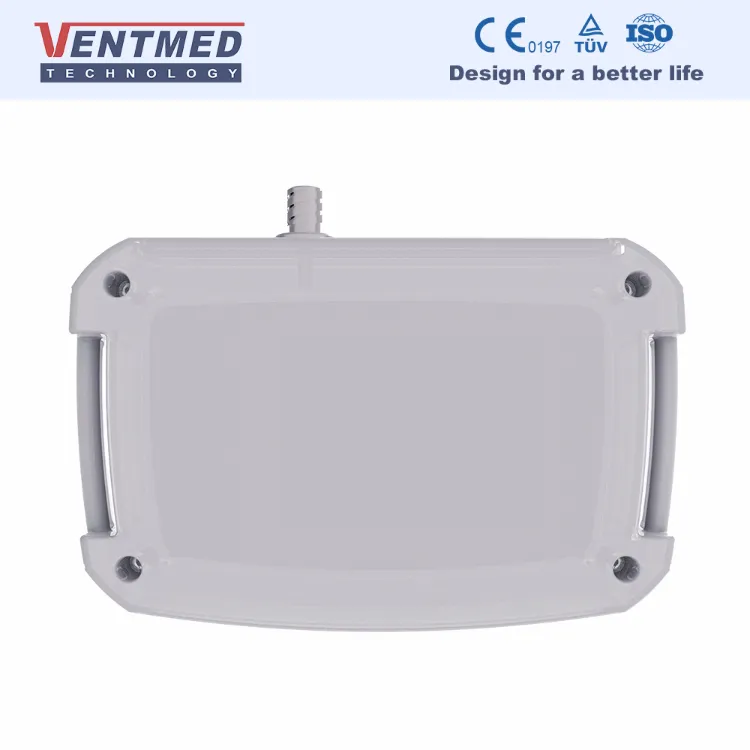

Dimensions	125mm x 80mm x 24mm (Host weight: 176g)

Key Features

Compact & Light: Designed for portability and patient convenience.
Innovative 3D Sensor: Built-in machine technology, reducing the need for extra external sensors.
One-Switch Operation: Extremely easy to operate for both home and clinical users.
Accurate Clinical Data: Provides detailed and reliable sleep diagnostic reports.
CPAP Linkage: Can link to CPAP devices to titrate the required therapy pressure.

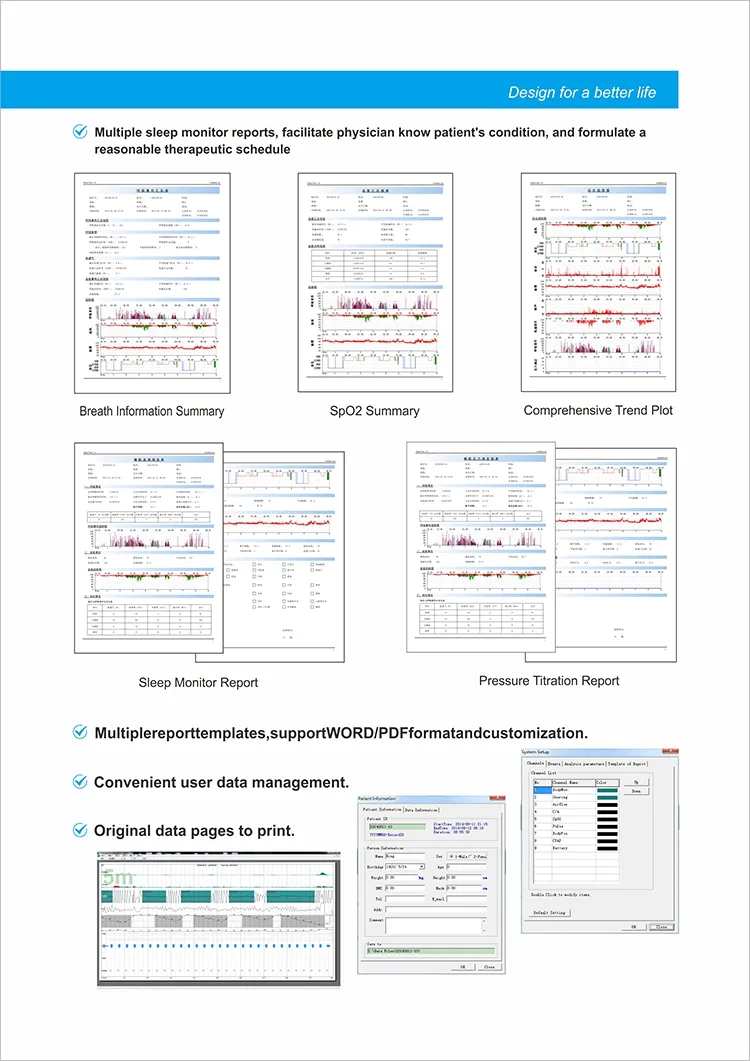

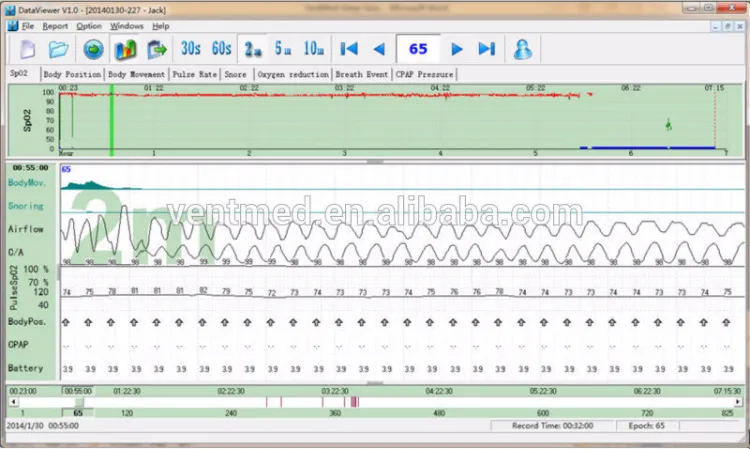

Professional Software: Comprehensive image display and report printing via specialized software.

Why Choose This System?

Our system is backed by a professional research and development team specializing in breathing and sleep therapy. We offer reliable quality, comprehensive market protection, and products that maintain a high reputation for top quality and competitive pricing.

Frequently Asked Questions

How many channels does the device record?

The device records 9 channels, including Air flow, Snore, SpO2, Pulse Rate, Pulse Wave, Body Position, Body Movement, Respiratory Effort, and CPAP Pressure.

Is this device suitable for home use?

Yes, it is designed for both clinical environments and the comfort of a patient's home, reducing anxiety and allowing for a more natural night of sleep.

How long does the battery last?

The integrated 2500mAh rechargeable lithium battery supports up to 30 hours of continuous monitoring.

Does it meet international medical standards?

Yes, the device meets all American Academy of Sleep Medicine (AASM) requirements and holds CE and ISO13485 certifications.

How is the sleep data managed?

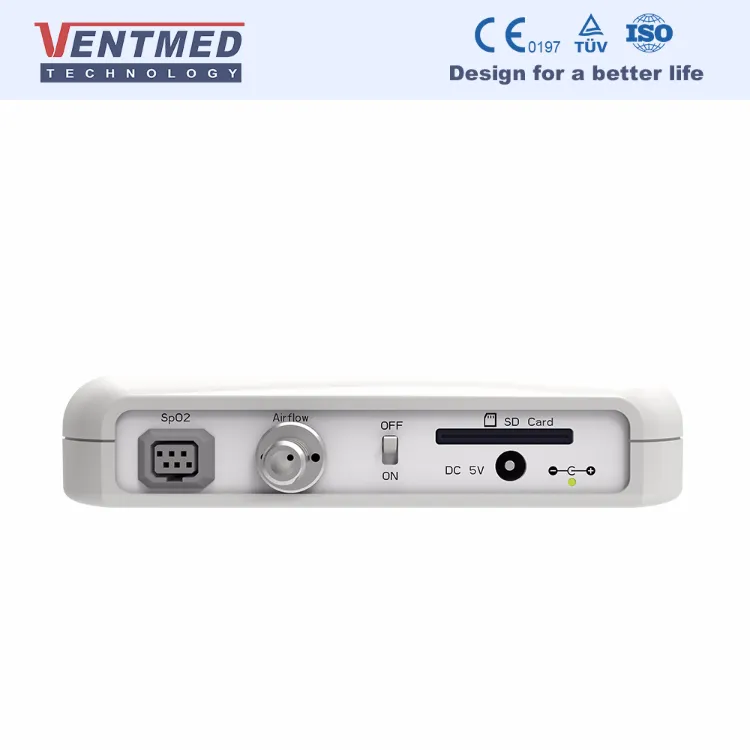

Data is stored on an 8G SD card which can be read by a computer using the included reader and specialized software for professional reporting.

Are extra sensors required for body movement?

No, thanks to the innovative built-in 3D sensor, the device can monitor body movement and position without additional external sensors.
