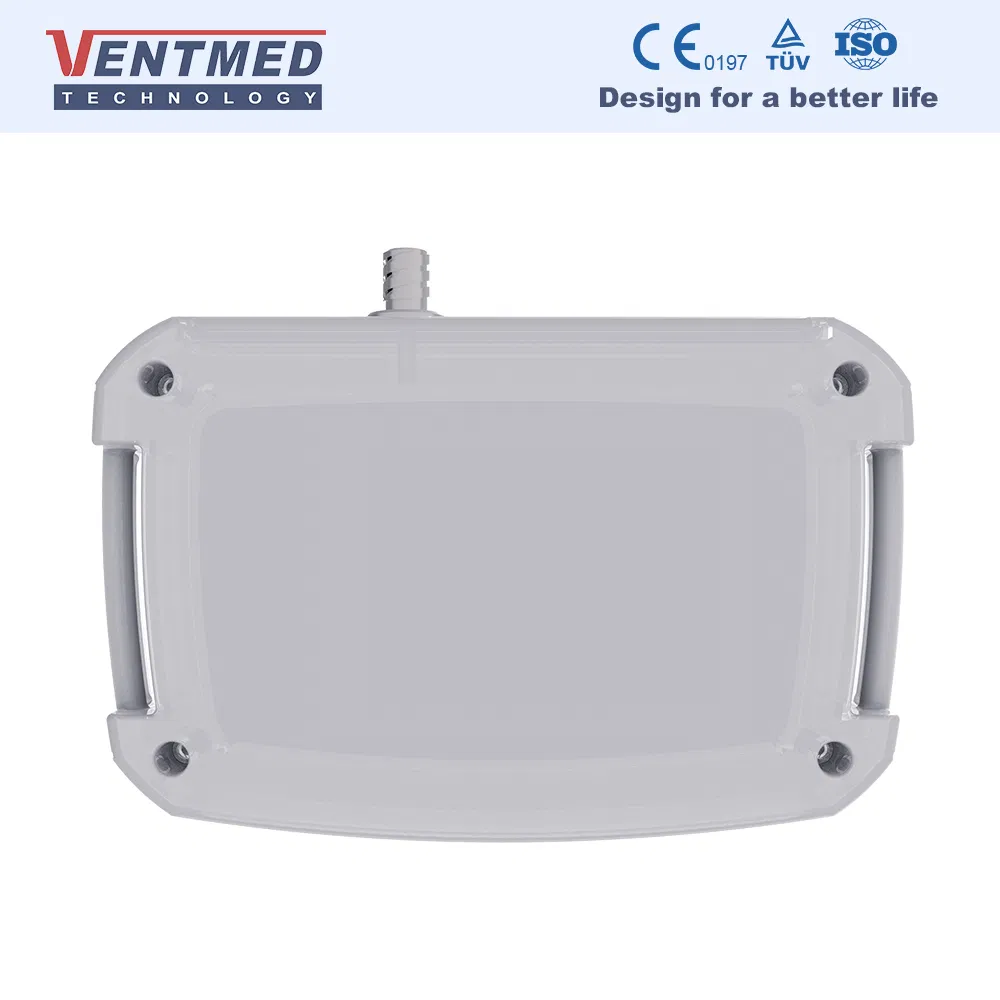

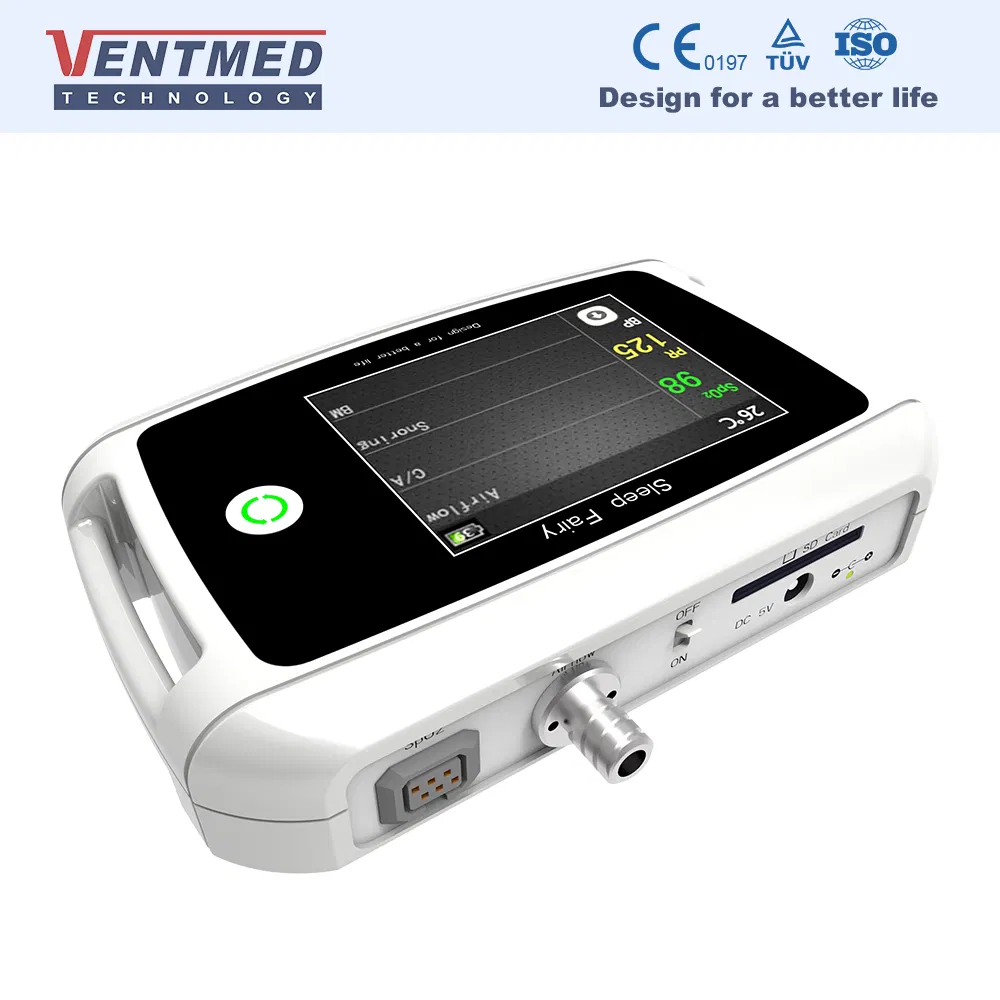

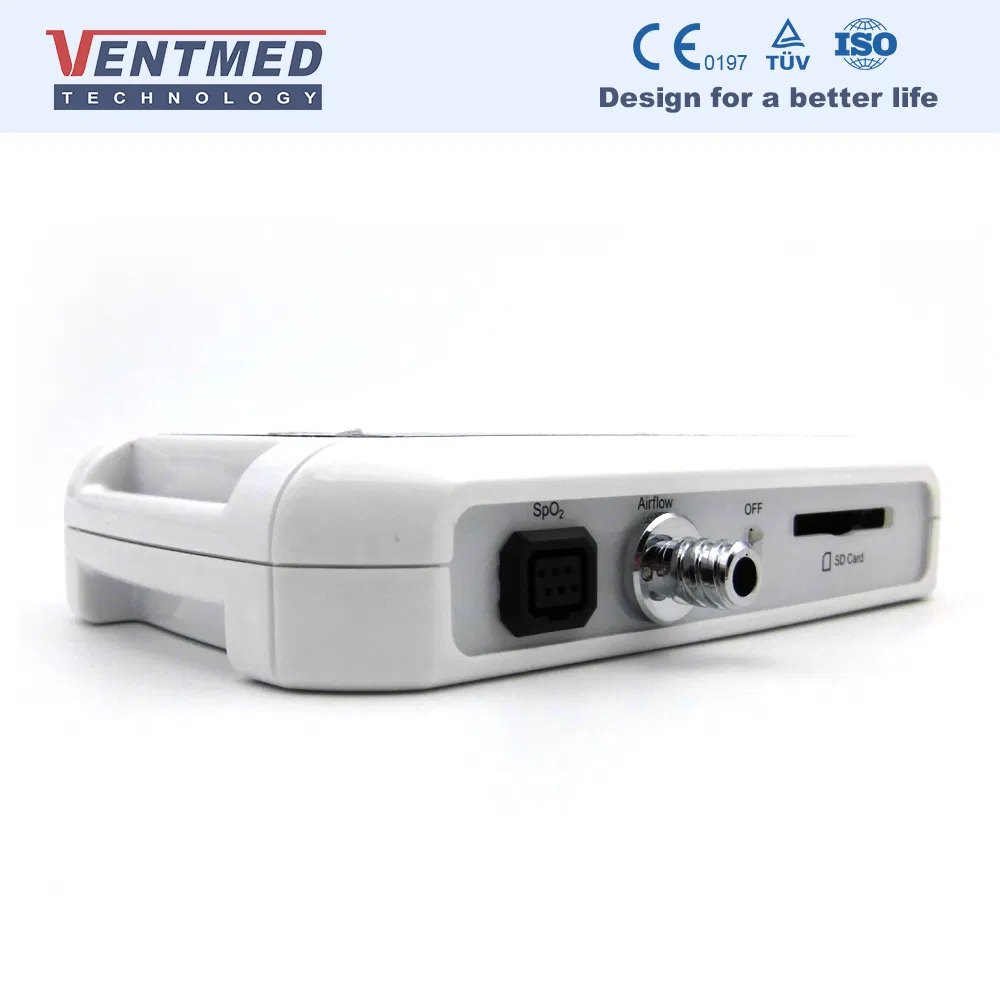

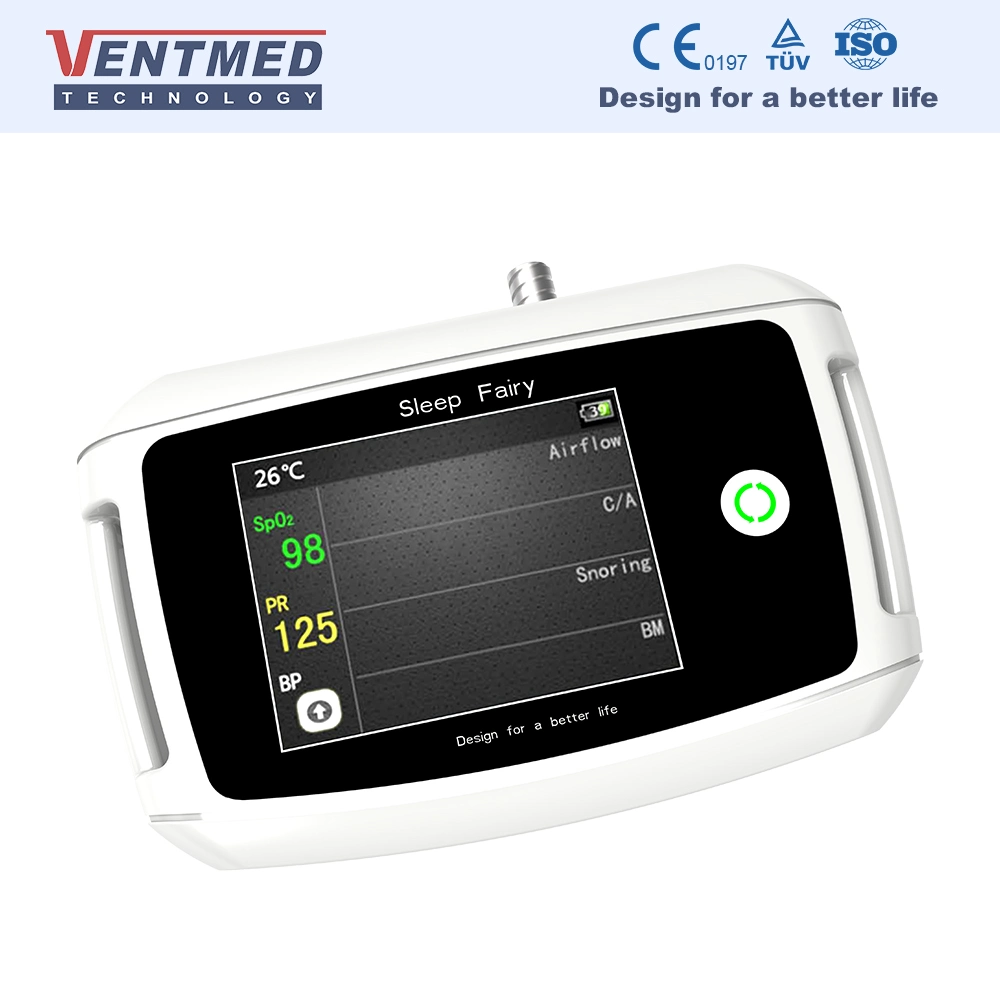

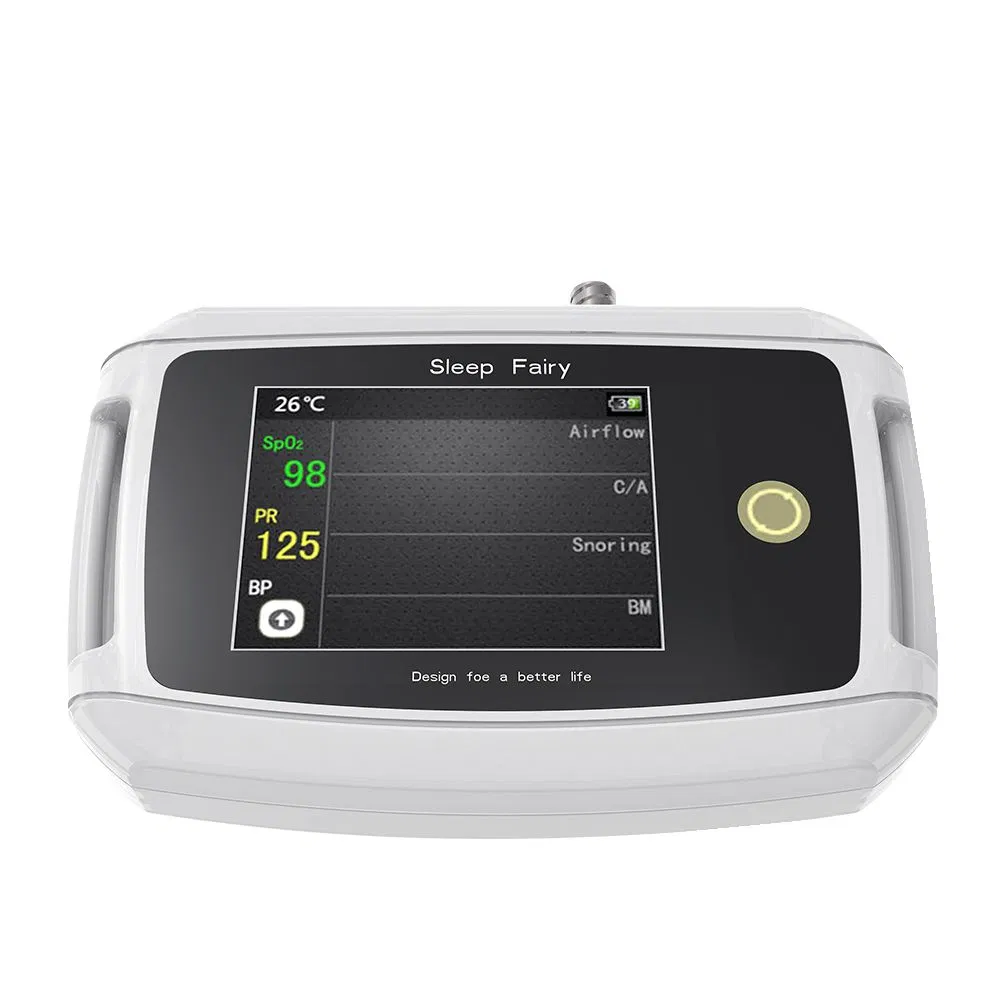

9 Channels Sleep Apnea Monitoring Device for Home Sleep Test

1 / 5

9 Channels Sleep Apnea Monitoring Device for Home Sleep Test

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.A9

CertificationMSDS, ISO13485

GroupMiddle-aged and Old

LED Display2.8-Inch TFT

AdvantageSuitable and High Accurate

FunctionSleep Apnea Diagnosis

FeatureCompact, Light and Convenient

Weight176g (Exclude Sensor)

Dimensions125mmL X 80mmW X 24mmH

HS Code9018199000

Capacity500 Set/ Month

9 Channels Sleep Apnea Monitoring Device

Comprehensive Home Sleep Test Solution

This intelligent diagnosis system is designed for sleep disorders and sleep apnea. It is ideal for clinics, hospitals, sleep centers, and especially for home usage in screening Sleep Apnea Syndrome (SAS). The device provides multiple recordings and detailed reports, allowing physicians to offer professional treatment proposals and therapy pressure titration.

Patients can undergo testing in the comfort of their own homes without an observer, using fewer sensors. This leads to a more natural sleep environment and improves acceptance of the test protocol. This device meets all American Academy of Sleep Medicine (AASM) requirements.

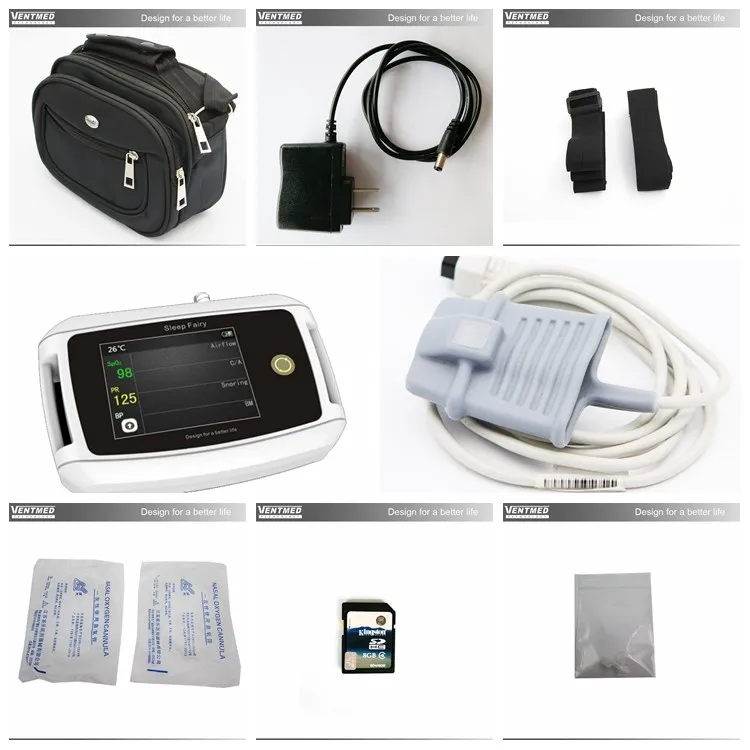

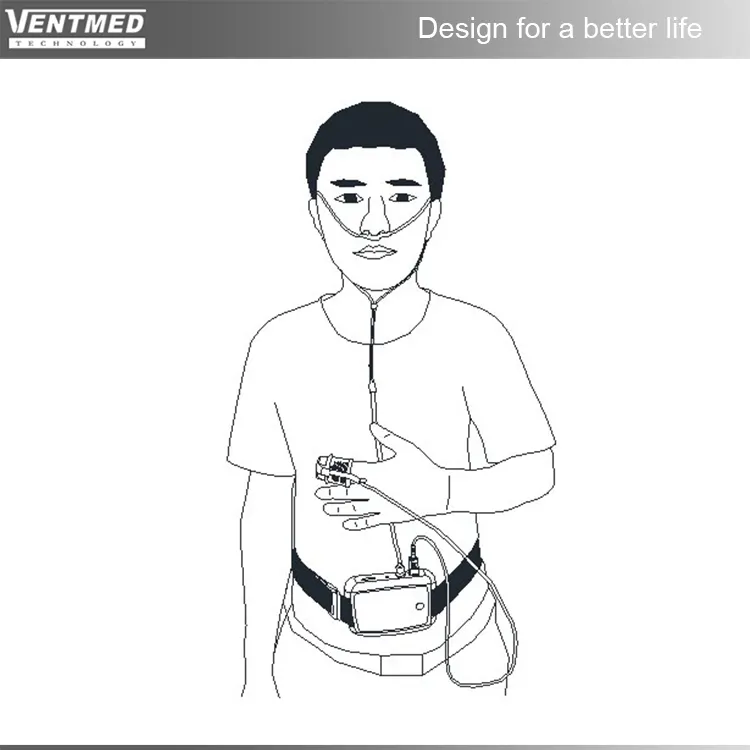

Product Structure

1 pcs Host
2 pcs Luer Connector (Spare parts)
1 pcs SpO2 sensor
2 pcs Nasal Oxygen Cannula
2 pcs fixing band
1 pcs SD card & Card reader
1 pcs Charger & Carrying bag

Technical Specifications

9 Channels	Airflow, Snore, SpO2, Pulse Rate, Pulse Wave, Body Position, Body Movement, Respiratory Effort, CPAP Pressure
Data Sampling Rate	50-200Hz / 12Bit AD
Storage	8G SD Card (over 8000 hours of data)
Measurement Range	SpO2: 70% - 100%; Pulse Rate: 30 - 240 bpm
Battery	2500mAh Lithium Battery (30 hours continuous use)
Display	2.8 inch TFT, 320 x 240
Weight & Size	176g; 125mmL x 80mmW x 24mmH

Key Features

Compact & Portable: Light and convenient for travel and home use.
Integrated 3D Sensor: No need for extra sensors for movement or respiratory effort.
One-Switch Operation: Extremely easy to operate for all age groups.

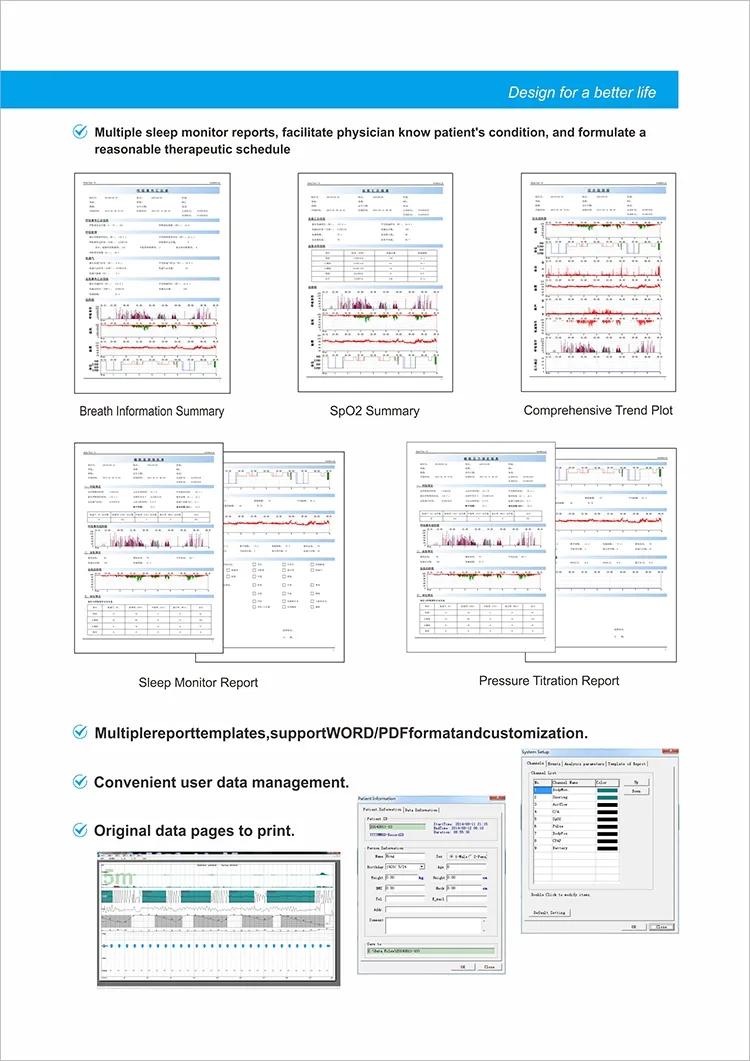

Detailed Reports: Sophisticated scoring and diagnostic software included.
CPAP Link: Can be linked to CPAP devices for pressure titration.

Professional Excellence

Our research team has focused on medical device innovation for 15 years, specializing in sleep disorder diagnosis and CPAP solutions. By utilizing high-precision 3D sensors and advanced network platforms, we ensure real-time monitoring and accurate data for doctors and patients alike.

"Design for a better life!"

Exhibition & Global Reach

Our Services

We provide comprehensive solutions in the sleep and breathing field. With years of manufacturing experience, we offer:

OEM/ODM Services: Private brand customization according to your requirements.
1-Year Warranty: Quality assurance on all primary devices.
Fast Delivery: Minimum and shortest delivery times globally.
Support: Long-time maintenance and 24-hour inquiry response.

Frequently Asked Questions

Q1: Can I use this sleep monitor at home by myself? Yes, it is designed for home use. Its one-switch operation and lightweight design make it easy for patients to perform tests without an observer.

Q2: How many parameters does the device monitor? The device monitors 9 channels, including Airflow, Snore, SpO2, Pulse Rate, Pulse Wave, Body Position, Body Movement, Respiratory Effort, and CPAP Pressure.

Q3: How long does the battery last on a single charge? The integrated 2500mAh lithium battery supports up to 30 hours of continuous monitoring.

Q4: Does the device require multiple external sensors? No, it features an innovative built-in 3D sensor. You only need the SpO2 sensor; extra sensors for body movement or respiratory effort are not required.

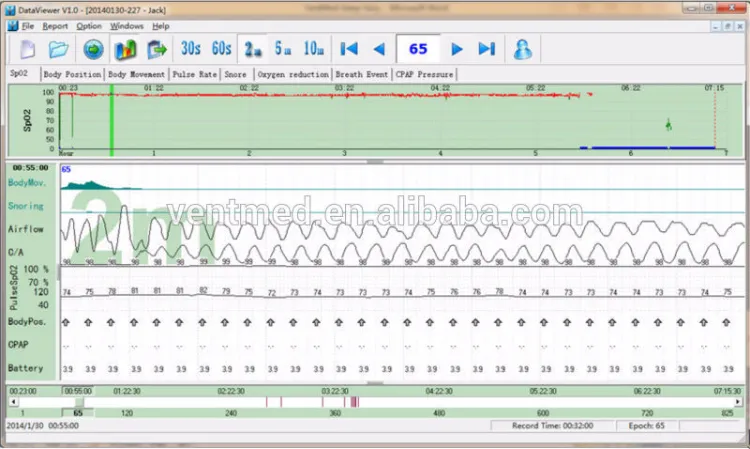

Q5: How is the sleep data analyzed? Data is stored on an SD card, which can be read by the included software on a computer to generate detailed diagnostic reports and images.

Q6: Is this device compatible with CPAP therapy? Yes, it can link to any CPAP device to help titrate the patient's required pressure for effective therapy.
