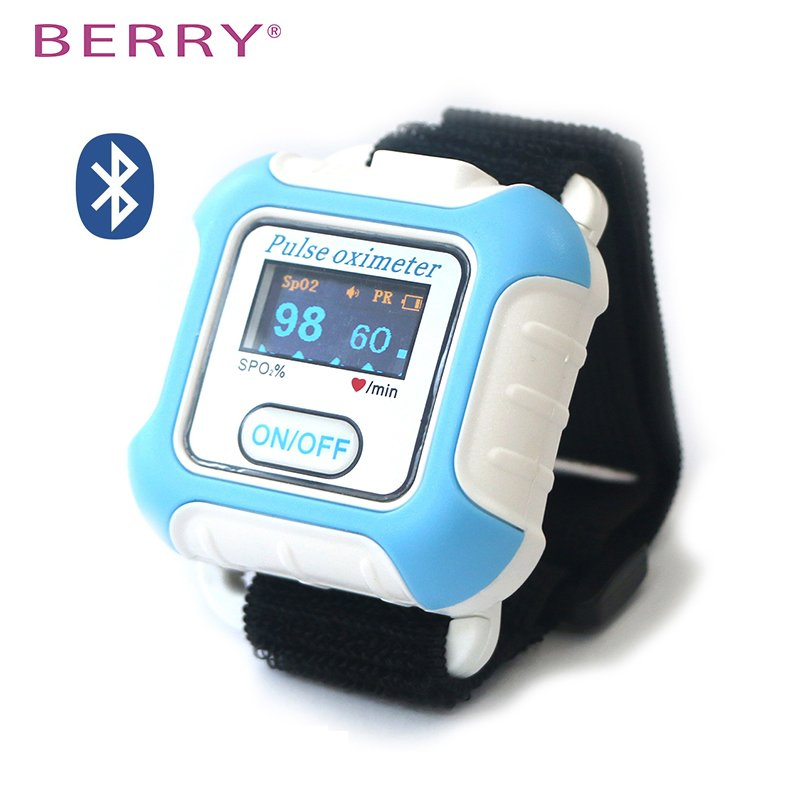

Bluetooth Medical Sleep Apneas Screening Monitor Polysomnography Device

1 / 5

Bluetooth Medical Sleep Apneas Screening Monitor Polysomnography Device

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO. BM2000A

Certification CE, FDA, ISO13485

Group Adult and Child

Color Blue

Quality ISO13485 Ce0123

HS Code 9018191000

Capacity 50000PCS/Year

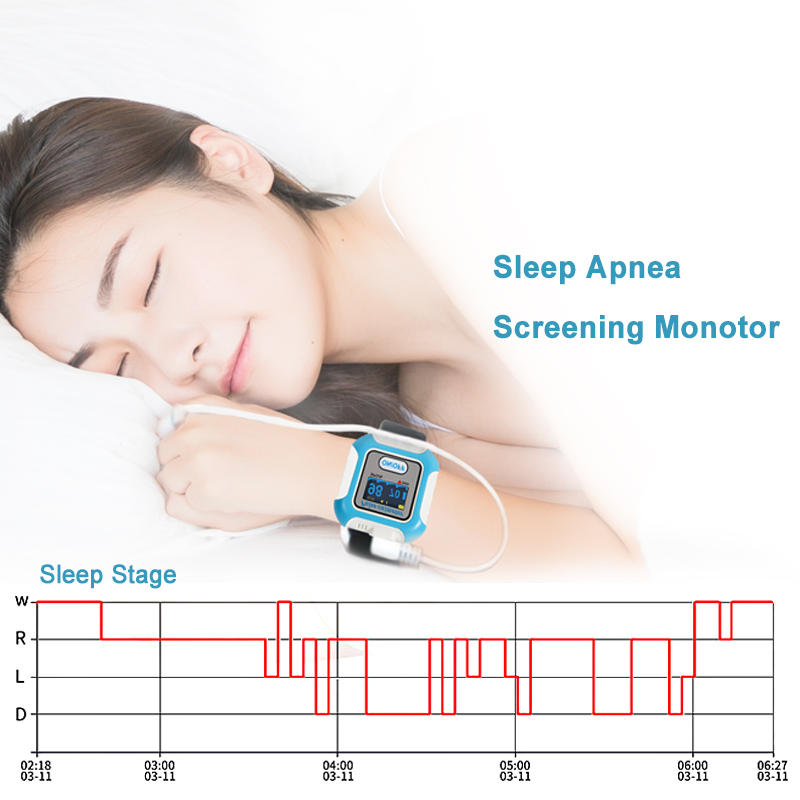

Sleep Monitoring System Overview

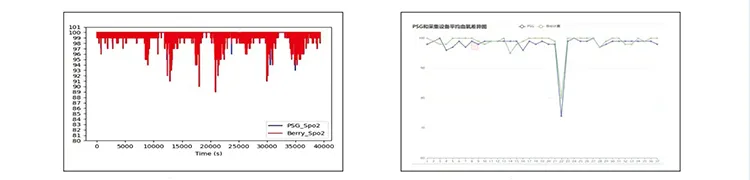

BM2000A Sleep monitoring system is specifically designed for sleep hypopnea syndrome monitoring. It accurately captures pulse signals and has been validated in numerous clinical trials to meet high-standard measurements for blood oxygen and pulse rate.

Major Features

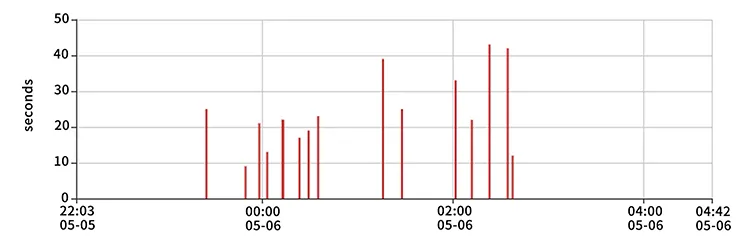

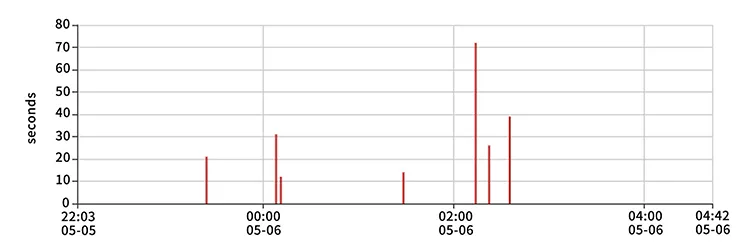

Specialized Monitoring: Ideal for sleep apnea and respiratory monitoring, specifically hypopnea detection.

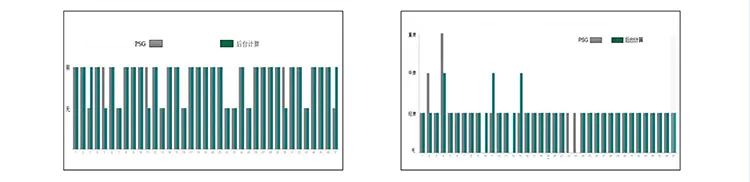

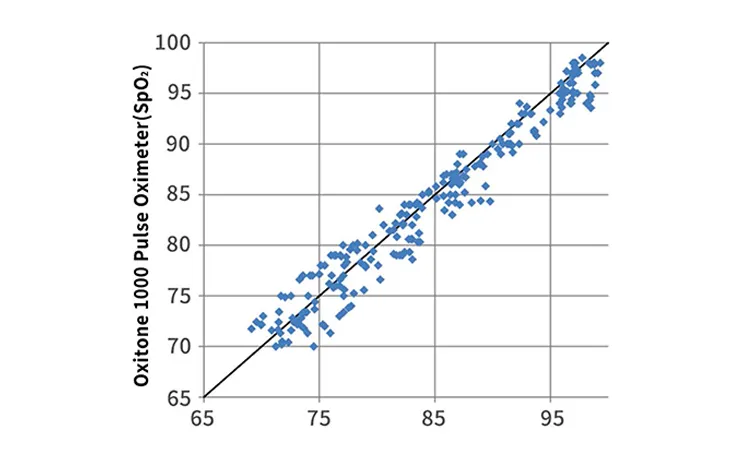

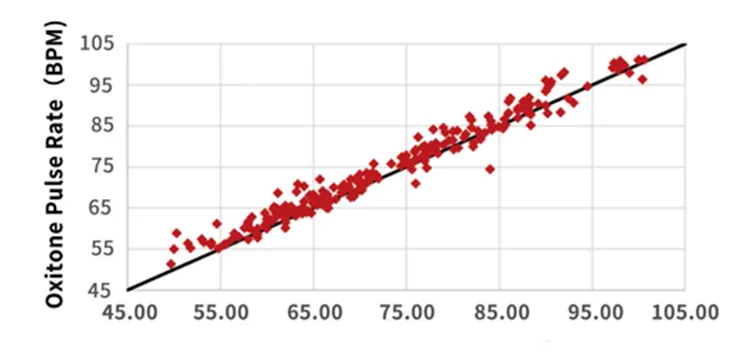

Clinical Accuracy: Proven performance for clinical sleep apnea syndrome diagnosis through PSG contrast experiments.
Long Endurance: Low power consumption with a 3.7V lithium battery lasting more than 20 hours.
Global Compliance: Approved by international certifications including CE and 510K.
Universal Applicability: Equipped with various sensors suitable for infants, children, and adults of different skin colors.

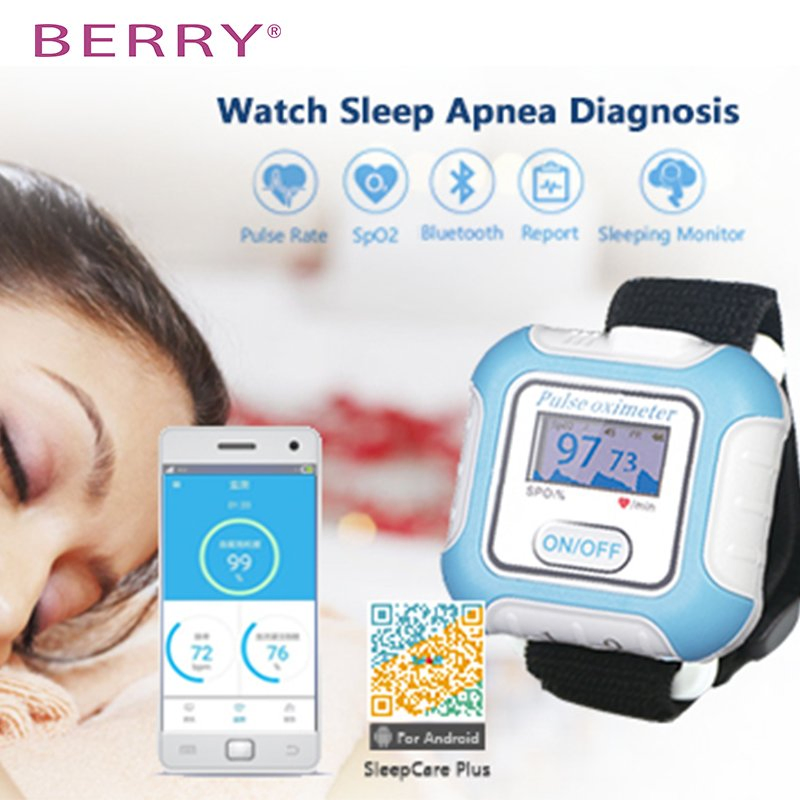

Smart Integration: Connects via Bluetooth to dedicated apps for real-time data storage and feedback.

Operation Process

1. Download the monitoring App from Google Play or Apple Store.
2. Wear the equipment for at least 6 hours of sleep monitoring.

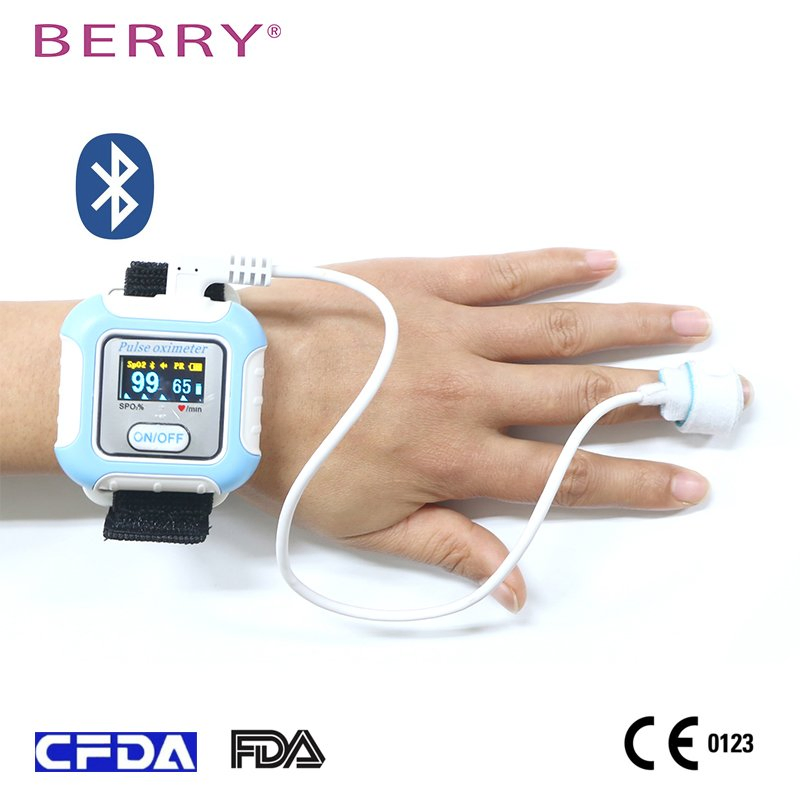

3. Put on the device and wrap the foam SpO2 sensor around the fingertip.

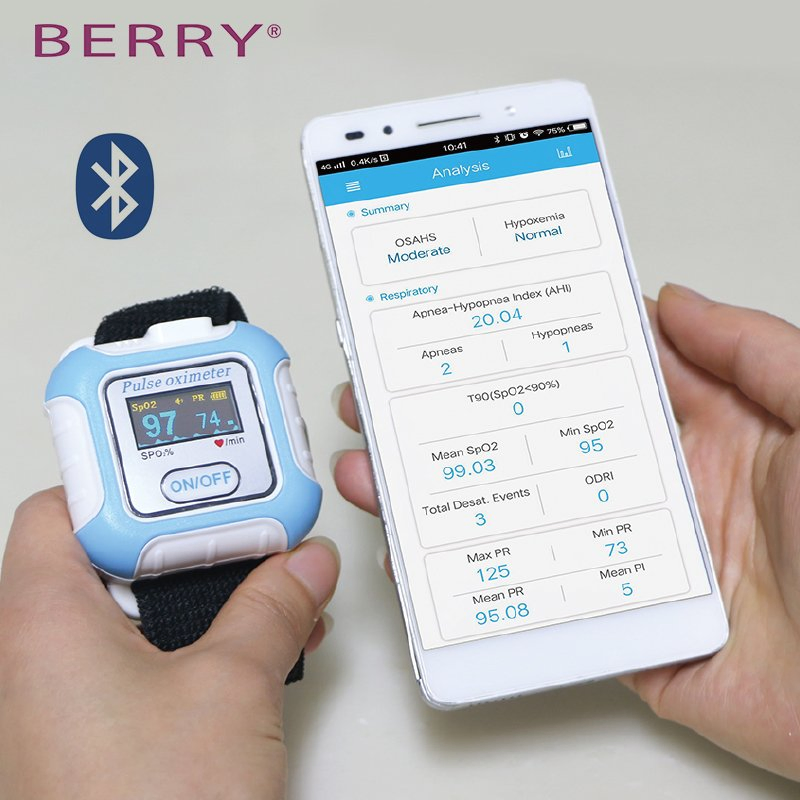

4. Collected data is transferred to the mobile phone via Bluetooth.
5. View detailed sleep reports directly on your phone.
6. Reports can be easily shared for professional review.

Technical Specifications

Parameter	Details
Display	SpO2, PR
Battery Type	3.7v (1000mAh) Rechargeable Lithium Batteries
Pulse Rate Range	25 - 250bpm (Accuracy: ±2bpm)
SpO2 Range	35% - 100% (Accuracy: ±2% for 80-100%, ±3% for 70-79%)

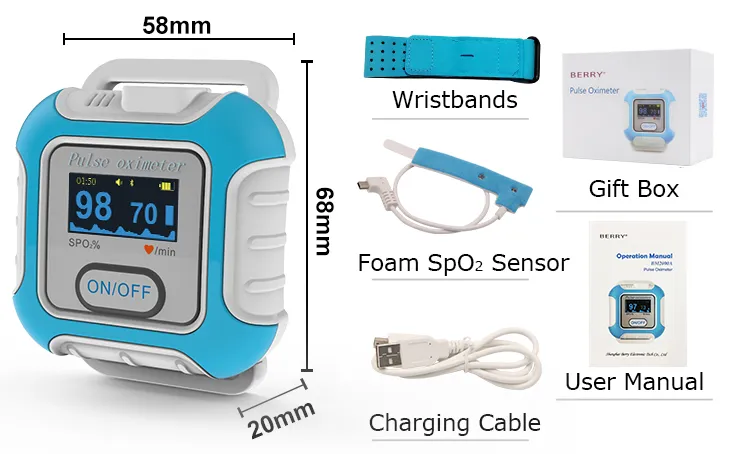

Dimensions	68(L) x 58(W) x 20(D) mm
Weight	50g
Working Voltage	DC 3.4v ~ DC 4.3v
