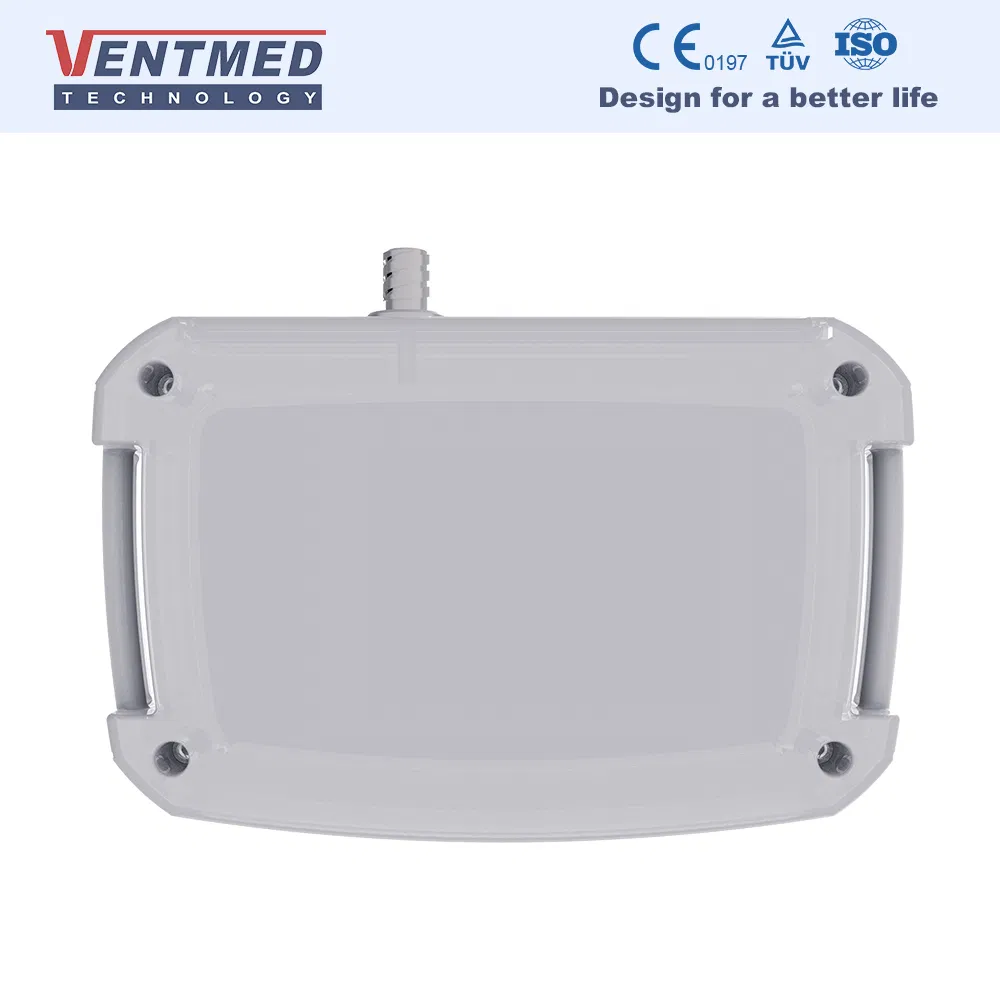

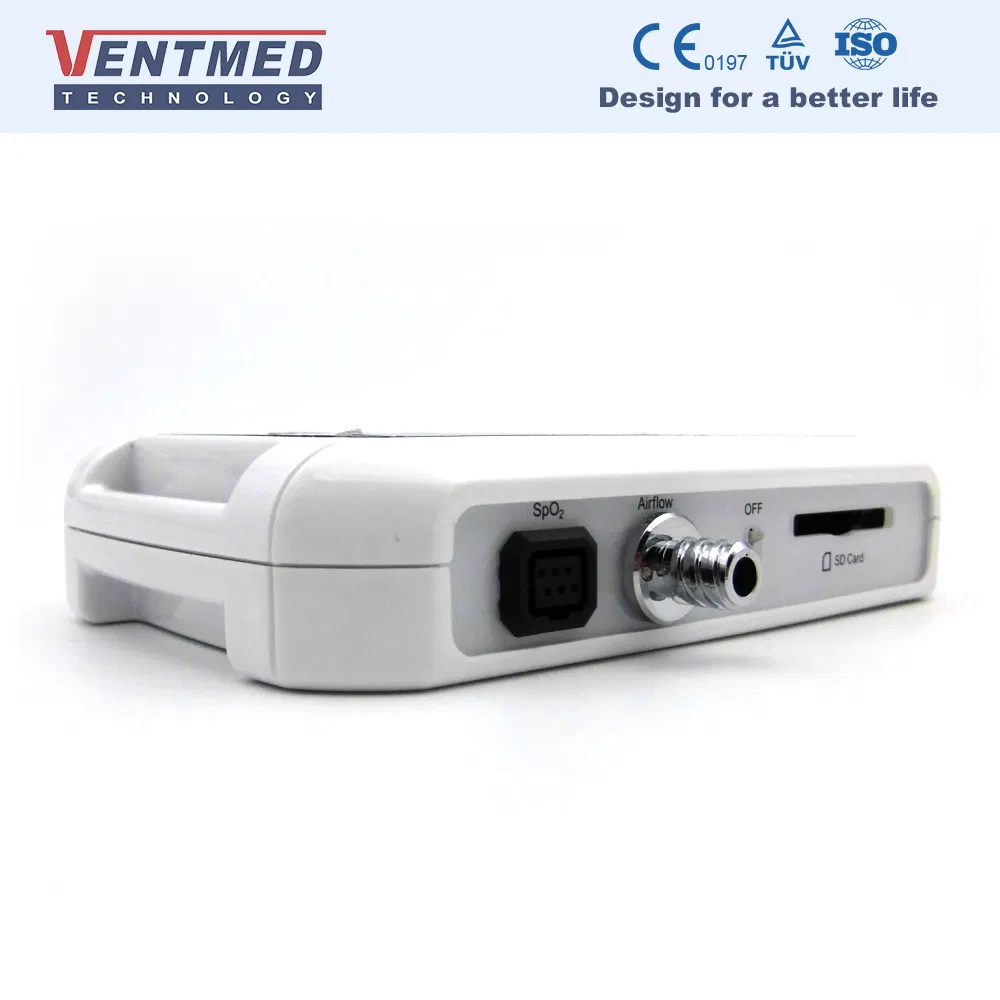

9 Channels Sleep Monitoring Device for Sleep Disorder Diagnostic

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

Certification

MSDS, ISO13485

Group

Middle-aged and Old

LED Display

2.8-Inch TFT

Advantage

Suitable and High Accurate

Function

Sleep Apnea Disgnosis

Feature

Compact, Light and Convenient

Weight

176g (Exclude Sensor)

Device Dimensions

125mml X 80mmw X 24mmh

Transport Package

Strong Carrying Case Inside, Carton Outside

Specification

0.9 Kg

HS Code

9018199000

Capacity

500 Set/ Month

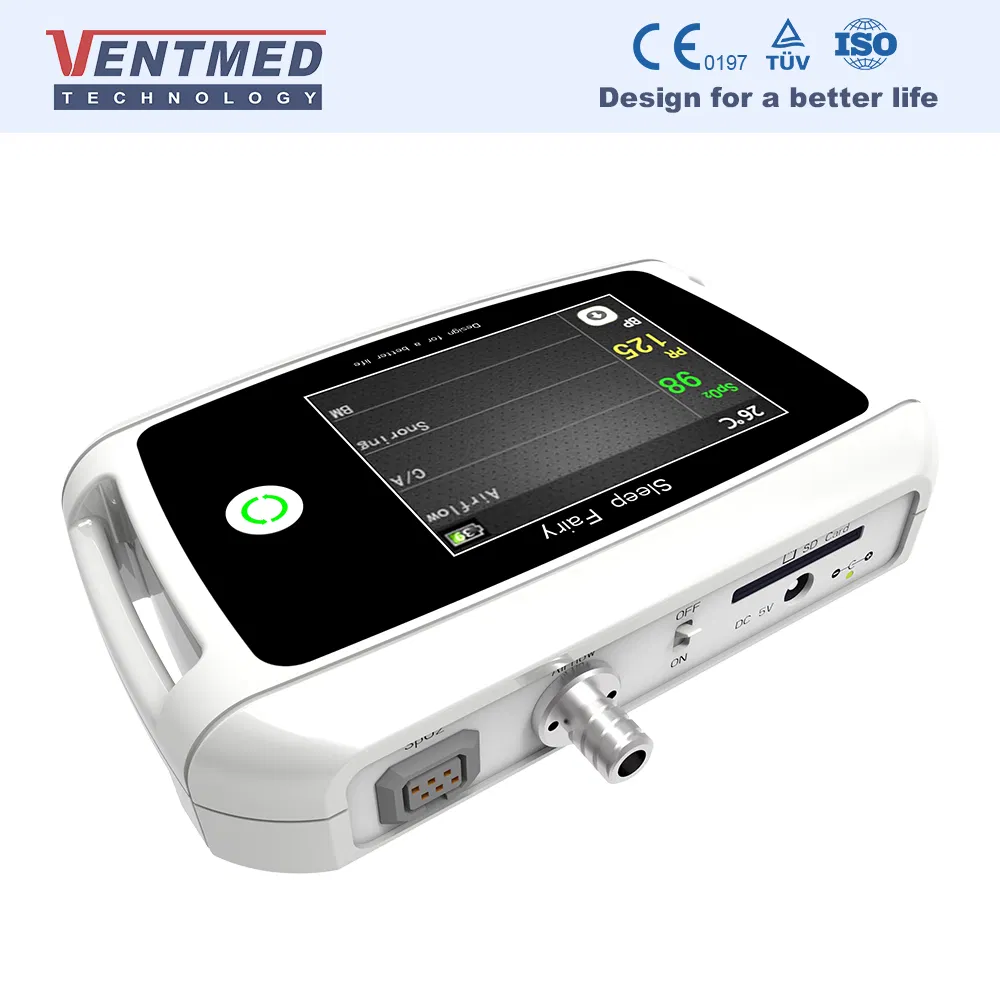

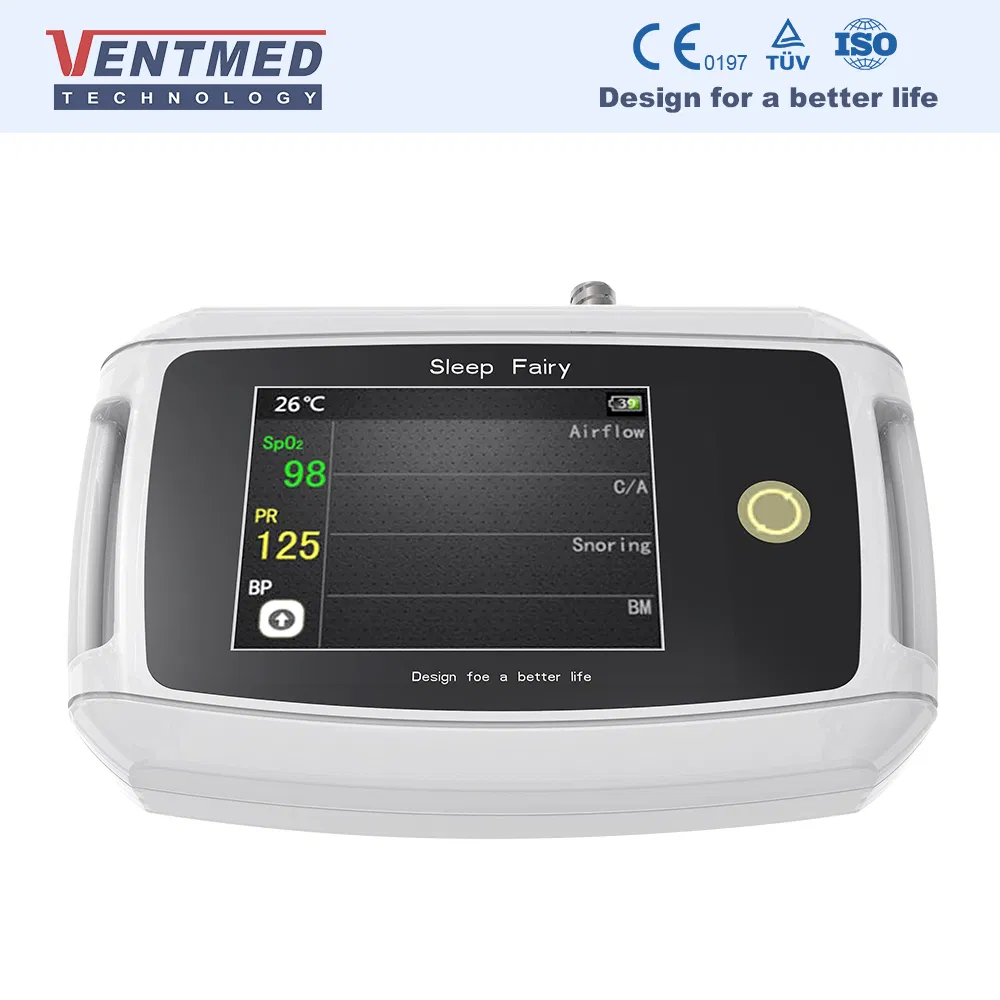

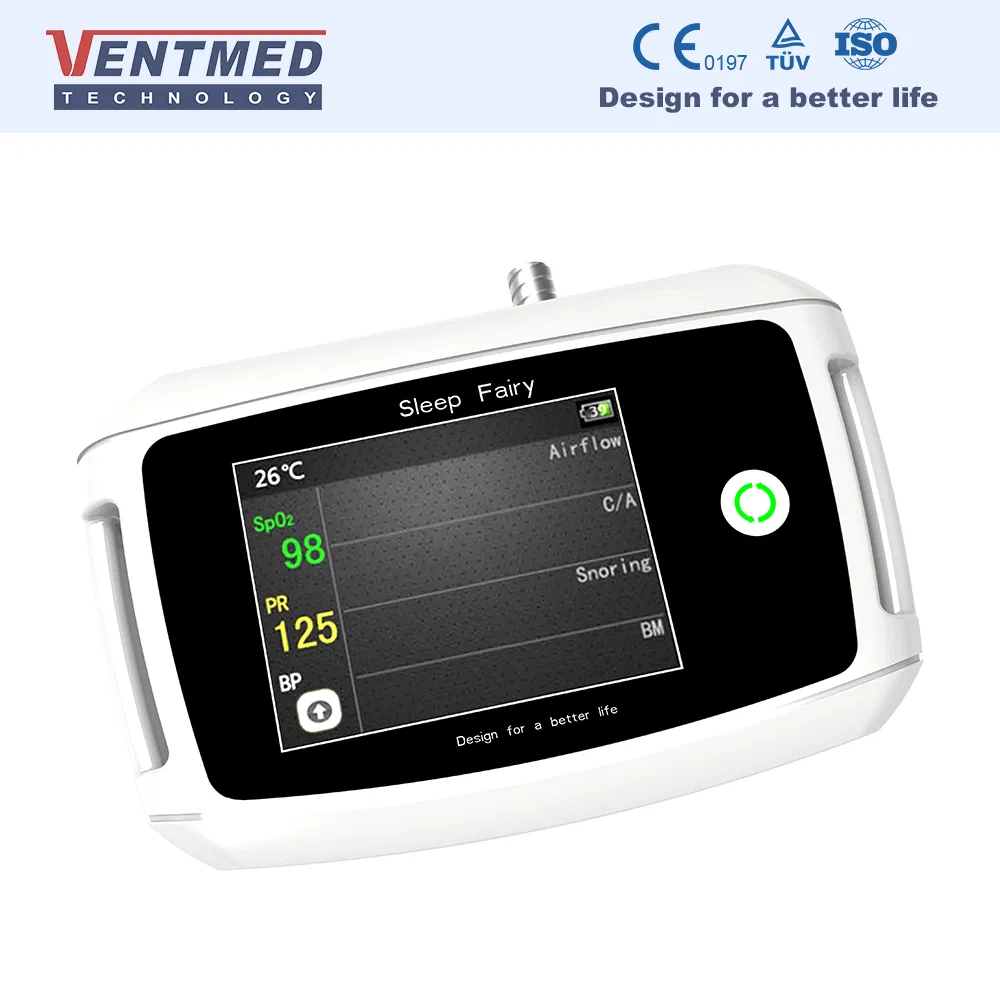

9 Channels Sleep Monitoring Device

ℹ️

What is a Sleep monitor?
This intelligent diagnosis system for sleep disorders and sleep apnea is suitable for clinic, hospital, sleep center, or home usage. It is designed specifically for the screening of Sleep Apnea Syndrome (SAS), providing multiple monitor recordings and reports for professional treatment proposal and therapy pressure titration.

Patients can be tested in the comfort and convenience of their own homes without an observer and with fewer sensors attached to their body. This reduces anxiety, leads to a more natural night of sleep and improves patient acceptance of test protocol. This device meets all American Academy of Sleep Medicine (AASM) requirements.

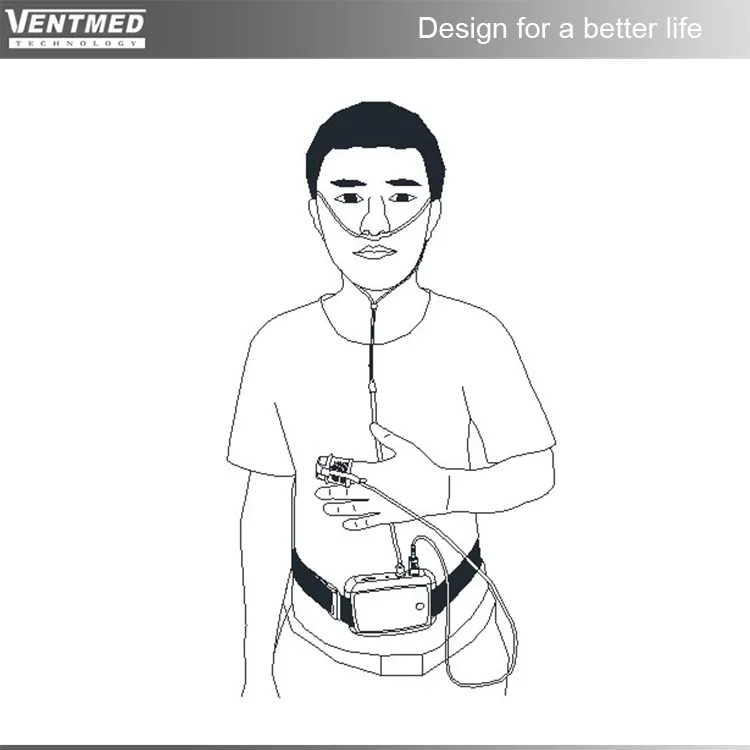

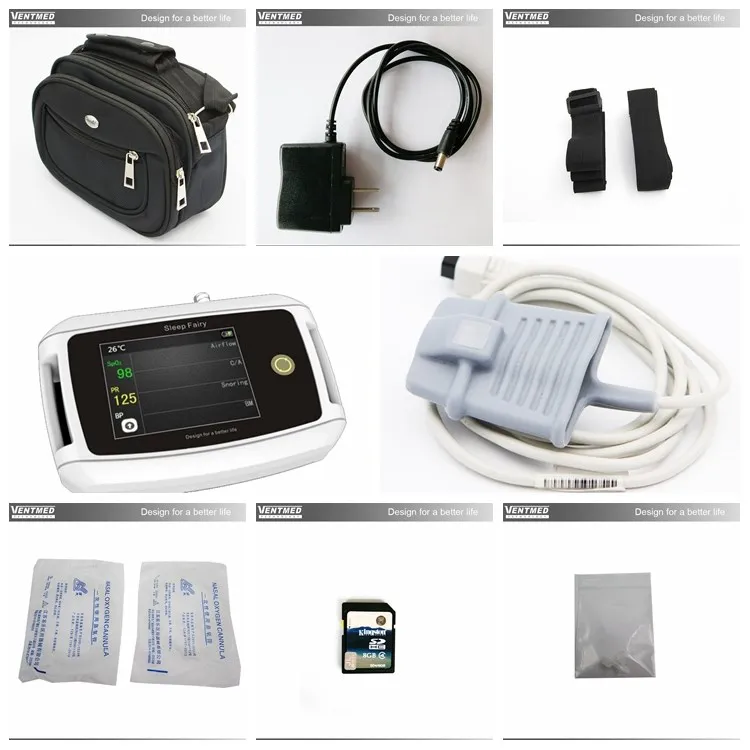

Product Structure

1. 1 pcs Host

2. 2 pcs Luer Connector

3. 1 pcs SpO2 sensor

4. 2 pcs Nasal Oxygen Cannula

5. 2 pcs fixing band

6. 1 pcs SD card

7. 1 pcs SD card reader

8. 1 pcs Charger

9. 1 pcs Carrying bag

Technical Specification

9 Channels	Airflow, Snore, SpO2, Pulse Rate, Pulse Wave, Body Position, Body Movement, Respiratory Effort, CPAP Pressure
Data Sampling Rate	50-200Hz / AD: 12Bit
Storage	8G, over 8000 hours data via SD card
Measurement Range	SpO2: 70% - 100%; Pulse Rate: 30 - 240 bpm
Battery	Integrated rechargeable Lithium Battery, 2500mAh (30 hours continuous use)
Screen	2.8 inch TFT, 320 x 240
Weight/Size	Host: 176g; Dimensions: 125mmL x 80mmW x 24mmH

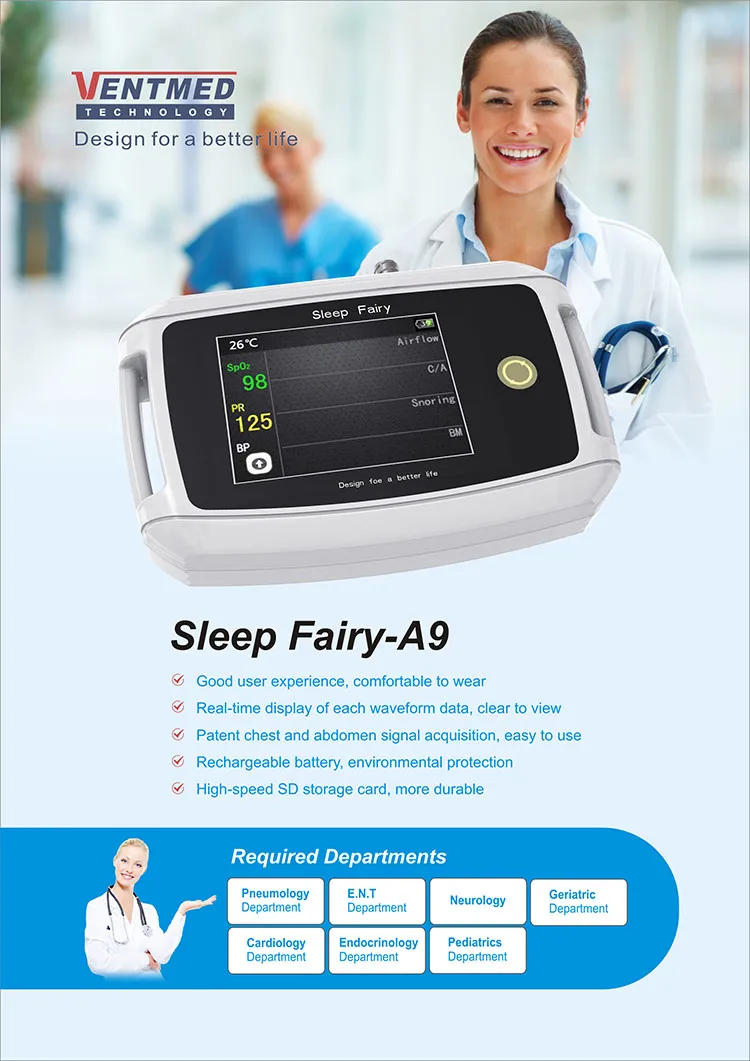

Key Features

Compact Design: Light and convenient for home or clinic use.

3D Sensor: Built-in innovation reduces the need for extra external sensors.

One-Switch Operation: Extremely easy to operate for all users.

Accurate Data: Reliably provides extensive and detailed sleep clinical data.

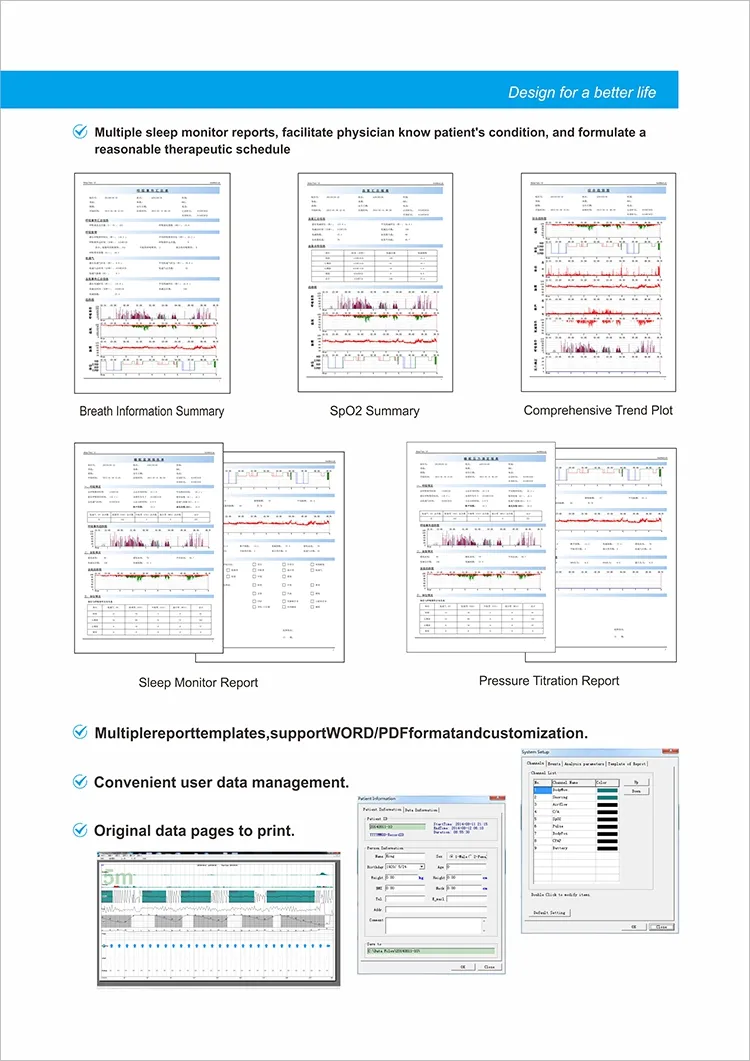

Diagnostic Software: Sophisticated scoring and diagnostic reporting included.

CPAP Link: Can link to CPAP devices to titrate patient pressure.

Product Gallery

Our Services

1-Year Warranty on all monitoring devices.
OEM/ODM Service available for private branding.
Short Delivery Time ensured for all orders.
Long-time Maintenance service for product longevity.
24-Hour Inquiry Response for all customer needs.

Frequently Asked Questions

What specific channels does this device monitor?

The device monitors 9 essential channels: Airflow, Snore, SpO2, Pulse Rate, Pulse Wave, Body Position, Body Movement, Respiratory Effort, and CPAP Pressure.

Is this device suitable for home sleep testing?

Yes, it is specifically designed for home use to provide a more natural sleep environment for the patient, while meeting professional AASM requirements.

How long can the battery last on a single charge?

The integrated 2500mAh Lithium Battery supports up to 30 hours of continuous sleep monitoring.

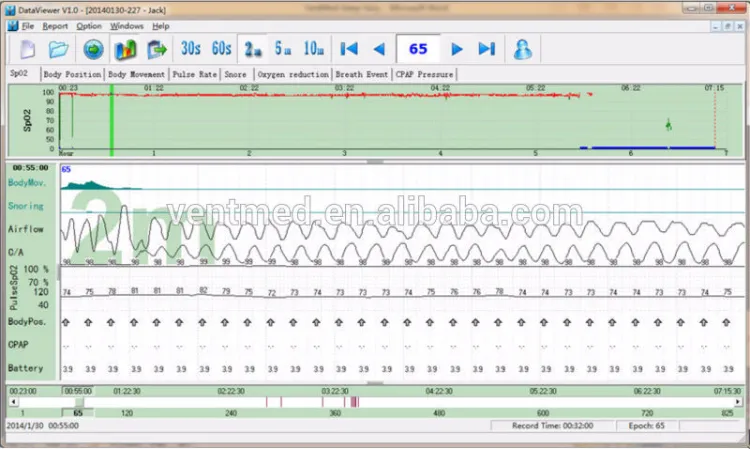

How can I view and print the sleep diagnostic reports?

Data is stored on an SD card. You can use the included SD card reader and dedicated software on a computer to browse records and print reports.

Does the device require many external sensors?

No, it features an innovative built-in 3D sensor that captures body movement, position, and respiratory effort, requiring only a SpO2 sensor for a full diagnostic profile.

Can this device be used with CPAP machines?

Yes, it can link to any CPAP device to help titrate the patient's therapy pressure accurately.
