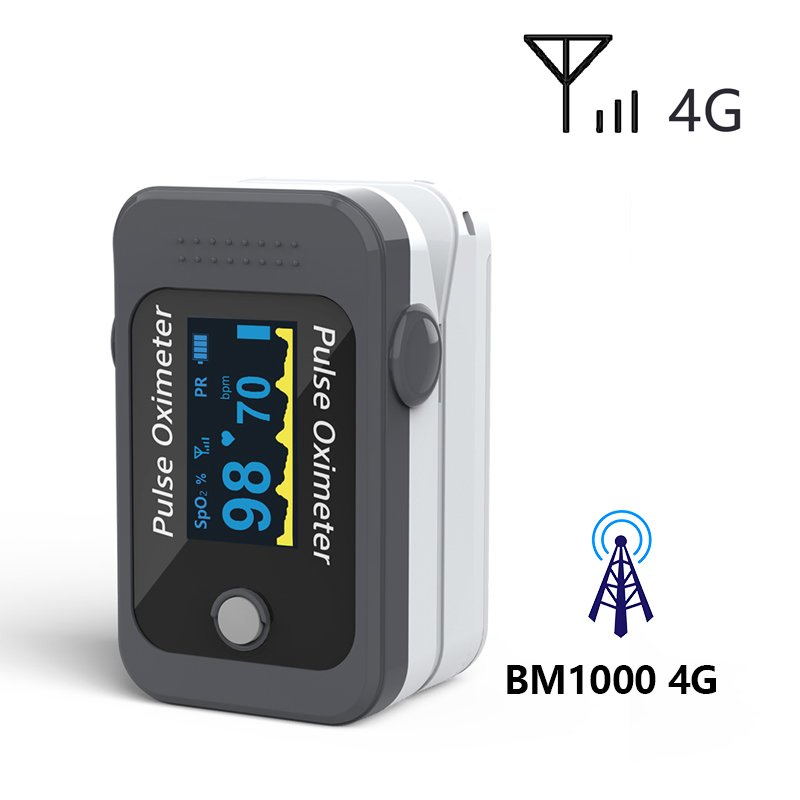

Telemedicina 4G Nb Iot Oximeter Monitor Home Care Oxygen Saturation SpO2 Real Time Remote Monitor

1 / 5

Telemedicina 4G Nb Iot Oximeter Monitor Home Care Oxygen Saturation SpO2 Real Time Remote Monitor

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Group

Middle-aged and Old

Certification

Function

SpO2/Pulse Rate

Certificate

CE/ ISO13485

Power Supply

2 AAA 1.5V Batteries

Instrument Classification

Class II

Display

LED Display

Color

Grey

Size

34 X 58 X 30mm

Transport Package

Carton Box

HS Code

901819000

Production Capacity

1,000,000/Year

🔍 Product Description

This 4G pulse oximeter holds CE0123, ISO13485, and NMPA certifications, meeting professional standards for blood oxygen and pulse rate measurements. It accurately captures pulse signals and has been validated through numerous clinical trials.

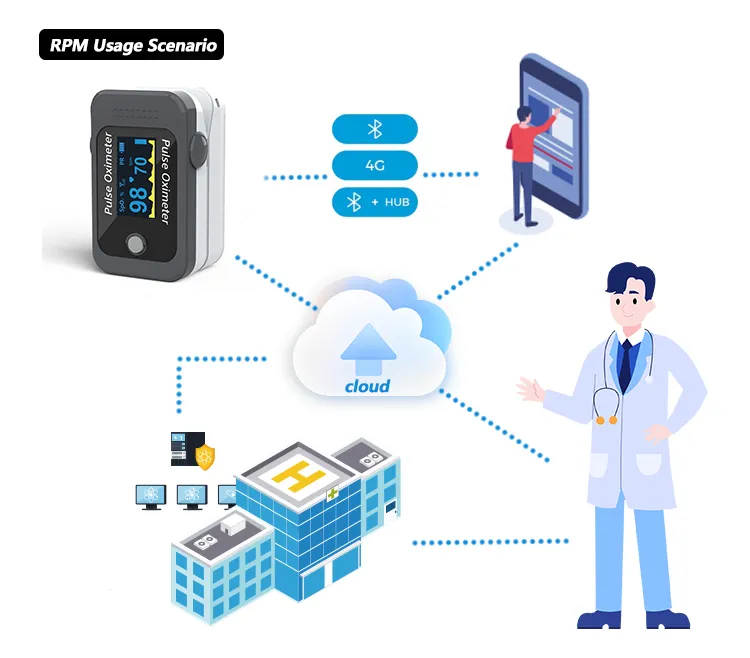

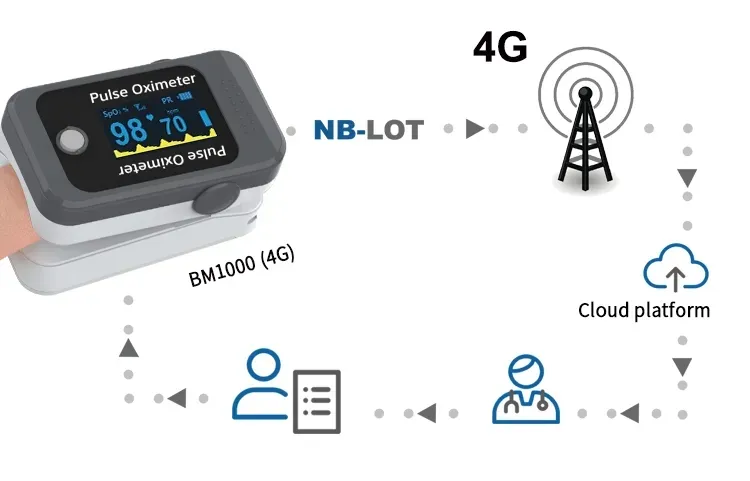

Based on IoT technology, patients simply clip the oximeter to a finger to measure SpO2 and Pulse Rate (PR). Data is immediately uploaded to a server via the 4G network for real-time monitoring.

⭐ Major Features

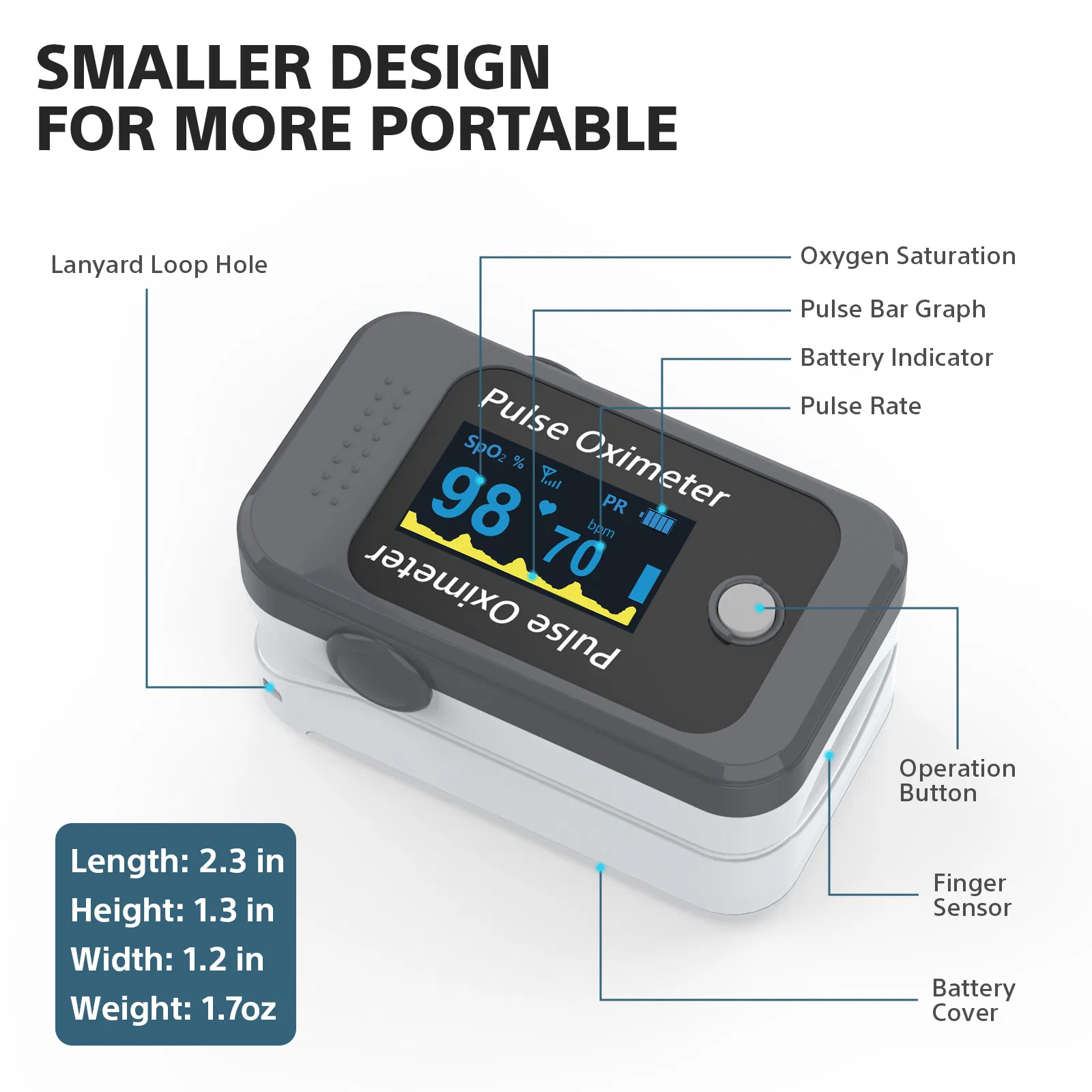

Integrated SpO2 probe and processing display module
Small size, light weight, and easy to carry
Simple operation with low power consumption
Function setting operation menu and SpO2/Pulse rate display
Screen 2-direction display
Non-contact operation for remote monitoring
Over 500 measurements and uploads under normal conditions
Medically certified RPM products meeting regulatory standards
Supports various OEM requirements

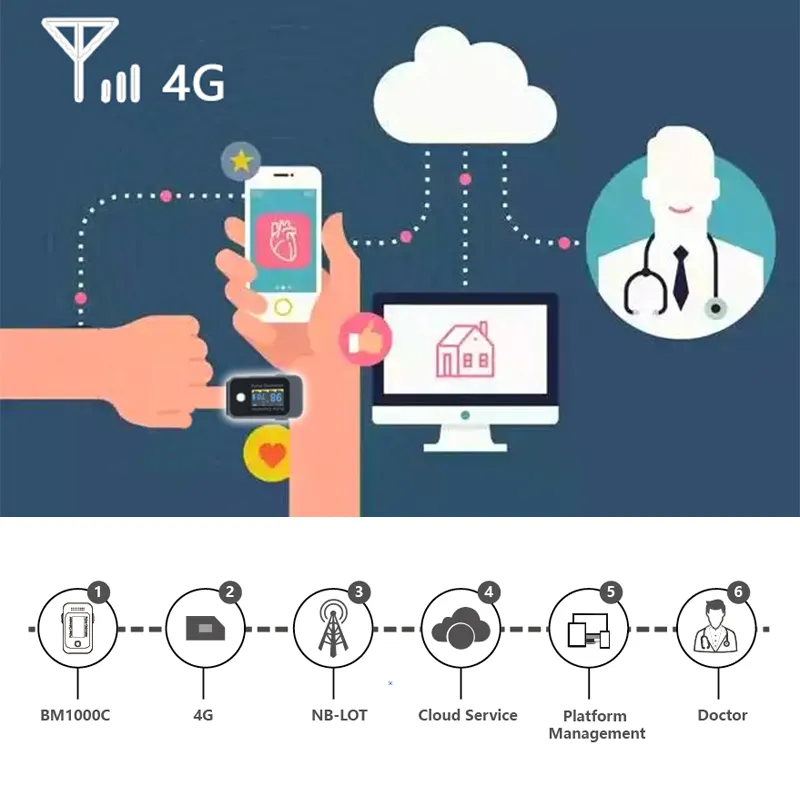

Seamless integration with remote patient monitoring systems via 4G or NB-IoT

⚙️ Technical Specifications

Transmission Mode: 4G	Interference: Anti-natural light
Battery Type: Two 1.5V AAA alkaline	Product Weight: 50g (excluding battery)
Monitoring Parameters: SpO2, Pulse Rate	Waveform: SpO2 Waveform support
Pulse Rate Range: 25 - 250bpm (±2bpm)	SpO2 Range: 0% - 100% (±3% at 70-100%)
Operating Temp: 5ºC-40ºC / Humidity: 15%~80%	Pressure: 860hPa~1060hPa
Dimension: 58(H) × 34(W) × 32(D) mm	Total Weight: Approx. 50g (with batteries)

📦 Configuration & Customization

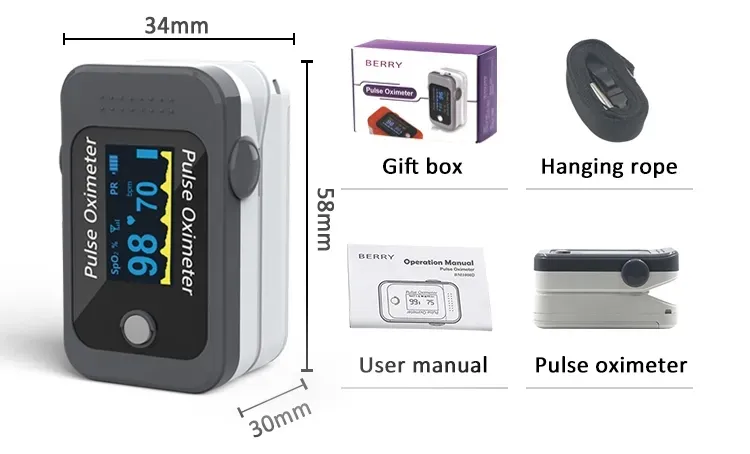

Standard Configuration:

1. Gift box | 2. Hanging rope | 3. User manual | 4. Pulse oximeter

Customized Services:

1. Firmware | 2. Client Logo on Panel | 3. Laser printing | 4. Manual/Box customization

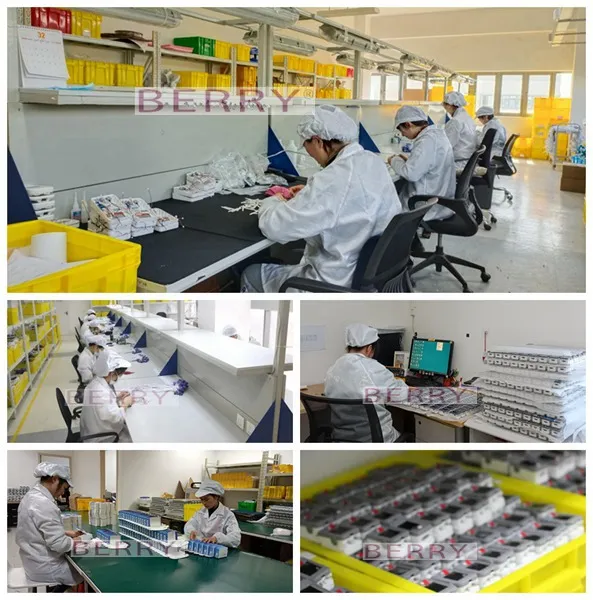

🏢 Facility Overview

Frequently Asked Questions

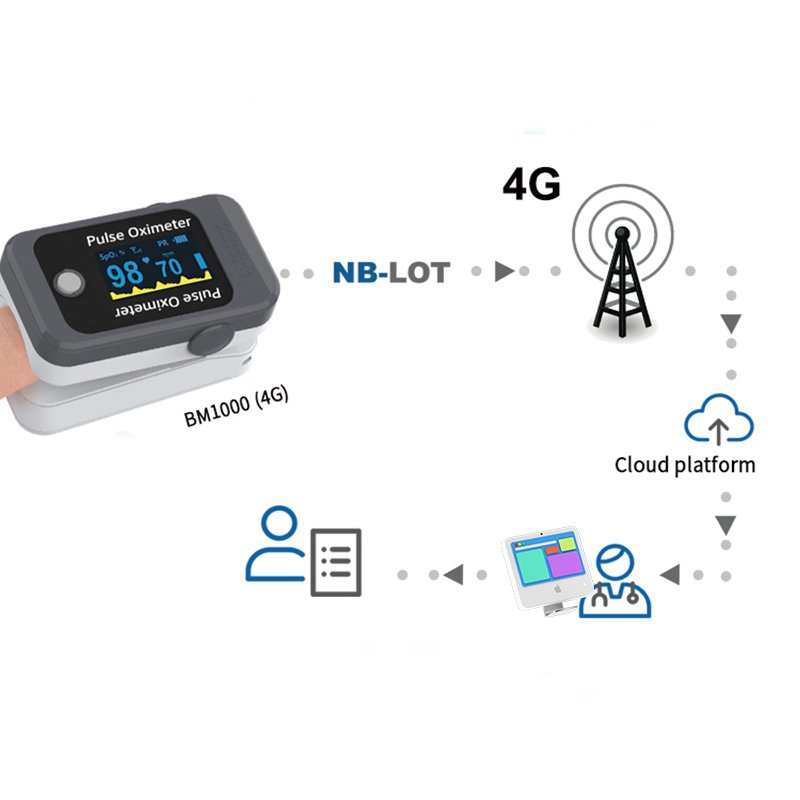

How does the 4G data upload work?

The device is equipped with 4G/IoT connectivity. Once the measurement is taken, the data is automatically uploaded to the cloud server in real-time without needing a smartphone or Bluetooth pairing.

What is the battery life for this oximeter?

Under normal operating conditions, the device can perform and upload measurements over 500 times using two standard AAA alkaline batteries.

Is this device medically certified?

Yes, the device is medically certified with CE0123, ISO13485, and NMPA standards, making it suitable for clinical and home care use.

Can the display orientation be adjusted?

Yes, the device features a 2-direction display mode, allowing both the patient and the caregiver to read the results easily.

Can I customize the product with my own brand?

Absolutely. We offer OEM services including logo printing on the front panel, customized gift boxes, user manuals, and firmware modifications.

What parameters does it monitor?

The device monitors Blood Oxygen Saturation (SpO2) and Pulse Rate (PR), and it supports SpO2 waveform display.
