Remotely Monitored Medical Waste Autoclave Equipment with IoT Connectivity

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information Overview
Model NO.
TR-VWT-60
Condition
New
Certification
ISO, CE
Automation
Automatic
Processing Capacity
60kg/H
Sterilization Method
High-Temperature Steam
Working Temperature
134℃
Volume Reduction
≥ 85%
Weight Reduction
≥ 15%
Control System
PLC
Product Description
⚙️

The Medical Waste Vertical Steam Sterilizer represents an advanced, turnkey solution for the on-site treatment of hazardous medical waste. It is engineered to safely and completely deactivate pathogenic microorganisms in infectious and sharp waste through a proven high-temperature saturated steam process, effectively converting it into non-infectious, general municipal solid waste suitable for conventional disposal.

At the heart of the system is a sophisticated, fully automated Programmable Logic Controller (PLC) with an intuitive color touchscreen Human-Machine Interface (HMI). This allows for seamless operation, real-time visualization of all critical parameters, and ensures every batch meets stringent sterilization criteria as per World Health Organization (WHO) guidelines and centralized steam disinfection standards.

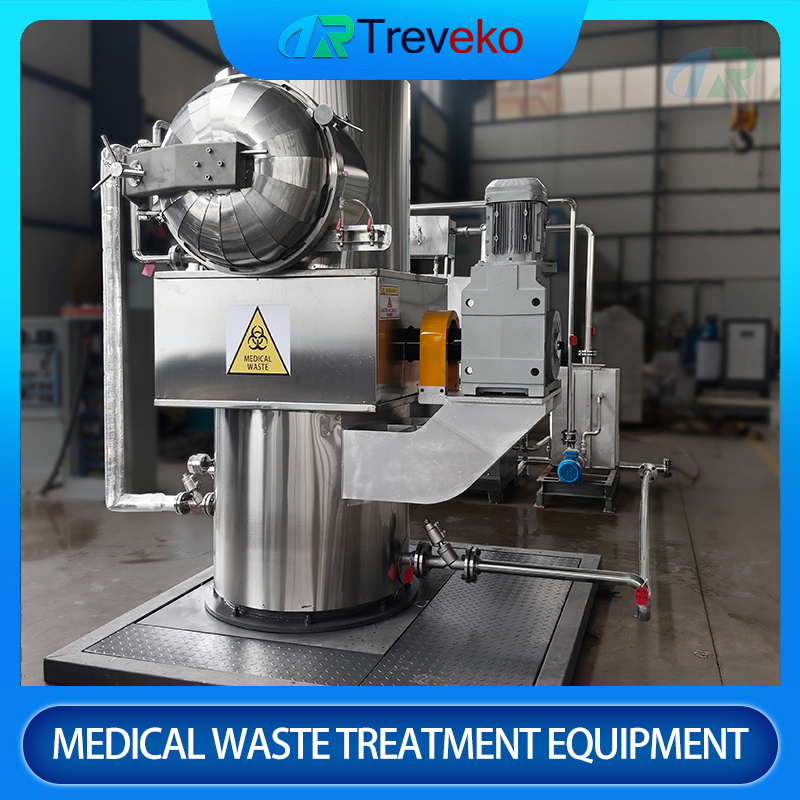

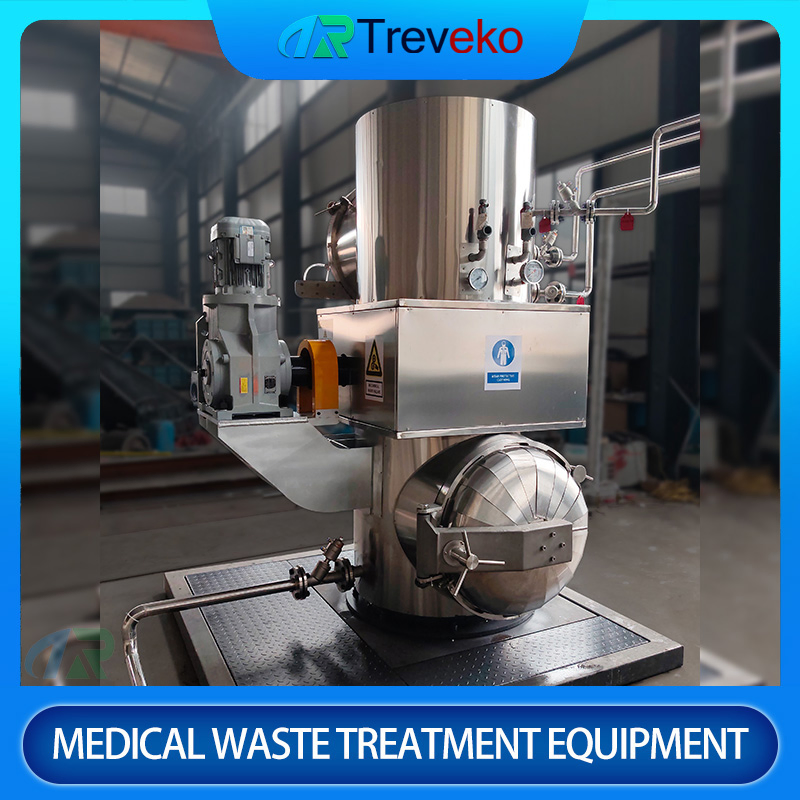

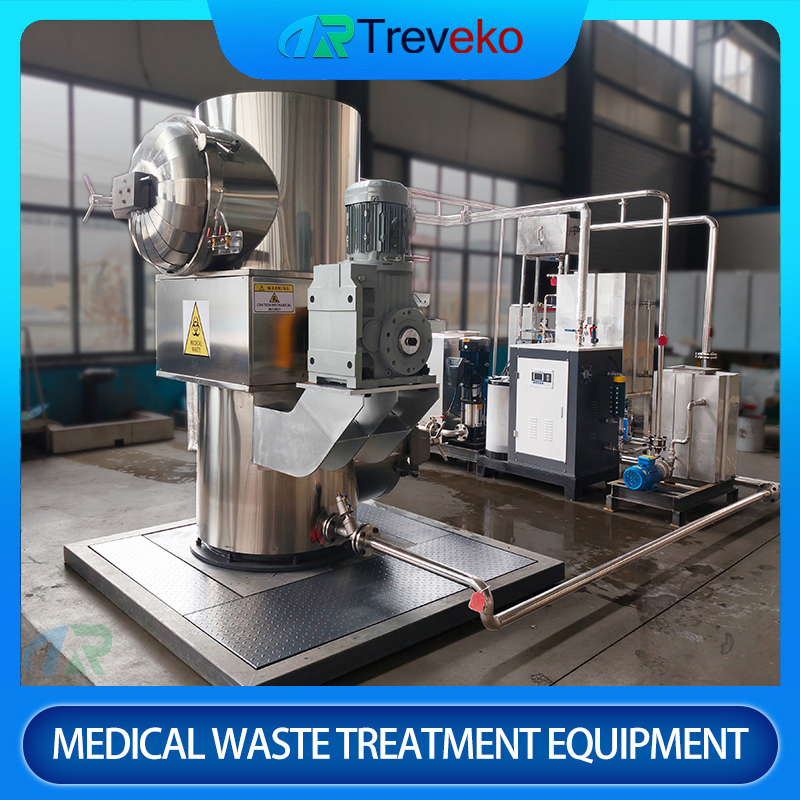

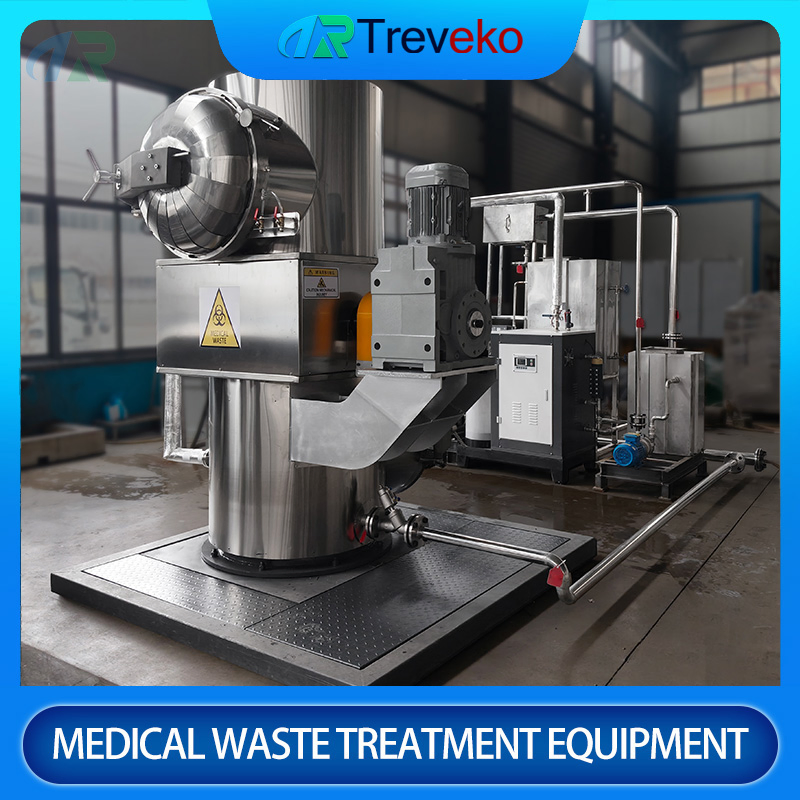

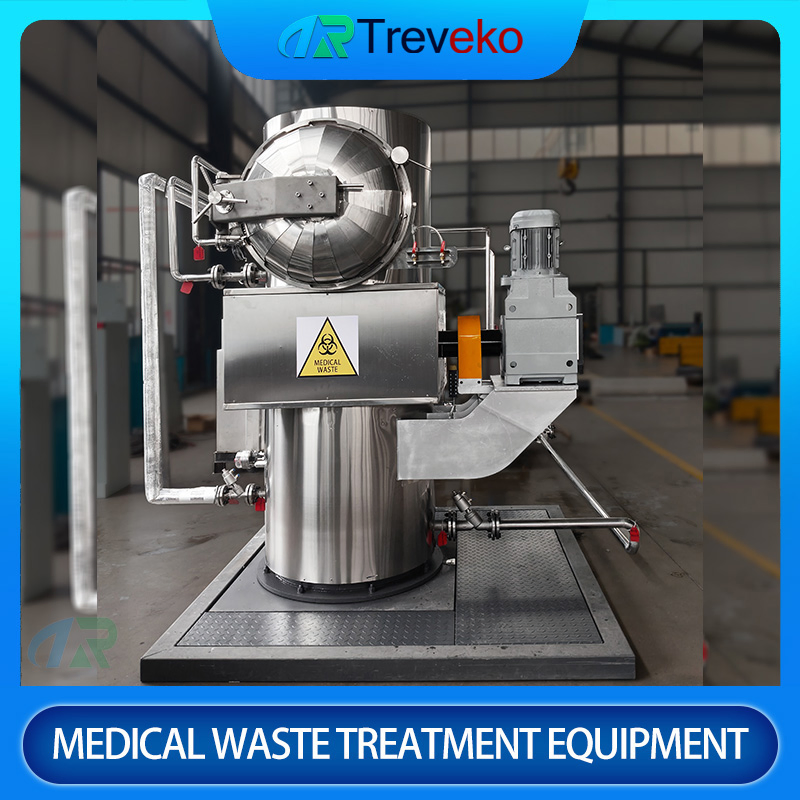

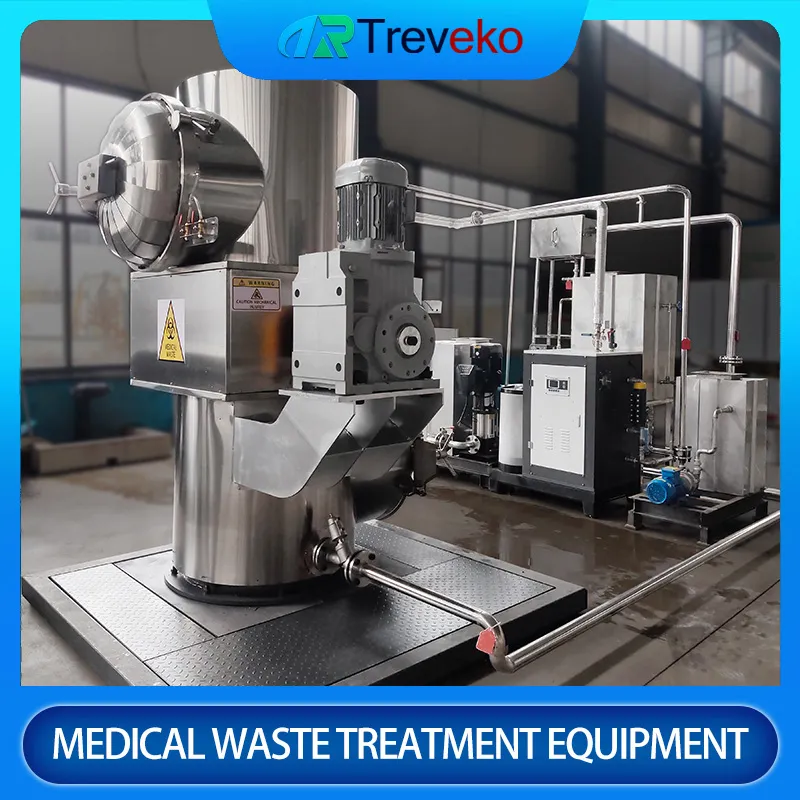

Medical Waste Autoclave
Medical Waste Sterilizer

Constructed around a robust, stainless-steel pressure vessel compliant with safety regulations, the system features cylinder-actuated quick-opening doors with mandatory safety interlocks. The pre-installed shredder achieves a volume reduction of ≥85%, drastically cutting downstream handling and transportation costs. An integrated waste gas treatment unit, comprising primary and HEPA filters, effectively captures aerosols, microorganisms, and odors before emission.

Product Features

1. Advanced Sterilization Efficacy

Guarantees a ≥8Log10 reduction of bacterial spores, exceeding international requirements for medical waste sterilization.

2. Integrated Shredding System

Features a high-torque crushing unit with wear-resistant alloy blades, achieving a volume reduction of ≥85%.

3. Robust Safety Design

Equipped with mandatory safety interlocks on quick-opening doors and system self-diagnostics with audible/visual alarms.

4. Environmentally Responsible

Dedicated gas treatment unit with HEPA filtration captures dust, microorganisms, and odors during processing.

Technical Specification
System Unit Item Technical Parameters Notes
Processor Parameters Batch Processing Capacity 25 - 30 kg Per cycle
Final Inactivation Effect Spore microorganism: 8 Log10 High sterilization margin
Volume Reduction Rate ≥85% Integrated shredding
Weight Reduction Rate ≥15% Effective treatment
Vertical Container Volume 420L Stainless Steel
Work Pressure 0.3MPa Design 0.4MPa
Operating Temperature 134℃ Design 152℃
Crushing System Power 7.5kw Hardened tooth surface
Blades Material D550 imported alloy steel High strength/hardness
Action PLC-controlled auto reverse Prevent clogging
Process Flow
1
Feeding & Shredding: Medical waste is fed into the sterilizer. The internal shredding system breaks waste into particles. Pre-vacuum method purges air.
2
Sterilization: High-temperature, high-pressure saturated steam is introduced to deactivate pathogens effectively.
3
Discharge: Post-vacuum process purges remaining air. Sterilized waste (reduced in volume/weight) is removed for municipal disposal.
After-Sales Service & Support
🛡️

Compliance Assurance: All equipment is manufactured in accordance with national regulations, ensuring compliant use for healthcare facilities.

Training & Maintenance: We provide comprehensive training including one-on-one video operation sessions. Core components such as the steam generator and control system carry a 1-3 year warranty with lifetime repair and spare parts supply services.

Customer Visits & Facility
Facility Visit 1
Facility Visit 2
Facility Visit 3
Client Inspection 1
Client Inspection 2
Client Inspection 3
Frequently Asked Questions
Q1: Are you a direct manufacturer?
Yes, we have our own professional manufacturing factory.
Q2: Can the equipment be customized to specific needs?
Yes. We support customization of core parameters such as processing capacity, overall dimensions, and control systems.
Q3: How is the delivery handled?
Delivery is resolved via negotiation according to the customer's actual logistical needs.
Q4: What is the standard warranty period?
We provide a 1-year warranty and free repair services for quality issues emerging within the warranty period.
Q5: How can I ensure the quality before purchase?
You can send sample scrap materials to us for free testing (video provided), or visit our factory for on-site testing.
Q6: What sterilization level does the equipment achieve?
The equipment guarantees a Spore microorganism inactivation level of 8 Log10 using high-temperature steam.
