Telemedicina Medical Device 4G Nb Iot Finger Oximeter Monitor Hospital Home Care Oxygen Saturation SpO2 Real Time Remote Monitor

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Group
Middle-aged and Old
Certification
CE
Function
SpO2/Pulse Rate
Certificate
CE/ ISO13485
Power Supply
2AAA 1.5V Batteries
Instrument Classification
Class II
Display
LED Display
Color
Grey
Size
34 X 58 X 30mm
Transport Package
Carton Box
HS Code
901819000
Production Capacity
1,000,000/Year
Product Overview

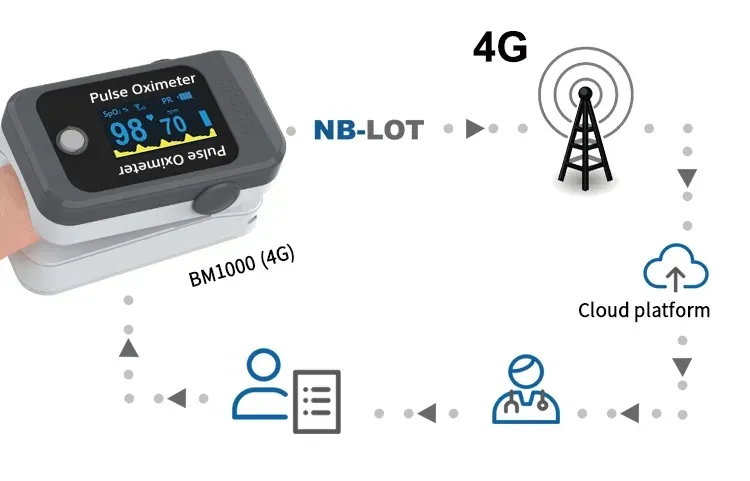

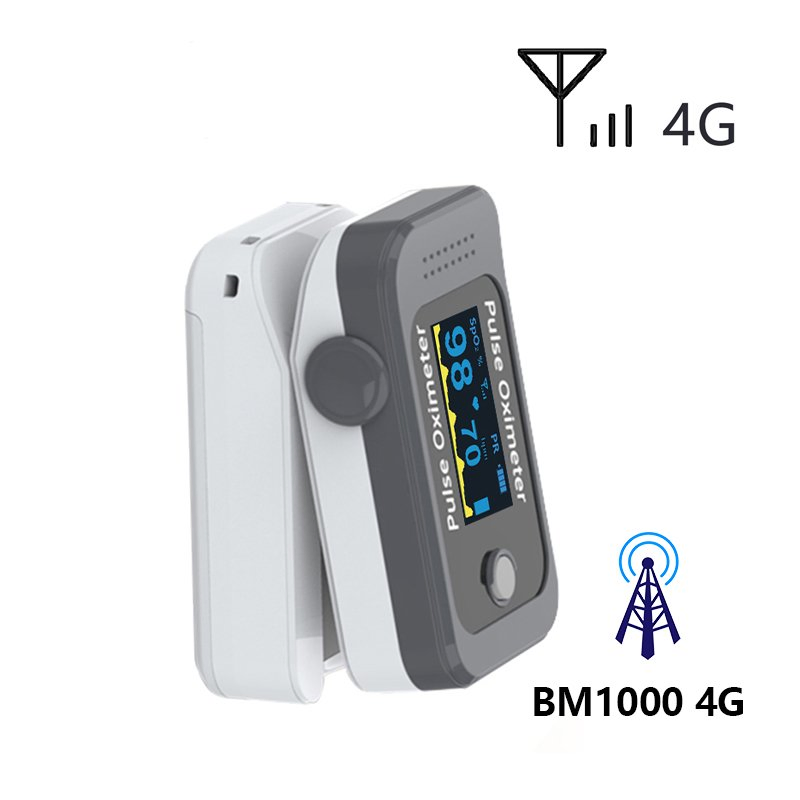

4G NB-IoT Finger Oximeter

The 4G pulse oximeters meet professional standards for measurements of blood oxygen (SpO2) and pulse rate (PR). It can accurately capture pulse signals and has been validated in numerous clinical trials.

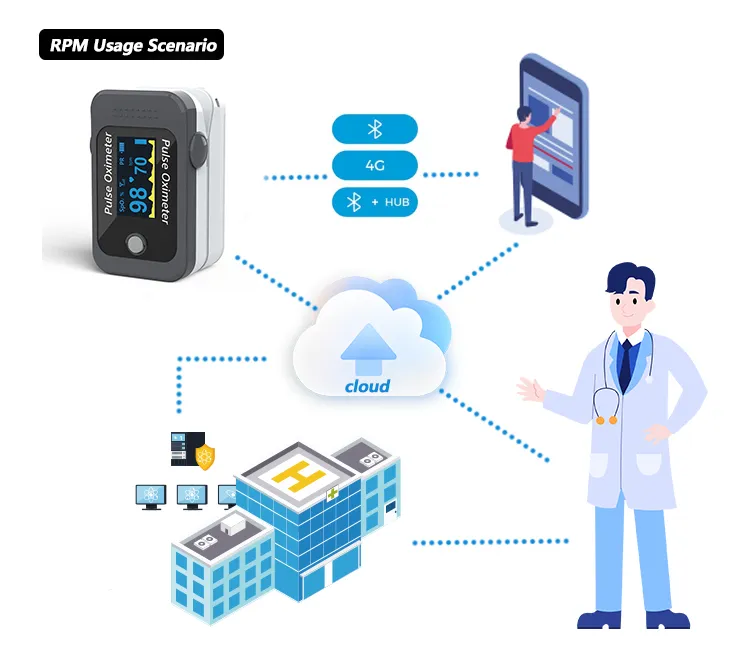

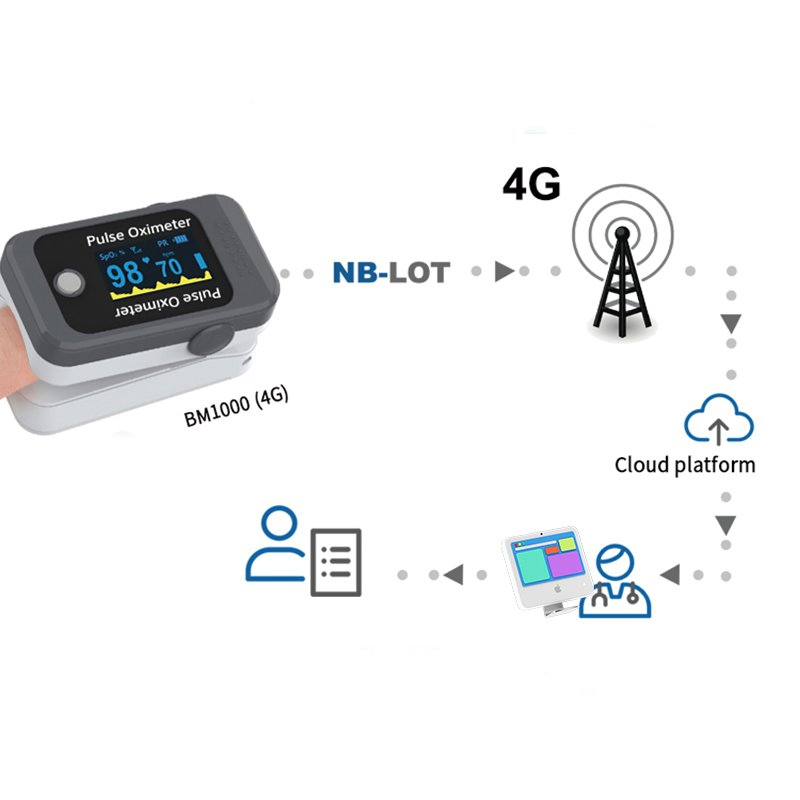

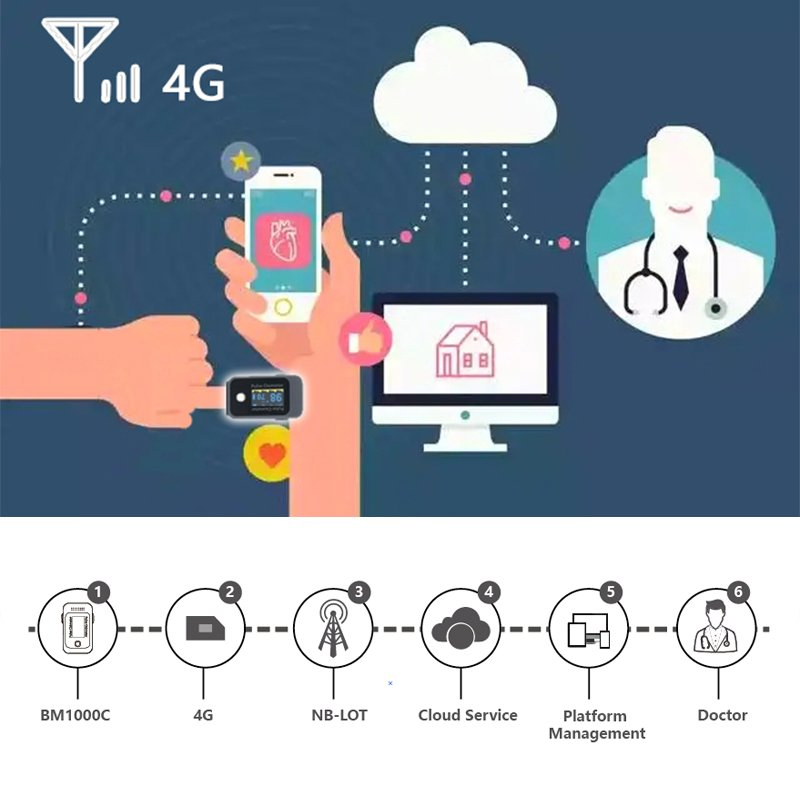

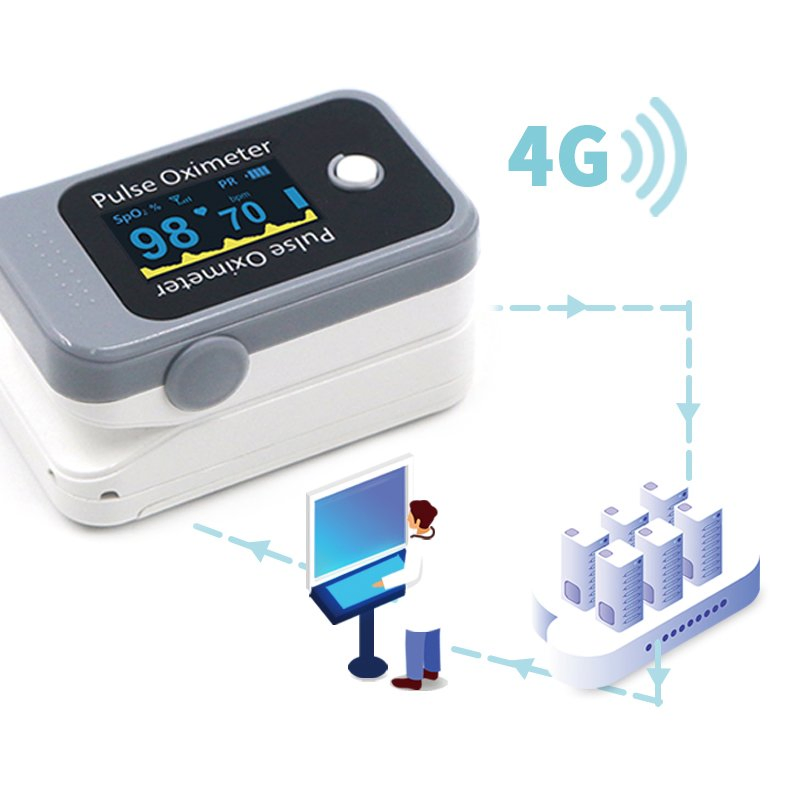

This 4G fingertip pulse oximeter is based on IoT technology. Patients only need to clip the device on any finger, and it immediately uploads the data to the server through the 4G network, enabling real-time remote monitoring.

Clinical Application

Widely Used In Daily Life: Normally, blood oxygen value should not be lower than 94%. Medical staff can grasp the changes of each patient's index data in real time through the background. It is highly applicable to elderly care, medical rehabilitation, and clinical departments.

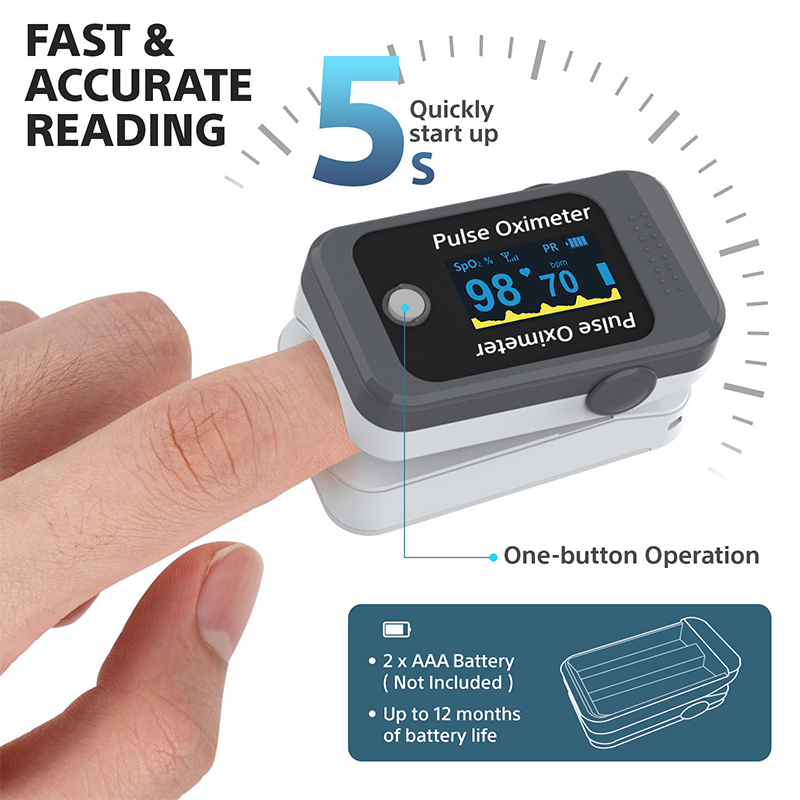

Major Features
Integrated SpO2 probe and processing display module
Small size, light weight, and easy to carry
Simple operation with low power consumption
Screen supports 2-direction display
Non-contact operation for remote monitoring
Over 500 measurements and uploads on standard batteries
Medically certified for regulatory compliance
Powered by 4G, NB-IoT or other wireless connectivity
Device Features
Technical Specifications
Transmission Mode: 4G Anti-natural light interference
Battery Type: Two 1.5v AAA alkaline batteries Product Weight: 50g (without battery)
Monitoring Parameters: SpO2, Pulse Rate Blood Oxygen Waveform: Supported
Pulse Rate Range: 25 - 250bpm (±2bpm) SpO2 Range: 0% - 100% (±3% at 70-100%)
Temperature: 5ºC-40ºC | Humidity: 15%~80% Atmospheric Pressure: 860hPa~1060hPa
Dimension: 58(H) × 34(W) × 32 (D) mm Total Weight: Approx 50g (with batteries)
Configuration & Customization

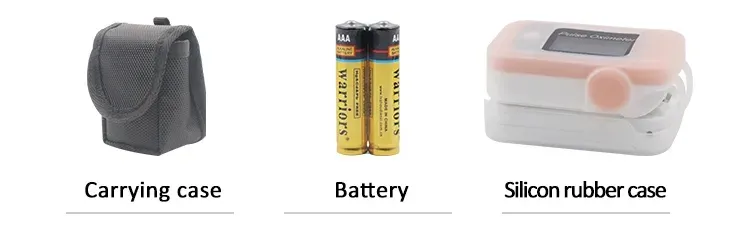

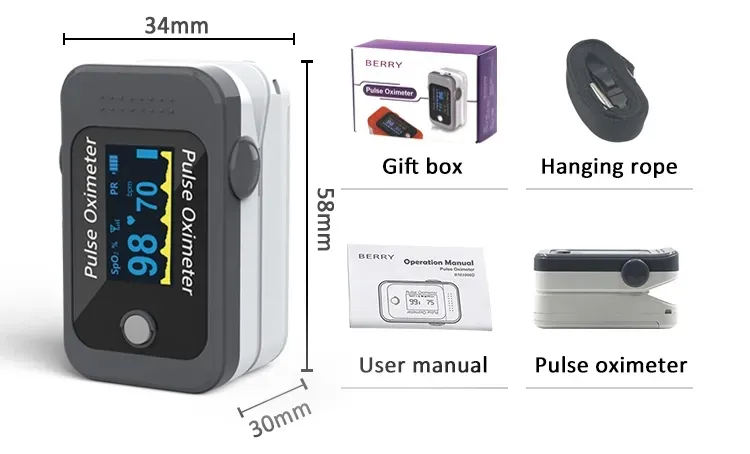

Standard Configuration
Gift box, Hanging rope, User manual, Pulse oximeter
Customized Service
Firmware, Logo printing, Back Label Laser, Customized Box/Manual
Additional Visuals
Full Product View
Frequently Asked Questions
How does the 4G connectivity benefit the patient?
The 4G/IoT connectivity allows the device to automatically upload blood oxygen and pulse rate data to a server, enabling medical staff or family members to monitor the patient's health remotely in real-time.
What is the measurement range for SpO2 and Pulse Rate?
The SpO2 measurement range is 0% to 100% (accuracy of ±3% between 70-100%), and the Pulse Rate range is 25 to 250bpm (accuracy of ±2bpm).
Is the device suitable for professional medical use?
Yes, the device is Class II medically certified, holding CE and ISO13485 certifications, making it suitable for clinical departments, medical rehabilitation, and elderly care.
How long do the batteries last?
Using two standard 1.5V AAA alkaline batteries, the device can perform measurements and data uploads over 500 times under normal conditions.
What customization options are available for bulk orders?
We offer extensive OEM services including firmware customization, client logo printing on the front panel, laser printing on labels, and customized gift boxes and user manuals.
Can it be used in different environments?
Yes, it is designed to work in temperatures ranging from 5ºC to 40ºC and can resist natural light interference during measurement.
