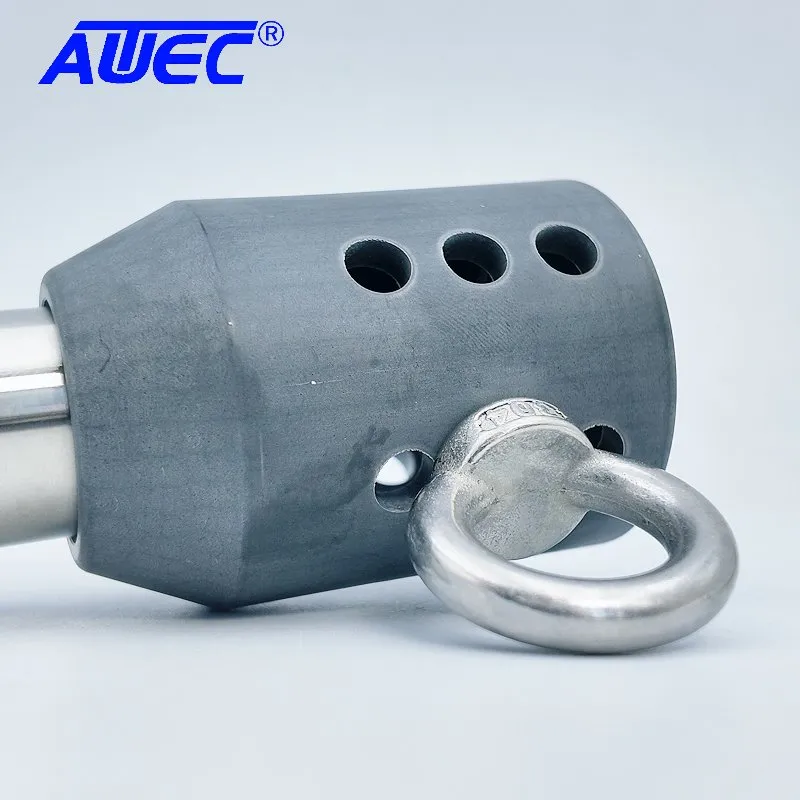

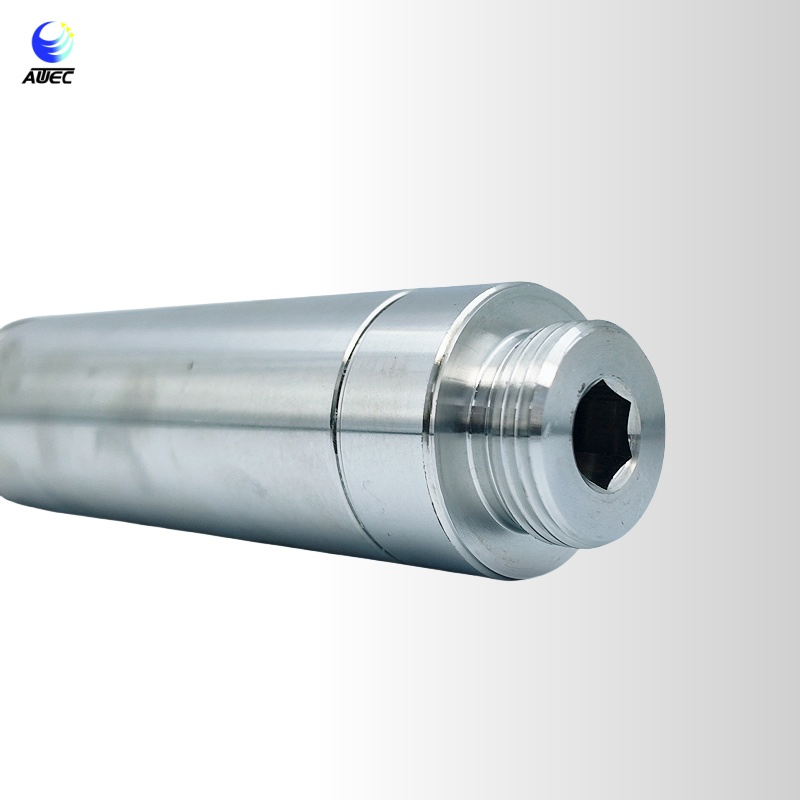

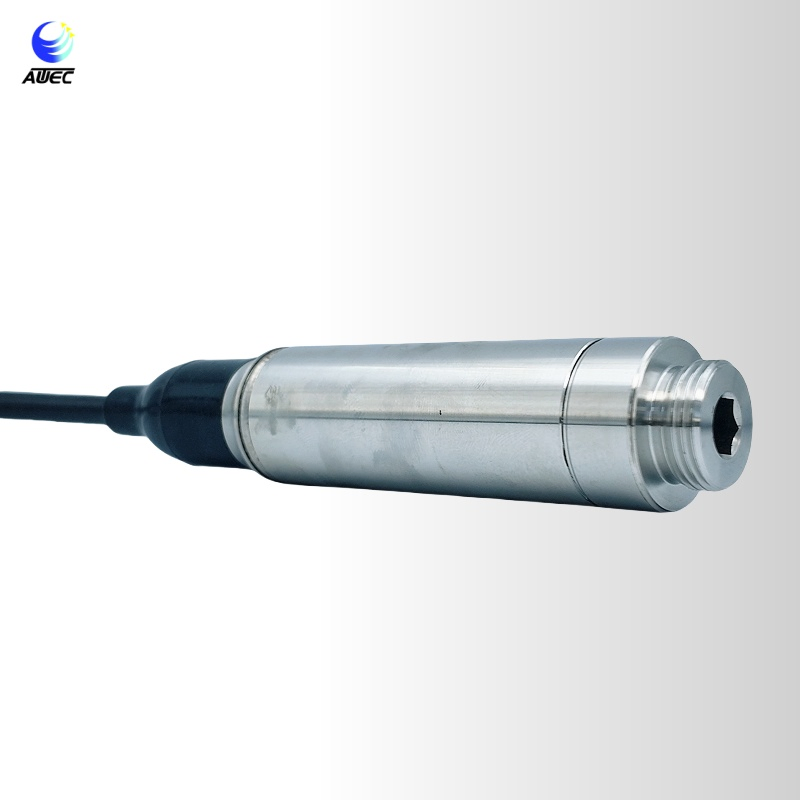

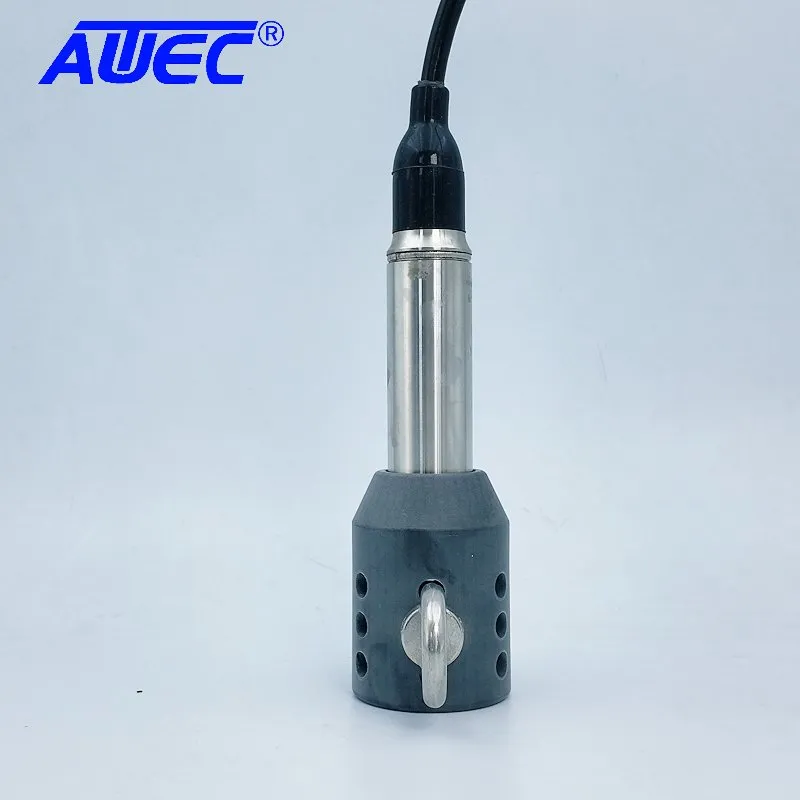

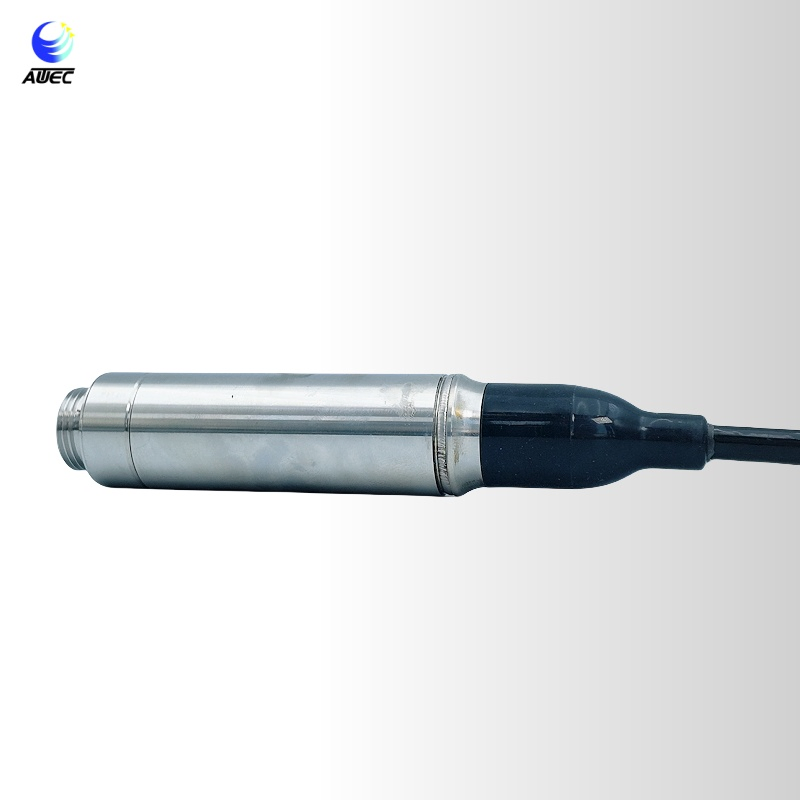

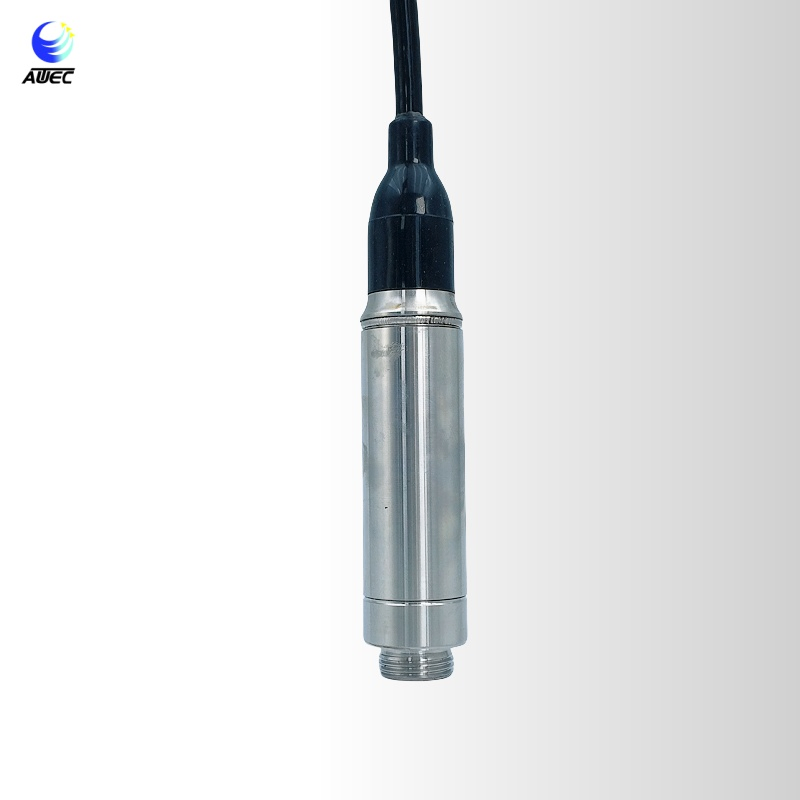

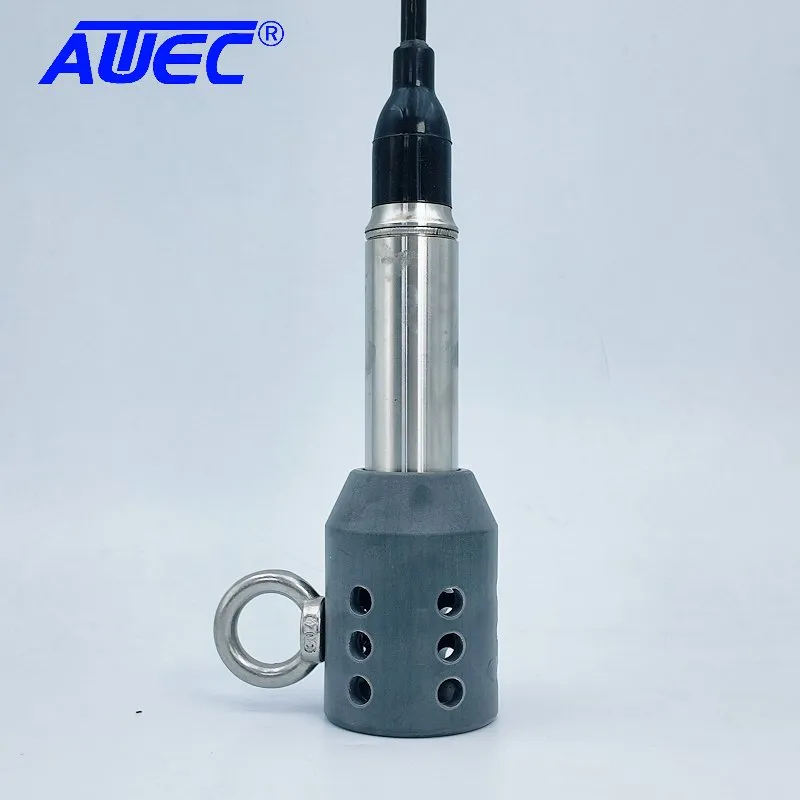

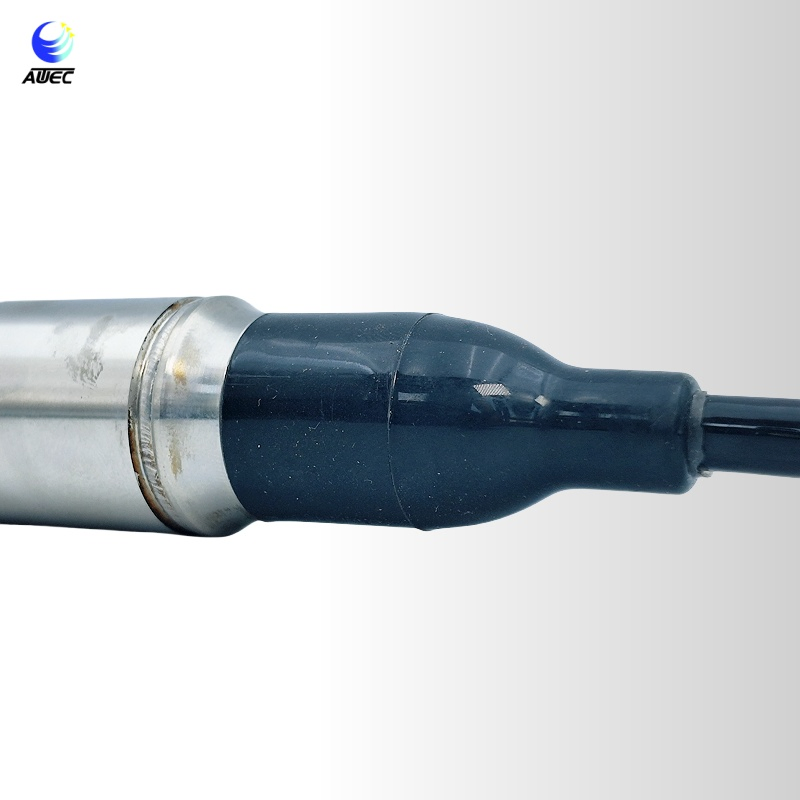

The AO910W input type liquid level transmitter uses a diffusion silicon pressure sensitive chip, which converts the liquid level signal of the measured liquid into a 4-20mA DC standard signal through a highly reliable amplification circuit. This product comes in two types of structures: integrated and split type. Split type products also have two types: armored and anti-corrosion.
| Accuracy | ±0.1%, ±0.2% |
| Zero Deviation | Not exceeding ± 0.5% of output range |
| Power Supply Impact | Less than 0.01%/V of output range |
| Stability | ±0.25% FS / 3 years |
| Measurement Range | 0~1m to 0~200m |
| Working Voltage | 12V-36V DC |
| Operation Temp | -20ºC ~ 60ºC |
| Diaphragm Material | 316L Stainless Steel |
| Protection Grade | IP65 or better |

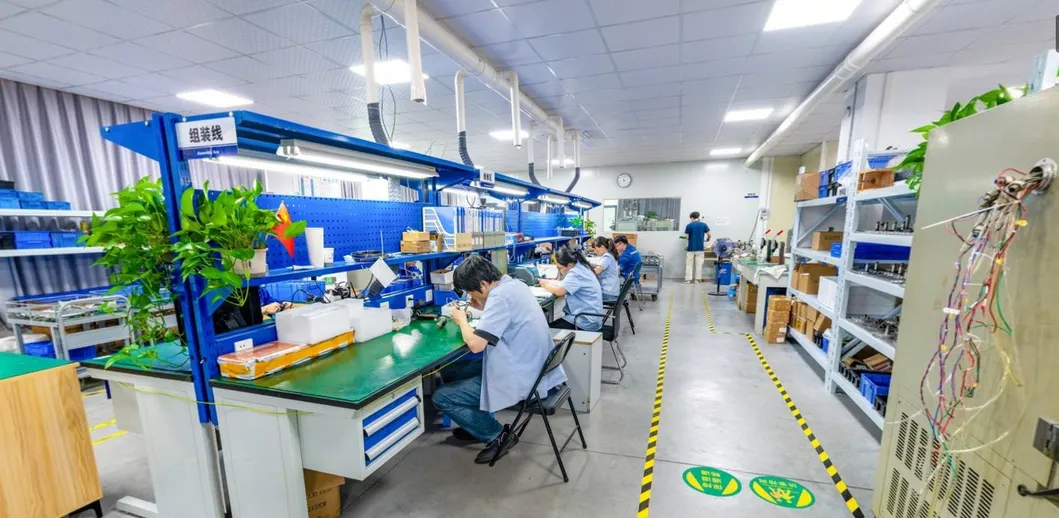

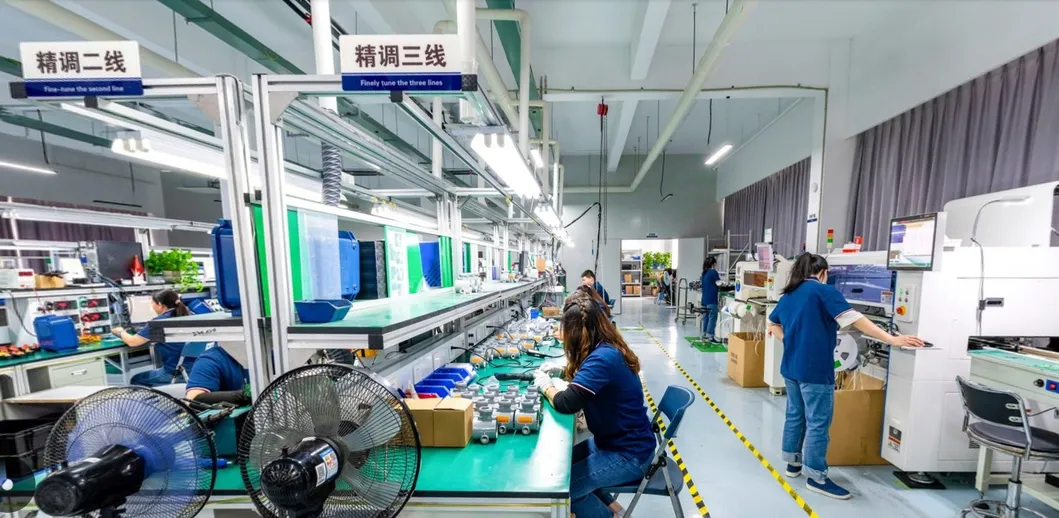

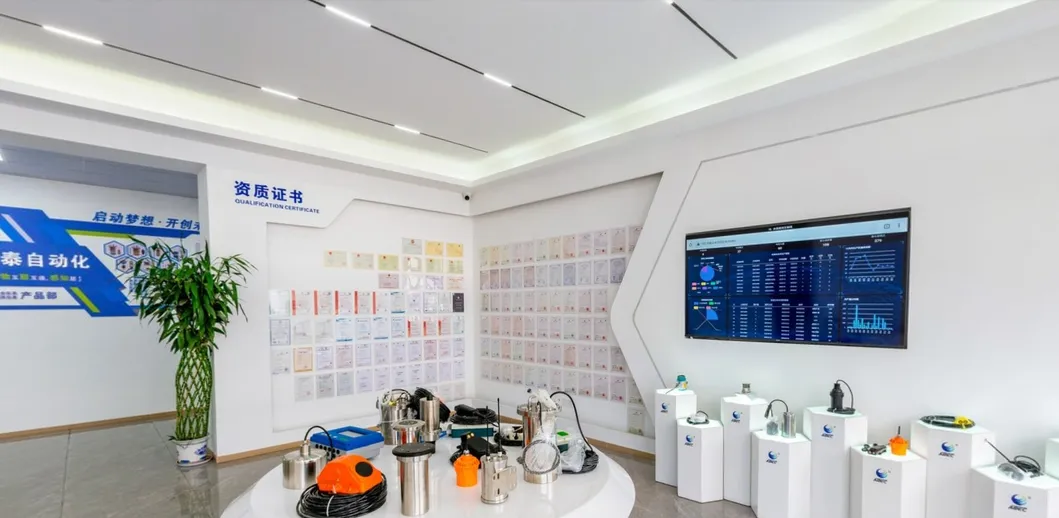

Founded in 2007, the company is an enterprise dedicated to providing measurement and control instruments and equipment for "intelligent manufacturing", "smart water" and "smart city". The company's goal is to become an enterprise with advanced technology, professional service and strong competitiveness in the industry. Since its inception, it has been adhering to the concept of research and development, production, sales and service of instrumentation, and striving to create value for customers.
