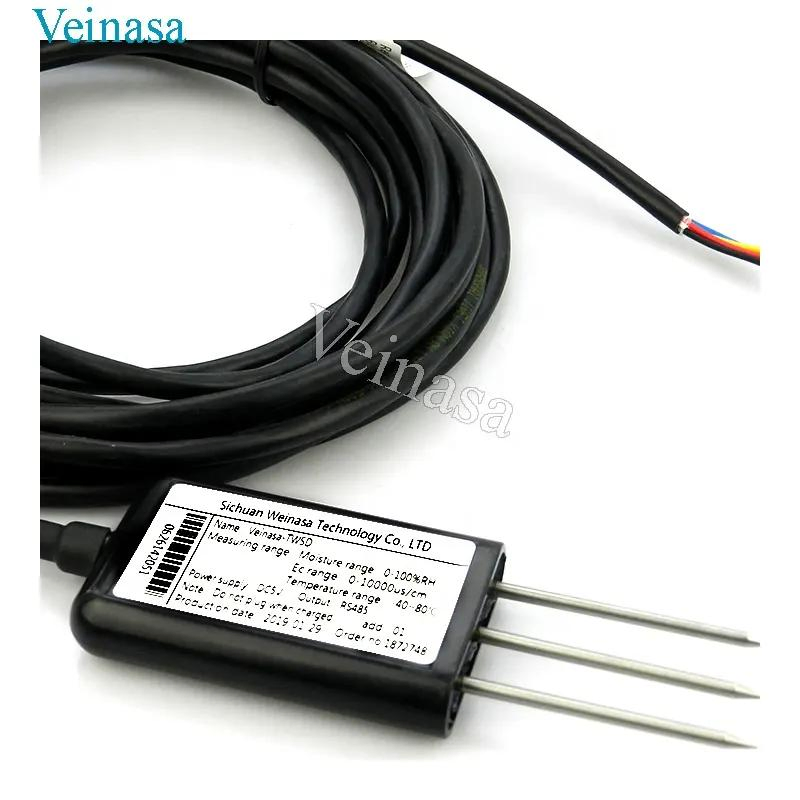

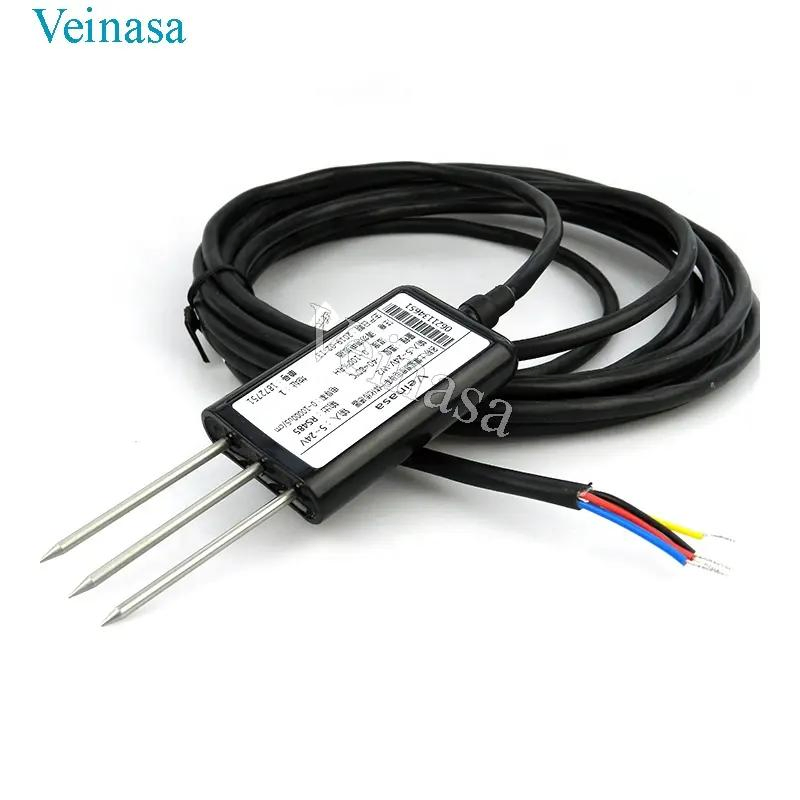

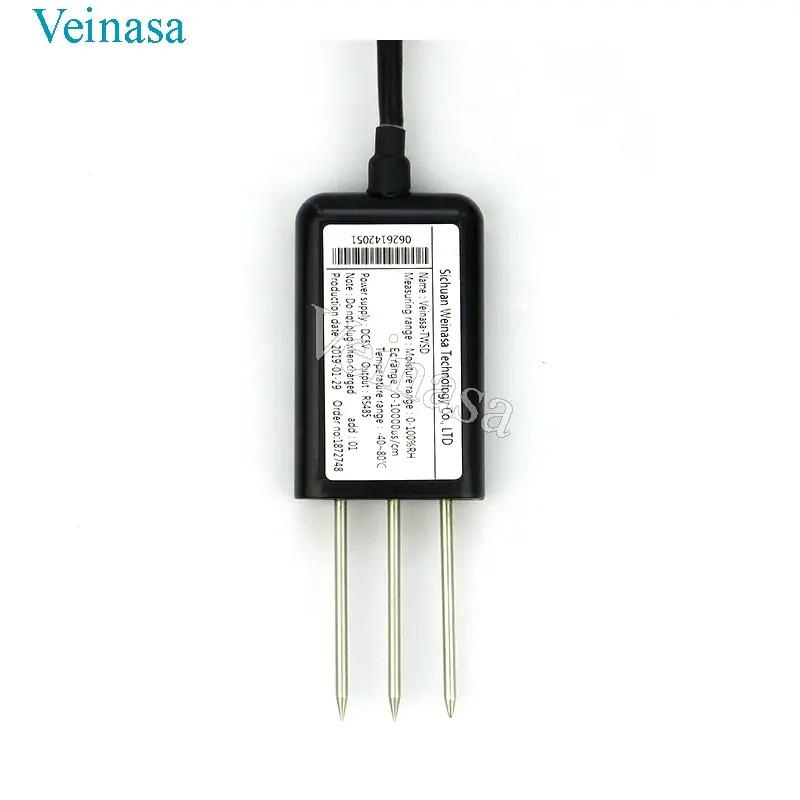

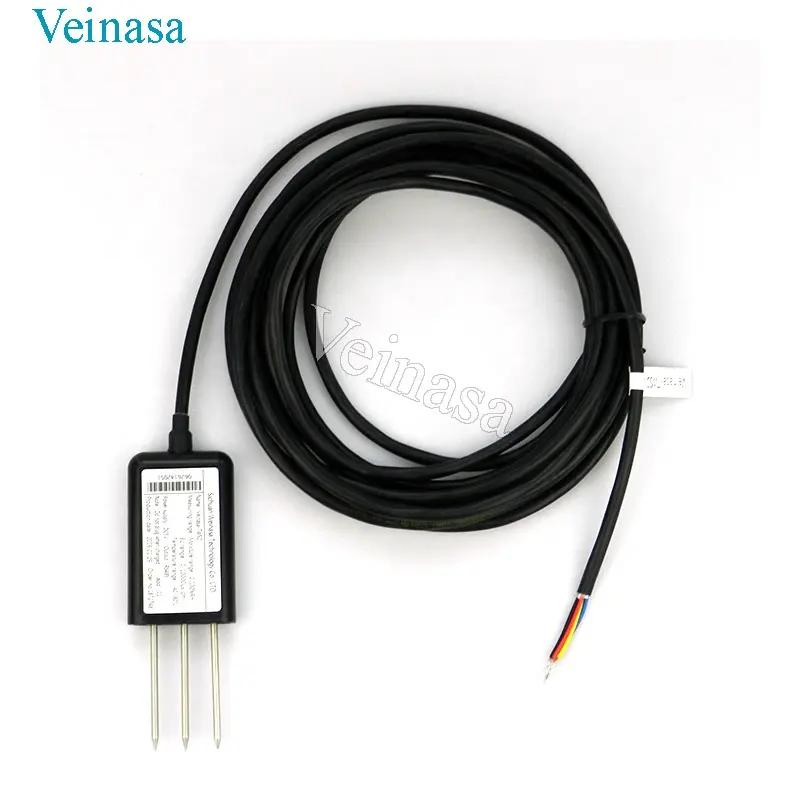

Iot Smart Industrial WiFi Zigbee Soil Moisture Sensor Ec Instrument Temperature Meter IP68 Fdr, AC Bridge Method RS485, Modbus

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
ModelTWSD
Product NameSoil Moisture Sensor
TheoryFDR for Soil Moisture and AC Bridge for Soil
Signal OutputRS485, Modbus
Power SupplyDC5-24V
Moisture RangeOptional: 0-100%
EC Range0-10000us/cm
Temp Range-40~80℃
Protection LevelIP68
Product Description
Smart Soil Sensor

Industrial IoT Smart Soil Moisture Sensor is a high-precision and sensitive instrument for measuring soil moisture, temperature, and electrical conductivity (EC). By utilizing the dielectric constant of the soil, it provides stable and direct reflections of true moisture content across various soil types, meeting international standards for volumetric percentage measurement.

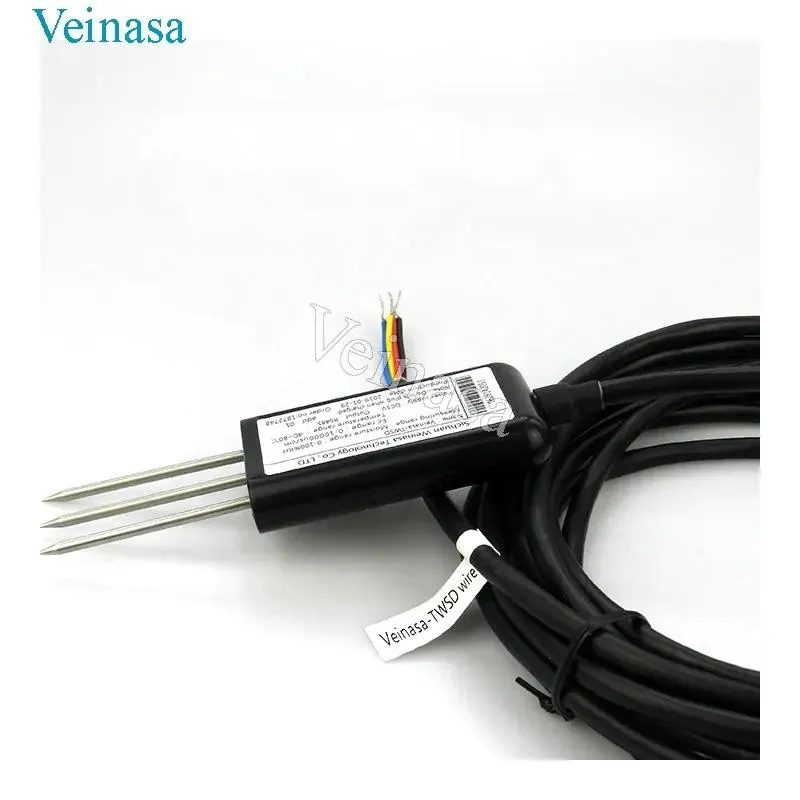

Sensor View 1
Sensor View 2
Technical Parameters
Specification Details
Static Power Consumption6mA @ 24V DC
Moisture Accuracy±5% (Range 0-100%)
EC Resolution10us/cm (Accuracy ±5%)
Temp CompensationBuilt-in, Range 0-50ºC
Installation ModeImplanted or probe insertion
Probe MaterialAnticorrosive special electrode
Sealing MaterialBlack flame retardant epoxy resin
Dimensions45*15*145mm (Electrode length: 50mm)
Default Cable5 meters (customizable)
Product Features & Advantages
Product Dimensions

The sensor features a 70mm body constructed with high-grade steel and cured by flame-retardant epoxy resin. It is completely waterproof and designed to withstand significant external impact.

  • High precision measurement with rapid response times and excellent exchangeability.
  • Superior tightness and corrosion resistance for long-term soil deployment.
  • IP68 rated waterproof design with flame-retardant materials.
  • High-quality steel needles capable of withstanding long-term electrolysis and acid/alkali corrosion.
Production & Application Display
Application 1
Application 2
Application 3
Packaging & Shipping
Package 1
Package 2
Frequently Asked Questions
Q: What are the common power supply and signal output options? A: The standard power supply is DC5-24V with an RS485 (Modbus) signal output. Customization is available upon request.
Q: How can I collect and read data from the sensor? A: You can use your own data logger with our provided communication protocol, or use our specialized data logger equipped with English software for data inquiry and downloads.
Q: What is the expected lifetime of this Soil Humidity/Temp/EC sensor? A: The sensor is designed for at least 5 years of service. Each unit includes a calibration certificate or testing report.
Q: What is the lead time for order delivery? A: Typically, goods are dispatched within 3-5 working days after payment receipt, depending on the order quantity.
Q: Can the cable length be customized? A: Yes, while the standard length is 5 meters, we can provide customized cable lengths to suit your specific installation requirements.
Q: What is the durability rating of the sensor? A: The sensor is IP68 rated, meaning it is completely waterproof and suitable for long-term immersion in soil or nutrient solutions.
