| Category | Details |
|---|---|
| Model NO. | Customizable |
| Condition | New |
| Certification | ISO, CE |
| Automation | Automatic |
| Screw | Twin-Screw |
| Material | Stainless Steel |
| Processing Capacity | 60kg/H |
| Volume Reduction Rate | 85% |
| Power | 7.5kw*1 |
| Sterilization Method | High-Temperature Steam |
| Working Pressure | 0.3MPa |

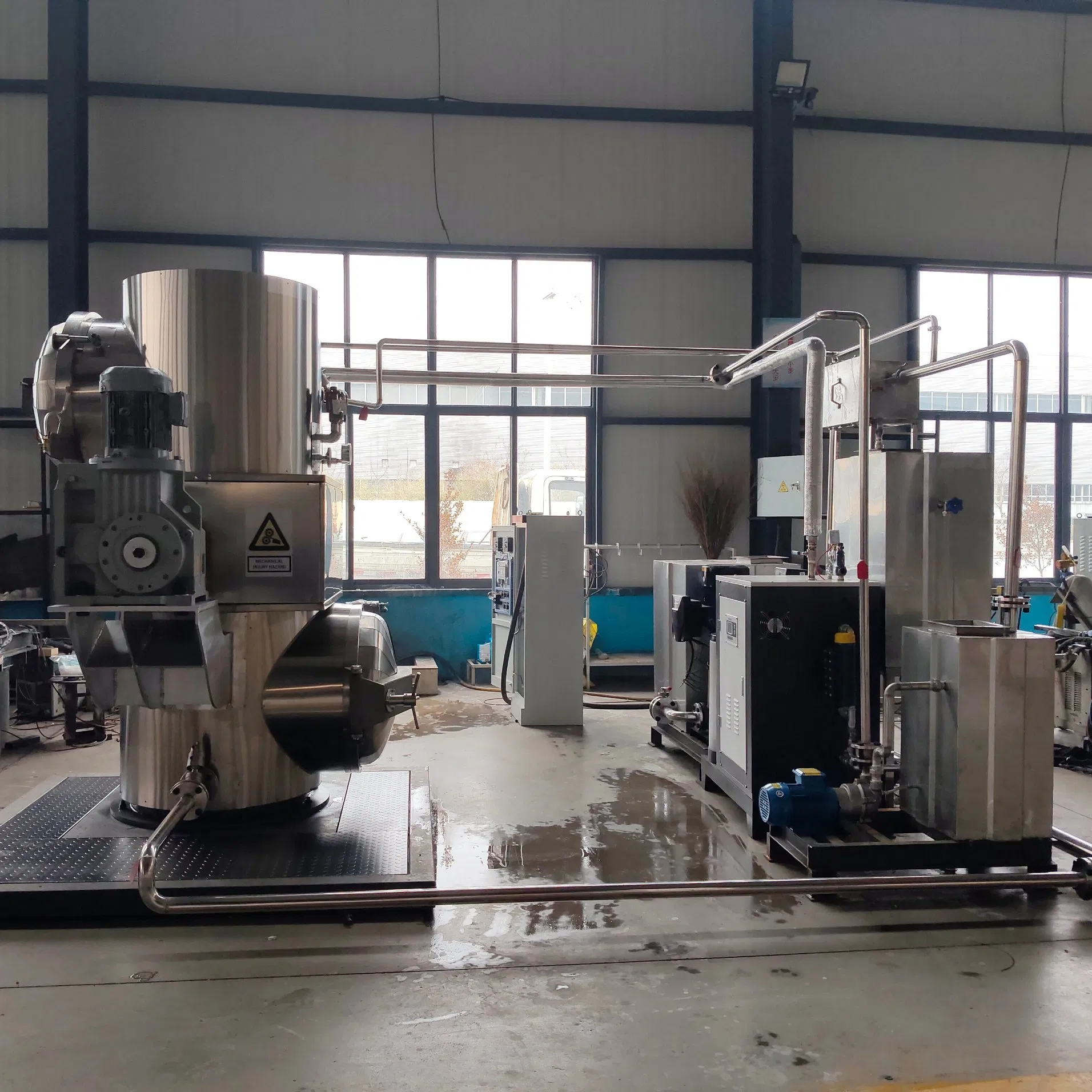

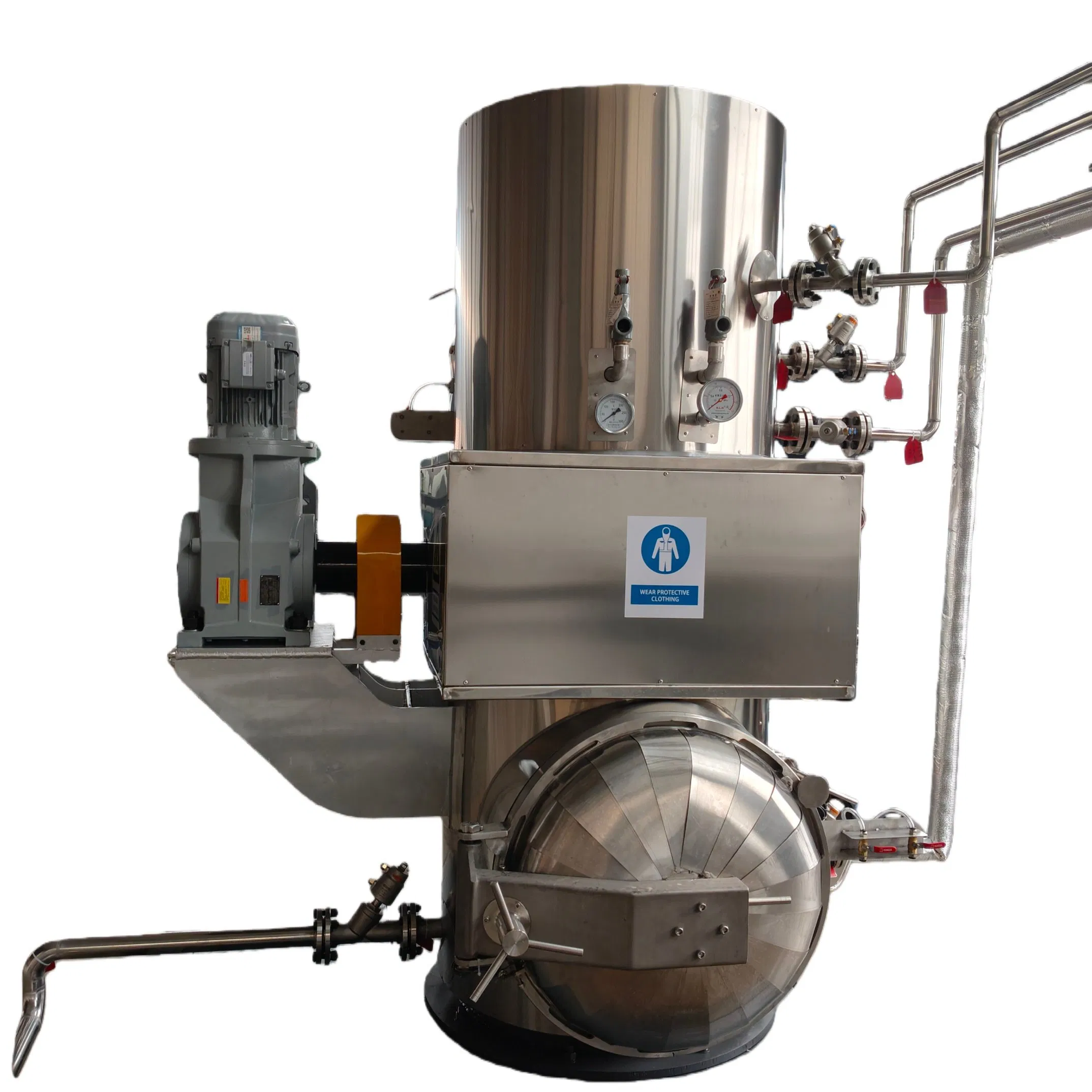

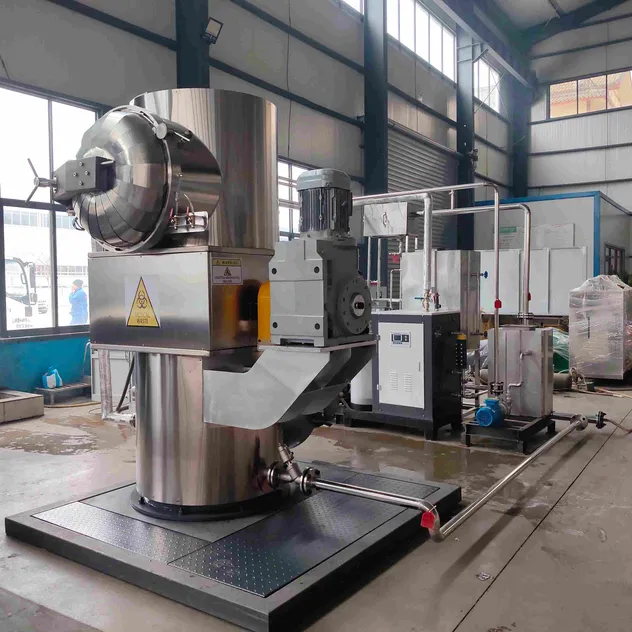

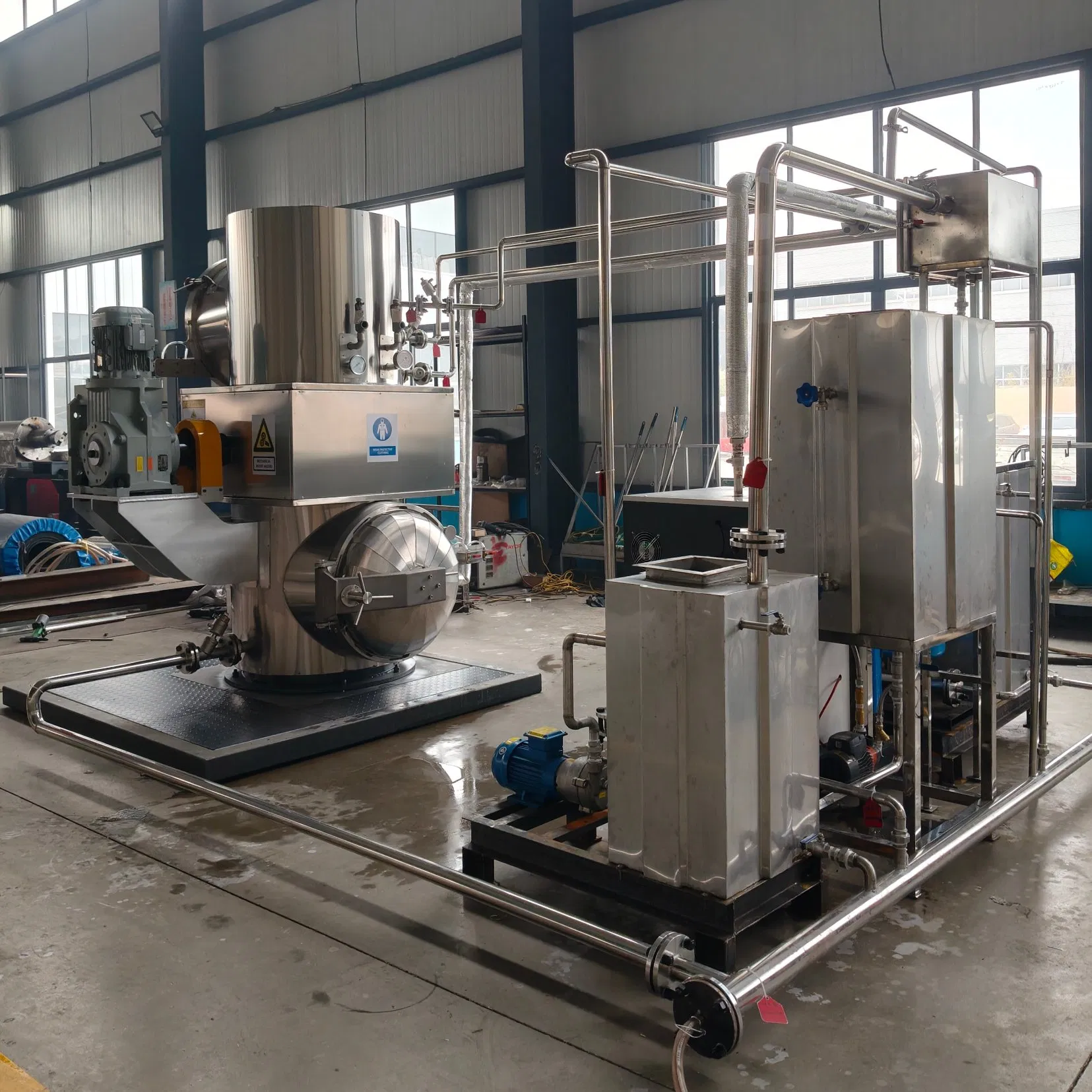

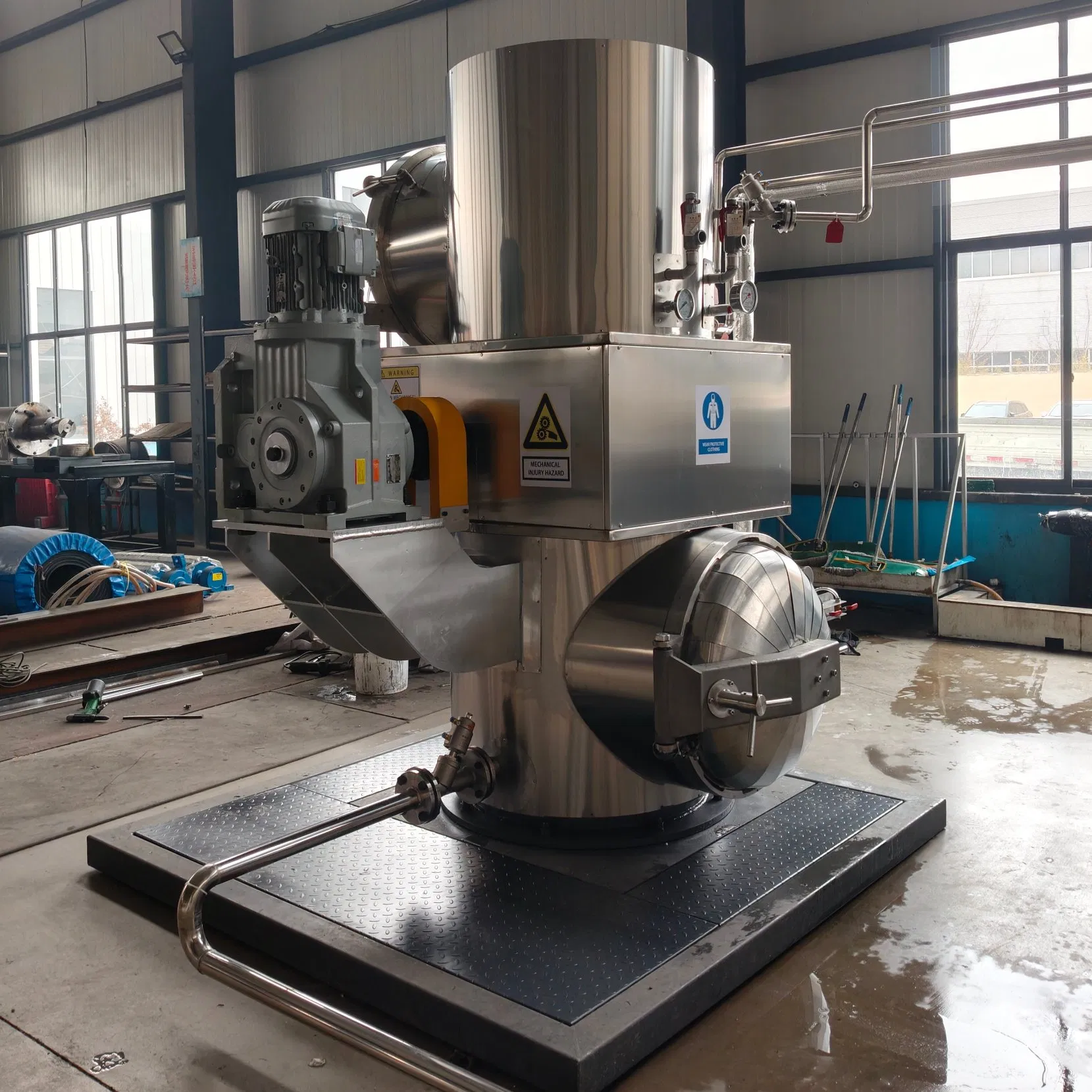

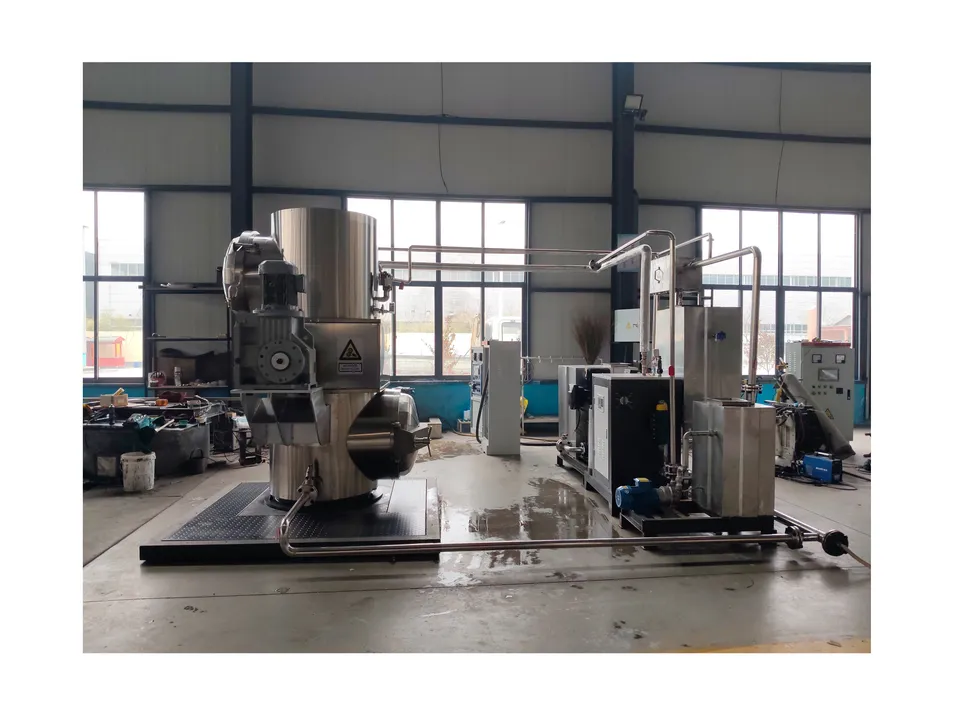

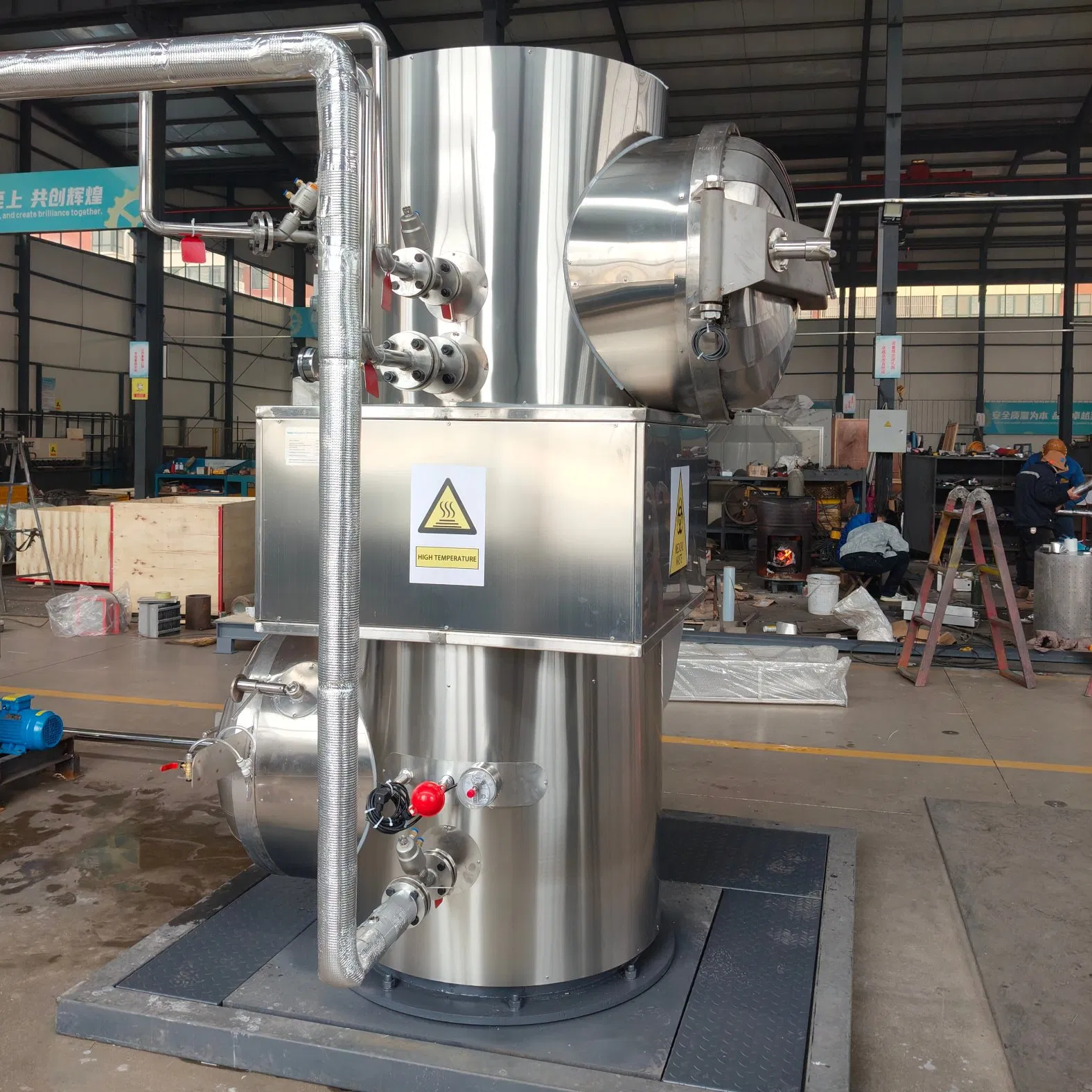

The collected medical waste is manually fed into a sterilizer. Inside, a shredding system breaks the waste into particles. After shredding, a pre-vacuum method purges the air, followed by the introduction of high-temperature, high-pressure saturated steam. After treatment, a final vacuum process removes remaining air and moisture. The sterilized waste is significantly reduced in volume and weight, with pathogens effectively killed, allowing it to be treated as ordinary household waste.

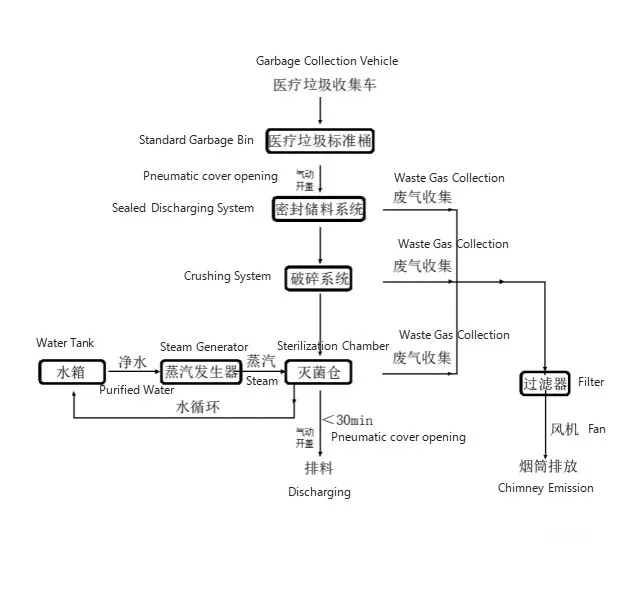

Schematic Diagram of Working Process

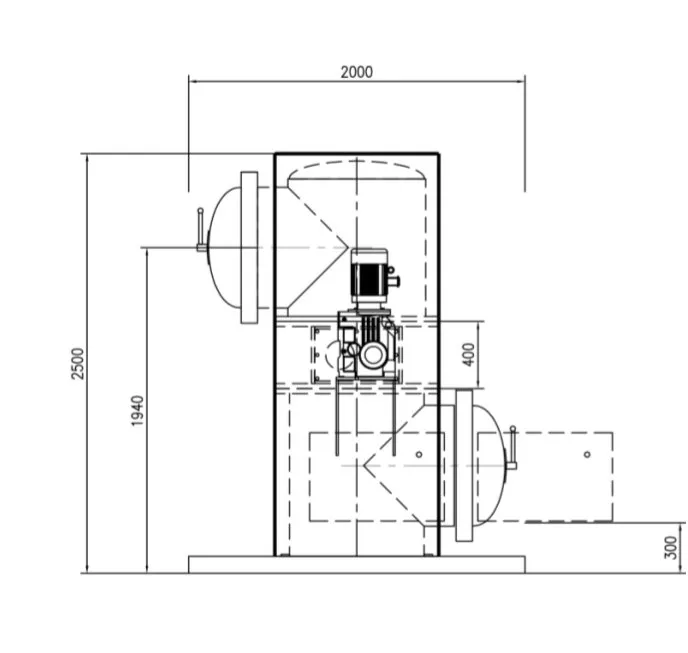

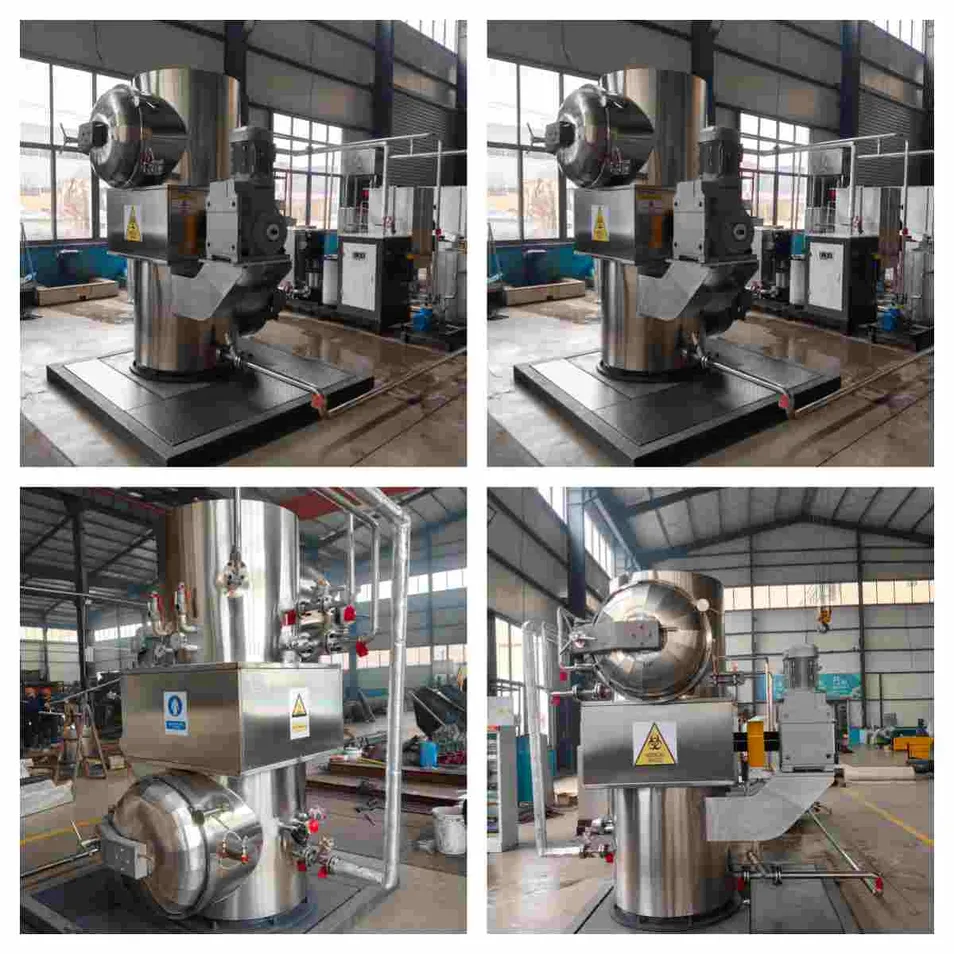

System Structure and Assembly Sequence
| System Unit | Project | Technical Parameters |
|---|---|---|
| Processor Parameters | Processing Capacity | 60kg/h |
| Single Processing Time | 30min | |
| Final Inactivation Level | 8Log10 | |
| Volume Reduction Rate | 85% | |
| Vertical Vessel | Volume | 420L |
| Material | Stainless steel | |
| Design Temperature | 152℃ | |
| Crushing System | Power | 7.5kw*1 |
| Main Shaft | Ø110mm 40Cr |
