Product Description

📋

Basic Information

Model NO.
ADW210
Display
Digital
Installation
Direct Connected
Electric Equipment
Three-phase Four-wire
Type
Energy Meter
Certification
CE
Accuracy
0.2s, 0.2, 0.5grade
Protocol
Modbus-RTU
💡

Product Description

ADW series rail type multi-loop power meters are mainly used for measuring the full electric parameters of multiple three-phase circuits, up to four three-phase loop current inputs can be connected simultaneously. It can measure voltage and current, power, power factor, phase angle, unbalance, harmonic and other parameters.

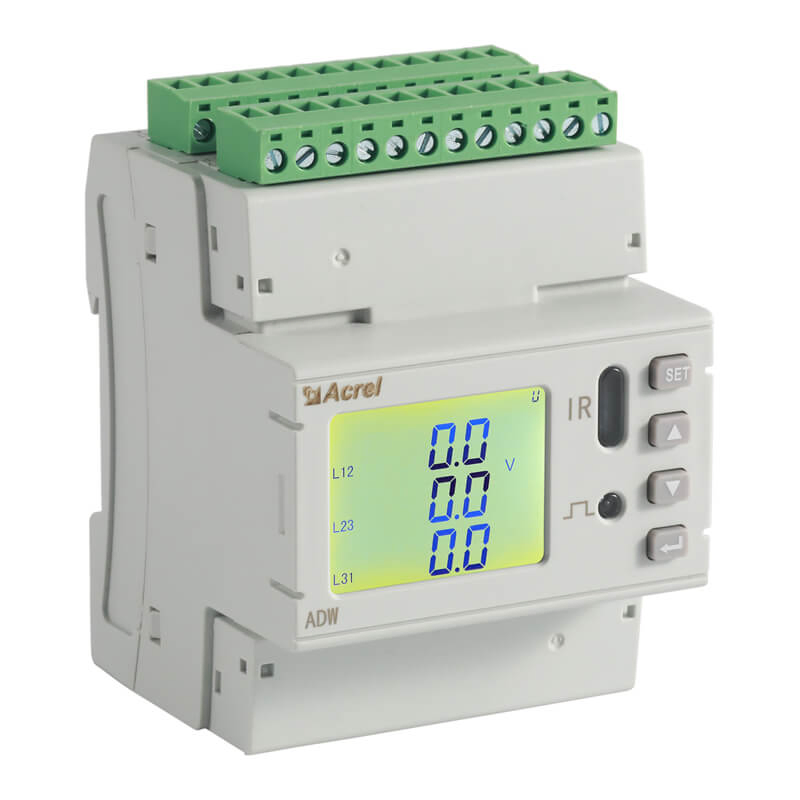

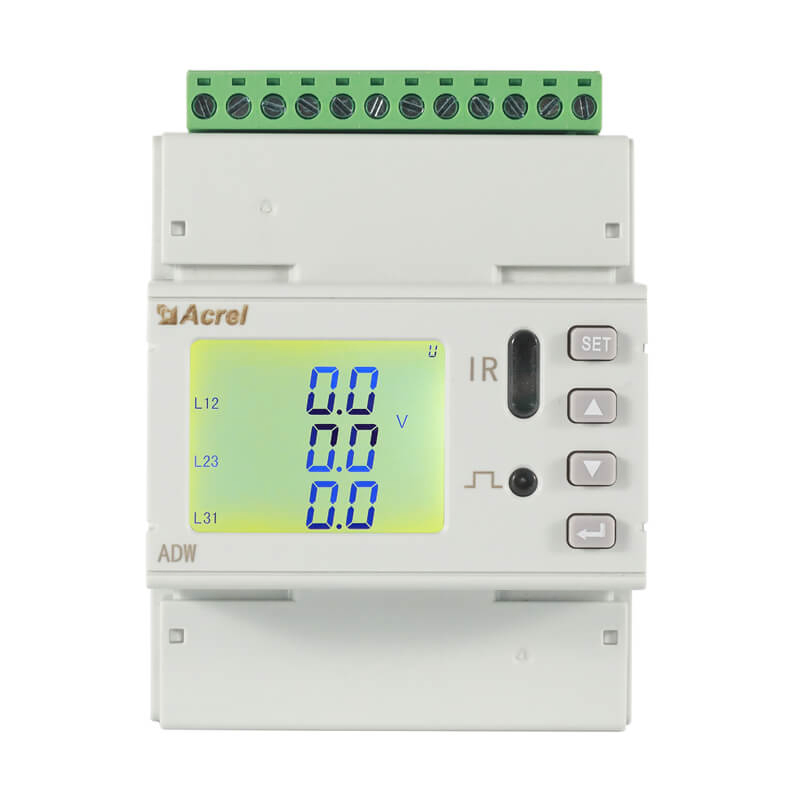

ADW210 Meter

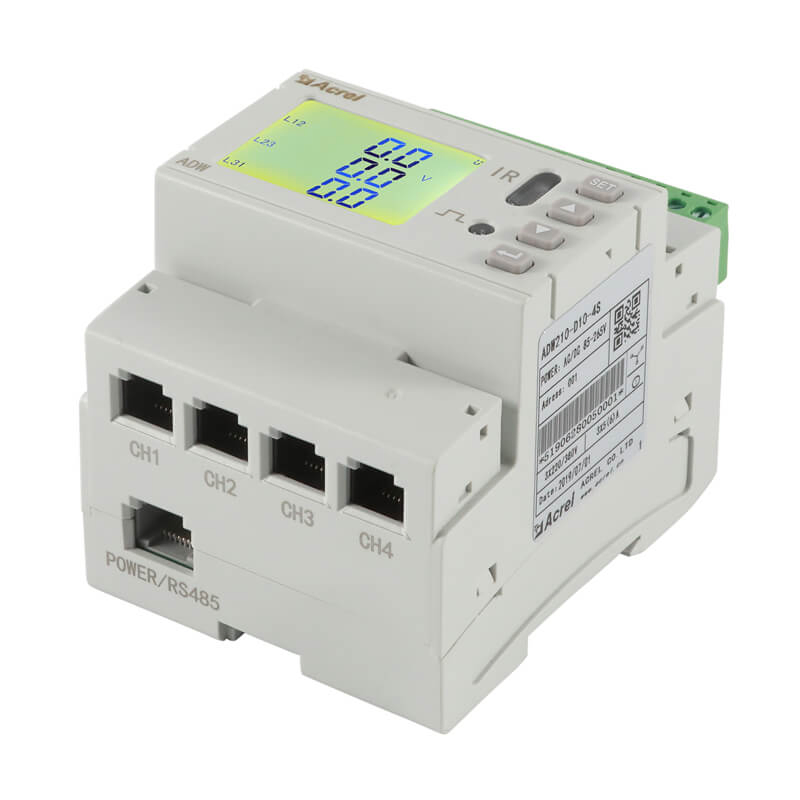

ADW210 Standard Unit

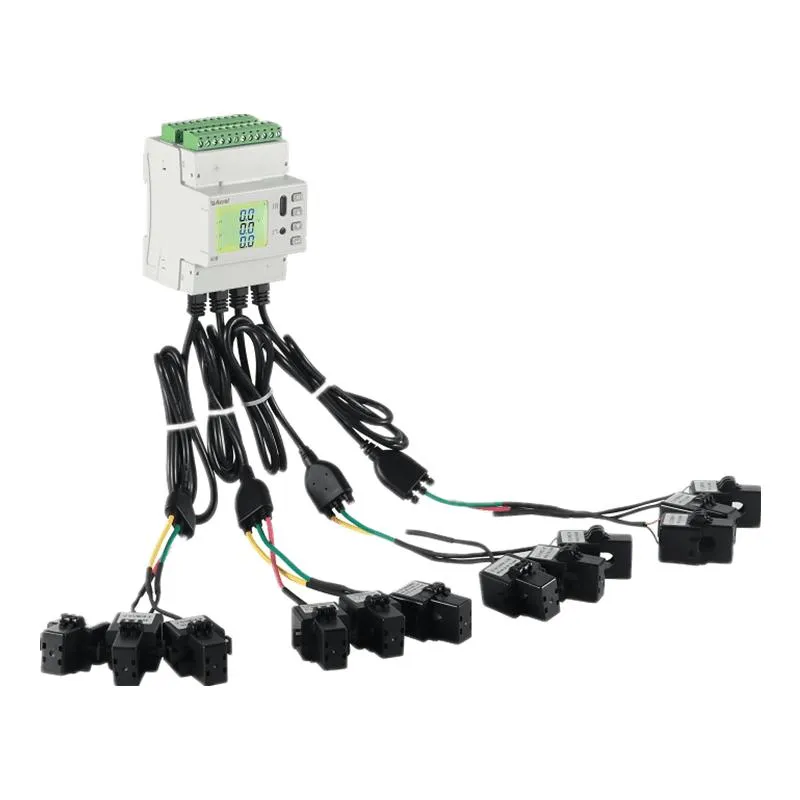

ADW210 with CT
ADW210 with Split-core CT
🔧

Expansion Modules

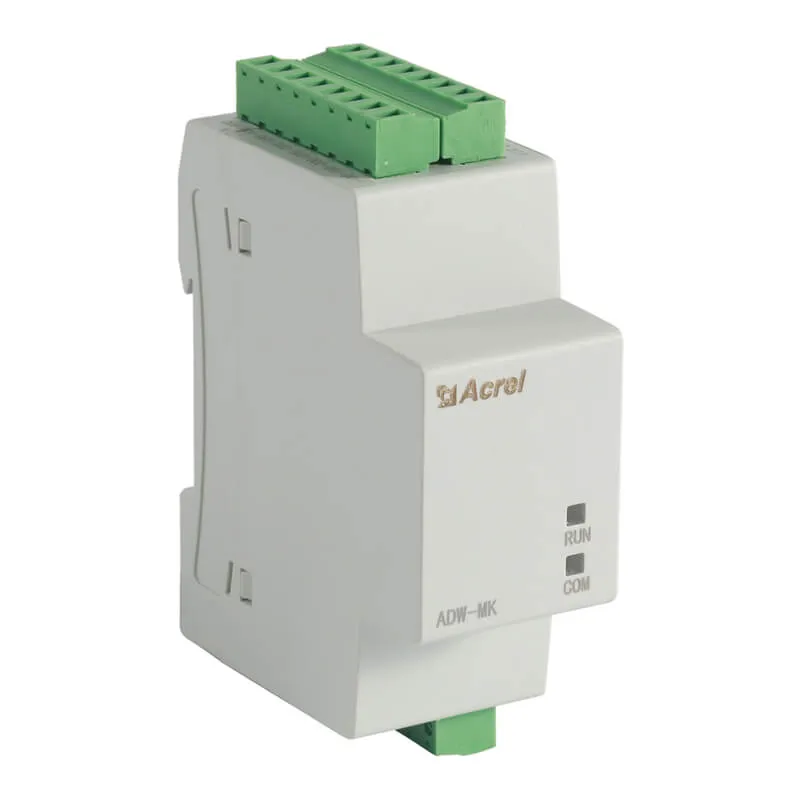

MK Module
MK Module: 12 Channels DI + 4 Channels DO

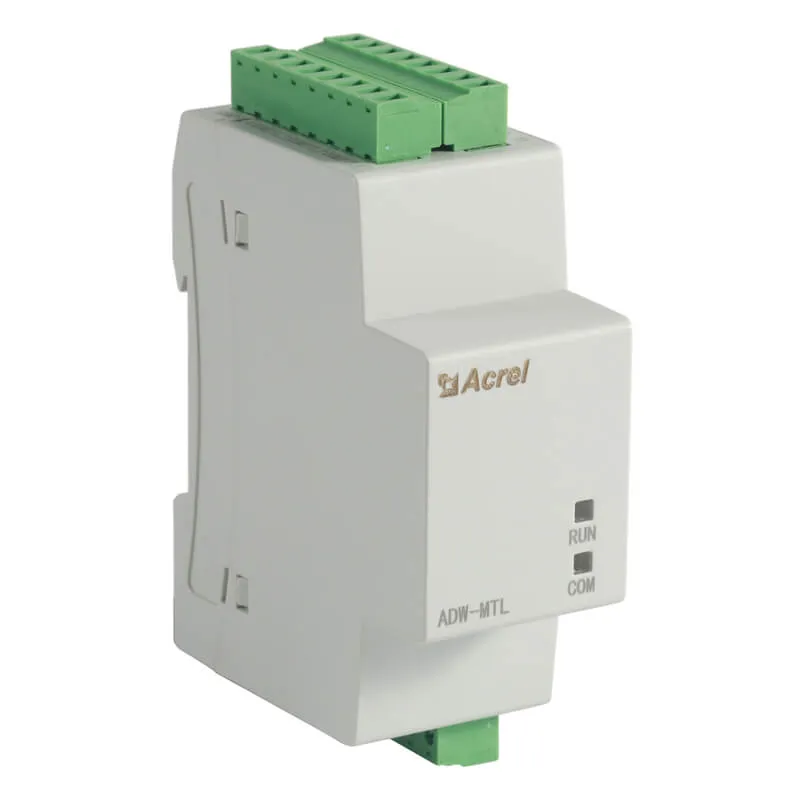

MTL Module
MTL Module: Temp & Residual Current

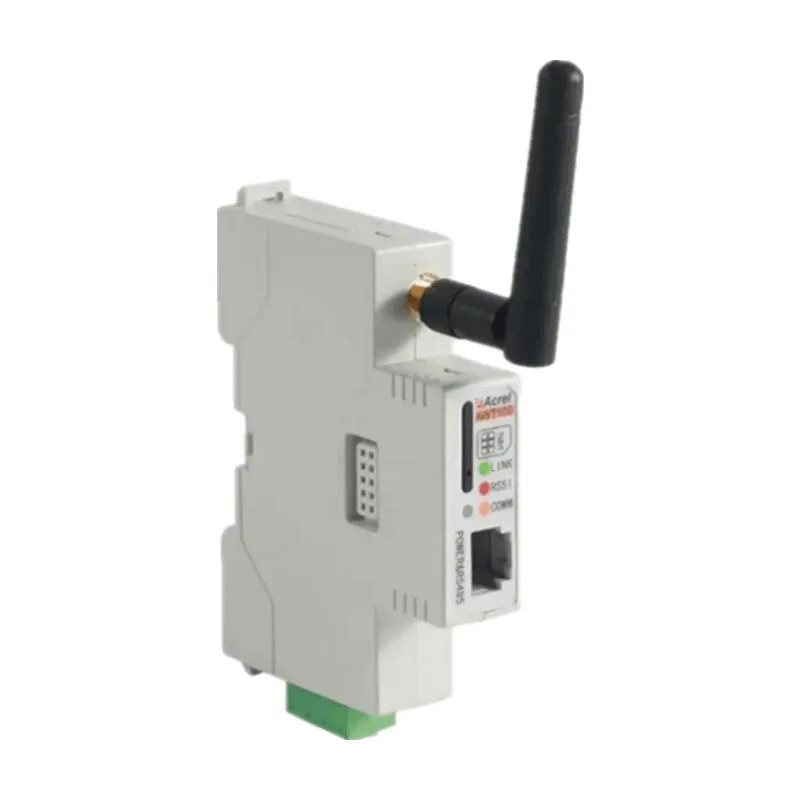

AWT100 Module
AWT100: Multi-Protocol Communication
📊

Technical Specification

Parameter Specifications
Auxiliary power AC/DC 85~265V; Consumption ≤10VA
Input Frequency 45~65Hz
Voltage AC 3×220V/380V; Overload: 1.2x rated (continuous)
Current AC 5A, 100A, 400A, 600A (External opening transformer)
Accuracy Voltage/Current Class 0.5; Active energy Level 1
Communication RS485, Modbus-RTU; Baud rate 1200~38400
📏

Dimensions & Wiring

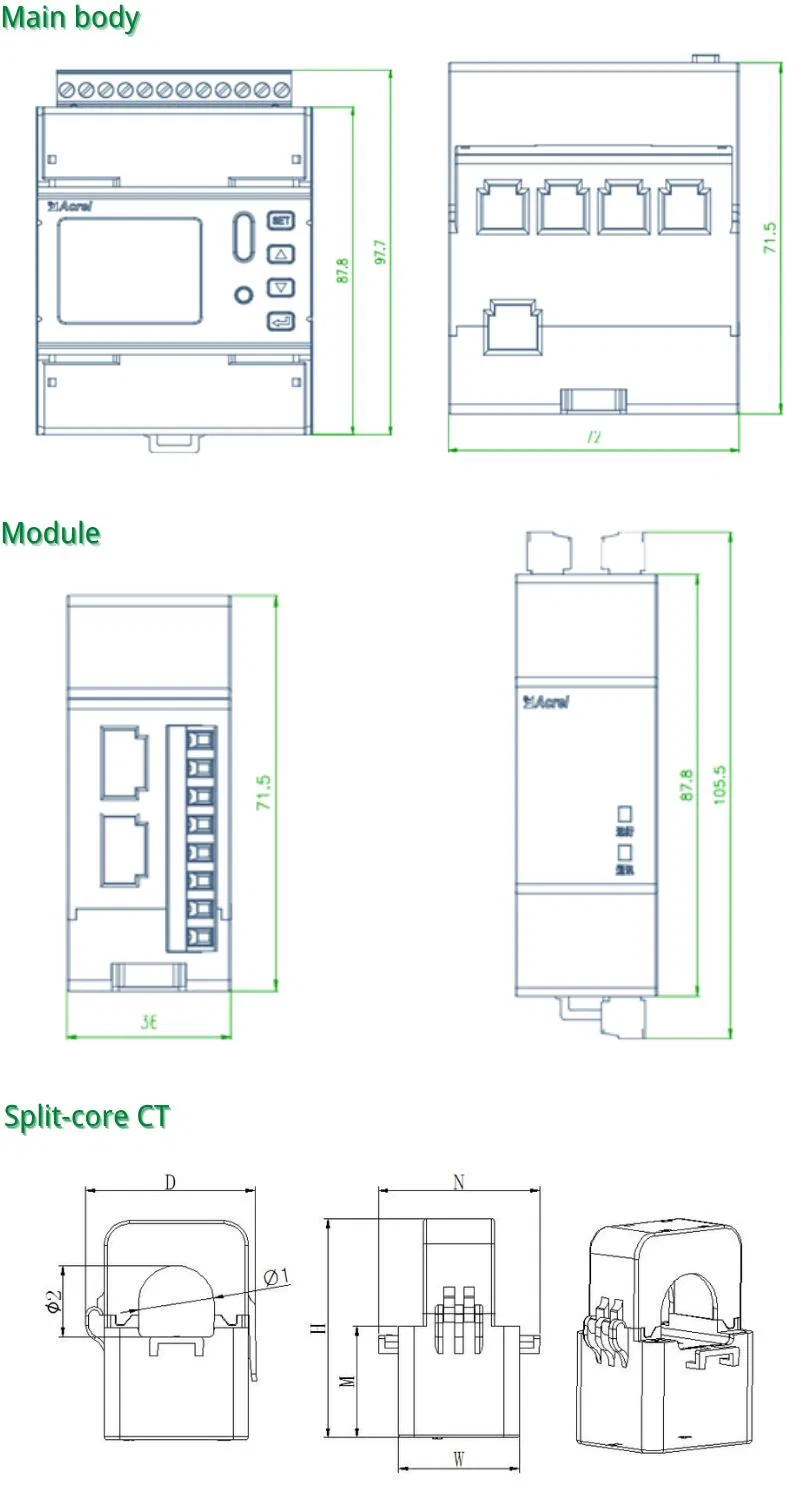

Dimensions

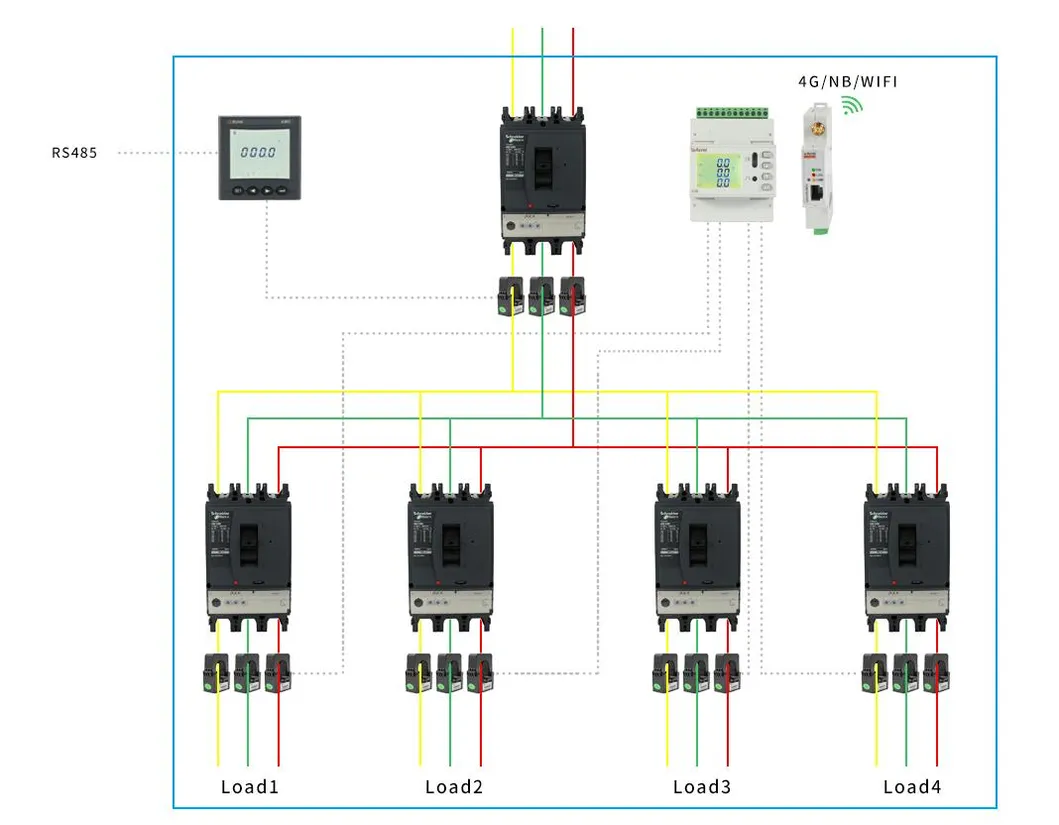

Wiring Diagram
🌐

Networking Diagram

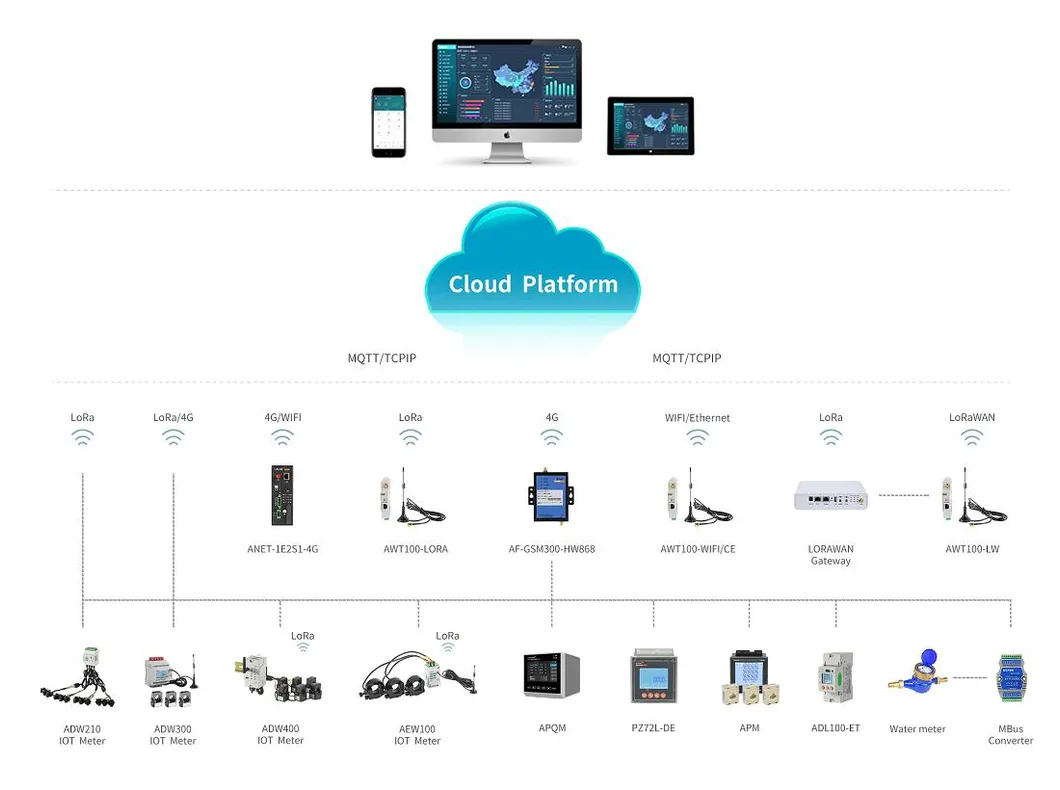

Networking Topology
🏢

System Solutions

The enterprise provides a complete production line from cloud platform software to sensors. Energy efficiency management systems include substation operations, electricity safety management, environmental equipment monitoring, prepaid management, and intelligent power distribution monitoring. Solutions cover industrial energy control, leakage power monitoring, fire-fighting device power monitoring, and EV charger management systems.
Factory and Solutions
❓

Frequently Asked Questions

How many circuits can the ADW210 monitor at once?
The ADW210 can connect up to four three-phase loop current inputs simultaneously, making it ideal for multi-circuit monitoring.
What types of electrical parameters are measured?
It measures a full range of parameters including voltage, current, power, power factor, phase angle, unbalance, and harmonics (2-31st).
Does the device support wireless communication?
Yes, via the AWT100 expansion module, it can support 4G, 2G, NB-IoT, LoRa, LoRaWAN, WiFi, and Ethernet.
What is the accuracy class of the energy measurement?
The ADW210 features Class 0.5 accuracy for voltage and current, and Level 1 for active electric energy.
Can I monitor temperature and leakage current?
Yes, by adding the MTL expansion module, the system can measure up to 12 external NTC temperature points and 4 channels of residual current.
Is the meter suitable for both single and three-phase systems?
Yes, the ADW210 is designed to support both single-phase and three-phase electrical equipment.
