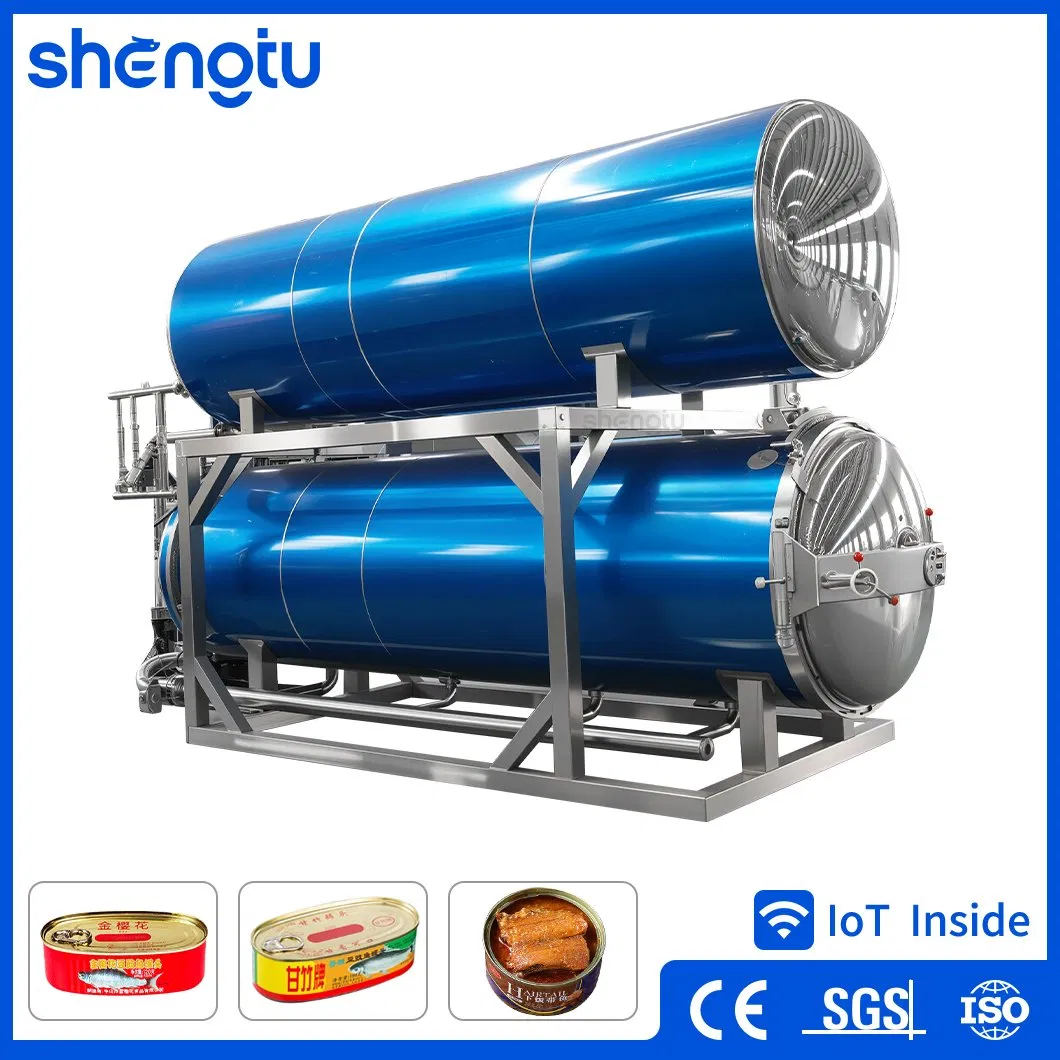

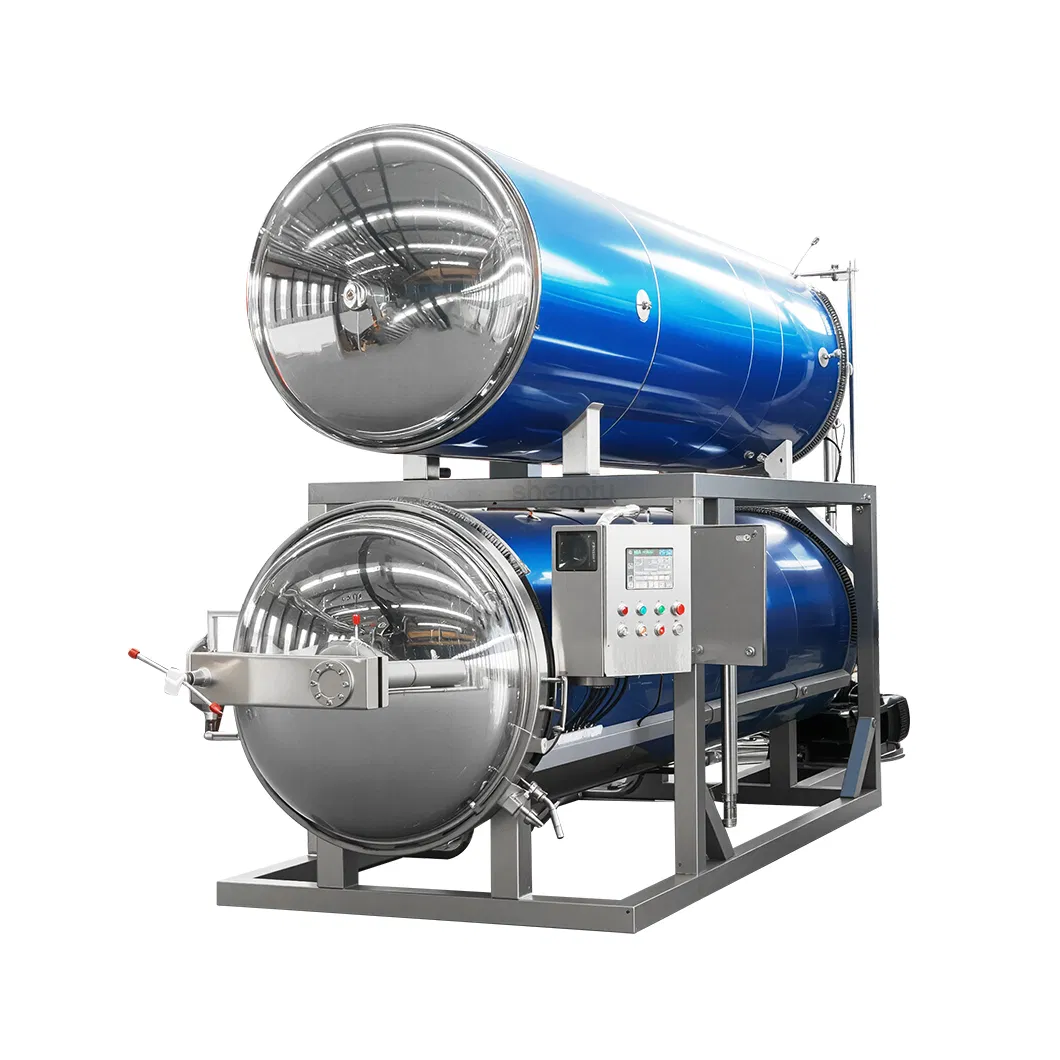

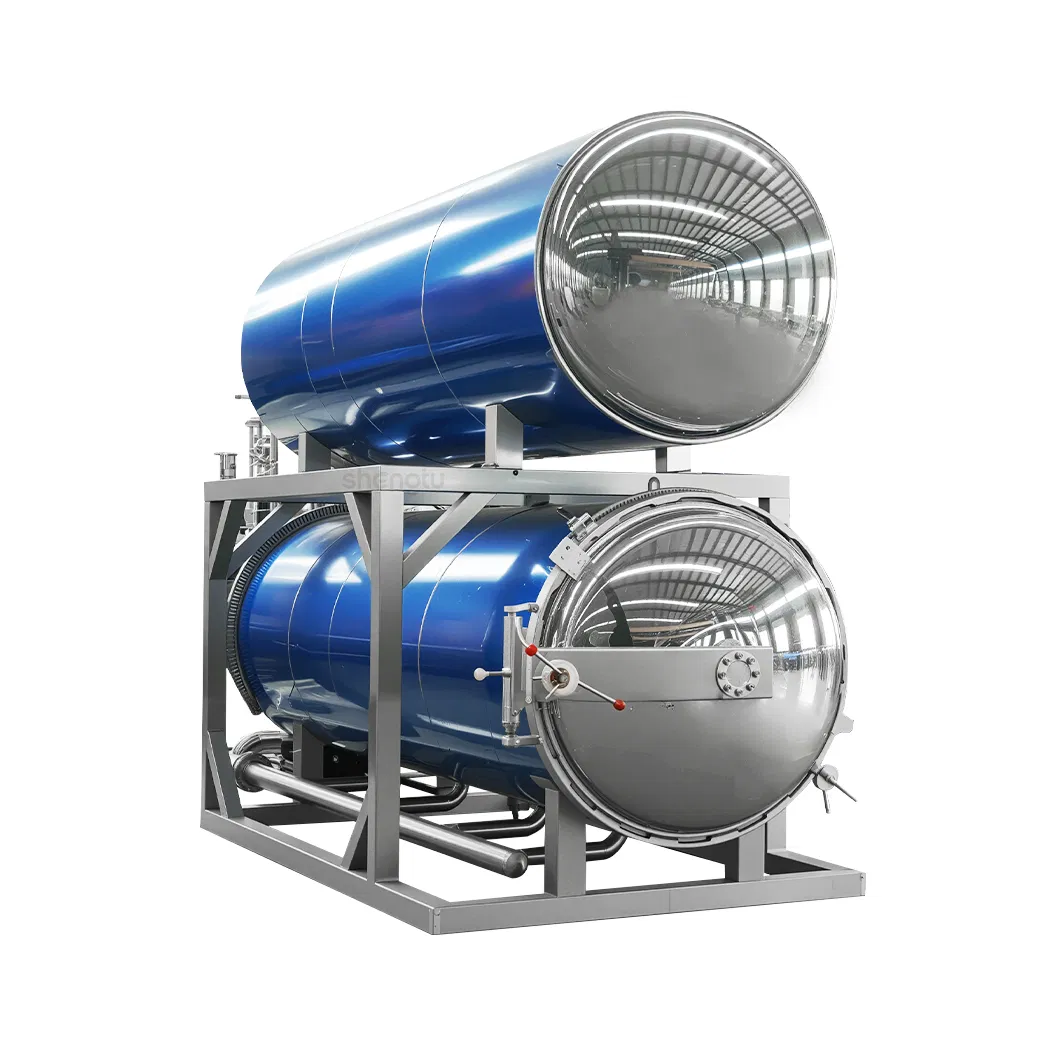

Large Capacity Rotary Autoclave for Mushrooms with ISO Certification and IoT Enabled
Large Capacity Rotary Autoclave for Mushrooms with ISO Certification and IoT Enabled
Large Capacity Rotary Autoclave for Mushrooms with ISO Certification and IoT Enabled
Large Capacity Rotary Autoclave for Mushrooms with ISO Certification and IoT Enabled
Large Capacity Rotary Autoclave for Mushrooms with ISO Certification and IoT Enabled
1 / 5
Large Capacity Rotary Autoclave for Mushrooms with ISO Certification and IoT Enabled
Large Capacity Rotary Autoclave for Mushrooms with ISO Certification and IoT Enabled
Large Capacity Rotary Autoclave for Mushrooms with ISO Certification and IoT Enabled
Large Capacity Rotary Autoclave for Mushrooms with ISO Certification and IoT Enabled
Large Capacity Rotary Autoclave for Mushrooms with ISO Certification and IoT Enabled

Large Capacity Rotary Autoclave for Mushrooms with ISO Certification and IoT Enabled

Customization: Available
After-sales Service: One-Year Free Maintenance and Lifetime Support
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information

Model NO.
IQ01-68
Certification
CE
Automation
Automatic
Structure
Plate
Energy
Heat Sterilization
Product Name
Automatic Double-Layer Water Bath Type Sterilizer
Usage
Commercial/Industrial
Control System
PLC
Material
SUS304 Stainless Steel
Temperature
145ºC (Adjustable)
Dimensions
3400 × 1200 × 2730mm
Package Weight
1000.00kg
Video Cover

Product Description

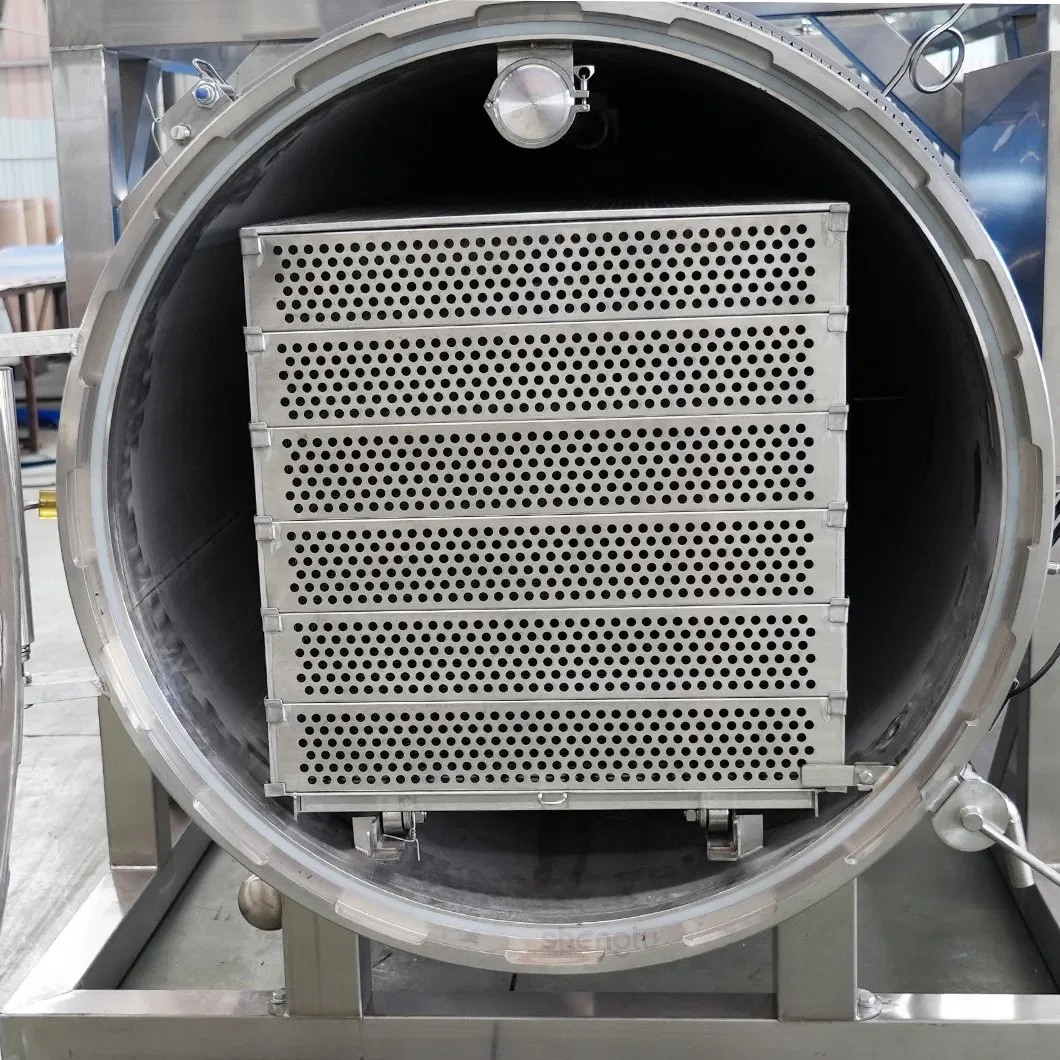

The sterilization autoclave consists of a pot body, pot lid, opening mechanism, safety interlock device, sterilization baskets, and steam nozzles. It employs an inflatable silicone rubber high-temperature resistant seal ring for reliable sealing. Processing capacity ranges from 100 to 3000 kg per hour.

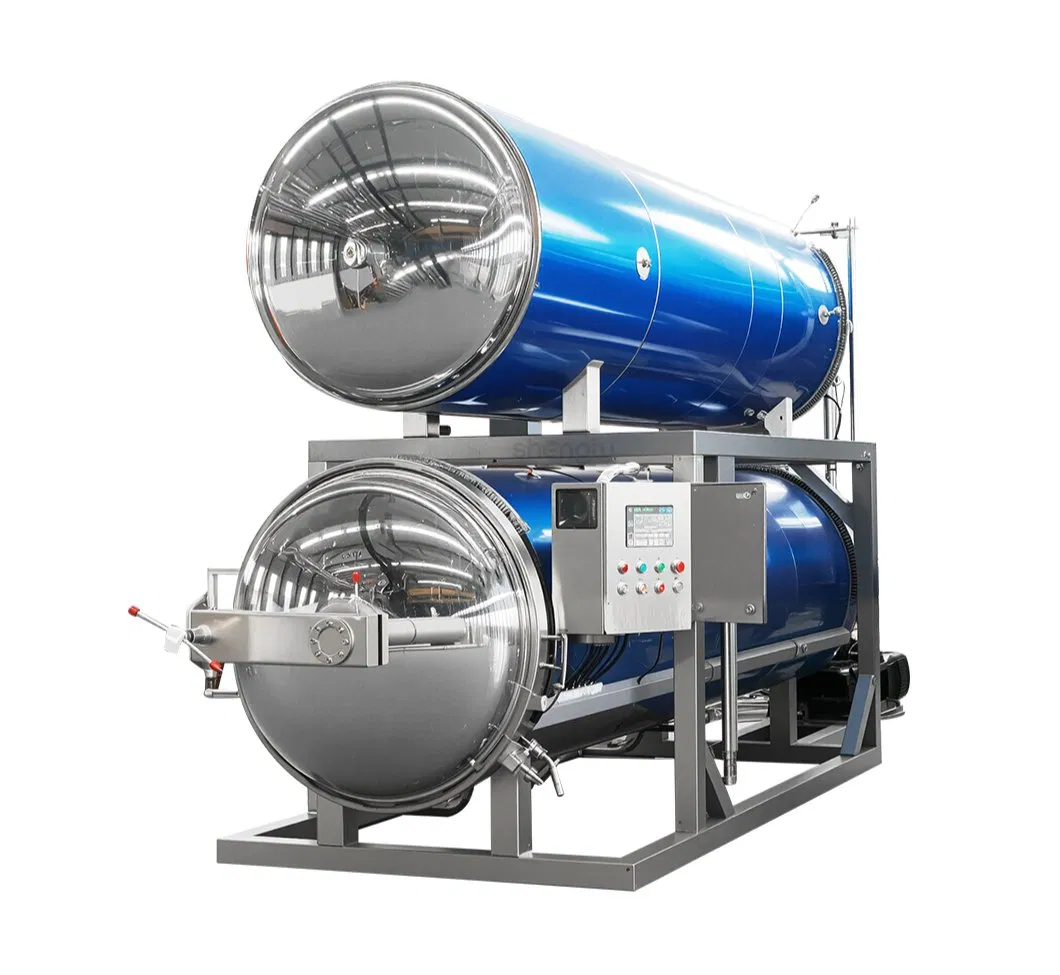

Product View 1

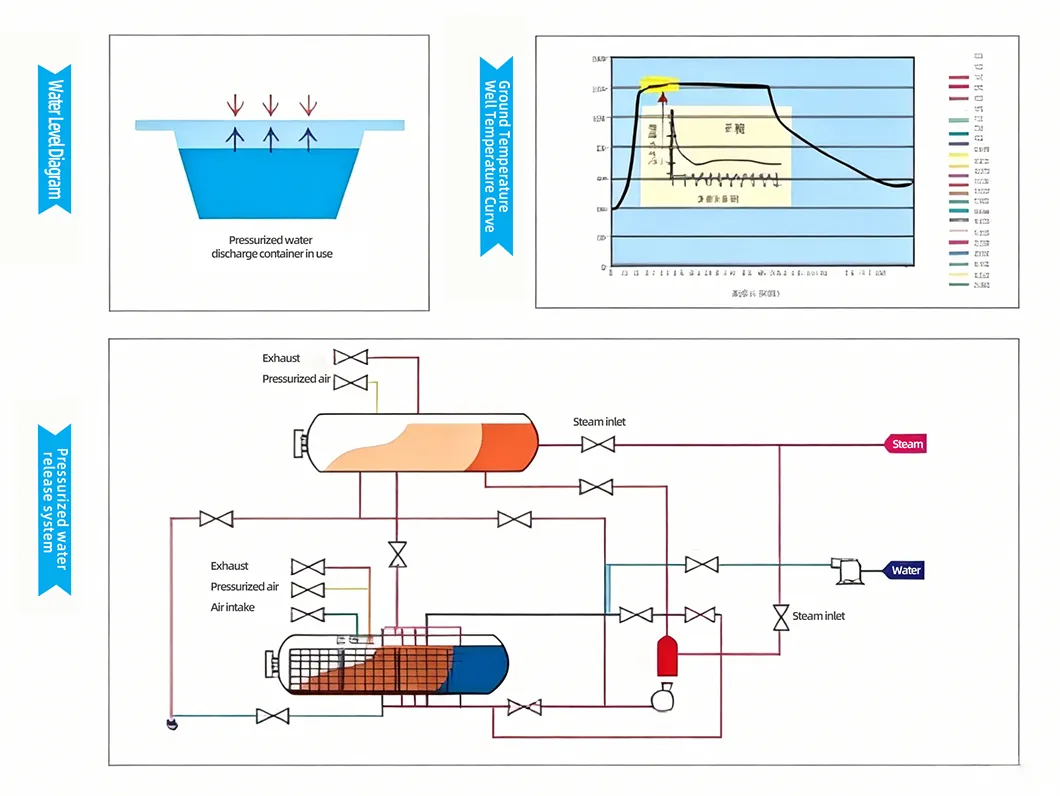

Product View 2
🔹
Spray Sterilization Retort: Suitable for PE bottles, tinplate cans, glass jars, and foil pouches.
🔹
Double-Layer Water Bath Retort: Ideal for flexible packaging like plastic bottles, cups, and bowls.
🔹
Rotary Sterilizer: Designed for high-viscosity products with particles (e.g., porridge, condensed milk).

Technical Specifications

Model Dimensions(mm) Inner Dia(mm) Capacity(m³) Max Pressure(Mpa) Max Temp(℃) Power(kw)
IQ01-012300x1200x273010001.050.351456
IQ01-023400x1200x273010001.800.351459
IQ01-034500x1300x314012003.740.3514515.5
IQ01-045620x1300x334012004.800.3514517.5
IQ01-055820x1800x364512008.050.3514519

Core Features

Feature 1
Feature 2
Feature 3
✅
Multiple Sterilization Methods: Optimal temperature distribution through mixed steam, air, and water circulation.
✅
Visual Monitoring: Real-time monitoring of F-value and heat penetration with four movable probes.
✅
Controllable Pressure: Precise regulation to minimize product deformation in gas-filled packaging.
✅
Energy Efficiency: Direct thermal mixing accelerates heating and cooling cycles.
Feature 4

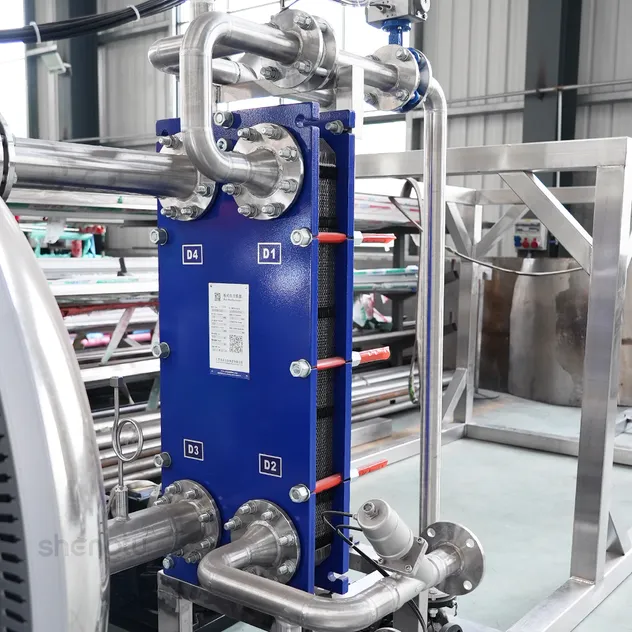

Feature 5
Feature 6

Smart IoT Management

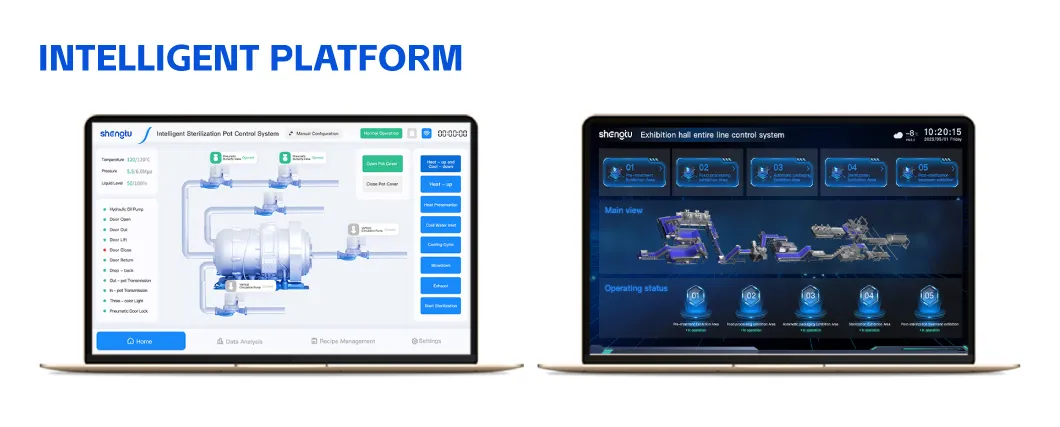

IoT Control
  • 🚀 Remote PLC Connection: Secure access for maintenance and program viewing.
  • 📊 Real-Time Monitoring: Access data streams and adjust parameters via browser or App.
  • 🔔 Smart Notifications: Configurable alerts via SMS or App.
  • 📈 Data Analysis: Instant generation of trend curves and historical data reports.

Professional After-Sales Service

Service Team

Global Support, Unmatched Responsiveness.

1-Hour Response - Guarantee for all inquiries.
3-Hour Preliminary Solutions - Rapid troubleshooting.
72-Hour Deployment - Global engineer network access.
2-Year Warranty - Standard comprehensive protection.

Success Cases & Certifications

Certification
Cooperation Case

Frequently Asked Questions

Q1: What is the support process from order to factory operation?
We provide end-to-end support including technical drawing confirmation, weekly production updates with media, remote FAT (Factory Acceptance Test), complete customs documentation, and high-definition installation guidance videos.
Q2: How do you simplify cleaning and maintenance?
Our equipment features a hygienic design with zero dead zones, one-touch CIP (Clean-in-Place) programs, and visualized maintenance windows. Every order includes a complimentary $500 wear-parts kit.
Q3: How are the sterilization temperature and pressure controlled?
The system uses PLC control with multiple probes to monitor heat distribution. Pressure is continuously adjusted to match the internal pressure of the packaging, preventing deformation.
Q4: Are the machines compatible with different packaging materials?
Yes, we offer specialized retorts for PE bottles, tinplate, glass jars, flexible pouches, and plastic cups, ensuring the correct sterilization method for each material.
Q5: Can I upgrade to a fully automated production line later?
Absolutely. Our equipment is designed with modular customization and pre-planned interfaces, allowing for seamless integration into larger commercial production lines in the future.
Q6: How do you ensure no hidden costs in the quotation?
We adhere to Fixed-Price Contracts. All items like FOB price, packaging, and insurance are clearly itemized. Import duties or local inland freight are explicitly marked for transparency.
