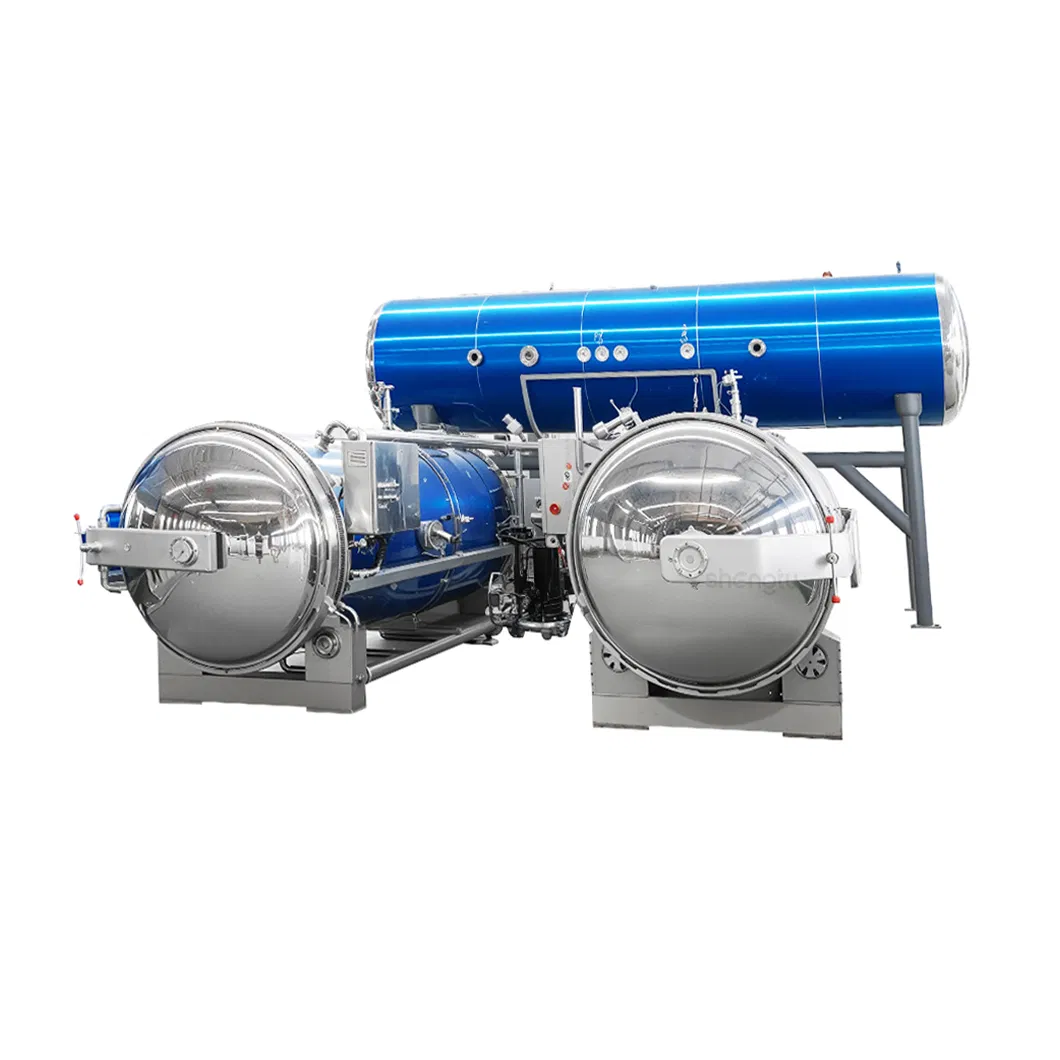

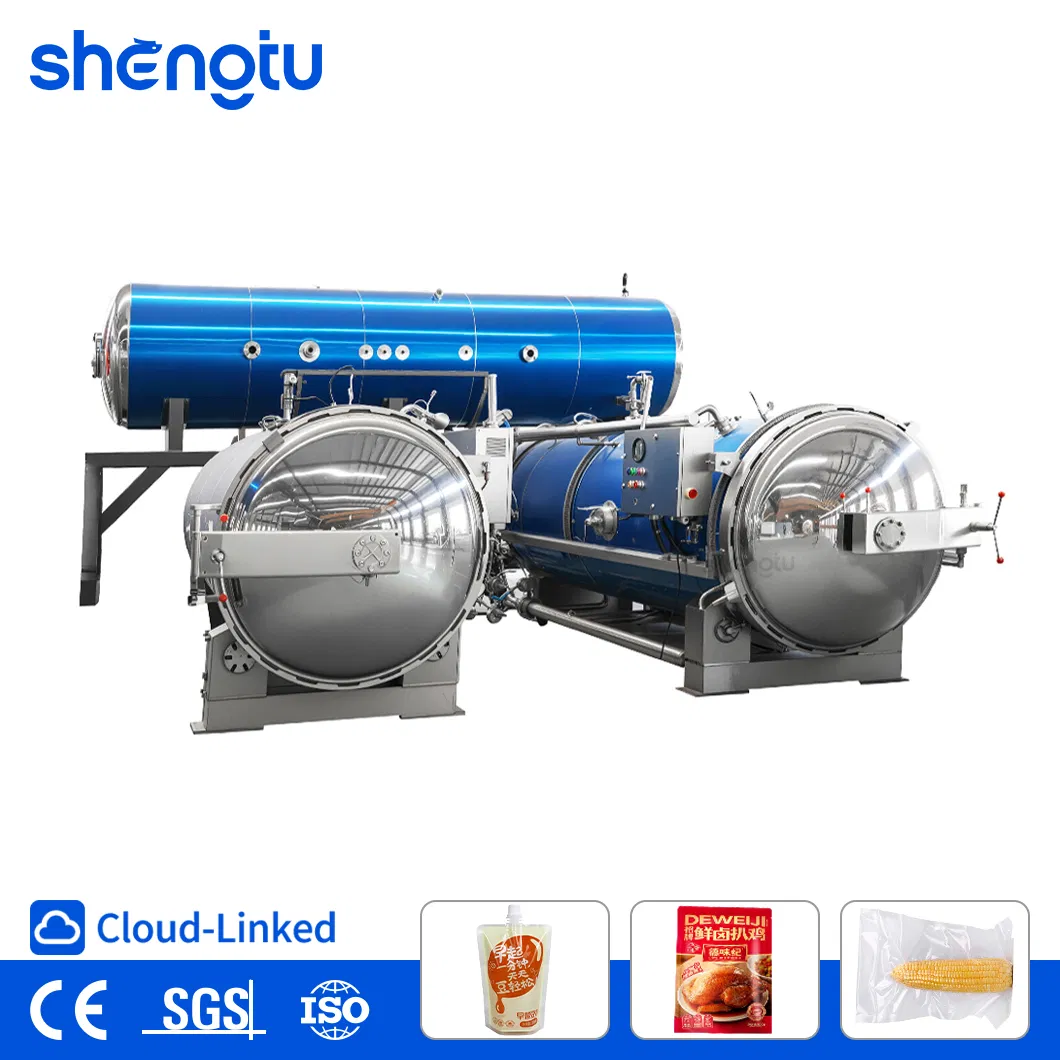

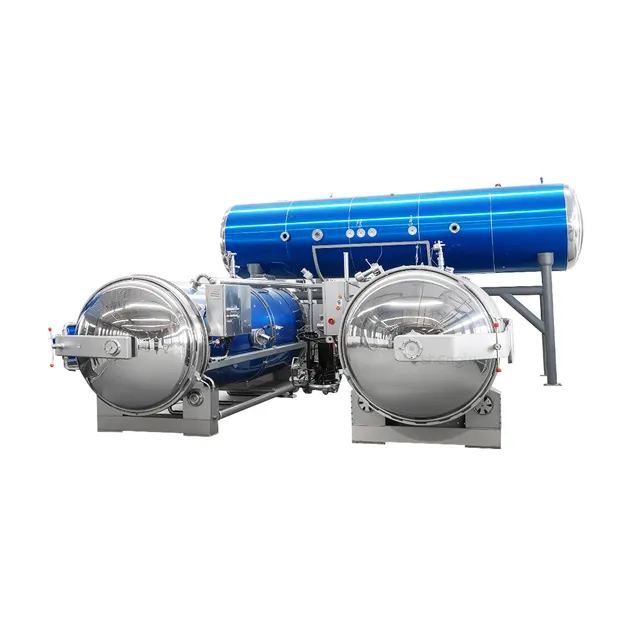

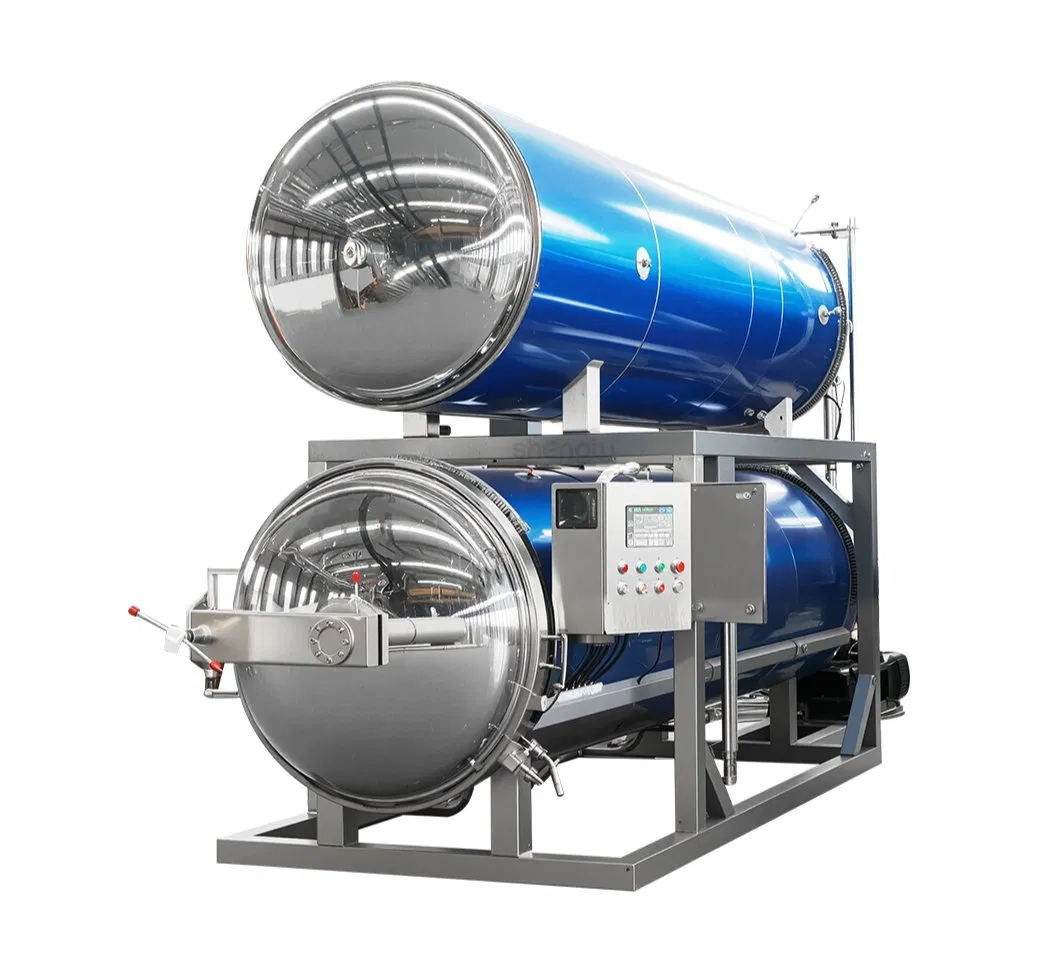

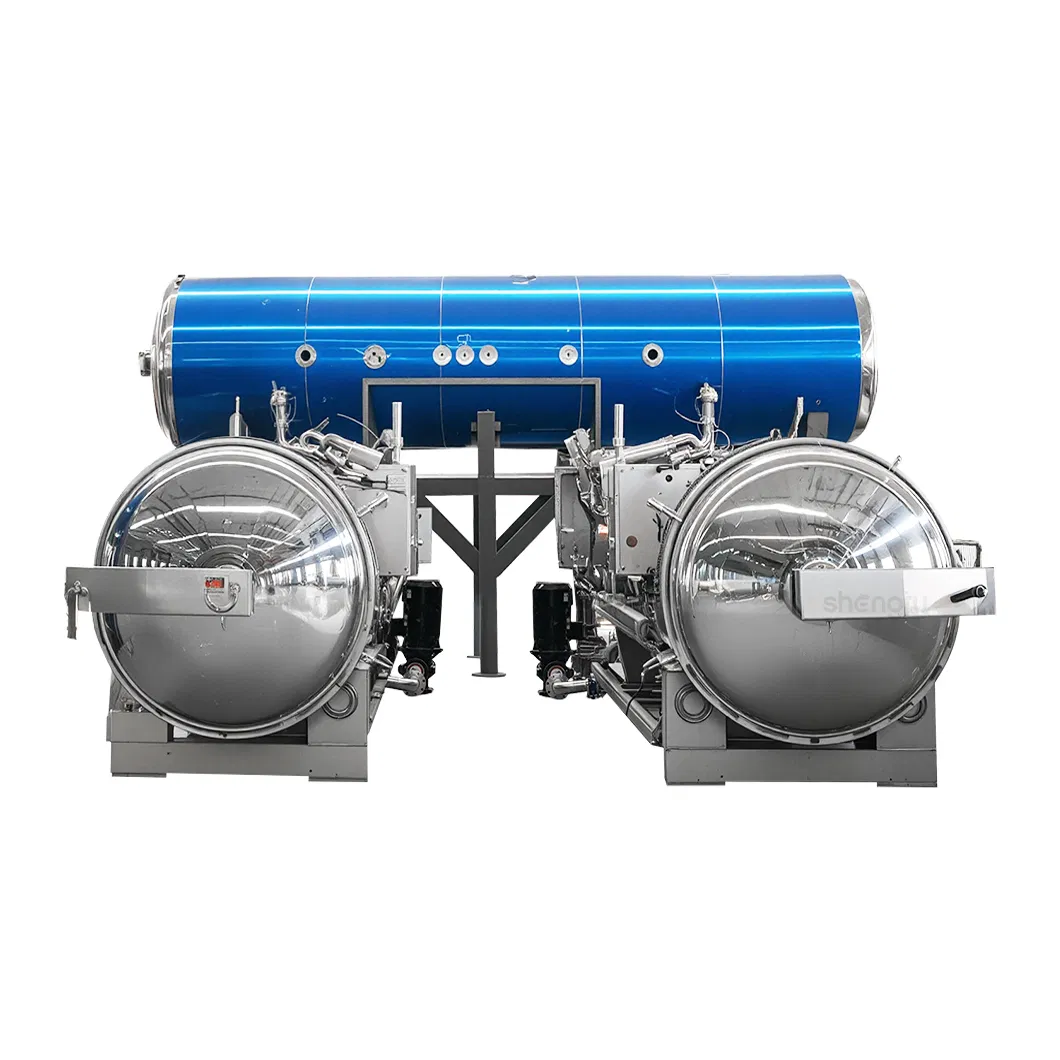

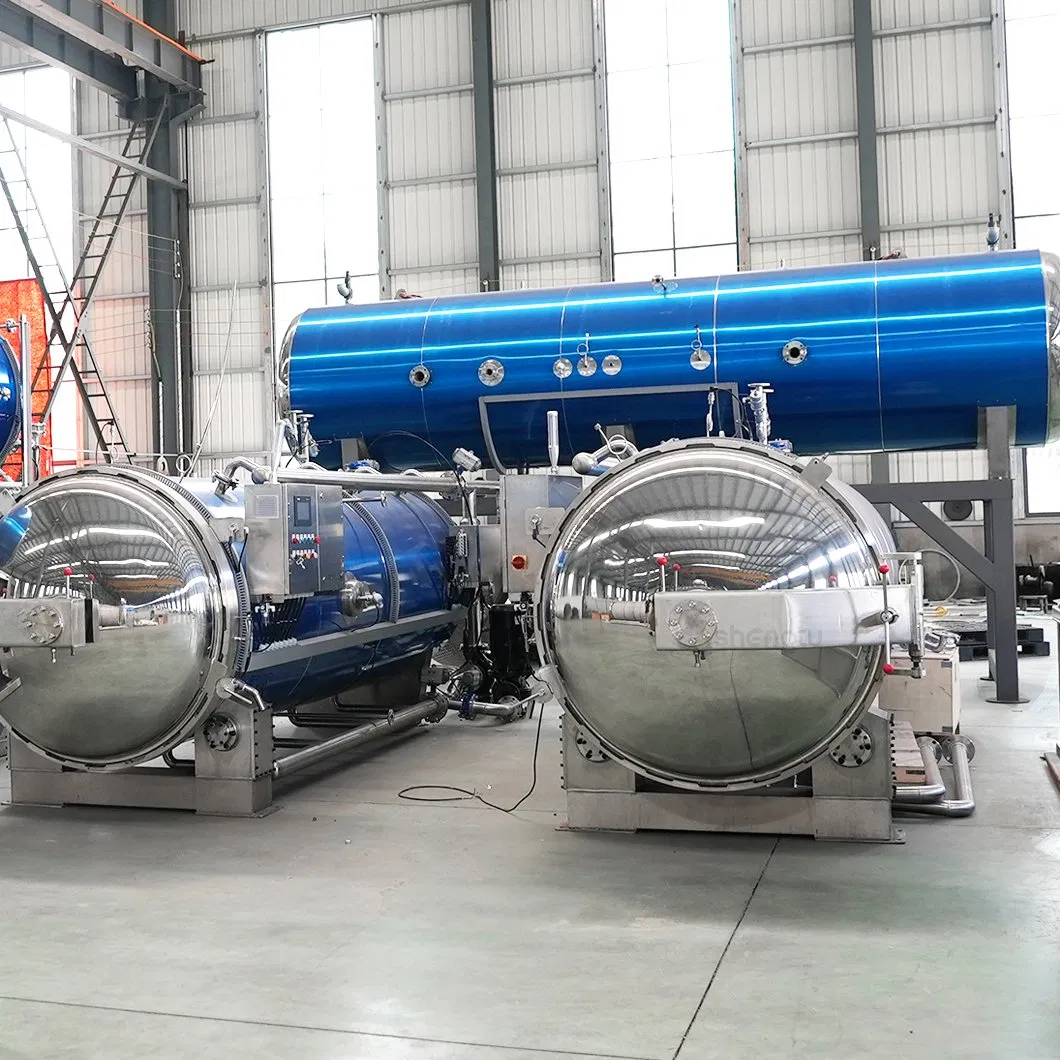

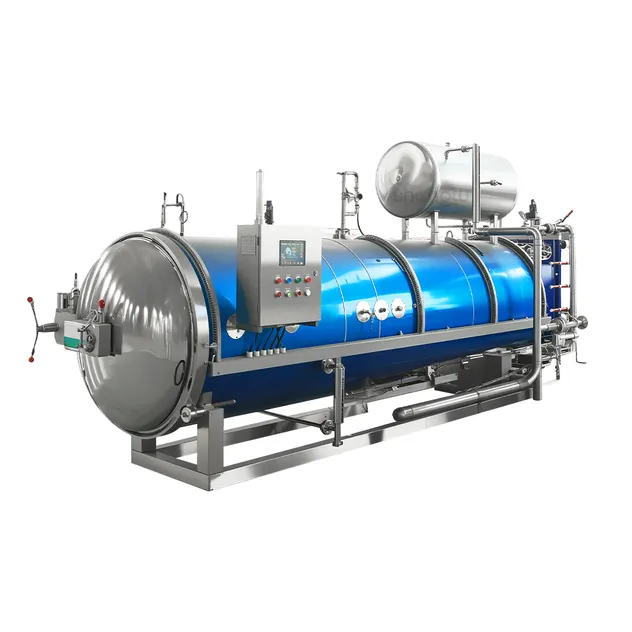

Automatic Double-Layer Water Bath Type Sterilizer for Soft Packaging (Large Packaging) Plastic Bottles, Bowls, and Cups.

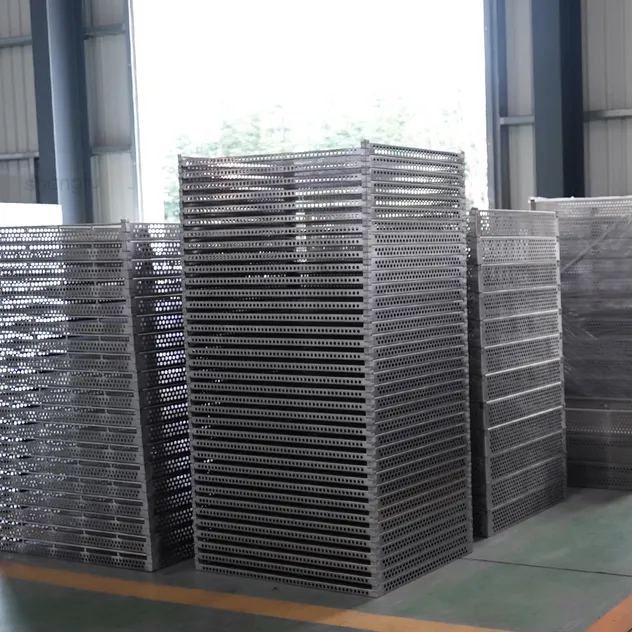

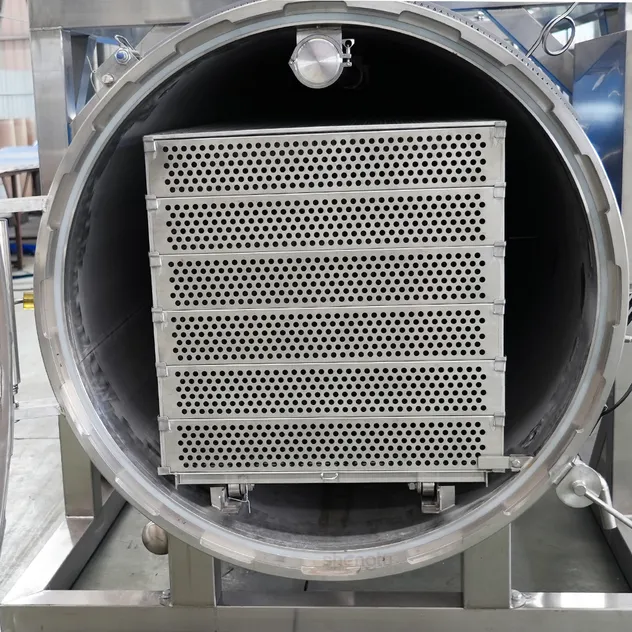

The sterilization autoclave consists of a pot body, pot lid, opening mechanism, locking wedges, safety interlock device track, sterilization baskets, and steam nozzles. The pot lid employs an inflatable silicone rubber high-temperature resistant seal ring for reliable sealing. Processing capacity ranges from 100 to 3000 kg per hour.
Suitable for PE bottles, tinplate cans, pressurized packaging, glass jars, flexible packaging, and foil pouches.
Suitable for flexible packaging (large-format packaging), such as plastic bottles, cups, and bowls.
Suitable for high-viscosity products containing particles, such as breakfast porridge and condensed milk.
| Model | Dimensions (mm) | Inner Diameter (mm) | Barrel Length (mm) | Capacity (m³) | Max Pressure (Mpa) | Max Temp (℃) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| IQ01-01 | 2300x1200x2730 | 1000 | 1000 | 1.05 | 0.35 | 145 | 1120 |
| IQ01-02 | 3400x1200x2730 | 1000 | 1800 | 1.80 | 0.35 | 145 | 1920 |
| IQ01-03 | 4500x1300x3140 | 1200 | 2700 | 3.74 | 0.35 | 145 | 2920 |
| IQ01-04 | 5620x1300x3340 | 1200 | 3600 | 4.80 | 0.35 | 145 | 3120 |
| IQ01-05 | 5820x1800x3645 | 1200 | 4000 | 8.05 | 0.35 | 145 | 4500 |
Water sprays from multiple angles, while steam, air, and water mix and circulate for optimal temperature distribution.
Equipped with four movable temperature probes for real-time monitoring of the F-value and heat penetration.
Precise pressure regulation minimizes product deformation. Direct thermal mixing of steam and atomized water accelerates cycles and saves energy.
Systematic support protocol: 1-hour initial response, detailed solution within 3 hours, and international technician deployment within 72 hours. We provide professional installation, multilingual operational training, and a comprehensive 2-year warranty.
