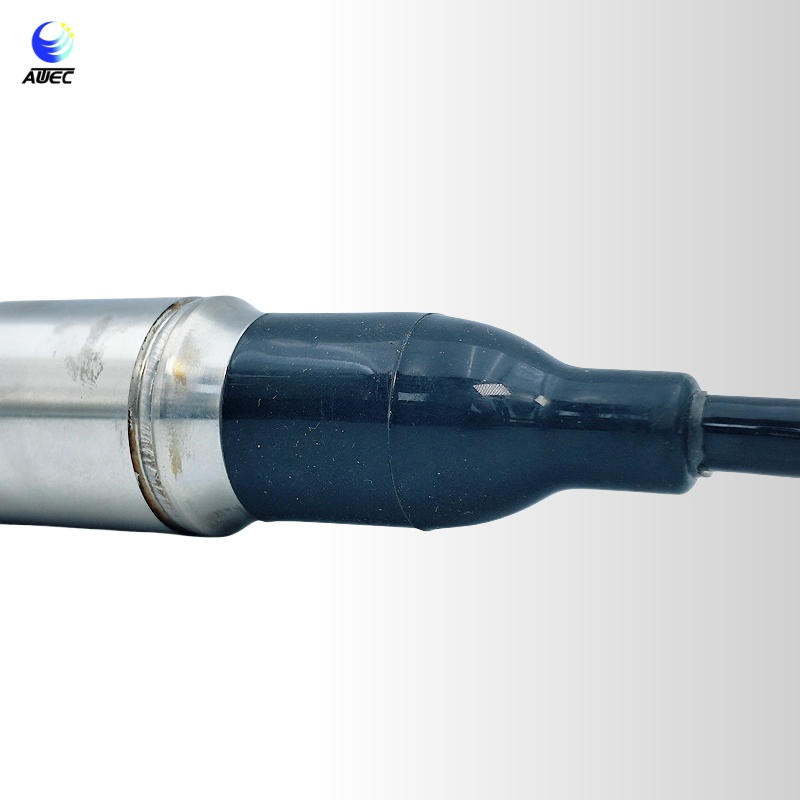

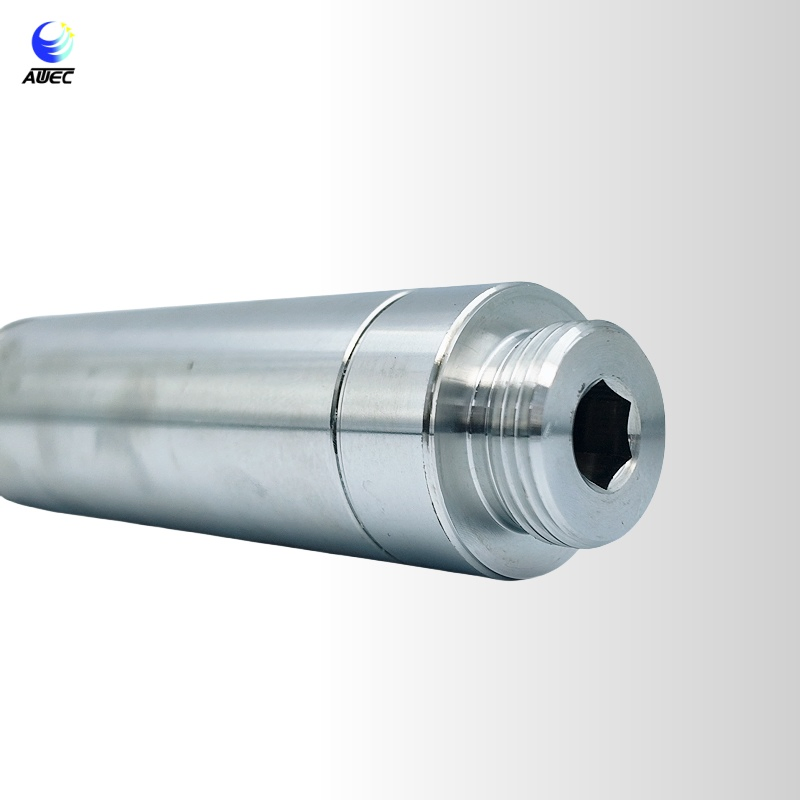

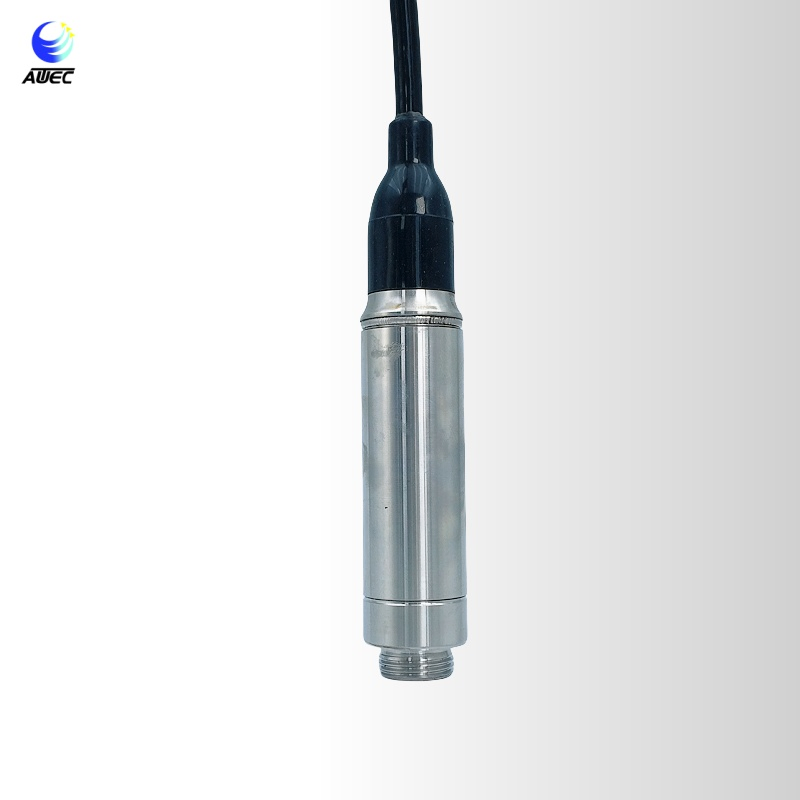

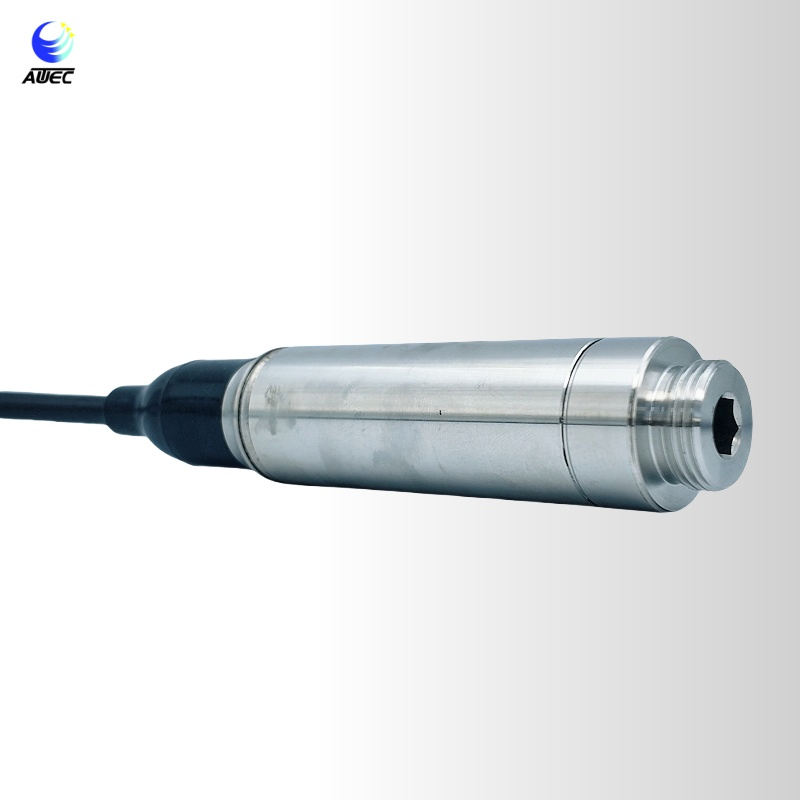

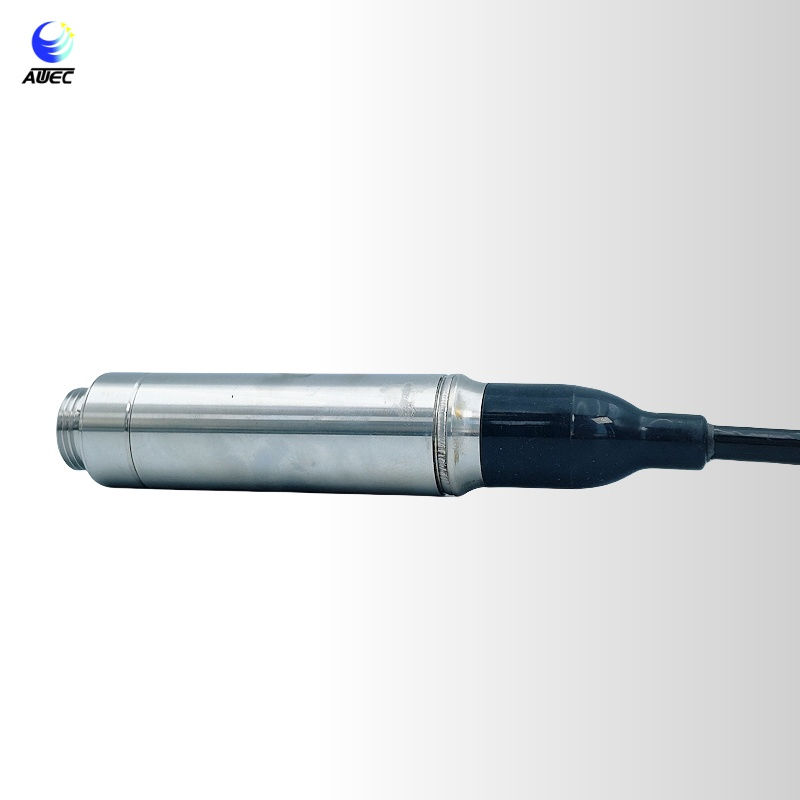

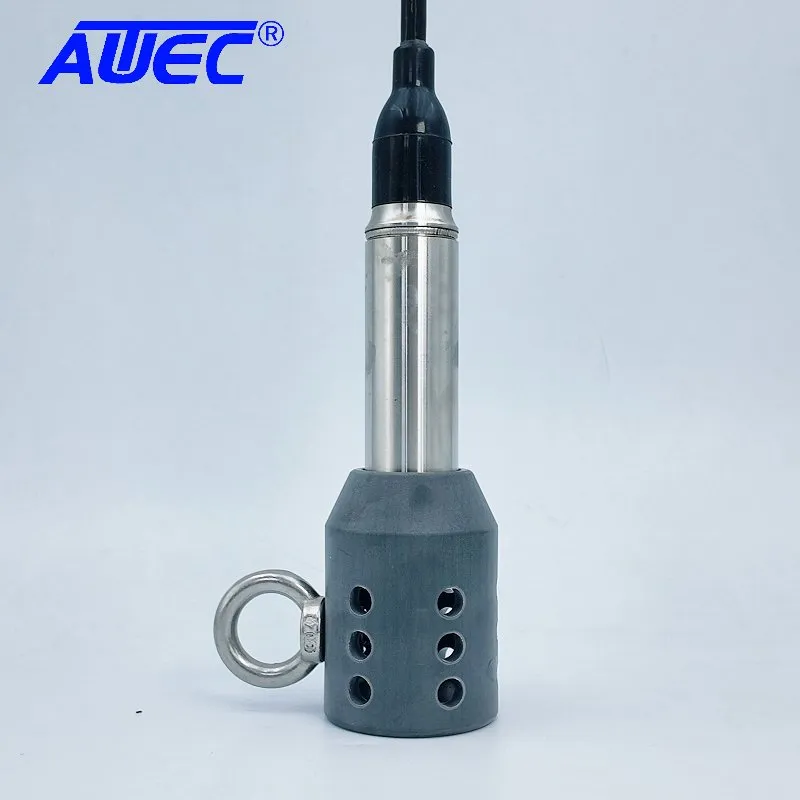

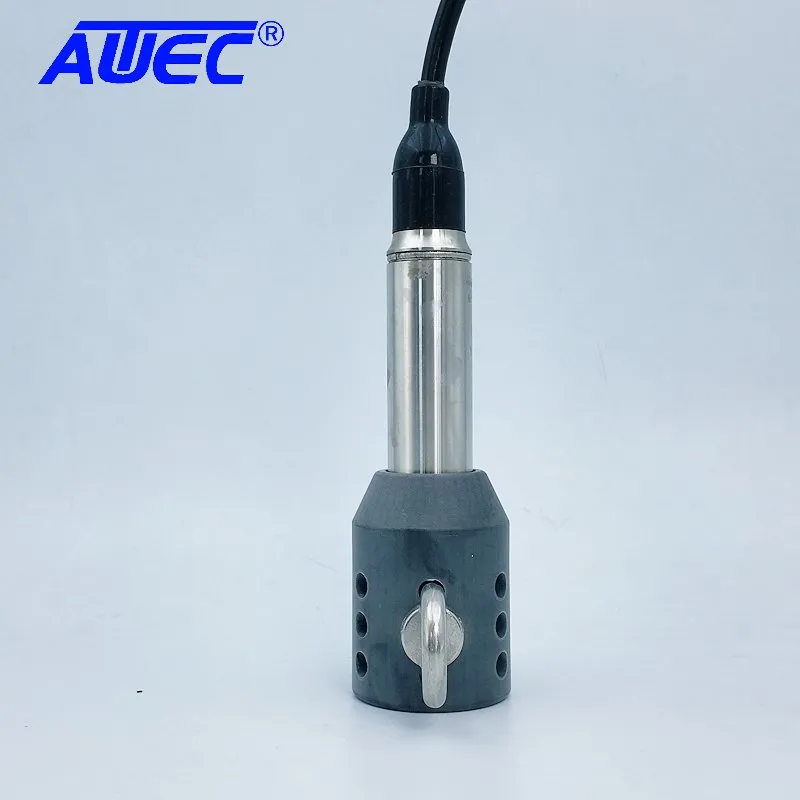

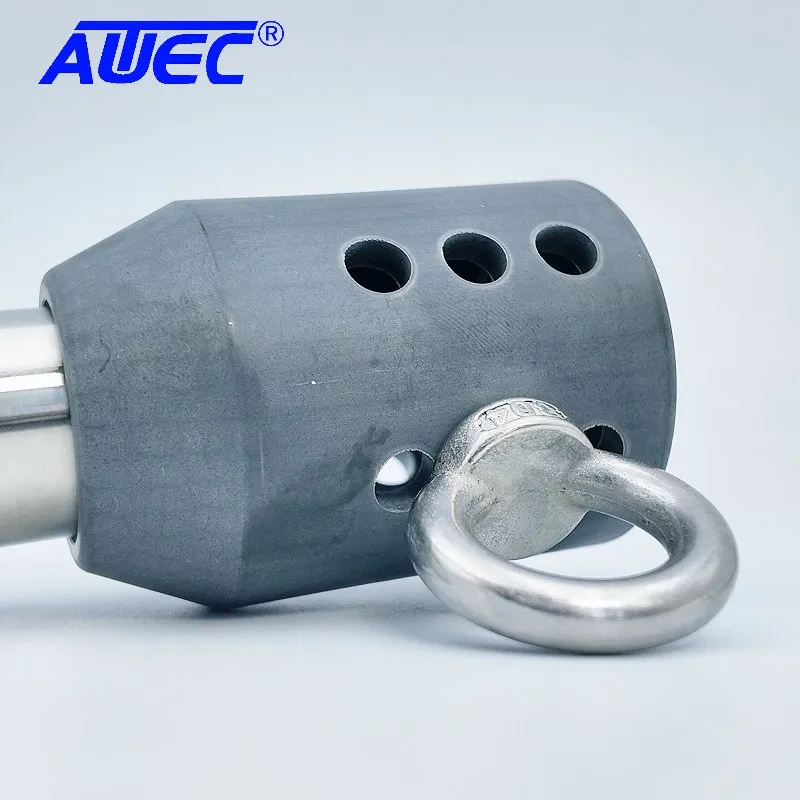

The AO910W input type liquid level transmitter uses a diffusion silicon pressure sensitive chip, which converts the liquid level signal of the measured liquid into a 4-20mA DC standard signal through a highly reliable amplification circuit. This product comes in two types of structures: integrated and split type. Armored and anti-corrosion products can resist the erosion of various corrosive liquids and meet the needs of customers to the greatest extent possible. The explosion-proof type product can be applied to various harsh and dangerous places.
| Accuracy | ±0.1%, ±0.2% |
|---|---|
| Zero Deviation | Not exceeding ± 0.5% of output range |
| Stability | ±0.25%FS / 3 years |
| Range of Measurement | 0~1m to 0~200m |
| Working Voltage | 12V-36V DC |
| Operation Temp | -20ºC ~ 60ºC |
| Storage Temp | -40ºC ~ 80ºC |
| Output Signal | 4~20mADC (two-wire) |
| Membrane Material | 316L stainless steel / Ceramic membrane |
Industrial field liquid level measurement and control, Hydrological measurement and monitoring, Reservoir dam water level measurement vessel and navigation system, Urban and water supply system, Circulating water and sewage treatment system.
Founded in 2007, we are an enterprise dedicated to providing measurement and control instruments and equipment for "intelligent manufacturing", "smart water" and "smart city". The company's goal is to become an enterprise with advanced technology, professional service and strong competitiveness in the industry. Focusing on the research and development, production, sales and service of instrumentation, we strive to create value for customers through technical excellence.
