■ Basic Information
Certification
CE, ISO13485
Battery
2200mAh Li-Battery
Production Capacity
300 Set/Sets Per Month
■ Product Overview
■ Key Features
- Portable delicate design, big color touch LCD, very easy to operate
- Accurate pulse pace identification and excellent auto-interpretation function
- High accuracy digital filter, auto baseline adjustment
- 12 leads synchronously acquisition and display; Record mode: 3ch, 3ch+, 3ch+++, 6ch
- Working modes: Manual / Auto / Analysis / Storage
- 800×480 graphic 7 inch color touch LCD screen
- 250 cases storage and replay (SD card storage is optional)
- Built-in rechargeable Li-ion battery supports continuous work for about 4 hours
- 112mm*20m high resolution thermal printing

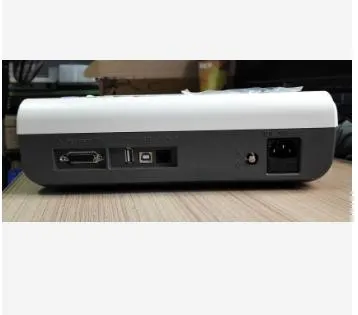

- Rs232 and USB interface (USB disk storage, laser printer printing, PC ECG software optional)
- Multi-language: English, Chinese, French, Italian, Spanish, Russian
- Compact size: 300mm*230mm*75mm, Weight: 2.8kgs
■ Technical Specifications
| Lead |
Standard 12 leads |
Time constant |
≥3.2s |
| Lead acquisition |
12bit/1000Hz (synchronously 12 leads) |
Frequency response |
0.05~160Hz(-3db) |
| Work mode |
Man / Auto / Analysis / Storage |
Noise level |
<15μVp-p |
| Filter |
AC: 50Hz/60Hz; EMG: 25Hz/45Hz; Anti-Drift: 0.15Hz |
Inter-channel Interference |
≤0.5mm |
| CMMR |
≥120dB (with AC FILTER) |
Sensitivity |
2.5, 5, 10, 20, 40, Auto (mm/mV) |
| Input circuit |
Floating; Protection against Defibrillator effect |
Recording mode |
3ch, 3ch+, 3ch+++, 6ch |
| Input Impedance |
≥50MΩ |
Paper speed |
6.25, 12.5, 25, 50mm/s(±3%) |
| Paper |
112mm*20m Roll paper |
Power Supply |
AC 110-230V; DC 14.4V (2000mAh) battery |

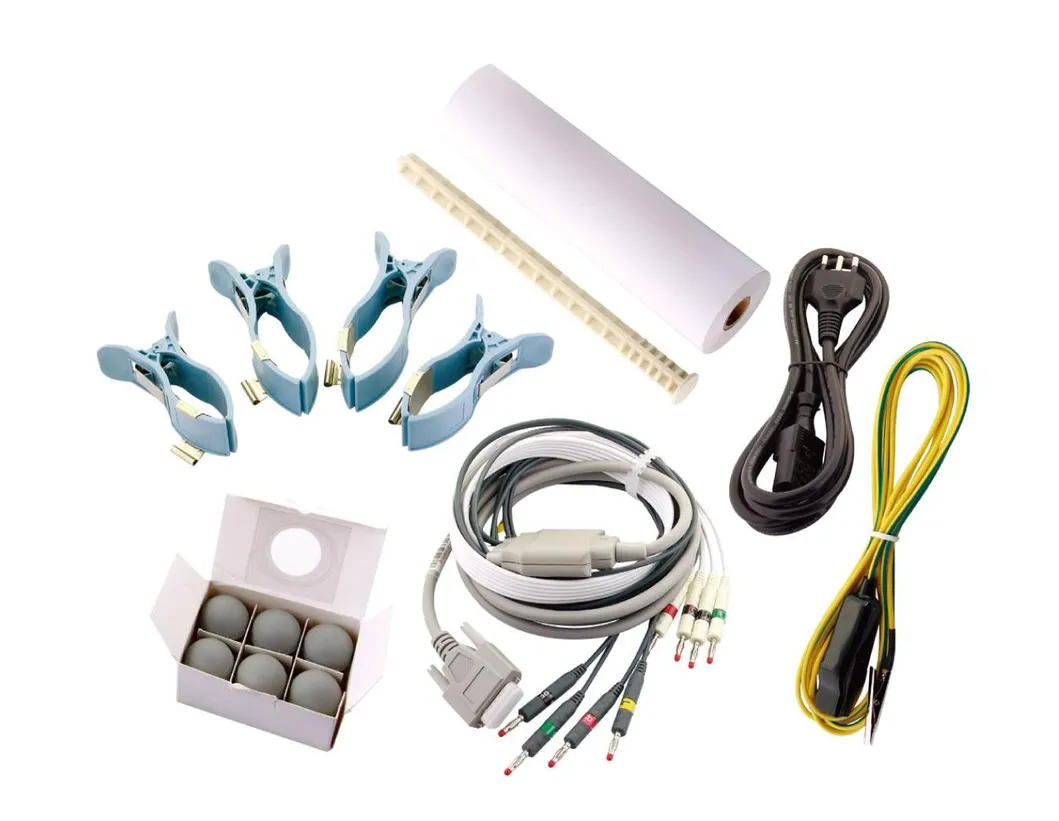

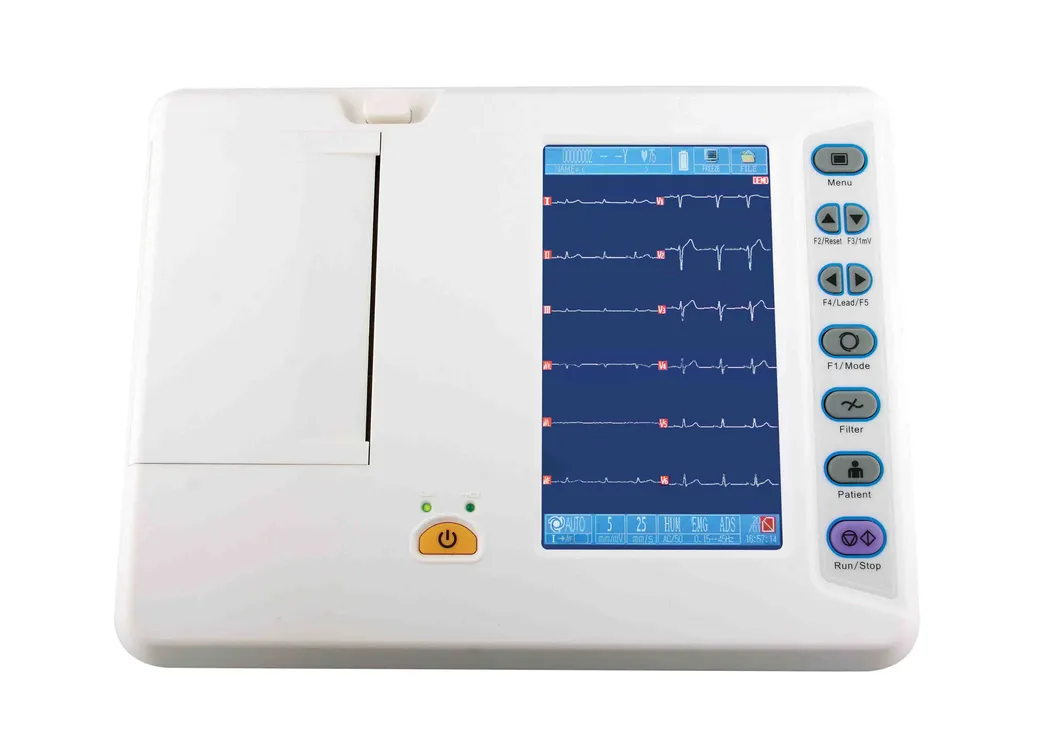

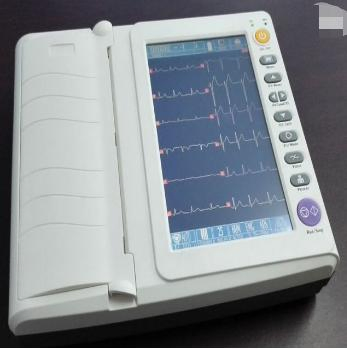

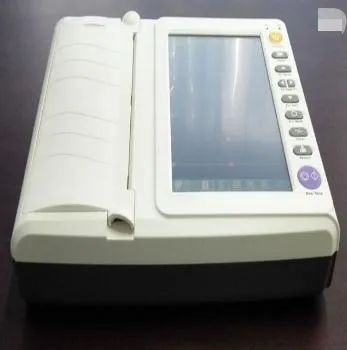

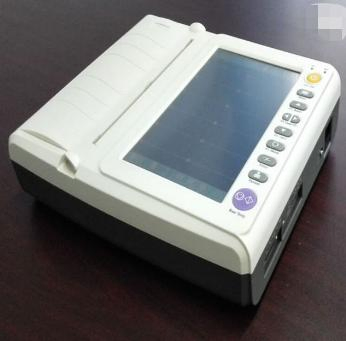

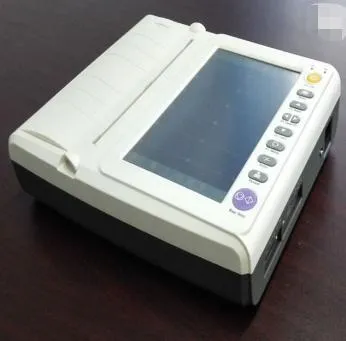

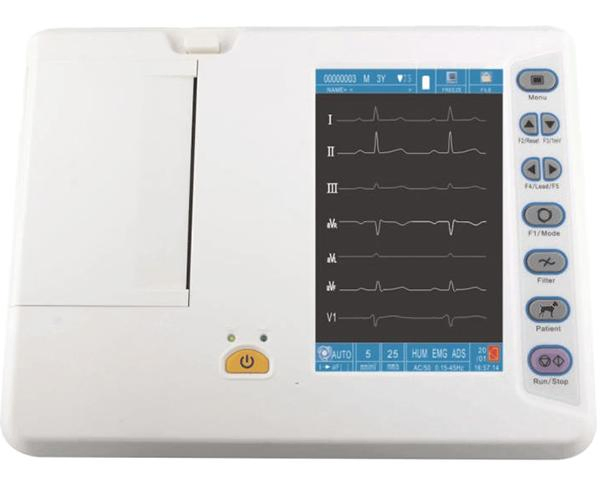

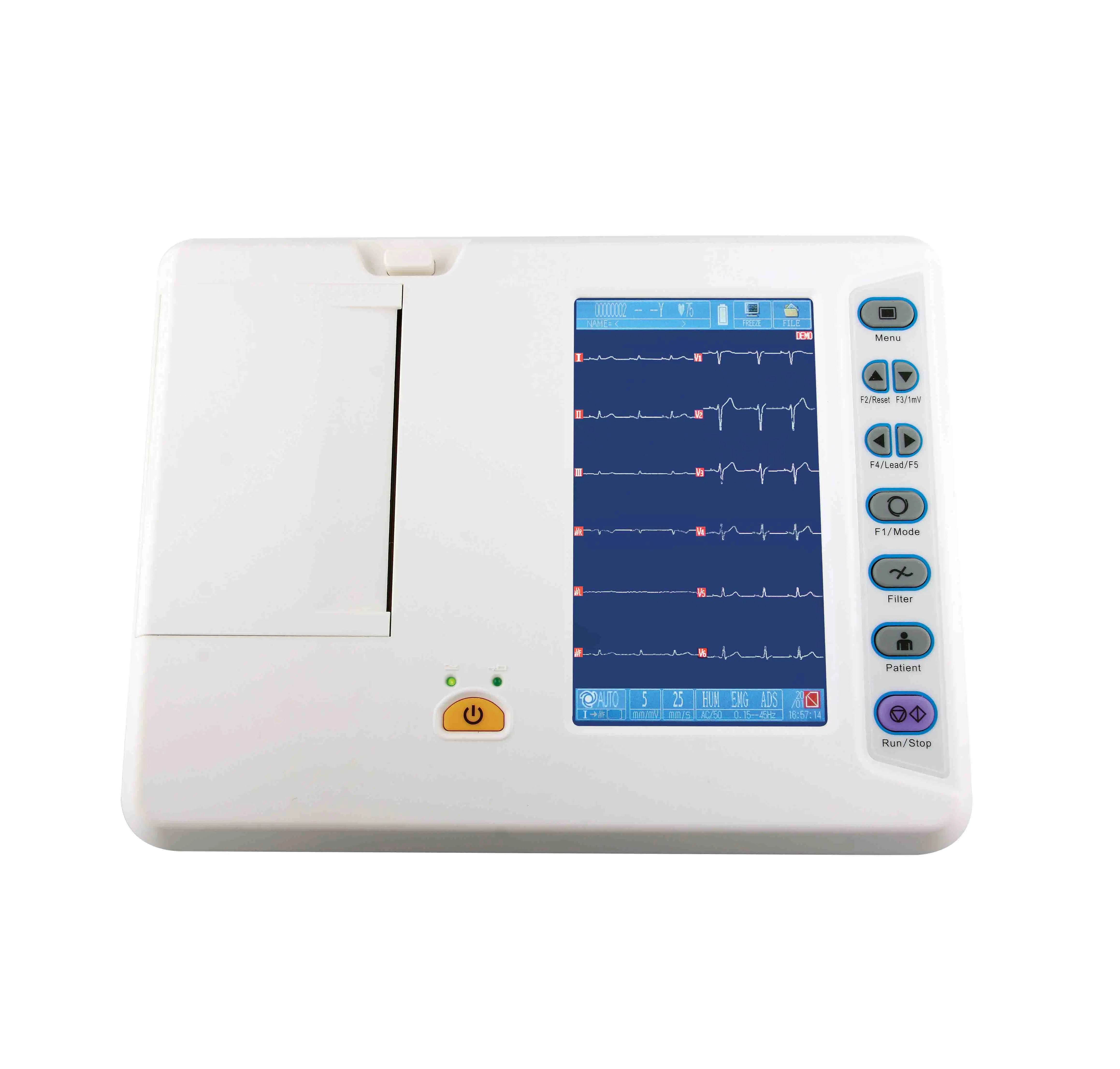

■ Detailed Product Photos
■ Packaging Information
Small Carton: 1 unit | 40cm*34cm*22cm | Net Weight: 2.8kgs | Gross Weight: 5kgs
Big Carton: 4 units | 70cm*41cm*46cm | Net Weight: 12kgs | Gross Weight: 22kgs

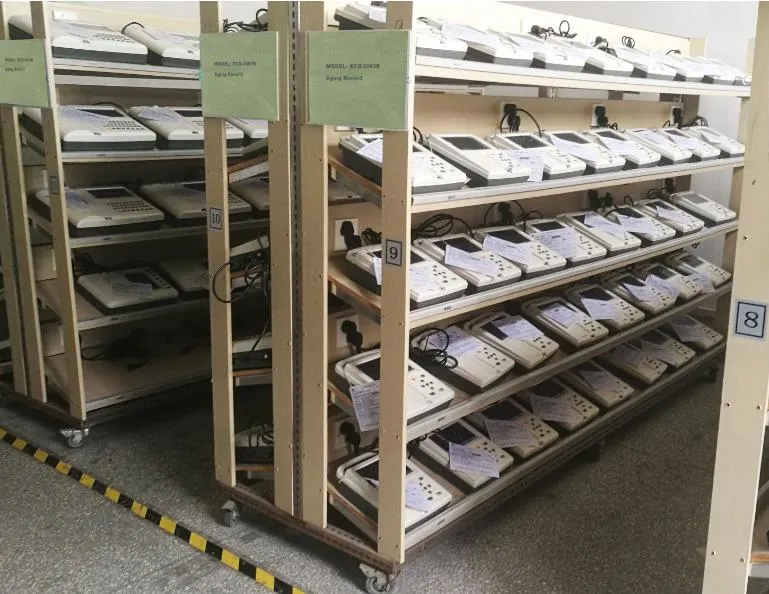

■ Production & Quality Control
■ Frequently Asked Questions
How many channels does this ECG machine support?
This model is a 6-channel ECG machine that supports 12 leads synchronous acquisition and multiple recording modes (3ch, 3ch+, 3ch+++, 6ch).
Is this device suitable for both adults and children?
Yes, the ECG machine is designed for use with both adult and pediatric patient groups.
What are the battery specifications and working time?
It features a built-in rechargeable 2200mAh Li-battery that supports continuous operation for approximately 4 hours.
How many patient cases can the device store?
The device has an internal storage capacity for 250 cases. Additional SD card storage is also available as an option.
What languages are available in the system?
The system supports multiple languages, including English, Chinese, French, Italian, Spanish, and Russian.
Does it support connection to a PC or external printer?
Yes, it includes RS232 and USB interfaces. Options for USB disk storage, laser printer printing, and PC ECG software are available.
