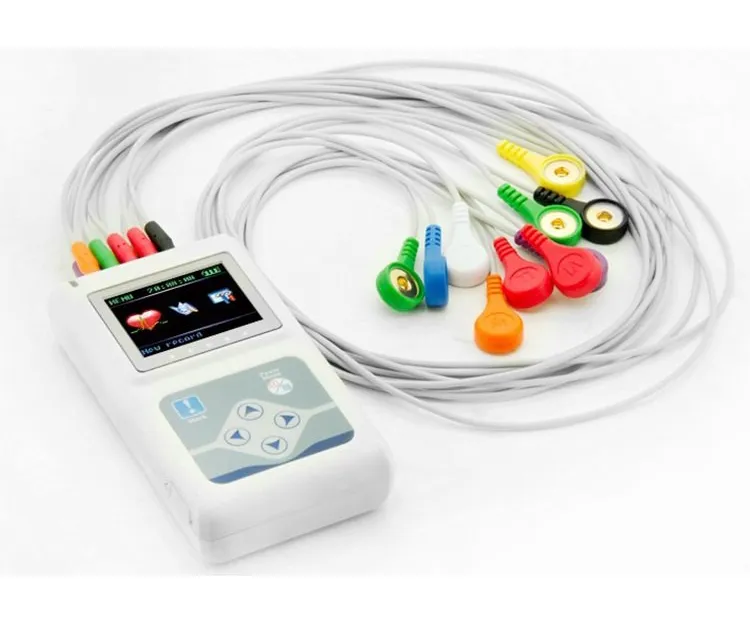

3-Channel 24 Hours Dynamic ECG Holter Monitor (TLC9803)
3-Channel 24 Hours Dynamic ECG Holter Monitor (TLC9803)
3-Channel 24 Hours Dynamic ECG Holter Monitor (TLC9803)
3-Channel 24 Hours Dynamic ECG Holter Monitor (TLC9803)
3-Channel 24 Hours Dynamic ECG Holter Monitor (TLC9803)
1 / 5
3-Channel 24 Hours Dynamic ECG Holter Monitor (TLC9803)
3-Channel 24 Hours Dynamic ECG Holter Monitor (TLC9803)
3-Channel 24 Hours Dynamic ECG Holter Monitor (TLC9803)
3-Channel 24 Hours Dynamic ECG Holter Monitor (TLC9803)
3-Channel 24 Hours Dynamic ECG Holter Monitor (TLC9803)

3-Channel 24 Hours Dynamic ECG Holter Monitor (TLC9803)

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Type: ECG
Send Inquiry

Product Description

Basic Information
Model NO.
TLC9803
Certification
CE, EEC, MSDS, ISO13485
Number of Channels
3 Channels
Sampling Rate
10000Hz
Sampling Accuracy
12bit
Recording Time
24 H
Lead Time
7 Days
Warranty
18 Months
Interface
USB 2.0
Cmrr
≥60dB
Dimension
111*60*25(mm)
Transport Package
Hard Paper Carton
Specification
CE, ISO9001, 13485, TUV
Origin
China
Product Description
3-Channel 24 Hours ECG Holter Monitor (TLC9803)
3-Channel 24 Hours Dynamic ECG Holter Monitor (TLC9803)

Introduction: Dynamic ECG Systems adopt 3-lead, which can continuously record ECG waveform for 24-hour and analyze ECG waveform by the PC software. It is applicable for use in medical institution and community.

Main Features
  • The recorder can real-time store ECG data for 24-hour.
  • Arrhythmia analysis basing on MCSSTM and TMCATM reduces doctor's work.
  • More than 10 templates (atrial/ventricular premature beat, long interval, atrial fibrillation, etc.).
  • Flexible analysis channel selection function.
  • Accurate atrial fibrillation analysis (Whole or segmented AUTO/manual analysis).
  • Powerful pacemaker analysis (AAI, VVI, DDD etc.).
  • Multiple pacing analysis templates like "Dual chamber pacing" and "Atrial pacing".
  • Fast review analysis function for single or full-lead ECG.
  • Heart rate variability analysis for 5-minute, 1-hour and 24-hour.
  • One-key print for convenient reporting.
  • Unique Sleep breath pause syndrome analysis function.
  • HRT analysis function to predict death risk in myocardial infarction patients.
  • T-Wave alternation index to predict malignant arrhythmia and sudden cardiac death.
Performance Specifications
Channels
3 channels
Sampling Rate
10000Hz
Sampling Accuracy
12bit
Power Supply
2 batteries in size 5
Scale Voltage
1mV±5%
Standard Sensitivity
10mm/mV±5%
Noise Level
≤30μV
CMRR
≥60dB
Scan Speed
25mm/s±5%
Box Size
111mm(L) x 60mm(W) x 25mm(H)
Net Weight
About 102g
Related Product Comparison
Feature TLC9803 TLC5000
Lead 3-lead 12-lead
Memory MicroSD(2GB) MicroSD(2GB)
Record Time 24H 24H
Power Supply Two "AA" batteries Two "AA" batteries
Screen 1.8" OLED 1.8" OLED
Dimension 111*60*25(mm) 111*60*25(mm)
Detailed Images

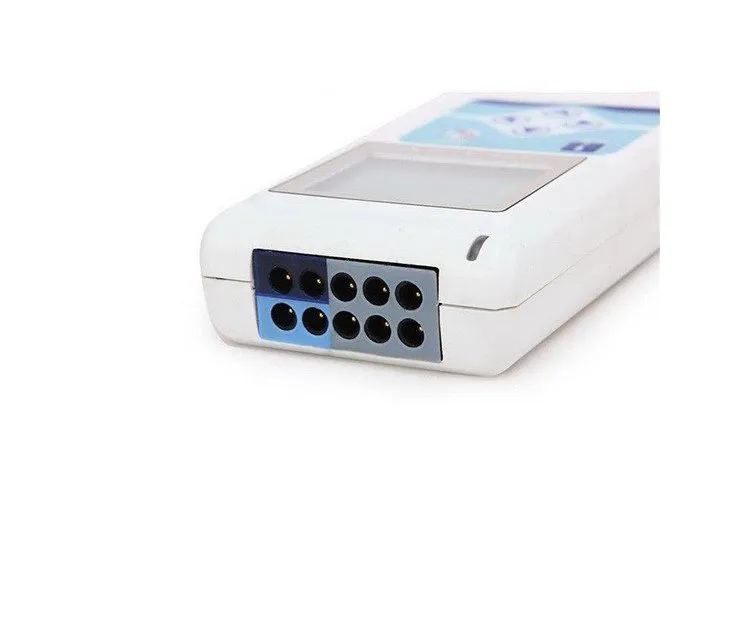

TLC9803 Detailed Image 1

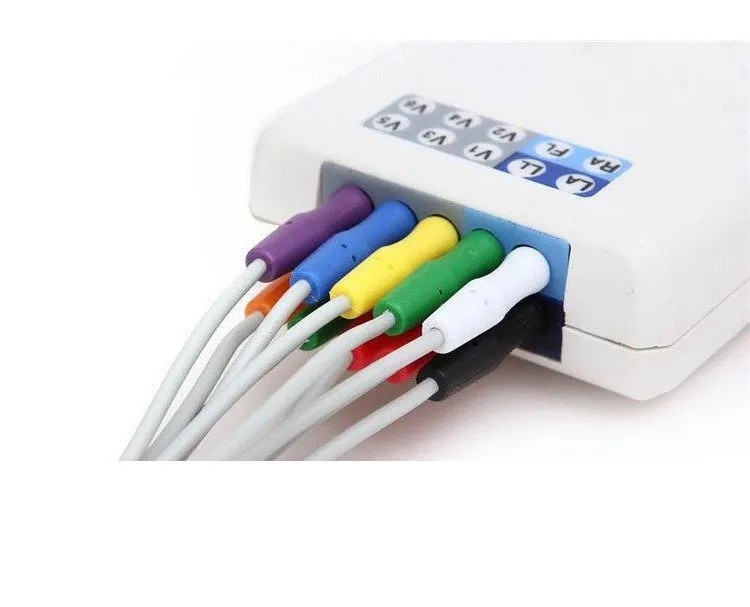

TLC9803 Detailed Image 2

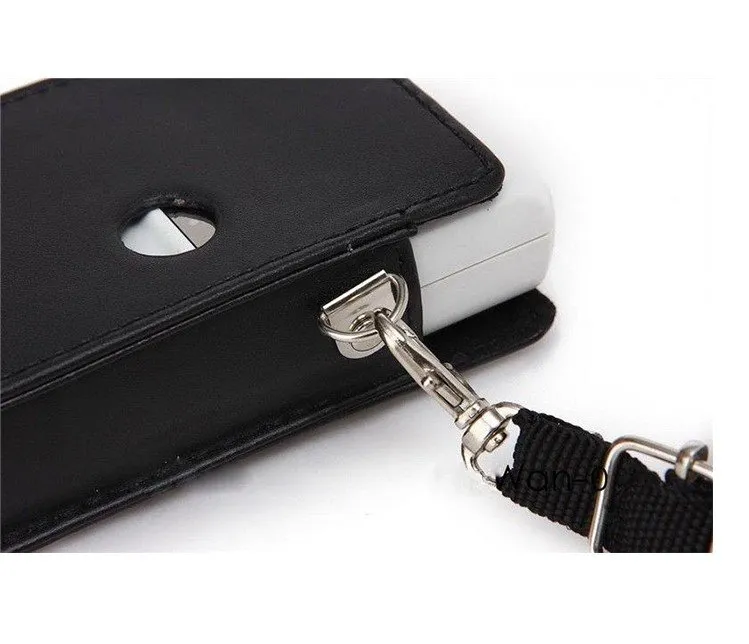

TLC9803 Detailed Image 3

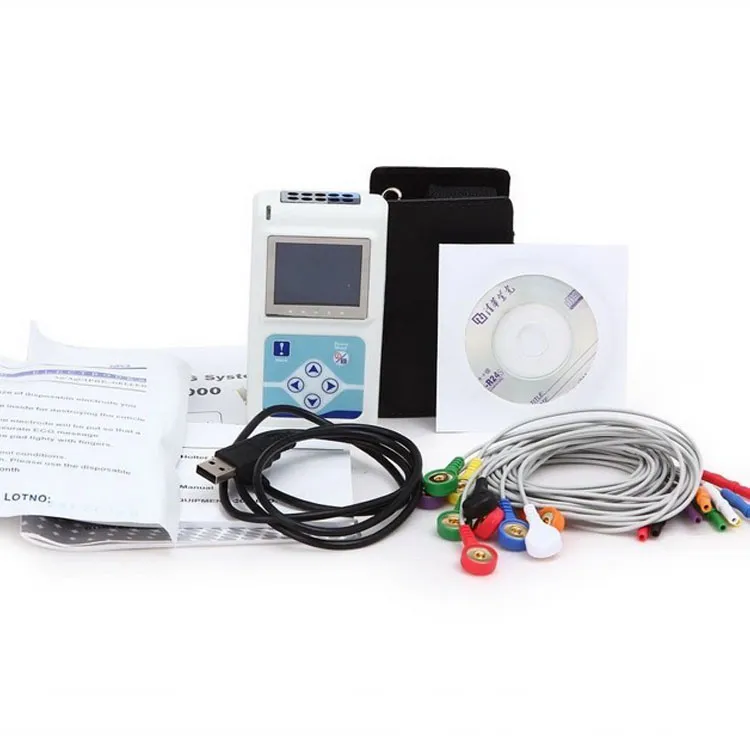

TLC9803 Detailed Image 4
Frequently Asked Questions
How many channels does the TLC9803 ECG Holter monitor have?
The TLC9803 is a 3-channel dynamic ECG system designed for 24-hour continuous recording.
What type of batteries does this device require?
The monitor is powered by two standard size 5 (AA) batteries.
Can the software analyze arrhythmia and atrial fibrillation?
Yes, the system includes advanced arrhythmia analysis based on MCSSTM and TMCATM, as well as specialized tools for flexible atrial fibrillation analysis.
Does it support pacemaker analysis?
Yes, it features a powerful pacemaker analysis function capable of analyzing various pacemakers including AAI, VVI, and DDD.
How is the data transferred to a computer for analysis?
The device uses a standard USB 2.0 interface for fast and reliable data transmission to PC software.
What are the unique analysis features for risk prediction?
It includes "Sleep breath pause syndrome" analysis, "HRT" analysis for myocardial infarction risk, and "T-Wave alternation" to predict sudden cardiac death risk.
