Am6200 Mini Veterinary Monitor Vet Blood Pressure, Blood Oxygen, ECG, Temperature for Pet Monitor
Am6200 Mini Veterinary Monitor Vet Blood Pressure, Blood Oxygen, ECG, Temperature for Pet Monitor
Am6200 Mini Veterinary Monitor Vet Blood Pressure, Blood Oxygen, ECG, Temperature for Pet Monitor
Am6200 Mini Veterinary Monitor Vet Blood Pressure, Blood Oxygen, ECG, Temperature for Pet Monitor
Am6200 Mini Veterinary Monitor Vet Blood Pressure, Blood Oxygen, ECG, Temperature for Pet Monitor
1 / 5
Am6200 Mini Veterinary Monitor Vet Blood Pressure, Blood Oxygen, ECG, Temperature for Pet Monitor
Am6200 Mini Veterinary Monitor Vet Blood Pressure, Blood Oxygen, ECG, Temperature for Pet Monitor
Am6200 Mini Veterinary Monitor Vet Blood Pressure, Blood Oxygen, ECG, Temperature for Pet Monitor
Am6200 Mini Veterinary Monitor Vet Blood Pressure, Blood Oxygen, ECG, Temperature for Pet Monitor
Am6200 Mini Veterinary Monitor Vet Blood Pressure, Blood Oxygen, ECG, Temperature for Pet Monitor

Am6200 Mini Veterinary Monitor Vet Blood Pressure, Blood Oxygen, ECG, Temperature for Pet Monitor

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
AM6200
Display
TFT-LCD
Parameters
SpO2, Hr, ECG, Pr, NIBP, Temp
N.W
614G
Color
Blue
SpO2 Range
35%-100%
Package Size
14.00cm * 8.00cm * 23.00cm
Gross Weight
2.000kg
💡

Product Overview

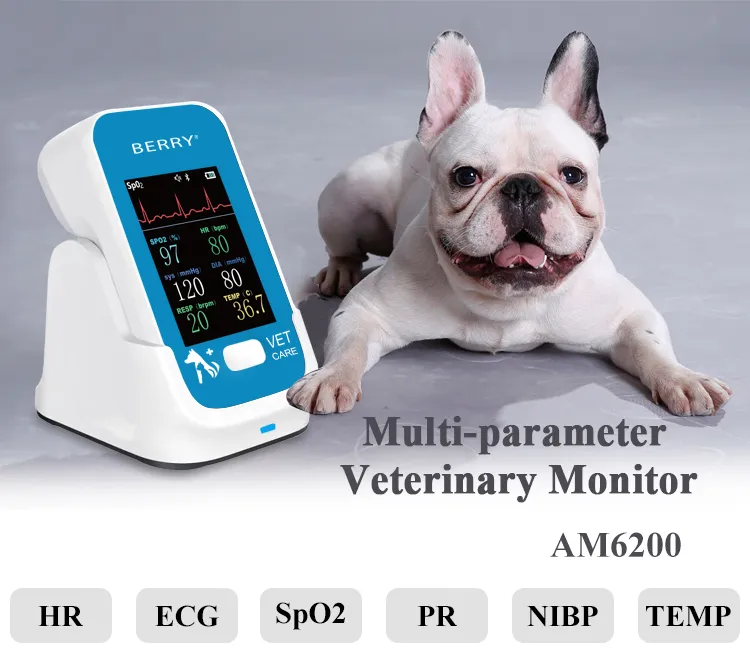

Veterinary Monitor
The Multi-parameter veterinary monitor AM6200 is a professional-grade device capable of monitoring vital signs including ECG (Electrocardiograph), HR (heart rate), NIBP (non-invasive blood pressure), SpO2, PR (pulse rate), and TEMP (body temperature).

Designed with a intuitive One-Button system, it ensures easy operation in fast-paced medical environments. This monitor supports connectivity with smart terminals such as PCs or Android phones for streamlined data management.
Customization Note: The minimum quantity for customization is 1000 units.
🏥

Application Scenarios

Application Scenarios
AM6200 is widely applicable for daily and surgical monitoring across various settings:
  • Pet Hospitals & Clinics
  • Zoos
  • Indoor and Outdoor Home Care
📱

App & Connectivity

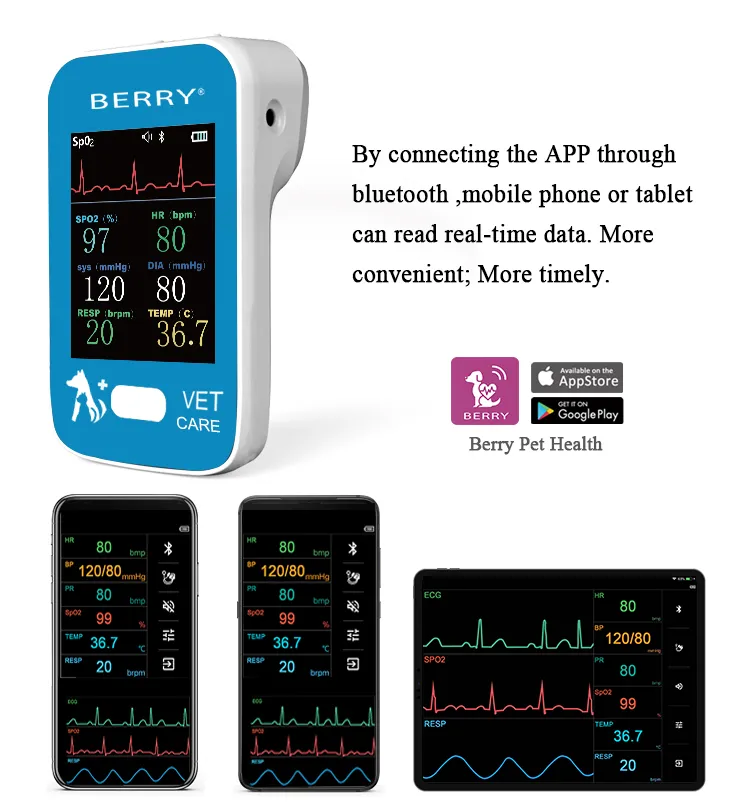

App interface

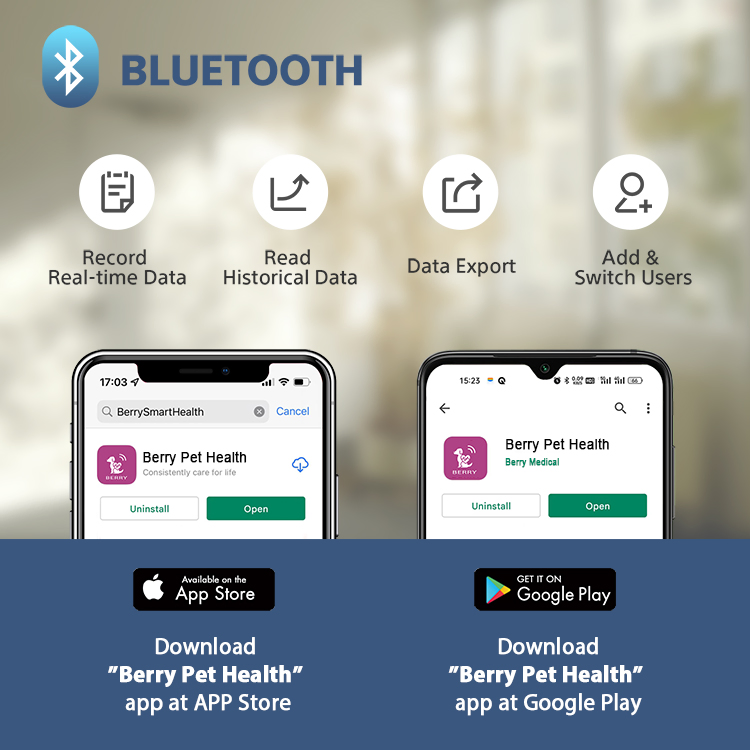

Download app
By connecting the "Berry Pet Health" APP via Bluetooth, mobile phones or tablets can read real-time data efficiently. The app is available on both the App Store and Google Play.
⚡

Charging & Power

Wireless charging base

Wireless Charging Base

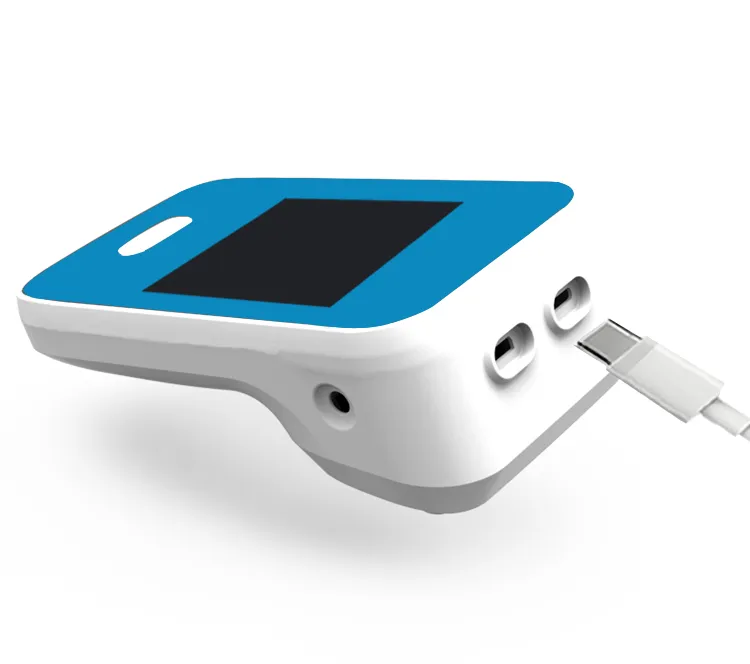

Machine charging

Machine Charging

Built-in Battery
3.7V, 1800mAh lithium battery
Wired Charging
5V-1A (Type-C)
Wireless Charging
5W
⚙️

Hardware Interface

Function buttons
No. Name Purpose
1ECG & TEMPCable connector and Charging connector
2SpO2SpO2 sensor connector
3NIBPNIBP cuff hose connector
4Screen2.8" TFT LCD
5KeyPower and functions key
📦

Standard Configuration

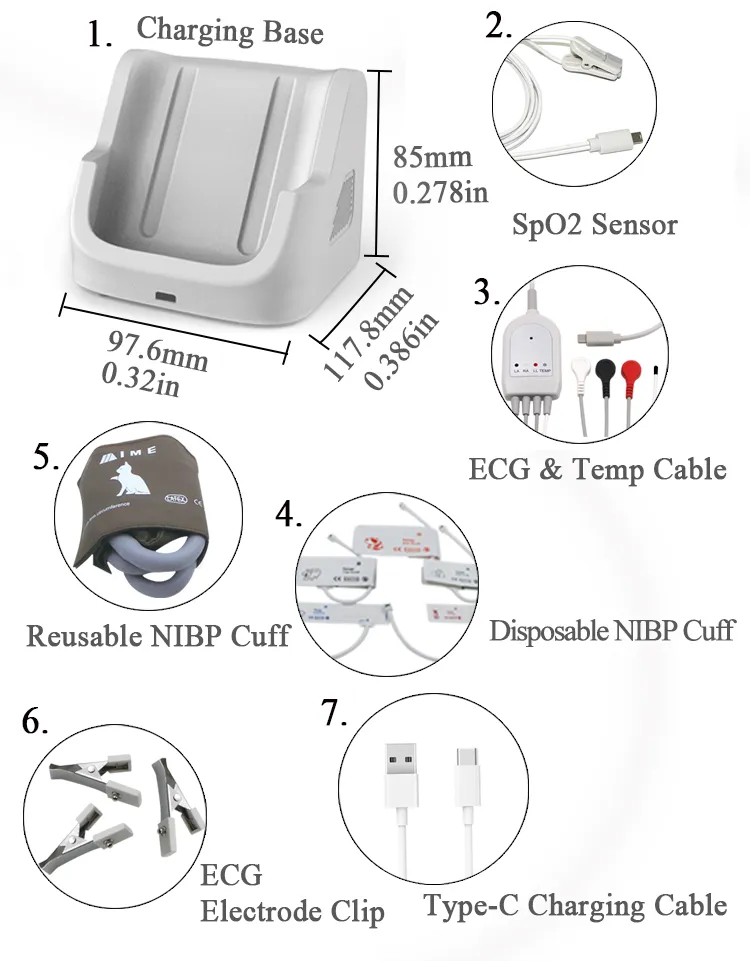

Packing list
  • Charging Base
  • SpO2 Sensor
  • ECG & Temp Cable
  • Disposable NIBP Cuff
  • Reusable NIBP Cuff
  • ECG Electrode Clip
  • Type-C Charging Cable
📊

Technical Features

ECG Waveform
Lead I, Bandwidth 0.05Hz~100Hz		 Heart Rate
Range: 15 bpm ~ 300 bpm (±2bpm)
NIBP
Systolic: 30mmHg ~ 255mmHg
Diastolic: 15mmHg ~ 220mmHg		 Temperature
Range: 25ºC ~ 45ºC (±0.2ºC)
SpO2
Range: 35% ~ 100% (Accuracy ±2% at 80-100%)		 Pulse Rate
Range: 25bpm ~ 250bpm
📜

Quality Assurance

Certificates

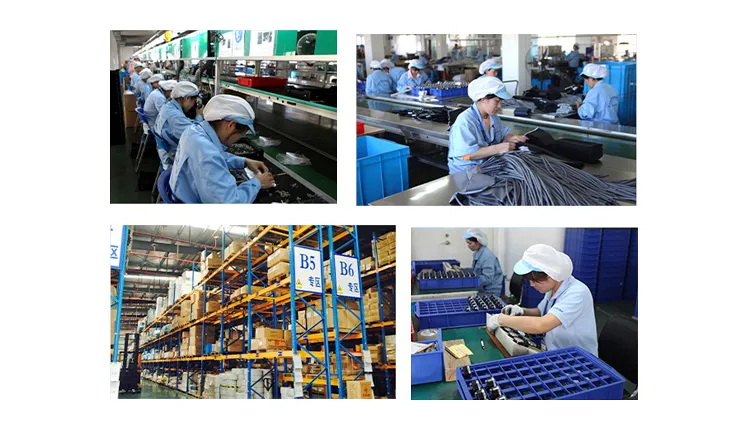

Factory View
❓

Frequently Asked Questions

Q1: Which parameters can the AM6200 monitor? The device monitors 6 vital signs: ECG, Heart Rate (HR), Non-Invasive Blood Pressure (NIBP), SpO2, Pulse Rate (PR), and Temperature (TEMP).
Q2: Can I view the data on my mobile phone? Yes, the monitor can connect to Android and iOS devices via Bluetooth using the "Berry Pet Health" app for real-time data transmission.
Q3: What charging methods are supported? It supports both wired Type-C charging (5V-1A) and wireless charging via the included charging base.
Q4: Is the device portable enough for outdoor use? Absolutely. It features a palm-sized design, weighs only 614g, and is ideal for both pet hospitals and outdoor home care.
Q5: Can the monitor be used while it is charging? Yes, the AM6200 is designed to function normally even while connected to a power source or sitting on its wireless charging base.
