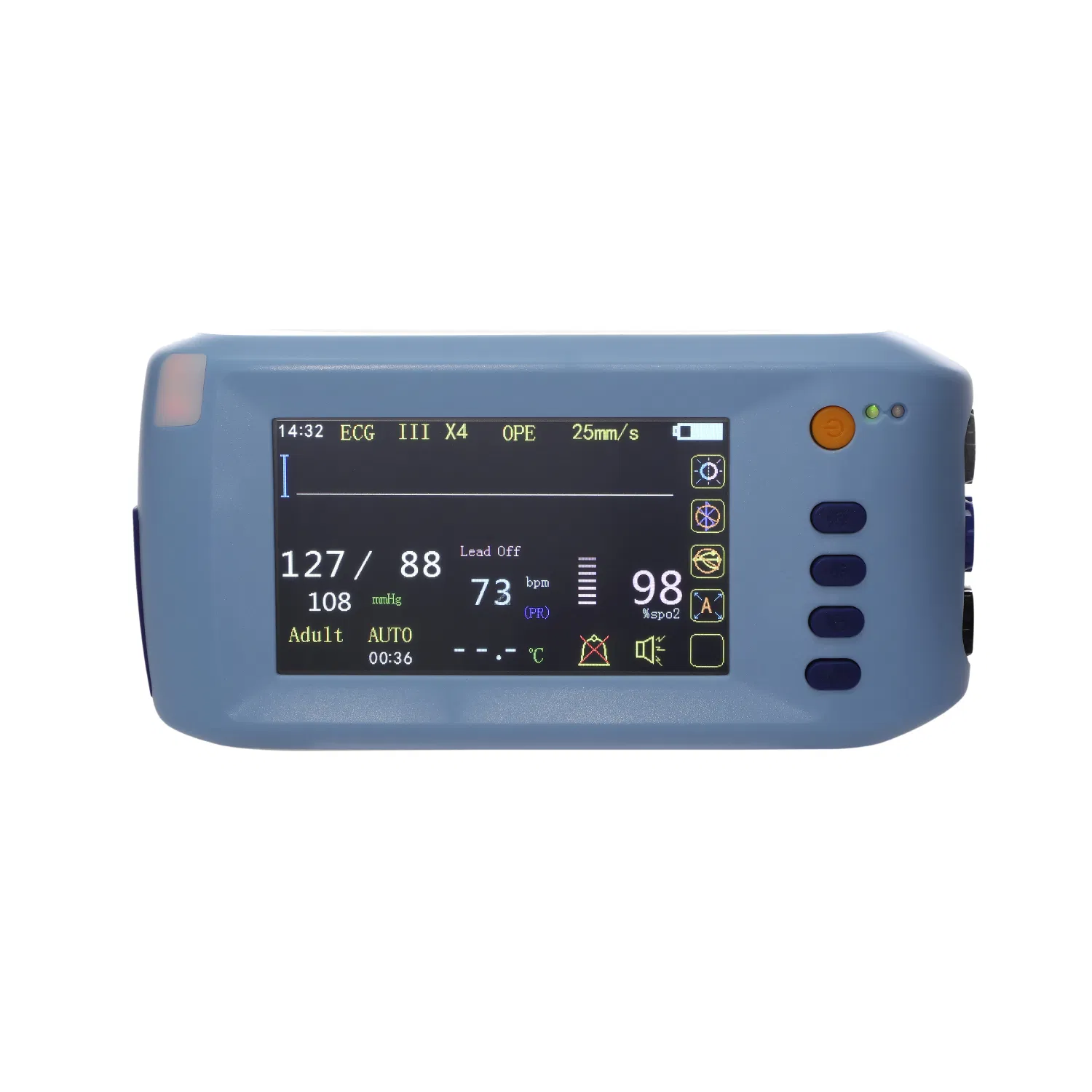

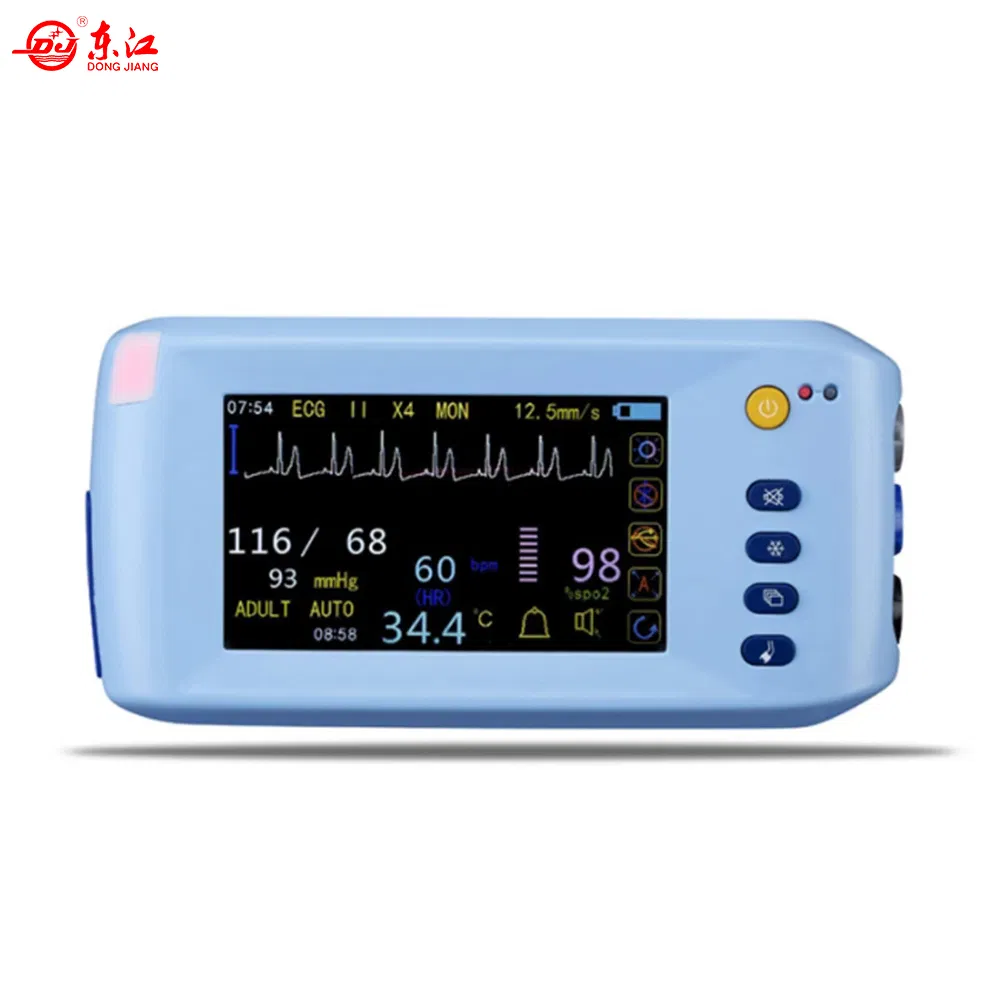

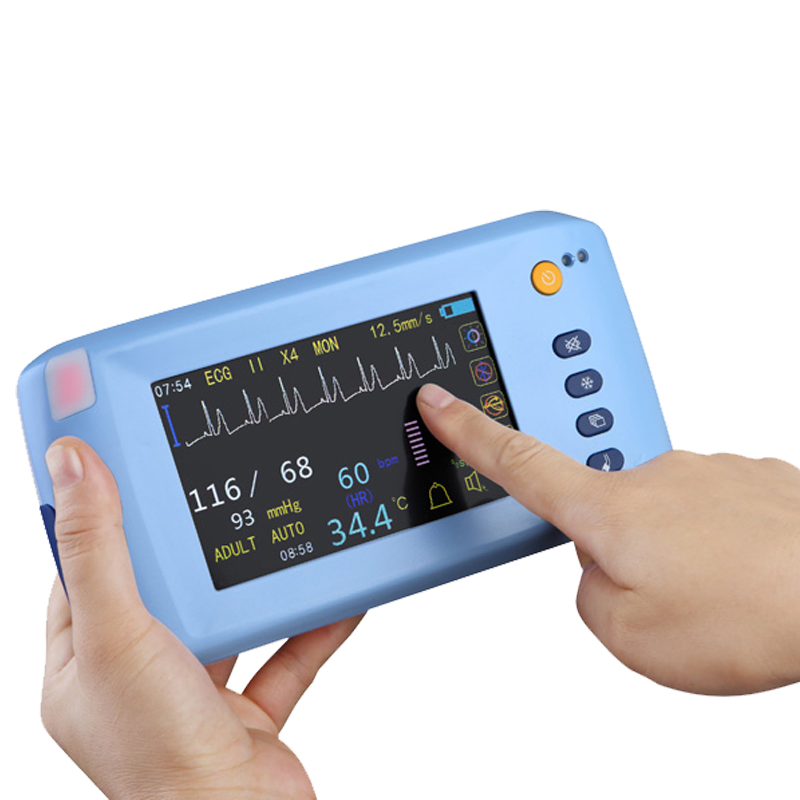

Portable ECG, NIBP, SpO2, Pr, Temp., Hr Touch Screen Handheld Patient Monitor
Portable ECG, NIBP, SpO2, Pr, Temp., Hr Touch Screen Handheld Patient Monitor
Portable ECG, NIBP, SpO2, Pr, Temp., Hr Touch Screen Handheld Patient Monitor
Portable ECG, NIBP, SpO2, Pr, Temp., Hr Touch Screen Handheld Patient Monitor
Portable ECG, NIBP, SpO2, Pr, Temp., Hr Touch Screen Handheld Patient Monitor
1 / 5
Portable ECG, NIBP, SpO2, Pr, Temp., Hr Touch Screen Handheld Patient Monitor
Portable ECG, NIBP, SpO2, Pr, Temp., Hr Touch Screen Handheld Patient Monitor
Portable ECG, NIBP, SpO2, Pr, Temp., Hr Touch Screen Handheld Patient Monitor
Portable ECG, NIBP, SpO2, Pr, Temp., Hr Touch Screen Handheld Patient Monitor
Portable ECG, NIBP, SpO2, Pr, Temp., Hr Touch Screen Handheld Patient Monitor

Portable ECG, NIBP, SpO2, Pr, Temp., Hr Touch Screen Handheld Patient Monitor

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
Alps PM900A
Certification
ISO13485
Group
All
Product
Handheld Patient Monitor
Screen
5 Inch Color LCD
Warranty
1 Year
Power Mode
Built-in Battery
After-Sale
Online Technical Support
Color
Blue
Package
Carton
Specification
209*104*48 mm
★

Product Description

Portable ECG, NIBP, SpO2, Pr, Temp., Hr Touch Screen Handheld Patient Monitor

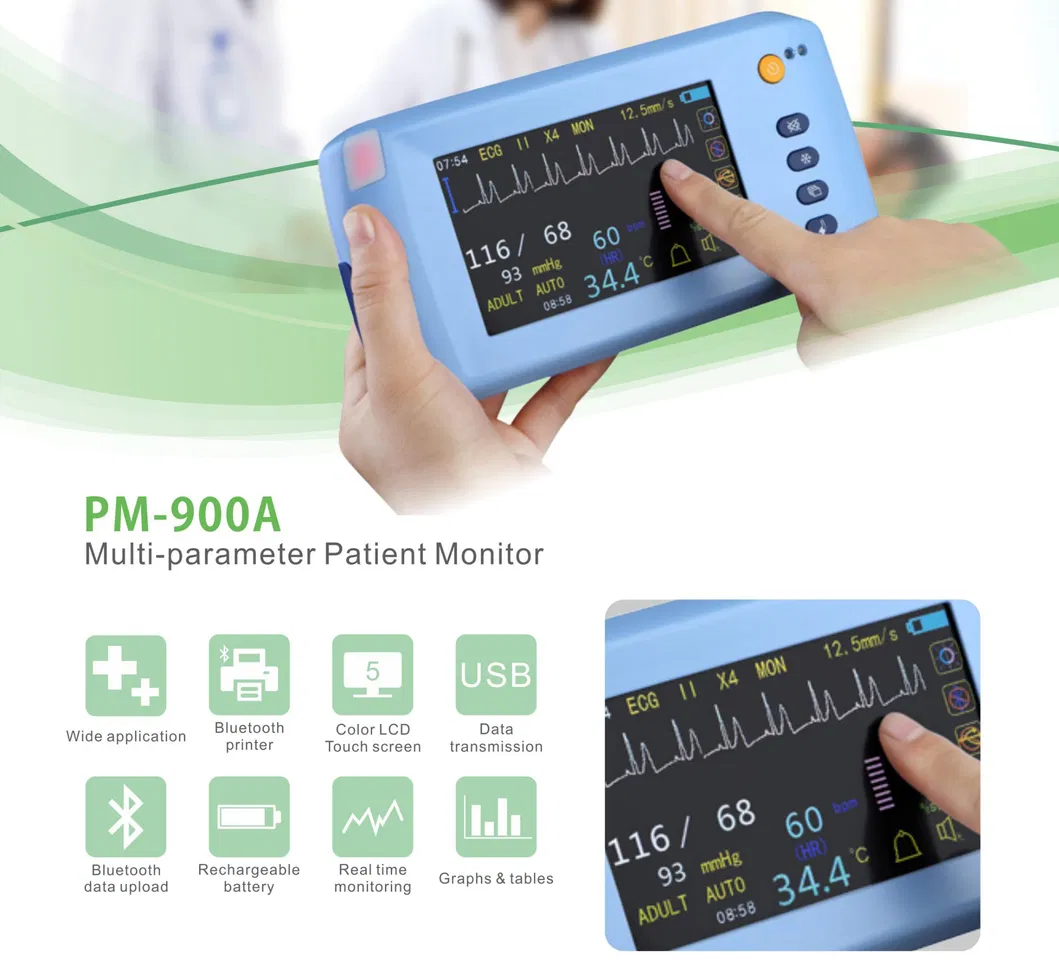

Handheld Patient Monitor

Multiparameter Patient Monitor Features

  • 5" Color LCD with touch screen
  • Storage/Review 129 hour and 3888 group trend data
  • Long time monitoring and sleeping monitoring
  • USB and Bluetooth data upload
  • Built-in rechargeable Li-battery, up to 15 hours running time
  • Horizontal and vertical display selectable
  • Big font screen interface is easy to observe
  • Adjustable back light

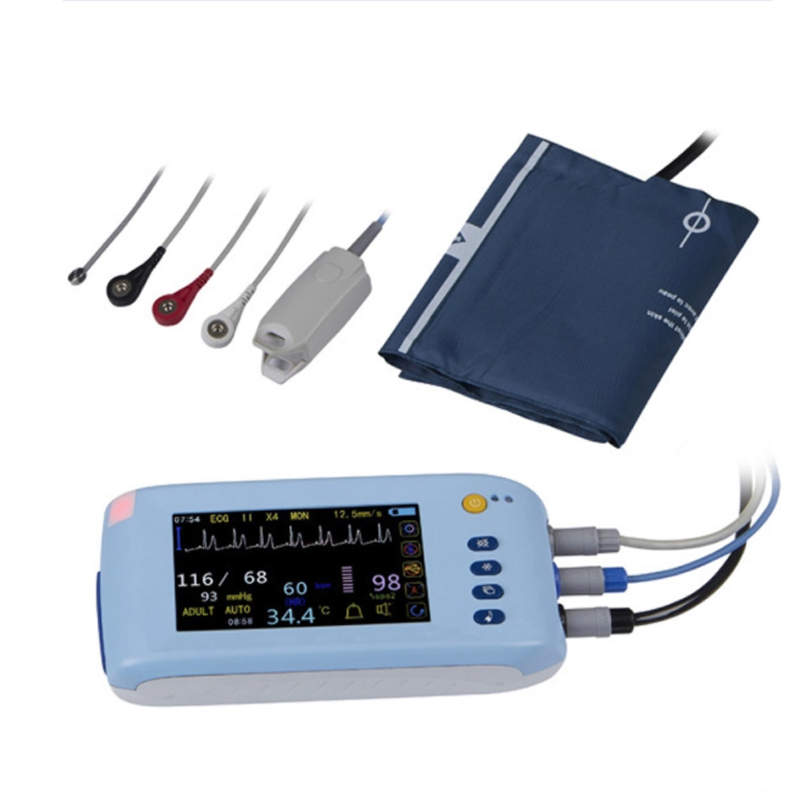

  • Standard configuration: ECG, NIBP, SpO2, PR, TEMP., HR
⚙

Product Parameters

ECG
Input3-lead ECG cable, standard AAMI cable connector
Lead selectionI, II, III
Gain selectionx1, x2, x4, x8
Sweep speed12.5mm/s, 25mm/s, 50mm/s
Bandwidth0.5Hz-40Hz (Monitor); 0.05Hz-100Hz (Diagnosis)
Heart Rate & SpO2
HR Range20bpm-300bpm (Accuracy: ±1bpm)
SpO2 Range0%-100% (Accuracy: ±2% between 70%-100%)
Pulse Rate Range200bpm-300bpm (Accuracy: ±1bpm)
NIBP & Temperature
NIBP MethodOscillometric (Manual, Auto, STAT modes)
NIBP TypesSYS, DIA, MEAN
Temp Range0°C-50°C (Accuracy: ±1°C)
Physical & Power
BatteryBuild-in Li-ion rechargeable battery (3.7V/7200mAH)
Dimension209mm x 104mm x 47.5mm
Net Weight655g
📦

Packaging & Shipping

Package Details:

1pc/carton, size: 15*15*54cm
3pc/carton, size: 34*35*54cm

Packaging
📷

Production Showcase

5 Inch Portable ECG, NIBP, SpO2, PR, TEMP., HR Handheld Patient Monitor Display

Showcase 1 Showcase 2 Showcase 3 Showcase 4 Showcase 5
?

Frequently Asked Questions

What vital signs can this monitor track?
The device tracks multiple parameters including ECG, NIBP (Non-invasive Blood Pressure), SpO2 (Oxygen Saturation), PR (Pulse Rate), Temperature, and HR (Heart Rate).
How long does the battery last on a single charge?
It features a built-in rechargeable Li-battery that provides up to 15 hours of continuous running time.
Does it support data transmission to other devices?
Yes, the monitor supports data upload via both USB and Bluetooth connections.
Is the screen interface customizable?
Yes, it supports both horizontal and vertical display modes, and the backlight brightness can be adjusted for better visibility.
What is the weight and size for portability?
The unit is highly portable, weighing only 655g with dimensions of 209mm x 104mm x 47.5mm.
Can I review previous patient data on the device?
Absolutely. The device can store and review up to 129 hours of trend data and 3888 groups of data records.
