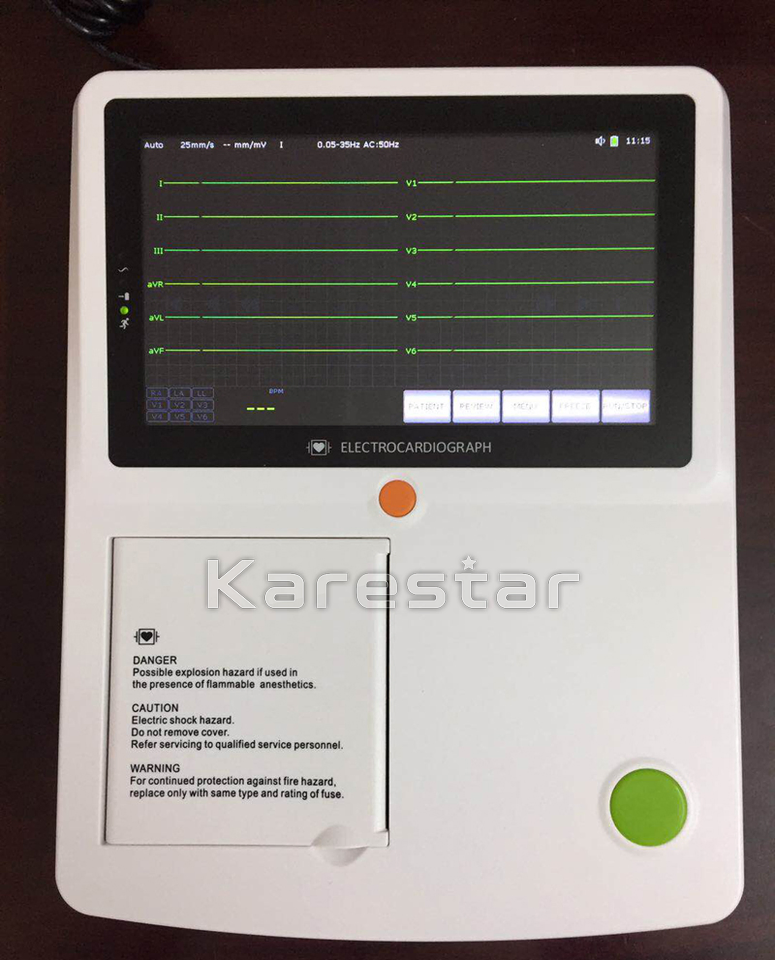

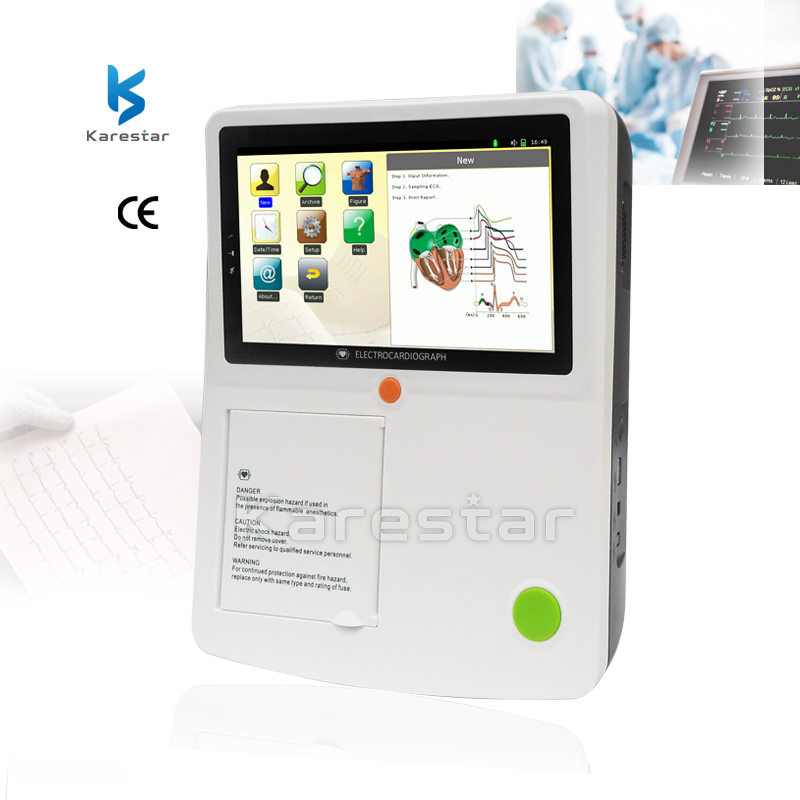

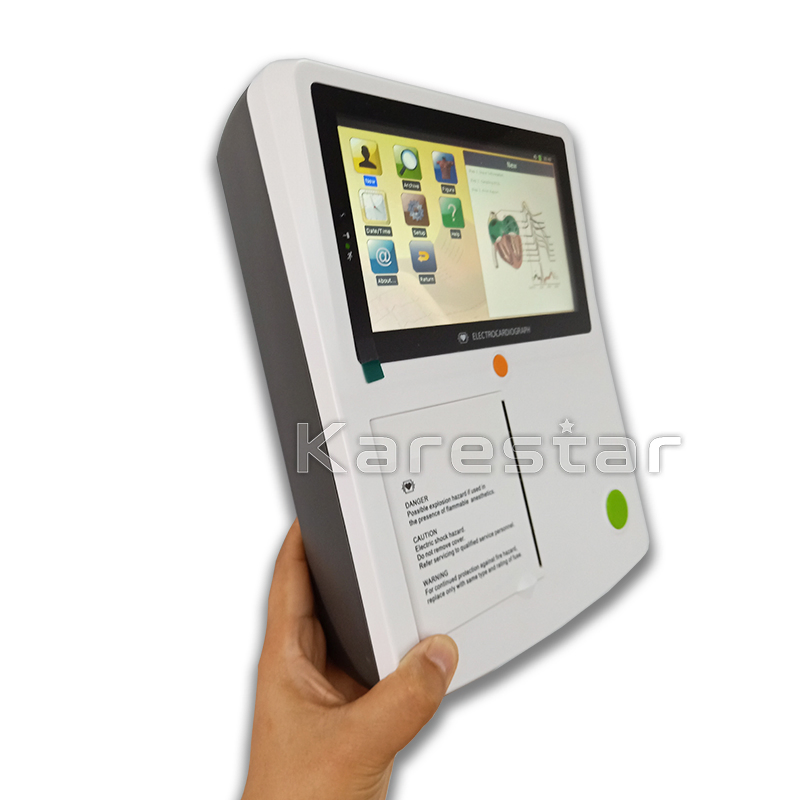

Electrocardiograph 3 Channel 12 Leads Cheapest Portable Touch Screen ECG Device

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Type: ECG

Product Description

Basic Information
Model NO.
K-EB3
Certification
CE, FDA, EEC, MSDS, ISO13485
Display
7'' Color Touch Screen
Leads
Simultaneously Acquisition of 12 Leads
Working Modes
Manual/Auto/Arrhythmia Analysis
Power Source
Electricity
Storage
Over 400 ECG Reports
Battery
Built-in Rechargeable Li-ion (3-4 Hours)
Classification
Class II
Warranty
Lifetime
Product Description
Digital 3 Channel ECG
ECG K-EB3 Digital 3 Channel 12 Lead Electrocardiogram High Accuracy Device
Portable ECG Device

Quick Details & Key Features:

  • Simultaneously acquisition of 12 leads, full screen display of 3 channel ECG waveform.
  • 7'' high-resolution color touch screen for intuitive operation.
  • Built-in rechargeable li-ion battery supporting 3-4 hours of continuous work.
  • Automatic measurement, calculation, analysis, and diagnostic functions.
  • Internal flash storage for over 400 ECG reports.
  • Support for USB flash disk and SD memory for data review on PC.
Standard Configuration Optional Items
Main machine1 PCThermal Paper
Patient cable1 PCTrolley
Limb electrode1 set (4pcs)PC Accessories
Chest electrode1 set (6pcs)-
Power cable & axis1 PC each-
ECG recording paper1 PC-

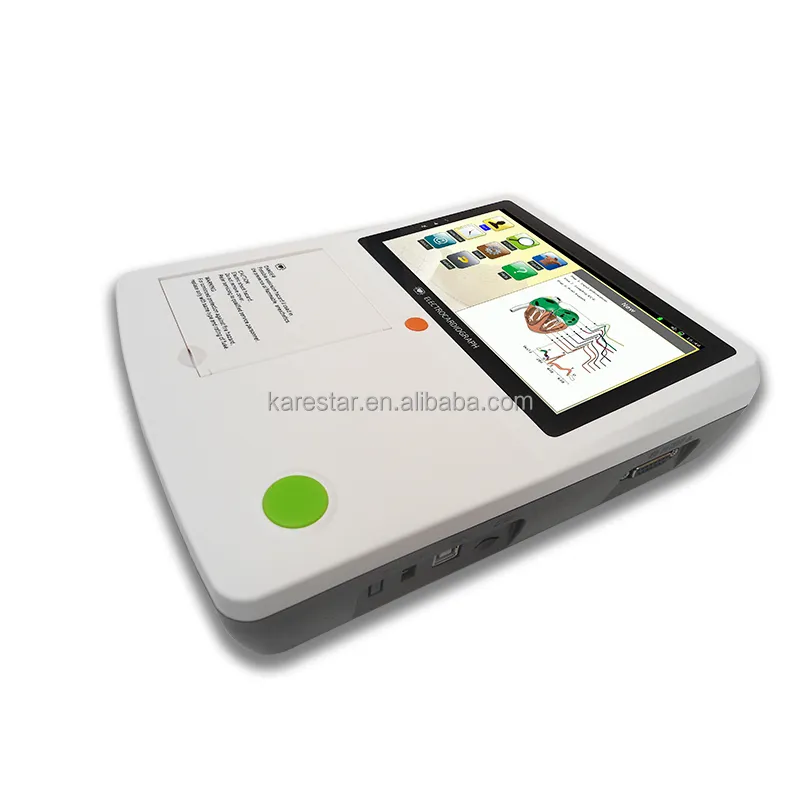

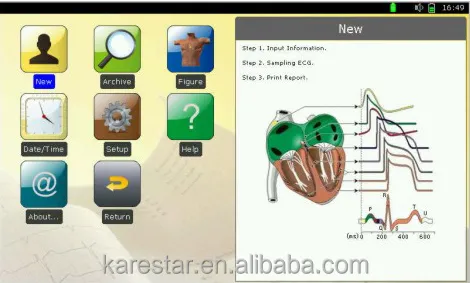

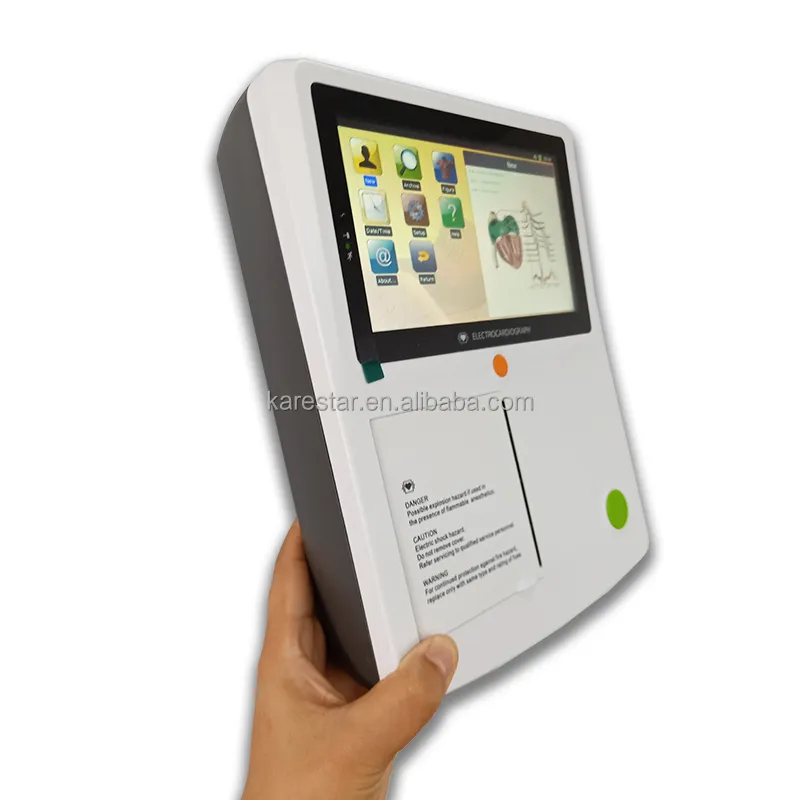

ECG Detail 1 ECG Detail 2 Touch Mode

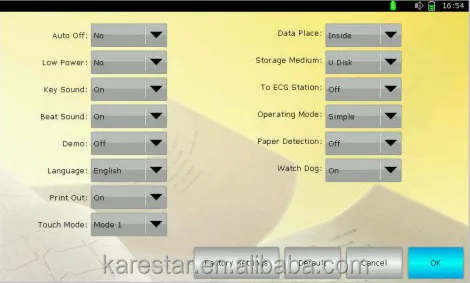

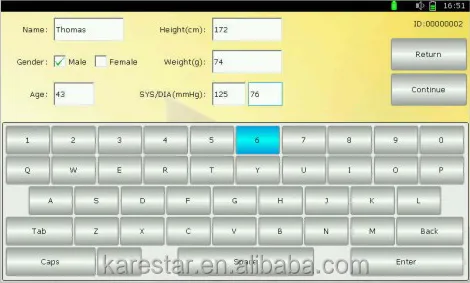

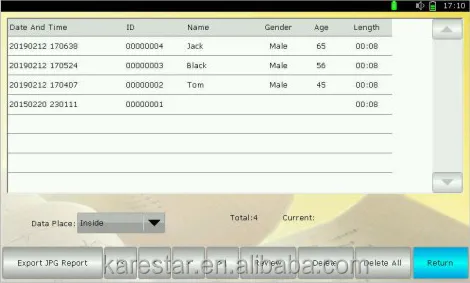

Quick Input Settings Storage
Technical Specification
CMRR≥ 100dB, with AC Filter Calibrating voltage1mV± 3%
Input circuitFloating Voltage tolerance± 500mV
Resolution12bit/1000Hz Frequent response0.05Hz~150Hz
Noise level≤ 15µ Vp-p Paper speed12.5, 25, 50mm/s
Input Impedance> 50MΩ Sensitivity5, 10, 20mm/mV

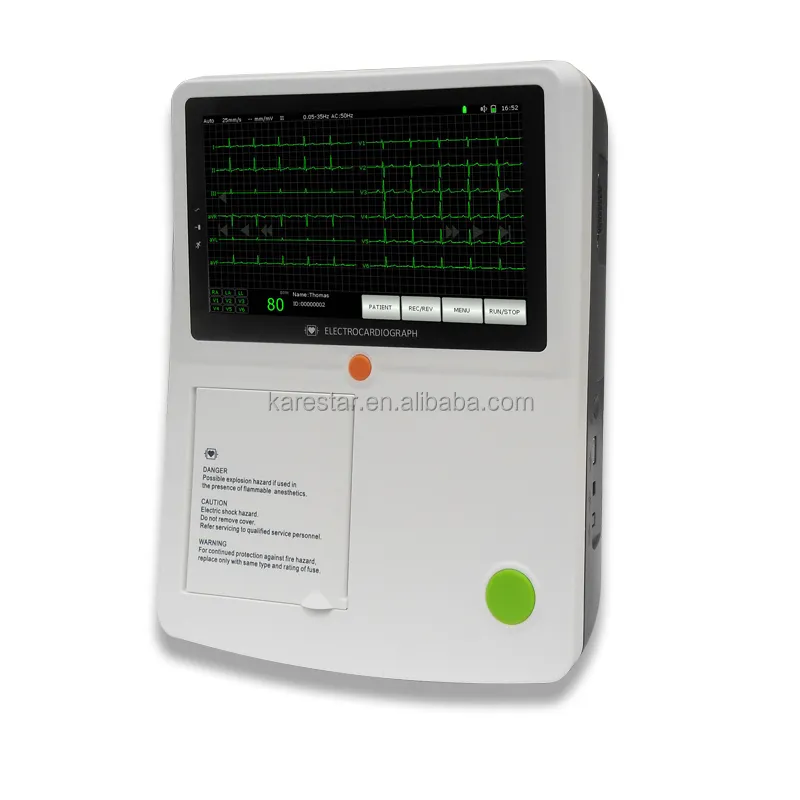

ECG Component
Other View 1 Other View 2
Other View 3 Other View 4
Frequently Asked Questions
Q1: Are you a manufacturer?
A: Yes, we are a factory with over 7 years of manufacturing experience in medical devices.
Q2: What is the Minimum Order Quantity (MOQ)?
A: The MOQ is 1 Set. Samples can be provided for your evaluation.
Q3: How long is the delivery time?
A: Usually 3-30 days after order confirmation, depending on the specific item and quantity.
Q4: Do you offer OEM or private labeling?
A: Yes, we provide full OEM and private logo/label services supported by our R&D team.
Q5: What are the payment terms?
A: We accept various methods including T/T, L/C, Western Union, and Paypal.
Q6: How is quality controlled and how do you handle faults?
A: All goods undergo 100% testing before delivery. We provide free spare parts within the warranty period for any functional faults.
