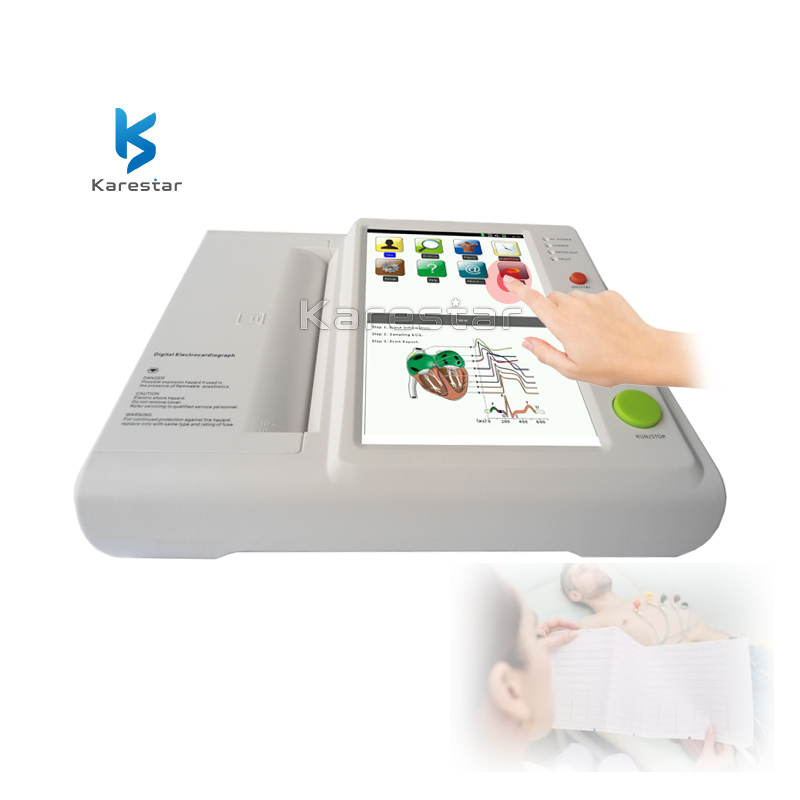

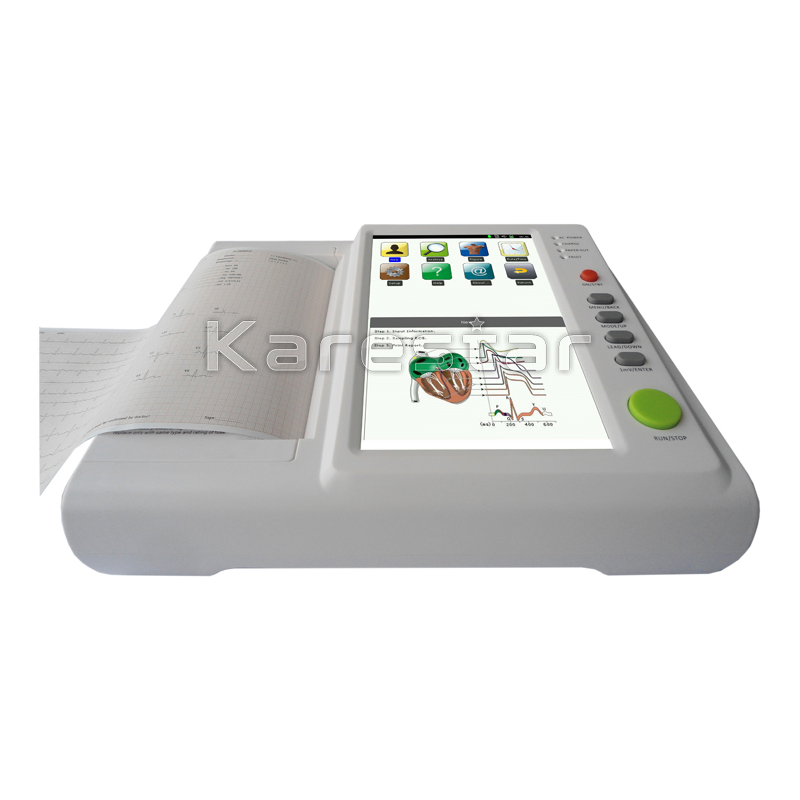

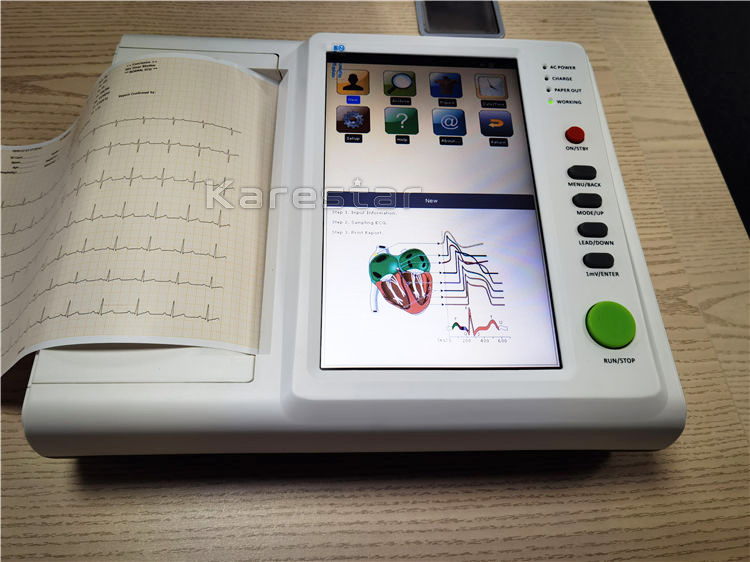

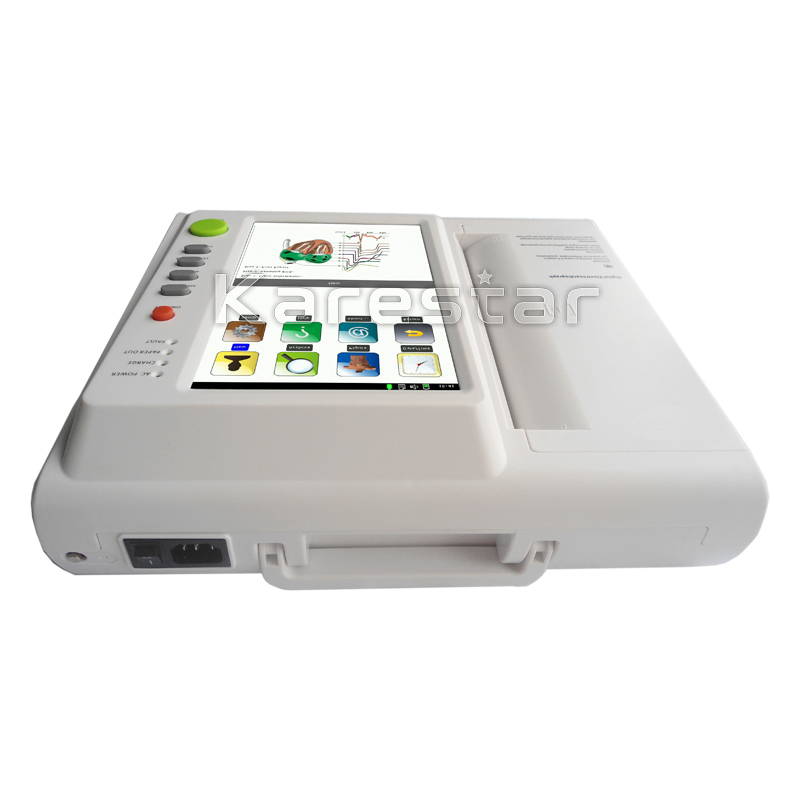

12 Leads 12 Channel ECG Monitor Portable ECG EKG Device

12 Leads 12 Channel ECG Monitor Portable ECG EKG Device

12 Leads 12 Channel ECG Monitor Portable ECG EKG Device

12 Leads 12 Channel ECG Monitor Portable ECG EKG Device

12 Leads 12 Channel ECG Monitor Portable ECG EKG Device

1 / 5

12 Leads 12 Channel ECG Monitor Portable ECG EKG Device

12 Leads 12 Channel ECG Monitor Portable ECG EKG Device

12 Leads 12 Channel ECG Monitor Portable ECG EKG Device

12 Leads 12 Channel ECG Monitor Portable ECG EKG Device

12 Leads 12 Channel ECG Monitor Portable ECG EKG Device

12 Leads 12 Channel ECG Monitor Portable ECG EKG Device

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	ECG

Send Inquiry

Product Description

Basic Info.

Model NO.

K-EB12

Certification

CE, FDA, EEC, MSDS, ISO13485

Display Mode

10.2 Inches Color Touch-Screen

Lithium Battery

About 4 Hours

Lead

Standard 12 Leads

Working Mode

Manual/Auto/Arrhythmia Analysis

Storage Capacity

500 ECG Reports

Warranty

Lifetime

Paper Spec

Roll 215mm*20m

Classification

Class II

Product Description

12 Leads 12 Channel ECG Monitor

Key Features & Highlights

Standard 12 leads measurement

10.2 inch high resolution color touch screen

Stores over 500 ECG reports

Built-in rechargeable Li-ion battery

Supports SD card and USB disk

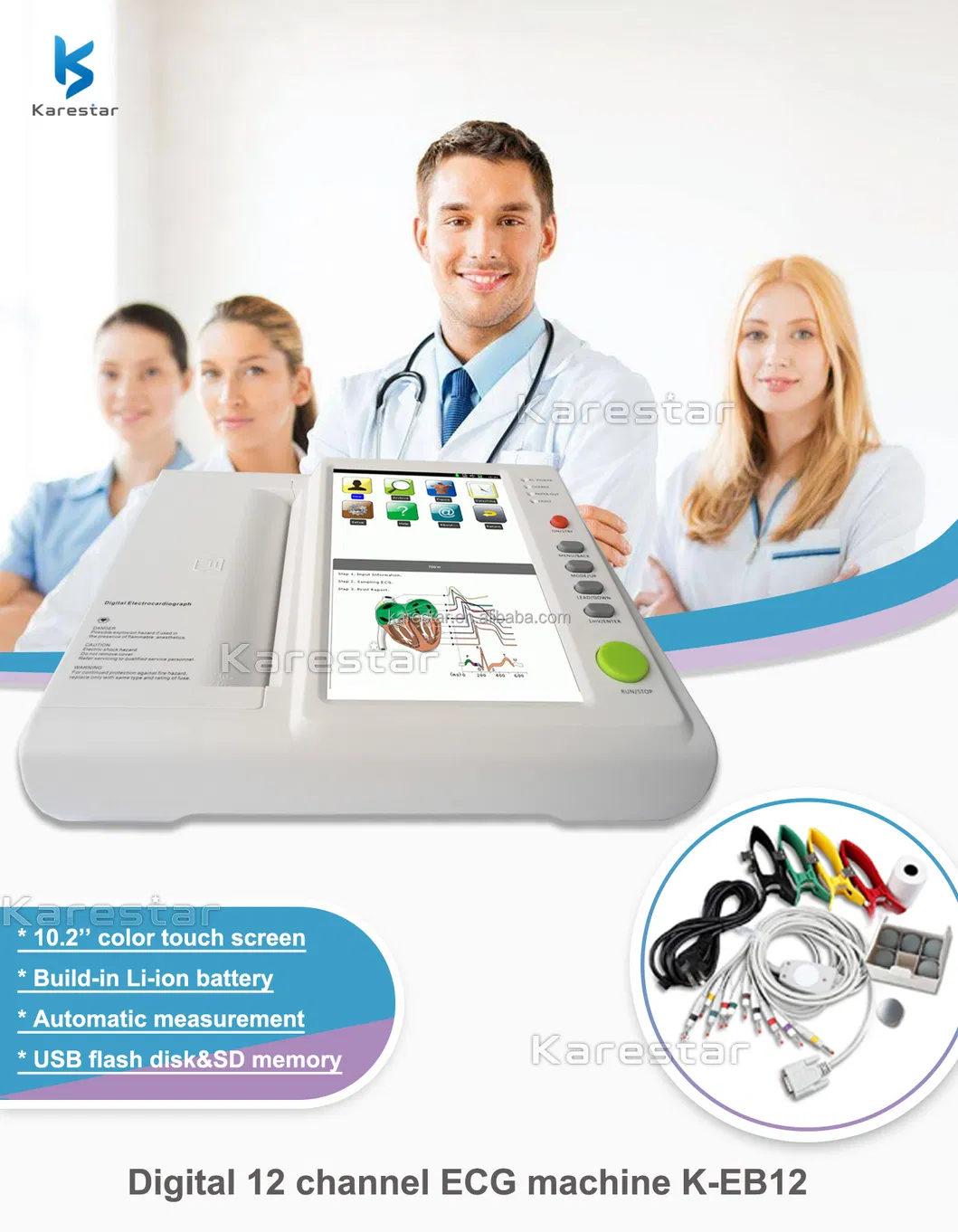

ECG Device Display

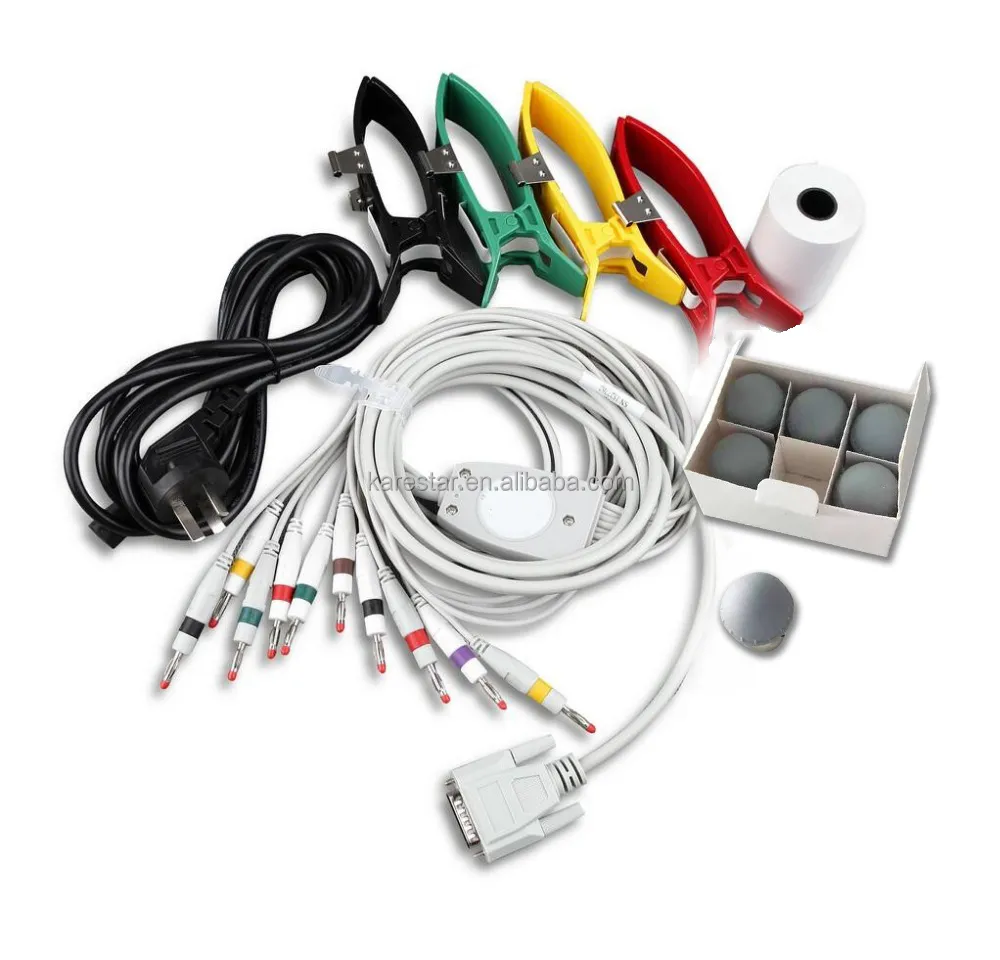

Configuration List

Standard Configuration	Quantity	Optional Items
Main machine	1 PC	Thermal Paper
Patient cable	1 PC	Trolley
Limb electrode	1 set (4pcs)	PC Accessories
Chest electrode	1 set (6pcs)	ECG bag
Power cable & Recording paper	1 PC each	-

Product Details Showcase

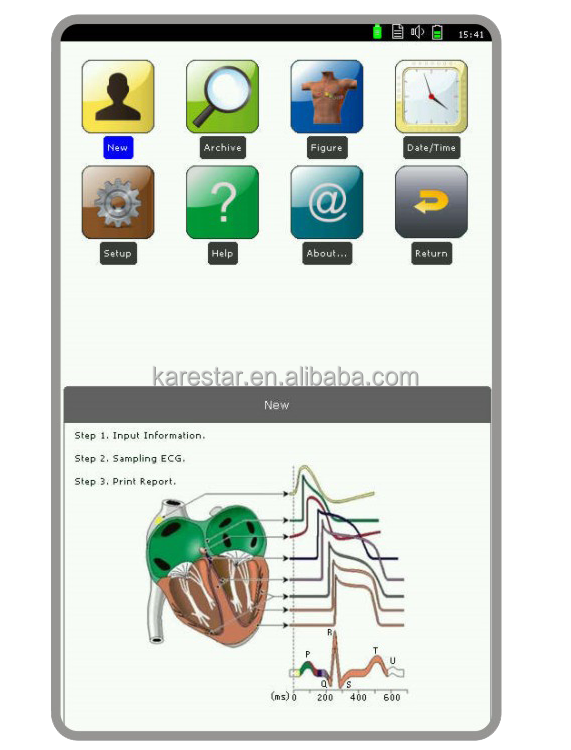

Touch Mode

Touch Mode

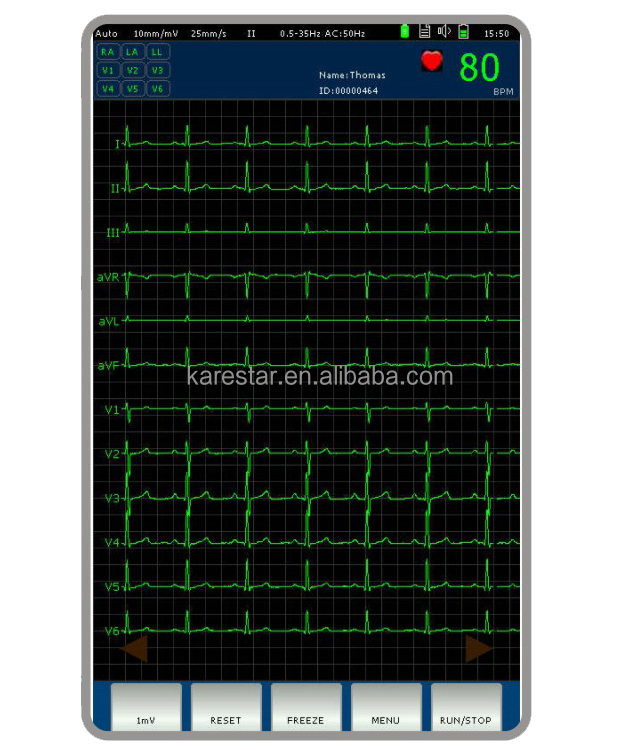

One Key Operation

One Key Operation

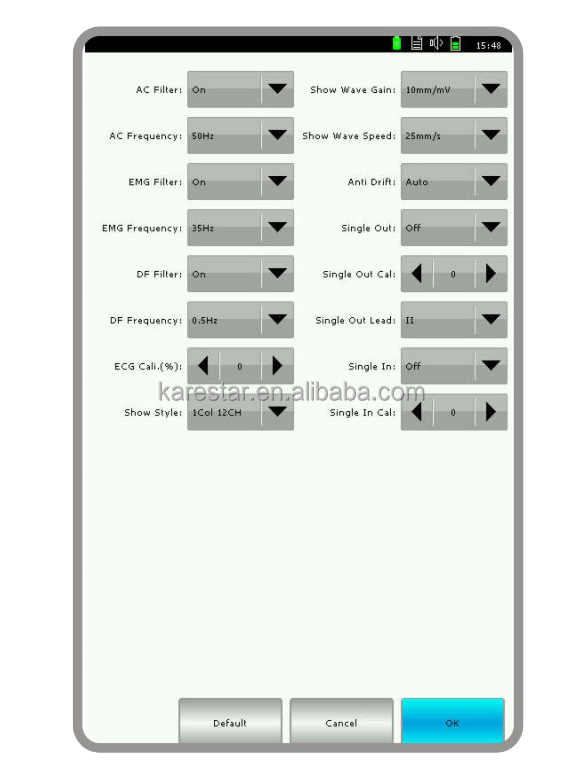

Convenient Setting

Convenient Setting

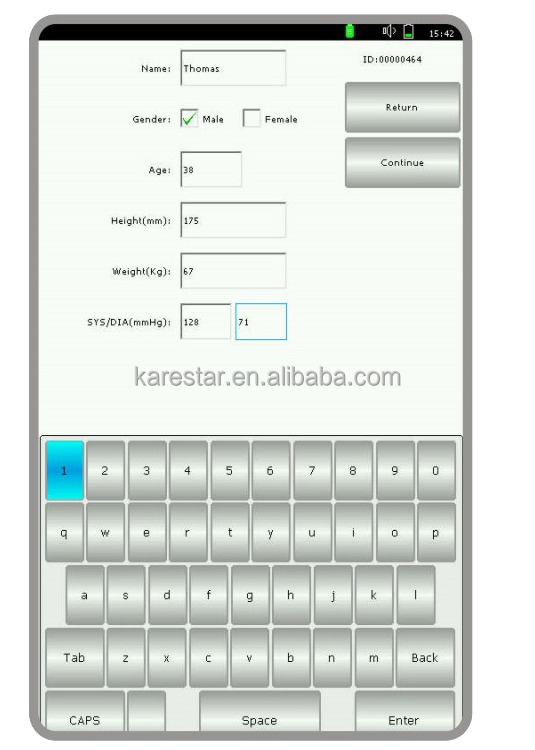

Quick Input

Quick Input

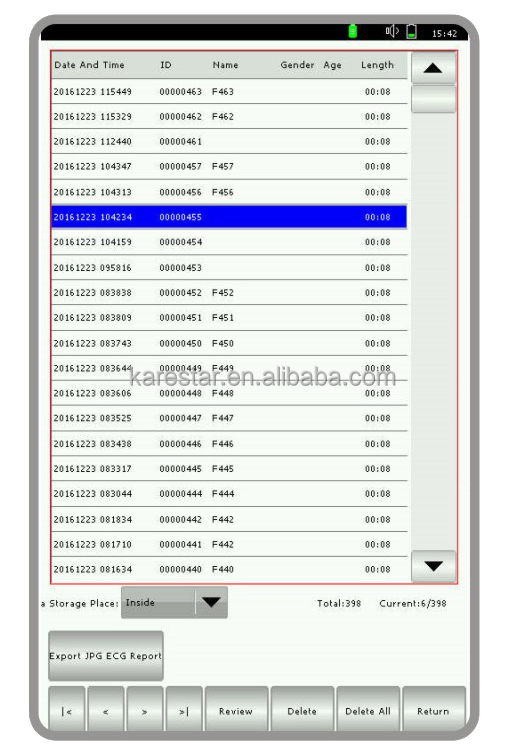

Unlimited Storage

Unlimited Storage

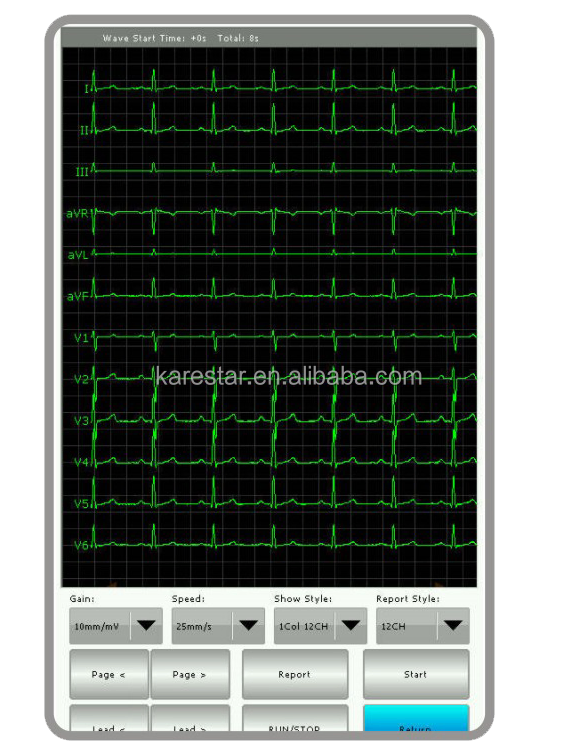

Simple Review

Simple Review

Technical Specification

CMRR	≥ 100dB, with AC Filter	Calibrating voltage	1mV± 3%
Input circuit	Floating	Voltage tolerance	± 500mV
Resolution	12bit/1000Hz	Frequent response	0.05Hz~150Hz
Noise level	≤ 15µ Vp-p	Paper speed	12.5, 25, 50mm/s
Input Impedance	> 50MΩ	Battery	Li-ion 11.1V(2200mAh)

Operational Display

Frequently Asked Questions

What is the Minimum Order Quantity (MOQ)?

The MOQ is 1 Set, and samples can be sent for your evaluation.

How can I get the shipping cost?

Please provide your destination or delivery address; we will check the best Sea Freight or Air Freight options for you based on your requirements.

How long is the delivery time?

Usually 3-30 days after order confirmation, depending on the specific item and quantity ordered.

Can you provide OEM or private labeling?

Yes, we can perform OEM/private logo/label services. We have complete facilities and an R&D team ready to assist.

What are your payment terms?

We accept T/T, Trade Assurance orders, L/C, Western Union, Paypal, and more.

Do you test the goods before delivery?

Yes, we conduct 100% testing on all products before they are dispatched.
