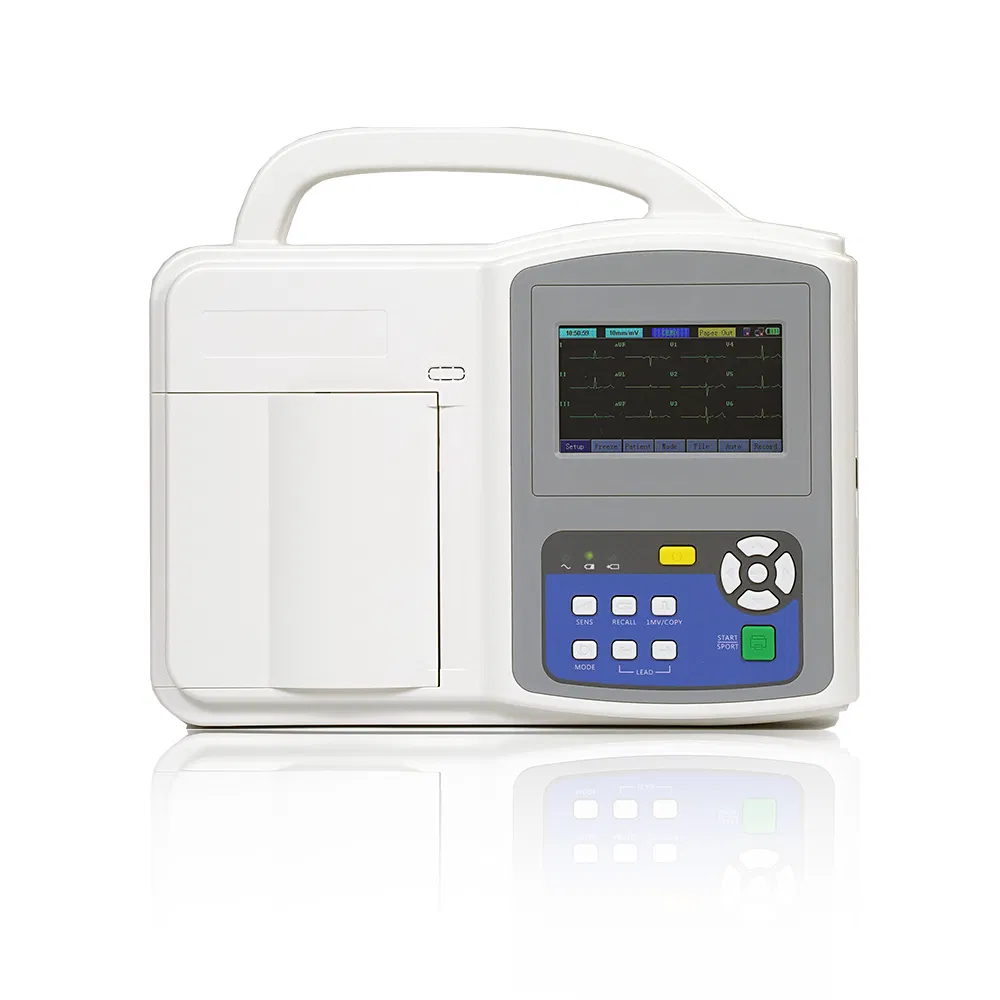

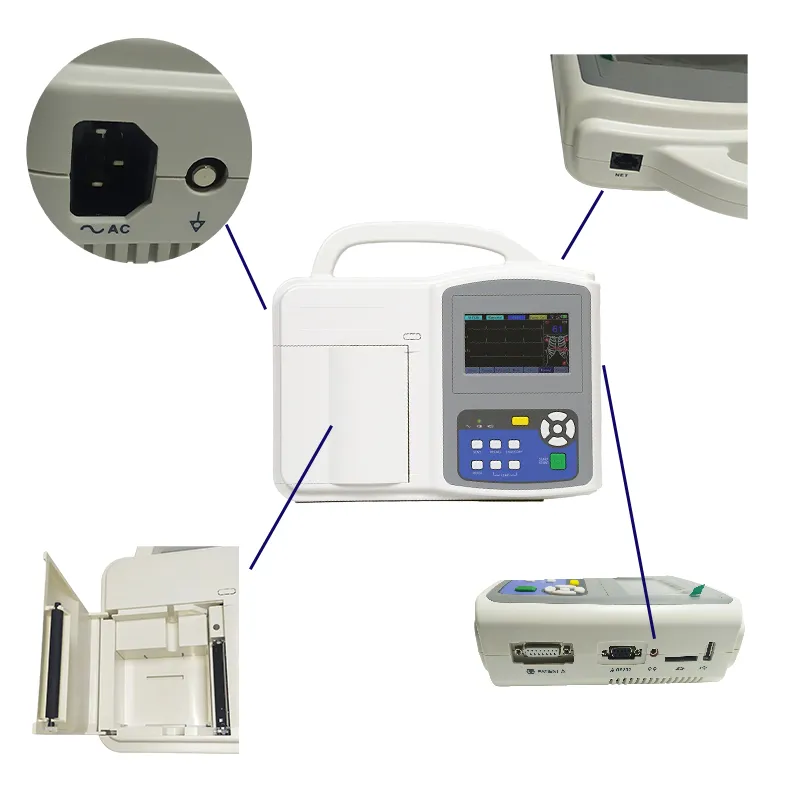

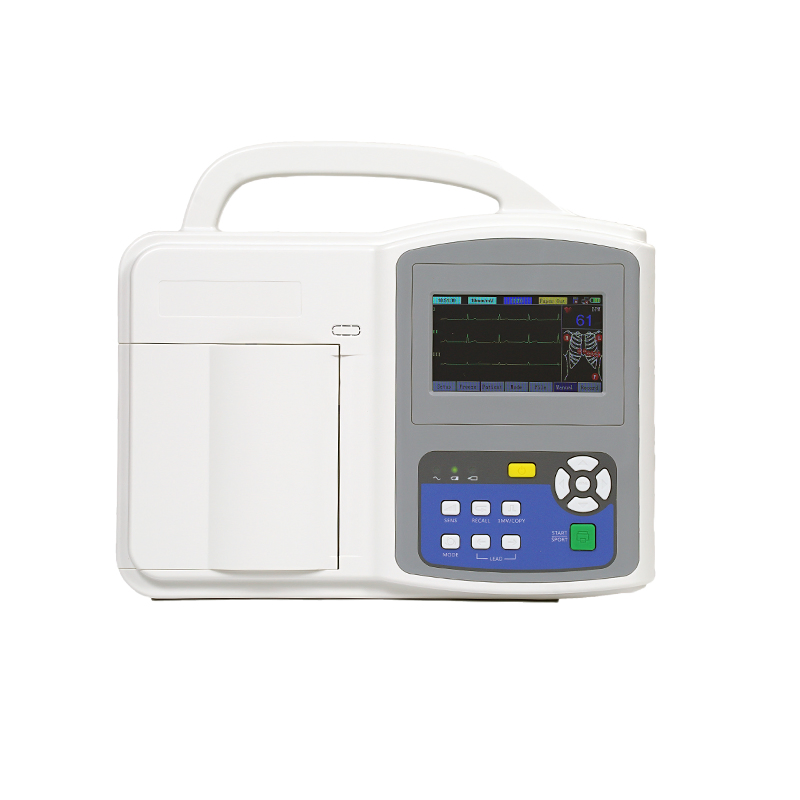

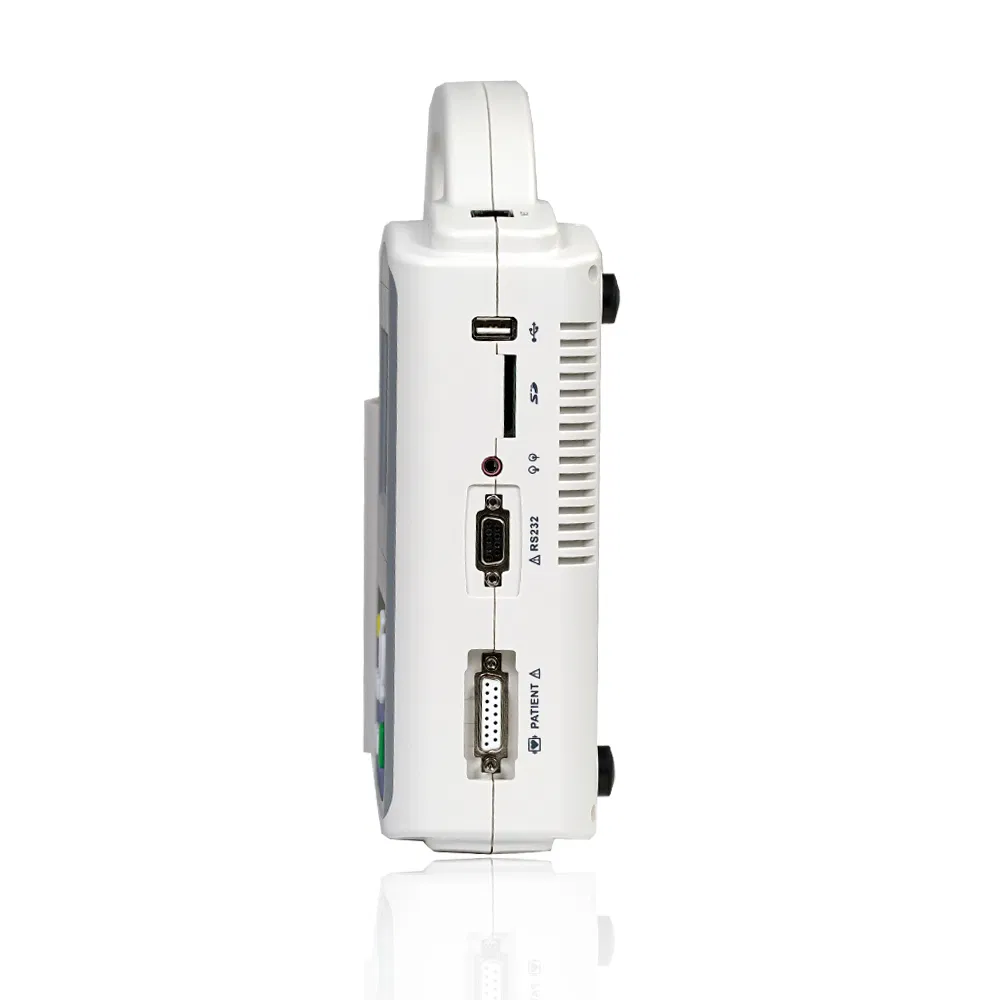

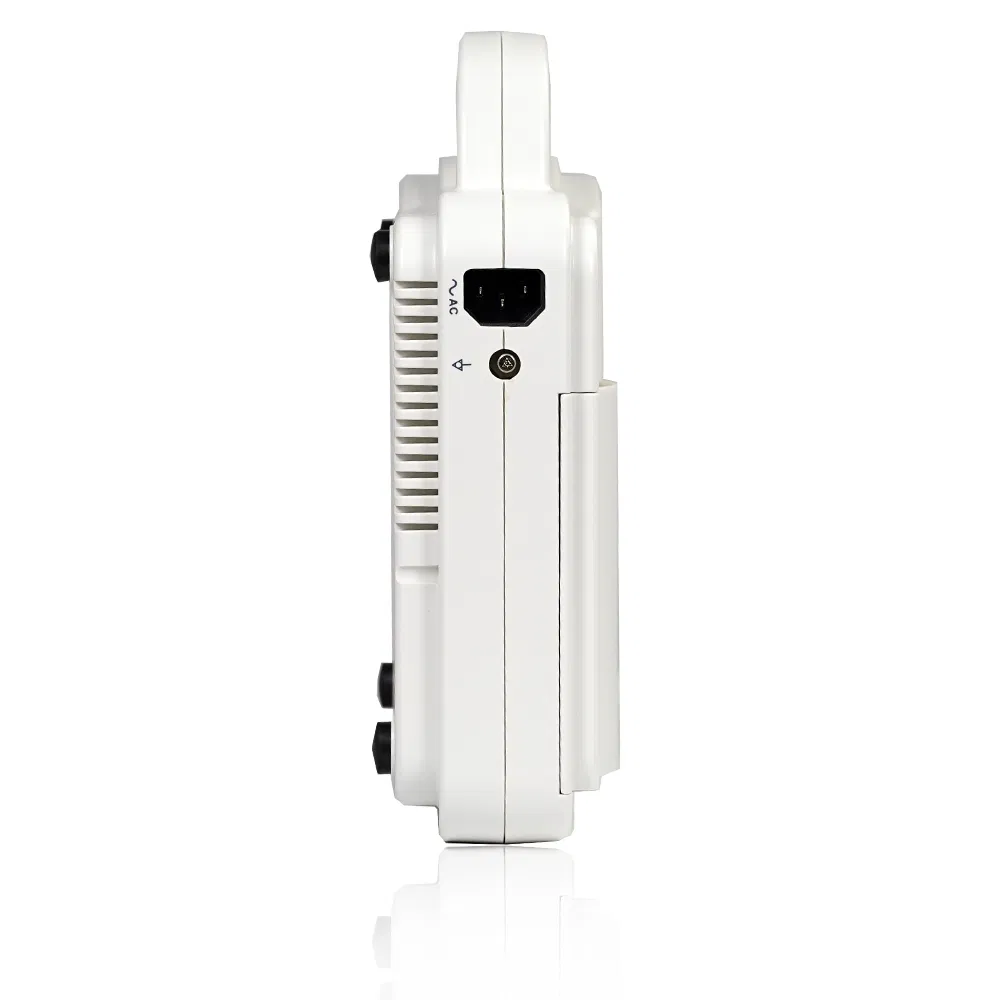

Portable 3-Lead ECG Machine Cardiac Monitor Medical Diagnostic Device

Customization:	Available
Model:	Aed-5s
Warranty:	1 Years

Overview & Basic Info

Model NO.

ECG-303

Material

Clastic

Power Source

Electric

Safety Standard

ISO13485

Transport Package

Standard for Export

Specification

5kg

Origin

China

Capacity

100,000/Year

Product Description

AED-102 Automatic External Defibrillator

The AED-102 is a professional biphasic defibrillator featuring a lightweight and compact design. It is engineered for versatility across various emergency situations, ensuring it is always ready for life-saving interventions.

Key Functions & Features

Three-step defibrillation process for ease of use
Dedicated buttons for Adult and Child modes
Biphasic truncated exponential waveform technology
Selectable energy sequences tailored for different age groups
Maximum energy output of 200 Joules
Rapid charging: < 6s to 150J, < 8s to 200J
Extensive voice prompts and clear visual LED indicators
Lock-out protection to prevent accidental shock delivery

Technical Specifications

Items	Details
Lead	Standard 12 leads
Acquisition Mode	Simultaneous 12 leads acquisition
Measurement Range	±5mVpp
Input circuit	Floating: Protection circuit against Defibrillator effect
Input Impedance	≥50MΩ
Input circuit current	<0.05μA
Record mode	Auto: CHx4+1R, 3CHx4, 3CHx2+2CHx3, Rhythm: Selectable
Filter	EMG: 25-150Hz; DFT: 0.05/0.15Hz; AC: 50/60Hz
CMRR	>100dB
Patient leak current	<10μA (220V-240V)
Frequency Response	0.05Hz~150Hz(-3dB)
Sensitivity	2.5, 5, 10, 20 mm/mV (±5%)
Paper speed	12.5, 25, 50 mm/s
Recording mode	Thermal printing system (Roll 80mmx20M)

Product Gallery

Packing & Delivery

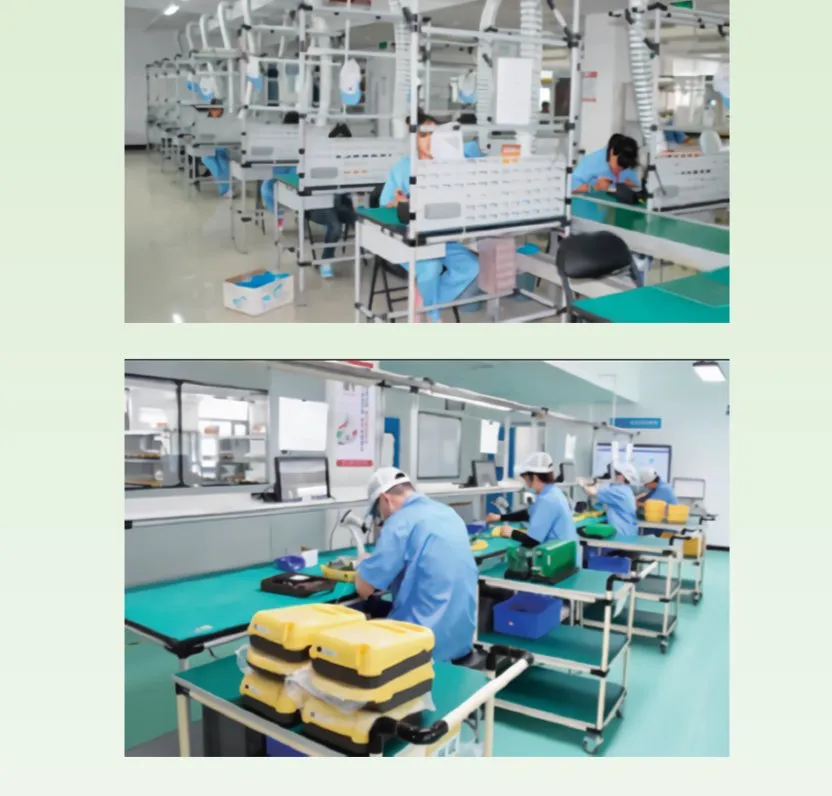

Professional Manufacturing & Certifications

Frequently Asked Questions

Q: Do your medical devices have international certifications?

A: Yes, all our products are fully approved by CE and ISO13485 standards, ensuring compliance with global medical safety requirements.

Q: What are the standard packing details for export?

A: We use reinforced wooden cases or heavy-duty carton packages designed for international shipping. Each unit is carefully inspected by our QC team before delivery.

Q: How long is the typical delivery time?

A: For items in stock, delivery is usually 5-10 days after deposit. For customized or out-of-stock orders, production takes approximately 20-30 days depending on the quantity.

Q: What range of medical equipment do you supply?

A: We specialize in hospital furniture, operation tables, cardiac monitors (ECG), AED defibrillators, and other essential medical diagnostic equipment.

Q: Is the AED-102 suitable for both adults and children?

A: Yes, it features a dedicated mode selection button that adjusts the energy output and voice prompts specifically for adult or pediatric use.

Q: What technical support is available for the ECG machine?

A: We provide comprehensive technical manuals and remote guidance for setup. The machine features automated analysis and baseline drift correction for ease of operation.
