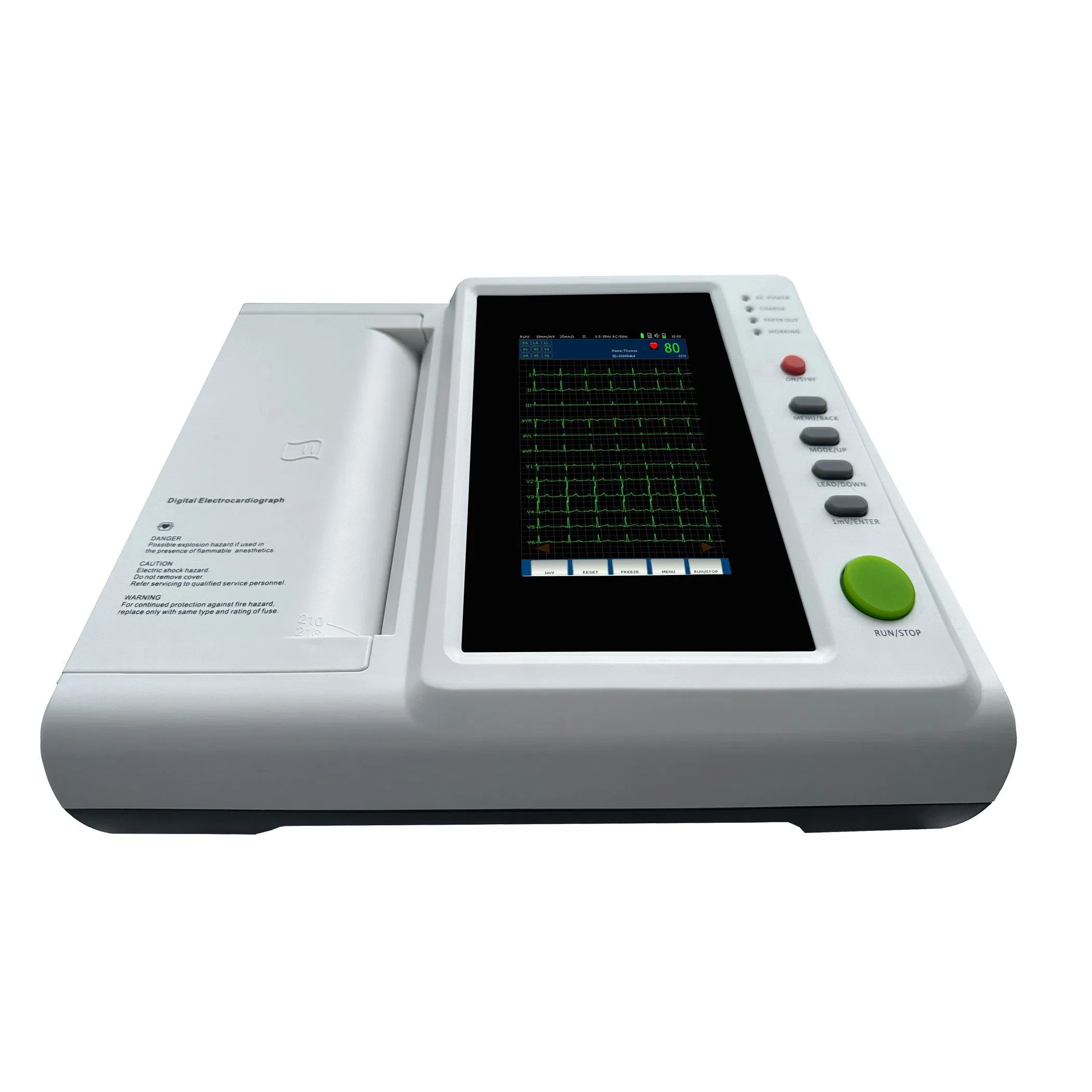

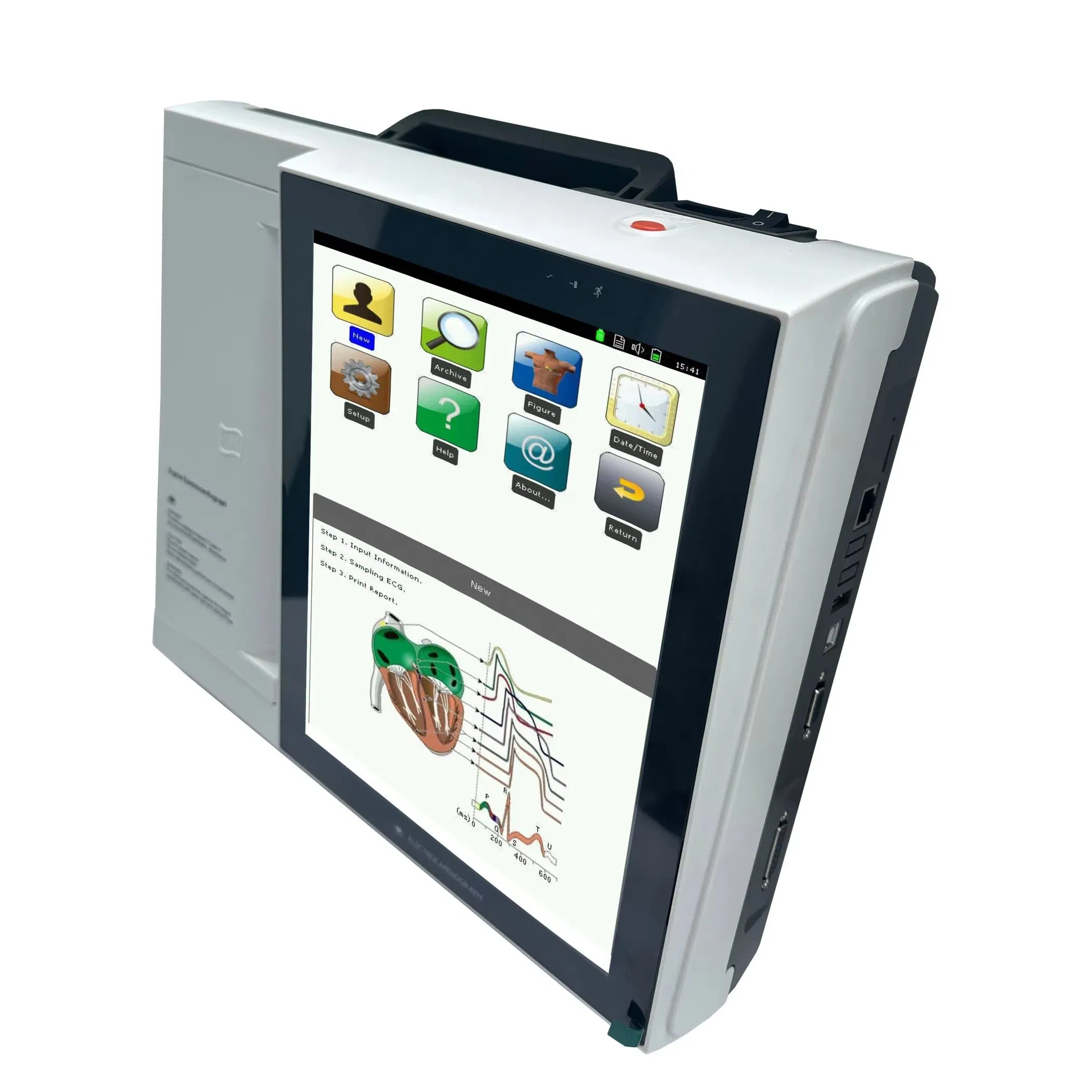

Advanced Portable ECG Device with 12-Channel Auto-Analysis

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	ECG

Send Inquiry

Product Description

Basic Specifications

Certification

Patient Group

All

Transport Package

Box

Production Capacity

10,000 Units

12-Channel Digital Electrocardiograph

This professional medical diagnostic device integrates high precision, intelligence, and portability. It is designed for mid-to-high-end clinical diagnosis, supporting simultaneous acquisition of 12 leads and full-screen display of 12-channel waveforms.

10.2'' large color touch screen with dual operation modes (push-button + touch).
High CMRR ≥100dB with AC, EMG, and Anti-Drift filters for clear waveforms.
Core intelligent functions: automatic measurement, calculation, and analysis of ECG parameters.
Built-in flash storage for over 500 ECG reports and USB/SD card support.

Technical Parameters
Lead System	Simultaneous 12-lead acquisition
Sensitivity	5/10/20mm/mV
Paper Speed	12.5/25/50mm/s (±3%)
Power Supply	AC 100-240V; Built-in Li-ion battery 14.8V (4000mAh)
Printer	High-resolution thermal array printer (216mm paper)

ECG-12S 12-Channel Electrocardiograph

The ECG-12S is tailored for portable clinical diagnosis and mobile physical examination scenarios. It captures complete cardiac signals efficiently through its 12-lead synchronous sampling system.

7'' color touch screen for flexible operation.
Thermal printer with 215mm paper and 7 levels of printing thickness.
Waveform freezing and historical data review functions.

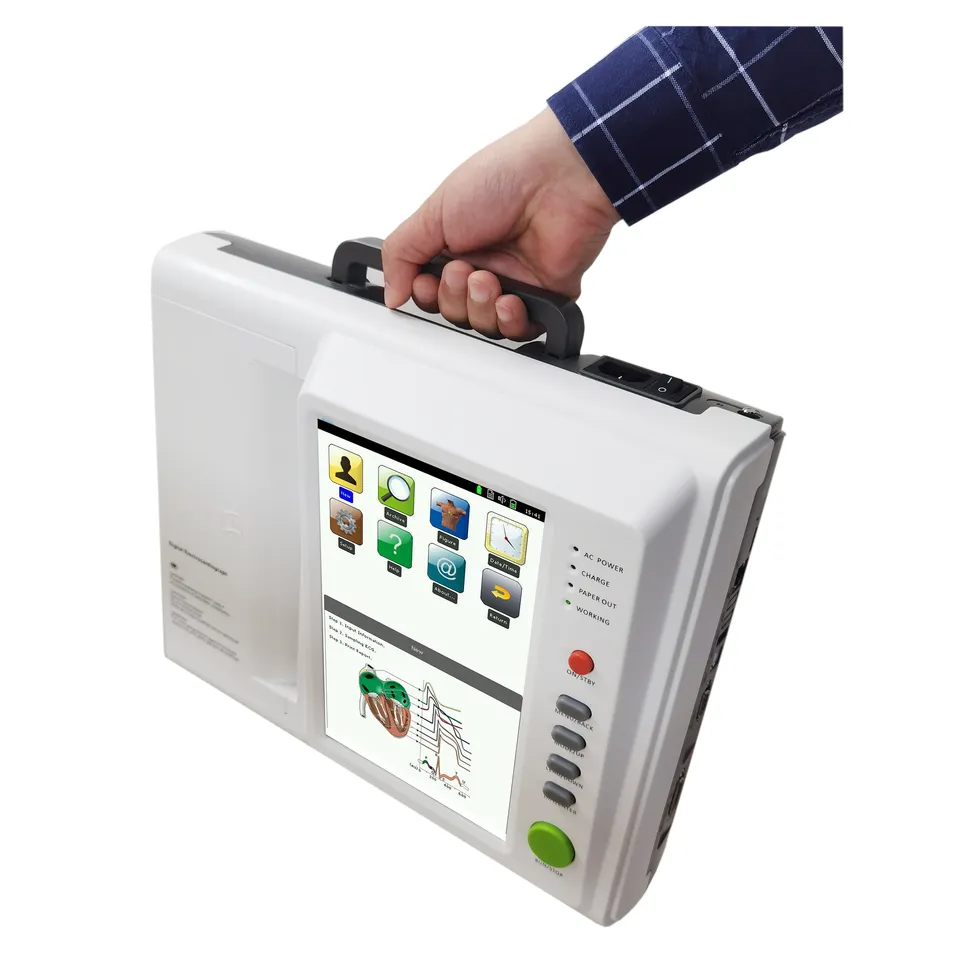

Portable design with a hidden handle for easy transportation.

12.1'' Advanced Digital Electrocardiograph

This high-end model features a large display and high-capacity battery, specifically optimized for cardiology departments and high-end physical examination centers.

12.1'' large color touch screen for superior visual experience.
14.8V (4400mAh) high-capacity Li-ion battery for extended use.
Floating input circuit safety design with low patient leakage current.
High-resolution thermal printing on 216mm recording paper.

Product Details & Accessories

Comparison of 12-Channel Models

Feature	Standard 12-Channel	ECG-12S Portable	12.1'' High-End
Display Screen	10.2'' Touch Screen	7'' Color Touch Screen	12.1'' Large Touch Screen
Paper Width	216mm	215mm	216mm
Battery Capacity	4000mAh	Standard Rechargeable	4400mAh
Main Focus	Routine Clinical Use	Mobile Medical Services	High-end Cardiology
Portability	Compact	Hidden Handle Design	Hidden Handle Design
CMRR	≥100dB	≥100dB	≥100dB

Core Advantages

Common Features: All models feature 12-channel synchronous sampling, thermal printing, AC/DC dual power supply, and USB data transmission. They ensure high accuracy with CMRR ≥100dB and frequency response of 0.05-150Hz.

Differentiation: The ECG-12S is the choice for mobile diagnosis; the 12.1'' model is best for tertiary hospitals requiring detailed visual analysis; while the Standard 12-channel model offers a balance of performance and value for community health centers.

Frequently Asked Questions

How does the 12-channel ECG handle electrical interference?

The devices utilize a high Common Mode Rejection Ratio (CMRR ≥ 100dB) and are equipped with AC, EMG, and Anti-Drift filters to shield electromagnetic and myoelectric interference, ensuring clear waveforms.

Can I export the ECG reports to a computer?

Yes, all models support data transmission to a PC via USB or RS232 interfaces, and are compatible with ECG playback/workstation software for detailed analysis.

What is the advantage of the synchronous 12-lead sampling?

It allows for the simultaneous capture of complete cardiac electrical activity data in one instance, providing a comprehensive basis for diagnosing arrhythmia and myocardial ischemia.

Are these devices suitable for use during power outages?

Yes, they feature a dual power supply system with a built-in high-capacity rechargeable Li-ion battery (up to 4400mAh in some models), ensuring continuous operation without AC power.

Does the machine automatically interpret the results?

Yes, the devices are equipped with intelligent functions that automatically measure, calculate, and analyze ECG parameters to assist doctors in efficient diagnosis.

What width of thermal paper do these machines use?

These models use standard professional thermal recording paper widths of either 215mm or 216mm, depending on the specific model selected.
