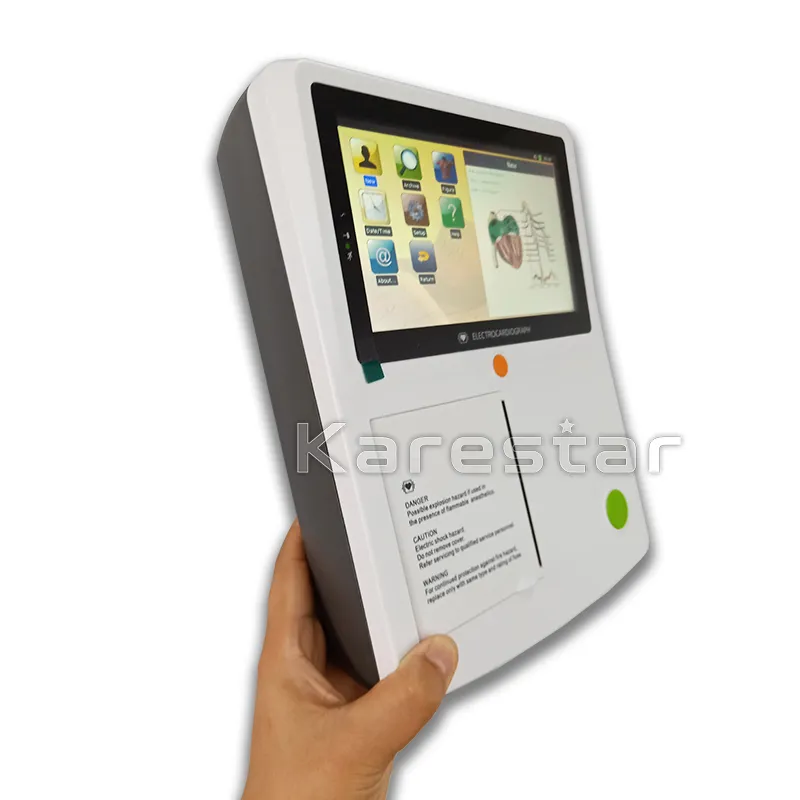

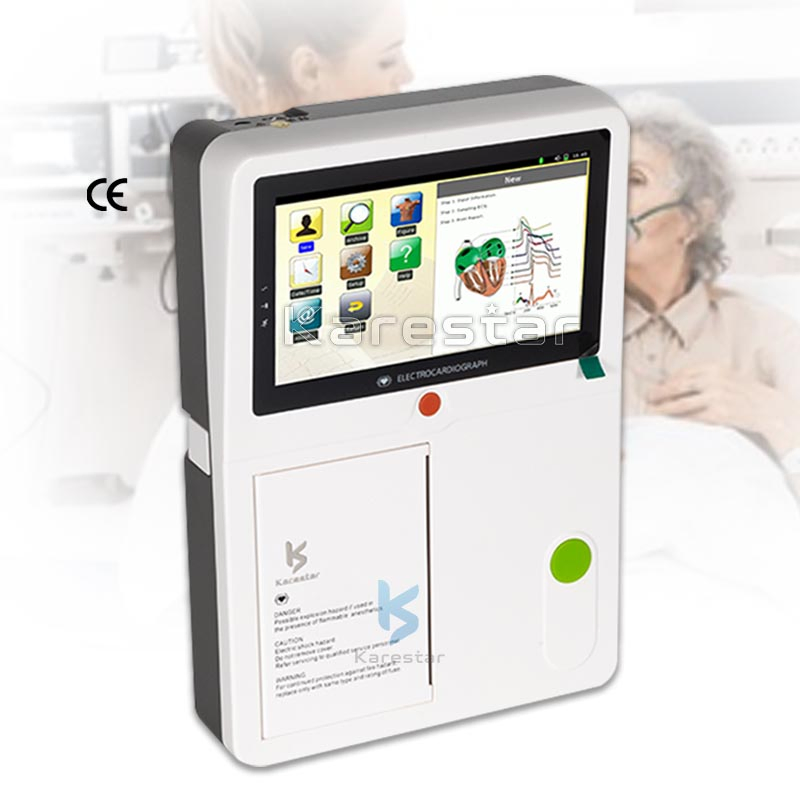

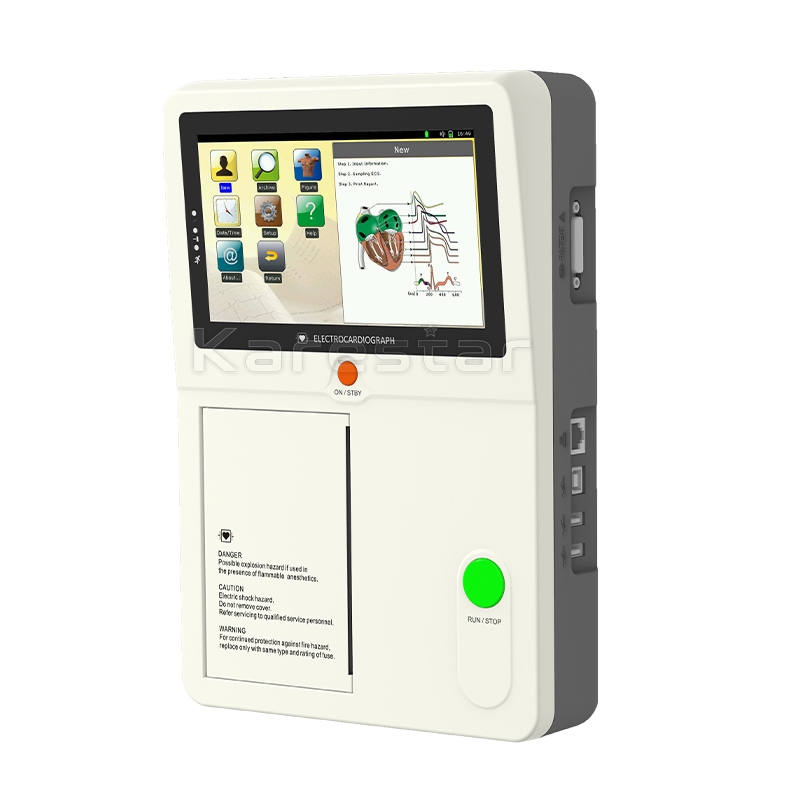

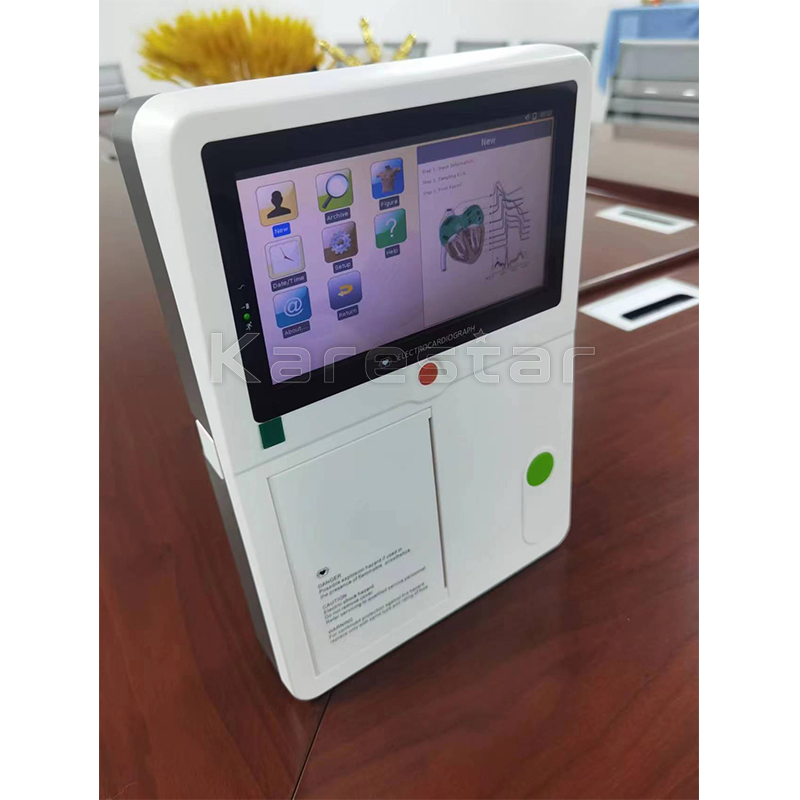

Professional Portable Electrocardiogram Equipment Electrocardiograph 3 Channel 12 Lead ECG Device

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	ECG

Send Inquiry

Product Description

Model NO.	K-EB63	Certification	CE, ISO13485
Group	Middle-aged and Old	Display	7'' Color Touch Screen
Rechargeable Battery	Built-in Li-ion (3-4 Hours)	Working Modes	Manual/Auto/Arrhythmia Analysis
Warranty	Lifetime	Printer Function	Thermal Printer (112mm)
Leads	Simultaneously Acquisition of 12 Leads	Classification	Class II
Detection	Lead off & Lack off Paper Detection	Storage	USB Flash Disk & SD Memory Support

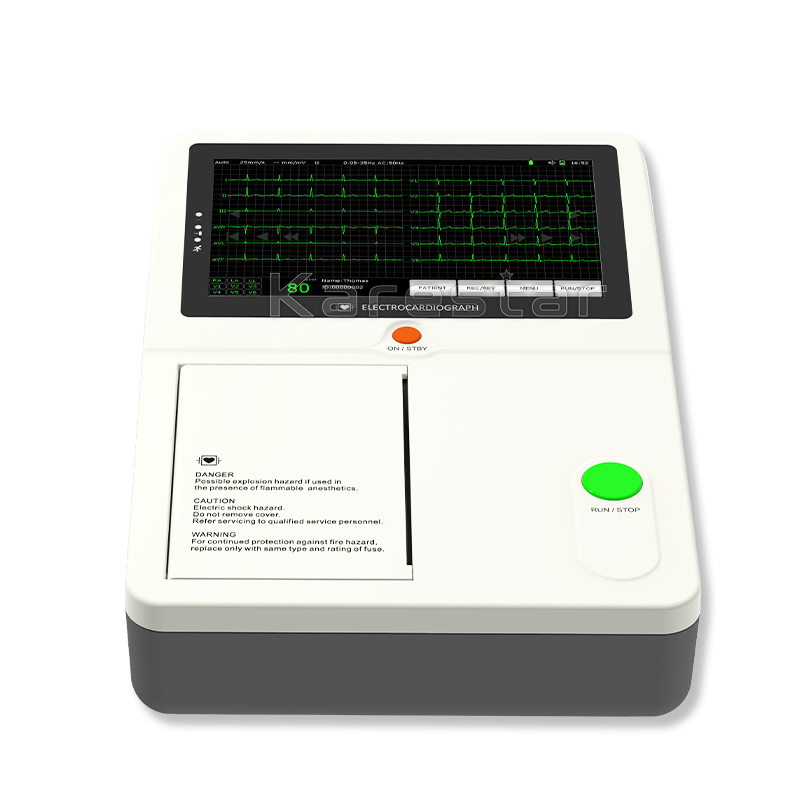

Professional Portable Electrocardiogram Equipment 3 Channel 12 Lead ECG Device

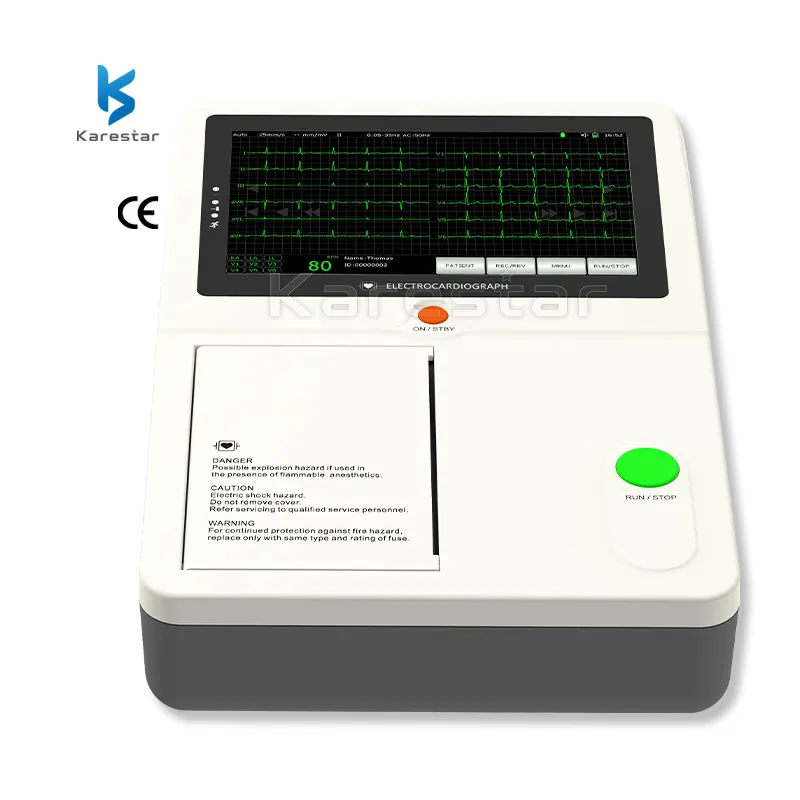

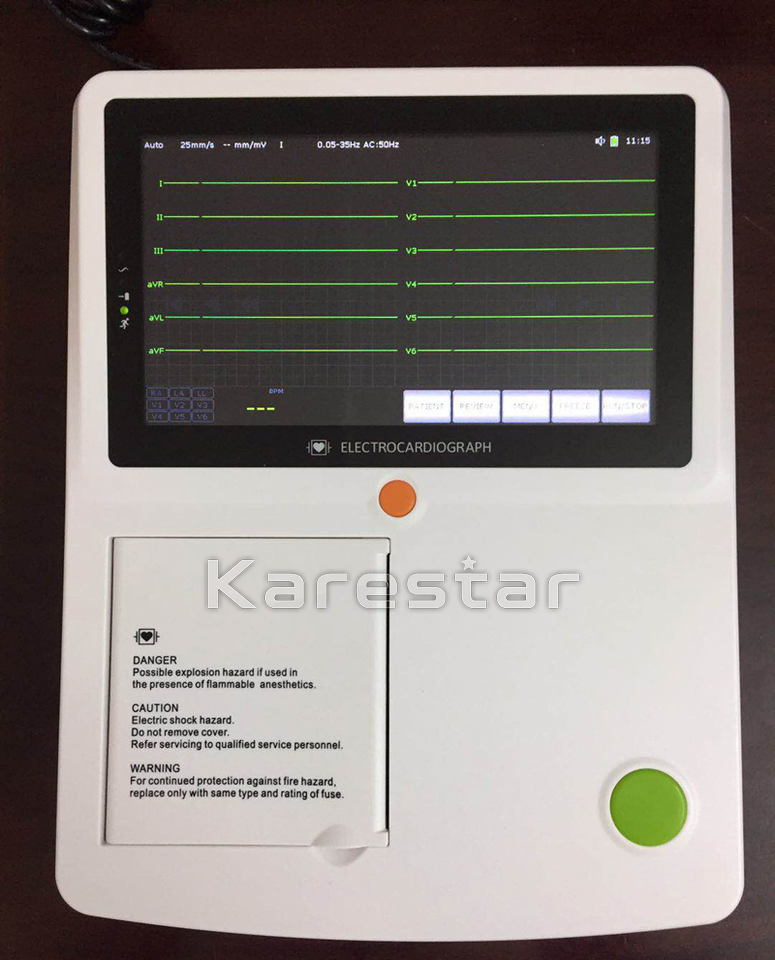

Simultaneously acquisition of 12 leads, full screen display of 6 channel ECG waveform.

7'' color touch screen for intuitive operation.

Built-in rechargeable li-ion battery for mobile use.

Automatic measurement, calculation, analysis, and diagnostic functions.

Historical data and patient information review and print support.

USB flash disk & SD memory support for PC analysis.

Sleep mode to save energy and extend TFT screen life.

Lead off & lack off paper detection function.

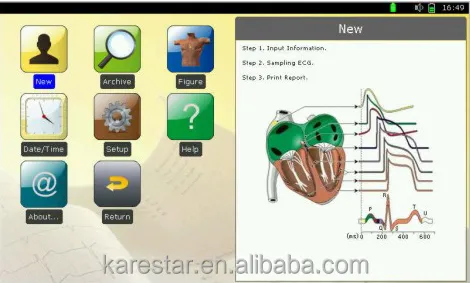

Touch Mode

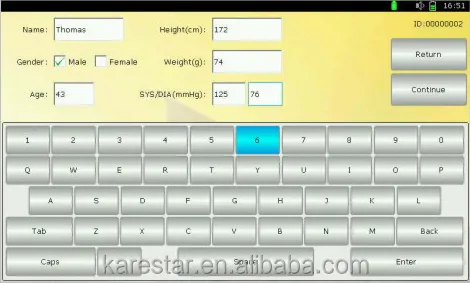

Quick Input

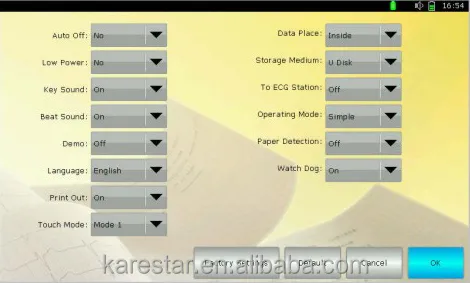

Convenient Setting

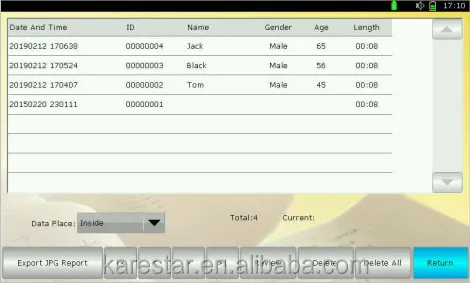

Unlimited Storage

CMRR	≥ 100dB, with AC Filter	Calibrating voltage	1mV± 3%
Input circuit	Floating,Protection against defibrillator	Voltage tolerance	± 500mV
Resolution	12bit/1000Hz	Frequent response	0.05Hz~150Hz
Noise level	≤ 15µ Vp-p	Paper speed	12.5, 25, 50mm/s (± 3%)
Sensitivity	5, 10, 20mm/mV	Battery	11.1V (2200mAh) Li-ion
