Basic Info.
Model NO.BW3B-V
CertificationISO13485
Standard ParameterECG, NIBP, SpO2, Temp, Pulse Rate
Transport PackageCarton Box
SpecificationISO13485
OriginChina
HS Code90181930
Production Capacity10000PCS/Year

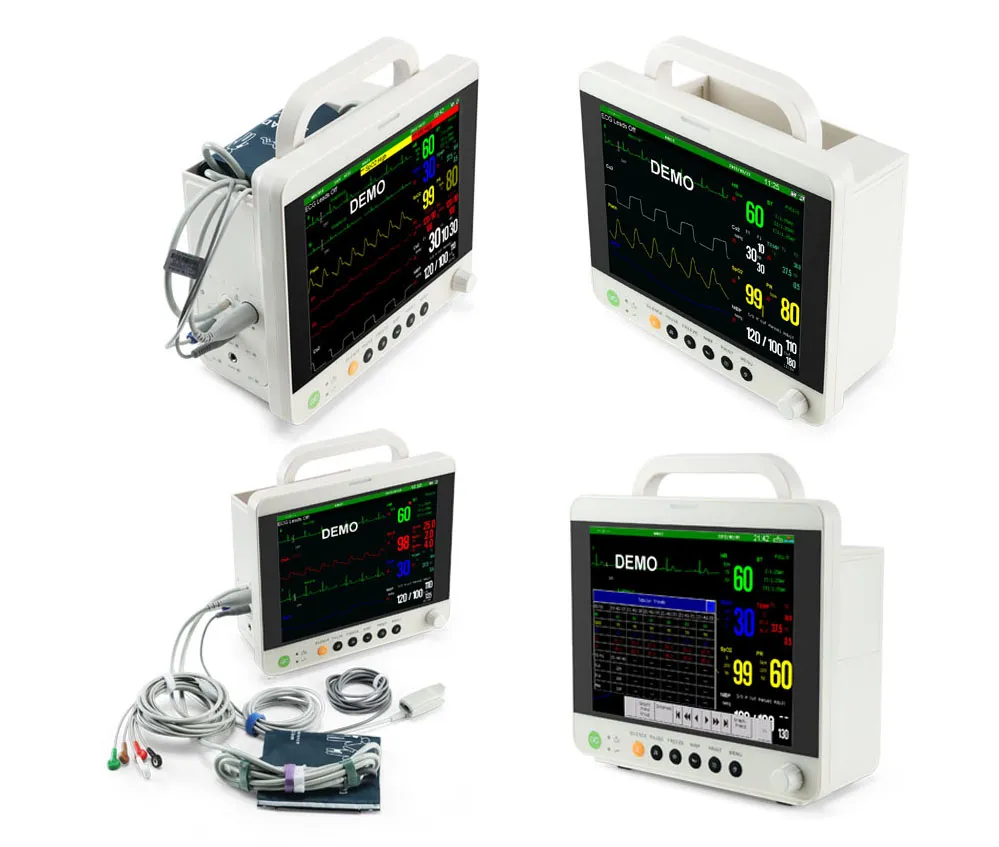

Attractive streamline outline design, portable, compact and lightweight

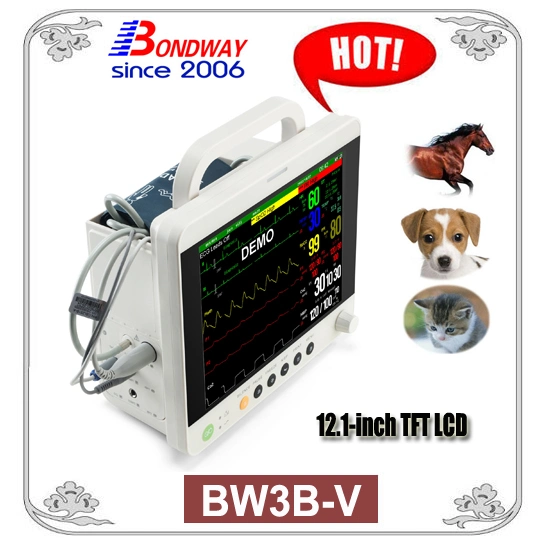

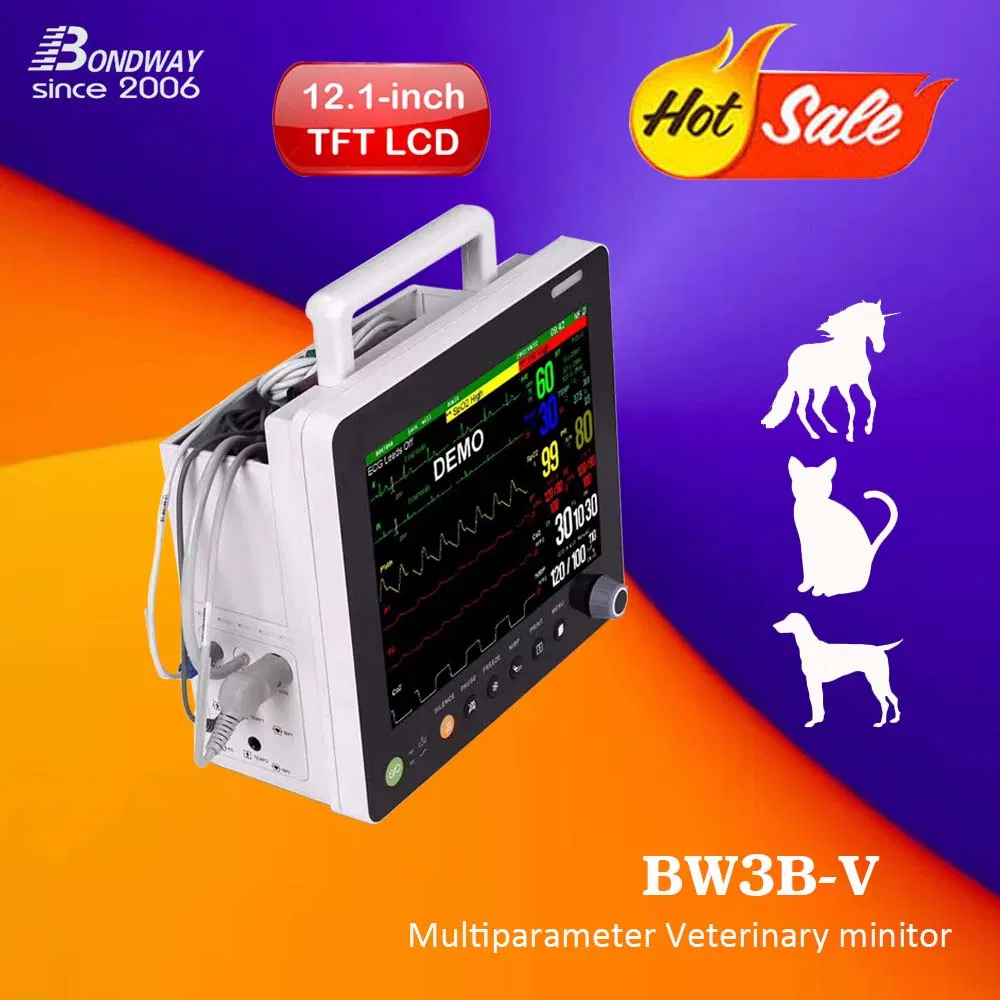

12.1" color TFT LCD display
Multi-language interface: English, Spanish, Portuguese, Chinese, French, German
Big Font Display & 72-hour tabular and graphic trends storage
ST segment Analysis and Apnea Alarm function
Drug Dose Calculation and OXCRG Software
High energy Li-ion battery for transport and power-down protection
Networking Capability (WAN) for central monitoring system
Linux Operation System for stable performance
Supports External display (VGA) and external printer
Dynamic Monitoring of blood pressure & Intelligent audio/visual alarm
Application: Horses, Cats, Dogs or Similar Sized Animals
Pacemaker detection and Arrhythmia Analysis (Optional)
📊 ECG
Input: 5 lead ECG cable
Lead section: I, II, III
Gain: 1/4, 1/2, 1, 2, 4 mm/Mv
Heart rate range: 0-350 BPM (± 1%)
Sweep speed: 12.5, 25, 50 mm/sec
Protection: Against electrosurgical interference and defibrillation
🌡️ TEMPERATURE & POWER
Temp Range: 25~45°C (77~113°F)
Accuracy: ± 0.2°C
Input Power: 98~260 V AC, 50/60Hz
Consumption: ≤ 80VA
Safety Standards: GB9706.1, IEC 60601-1, UL 544
Frequently Asked Questions
What types of animals is this monitor suitable for?
The BW3B-V is specifically designed for veterinary use, suitable for horses, dogs, cats, and similar sized animals.
What parameters can the BW3B-V monitor?
The standard parameters include ECG, NIBP (Non-Invasive Blood Pressure), SpO2, Temperature, Respiration, and Pulse Rate.
How large is the display screen?
The device features a 12.1-inch color TFT LCD display with a high-resolution interface and "Big Font" display option for clear viewing.
Does the monitor support data storage for long-term observation?
Yes, it provides 72-hour tabular and graphic trends and data storage for comprehensive diagnosis and monitoring.
Can I connect this monitor to an external screen or printer?
Yes, it has a VGA interface for external displays and is connectible to an external printer for recording trends and data.
Is the interface available in different languages?
The operation menu supports multiple languages including English, Spanish, Portuguese, Chinese, French, and German.
