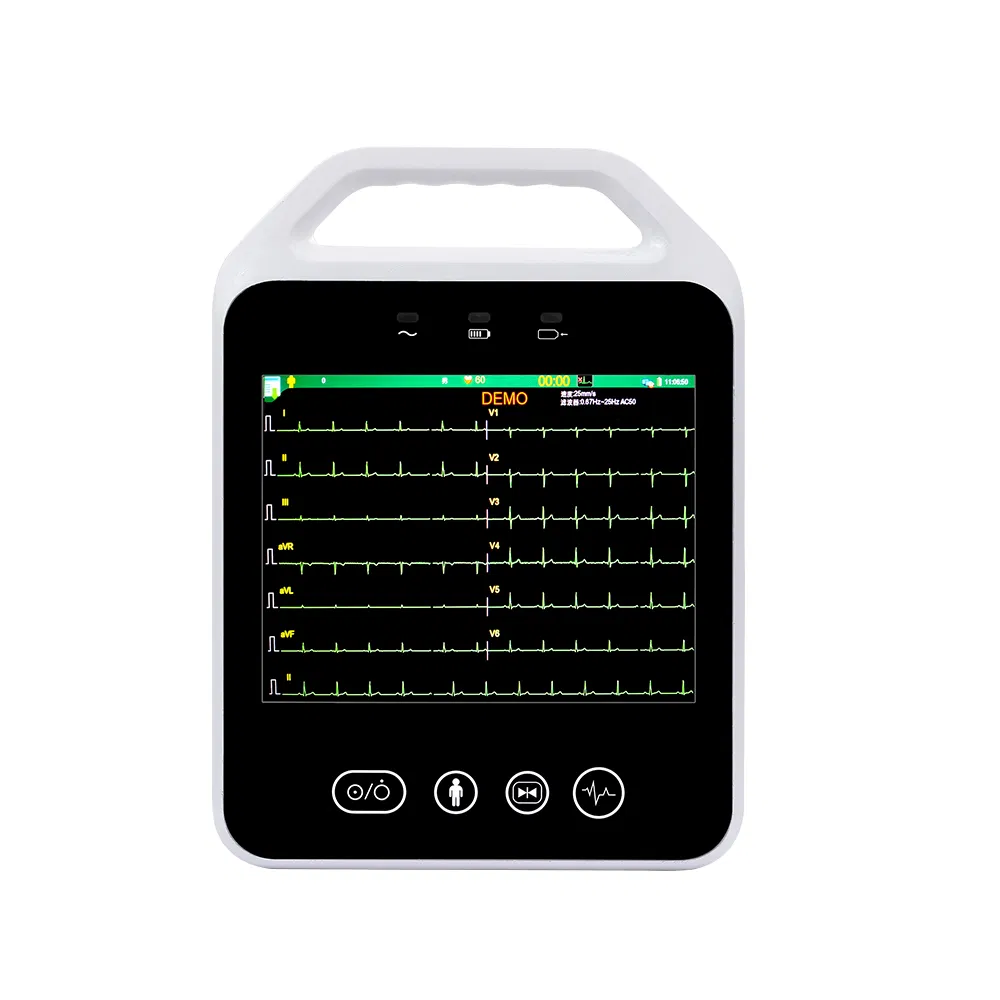

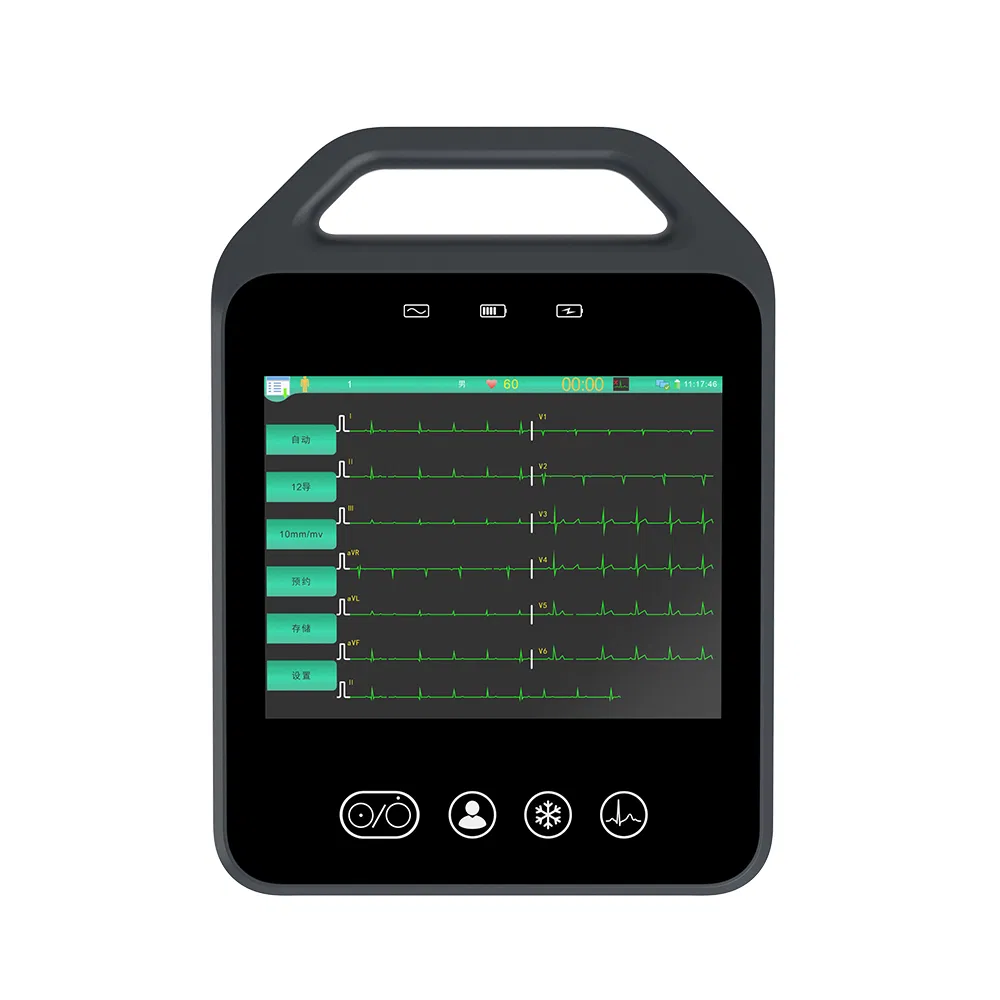

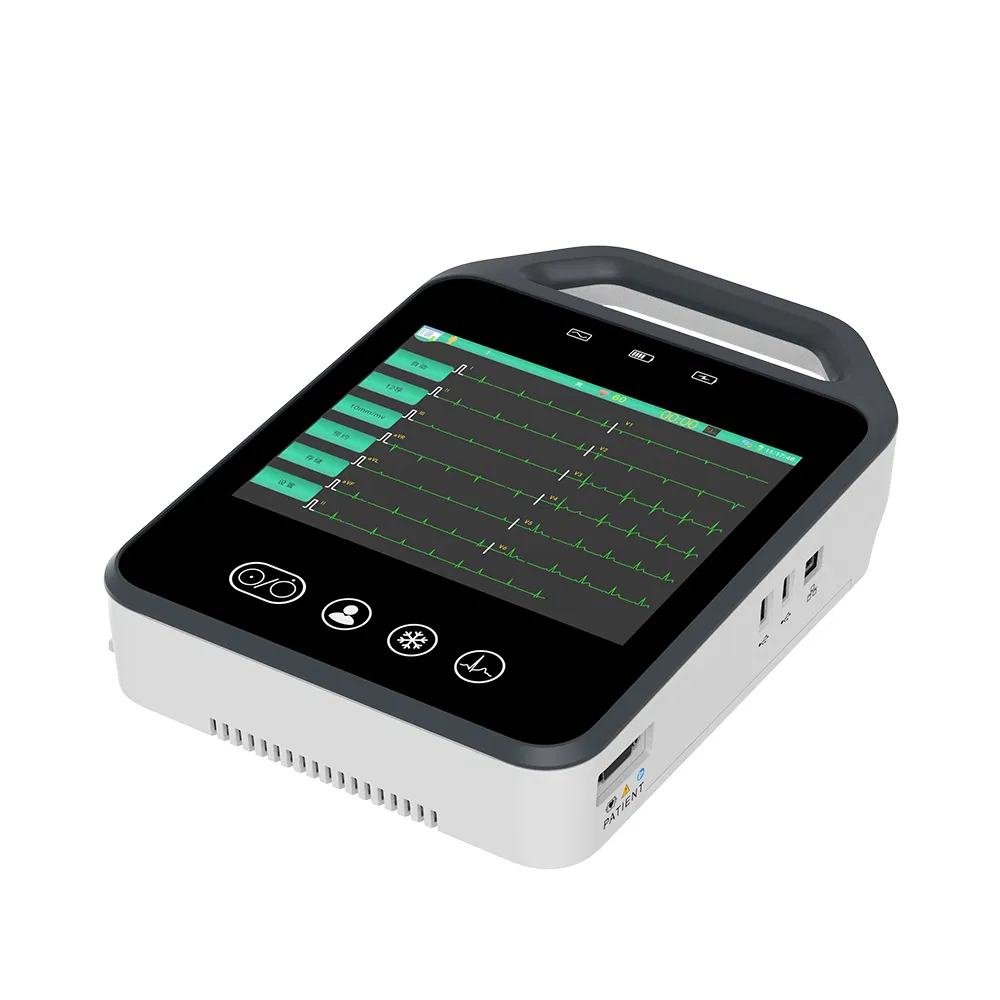

Portable 12 Channel ECG Machine/Medical Device with with WiFi/LAN Connection

Portable 12 Channel ECG Machine/Medical Device with with WiFi/LAN Connection

Portable 12 Channel ECG Machine/Medical Device with with WiFi/LAN Connection

Portable 12 Channel ECG Machine/Medical Device with with WiFi/LAN Connection

Portable 12 Channel ECG Machine/Medical Device with with WiFi/LAN Connection

1 / 5

Portable 12 Channel ECG Machine/Medical Device with with WiFi/LAN Connection

Portable 12 Channel ECG Machine/Medical Device with with WiFi/LAN Connection

Portable 12 Channel ECG Machine/Medical Device with with WiFi/LAN Connection

Portable 12 Channel ECG Machine/Medical Device with with WiFi/LAN Connection

Portable 12 Channel ECG Machine/Medical Device with with WiFi/LAN Connection

Portable 12 Channel ECG Machine/Medical Device with with WiFi/LAN Connection

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	ECG

Send Inquiry

Product Description

📋

Basic Information

Model NO.	Andes iECG12A
Certification	CE, ISO13485
Group	All
Product	12 Channel ECG Machine
Screen Size	10 Inch Touch Screen
Machine Size	355mm261mm84mm
Weight	3.4 Kg (Battery Included)
Storage	1000 ECG Data
Warranty	18 Months
Data Transmission	WiFi/ LAN Connection

🖼️

Product Overview

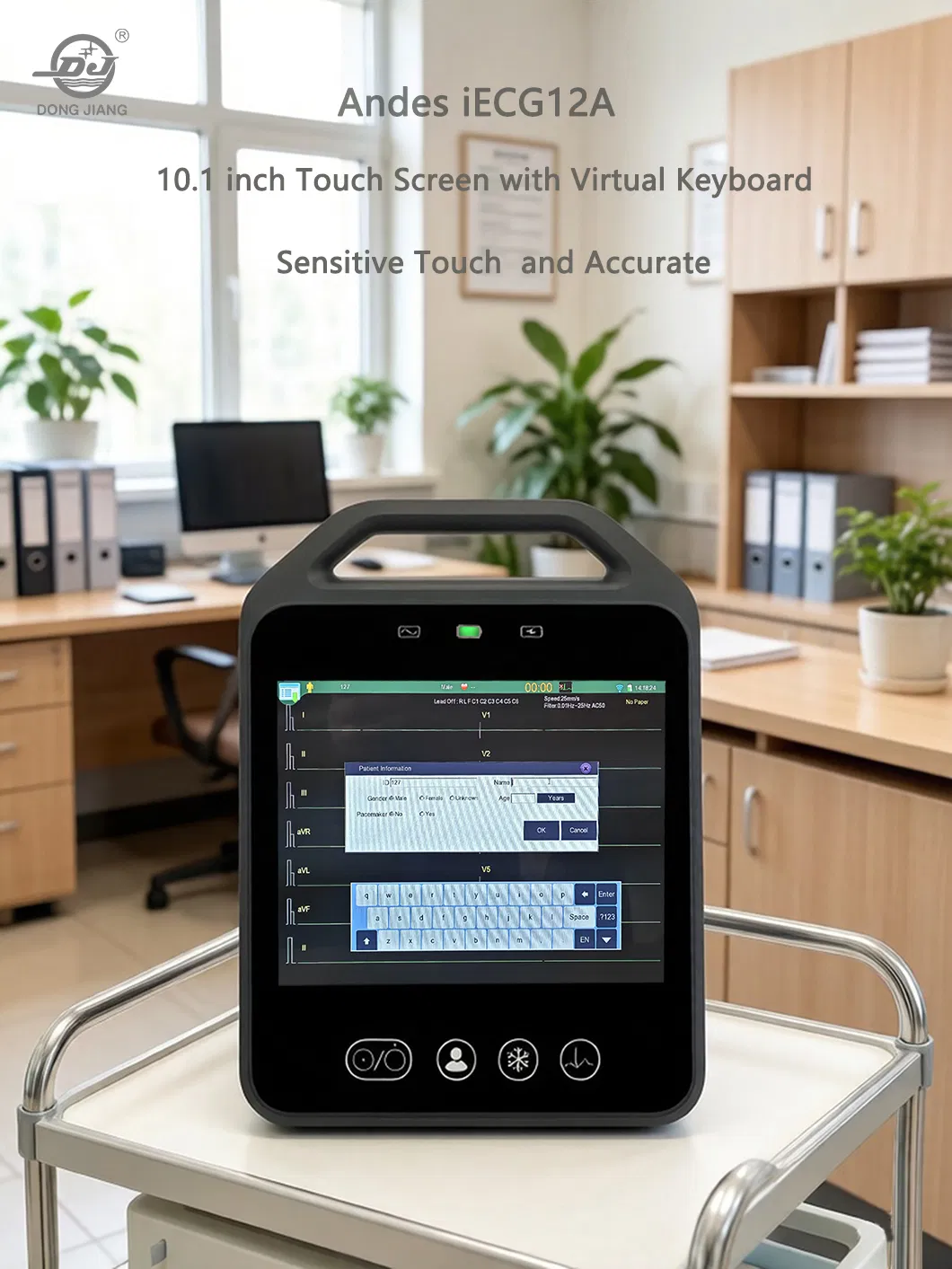

ECG Machine View 1

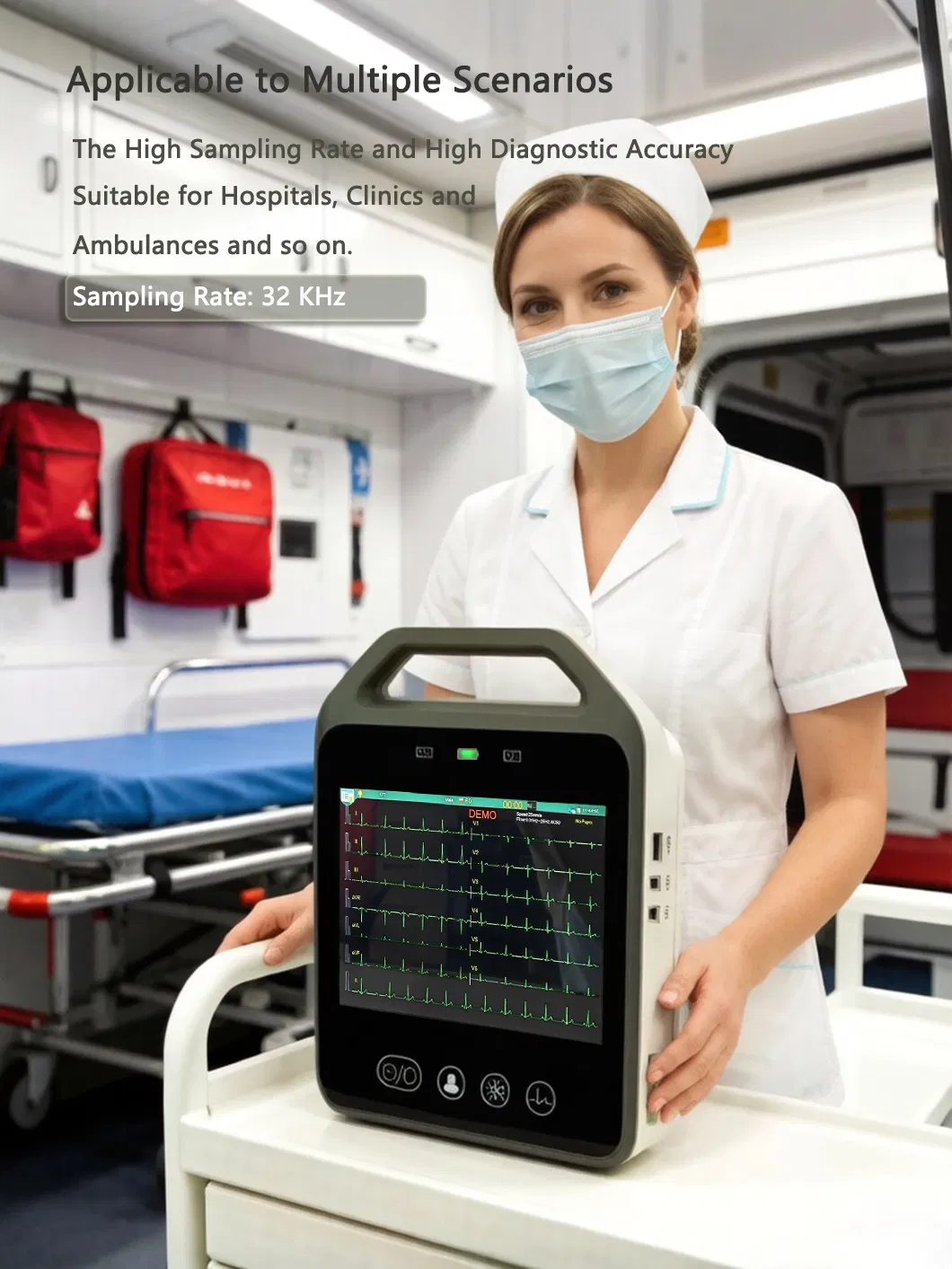

ECG Machine View 2

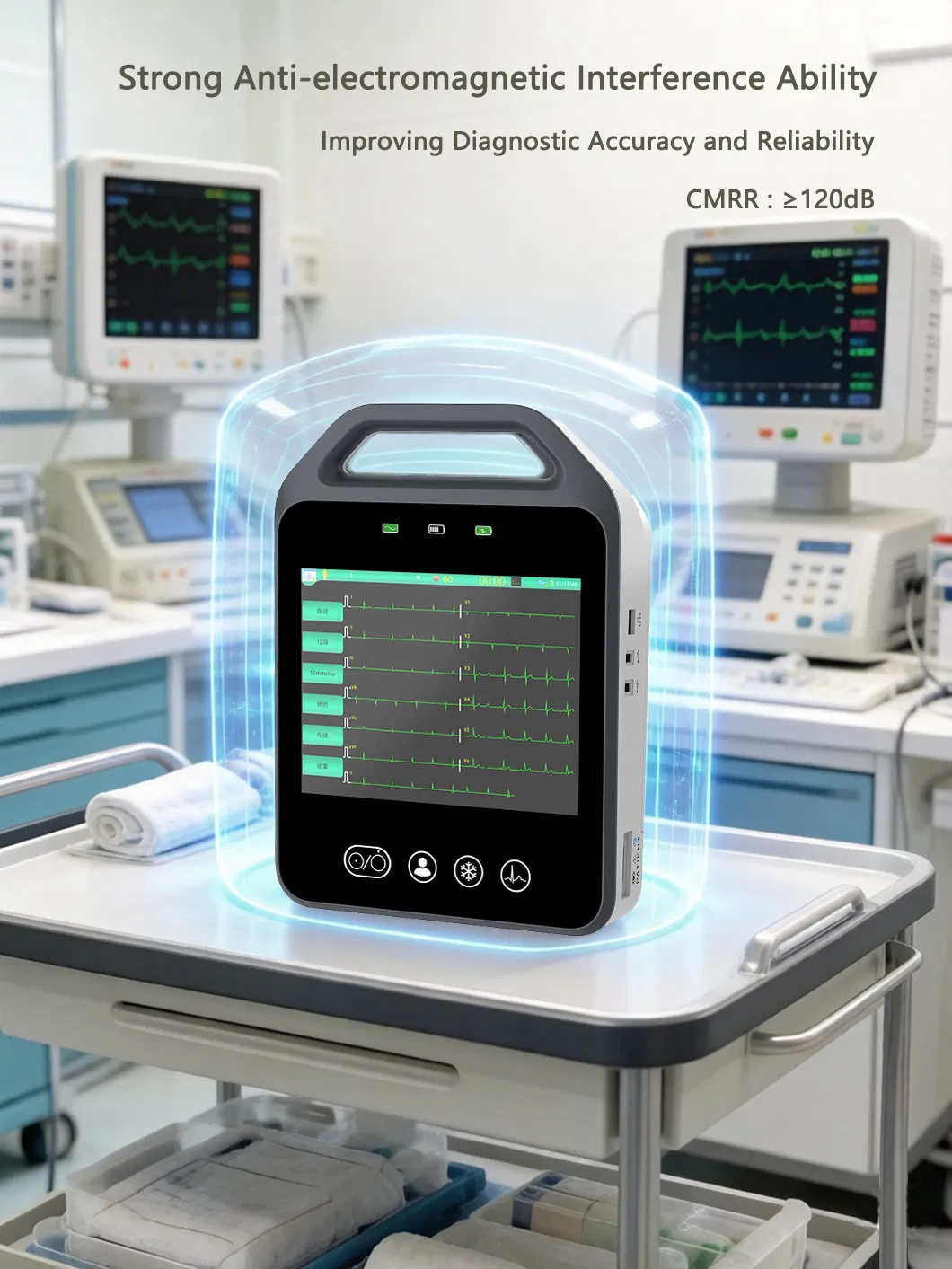

ECG Machine View 3

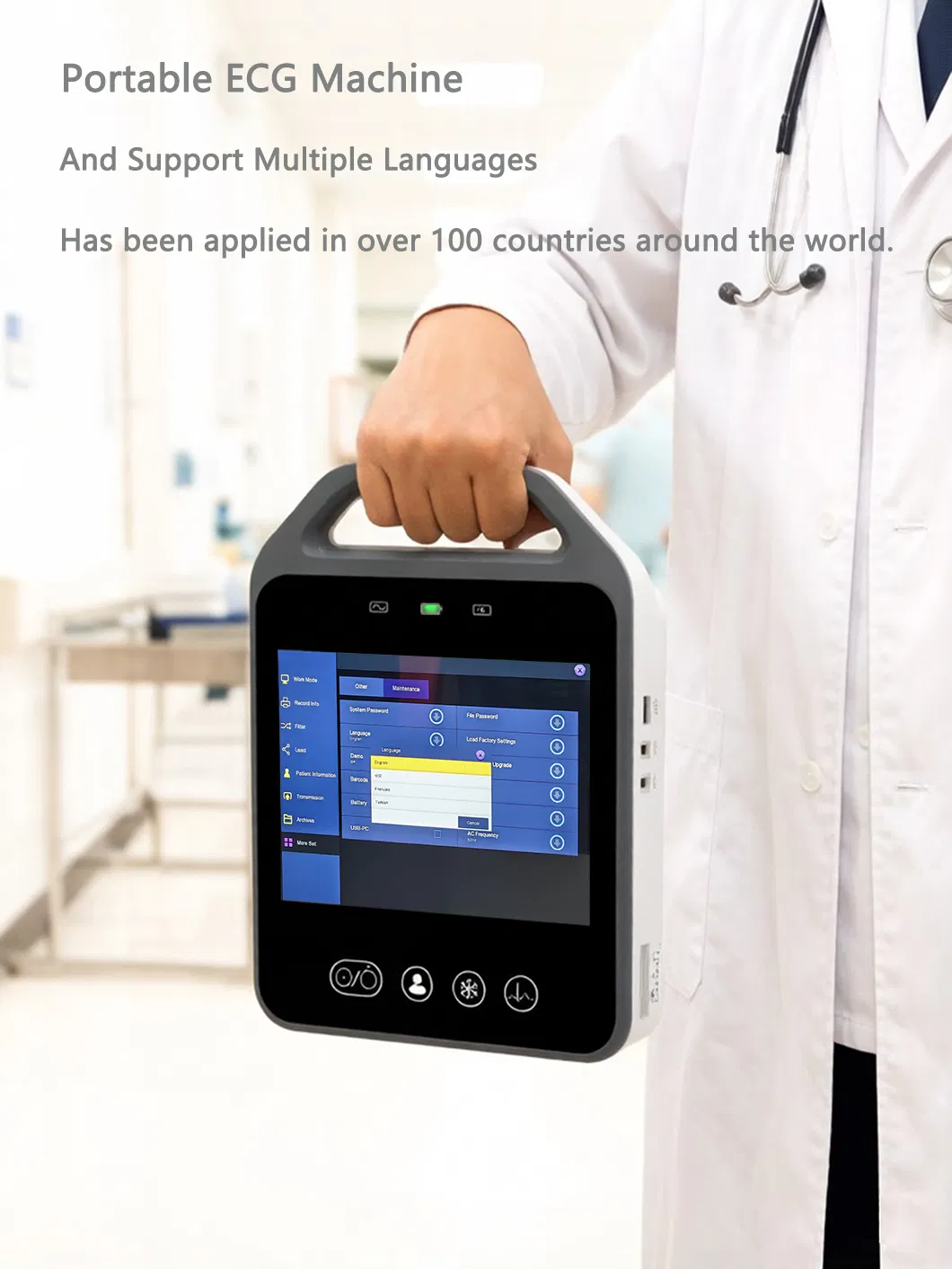

ECG Machine View 4

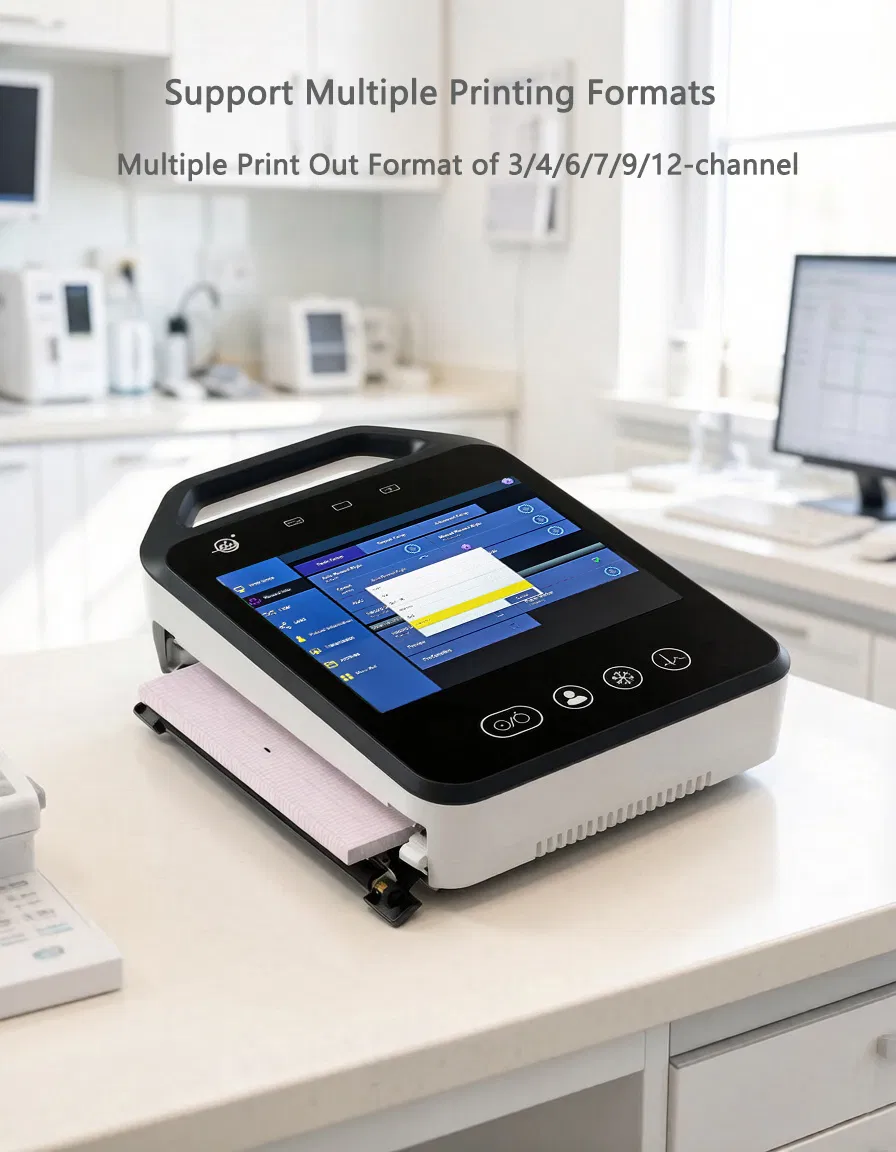

ECG Machine View 5

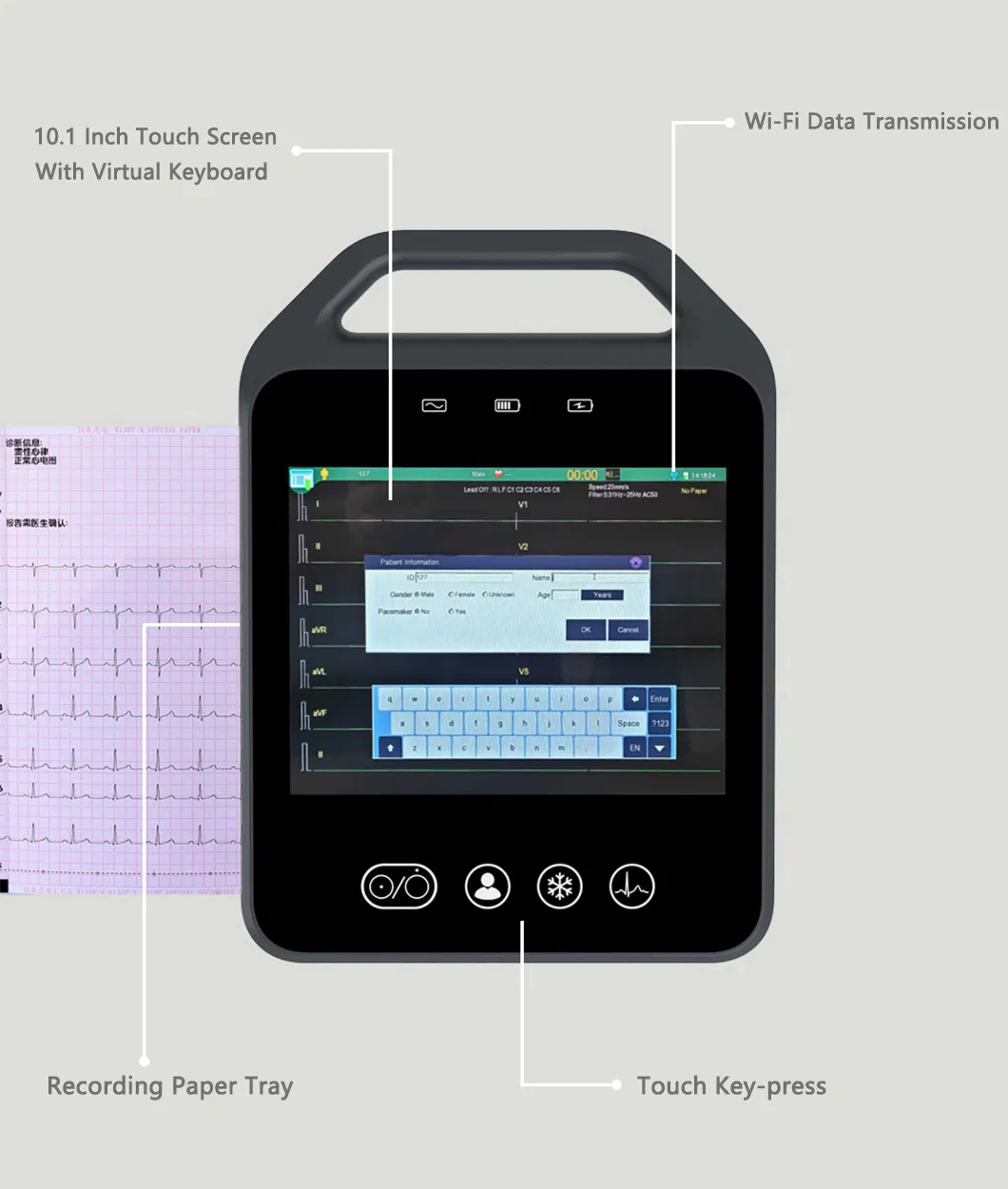

ECG Machine View 6

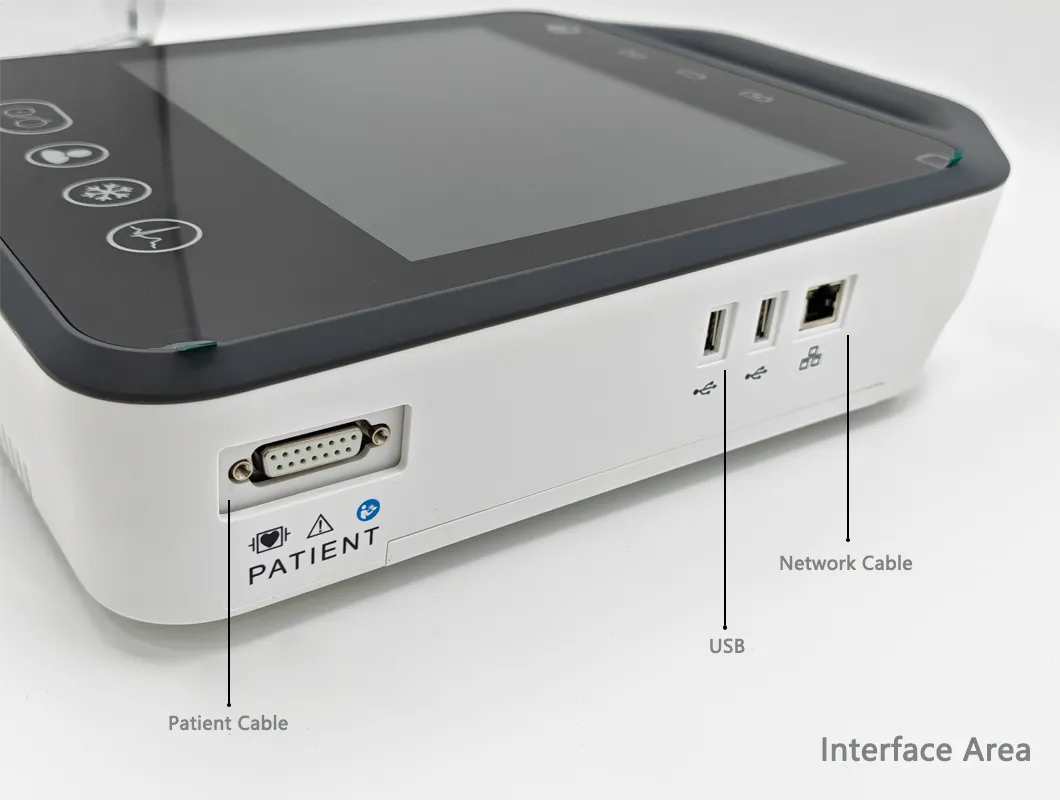

ECG Machine View 7

⚙️

Product Parameters

Leads	9/12 leads simultaneous acquisition
Sampling Rate	32000 Hz/Channel/second
HR Range	30 ~ 300 bpm
Time Constant	≥ 3.2s
Input Impedance	> 70MΩ
Frequency Response	0.01 ~320 Hz
Filter	EMG/Low Pass: 5/35/45/75/100/150/270/300Hz
Pacemaker Detection	Amplitude: ±750uV ~ ±750mV , Width: 50 us ~ 2 ms
LCD Display	10.1 inch TFT color LCD touch screen
Recording Paper	Rolling: 210mm × 20/30m; Z-fold: 210×295mm
CMRR	≥120 dB

📦

Packaging & Shipping

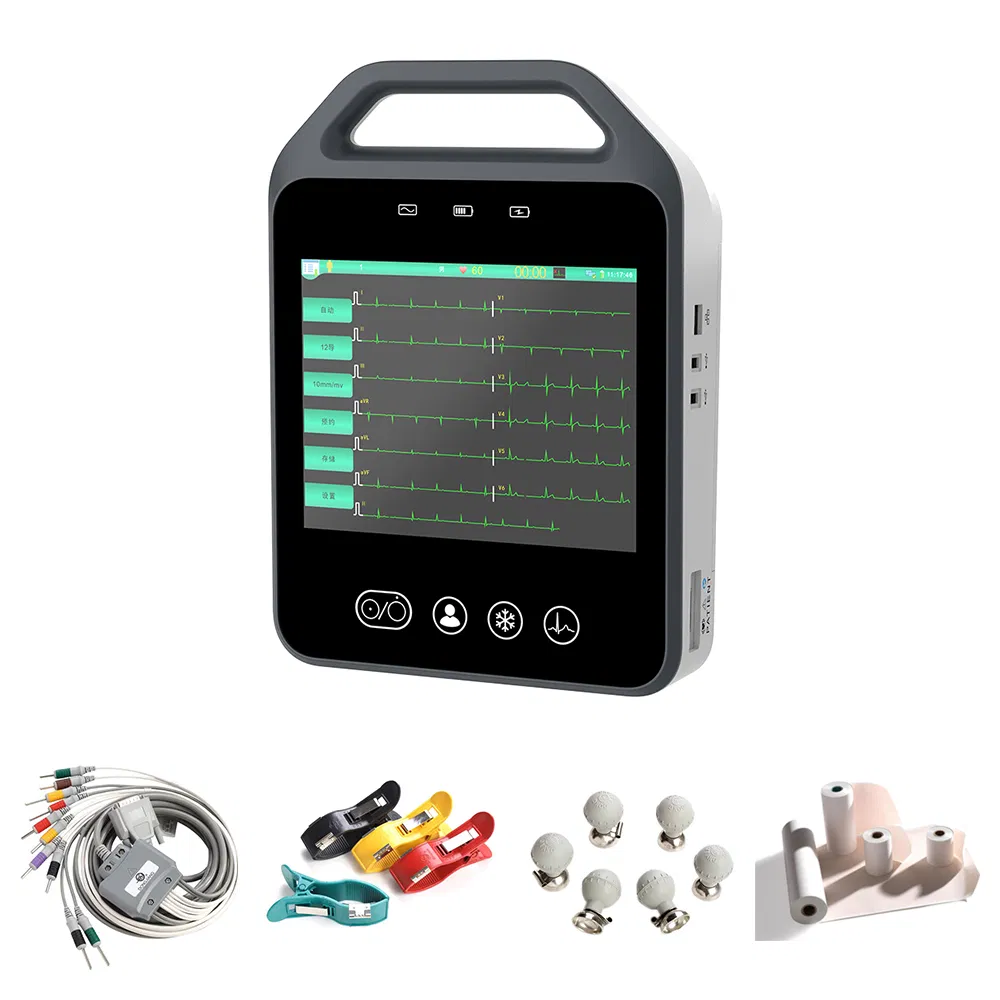

Package List:

1* Andes iECG12A Machine
1* Patient cable
1* Thermal recording paper
1* Power cord & Adapter
1* Grounding cable
1set* Limb electrode (4PCS)
1set* Chest electrode (6PCS)
1* User manual & Warranty
1* Certificate of Qualification

Packaging Detail 1

Packaging Detail 2

Packaging Detail 3

Packaging Detail 4

❓

Frequently Asked Questions

Q1: How many channels does the Andes iECG12A support?

A: It is a professional 12-channel ECG machine that supports 9/12 leads simultaneous acquisition.

Q2: What is the benefit of the 32000 Hz sampling rate?

A: A high sampling rate of 32000 Hz per channel ensures highly accurate signal capture and superior waveform quality for precise diagnosis.

Q3: Does it support wireless data transmission?

A: Yes, the device is equipped with both WiFi and LAN connections for seamless data transmission and integration.

Q4: How many ECG records can the device store?

A: The internal storage can save up to 1000 individual ECG data sets.

Q5: Can it be used without a direct power outlet?

A: Yes, it includes a built-in rechargeable 4400mAh lithium battery that can support up to 400 examinations on a full charge.

Q6: What type of display does the machine have?

A: It features a large 10.1-inch TFT color LCD touch screen for easy operation and clear waveform visualization.
