Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Type: Patient Monitor
Send Inquiry

Product Description

Basic Specifications
Model NO.
BW3B
Certification
ISO13485
Standard Parameters
ECG, NIBP, SpO2, Temp, Pulse Rate
Transport Package
Standard Export Packing
HS Code
9018193000
Capacity
10000PCS/Year

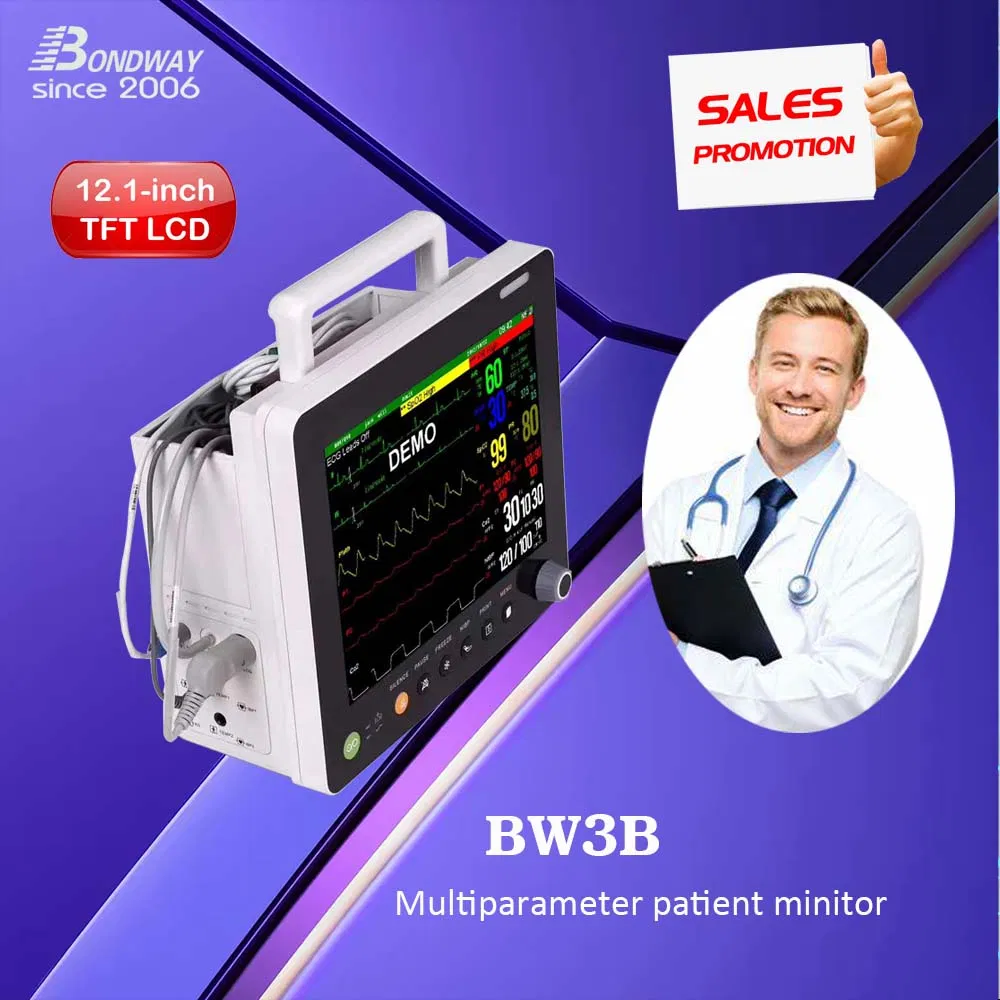

Multiparameter Patient Monitor

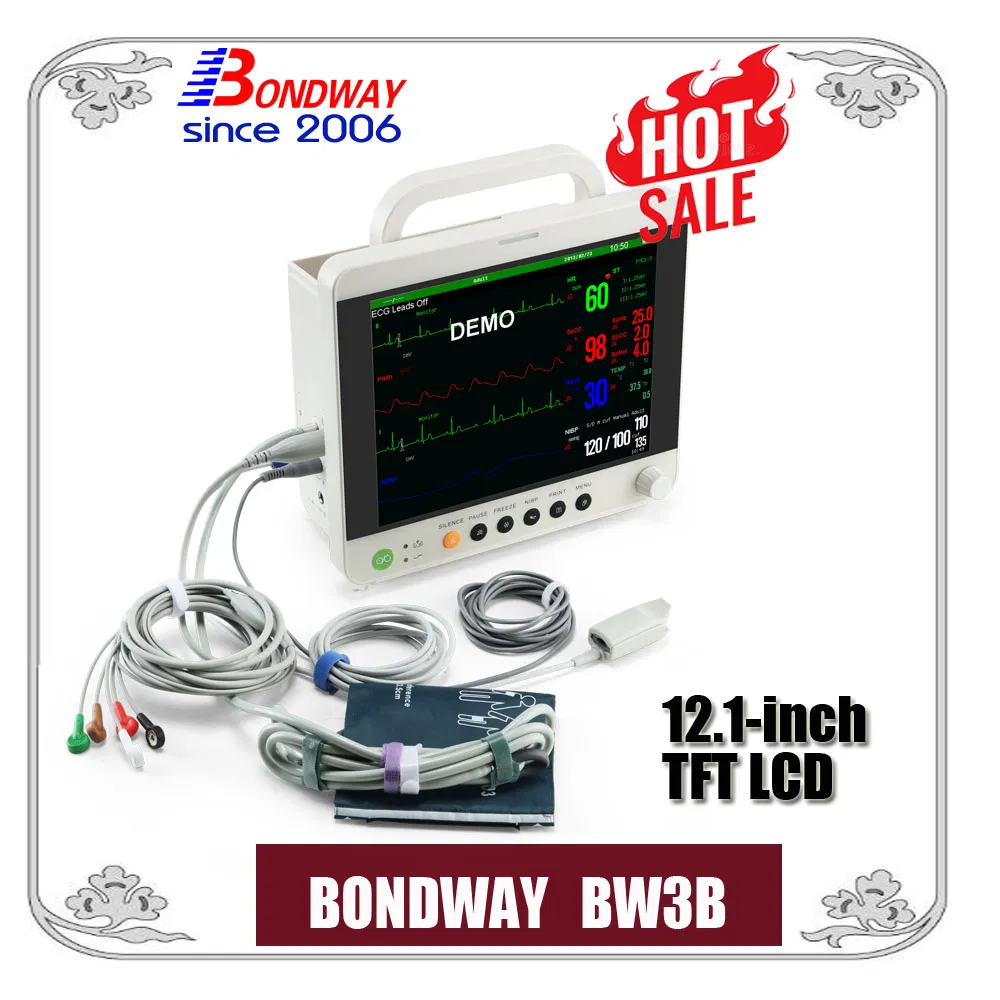

Model No: BW3B (12.1-inch TFT LCD Display)

Multiparameter Patient Monitor BW3B

Key Features:

Attractive streamline outline design, portable, compact and lightweight
12.1" color TFT LCD display for clear visualization
Multi-language interface: English, Spanish, Portuguese, Chinese, French, German
Big Font Display for long-distance observation
ST segment Analysis and Apnea Alarm function
Drug Dose Calculation and OXCRG Software included
72-hour tabular and graphic trends and data storage
High energy Li-ion battery for transport and power-down protection
WAN communication for central monitoring and remote diagnosis
Linux Operation System for stable performance
External display (VGA) and printer connectivity
Intelligent audio and visual alarms
Universal Application: Adult, Pediatric and Neonate patients
Patient Monitor UI
NIBP Monitoring
Technical Specifications

ECG

Lead: 5 lead (I, II, III, aVR, aVL, aVF, V)
Heart Rate: 20-254 BPM
Sweep Speed: 12.5, 25, 50 mm/sec
Protection: Against electrosurgical interference

NIBP

Method: Automatic Oscillometric
Mode: Manual / Auto / STAT
Range: Systolic 4.0-37.0 kPa / Mean 2.6-35.0 kPa

SpO2 & TEMP

SpO2 Range: 0 - 100% (Accuracy ± 2%)
Pulse Rate: 30 - 254 BPM
Temp Channel: Two Channels (29-45°C)

Respiration

Method: Impedance
Range: 0 - 120 BPM
Connection: RA & LL or RA & RA

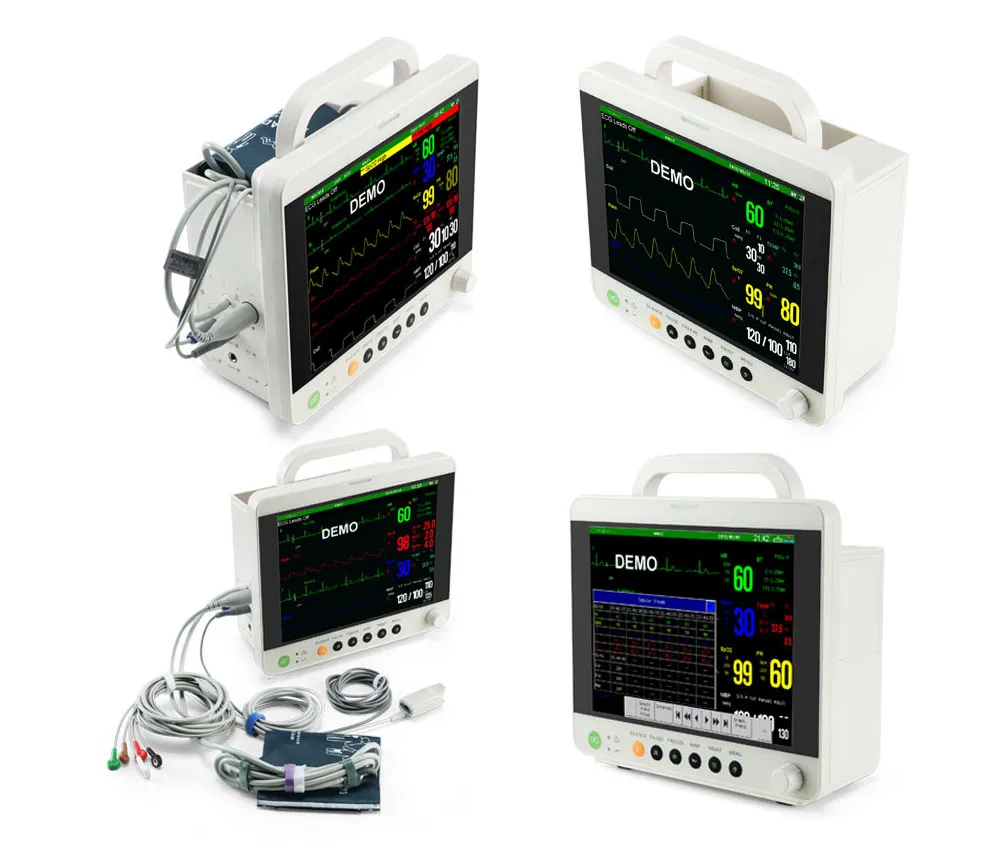

Patient Monitoring System Details
Patient Monitor Accessories
Optional Modules
EtCO2
Side Stream, 0% - 10.0%, Display Waveform & FiCO2
2-IBP
2 Channels, SYS/DIA/MAP/Pulse Rate
Recorder
Built-in Thermal Recorder (Waveform/Text)
Power Requirements

Input: 98~260 V AC, 50/60Hz

Consumption: ≤ 80VA

Safety Standards: GB9706.1 IEC 60601-1 UL 544

Frequently Asked Questions
What are the standard monitoring parameters for the BW3B?
The BW3B standardly monitors ECG, NIBP (Non-Invasive Blood Pressure), SpO2, Temperature, and Pulse Rate.
Is the BW3B patient monitor suitable for neonates?
Yes, the device is designed for a wide range of applications, including Adult, Pediatric, and Neonate patients, with appropriate probes provided.
How long can the device store patient trend data?
The system provides 72-hour tabular and graphic trend storage, allowing medical staff to review historical patient data easily.
Does the monitor support central station networking?
Yes, it features WAN communication capabilities, allowing it to network with a central monitoring system for long-distance diagnosis and maintenance.
What kind of display does the BW3B use?
It is equipped with a 12.1-inch high-resolution color TFT LCD display with a Big Font mode for clear visibility from a distance.
Are there optional modules available for advanced monitoring?
Yes, you can optionally add EtCO2 (Side Stream), 2-Channel IBP (Invasive Blood Pressure), and a built-in Thermal Recorder.
