Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Type: ECG
Send Inquiry

Product Description

Basic Information
Model NO.
MY-H012
Certification
CE
Group
Middle-aged and Old
Number of Channels
12 Channels
Sampling Accuracy
12bit
Record Time
24 H
Scale Voltage
1mv± 5%
Standard Sensitivity
10mm/Mv± 5%
Scan Speed
25mm/S± 5%
Production Capacity
300 PCS / Month
Product Description

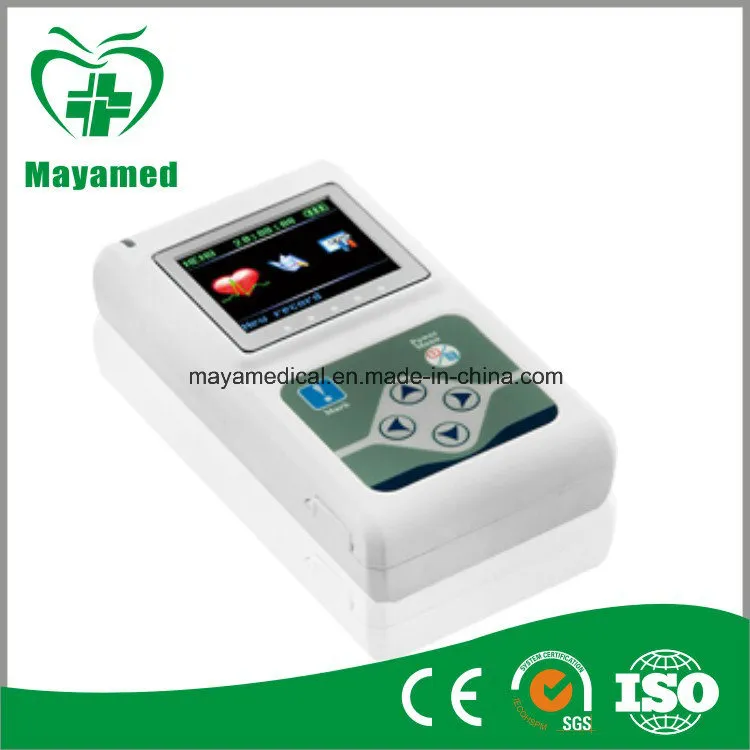

MY-H012 12 Channel Holter ECG Monitor System

12 Channel Holter ECG Monitor System
ℹ
Brief Introduction:

The Dynamic ECG System adapts international standard 12-lead system, capable of continuous 24-hour recording of ECG waves. Data analysis is performed via specialized PC software, making it an essential tool for hospitals and community medical establishments.

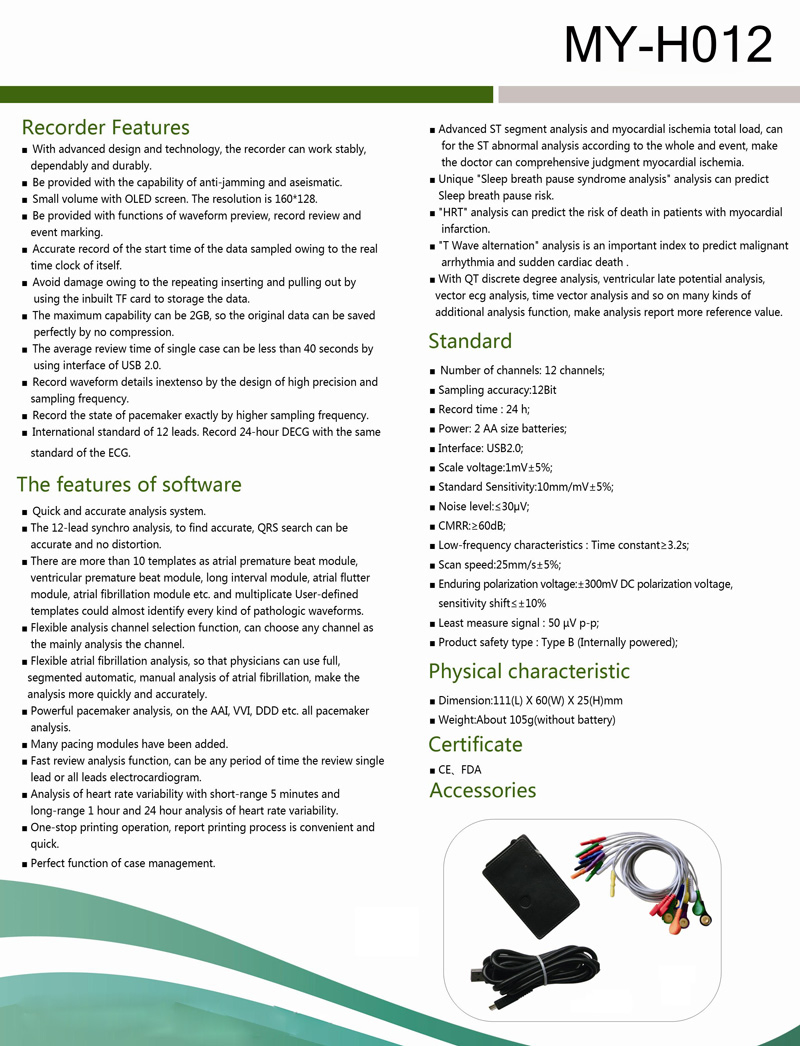

Recorder Key Features
  • Advanced anti-jamming and aseismatic design for stable, durable operation.
  • Compact volume featuring an OLED screen with 160*128 resolution.
  • Waveform preview, record review, and event marking capabilities.
  • Real-time clock ensures accurate data sampling start times.
  • Inbuilt TF card storage (up to 2GB) allows for non-compressed, perfect data saving.
  • Fast data transfer via USB 2.0 interface (average review time under 40 seconds).
  • High precision and sampling frequency for recording detailed waveforms and pacemaker states.
Advanced Analysis Software
📊
Quick & Accurate Analysis:

Synchronous 12-lead analysis for precise QRS searching without distortion. Includes over 10 templates (atrial premature beat, ventricular premature beat, long interval, atrial flutter, atrial fibrillation, etc.).

❤️
Specialized Modules:

Flexible atrial fibrillation analysis, powerful pacemaker analysis (AAI, VVI, DDD), and Heart Rate Variability (HRV) analysis (5-minute, 1-hour, and 24-hour ranges).

🔍
Diagnostic Indices:

Includes ST segment analysis, Myocardial Ischemia load, Sleep Breath Pause Syndrome analysis, HRT (Heart Rate Turbulence), and T-Wave Alternation for predicting cardiac risks.

Technical Specifications
Parameter Details
Sampling Accuracy12Bit
Noise Level≤ 30μ V
CMRR≥ 60dB
Time Constant≥ 3.2s
Polarization Voltage± 300mV DC
Least Measure Signal50 µ V p-p
Power Supply2 AA size batteries
Safety TypeType B (Internally powered)
Dimensions111mm(L) * 60mm(W) * 25mm(H)
WeightApprox. 105g (without battery)

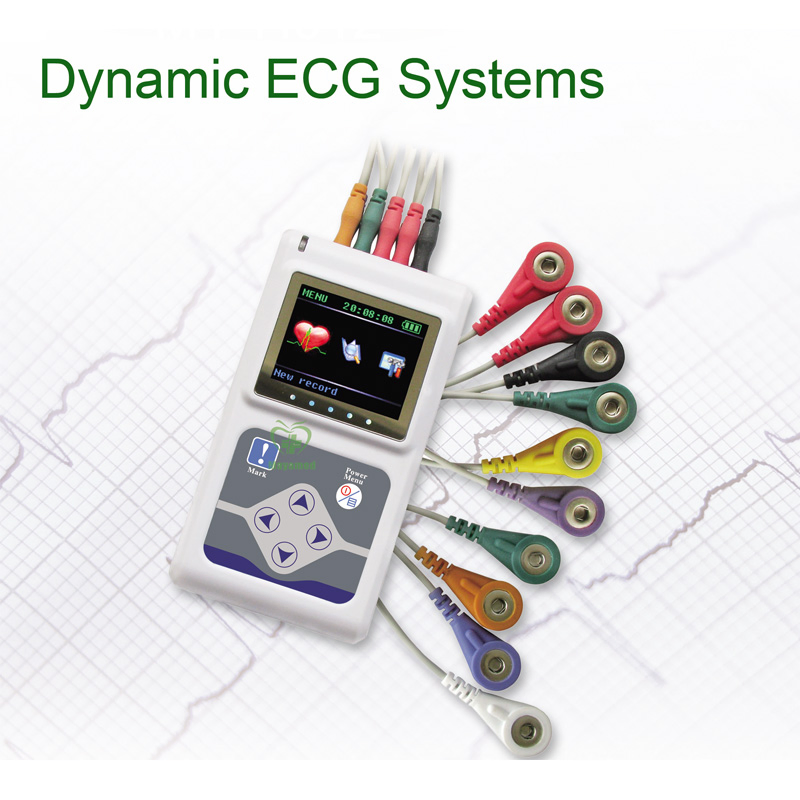

Standard Accessories
12-lead ECG lead wires (1 set)
ECG electrodes (1 bag/20 pcs)
USB Data line (1)
Software Disk (1) & Softdog
Carrying Bag (1)
User Manual (1)
Logistics Information
Packaging Standard export corrugated paper board cartons or wooden box
Pallet Plastic / Wooden pallet options
Shipping Methods By Sea, Air, or Express Courier (DHL, FEDEX, UPS, TNT)
Frequently Asked Questions
How long can the MY-H012 record ECG data?
The system is designed for continuous 24-hour recording using international standard 12-lead systems.
What type of storage does the device use?
It uses an inbuilt TF card with up to 2GB capacity, ensuring data is saved perfectly without compression.
Is the software capable of analyzing specialized cardiac conditions?
Yes, the software includes advanced modules for Atrial Fibrillation, Pacemaker analysis, ST segment changes, Sleep Apnea, and Heart Rate Turbulence (HRT).
How is the data transferred to a computer?
The device features a USB 2.0 interface, allowing for high-speed data transfer. A full case review typically takes less than 40 seconds.
What is the display specification of the recorder?
The recorder is equipped with a high-resolution OLED screen (160x128) for clear waveform previews and event marking.
What power source does the device require?
The device is powered by 2 standard AA size batteries, making it easy to maintain during long-term monitoring.
