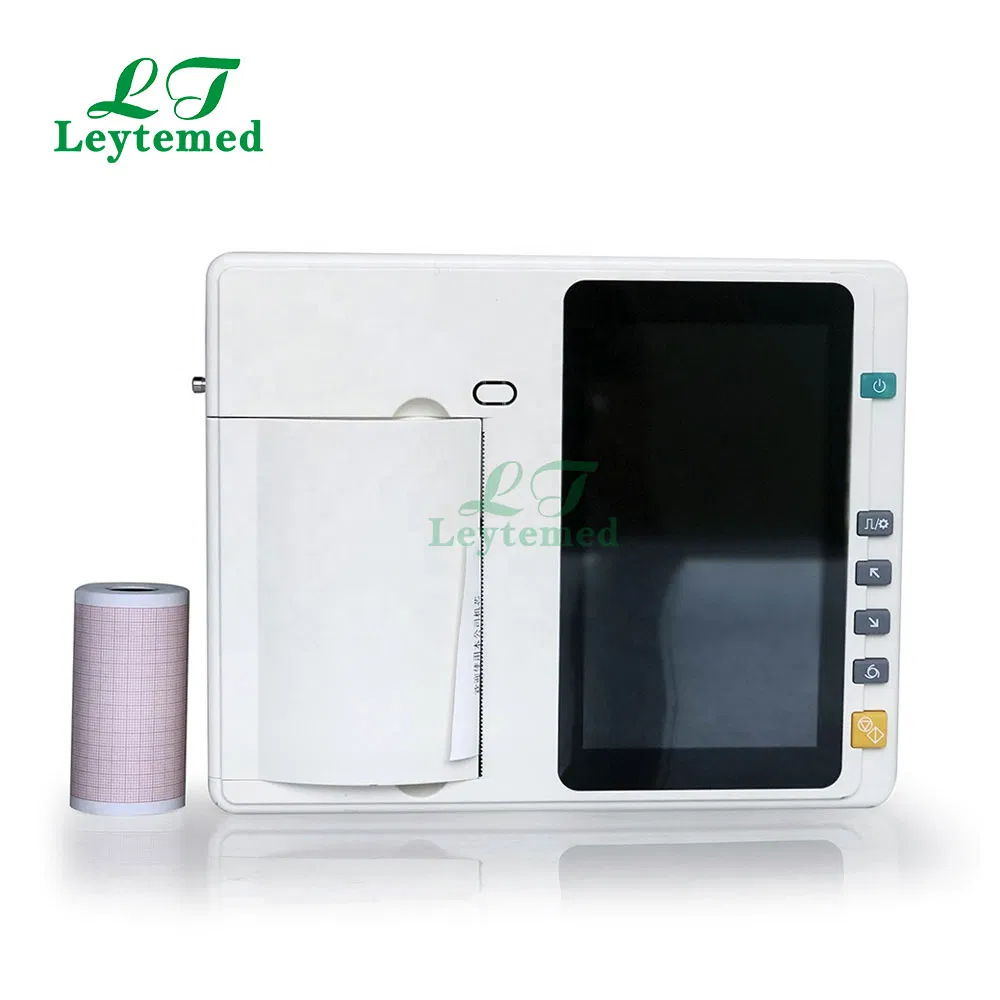

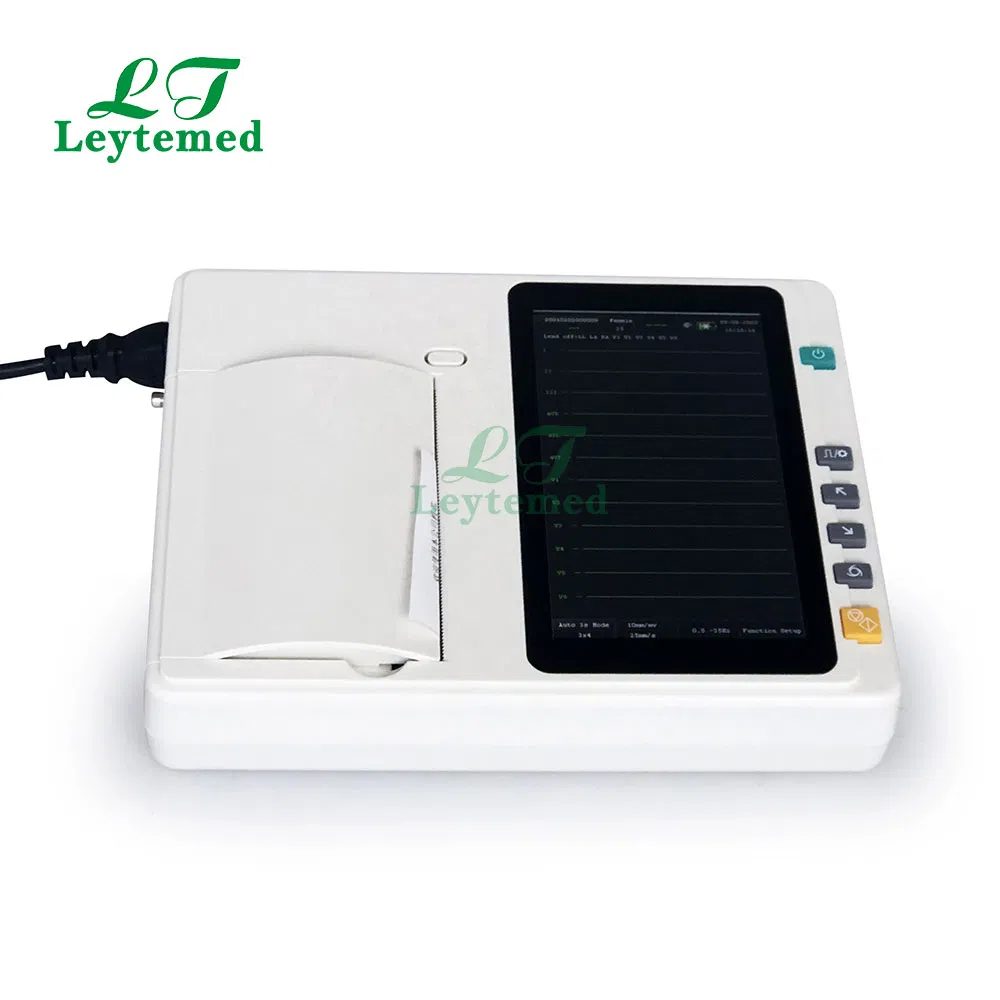

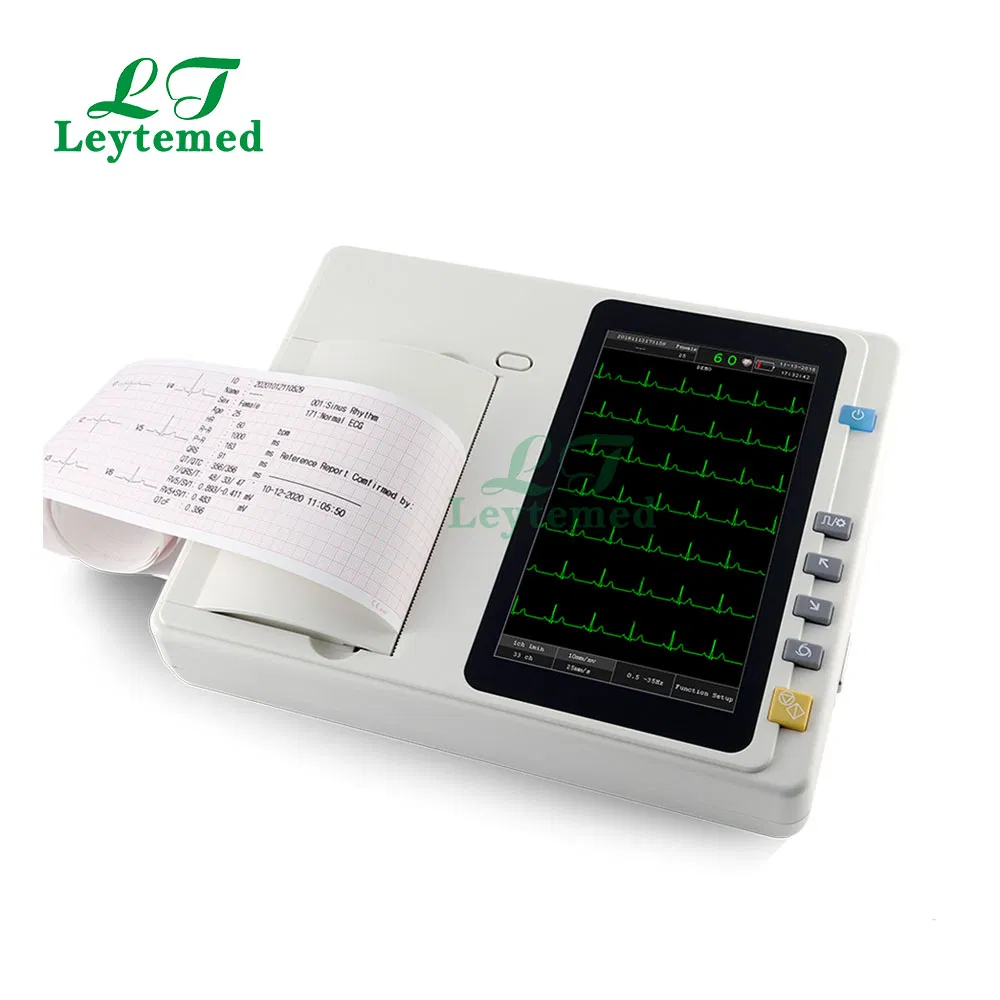

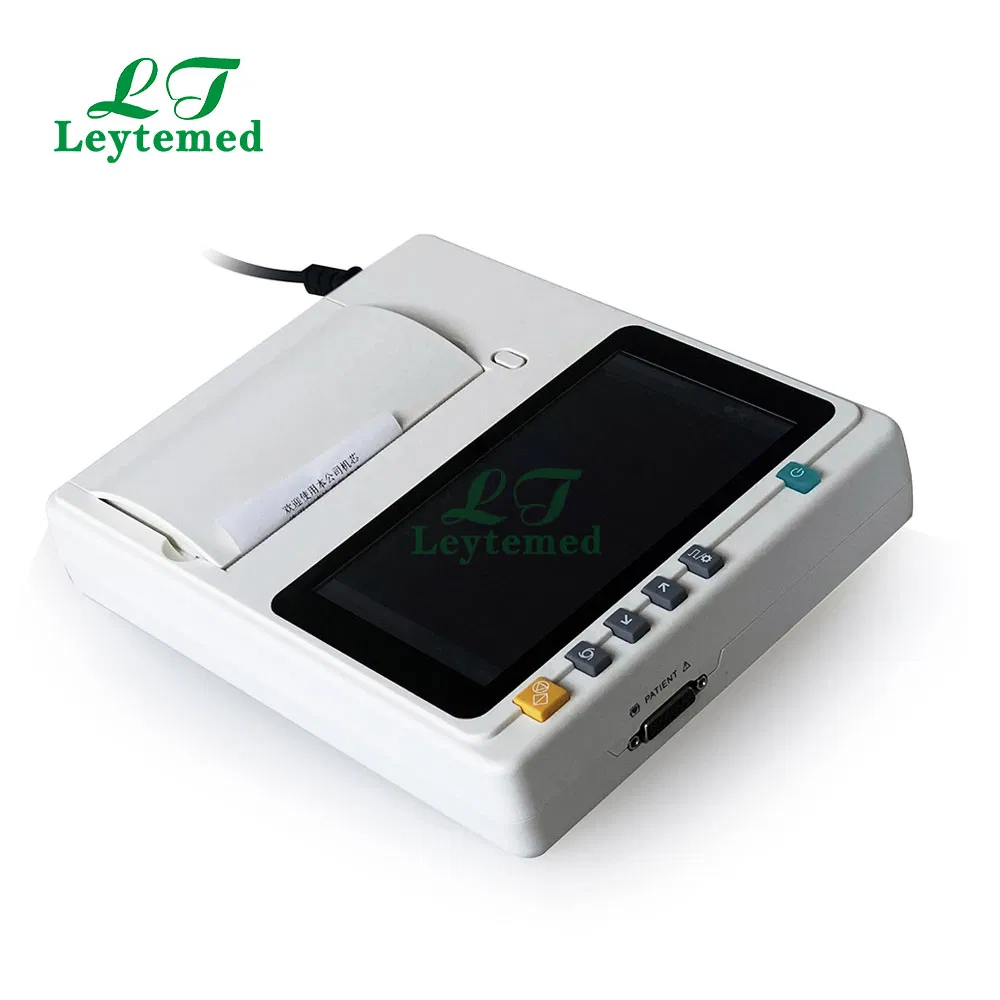

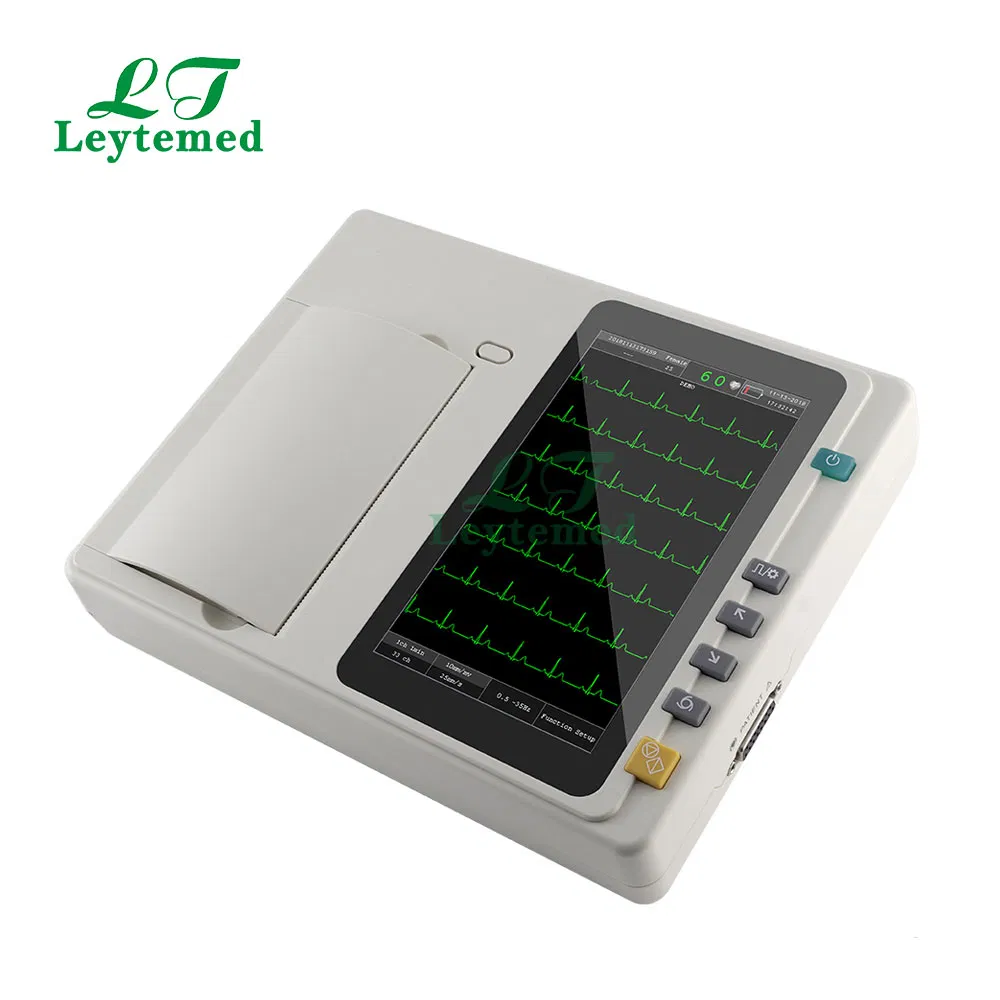

LTSE23 Portable ECG Machine 3 Channel Touch Screen Standard 12 Lead
| Items | Specification |
|---|---|
| Features | 7 "display, touch screen, Support Ecg analysis capabilities |
| Lead | Standard 12 leads |
| Lead acquisition | Synchronously 12 leads |
| Input circuit | Floating; Protection circuit against Defibrillator effect |
| Input Impedance | ≥50MΩ |
| Record mode | Automatic (3CH×4+1R, 6CHX2, etc.); Manual; Rhythm selectable |
| Filter | EMG Filter, DFT Filter, AC Filter (50/60Hz) |
| Frequency Response | 0.05Hz~150Hz (-3dB) |
| Sensitivity | 2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV |
| Paper speed | 12.5 mm/s, 25 mm/s, 50 mm/s |
| Recording mode | Thermal printing system (80mmx20m roll) |
| Patient cable | 1 set |
| Limb electrode | 4 sets |
| Chest electrodes | 6 sets |
| Thermal paper | 1 set |
| AC Adaptor & Power Cord | 1 set |

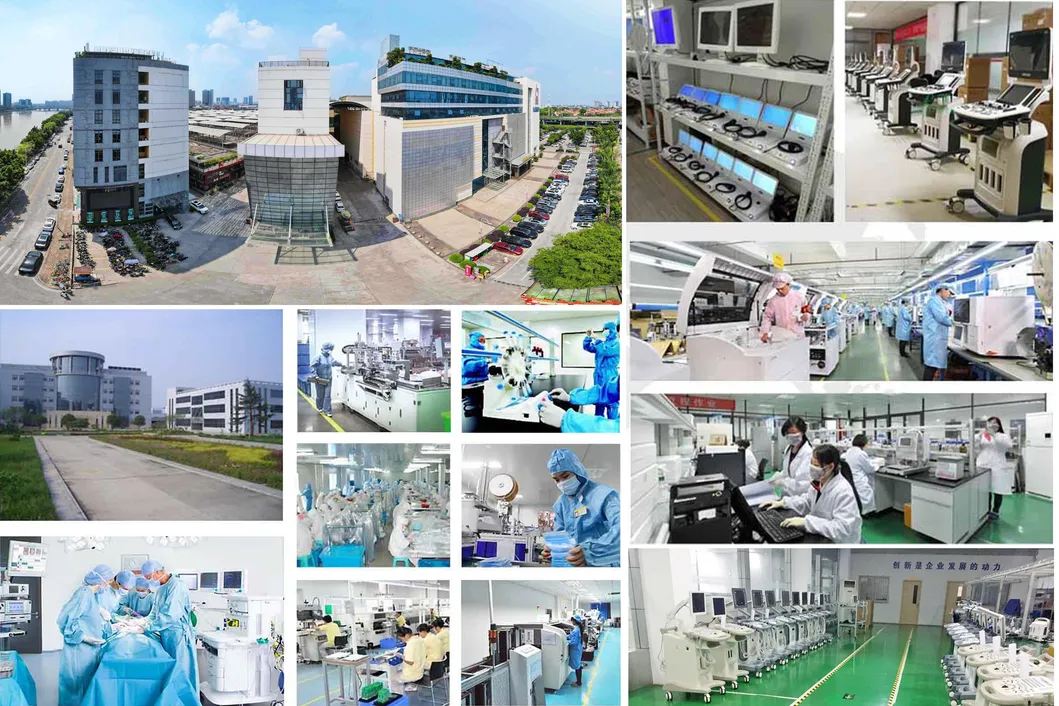

Manufacturer and distributor of medical products with over 10+ years of export experience. Providing solutions for X-ray machines, ultrasound scanners, patient monitors, and ICU equipment to more than 50 countries.
Well-trained sales and after-sales service teams ready to assist. We offer OEM services including custom logo printing and packaging customization.
Experienced engineers are available to help you maximize the use of the 3 channel/6 channel/12 channel Touch Screen ECG machines.
