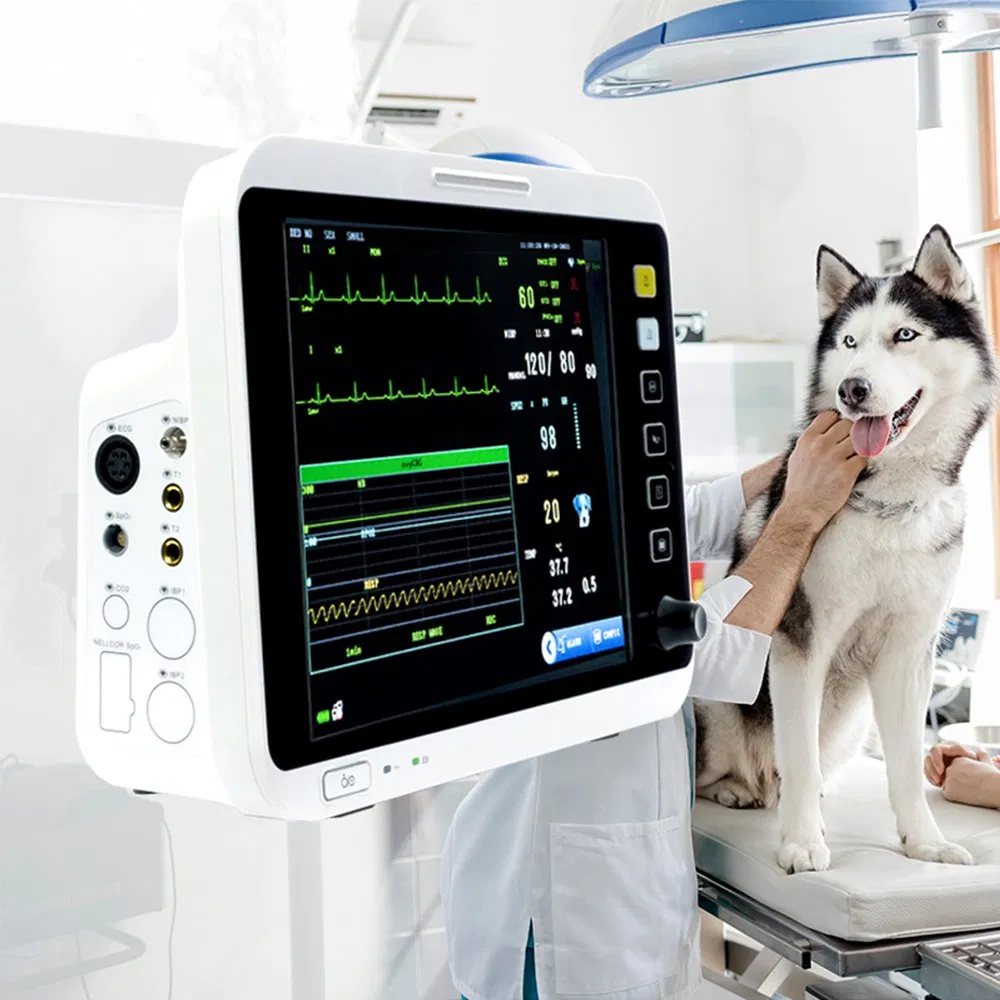

Hot Sale Vet Cheap ECG/Hr/SpO2/Resp/Temp/NIBP Monitor Multi-Parameter Veterinary Patient Monitor

1 / 5

Hot Sale Vet Cheap ECG/Hr/SpO2/Resp/Temp/NIBP Monitor Multi-Parameter Veterinary Patient Monitor

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model:VM 12

Certification:ISO13485

Product:Veterinary Patient Monitor

Screen:12.1 Inch LCD (8 Inch optional)

Warranty:1 Year

Power Supply:Built-in Battery

Product Description

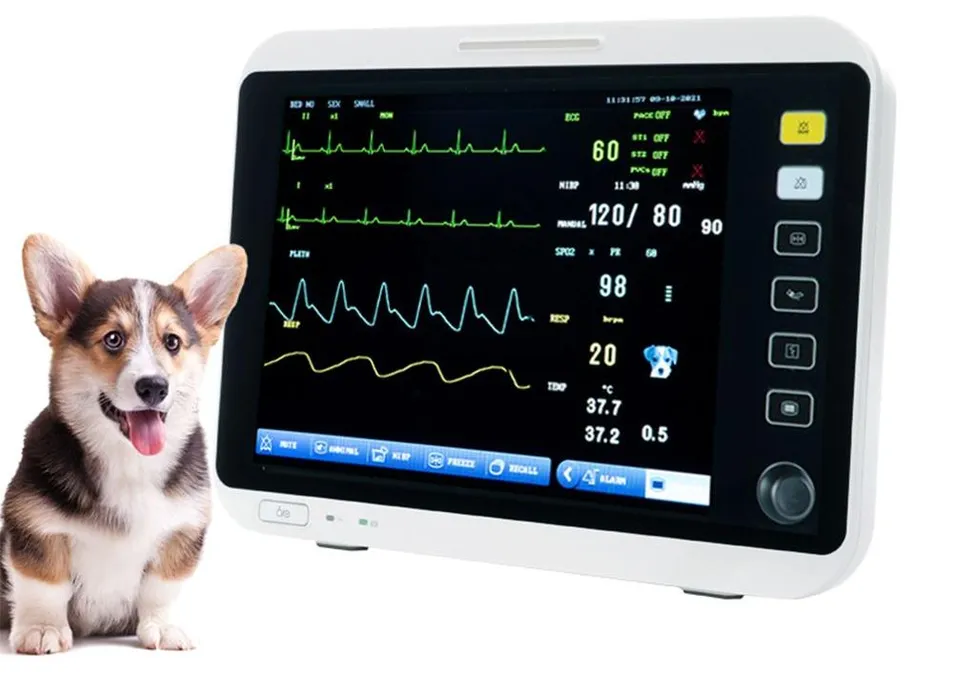

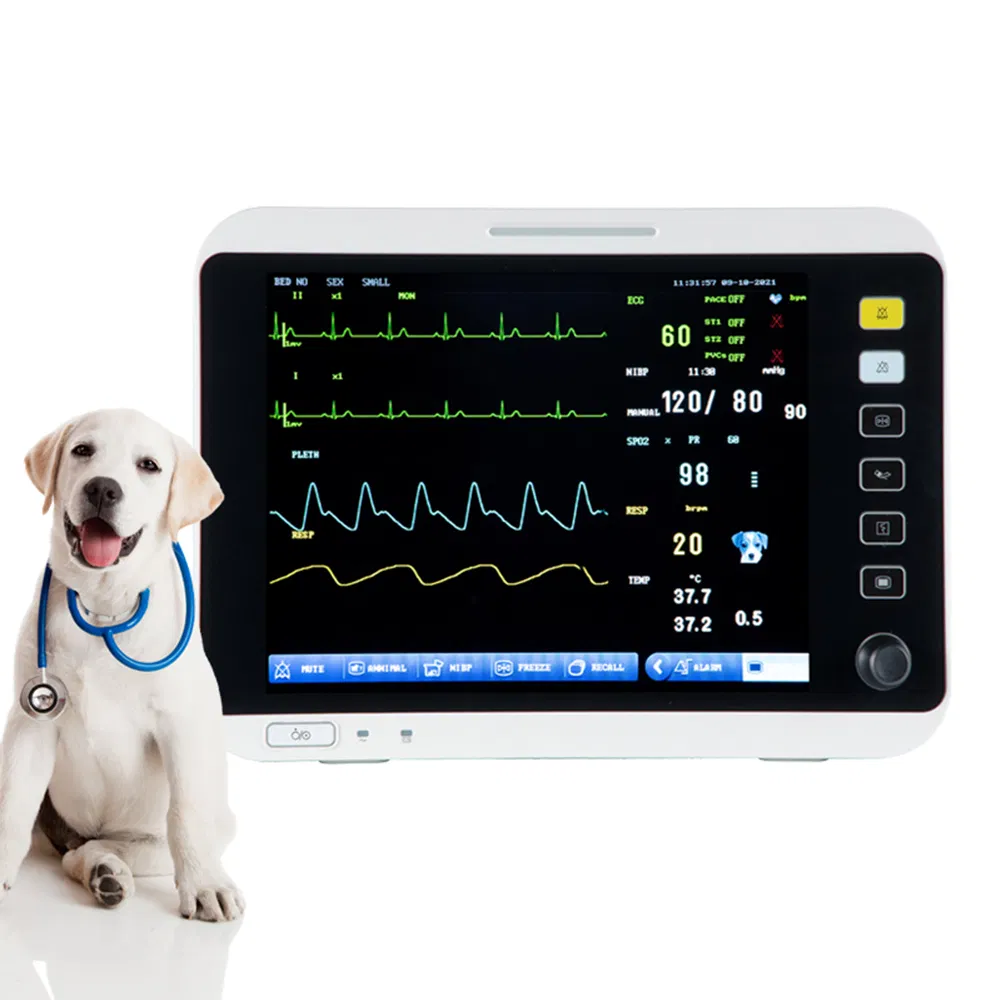

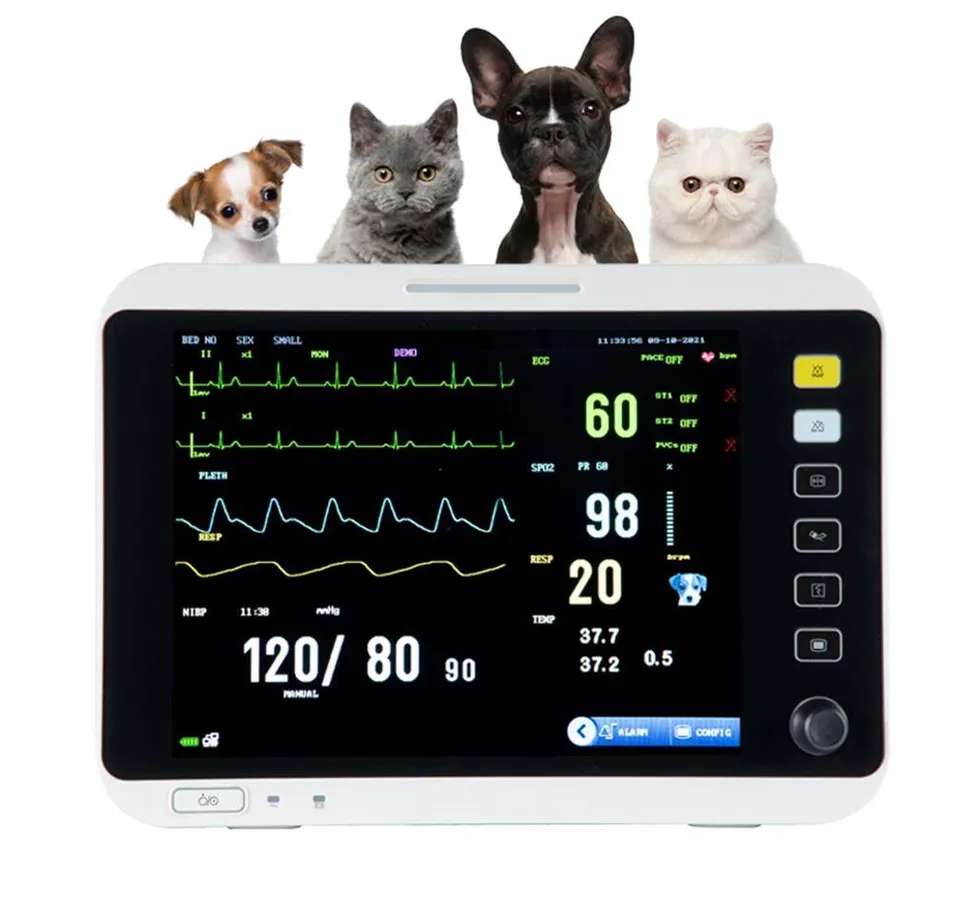

Veterinary Monitor with Multiparameter and 12.1 inch LCD Screen

Key Features

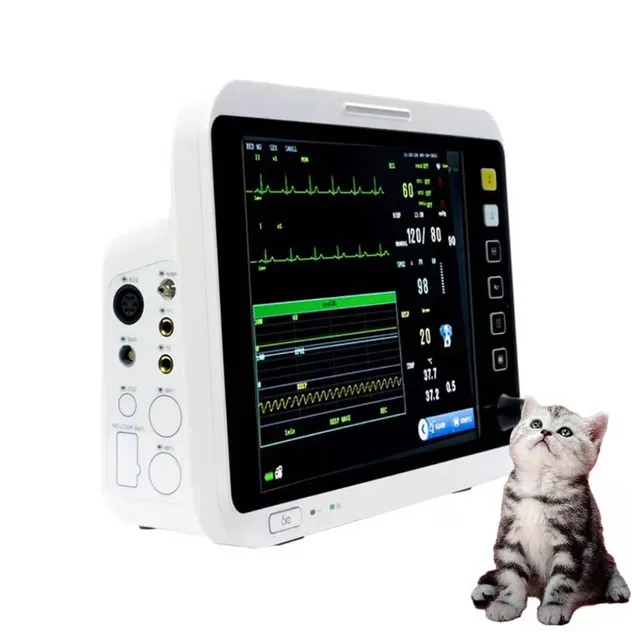

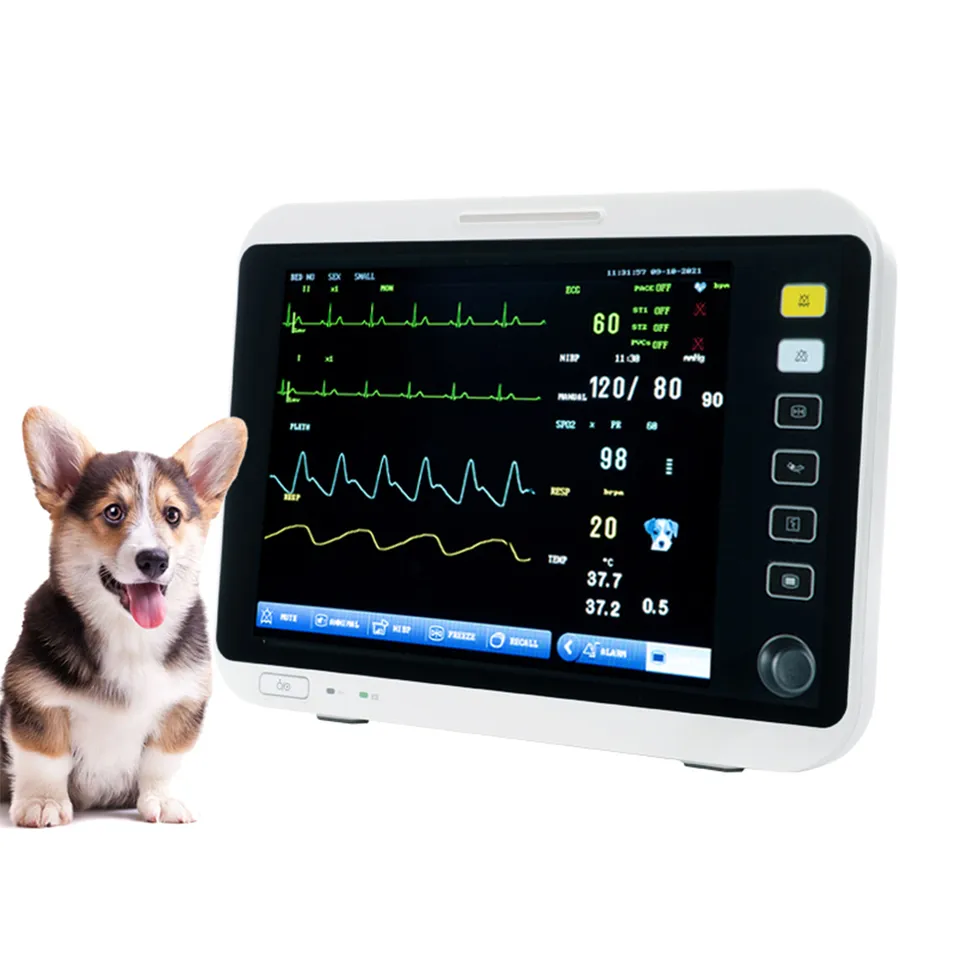

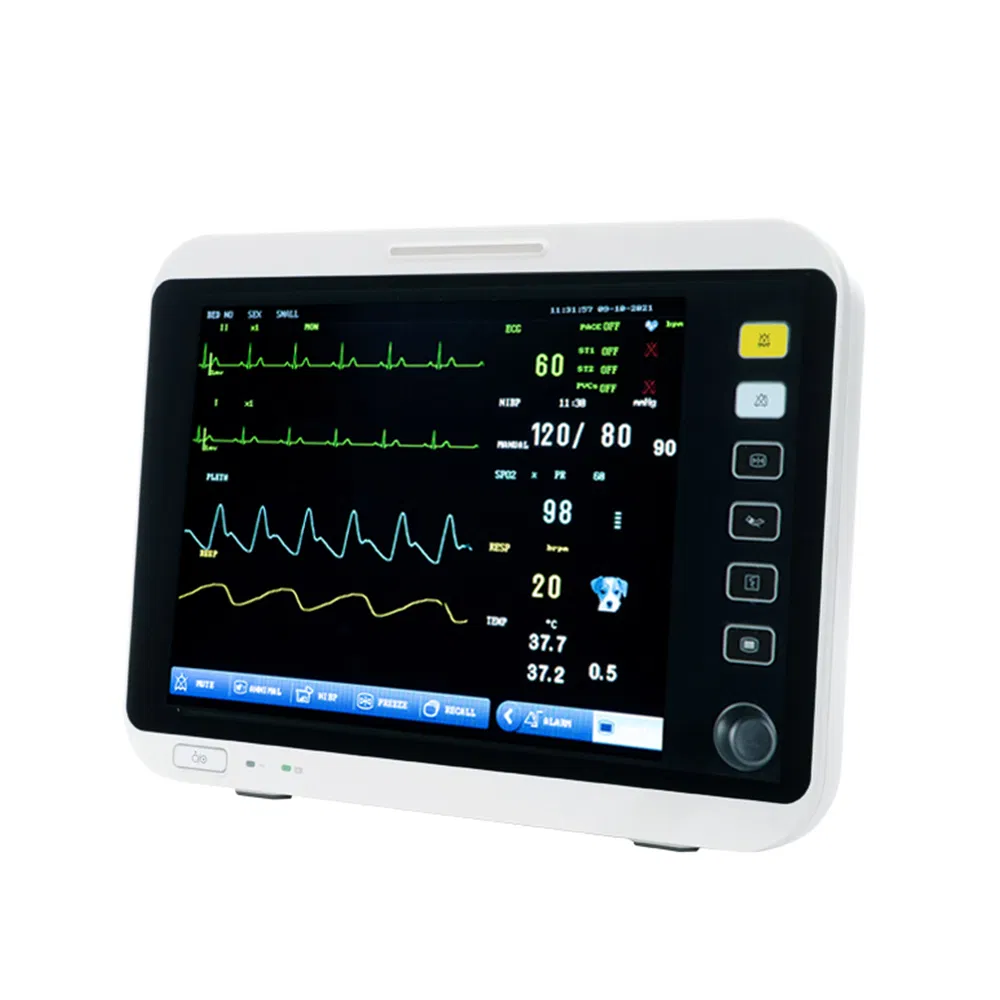

12.1 inch high brightness LCD monitor with mirror display for protection
Multiple working modes: diagnostic, monitoring, surgery
Suitable for different pets with various sizes
Multiple display modes: standard, large font, trend graph, BP list, etc.
Multi-lead display of ECG waveforms on the same screen
Equipped with multiple analysis functions and quick setup alarm
Built-in high capacity Lithium battery with long standby time
Special algorithm for fast & accurate NIBP measurement
SpO2 with advanced anti-interference and weak perfusion capabilities
Patented ECG algorithm for multiple arrhythmia identification

Standard Configuration: ECG, NIBP, SpO2, RESP., TEMP., HR
Optional Configuration: IBP, side stream EtCo2, printer, trolley

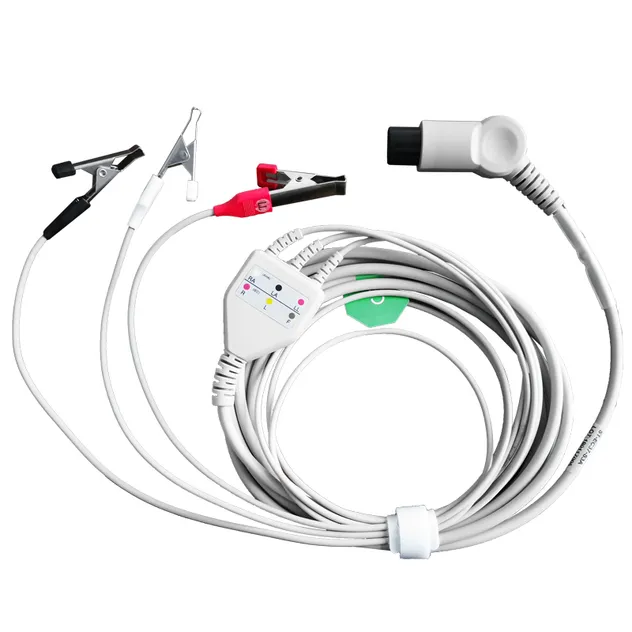

ECG Cable (3 Lead)

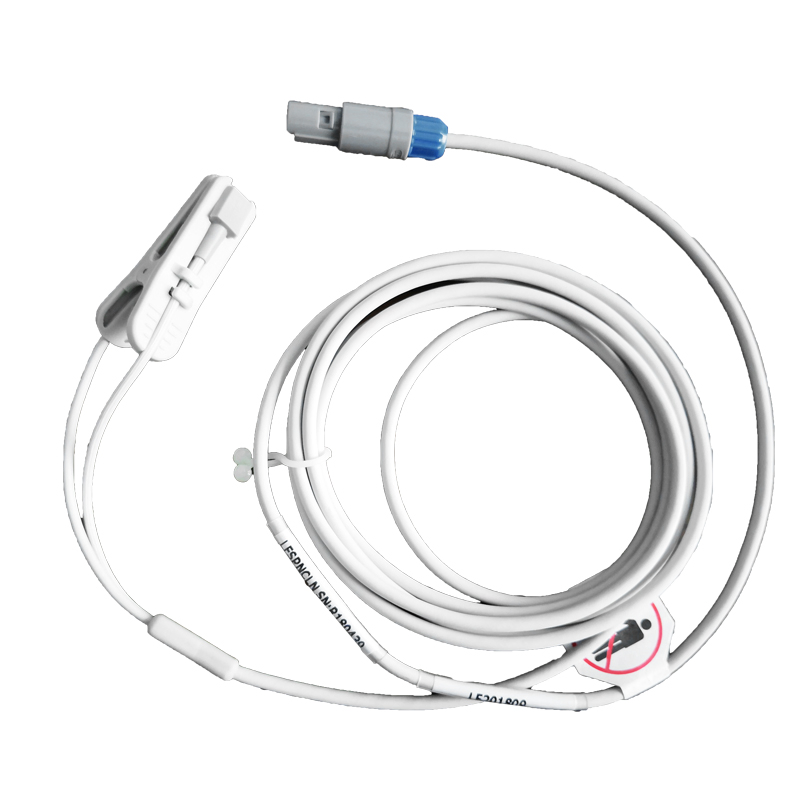

SpO2 Sensor

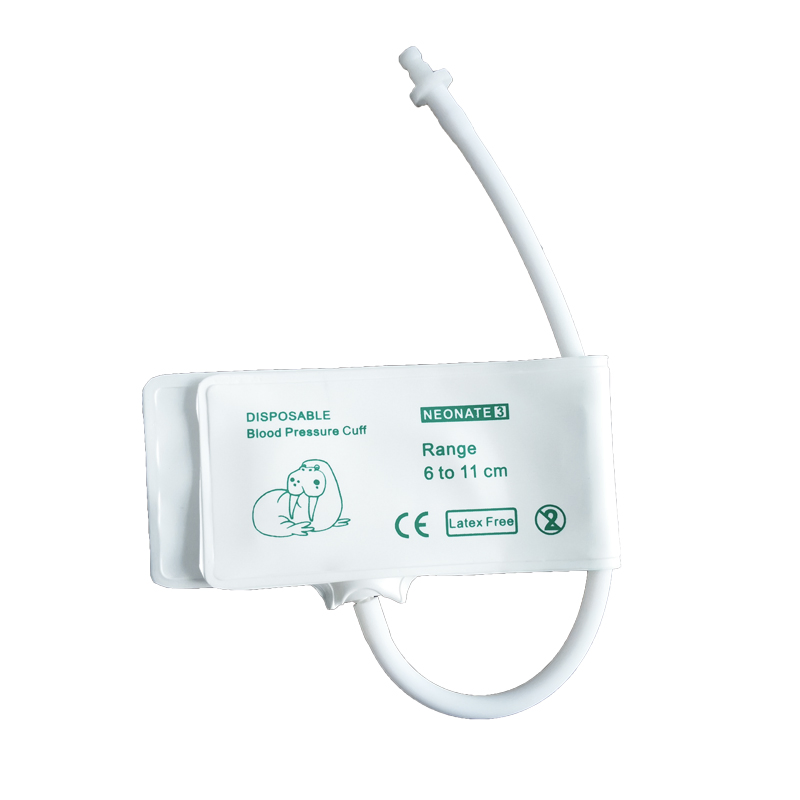

Disposable NIBP Cuff

Technical Specifications

ECG Monitoring

Lead Mode	5 Leads (R, L, F, N, C or RA, LA, LL, RL, V)	Waveform	3 channel
HR Range	Adult: 15 ~ 300 bpm, Neo/Ped: 15 ~ 350 bpm	Accuracy	± 1% or ± 1 bpm
Sensitivity	> 200 (uVp-p)	Baseline Recovery	< 3 seconds after defibrillation

SpO2 & Temperature

SpO2 Range	0 ~ 100 %	SpO2 Accuracy	70% ~ 100%: ±2 %
Pulse Rate Range	20 ~ 250 bpm	Temp Range	0 ~ 50 °C

NIBP (Non-Invasive Blood Pressure)

Method	Oscillometric	Modes	Manual, Auto, STAT
Adult Range	SYS: 40~280, DIA: 10~220, MEAN: 20~240 mmHg	Protection	Overpressure Protection per Mode

Respiration (RESP)

Method

Impedance between R-F (RA-LL)

Range

Adult: 0~120 rpm, Neo/Ped: 0~150 rpm

Packing & Delivery

Dimensions & Weight:
Size: 25 x 27 x 20 cm
Weight: 4 Kg
Packing: 1 set / carton

Packing List:
VM 12 Monitor, ECG Cable & Electrodes, SpO2 Sensor, NIBP Cuff & Tube, Power Wire, Grounding Cable, User Manual, Warranty Card.

Product Gallery

Frequently Asked Questions

1. What are the standard parameters monitored by the VM 12? The standard configuration includes ECG, NIBP, SpO2, Respiration (RESP), Temperature (TEMP), and Heart Rate (HR).

2. Can this monitor be used for different types of animals? Yes, the VM 12 is designed for veterinary use and is suitable for different pets of various sizes, including dogs and cats.

3. Does it have a battery for portable use? Yes, it features a built-in high-capacity Lithium battery providing long standby time for mobile or emergency use.

4. What are the available display modes? The monitor supports multiple display modes, including standard interface, large font for distant viewing, trend graphs, and BP lists.

5. Are there optional features I can add later? Optional configurations include IBP monitoring, side-stream EtCo2, an integrated printer, and a specialized trolley for easy movement.

6. How large is the screen? This specific model features a 12.1-inch high-brightness LCD monitor with a mirror display for enhanced visual clarity.
