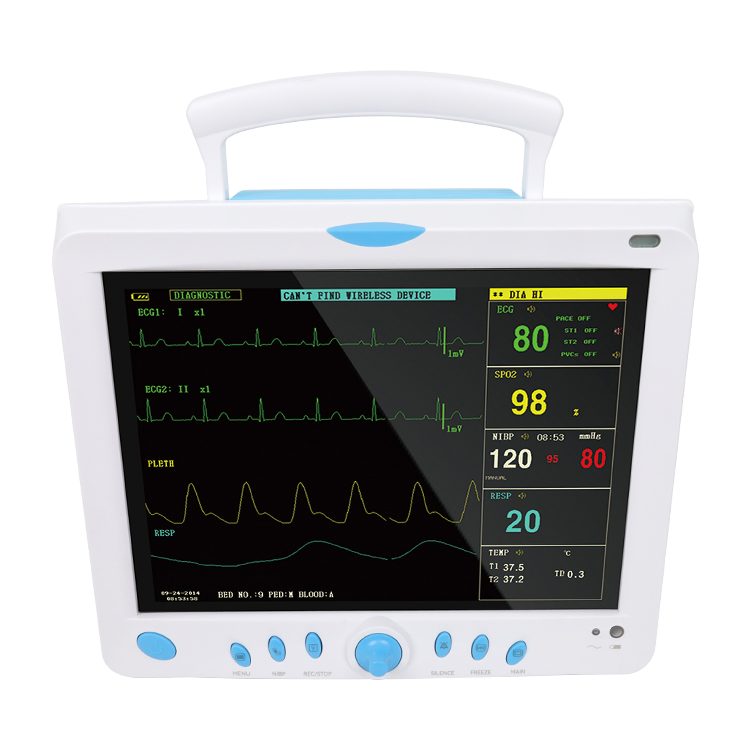

Contec Cms9000 Medical Patient Monitor with ECG

1 / 5

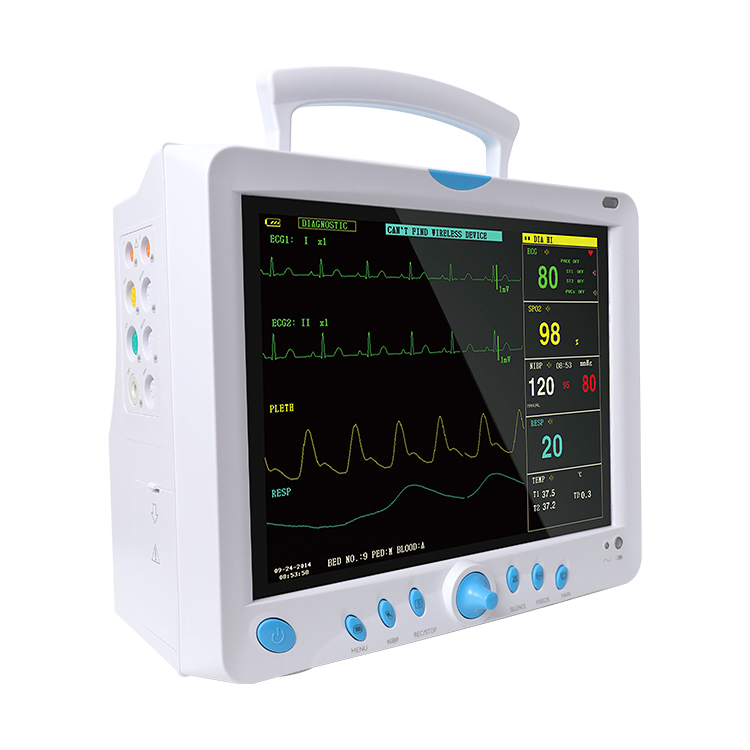

Contec Cms9000 Medical Patient Monitor with ECG

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	Patient Monitor

Send Inquiry

Product Description

📊 Basic Information

Certification:

CE, FDA, ISO13485

Group:

All

Product Name:

Multi-Parameter Portable Patient Monitor

Parameters:

ECG, SpO2, NIBP, 2-Temp, Pr

Optional:

2-IBP, Etco2, and Thermal Printer

Language:

Multi-Language

Display:

12.1" Screen

Weight:

Less Than 3.0 Kg

Power Supply:

AC 100-240V, 50/60Hz

Transport Package:

Carton

Specification:

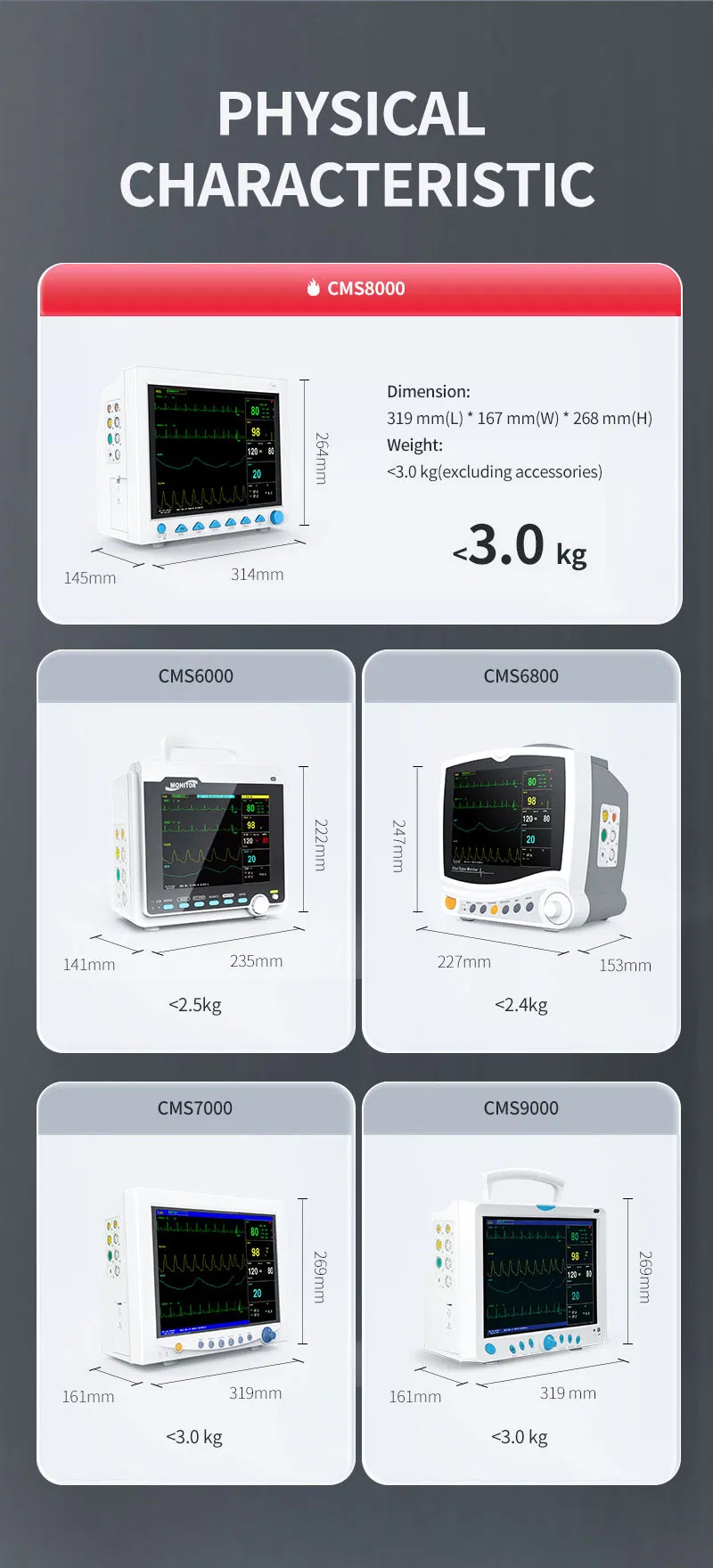

319 mm(L)*167 mm(W)*268mm(H)

HS Code:

9018193010

Production Capacity:

500/Week

🩺 Product Description

Introduction

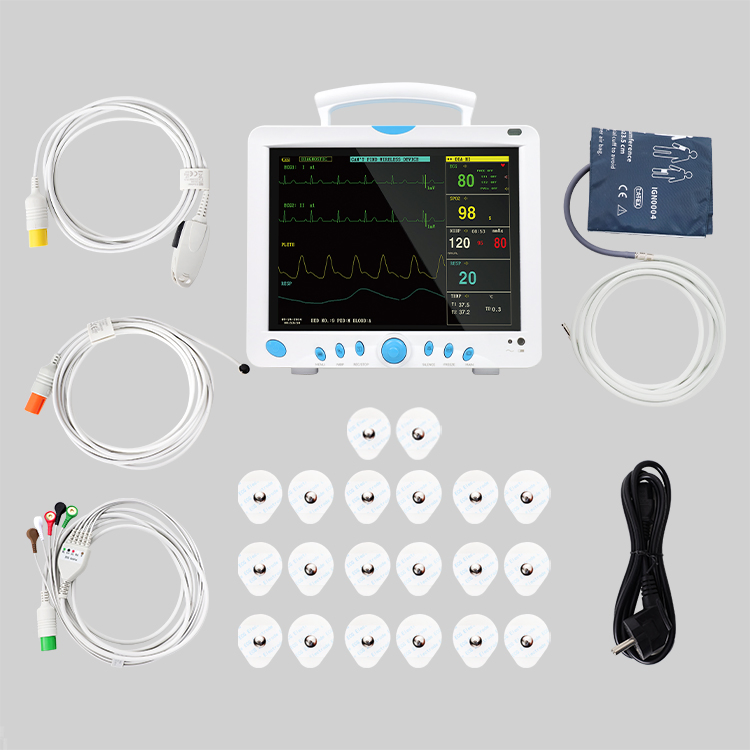

This device can monitor such parameters as ECG, RESP, SpO2, PR, NIBP and dual-channel TEMP, etc. It integrates parameter measurement module, display and recorder in one device to form a compact and portable equipment. At the same time, its built-in replaceable battery provides convenience for patient moving.

Standard Parameters & Functions

✔
ECG: Heart rate(HR), ECG waveform, Arrhythmia and ST-segment analysis.
✔
RESP: Respiration rate(RR), Respiration waveform.
✔
SpO2: Pulse oxygen saturation(SpO2), Plethysmogram(PLETH), Pulse rate(PR).
✔
NIBP: Systolic(SYS), Diastolic(DIA), Mean pressure(MEAN).
✔
TEMP: T1, T2, TD channels.
✚
Optional: EtCO2 (INSCO2, AWRR) and IBP (Dual-channel SYS, DIA, MAP).

Key Features

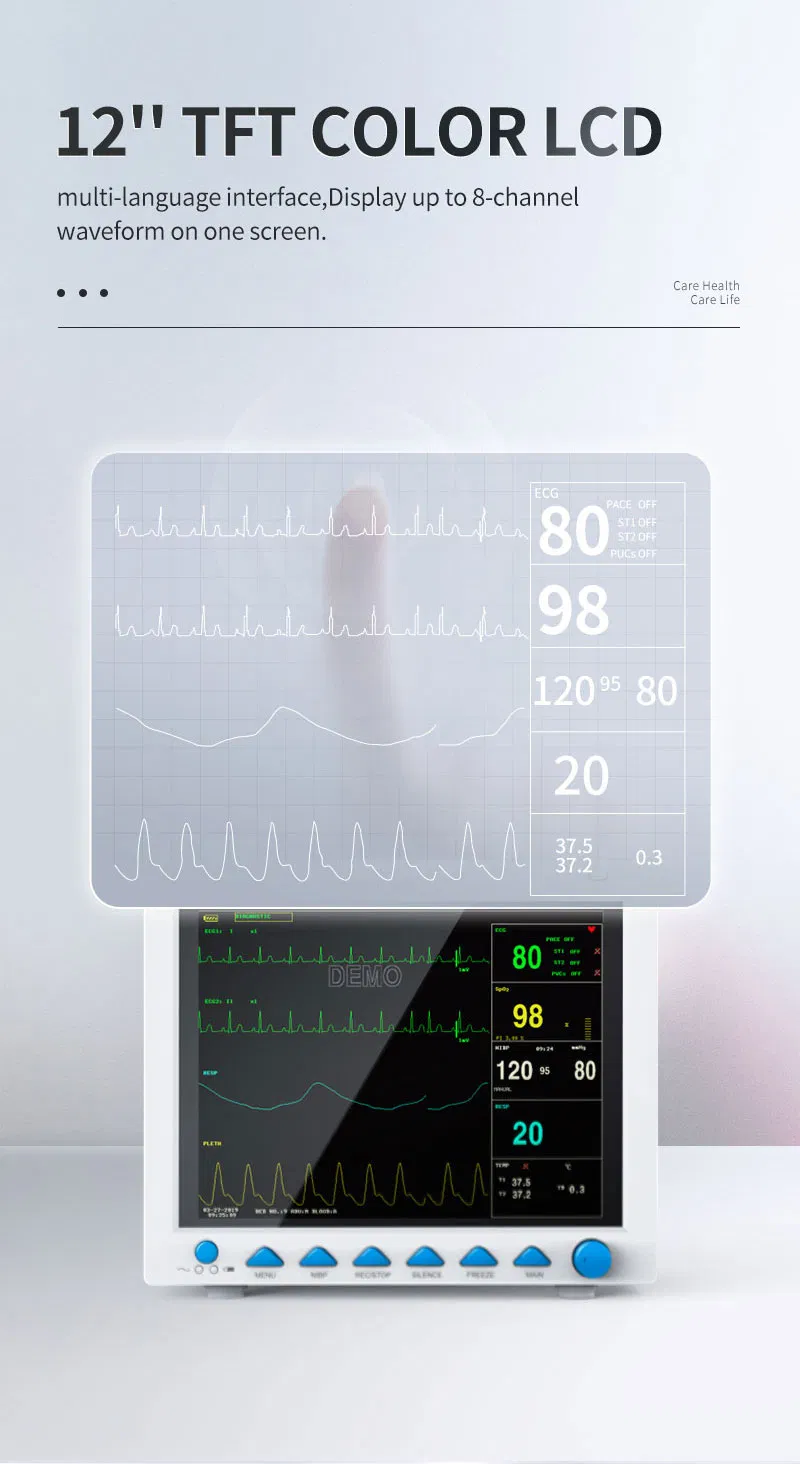

🔹 12.1'' TFT color LCD with multi-language interface support (English, Spanish, French, German, etc.).
🔹 Fanless design for quiet operation and reduced cross-infection risk.
🔹 Suitable for adult, pediatric, and neonatal patients.
🔹 Displays up to 8-channel waveforms and 7-lead ECG on one screen.
🔹 Digital SpO2 technology with anti-ambient light interference.
🔹 NIBP measurement modes: Manual, AUTO, and Continuous (4800-group storage).
🔹 Drug concentration calculation and titration table functions.
🔹 Built-in rechargeable lithium battery for uninterrupted monitoring.
🔹 Defibrillation-proof design (special leads required).

🏭 Manufacturing & Quality

❓ Frequently Asked Questions

1. What patient groups is this monitor suitable for?

The monitor is an all-round device designed for adult, pediatric, and neonatal patients.

2. How long does the battery last and is it rechargeable?

It features a built-in rechargeable lithium battery designed to achieve uninterrupted monitoring during patient movement or power failures.

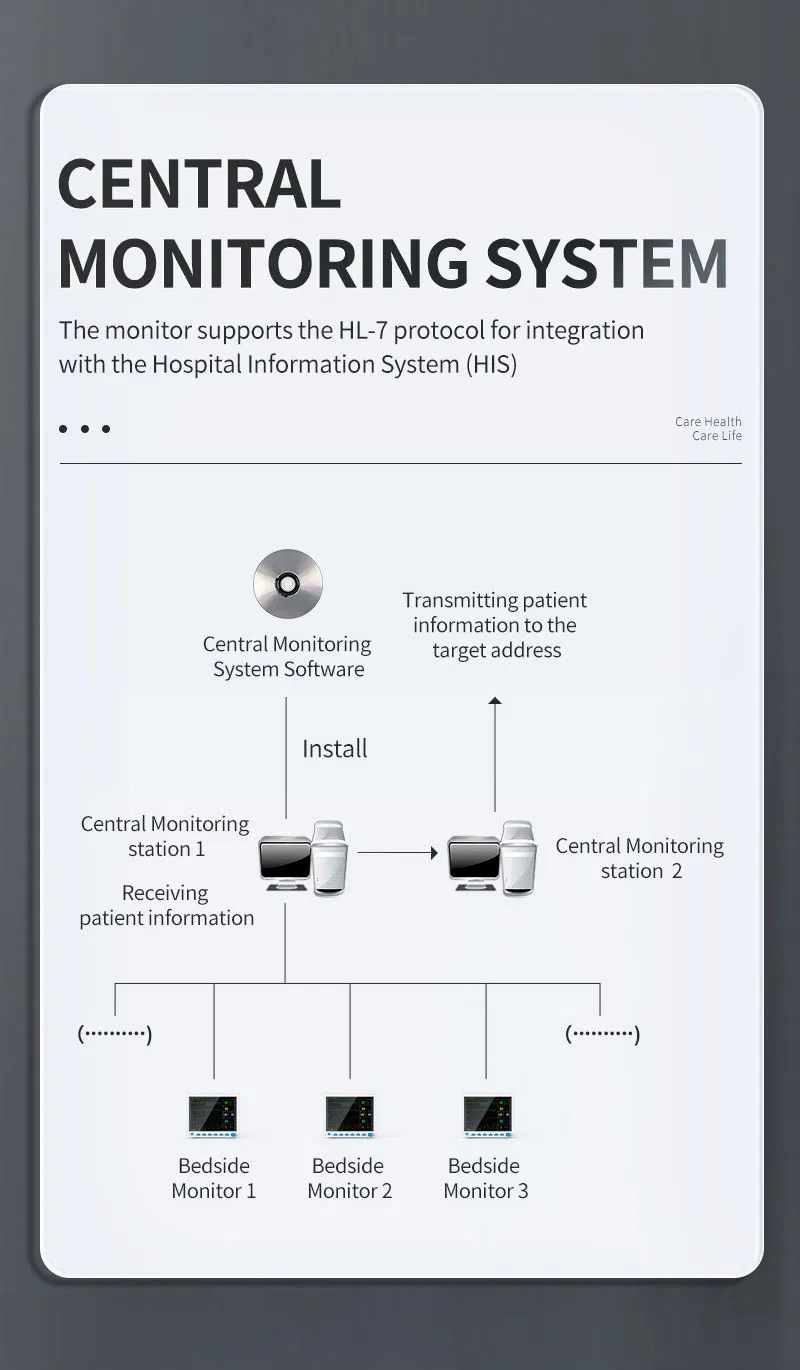

3. Can the monitor be connected to a central system?

Yes, it can connect to a Central Monitoring System via WiFi or a wired connection.

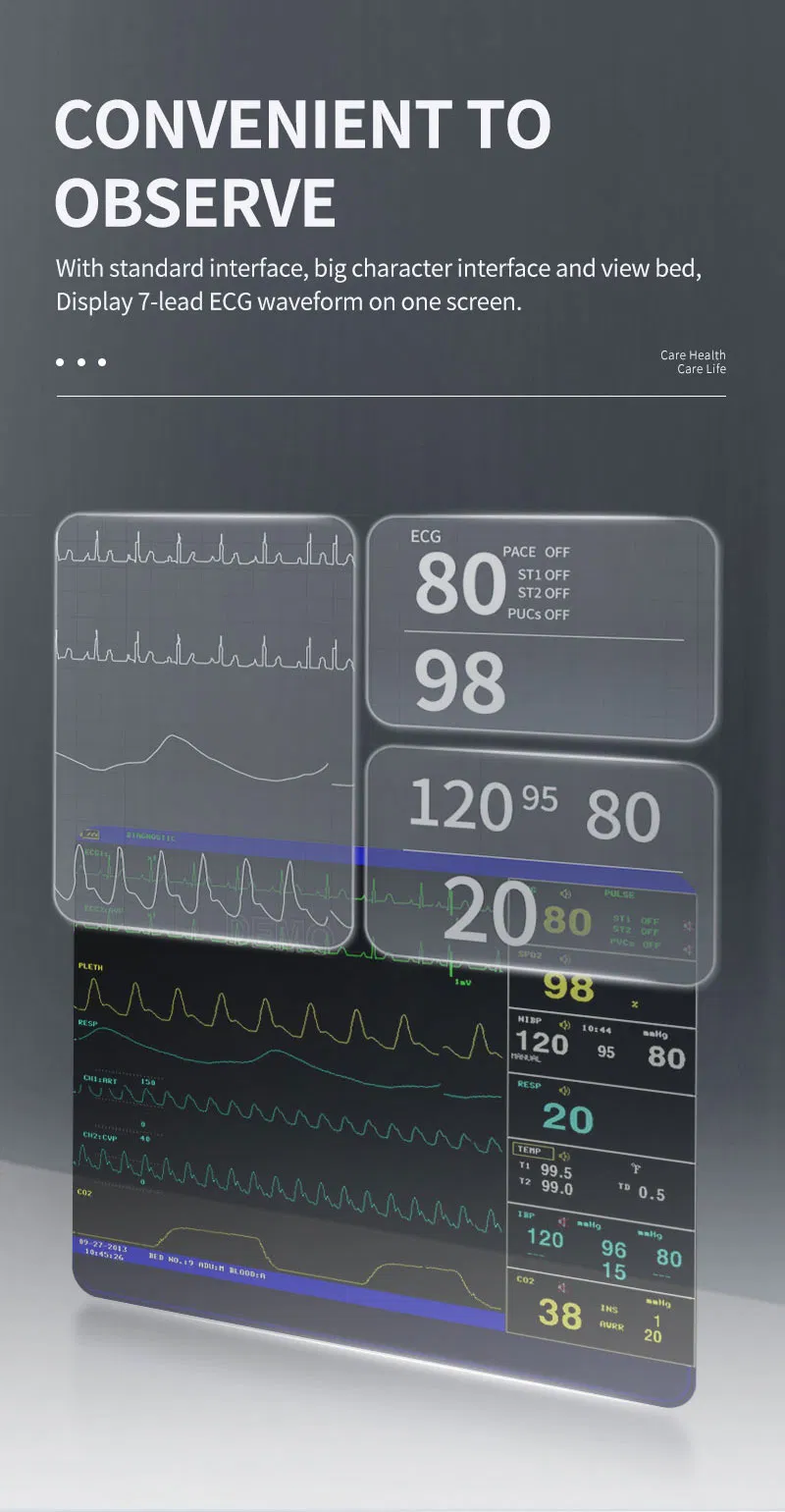

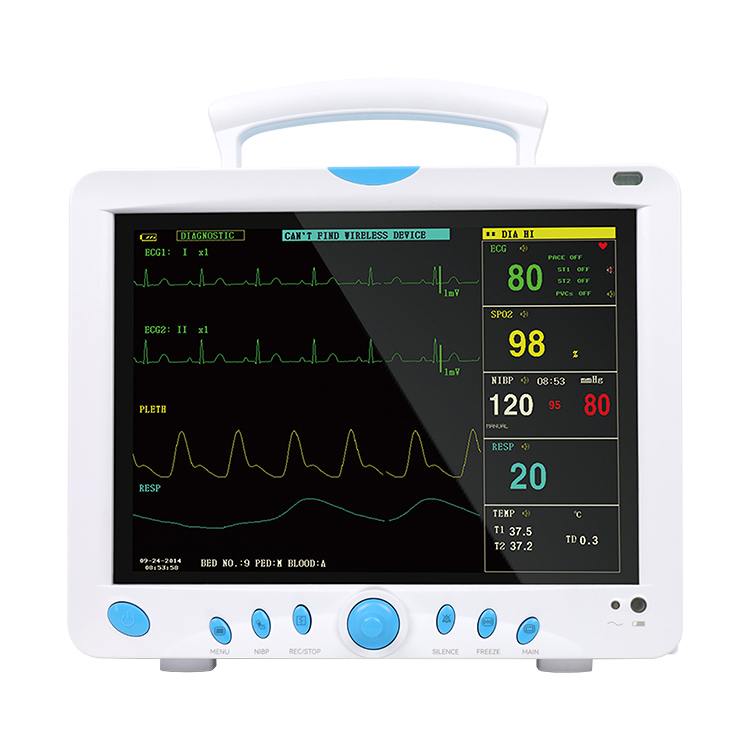

4. What are the key display features of the 12.1" screen?

It uses a TFT color LCD that can display up to 8-channel waveforms simultaneously, including 7-lead ECG waveforms. Users can customize waveform colors and locations.

5. Does the monitor support multiple languages?

Yes, the interface supports many languages including English, Spanish, French, German, Russian, Portuguese, Chinese, and several European languages.

6. Is the device protected against defibrillation?

Yes, the device is defibrillation-proof, though specific special leads are necessary for this protection.
