Advanced Contec Cms7000 Portable ICU Patient Monitoring Device for Hospitals

1 / 5

Advanced Contec Cms7000 Portable ICU Patient Monitoring Device for Hospitals

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	Patient Monitor

Send Inquiry

Product Description

Basic Information

Model NO.

CMS7000

Group

Adult, Pediatric, Neonatal

Product Name

12.1 Inch ECG SpO2 NIBP Patient Monitor

Parameters

3/5 Lead ECG, Resp, SpO2, NIBP, Temp, PR, Network

Model

CMS7000plus

Transport Package

Carton

Specification

Multi-language

HS Code

9018193010

Capacity

1000/Week

Product Description

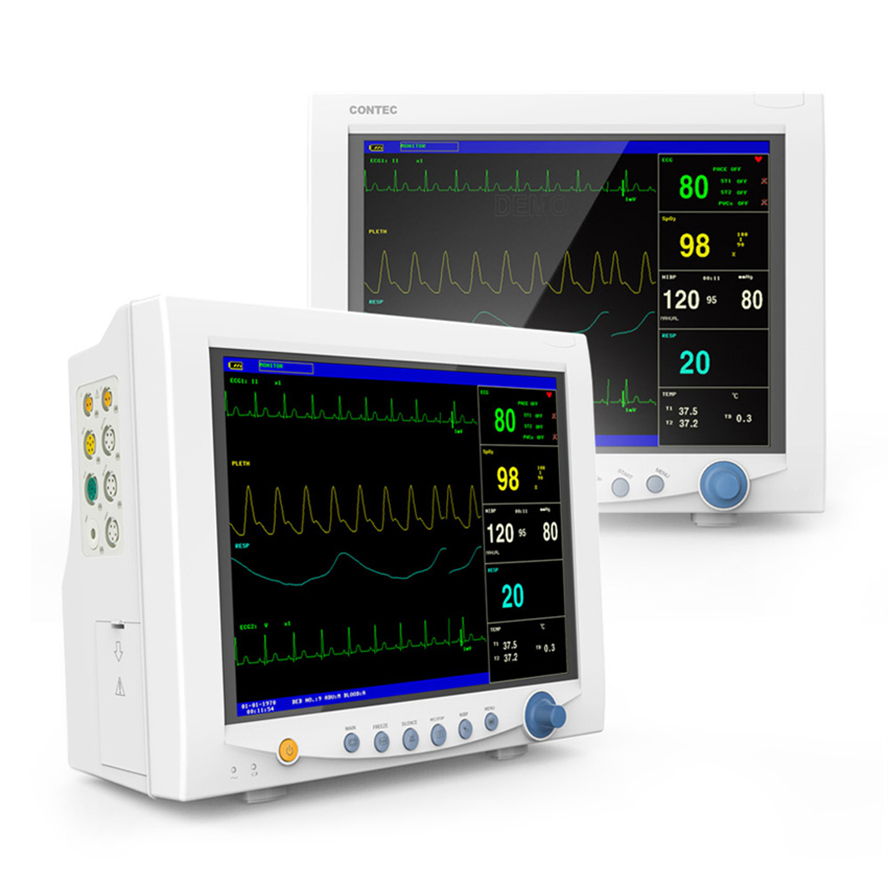

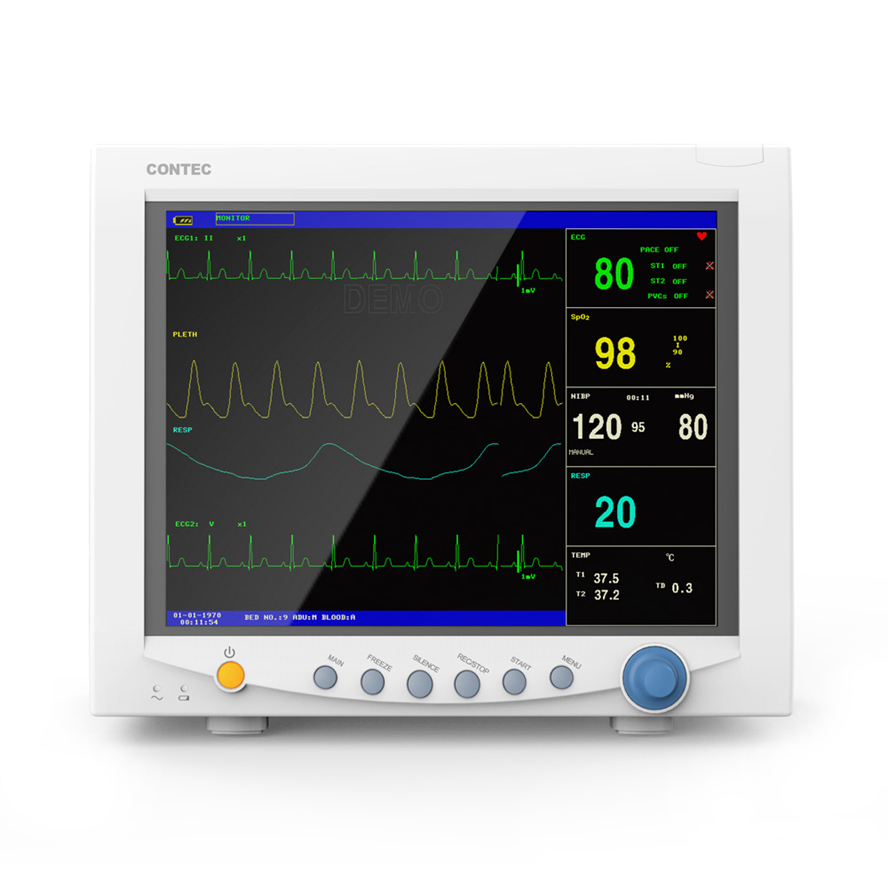

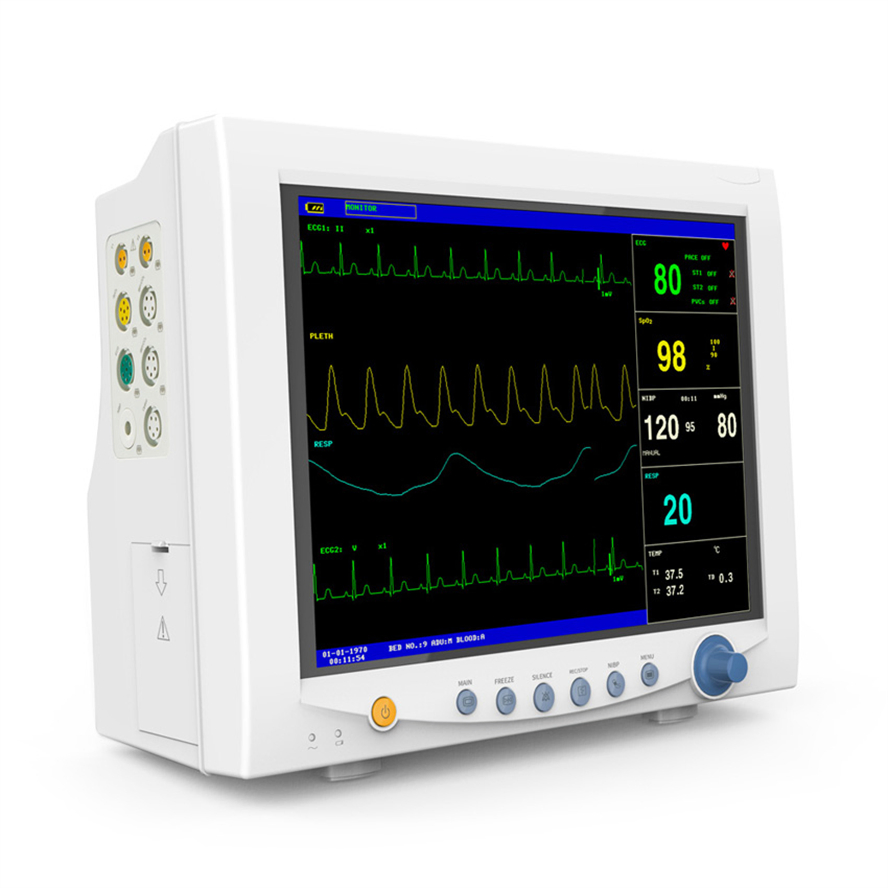

Touch Screen Patient Monitor CO2 NIBP Hospital Monitoring Device

Model: CMS7000Plus

This device can monitor such parameters as ECG, RESP, SpO2, PR, NIBP and TEMP, etc. It integrates parameter measurement module, display and recorder in one device to form a compact and portable equipment. Its replaceable internal battery brings lot of convenience for patient moving.

Key Functions

ECG: Heart rate(HR), Waveform, Arrhythmia and ST-segment analysis
RESP: Respiration rate(RR), Respiration waveform
SpO2: Oxygen saturation(SpO2), Plethysmogram(PLETH) waveform, Pulse rate(PR), Bar graph
NIBP: Systolic pressure(SYS), Diastolic pressure(DIA), Mean pressure(MEAN)
TEMP: T1, T2, TD
Optional: CO2 (EtCO2, INSCO2, AWRR) and IBP (Dual-channel)

Product Features

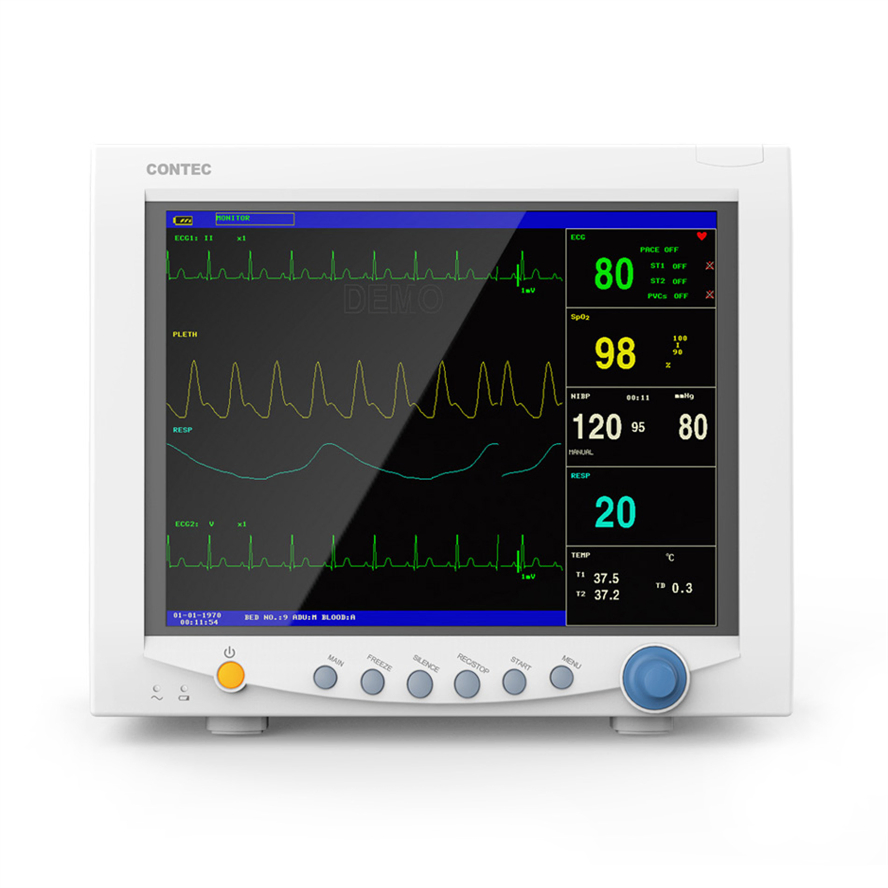

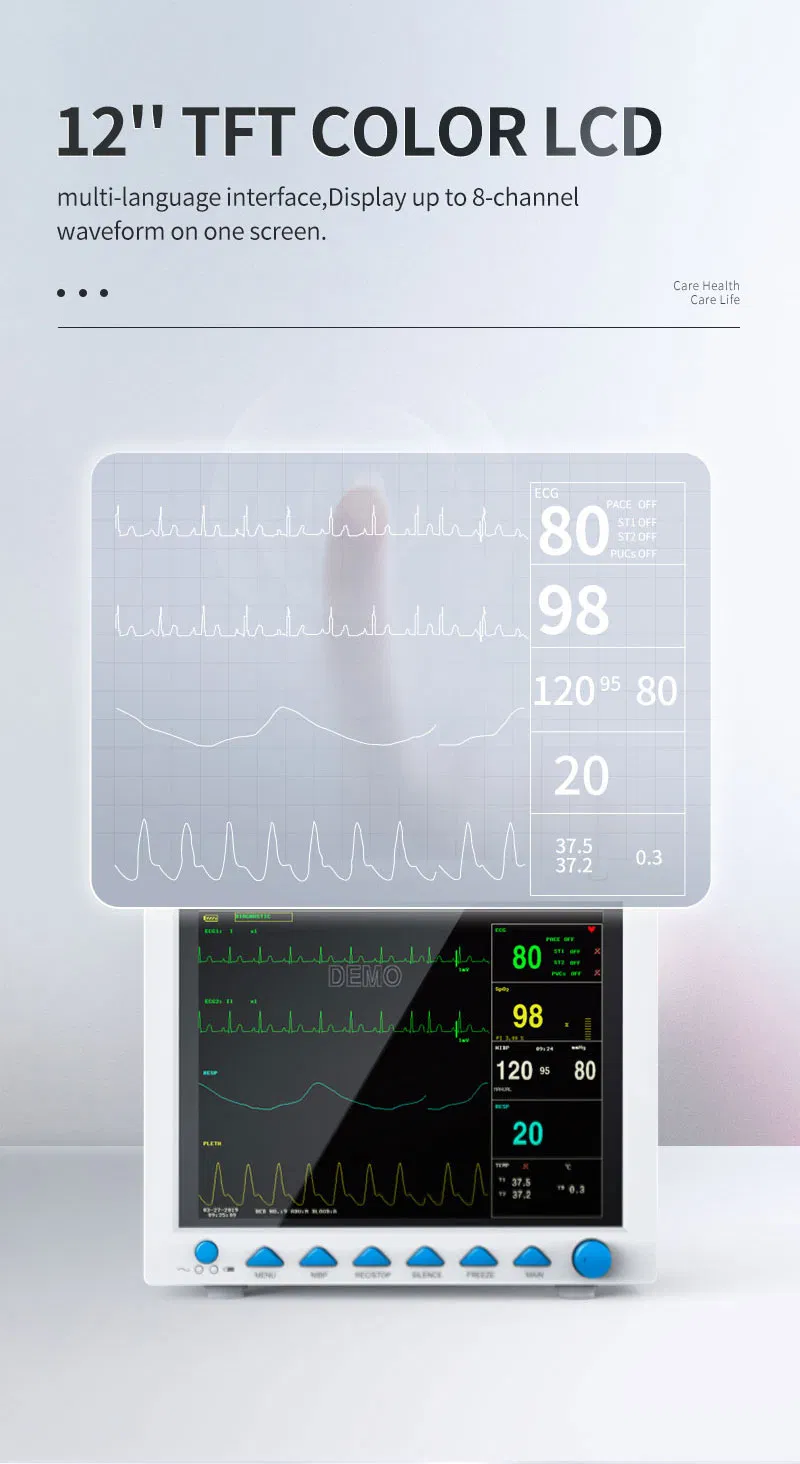

12.1'' TFT color LCD, multi-language interface.
Touch screen operation for improved working efficiency.
Fanless design, quiet and energy-saving to reduce cross-infection risk.
All-round monitor suitable for adult, pediatric and neonate.

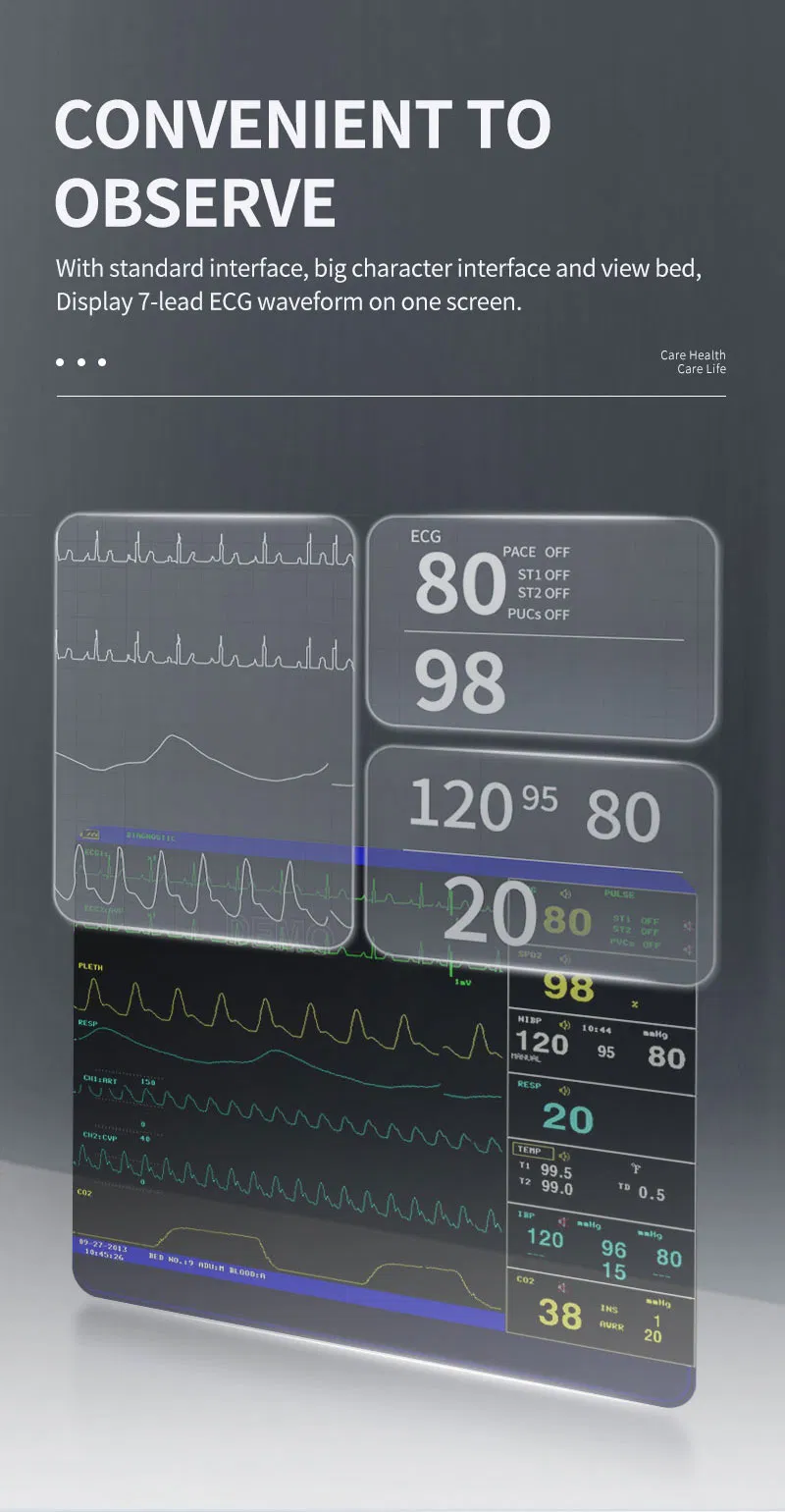

Maximum 8-channel waveform synchronous display.
Digital SpO2 technology with anti-ambient light interference.
Large storage: 4800-group NIBP data, 72 alarm events, and 60 arrhythmia events.

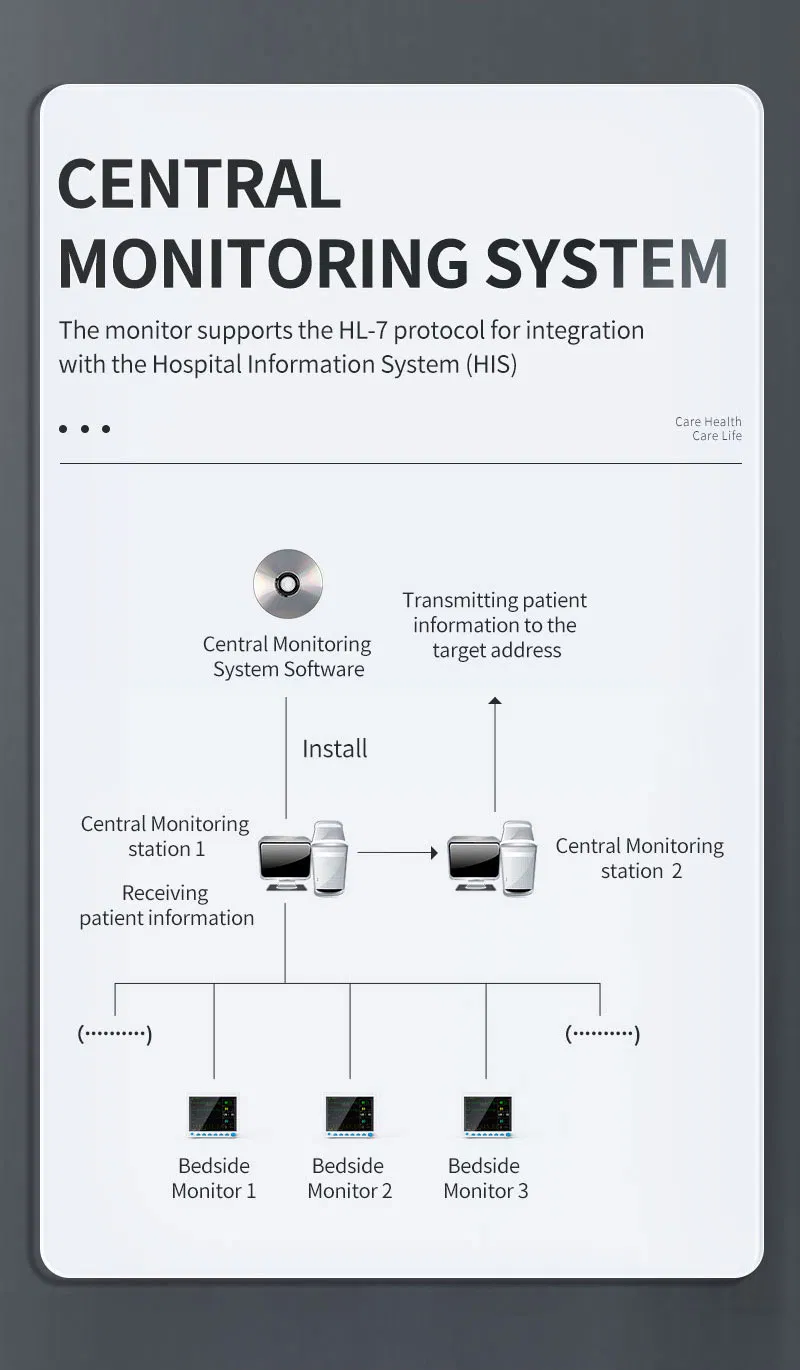

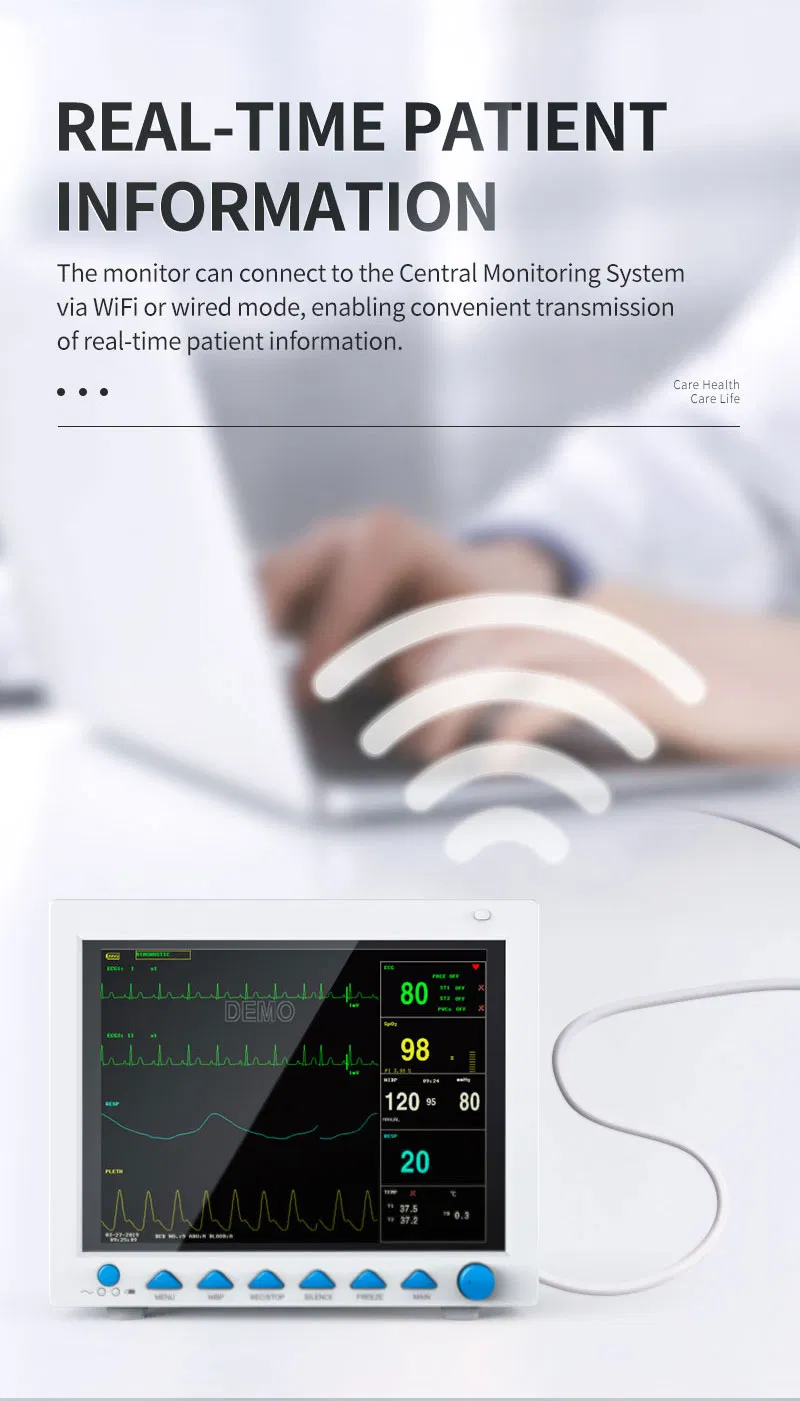

Connectivity: Support for Central Monitoring System via Wi-Fi or wired mode.

Technical Specifications

NIBP	Method: Oscillometry; Modes: Manual/Auto/Continuous; Range: 10-270mmHg
ECG	Lead mode: 3-lead or 5-lead; HR range: 15-300bpm; S-T segment detection: -0.2mv~2.0mv; High resolution 12.1" display
SPO2	Measurement range: 0-100%; Accuracy: 70-100%, ±2%
Pulse Rate	Range: 20-254bpm; Accuracy: ±3bpm
Respiration	Method: RA-LL impedance; Range: Adult 0-120rpm, Pediatric 0-150rpm; Apnea alarm included
Temperature	Range: 0-50°C; Channel: Dual-Channel

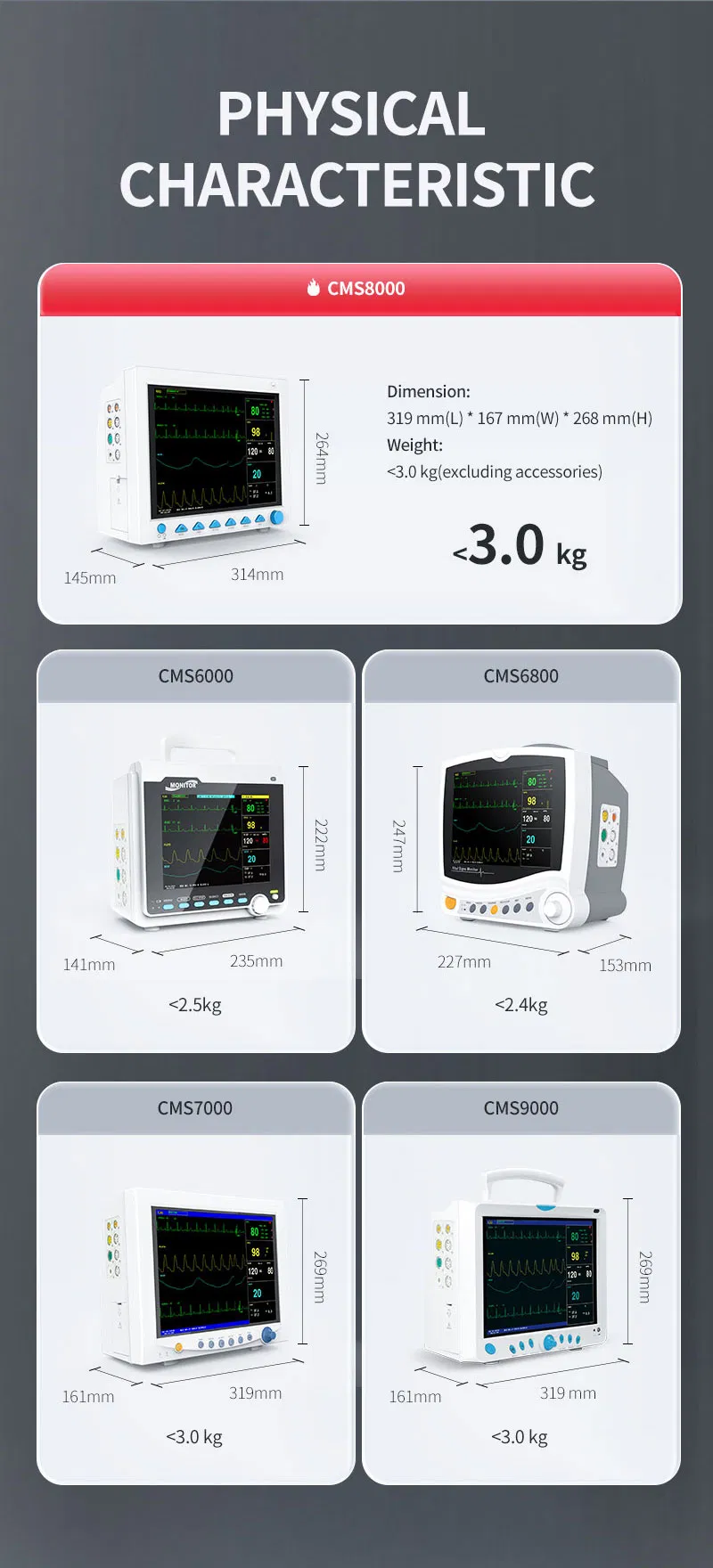

Physical Characteristics & Accessories

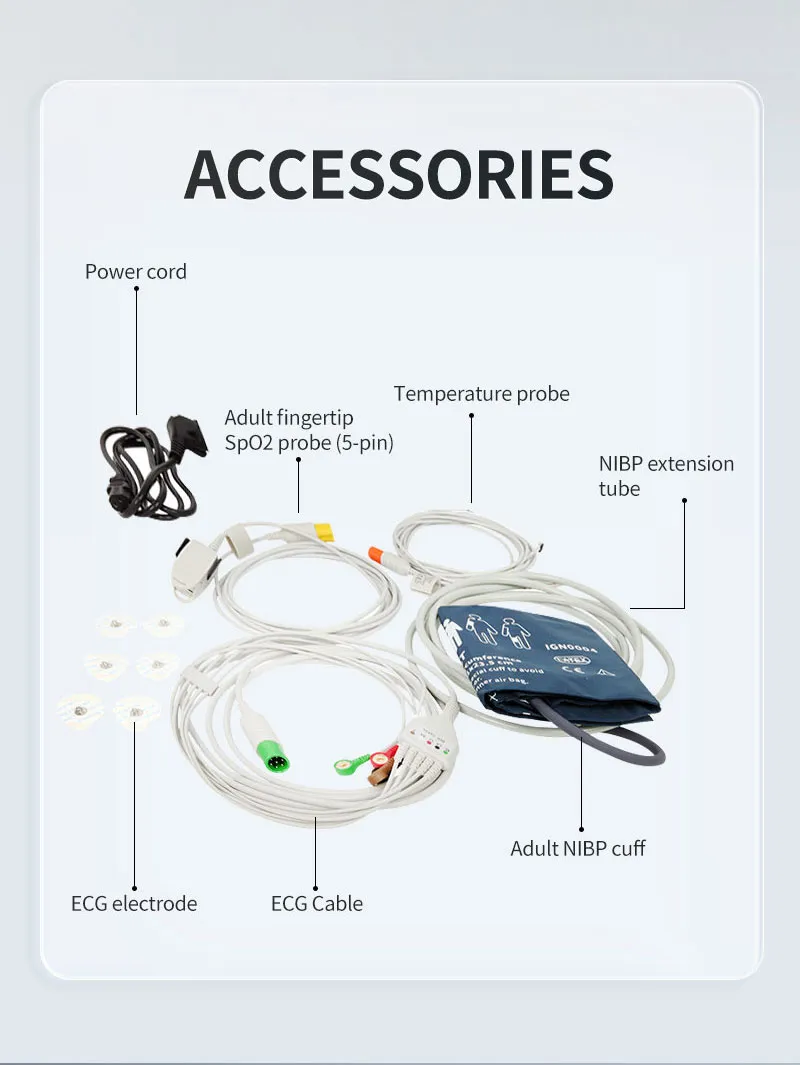

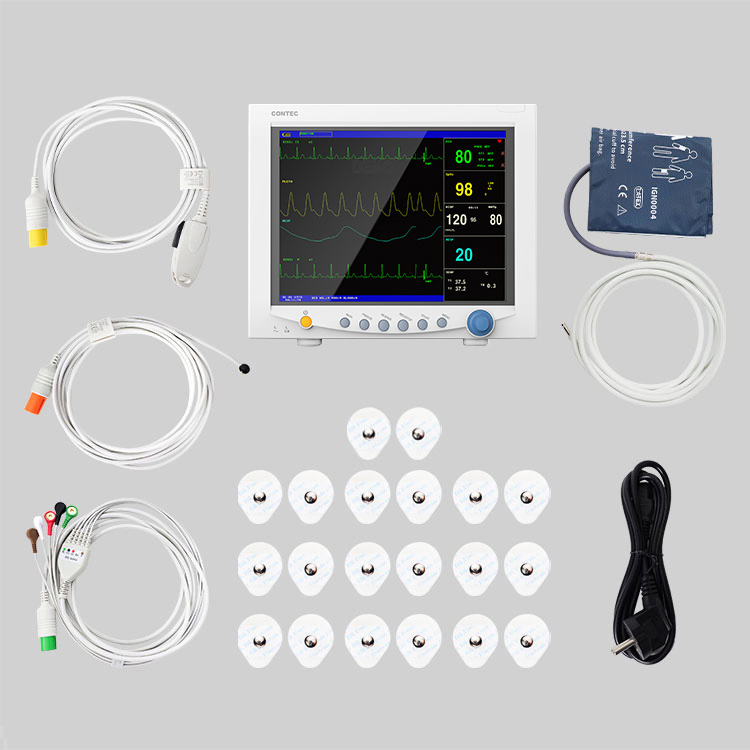

Standard Accessories: Adult SpO2 probe, Adult NIBP cuff, NIBP extension tube, ECG lead cable, ECG electrode, Temperature probe, Power cord, User Manual.

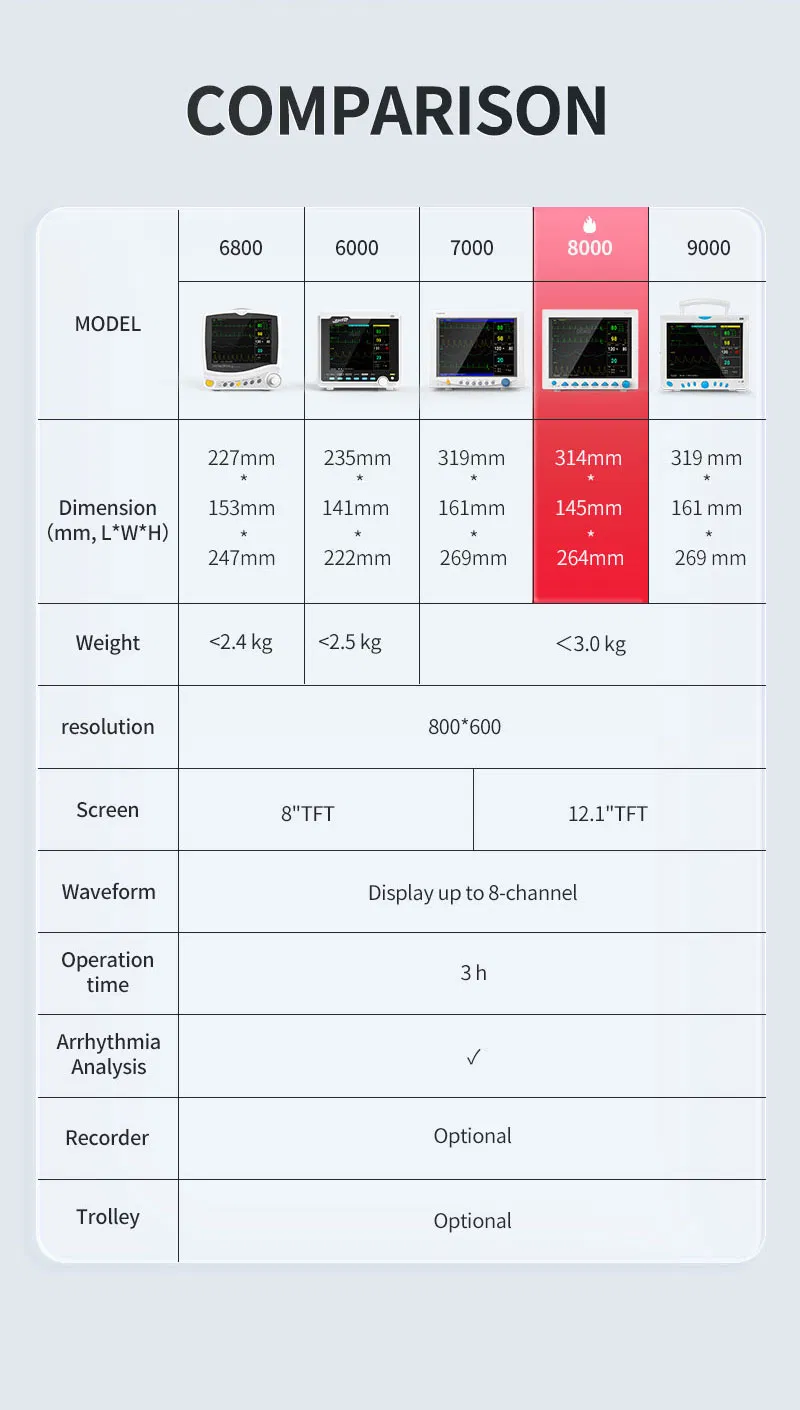

Dimension

319 mm(L) × 161 mm(W) × 269 mm(H)

Weight

<3.0 kg (excluding accessories)

Production & Quality

Frequently Asked Questions

1. What patient groups can the CMS7000 monitor be used for?

The CMS7000 is designed for comprehensive monitoring of adult, pediatric, and neonatal patients.

2. Does the device support touch screen operation?

Yes, it features a 12.1'' TFT color LCD with touch screen capabilities to improve clinical efficiency.

3. Can the monitor connect to a Central Monitoring System?

Yes, it supports connection to a Central Monitoring System via both Wi-Fi and wired modes.

4. How much NIBP data can the device store?

The device can store up to 4800 groups of NIBP data for review.

5. Is the monitor suitable for use during patient transport?

Yes, the device is compact, lightweight (under 3kg), and includes a built-in rechargeable lithium battery for uninterrupted monitoring during movement.

6. What languages are available on the interface?

The multi-language interface supports English, Chinese, Russian, Kazakhstan, Czech, Slovak, and Spanish.
