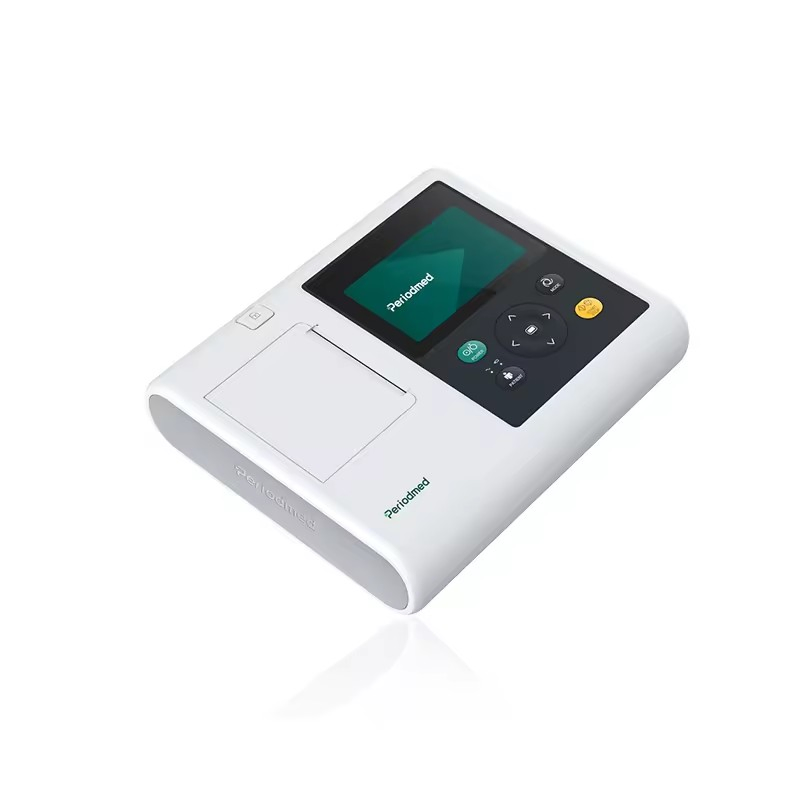

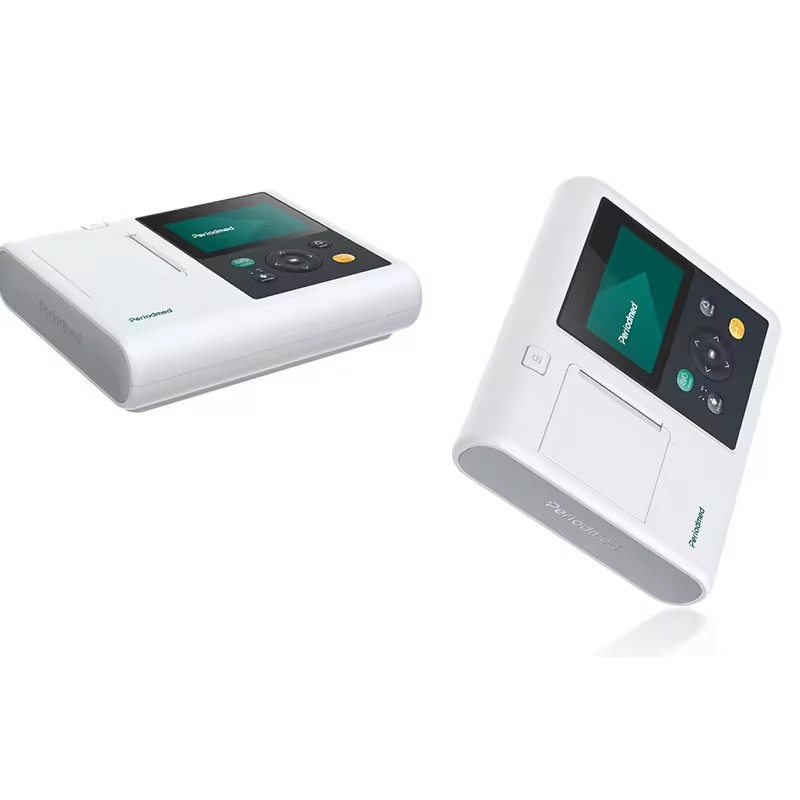

Advanced Portable ECG Monitor with 12 Channels for Clinicsthe Hospital
Advanced Portable ECG Monitor with 12 Channels for Clinicsthe Hospital
Advanced Portable ECG Monitor with 12 Channels for Clinicsthe Hospital
Advanced Portable ECG Monitor with 12 Channels for Clinicsthe Hospital
Advanced Portable ECG Monitor with 12 Channels for Clinicsthe Hospital
1 / 5
Advanced Portable ECG Monitor with 12 Channels for Clinicsthe Hospital
Advanced Portable ECG Monitor with 12 Channels for Clinicsthe Hospital
Advanced Portable ECG Monitor with 12 Channels for Clinicsthe Hospital
Advanced Portable ECG Monitor with 12 Channels for Clinicsthe Hospital
Advanced Portable ECG Monitor with 12 Channels for Clinicsthe Hospital

Advanced Portable ECG Monitor with 12 Channels for Clinicsthe Hospital

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
E12A
Certification
CE, ISO13485, RoHS
Group
Middle-aged and Old
Material
Plastic, Metal
Shelf Life
2 Years
Display
LED Display
Specification
30X23X7.2 cm; 2.800 kg
HS Code
9018390000
PE-EA ECG Machine 12 Channel

PRODUCT FEATURES

  • Portable and delicate design, easy to operate.
  • Accurate pulse pace identification function.
  • High accuracy digital filter, automatic baseline adjustment.
  • Working modes: Manual, Automatic, R-R, Store.
  • Excellent automatic interpretation and channel format recording.
  • Graphic inch color LCD to simultaneously display ECG information.
  • Alphanumeric keyboard for convenient operation.
  • Patient cases storage (SD card storage is optional).
  • Detailed patient information record with Freeze function.
  • Built-in rechargeable Li-ion battery (Adapt to 110-230V power).
  • USB / UART ports support external storage and laser printing.

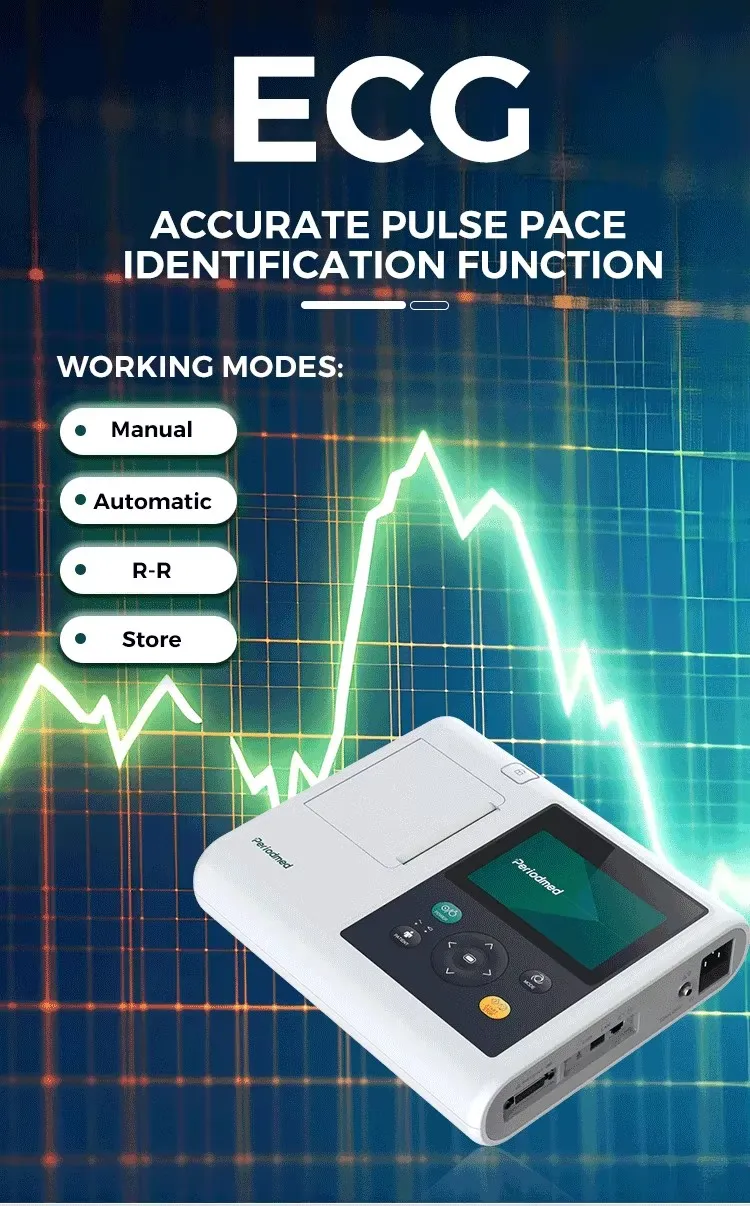

ECG Monitor Display

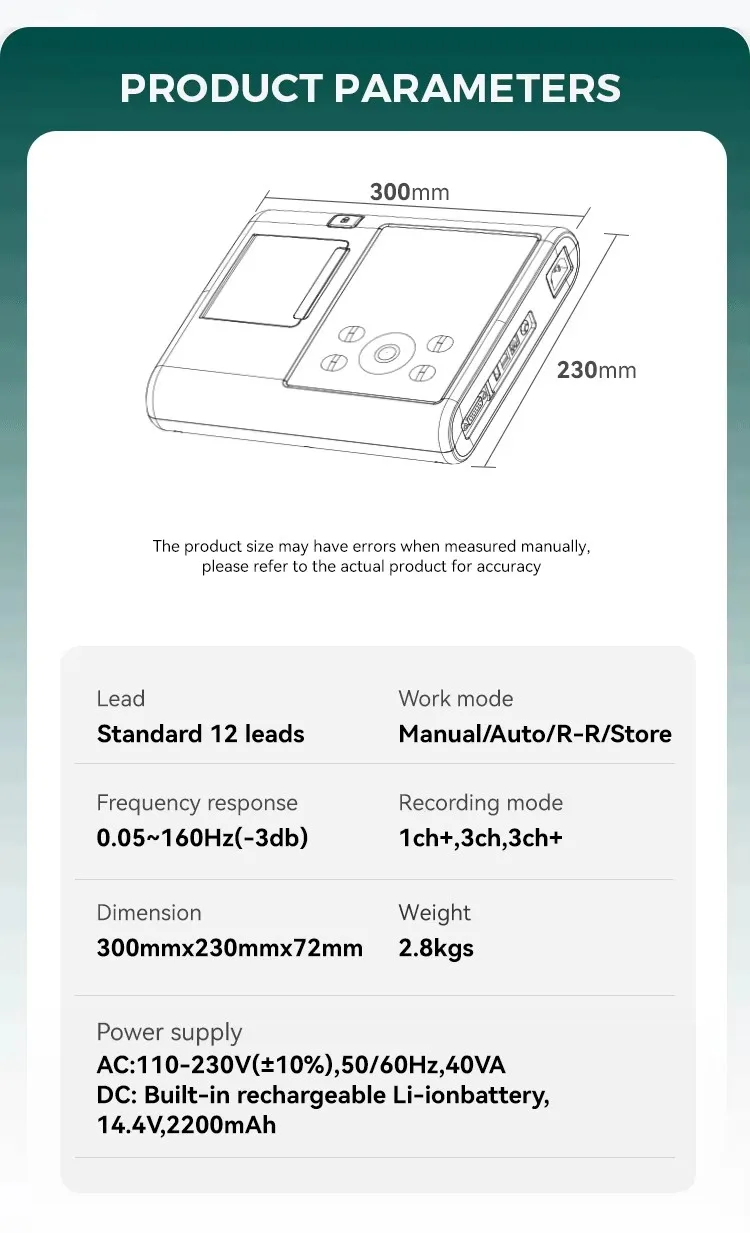

ECG Device Interface

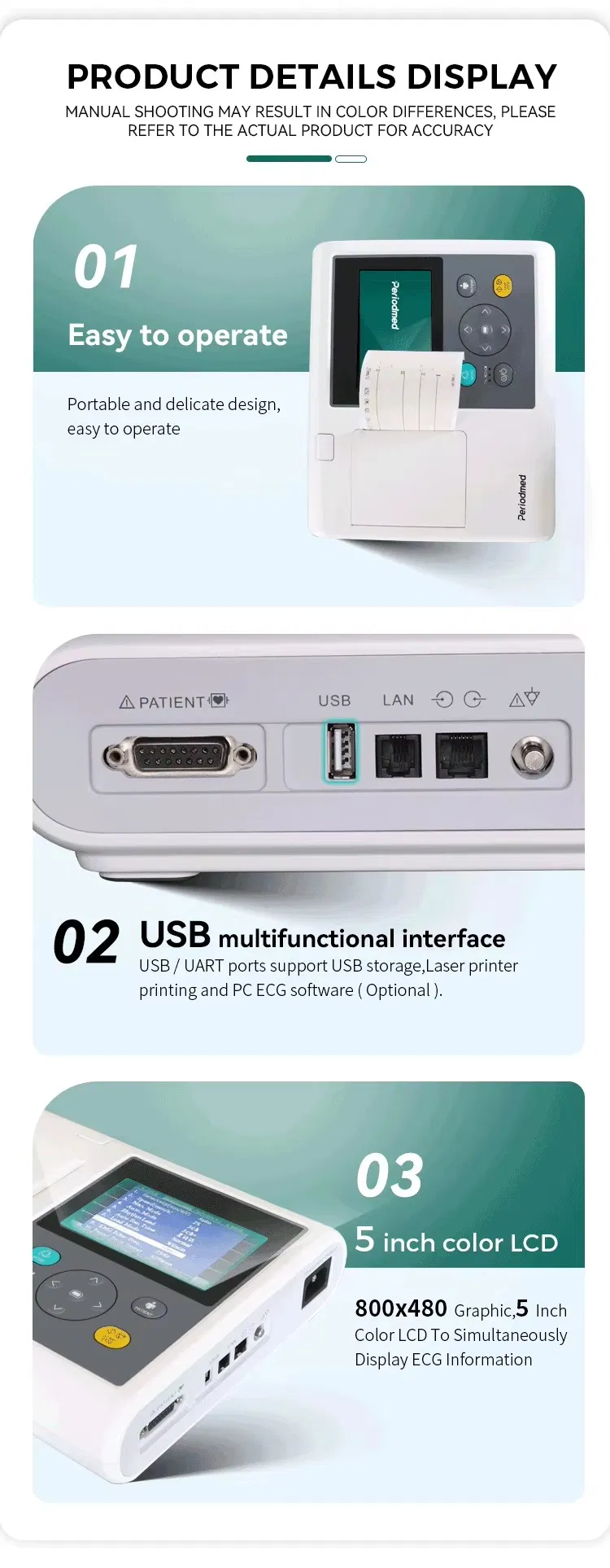

ECG System Features
Technical Specification
Lead Standard 12 leads Time Constant ≥3.2s
Lead Acquisition 12 leads synchronously acquisition Frequency Response 0.05~160Hz (-3db)
Work Mode Manual/Auto/R-R/Store Noise Level <15 Vp-p
Filter AC: 50/60Hz; EMG: 25/45Hz; Anti-Drift: 0.15Hz CMRR ≥120dB (with AC Filter)
Input Impedance ≥50MΩ Recording Mode Auto, 2.5, 5, 10, 20, 40mm/mV(±3%)
Paper Speed 6.25, 12.5, 25, 50mm/s(±3%) Paper Size 210mmx30m roll thermal paper
Power Supply AC: 110-230V, 50/60Hz; DC: Built-in rechargeable Li-ion battery
Dimension 347mmx293mmx83mm Weight 4.8 kgs

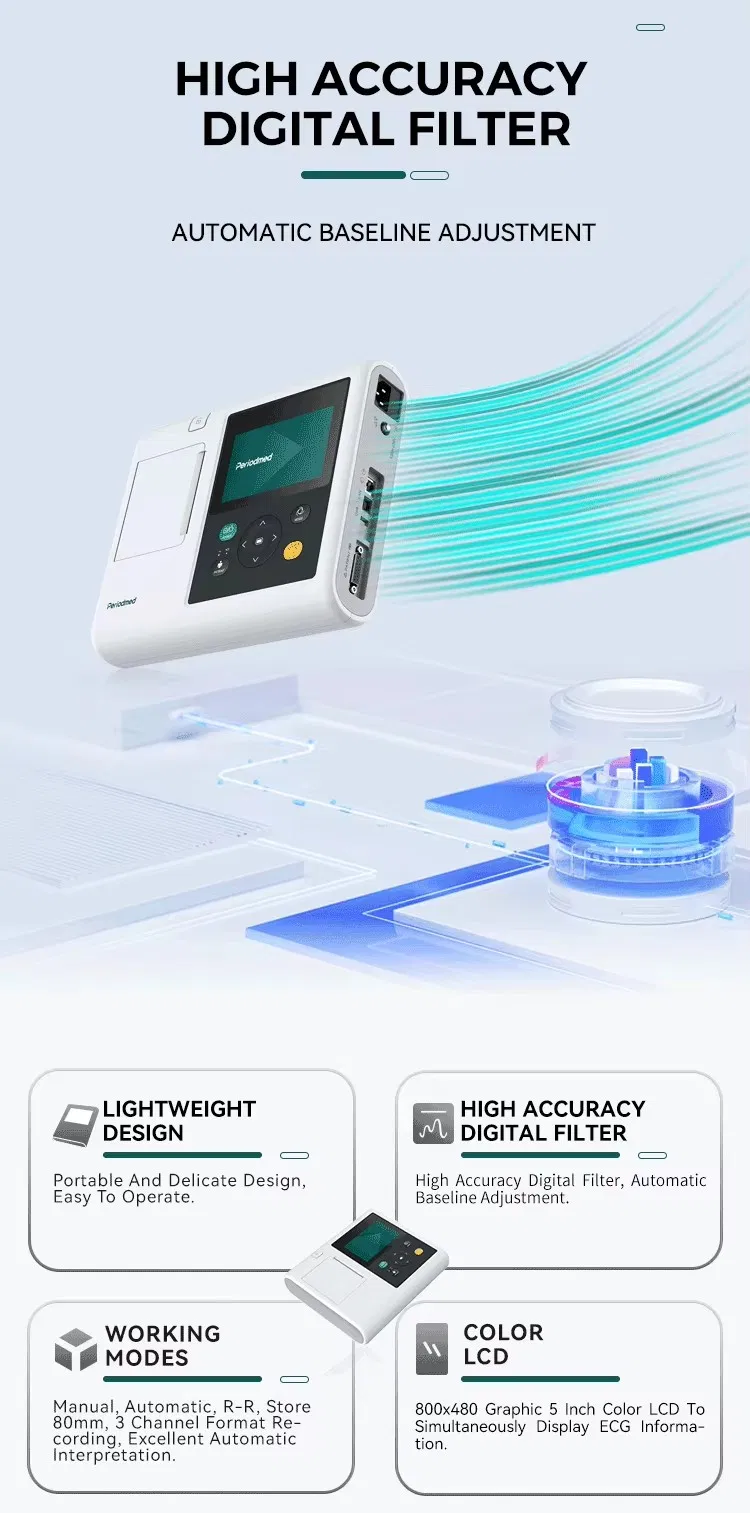

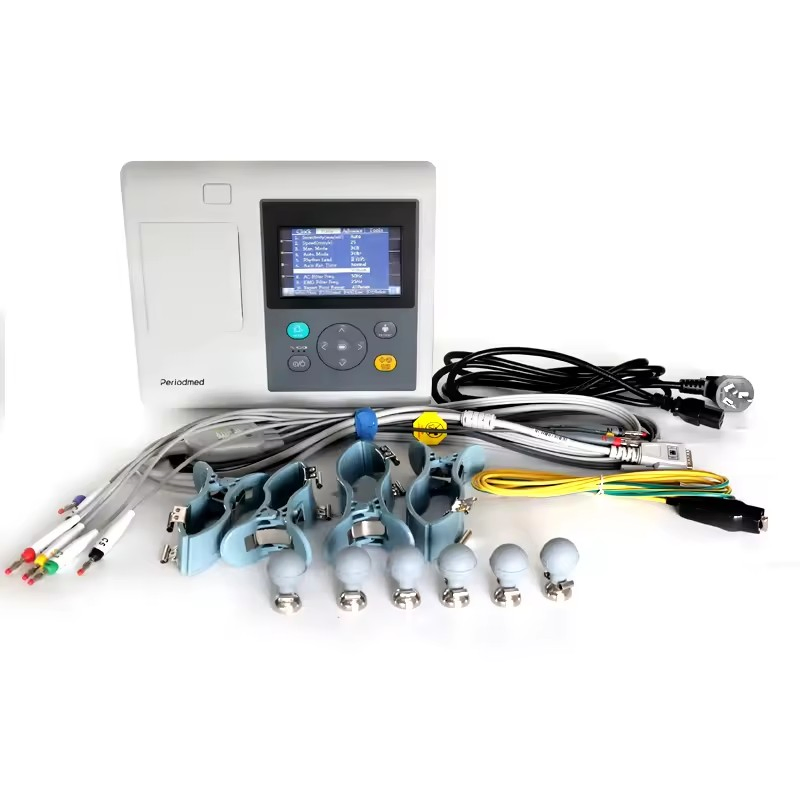

ECG Components
ECG Device Side View
Product Application
Detail View
Technical Layout
Frequently Asked Questions
How many leads can this ECG machine acquire?
The E12A ECG machine supports synchronous 12-lead acquisition for comprehensive cardiac monitoring.
Does the device support data storage?
Yes, it features patient case storage, and SD card storage is available as an optional feature.
Is this machine portable for different clinical settings?
Absolutely. It features a portable and delicate design with a built-in rechargeable Li-ion battery, making it easy to move between wards.
Can I connect this ECG machine to a PC or printer?
Yes, it is equipped with USB and UART ports that support USB storage, laser printer printing, and optional PC ECG software.
What type of display does the E12A use?
The device is equipped with a high-clear LED/Color LCD display that simultaneously shows all necessary ECG information.
What filter technologies are included?
It includes a high-accuracy digital filter, AC filter (50/60Hz), EMG filter (25/45Hz), and an anti-drift filter (0.15Hz).
