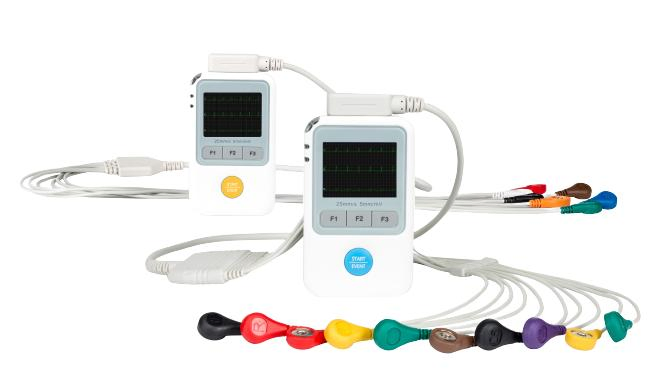

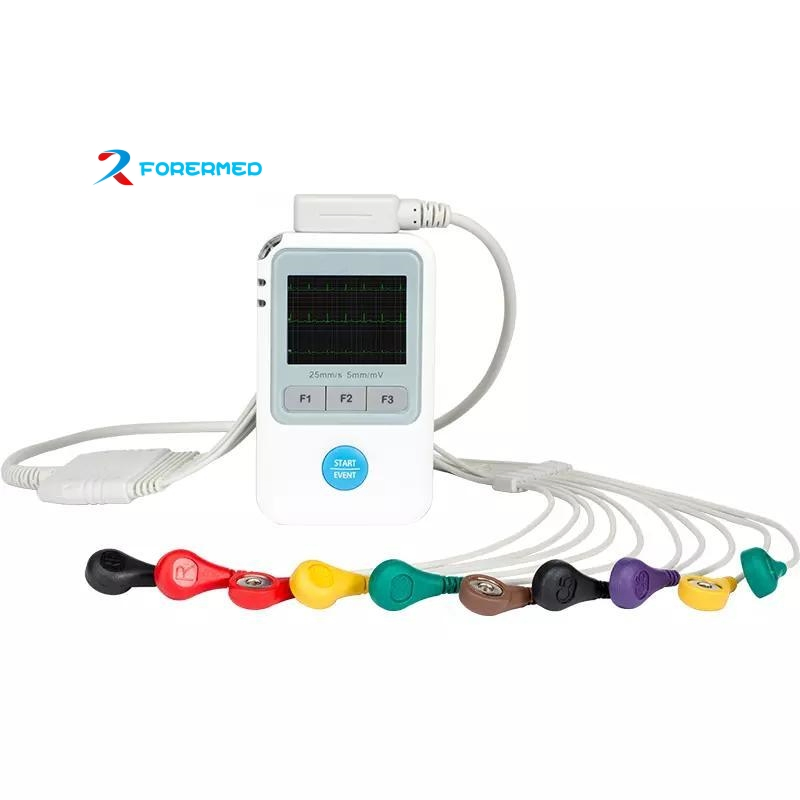

24 Hours Simultaneous ECG Monitor Color Screen with 12 Channels

1 / 5

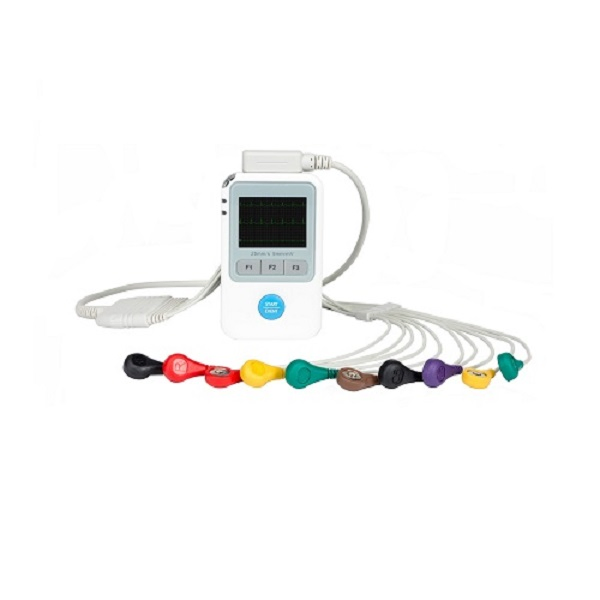

24 Hours Simultaneous ECG Monitor Color Screen with 12 Channels

Customization:	Available
Channel:	12-Channel or 3-Channel

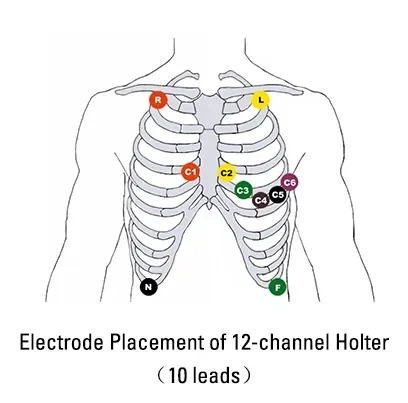

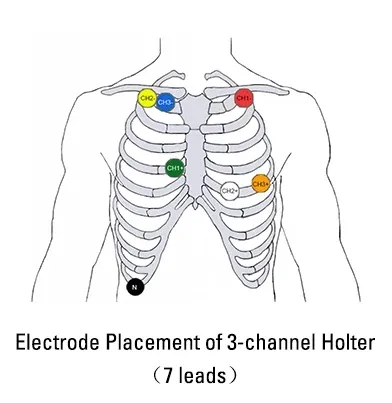

Available Patient Cables:	10 Leads, 7 Leads (Optional)

Send Inquiry

Product Description

Basic Information

Model NO.

YJ-H12C

Weight

78g

Size

98mm*59mm*21mm

Display

1.77 Inch Color OLED

Storage

Nandflash Memory

Power Supply

2 AAA Alkaline Battery

Capacity

800 pieces/Month

HS Code

9001100009

Product Description

YJ-H12C Three-channel Holter ECG

More Clear and Intuitive

1.77 inch color OLED display allows for easy previewing of the initial waveform to ensure proper lead connection. Equipped with a standard ECG grid background, the interface displays 3-lead waveforms simultaneously, with manual or automatic switching options.

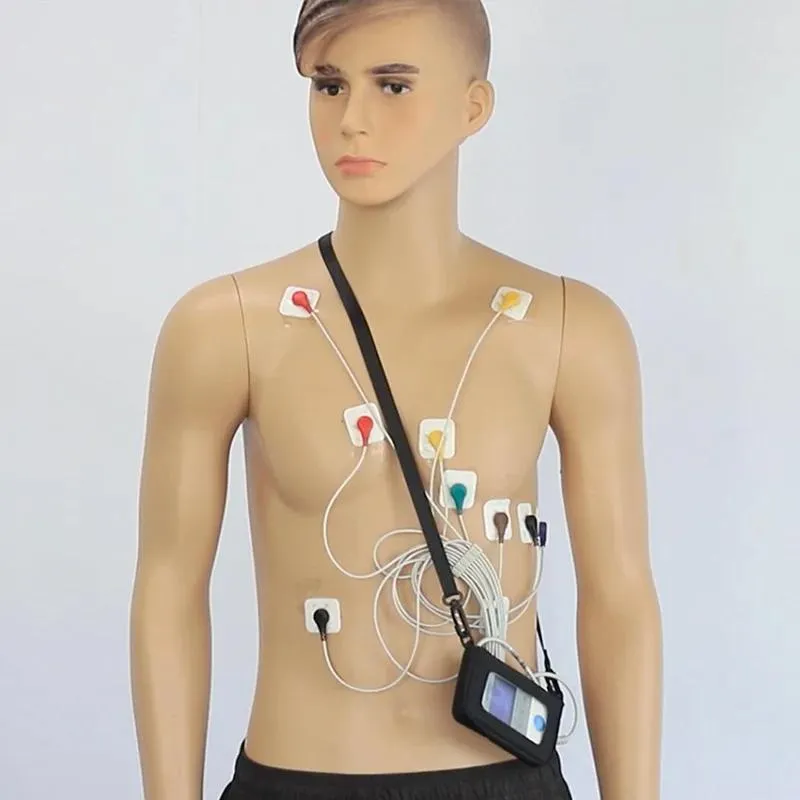

Comfortable and Lightweight

Weighting less than 78g, this device is portable and comfortable for long-term wear. The patient cable features anti-reverse and anti-drop designs for reliable connectivity. An anti-mistouch design prevents accidental data recording suspension.

Long-term Dynamic ECG Monitoring

A 24-hour dynamic electrocardiogram is essential for diagnosing paroxysmal conditions like atrial flutter that short-term ECGs might miss. The Holter monitor tracks arrhythmias and records their frequency and severity over extended periods.

Additional Functions

Pre-recording patient information entry.
Data export via USB interface post-recording.
Accurate pacemaker detection technology.
Dedicated event button for manual recording of abnormal sensations.
Waveform freezing function for detailed real-time analysis.

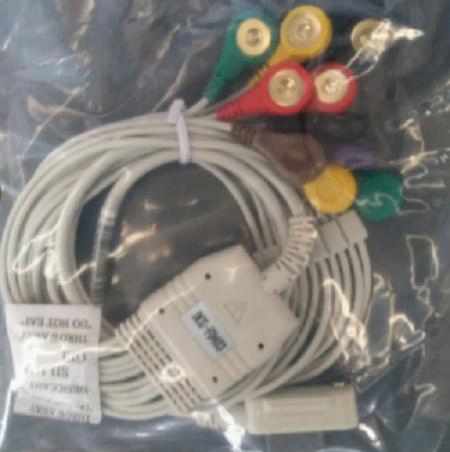

High-reliability patient cable with secure locking mechanisms.

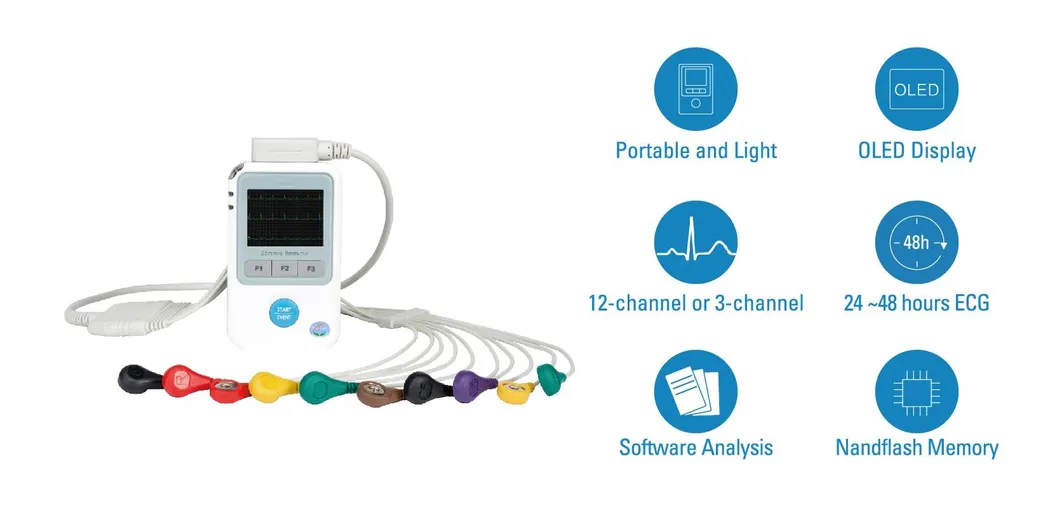

Core Features

Portable and Light: Designed for patient comfort during daily activities.
OLED Display: High-resolution screen for easy waveform verification.
Durable Patient Cable: Anti-reverse and anti-drop functions for safety.
Event Button: Allows patients to flag symptomatic moments.
No Data Compression: Nandflash memory stores 24/72 hours of raw ECG data.
Real-time Clock: Automatic time and date stamping for all records.
Pacemaker Detection: Special two-grade circuit for precision detection.

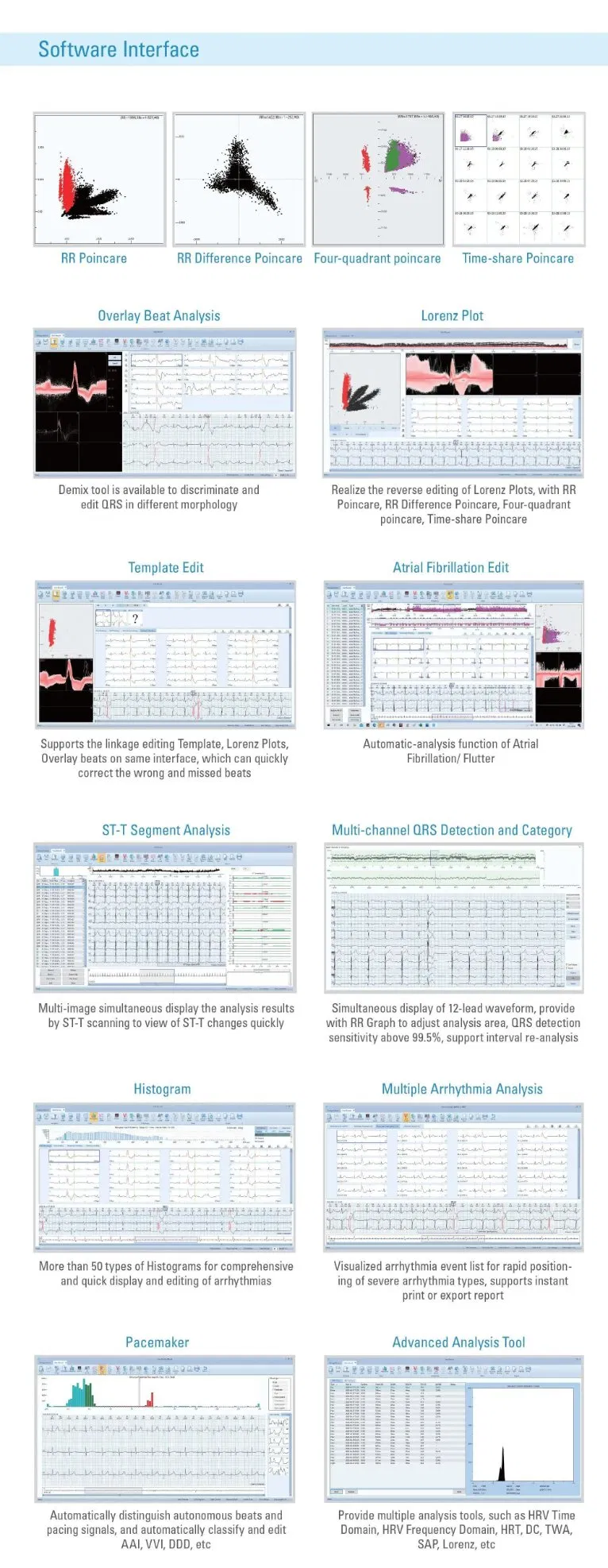

Technical Specifications & Software

Lorenz Plots

Template Editing	Linkage editing, Lorenz Plots, and Overlay beats for quick correction.
ST-T Analysis	Simultaneous multi-image display of analysis results for rapid viewing of changes.
Histogram	Over 50 types of histograms for comprehensive arrhythmia display.
Arrhythmia Analysis	Visualized event list for rapid positioning of severe types.
Advanced reverse editing with RR Poincare and Time-share Poincare.
Atrial Fibrillation	Automatic analysis function for Atrial Fibrillation and Flutter.
Detection Accuracy	ORS detection sensitivity above 99.5% with 3-lead simultaneous display.
Advanced Tools	HRV (Time/Frequency), HRT, DC, TWA, SAP, and more.

Product Gallery

Frequently Asked Questions

How long can the YJ-H12C record ECG data?

The device uses Nandflash memory to store 24 hours to 72 hours of ECG data without any data compression.

Is the device heavy to wear?

No, the main unit weighs less than 78g, making it extremely portable, lightweight, and comfortable for long-term use.

Can I preview the ECG waveform on the device?

Yes, it features a 1.77-inch color OLED display that allows you to preview waveforms and ensure leads are properly connected.

How does the device handle data export?

After the recording period is finished, data can be easily exported to a computer through a standard USB interface.

Does the system support pacemaker detection?

Yes, it includes a special two-grade pacemaker detection circuit design to ensure accurate tracking and classification of pacing signals.

What analysis tools are included in the software?

The software provides comprehensive tools including HRV (Time and Frequency Domain), Atrial Fibrillation/Flutter analysis, ST-T segment analysis, and Lorenz Plots.
