Portable 3G Wi-Fi Health Monitoring Device with Multi-Language Support

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	Patient Monitor

Send Inquiry

Product Description

Basic Information

Model NO.	CMS6500
Group	Middle-aged and Old
OEM/ODM	Yes
After-Sale Service	Repair and Replacement
Instrument Classification	Class II
Warranty	1 Year
Material	Plastic
Product Name	Patient Monitor
Display	7'' Color TFT LCD
Hr Range	15 ~ 300 Bpm
Multi-Parameter	ECG, SpO2, Pulse Rate, NIBP
Specification	190 mm(L)162 mm(W)240 mm(H)

Product Description

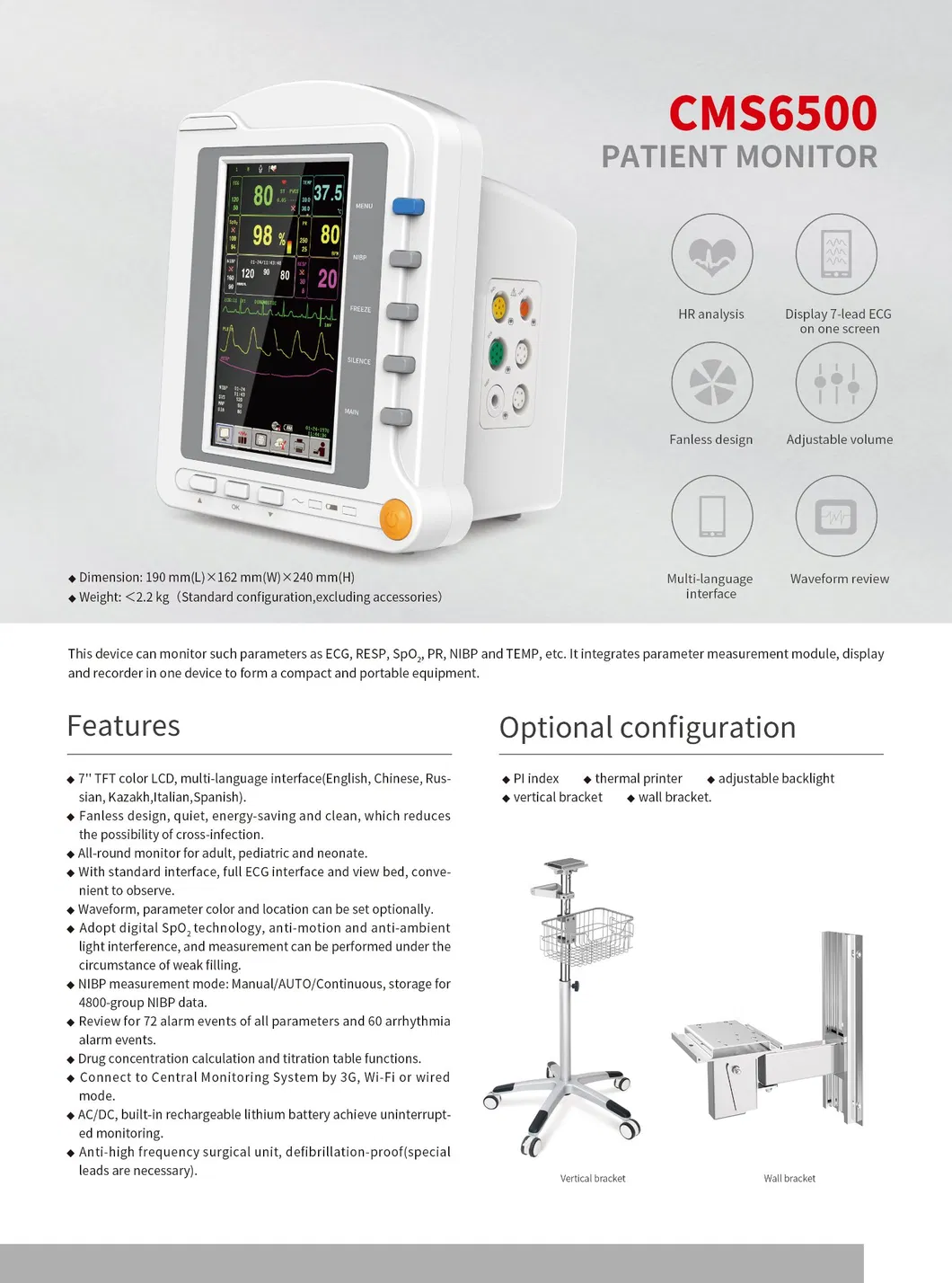

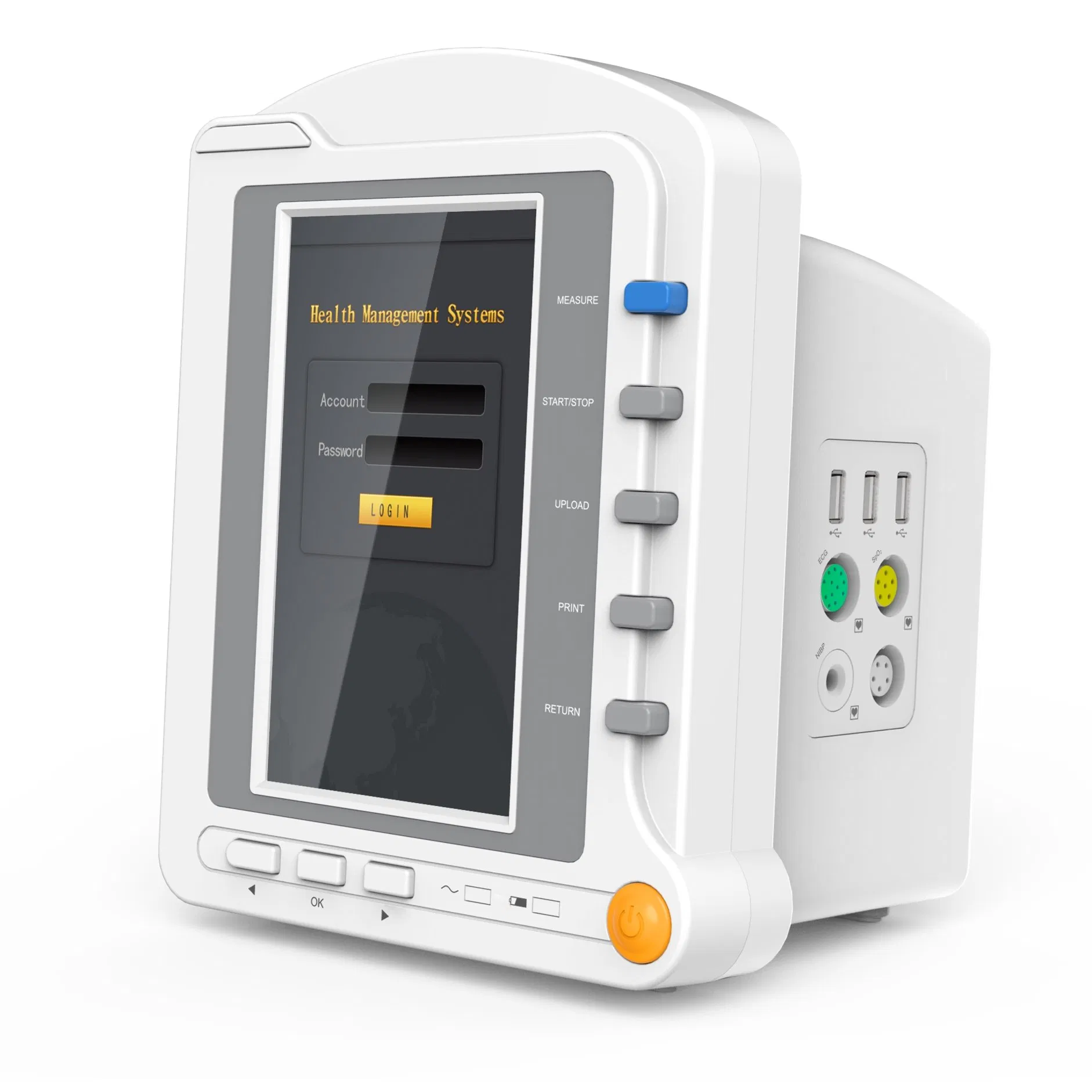

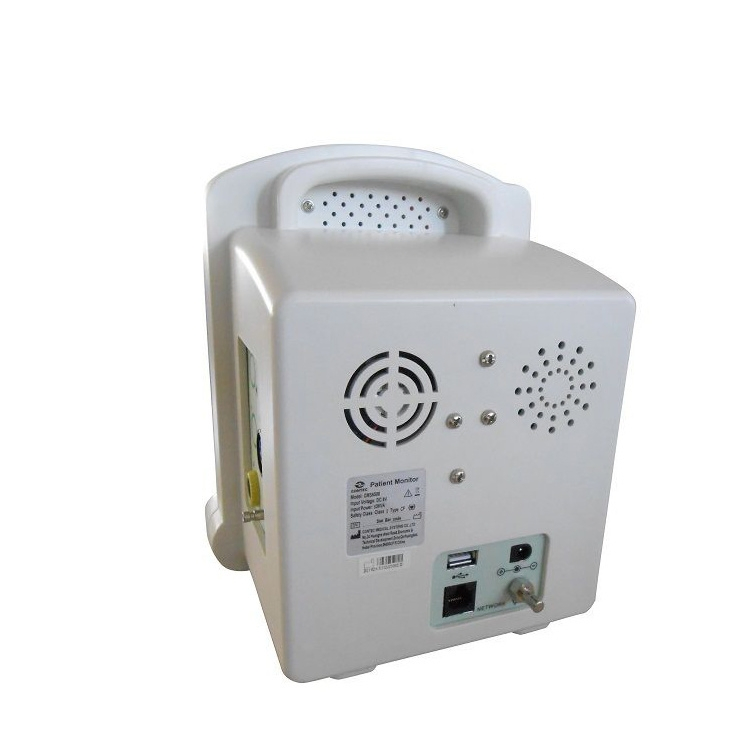

Portable 3G Wi-Fi Medical Patient Monitor CMS6500 is a portable monitor with a high-resolution touch screen. Designed to ensure monitoring quality and minimize operational risk, it incorporates full-isolation (floating), ECG defibrillation-proof protection, ECG anti-high frequency surgical unit interference, and NIBP dual-overpressure protection.

Core Features

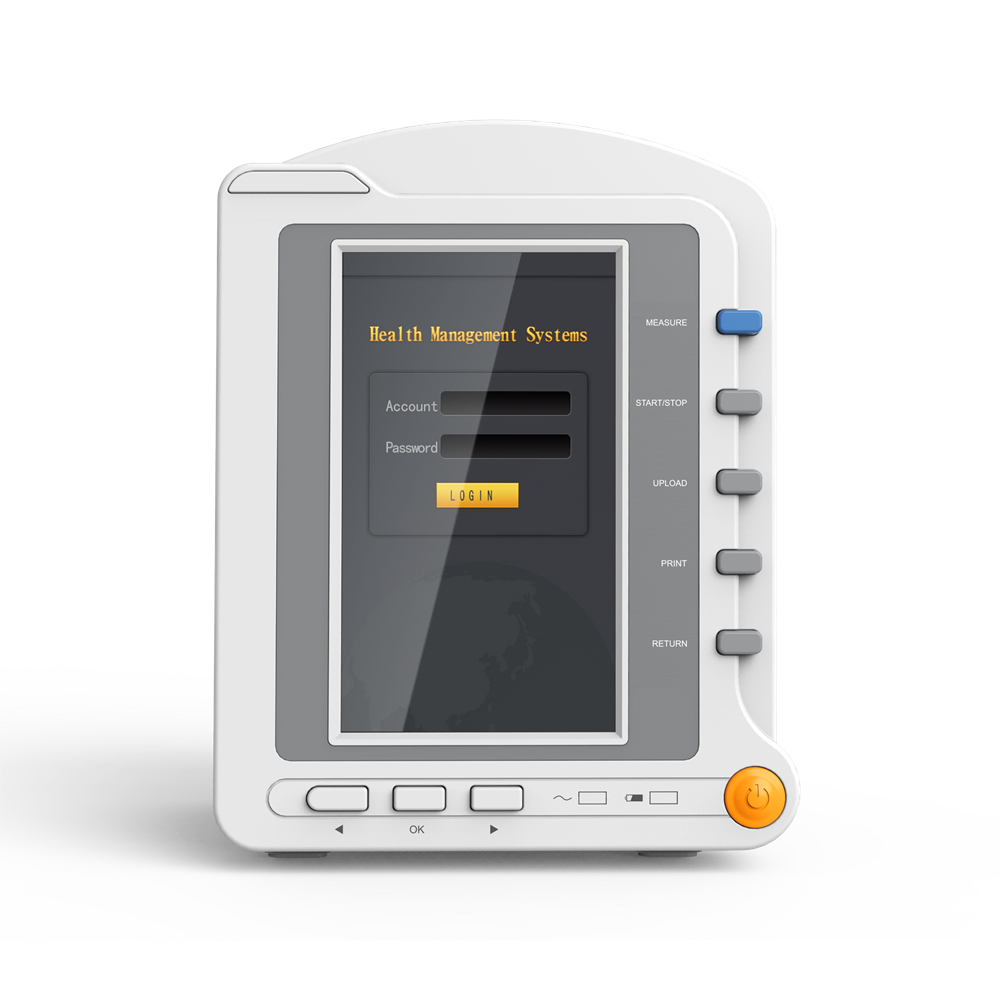

7'' color TFT LCD with high-resolution touch screen.
Applicable for adult, pediatric, and neonatal monitoring.
Storage for 72-hour trend data and 40-second holographic waveform review.
Digital SpO2 technology with strong anti-interference capability.
NIBP storage for up to 400 data points.
Wired and wireless network connectivity for central station observation.
Built-in rechargeable battery for uninterrupted use.

Technical Specifications

ECG	Lead mode: 3-lead or 5-lead; Gain: 2.5mm/mV to 20mm/mV; Scan speed: 12.5mm/s to 50 mm/s
Heart Rate (HR)	Range: 15~350 bpm; Accuracy: ±1 % or ±1 bpm; Arrhythmia analysis and Pacemaker detection included.
RESP	Method: R-F(RA-LL) Impedance; Range: 0~150 rpm; Apnea alarm: 10~40s.
NIBP	Method: Oscillometry; Modes: Manual/AUTO/Continuous; Range: 10 ~ 270 mmHg; Over-pressure protection for all patient types.
SpO2	Range: 0 ~ 100%; Resolution: 1%; Accuracy: 70%~100%: ±2%.
Pulse Rate (PR)	Range: 30 ~ 250 bpm; Accuracy: ±2 bpm or ±2%.

Standard Accessories

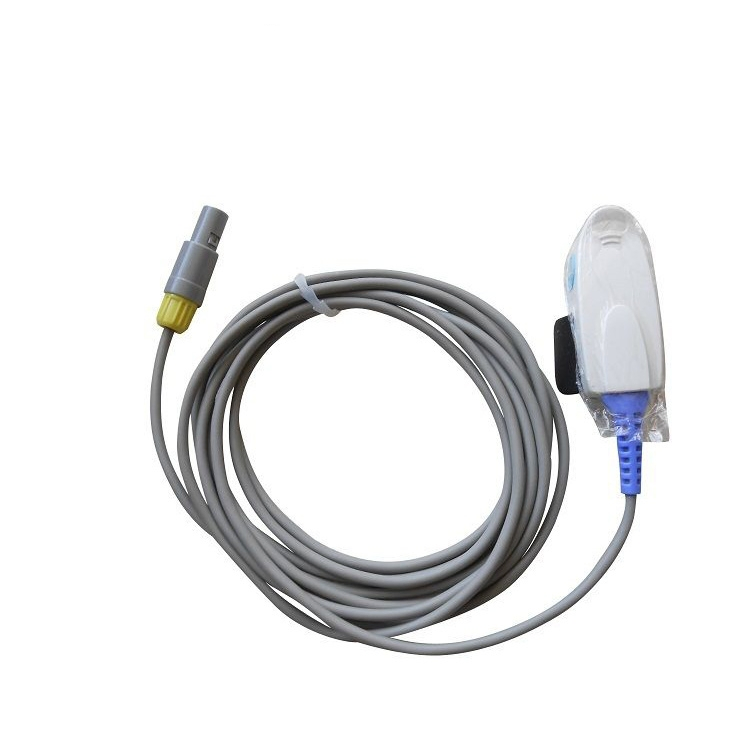

Adult fingertip SpO2 probe & extension cable

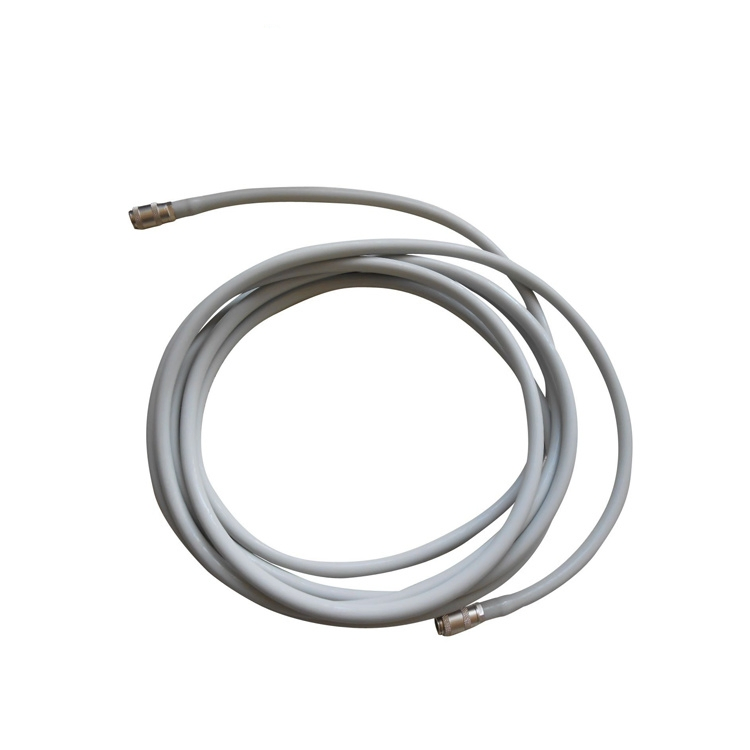

Adult NIBP cuff & extension tube
ECG lead cable & electrodes
Temperature probe
Power cord & adapter
User Manual

Physical Characteristics

Dimensions: 192 mm(L) × 162 mm(W) × 243 mm(H)

Weight: 2.0 Kg

Optional: Pediatric/Neonatal accessories; Telemedicine functionality.

Product Gallery

Frequently Asked Questions (FAQ)

What patient groups is this monitor suitable for? The CMS6500 is versatile and applicable for adult, pediatric, and neonatal patients for all-round vital signs monitoring.

Does the device support touch screen operation? Yes, it features a 7-inch color TFT LCD with a touch screen for simple and shortcut operations.

How long can the monitor store data? The device can store up to 72 hours of trend data and allows for the review of 40-second holographic waveforms and up to 400 NIBP data points.

Can it be connected to a central monitoring station? Yes, the monitor supports both wireless and wired network connections for central station observation and software updates.

What safety features are included for ECG and NIBP? It includes ECG defibrillation-proof protection, anti-high frequency surgical unit interference, and NIBP dual-overpressure protection to ensure patient safety.

Is the device portable for transport? Yes, it is compact (approx. 2.0 kg) and features a built-in rechargeable battery, making it suitable for uninterrupted monitoring during transport.
