Contec Cms6500 Patient Monitoring Remote Patient Monitor Device
Contec Cms6500 Patient Monitoring Remote Patient Monitor Device
Contec Cms6500 Patient Monitoring Remote Patient Monitor Device
Contec Cms6500 Patient Monitoring Remote Patient Monitor Device
Contec Cms6500 Patient Monitoring Remote Patient Monitor Device
1 / 5
Contec Cms6500 Patient Monitoring Remote Patient Monitor Device
Contec Cms6500 Patient Monitoring Remote Patient Monitor Device
Contec Cms6500 Patient Monitoring Remote Patient Monitor Device
Contec Cms6500 Patient Monitoring Remote Patient Monitor Device
Contec Cms6500 Patient Monitoring Remote Patient Monitor Device

Contec Cms6500 Patient Monitoring Remote Patient Monitor Device

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Type: Patient Monitor
Send Inquiry

Product Description

Basic Info.
Model NO.CMS6500
CertificationCE
GroupAll
Product NameVital Signs Monitor Patient Monitor with Touch Screen
Display Mode7'' Color TFT LCD
Multi-ParameterECG, SpO2, Pulse Rate, NIBP
ECG Lead Mode3-Lead or 5-Lead
Hr Range15 ~ 300 Bpm
SpO2 Range0 ~ 100%
NIBP Range25 ~ 260mmhg
Transport PackageCarton
HS Code9018193010
Capacity500/Week
Detailed Photos

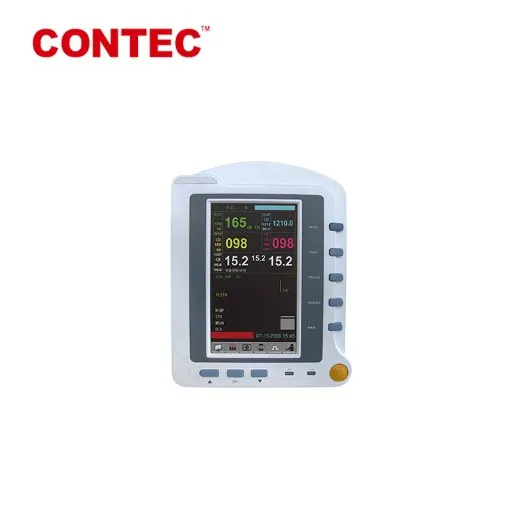

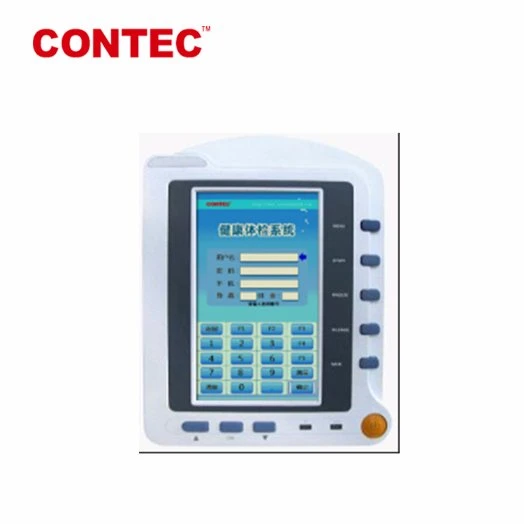

CMS6500 Patient Monitoring Device

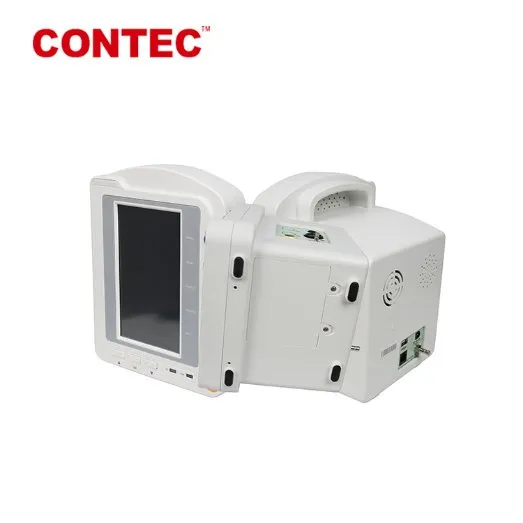

Vital Signs Monitor Front View
Product Description

CMS6500 Vital Signs Monitor Patient Monitor with Touch Screen

CMS6500 is a portable monitor with touch screen. To ensure monitoring quality and reduce operation risk, it adopts full-isolation (floating), ECG defibrillation-proof protection, ECG anti-high frequency surgical unit, and NIBP dual-overpressure protection.

Key Features:
  • 7'' color TFT LCD with high-resolution.
  • Simple and shortcut operation with touch screen.
  • Applicable for adult, pediatric and neonatal monitoring.
  • Storage of 72-hour trend data and 40-second holographic waveform review.
  • Anti-high frequency surgical unit, defibrillation-proof.
  • Digital SpO2 technology with strong anti-interference capability.
  • Network connection via Wireless and wired modes.
  • Built-in rechargeable battery for uninterrupted monitoring.
Parameter Specifications
ECG Lead mode: 3-lead or 5-lead; Gain: 2.5mm/mV to 20mm/mV; Scan speed: 12.5mm/s to 50 mm/s
HR Range: 15~350 bpm; Accuracy: ±1 % or ±1 bpm; Resolution: 1 bpm
RESP Method: R-F(RA-LL) Impedance; Range: 0~150 rpm; Apnea alarm: 10~40s
NIBP Method: Oscillometry; Mode: Manual/AUTO/Continuous; Range: 10 ~ 270 mmHg
SpO2 Range: 0 ~ 100%; Accuracy: 70%~100%: ±2%
TEMP Channel: Single; Range: 0 ~ 50ºC; Accuracy: ±0.1 ºC

Standard Accessories: Adult SpO2 probe, extension cable, NIBP cuff and tube, ECG lead cable/electrodes, Temperature probe, Power adapter, User Manual.

Physical Characteristics: Dimension: 192 mm(L) × 162 mm(W) × 243 mm(H); Weight: 2.0 Kg

Product Range
  • Pulse oximeter & Patient Monitoring
  • ECG machine / Holter ECG / Stress test ECG
  • EEG & Ultrasound Imaging
  • Pocket fetal doppler & fetal monitor
  • Blood pressure Monitor (ABPM) & Spirometer
  • Infusion/syringe Pump & Digital Stethscope
  • In-Vitro Diagnostics & Simulator
  • Veterinary products

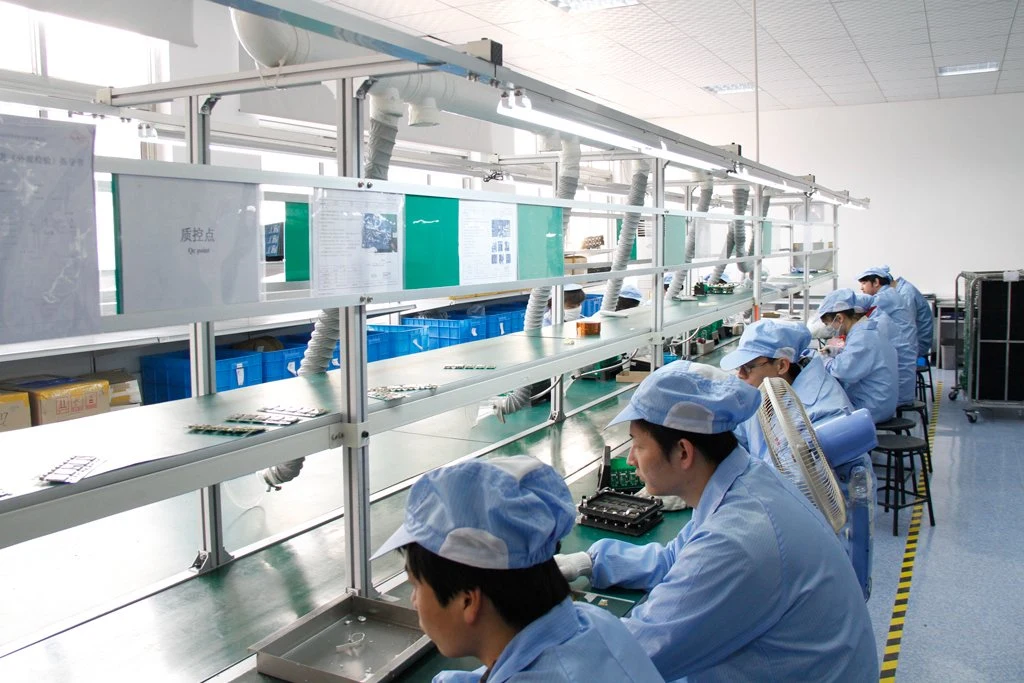

Facility Showcase
Facility 1

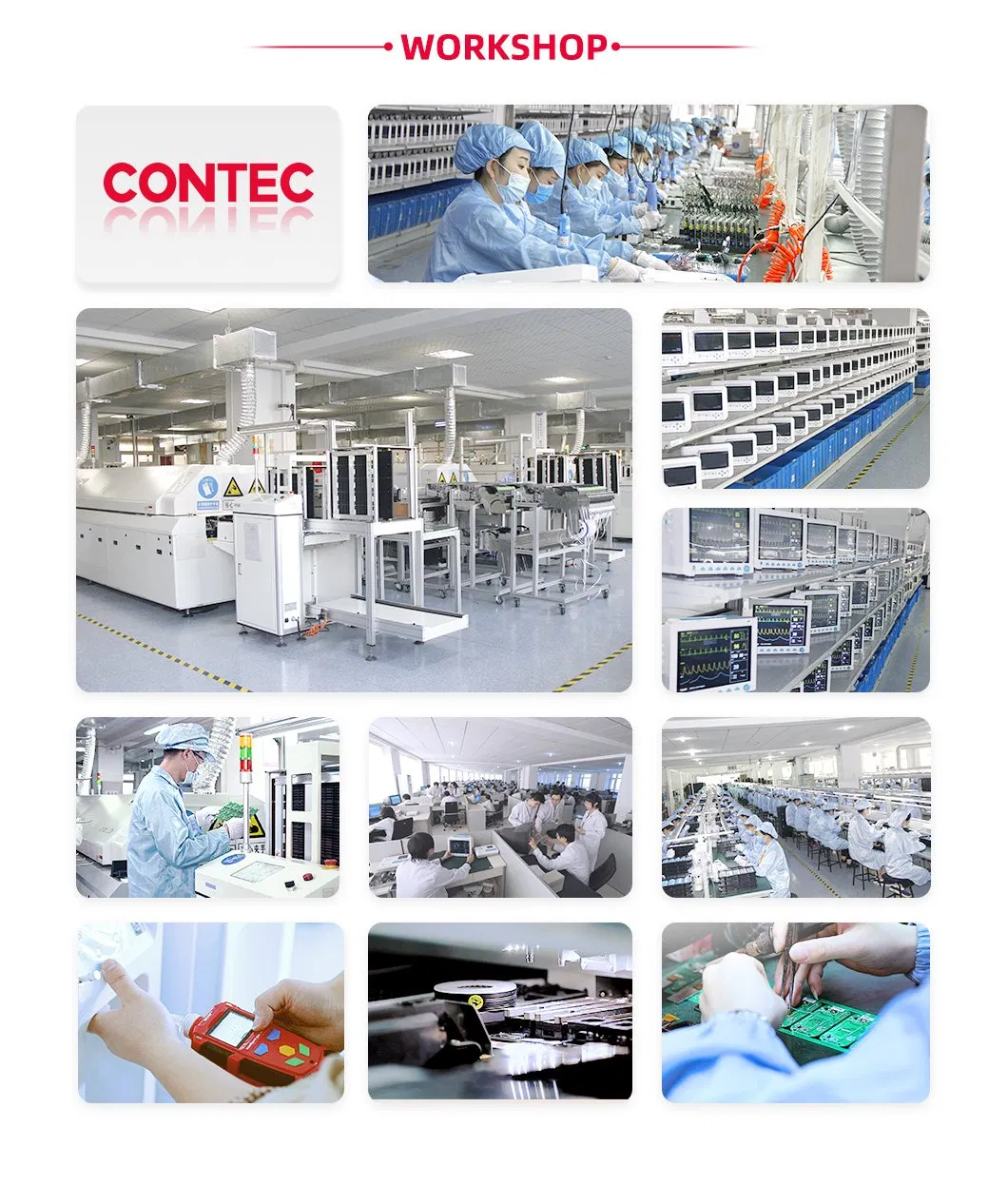

Facility 2
Facility 3
Facility 4
Facility 5
Frequently Asked Questions
Q1: Which vital signs can the CMS6500 monitor?
The CMS6500 monitors standard parameters including ECG, Respiration (RESP), Non-Invasive Blood Pressure (NIBP), Oxygen Saturation (SpO2), Temperature (TEMP), and Pulse Rate (PR).
Q2: Is this device suitable for all patient groups?
Yes, the device is designed for all-round monitoring and is applicable for adult, pediatric, and neonatal patients.
Q3: Does the monitor feature a touch screen?
Yes, it is equipped with a 7-inch high-resolution color TFT LCD touch screen for simple and quick operation.
Q4: How long can the device store trend data?
The monitor can store up to 72 hours of trend data and allow for the review of a 40-second holographic waveform.
Q5: Can the CMS6500 work during surgery or defibrillation?
Yes, it features anti-high frequency surgical unit protection and is defibrillation-proof (requires special leads) to ensure continuous monitoring.
Q6: What are the networking options available?
The device supports both wireless and wired network connection modes, allowing it to connect with a central station or other bed observation systems.
