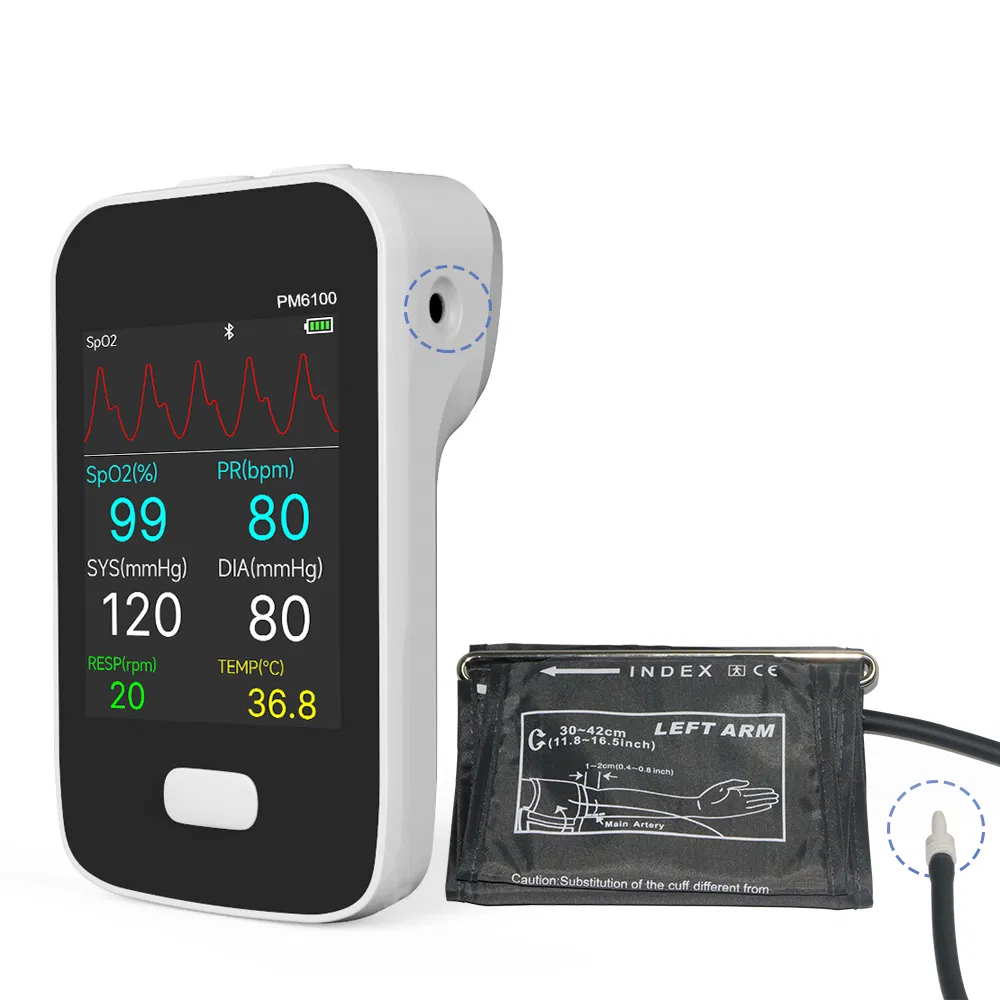

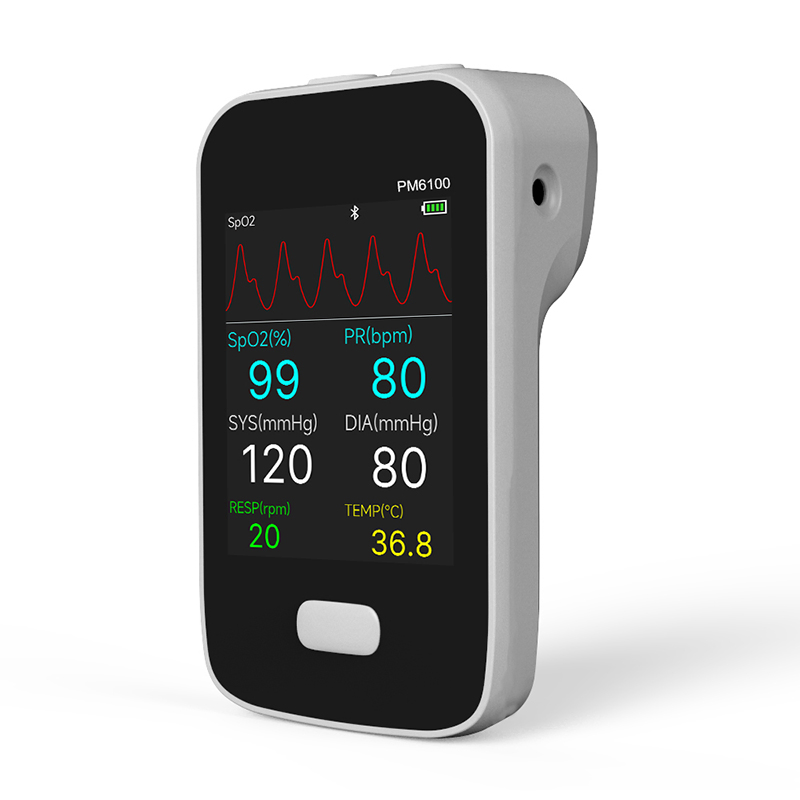

Instructions: PM6100 multi-parameter patient monitor is certified with CE0123, ISO13485, and ROHS. It monitors critical physiological signals including Heart Rate (HR), Non-invasive Blood Pressure (NIBP), SpO2, Pulse Rate (PR), Body Temperature (TEMP), and Respiration Rate (RESP).
The minimum quantity for customization is 1000 units.
Suitable for adults, the elderly, and children.

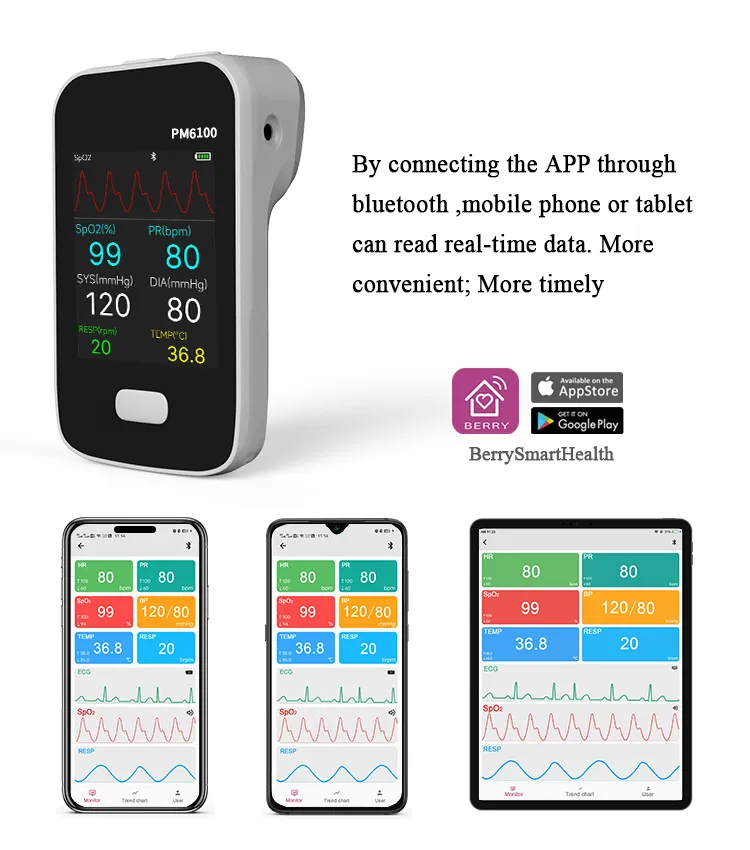

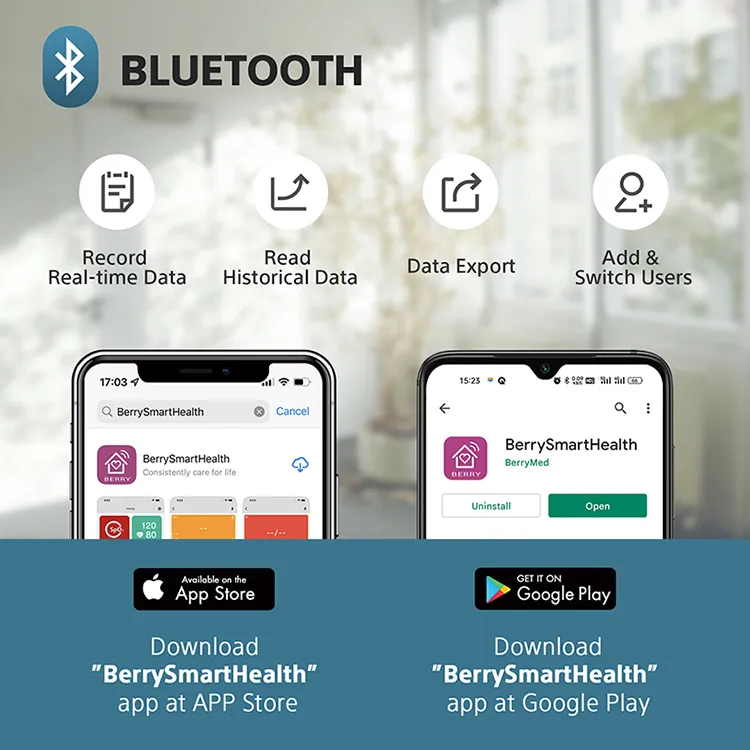

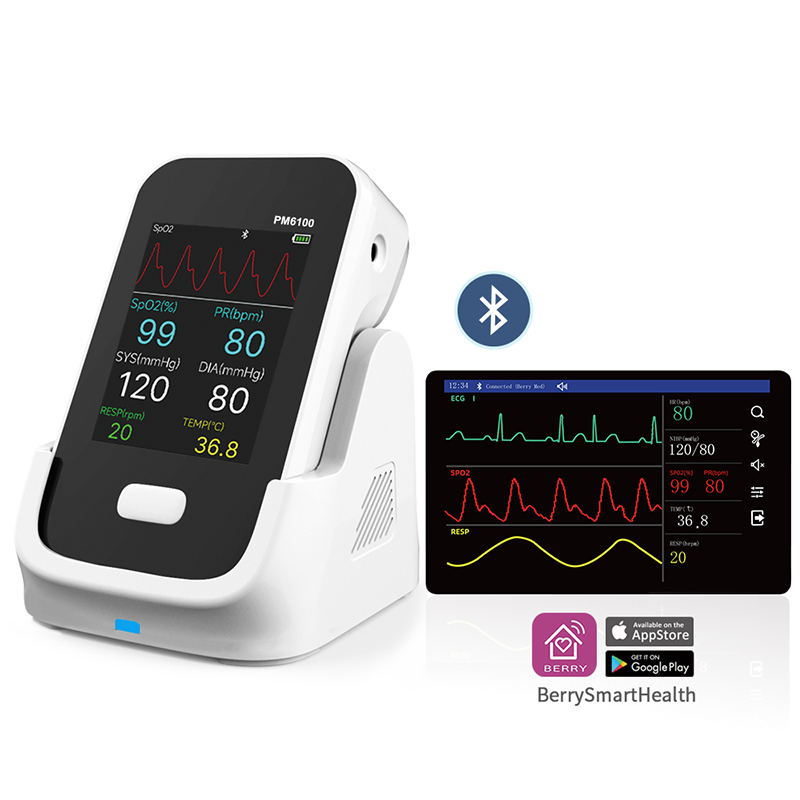

Connect via Bluetooth to mobile phones or tablets to read real-time data using the "Berry Smart Health" app, available on the App Store and Google Play.

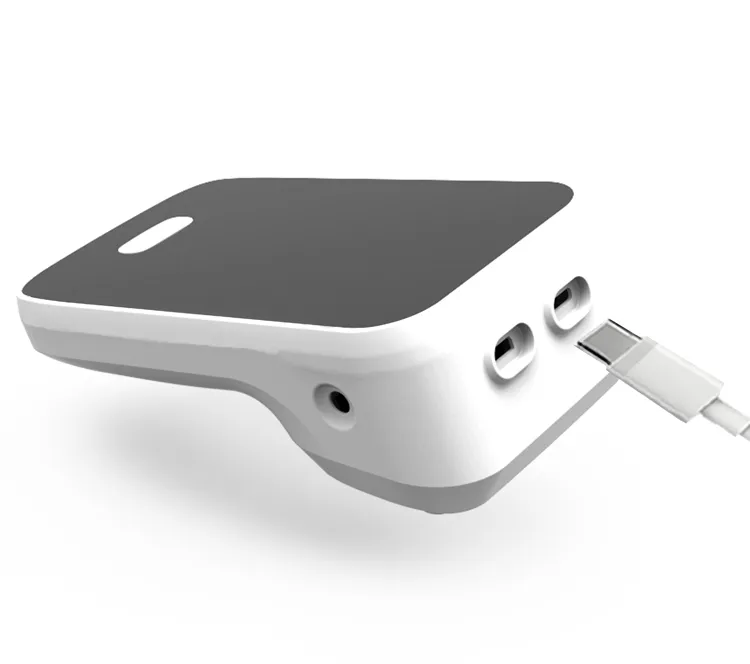

The device supports Type-C interface and can be used while charging.

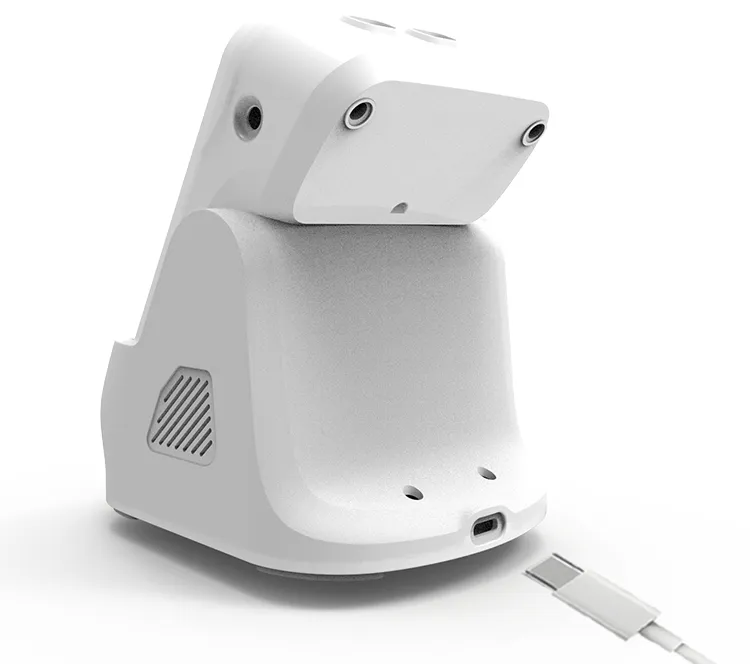

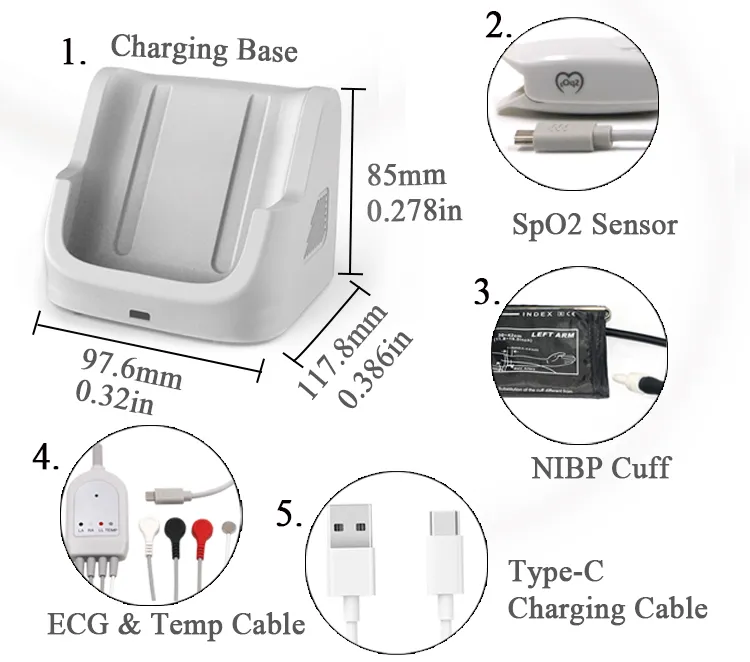

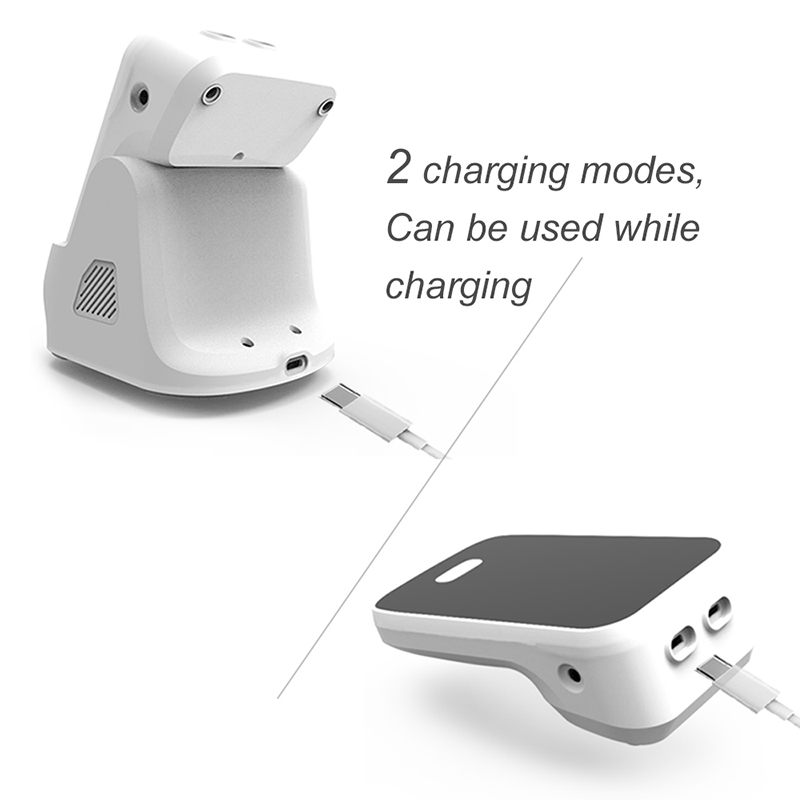

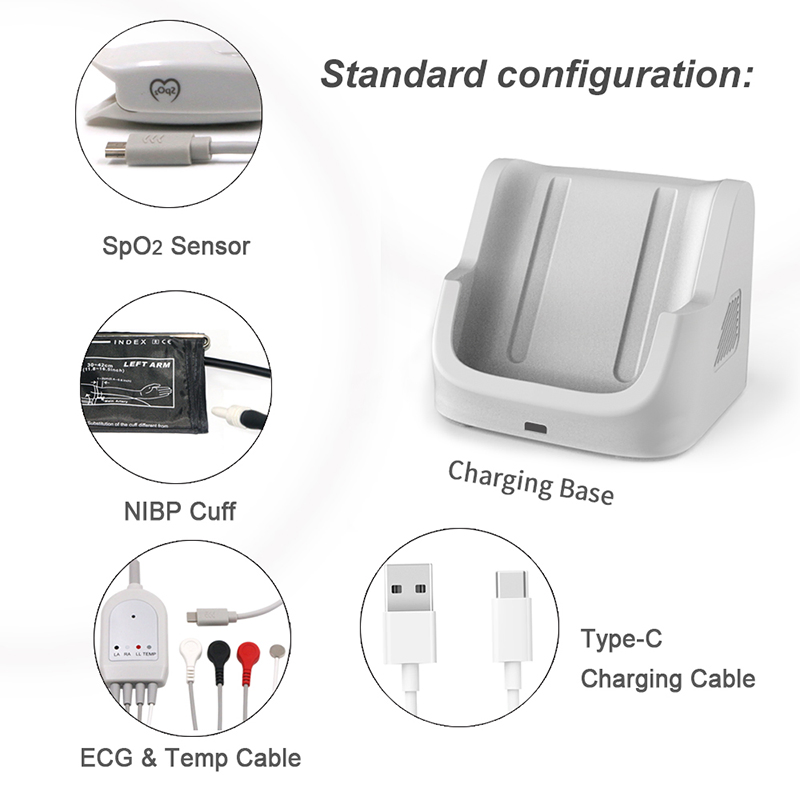

Wireless charging base & Direct machine charging

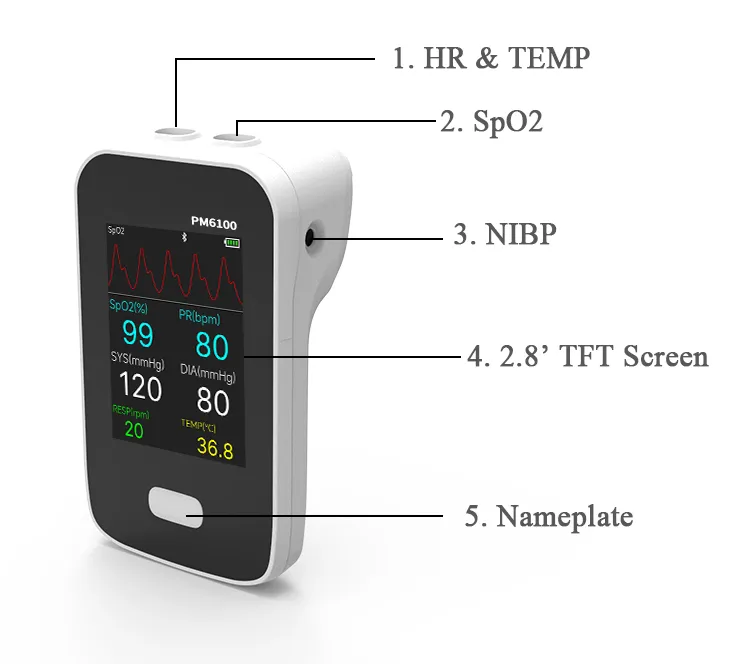

| No. | Name | Purpose |
|---|---|---|
| 1 | HR & TEMP | Connecting HR & TEMP lead cable, charging |
| 2 | SpO2 | Connecting SpO2 sensor |
| 3 | NIBP | Connecting NIBP cuff |
| 4 | TFT screen | Displaying monitoring results and waveform in real time |
| 5 | Button | Power on/off, performing different functions |
| Display HR, NIBP, SpO2, PR, TEMP, RESP |
Screen 2.8 inches colorized TFT-LCD |
| HR Range 25~250bpm (±2bpm or 2%) |
TEMP Range 25~45ºC (±0.2ºC) |
| SpO2 Range 35~100% (±2% for 80-100%) |
PR Range 25~250bpm (±2bpm or 2%) |
| NIBP Systolic 60~230mmHg |
NIBP Diastolic 40~130mmHg |
