Instructions: This Multi-parameter patient monitor is certified with CE0123, ISO13485, and ROHS. The PM6100 is designed to monitor vital physiological signals including Heart Rate (HR), Non-invasive Blood Pressure (NIBP), SpO2, Pulse Rate (PR), Body Temperature (TEMP), and Respiration Rate (RESP). It accurately captures signals verified through extensive clinical experiments.
Customization: Minimum quantity for custom orders is 1000 units.
Applicable to adults, elderly, and children.
Versatile usage scenarios.

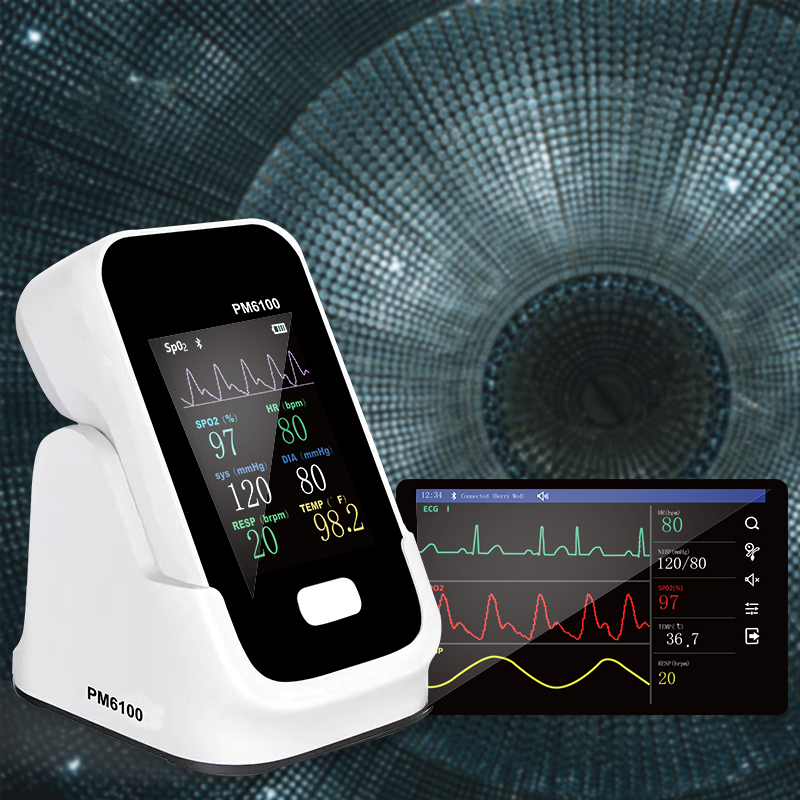

Connect to the "Smart Health" app via Bluetooth on mobile phones or tablets for real-time data reading. Available on the App Store and Google Play.
Supports use while charging via Type-C interface or wireless charging base.

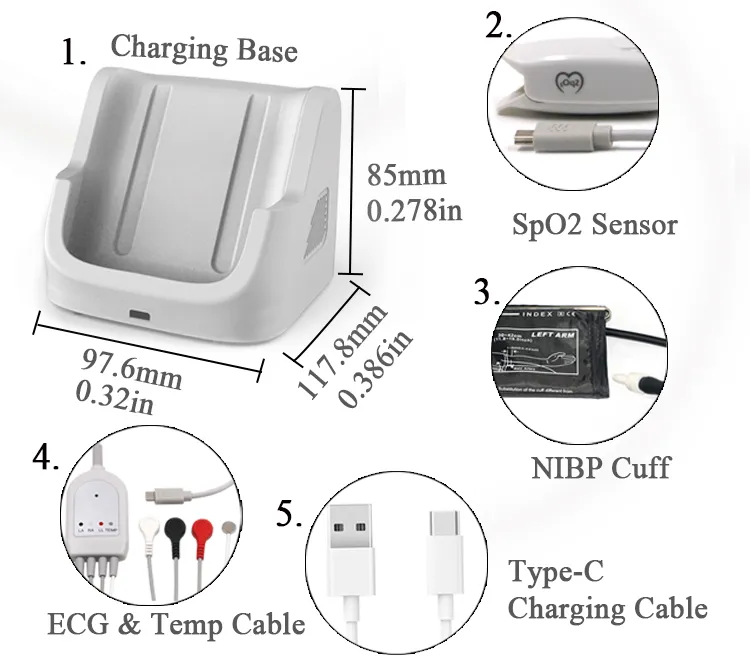

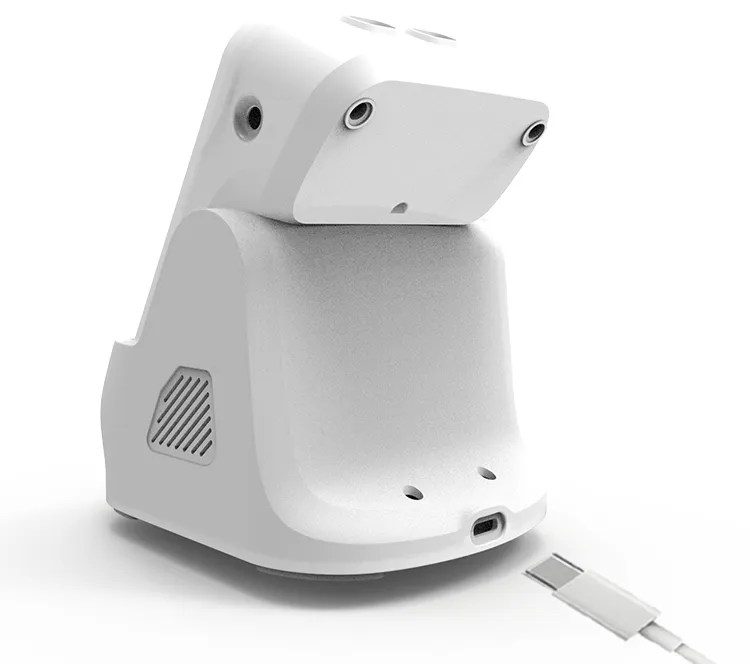

Wireless Charging Base

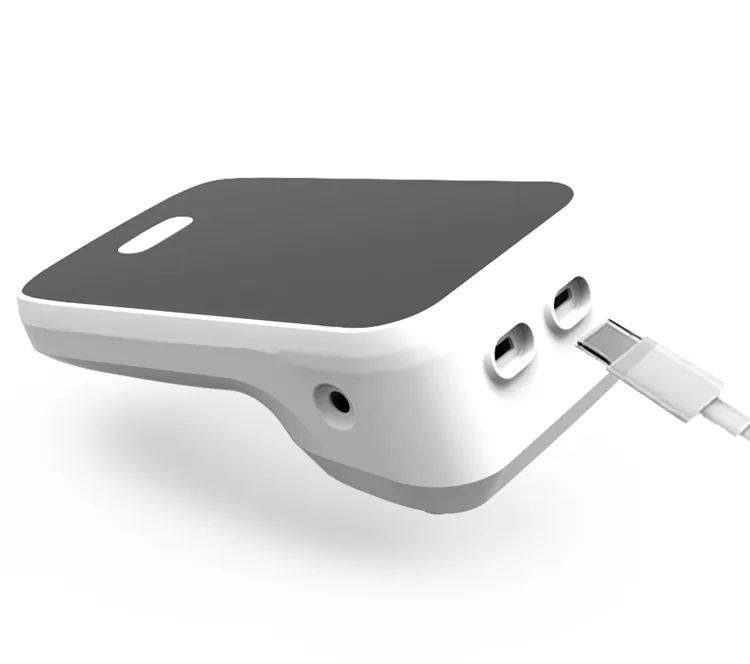

Machine Direct Charging

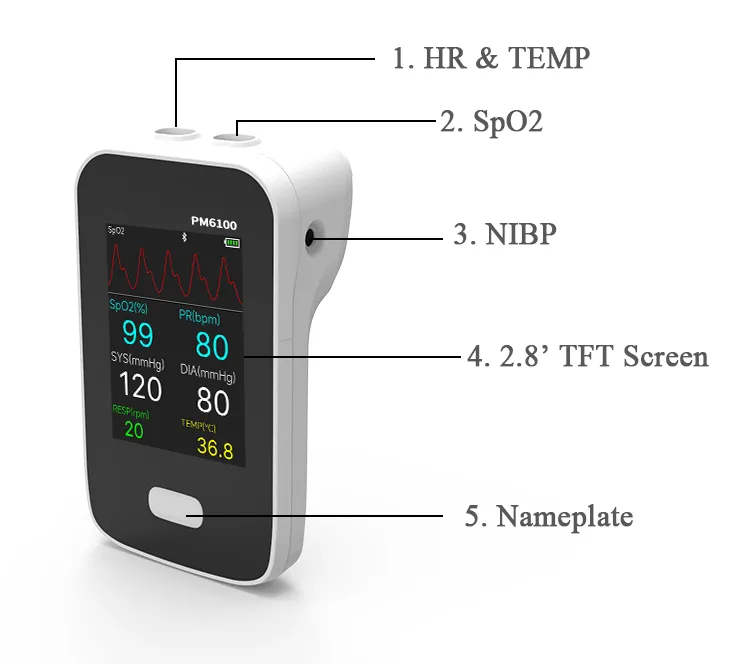

| No. | Name | Purpose |
|---|---|---|
| 1 | HR & TEMP | Connecting lead cable & charging |
| 2 | SpO2 | Connecting SpO2 sensor |
| 3 | NIBP | Connecting NIBP cuff |
| 4 | TFT Screen | Real-time waveform and results display |
| 5 | Button | Power and function control |
| Display | 2.8 inches colorized TFT-LCD |
| HR Range | 25~250bpm (Accuracy: ±2bpm or 2%) |
| SpO2 Range | 35~100% (Accuracy: ±2% at 80-100%) |
| NIBP Range | Systolic: 60~230mmHg / Diastolic: 40~130mmHg |
| TEMP Range | 25~45ºC (Accuracy: ±0.2ºC) |
| RESP Range | 5~100brpm (Accuracy: ±2brpm) |
| Weight | 256±10g (excluding accessories) |
