Home Health Bladder Volume Test Ultrasound Scanner Machine for Special Care

Customization:	Available
Customized:	Non-Customized
Certification:	CE, ISO13485

Send Inquiry

Product Description

Technical Specifications

Model NO.

BVT02

Scale

Small

Type

Health Care Intercom System

Medical Use

for Human

Application

Rehabilitation Care

Use Range

Urology, Special Care, Home Health

Weight

750g

Capacity

5000 Units

Product Overview

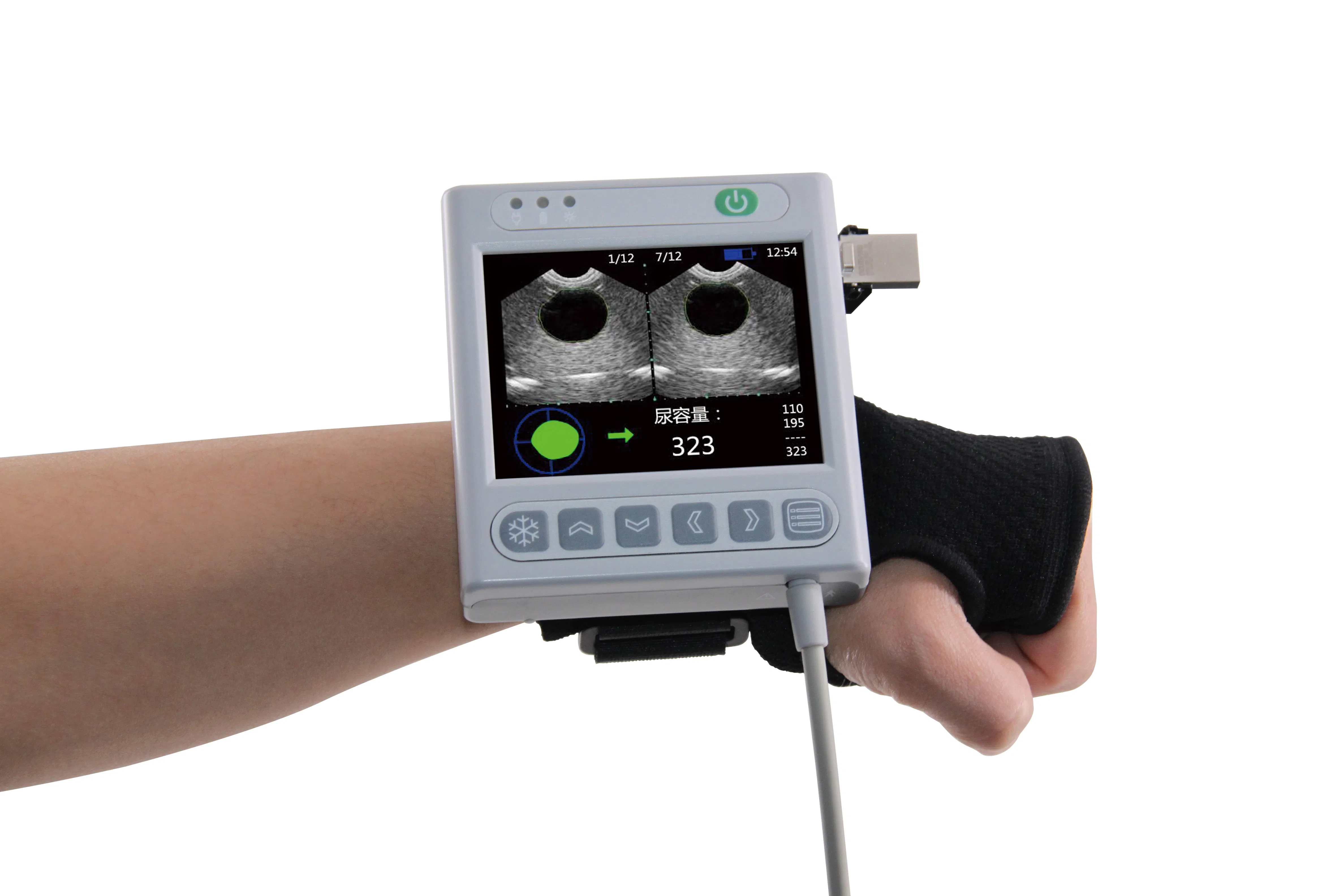

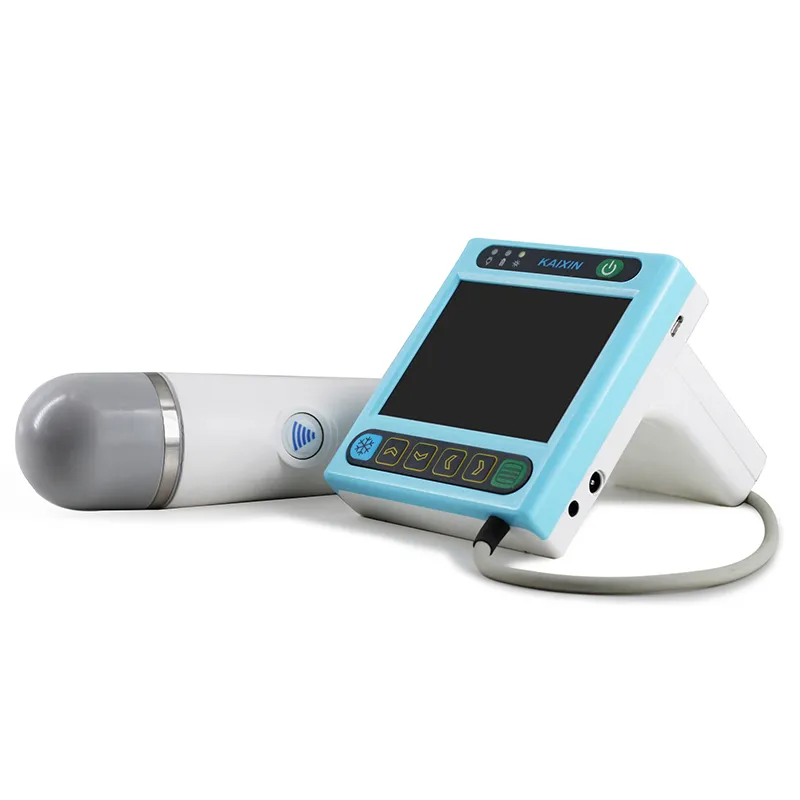

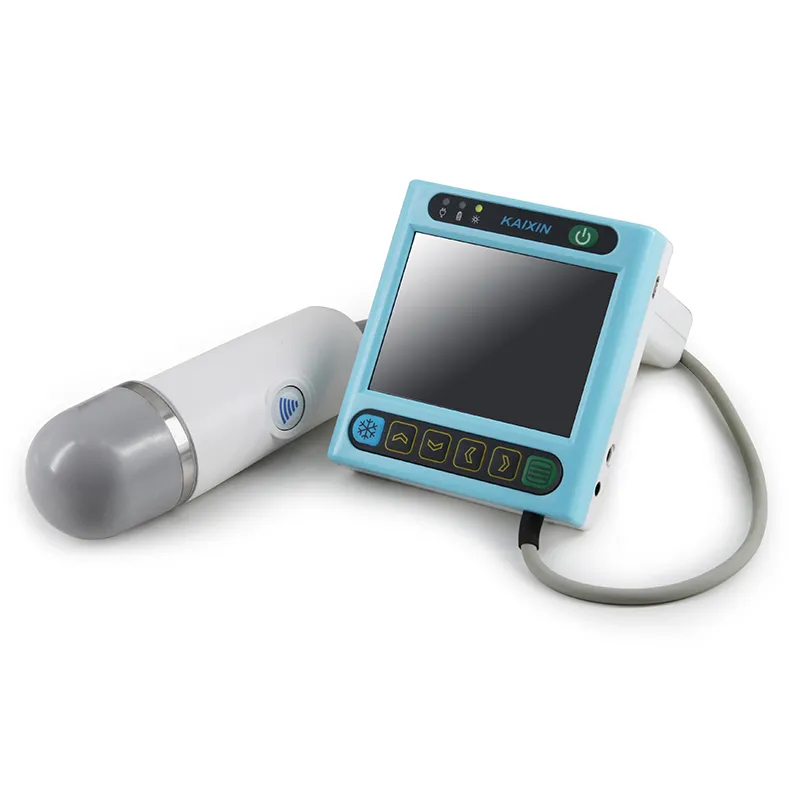

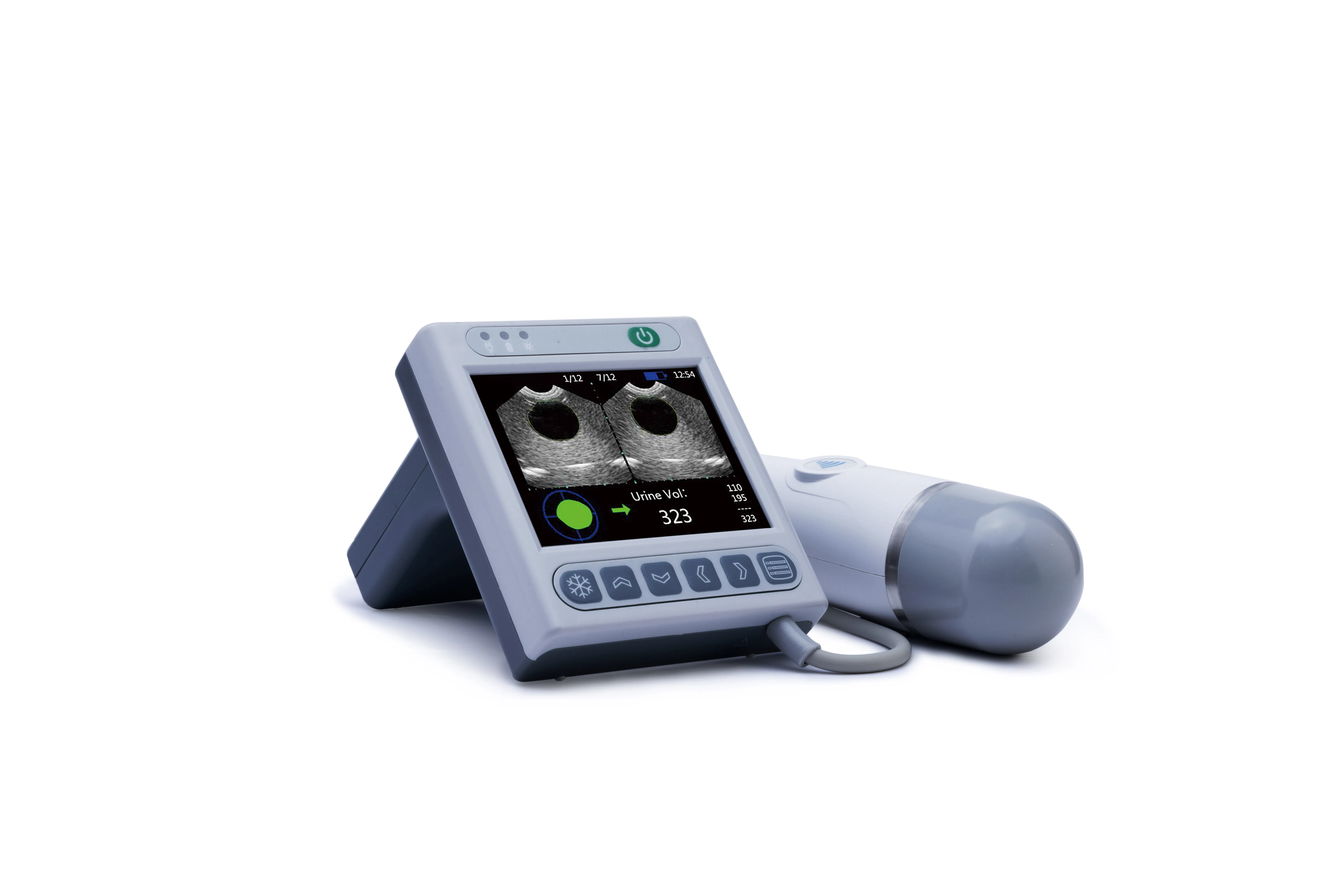

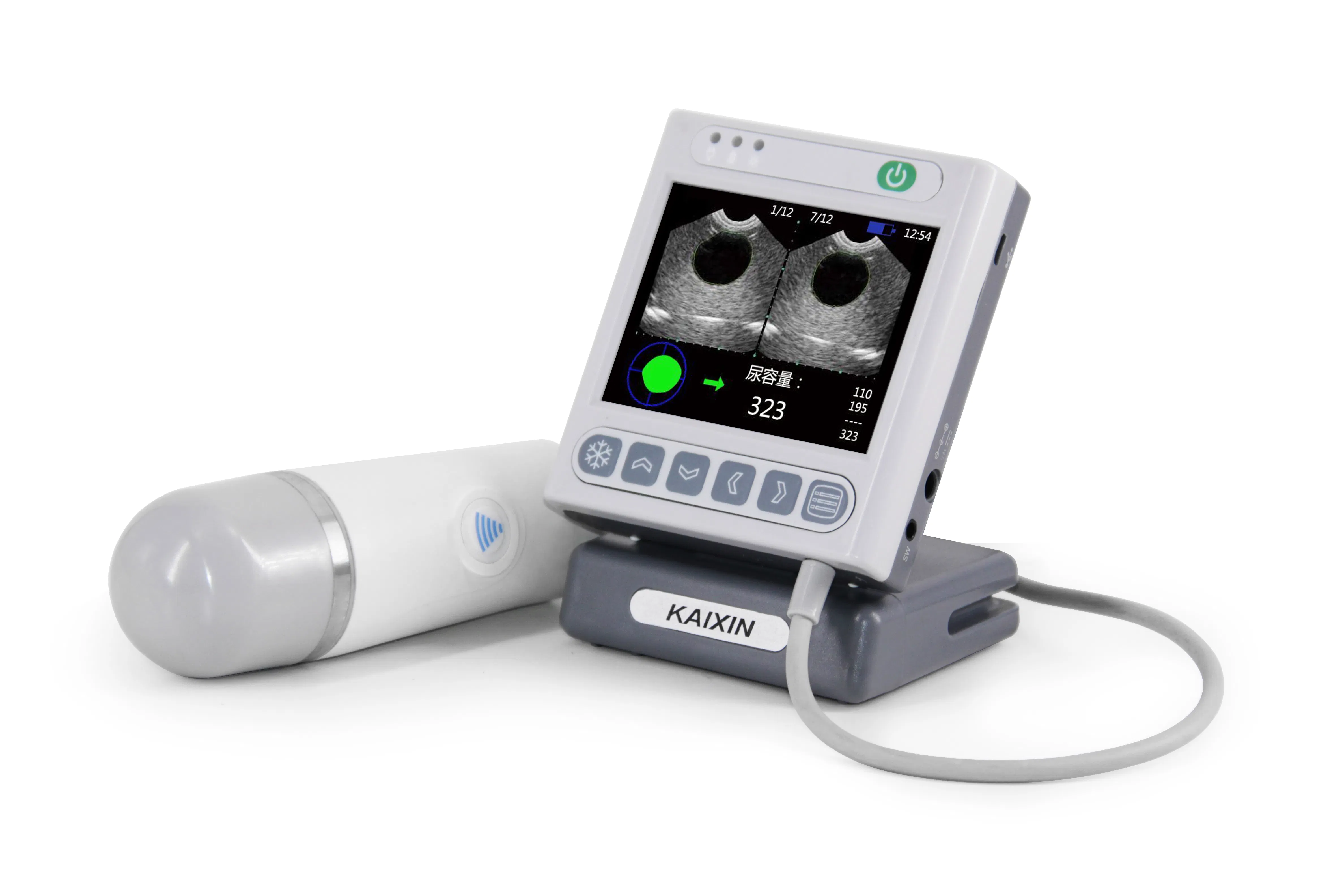

BVT02 Bladder Scanner (With Internal Printer)

The BVT02 is a state-of-the-art 3D ultrasound medical device designed to swiftly and precisely measure bladder volume and post-void residual volume.

Why Choose BVT02?

Bladder management for paraplegics is a critical aspect of daily care. Experience alone is unreliable for gauging bladder volume, which can lead to overfilling and risk upper urinary tract deterioration. The BVT02 reduces the need for frequent catheterization, lowering the risk of iatrogenic urinary system infections and patient discomfort.

Core Features

✓Compact and portable (750g main unit).

✓3.5' Color LCD screen for clear visualization.

✓Multi-language OS (English, Spanish, French, etc.).

✓Real-time 3D image scanning and positioning.

✓Ultra-fast scan time (<4 seconds).

✓Advanced algorithms for abnormal shape accuracy.

✓Hand-held probe with integrated scanning switch.

✓Capacity prompt alarm for threshold alerts.

✓Long battery life exceeding 9 hours.

✓Image comparison for enhanced measurement focus.

Clinical Applications

Urology Obstetrics-Gynecology Geriatrics Pediatrics Rehabilitation Surgery Home Health Special Care

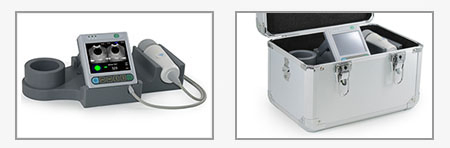

Standard Configuration

1	Main Unit (1pc)
2	Probe (1pc)
3	Power Adapter (1pc)
4	Touch Pen (1pc)
5	Battery (1pc)

Product Gallery

Frequently Asked Questions

Q: What is the primary use of the BVT02 Bladder Scanner? A: It is a 3D ultrasound device used to non-invasively measure bladder volume and post-void residual (PVR) volume to help manage urinary conditions and reduce unnecessary catheterization.

Q: How fast does the device perform a scan? A: The BVT02 is highly efficient, with a data acquisition and scan time of less than 4 seconds, significantly reducing errors caused by probe movement.

Q: Is the device portable for home health visits? A: Yes, the main unit weighs only 750g and features a compact design, making it ideal for home health, rehabilitation, and mobile medical services.

Q: How long does the battery last on a full charge? A: The device is equipped with a high-capacity battery that supports over 9 hours of continuous operation.

Q: Does it support different languages for international users? A: Yes, the operating system supports multiple languages, including English, Chinese, French, Russian, Spanish, and Portuguese.

Q: What is the difference between the Standard and Lite versions? A: The Standard version displays 12 image measurements for detailed comparison, while the Lite version displays a single large image for simplified use by less experienced operators.
