Home Hospital Use Diabetic Test Strips Blood Glucose Monitoring System

Customization: Available
Brand Name: Forermed
Product Name: Cholesterol Monitor

Product Description

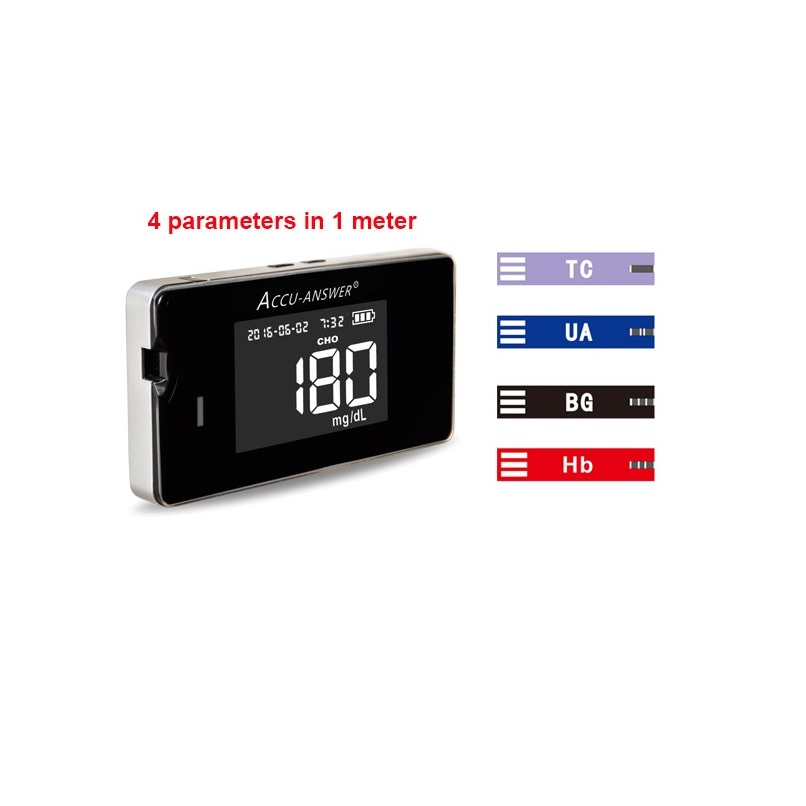

Simple 4 in 1 Multi-Monitoring Meter: Total Cholesterol, Hemoglobin, Glucose, and Uric Acid

This advanced monitoring system represents the high technology of rapid detection for the four major metabolites. It enables clinical instant detection (POCT) and seamless interconnection with wireless terminal equipment, allowing detection results to be transmitted to designated medical systems to support remote medical treatment.

📊 Basic Specifications
Model NO.
YJ-LBM-01
Power Source
Electric
Warranty
1 Year
Service
Online Technical Support
Material
Metal
Certification
CE
Package Size
60X49.5X39 cm
HS Code
8419200000
🌟 Key Features
✔️
4-in-1 Versatility
Monitor Total Cholesterol, Blood Glucose, Uric Acid, and Hemoglobin with one device.
✔️
Auto-Strip Recognition
System automatically identifies the strip type upon insertion.
✔️
Electrochemical Biosensor
Utilizes advanced technology for high precision and stability.
✔️
Rapid Results
Fast testing times: Glucose/Uric Acid/Hemoglobin in 5s, Cholesterol in 15s.
✔️
Siphon Design
Convenient blood sampling with only 0.5μL required.
✔️
Large Memory
Stores up to 400 results with integrated date and time tracking.

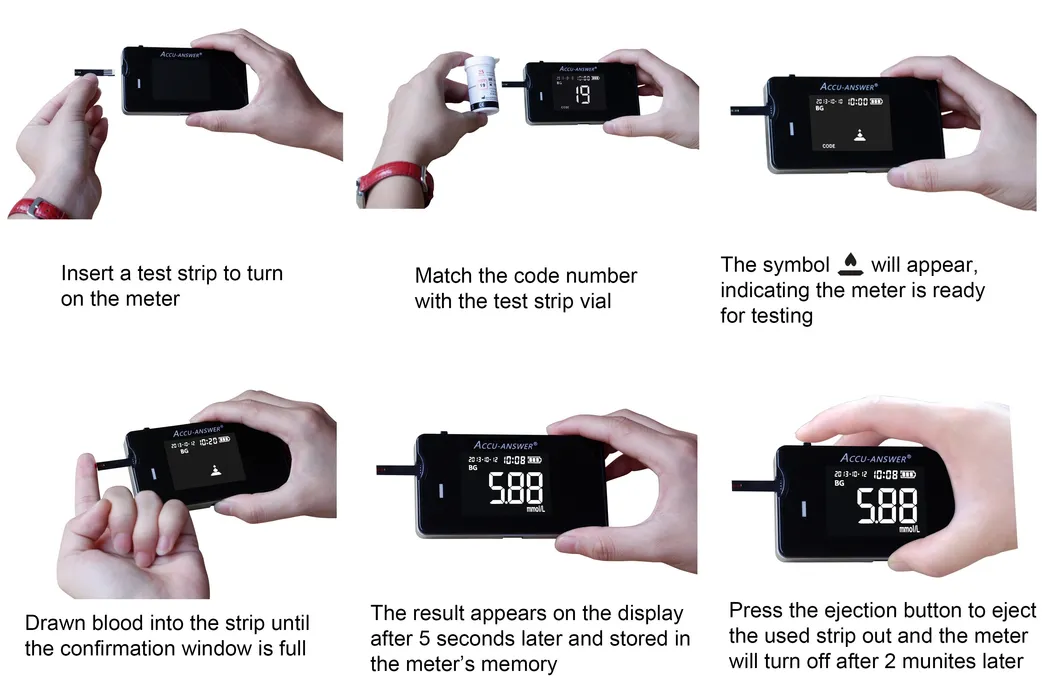

Multi-Monitoring System Overview
📋 Technical Data Sheet
Parameter Testing Range Reference Range (Normal) Response Time
Total Cholesterol 103 ~ 413 mg/dL 103 ~ 208 mg/dL 15 Seconds
Blood Glucose 20 ~ 600 mg/dL 70 ~ 110 mg/dL 5 Seconds
Uric Acid 1.5 ~ 20 mg/dL F: 1.5-5.95 / M: 2.5-6.9 mg/dL 5 Seconds
Hemoglobin 5.0 ~ 26 g/dL F: 11.0-15.0 / M: 13.5-17.5 g/dL 5 Seconds
Sample Type
Capillary or Venous Whole Blood
Power Supply
DC3V (2 AAA Batteries or USB)
LCD Size
52 * 38 mm
Dimensions
111 * 59 * 16 mm
Weight
110g (without battery)
Operating Temp
10 - 40ºC
📷 Product Detailed View
Product View 1

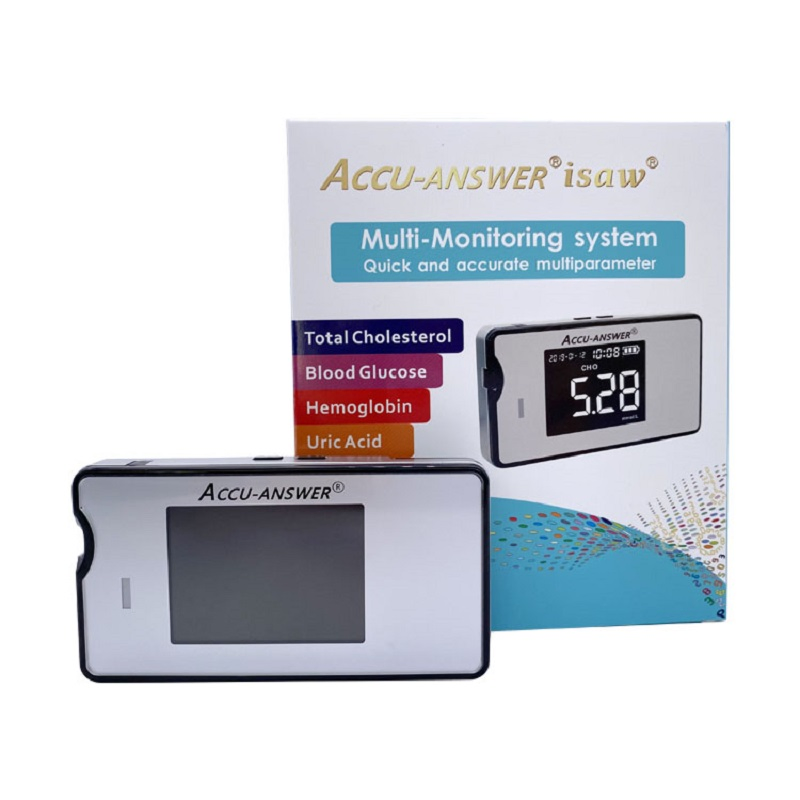

Product View 2

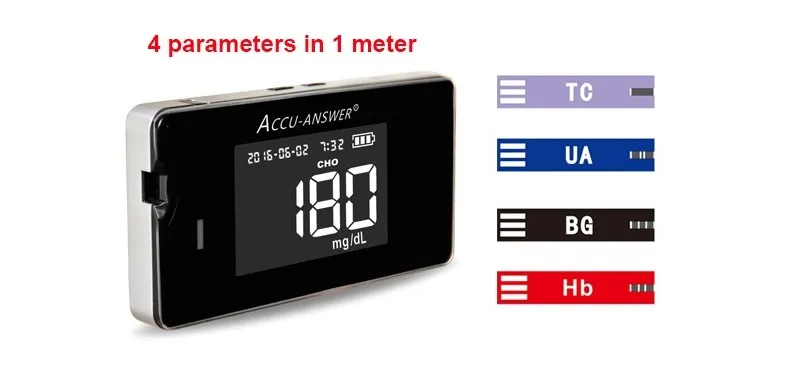

Product View 3

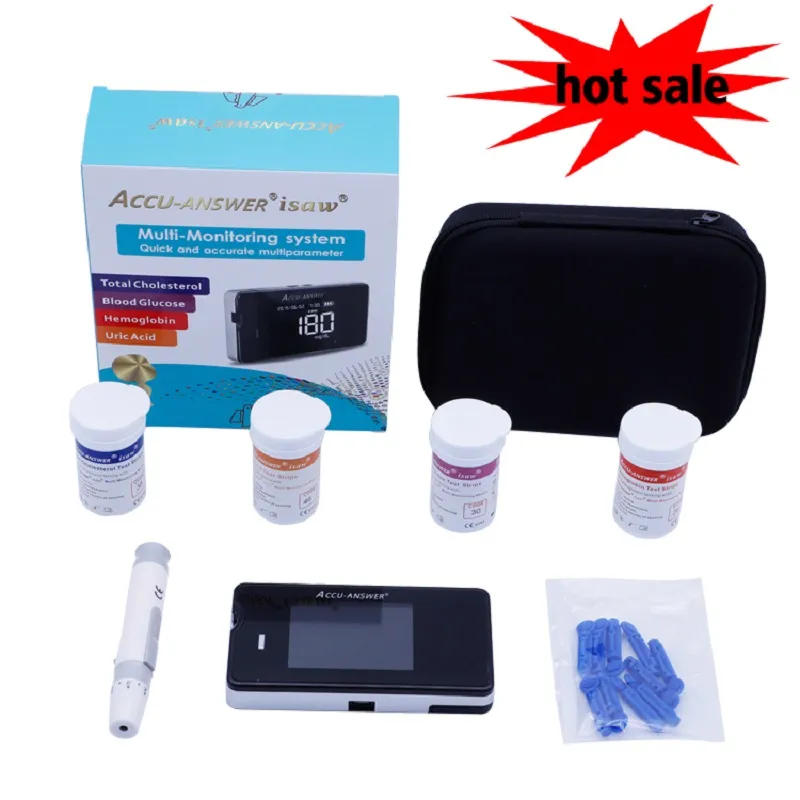

Product Packaging

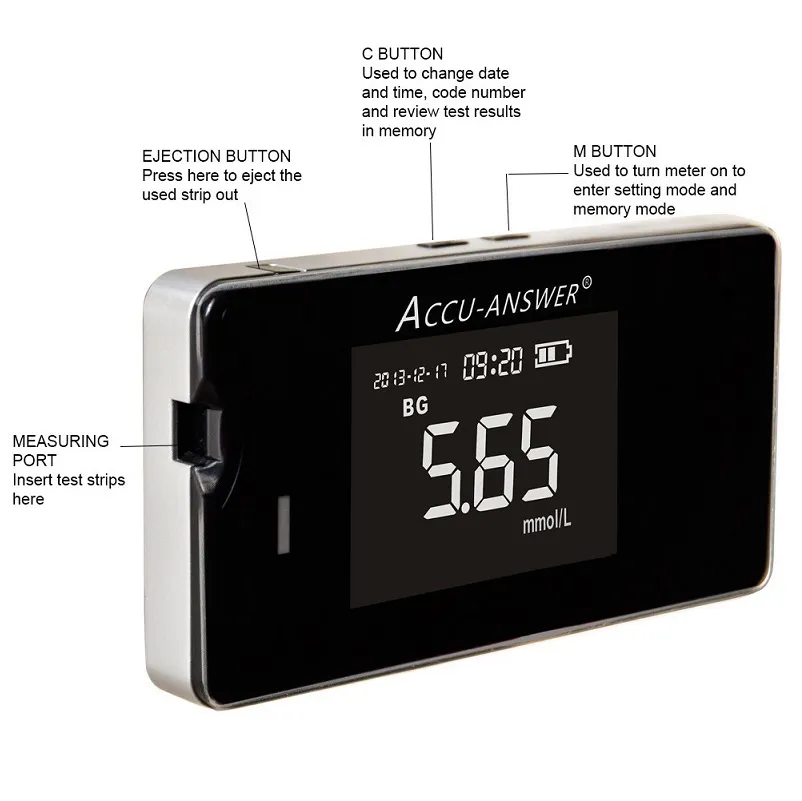

Measurement Screen
🏢 Production Environment
Manufacturing Facility
Frequently Asked Questions
What specific parameters can this meter test?
The system is a 4-in-1 monitor capable of testing Total Cholesterol, Blood Glucose, Uric Acid, and Hemoglobin levels using specialized test strips.
How much blood is required for a single test?
The device requires a very small sample of only 0.5μL, making the sampling process virtually painless for the user.
How long does it take to get the measurement results?
Results are provided rapidly: Glucose, Uric Acid, and Hemoglobin take just 5 seconds, while Total Cholesterol takes 15 seconds.
Do I need to manually enter a code for every new box of strips?
No, the device features Auto-Strip Recognition technology. It automatically recognizes and calibrates for the inserted strip.
How many test results can the device store?
The internal memory can store up to 400 test results, each including the specific date and time of the measurement.
What are the power requirements for the meter?
The meter is powered by either two AAA batteries (supporting approximately 1,000 tests) or via a USB plug-in connection.
