Holtop Factory Wholesale Phi Mechanical Ventilation System with Heat Recovery Heat Recuperators

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
CFA 250T
Certification
ISO9001, ROHS, CE
Fan Motor Type
EC
Bypass
Yes, Auto-Bypass
Temp. Efficiency
up to 95%
Core Type
Washable Counterflow Heat Exchanger
Inner Construction
EPP
Installation

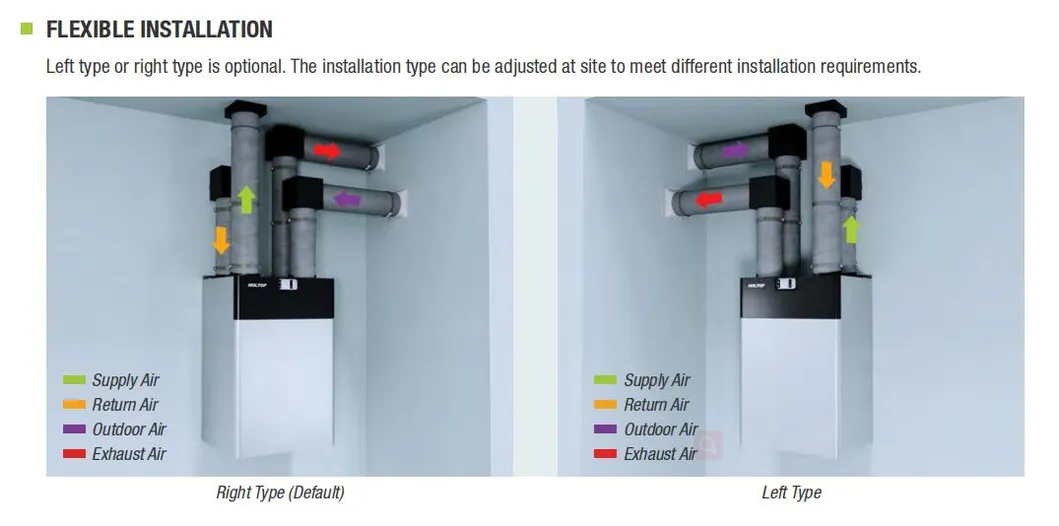

Wall Mounted or Floor Standing
WiFi Function
Optional
Usage
Villa, Apartment, Club, Bar, Gym
Product Description

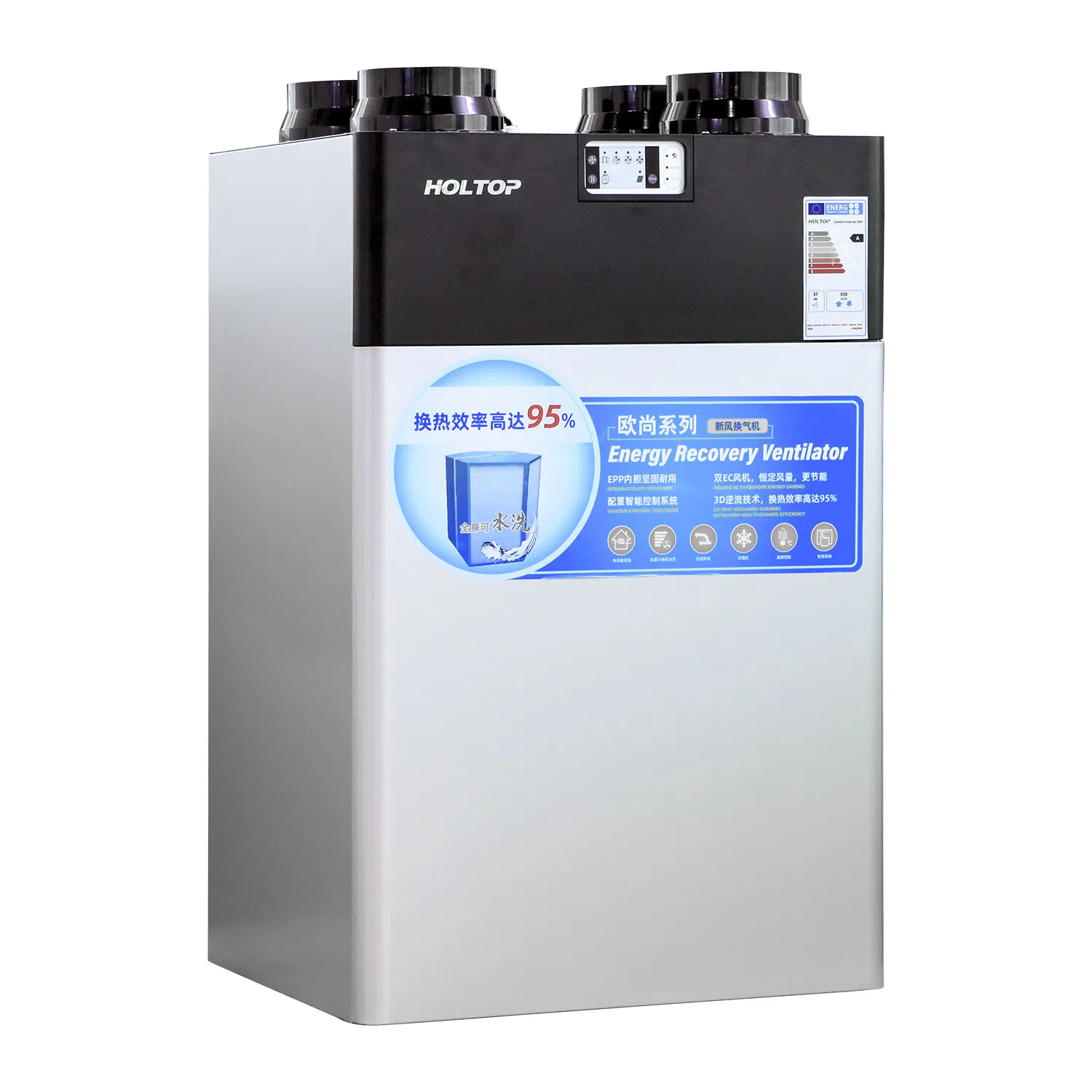

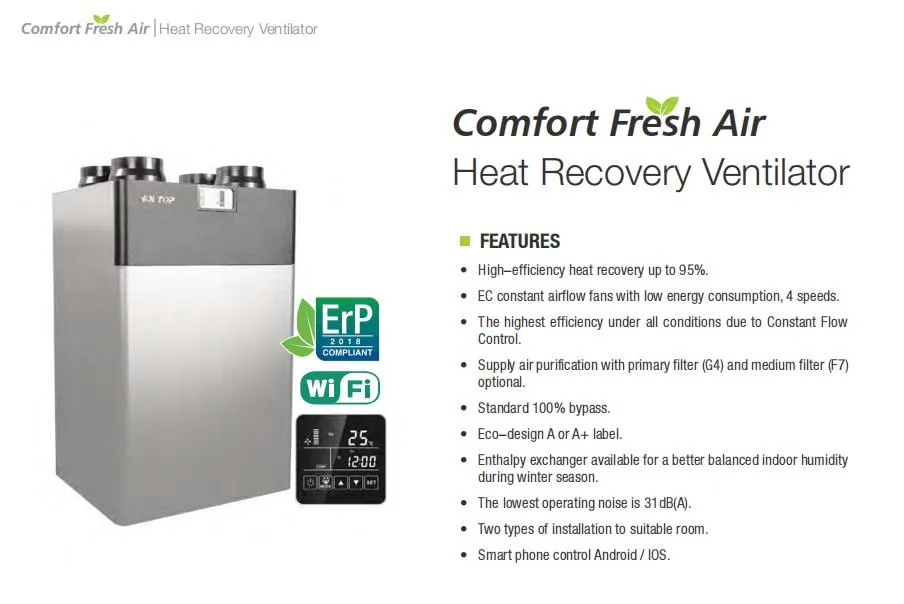

Compact High Efficiency Heat Recovery Ventilator

Compact HRV High Efficiency Heat Recovery Ventilator

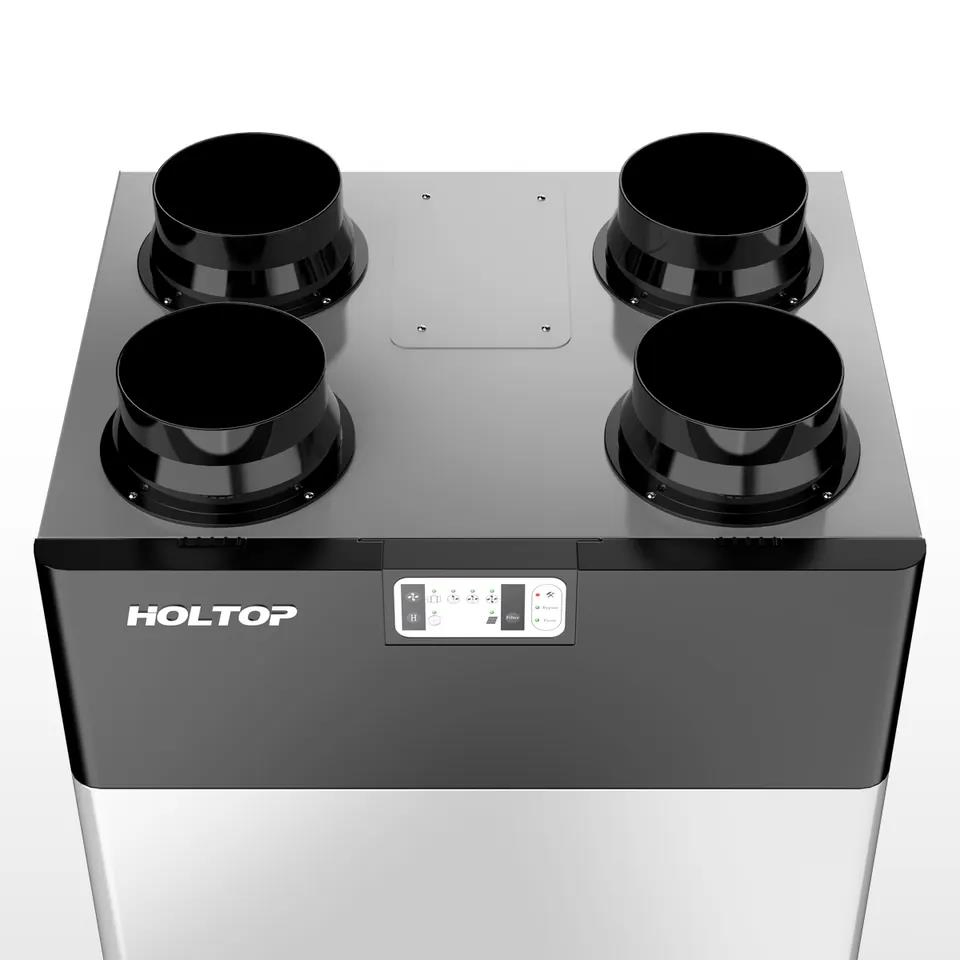

Top port, compact unit – Ideally suited for tight installations.

Enjoy the refreshing effect of opening a window or door while preserving indoor comfort and system efficiency. This system offers the ability to remove moisture from incoming air during hot, steamy months and can supply a refreshing infusion of outdoor air all year long. It's the perfect addition to your modestly-sized home.

Ventilation Diagram
Key Features & Components

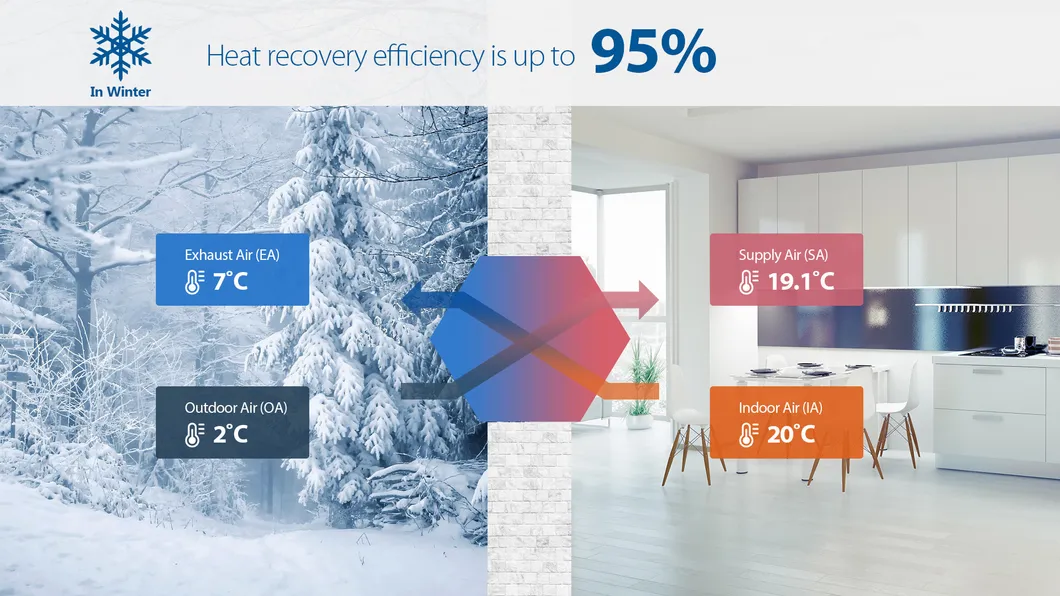

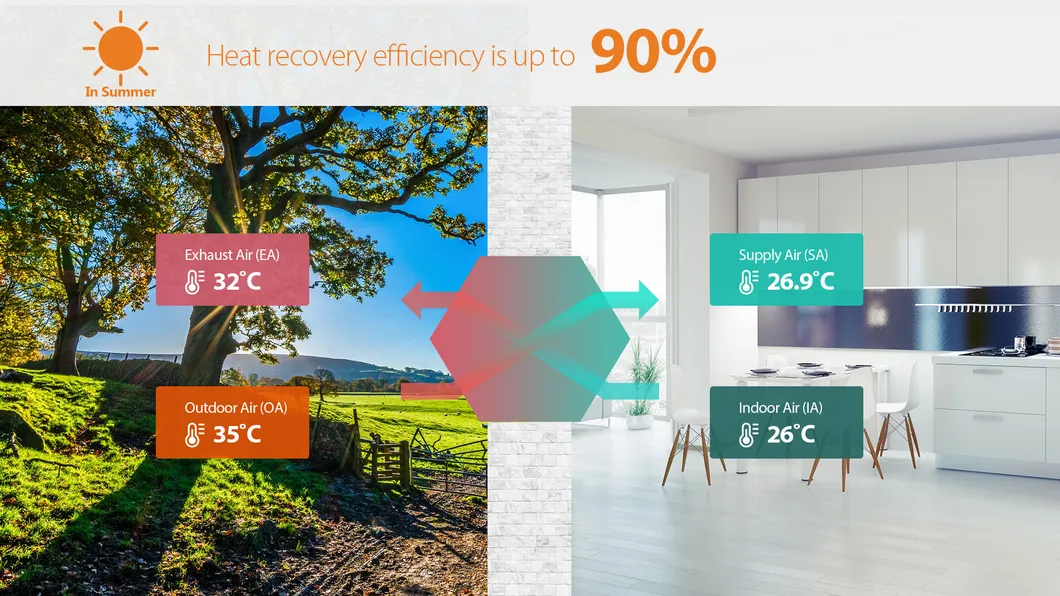

  • High Efficiency: Sensible heat recovery with efficiency up to 95%.
  • Advanced Core: Washable counterflow heat exchanger (Enthalpy core is optional).

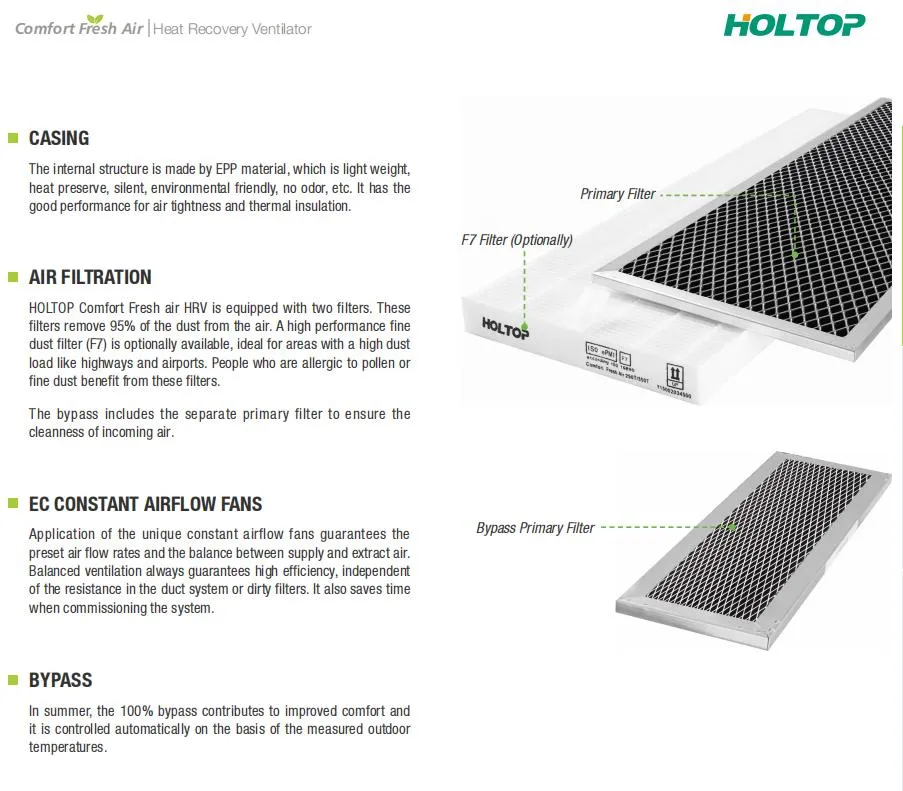

  • Silent Operation: EPP inner construction for superior noise reduction and insulation.
  • Smart Monitoring: Humidity, Temperature, and CO2 monitoring capabilities.
  • Constant Airflow: Maintains consistent air volume regardless of external pressure changes.

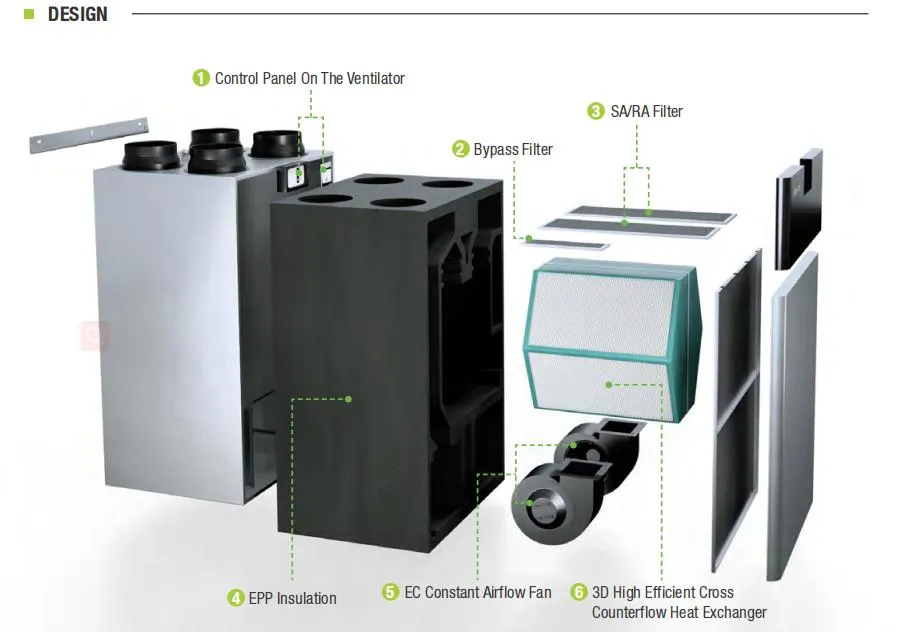

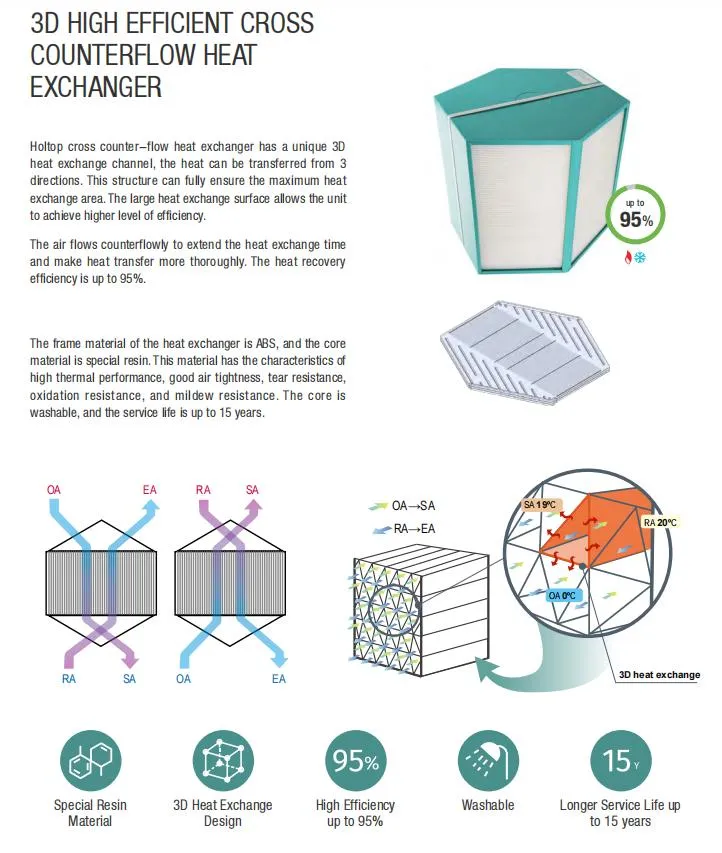

Internal Core Details Ventilation Features

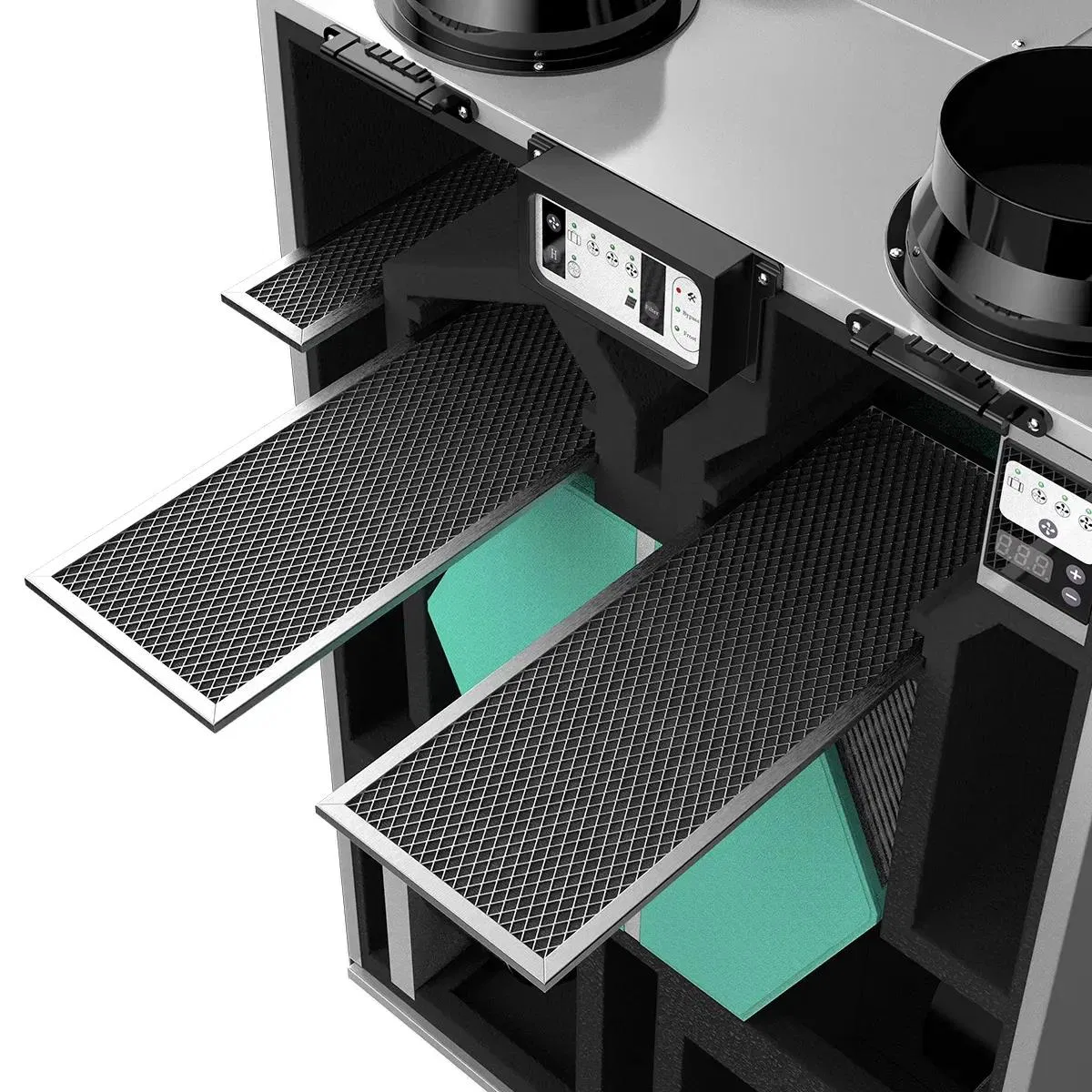

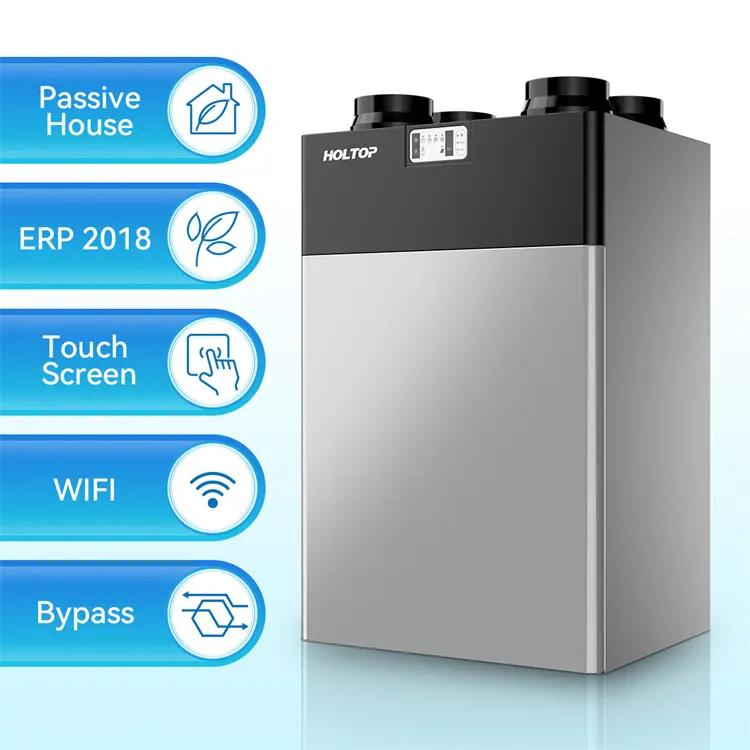

Product Views Installation Setup Filter Access
Technical Specifications
Specification Chart
MODEL No. CFA250T CFA350T CFA500T
Airflow [ m³/h ]250350500
External Static Pressure [ Pa ]130150160
Rated Airflow Efficiency [ % ]858585
Max Temperature Efficiency [ % ]959595
Rated Power [ W ]170320480
Noise [ dB(A) ]353739
Dimensions & Installation

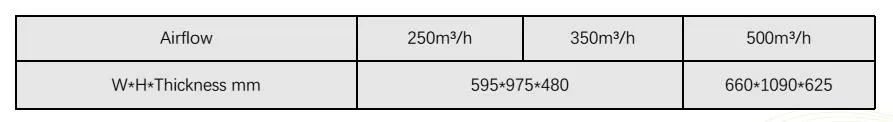

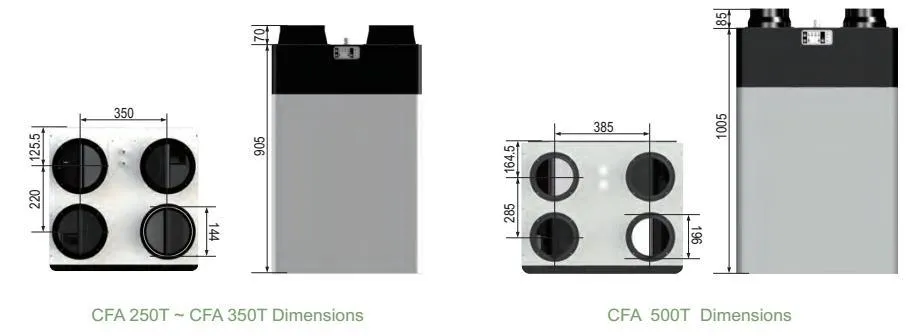

Dimensions Product Size Table Exploded Diagram Installation Guide
Manufacturer Capability

Our facility has established business relationships across Asia, Europe, and North America, earning a worldwide reputation for providing reliable air handling products and application expertise. We are dedicated to delivering highly efficient and energy-saving solutions to ensure indoor health and environmental protection.

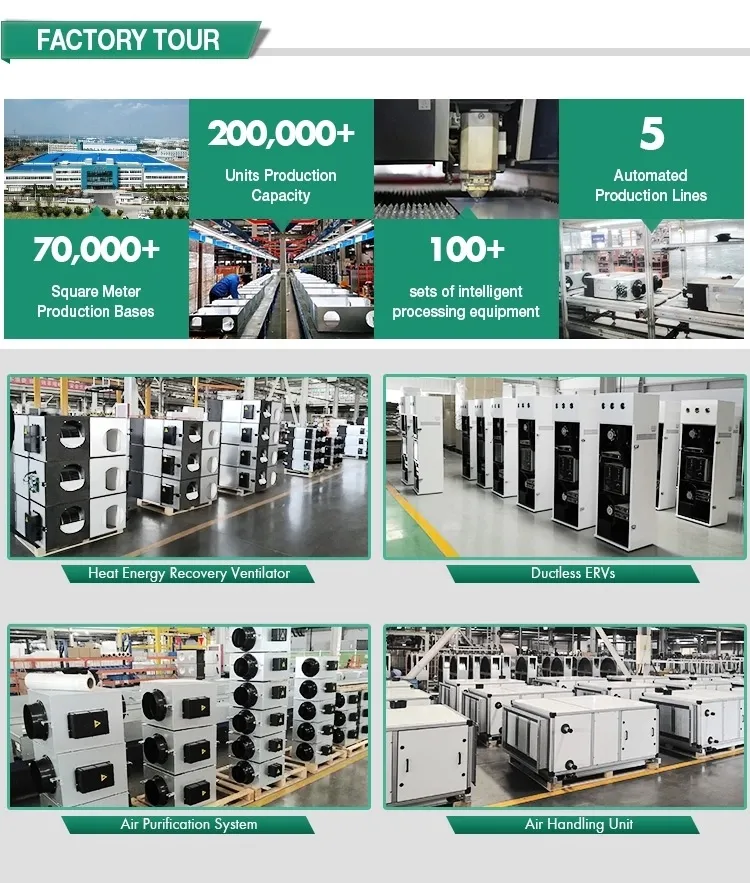

Production Line Quality Control Testing Lab
Frequently Asked Questions
What is the maximum heat recovery efficiency of this unit? The unit features a counterflow heat exchanger that can achieve a maximum temperature efficiency of up to 95%.
Is the heat recovery core washable? Yes, the unit is equipped with a washable counterflow heat exchanger core for easy maintenance and long-term performance.
What kind of installations is this HRV suitable for? Due to its compact, top-ported design, it is ideally suited for tight spaces in villas, apartments, clubs, bars, and gyms. It can be wall-mounted or floor-standing.

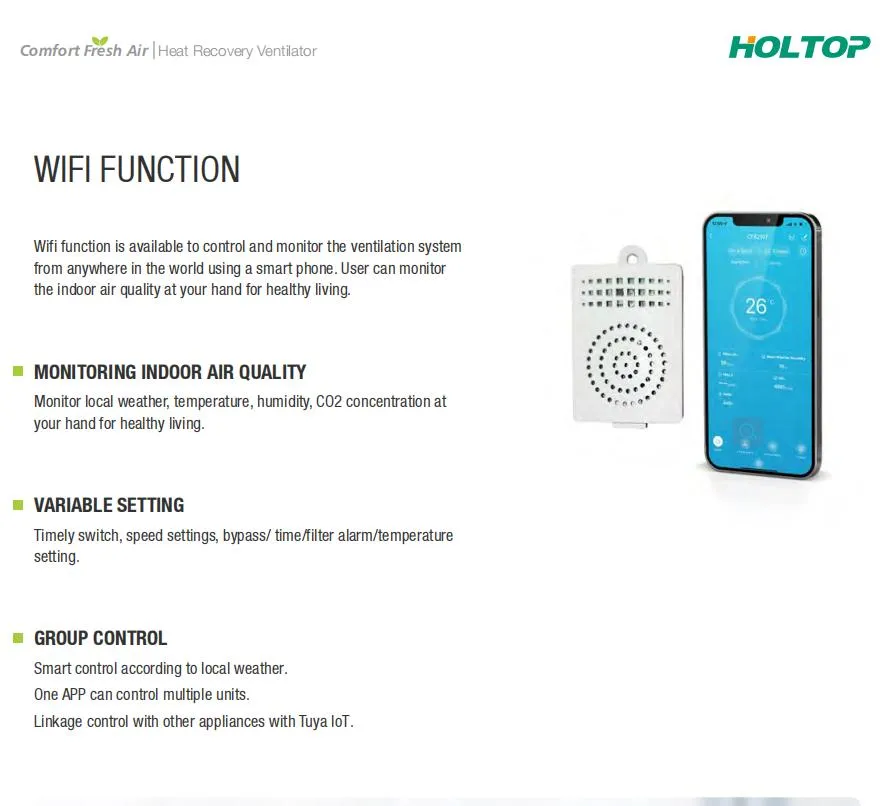

Does the unit support smart home connectivity? Yes, a WiFi module is available as an optional part, and the system supports humidity, temperature, and CO2 monitoring.
What are the benefits of the EPP inner construction? The EPP (Expanded Polypropylene) structure provides excellent thermal insulation, minimizes air leakage, and significantly reduces noise levels during operation.
Can an electric heater be added to the system? Yes, an electric heater is optional, and the system comes with a reserved electric heater signal port for easy integration.
